Mercedes-Benz G

Date of manufacture

2012 – 2013 (Convertible)

2012 – 2015 (SUV)

Platform

Manufacturing locations

Graz, Austria

Designer

Car body style

Convertible

after upgrade (facelift)

Date of manufacture

2012 – 2013

Internal designation

W463

Engine size

G 500 4MATIC

SUV

after upgrade (facelift)

Date of manufacture

2012 – 2015

Internal designation

W463

Engine size

Petrol

Diesel

Technical data

Convertible

	G 500 4MATIC
Date of sale	-
Engine type	Petrol
Number of cylinders/valves	8/32
Engine displacement [cm³]	5461
Maximum output / speed [kW/min-1]	285/6000
Maximum torque [Nm/min-1]	530/2800-4800
Bore and stroke [mm x mm]	98,0 x 90,5
Compression ratio	10,7:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	variable valve timing

Drive axle	4x4
Gearbox	7 gear automatic
Drive specifications	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	210
Acceleration 0–100 km/h [s]	5.9
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	20.0
Out of town [l]	11.9
Combined [l]	14.9
CO2 emissions [g/km]	348

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	2492
Overall weight [kg]	2850
Maximum trailer weight unbraked/braked [kg]	750/2850
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-

Boot volume [l]	-
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-
Boot length [mm]	380
Boot length with rear seats folded [mm]	1300
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	650
Height of the open boot door [mm]	-
Boot opening height [mm]	1191
Boot opening width min/max [mm]	-

Number of doors	2
Number of seats	4
Fuel tank volume [l]	96
AdBlue tank volume [l]	-
Air resistance [Cd]	0.54
Front suspension	rigid with trailing arms and torsion bar
Rear suspension	rigid with trailing arms and torsion bar
Tyre dimensions front	265/60 R18
Tyre dimensions rear	265/60 R18
Wheel size front	7.5J x 18 ET63
Wheel size rear	7.5J x 18 ET63
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	11.3/-

Overall length [mm]	4267
Overall width without/including mirrors [mm]	1760/2055
Overall height [mm]	1956
Wheelbase [mm]	2400
Front wheel track [mm]	1475
Rear wheel track [mm]	1475
Forward overhang [mm]	783
Rear overhang [mm]	820
Clearance [mm]	220
Wading depth [mm]	600
Approach angle front [°]	36
Approach angle rear [°]	27
Transition angle [°]	-
Climbing rate [°]	80
Maximum side tilt [°]	54

Headroom front [mm]	1054
Headroom rear [mm]	1062
Front elbow/shoulder width [mm]	1432/1460
Rear elbow/shoulder width [mm]	1432/1460
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

SUV

	G 500 4MATIC	G 63 AMG 4MATIC	G 65 AMG 4MATIC	G 350 BlueTEC 4MATIC
Date of sale	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Diesel supercharged
Number of cylinders/valves	8/32	8/32	12/36	6/24
Engine displacement [cm³]	5461	5461	5980	2987
Maximum output / speed [kW/min-1]	285/6000	400/5500	450/4300-5600	155/3400
Maximum torque [Nm/min-1]	530/2800-4800	760/2000-5000	1000/2300-4300	540/1600-2400
Bore and stroke [mm x mm]	98,0 x 90,5	98,0 x 90,5	82,6 x 93,0	83,0 x 92,0
Compression ratio	10,7:1	10,0:1	9,0:1	16,5:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	variable valve timing	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	supercharging by twin turbochargers	direct injection Common Rail turbo-supercharged particulate filter SCR catalytic converter with AdBlue additive injection

Drive axle	4x4	4x4	4x4	4x4
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox AMG SPEEDSHIFT PLUS 7G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox AMG SPEEDSHIFT PLUS 7G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	210	210	230	175
Acceleration 0–100 km/h [s]	6.1	5.4	5.3	9.1
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	20.0	17.2	22.7	13.6
Out of town [l]	11.9	11.8	13.7	9.8
Combined [l]	14.9	13.8	17.08	11.2
CO2 emissions [g/km]	348	322	397	295

Emission standard	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	2530	2550	2580	2570
Overall weight [kg]	3200	3200	3200	3200
Maximum trailer weight unbraked/braked [kg]	750/3500	750/3500	750/3500	750/3500
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	200/-	200/-	200/-	200/-

Boot volume [l]	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/2250	-/2250	-/2250	-/2250
Boot length [mm]	750	750	750	750
Boot length with rear seats folded [mm]	1720	1720	1720	1720
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-/1182	-/1182	-/1182	-/1182
Loading edge height [mm]	646	646	646	646
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	1141	1141	1141	1141
Boot opening width min/max [mm]	-	-	-	-

Number of doors	4	4	4	4
Number of seats	5	5	5	5
Fuel tank volume [l]	96	96	96	96
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.54	0.54	0.54	0.54
Front suspension	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar
Rear suspension	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar
Tyre dimensions front	265/60 R18	275/50 R20	275/50 R20	265/70 R16
Tyre dimensions rear	265/60 R18	275/50 R20	275/50 R20	265/70 R16
Wheel size front	7.5J x 18 ET63	9.5J x 20 ET50	9.5J x 20 ET50	7.5 J x 16 ET63
Wheel size rear	7.5J x 18 ET63	9.5J x 20 ET50	9.5J x 20 ET50	7.5 J x 16 ET63
Brake dimensions front	-	375 x 36	375 x 36	-
Brake dimensions rear	-	330 x 22	330 x 22	-
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	13.6/-	13.6/-	13.6/-	13.6/-

Overall length [mm]	4662	4769	4769	4662
Overall width without/including mirrors [mm]	1760/2055	1760/2055	1760/2055	1760/2055
Overall height [mm]	1951	1938	1938	1951
Wheelbase [mm]	2850	2850	2850	2850
Front wheel track [mm]	1475	1501	1501	1475
Rear wheel track [mm]	1475	1501	1501	1475
Forward overhang [mm]	783	-	-	783
Rear overhang [mm]	820	-	-	820
Clearance [mm]	205	205	205	205
Wading depth [mm]	600	600	600	600
Approach angle front [°]	36	27	27	36
Approach angle rear [°]	27	27	27	27
Transition angle [°]	-	-	-	-
Climbing rate [°]	80	80	80	80
Maximum side tilt [°]	54	54	54	54

Headroom front [mm]	1053	1053	1053	1053
Headroom rear [mm]	1020	1020	1020	1020
Front elbow/shoulder width [mm]	1348/1430	1348/1430	1348/1430	1348/1430
Rear elbow/shoulder width [mm]	1348/1430	1348/1430	1348/1430	1348/1430
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

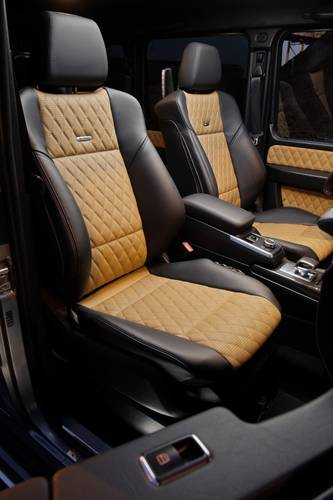

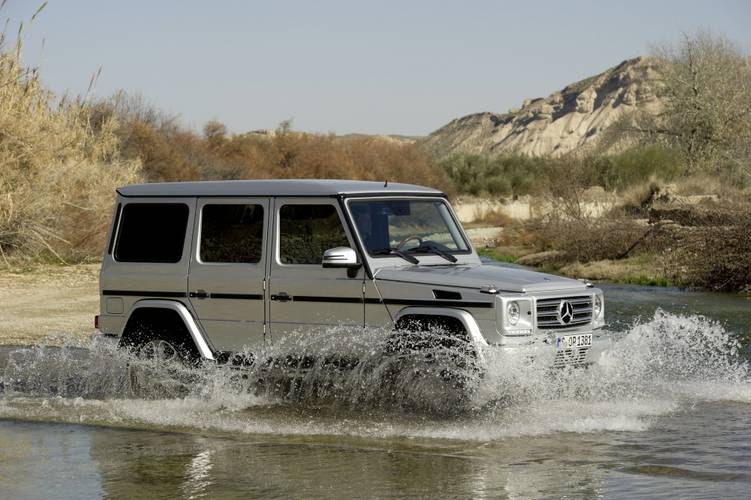

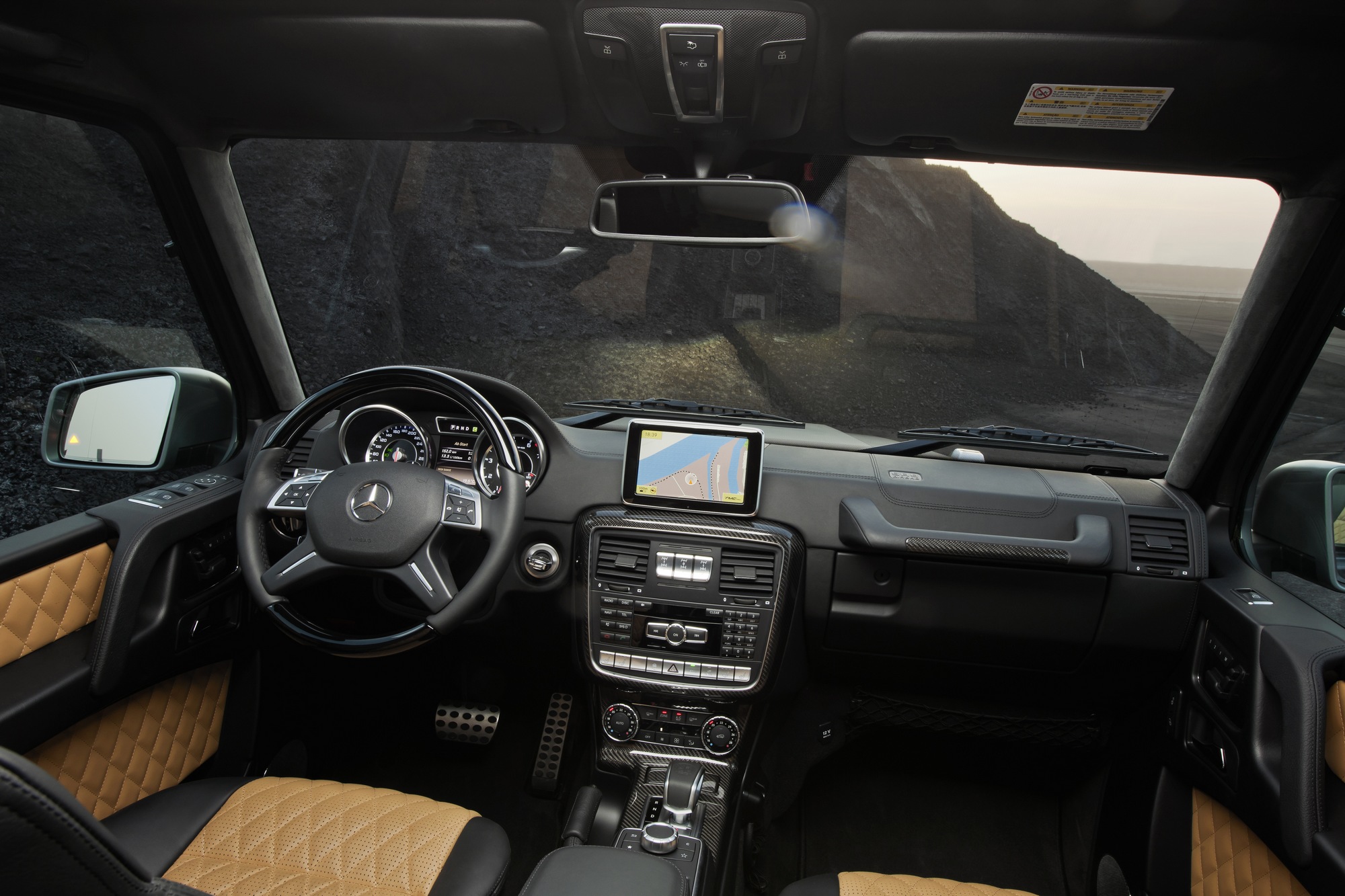

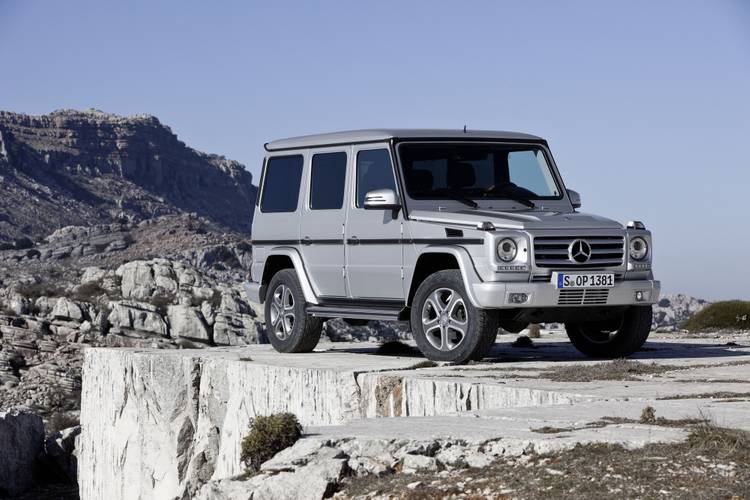

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
