Mercedes-Benz E
Date of manufacture
2020 – to this day (Sedan)
2020 – to this day (Estate)
2020 – to this day (Coupé)
2020 – to this day (Convertible)
Platform
MRA
Manufacturing locations
Sindelfingen, Germany
Bremen, Germany
Beijing, People's Republic of China
Pune, India
Designer
Robert Lesnik
Drummond Jacoy
Tags
E-segment
German cars
Mercedes-Benz E has been produced since 2020 in four body styles - sedan, estate, coupe and cabriolet. The vehicle is manufactured in Germany, China and India on the MRA platform and offers petrol, diesel and hybrid power units. The most powerful car is the E 63 AMG S 4MATIC+ with 450 kW of power, a top speed of 300 km/h and a best acceleration from 0-100 km/h in 3.4 seconds. The most economical engine is the E 300 de 4MATIC with a combined fuel consumption of 1.5 l/100 km and CO2 emissions of 40 g/km. The sedan body style offers a boot capacity of 540 l, the estate body style 640 l, the coupe body style 405 l and the cabriolet body style 285-360 l. The car was tested according to EURONCAP in 2016 and achieved an overall rating of 5 out of 5.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
W213Engine size
PetrolPetrol + Electric

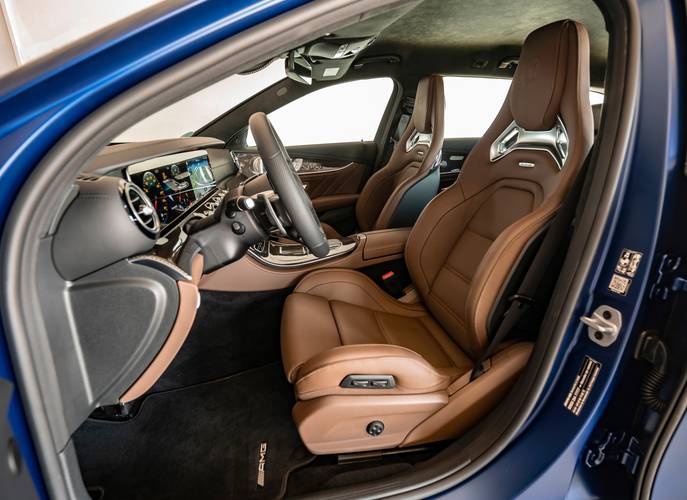

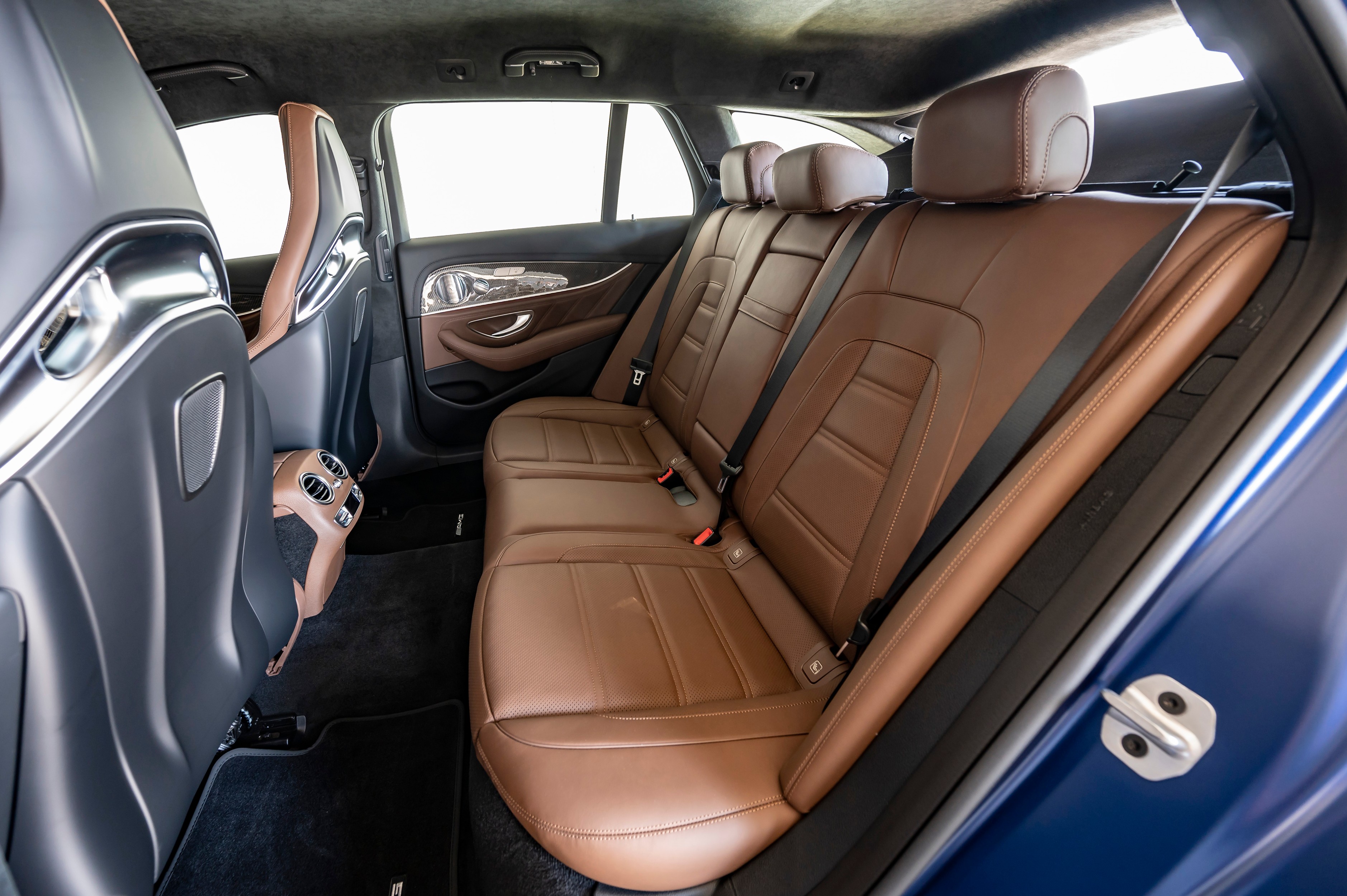

Estate
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
S213Engine size
PetrolPetrol + Electric

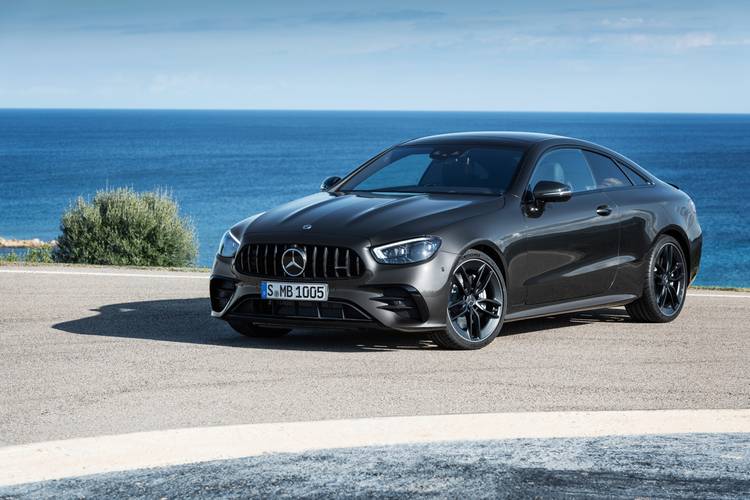

Coupé
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation

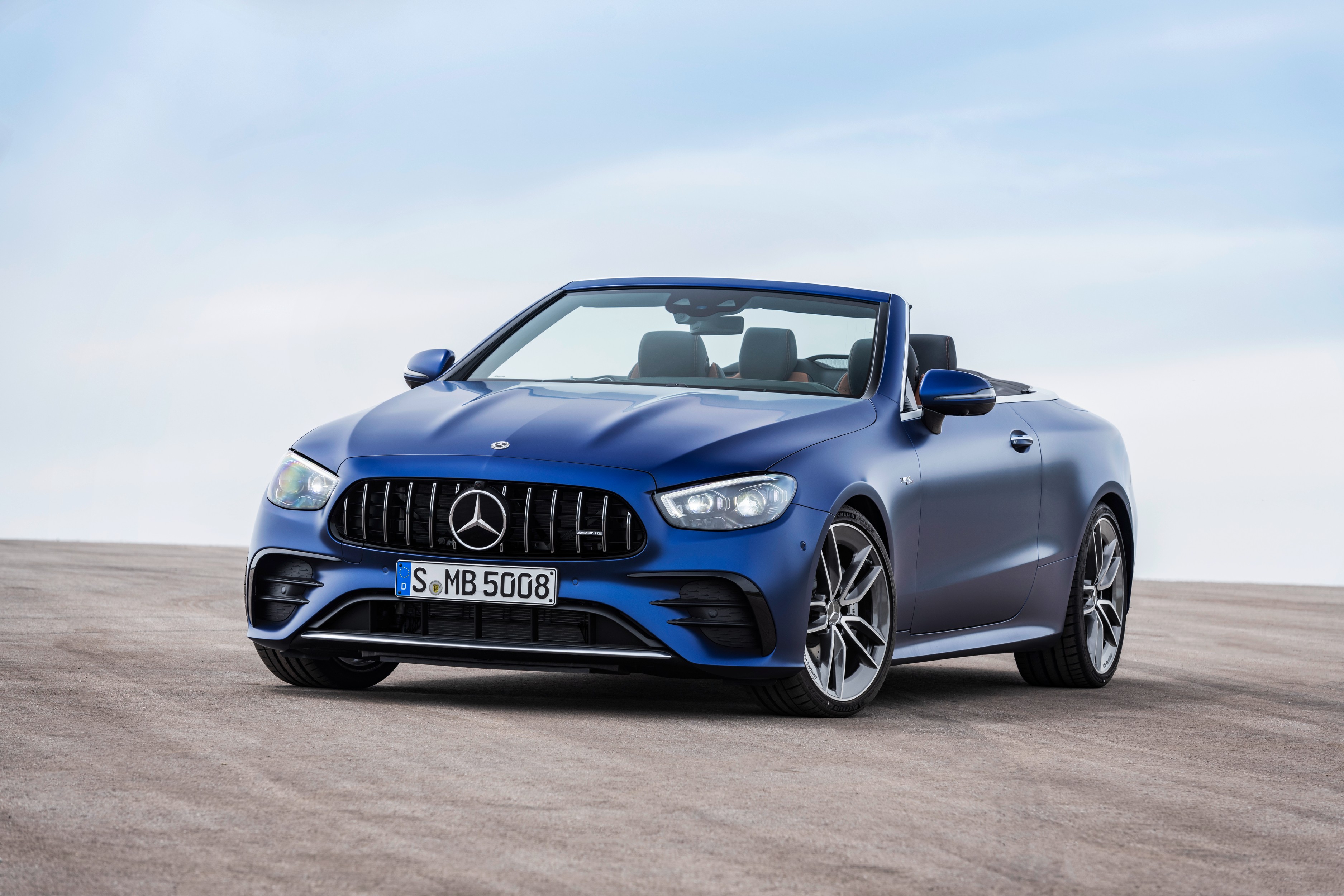

C238Convertible
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
A238Technical data
Sedan
E 200 | E 200 4MATIC | E 300 | E450 4MATIC | E 53 AMG 4MATIC+ | E 63 AMG 4MATIC+ | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | from to 2021 |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 8/32 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 2999 | 2999 | 3982 |
Maximum output / speed [kW/min-1] | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 190/5500-6100 10 el. | 270/5500-6100 16 el. | 320/6100 16 el. | 420/5750-6500 |
Maximum torque [Nm/min-1] | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 370/1650-4000 150 el. | 500/1600-5500 250 el. | 520/1800-5800 250 el. | 750/2250-5000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.4 | 83.0 x 92.4 | 83,0 x 92,0 |
Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 8.6:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 240 | 232 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 7.4 | 7.5 | 6.2 | 5.0 | 4.5 | 3.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.1-8.8 | 9.4-8.9 | 9.1-8.8 | 11.6-10.9 | 11.7-11.4 | - |
Out of town [l] | 5.7-5.3 | 6.0-5.6 | 5.7-5.4 | 6.6-6.1 | 7.1-6.8 | - |
Combined [l] | 6.9-6.6 | 7.2-6.8 | 7.0-6.6 | 8.4-7.9 | 8.8-8.5 | - |
CO2 emissions [g/km] | 158-151 | 165-156 | 159-151 | 192-181 | 200-194 | - |
Low speed [l] | 11.8-10.7 | 11.8-11.0 | 11.9-10.8 | 14.2-13.3 | 14.2-14.0 | 19.3-19.1 |
Medium speed [l] | 8.5-7.2 | 8.7-7.5 | 8.5-7.3 | 9.3-8.2 | 9.6-9.1 | 12.7-12.3 |
High speed [l] | 7.0-5.9 | 7.3-6.3 | 7.1-5.9 | 7.9-6.9 | 8.3-7.8 | 10.6-10.1 |
Extra high speed [l] | 8.1-6.5 | 8.3-7.0 | 8.1-6.6 | 8.7-7.3 | 9.0-8.4 | 11.0-10.5 |
Combined speed [l] | 8.3-7.0 | 8.6-7.4 | 8.4-7.1 | 9.3-8.2 | 9.6-9.1 | 12.4-11.9 |
CO2 emissions [g/km] | 189-159 | 194-168 | 190-161 | 211-186 | 218-207 | 281-270 |
Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | 48 | 48 | 48 | 48 | 48 | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1700 | 1765 | 1730 | 1940 | 1945 | 2000 |
Overall weight [kg] | 2360 | 2425 | 2390 | 2600 | 2495 | 2555 |
Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2100 | 750/2100 | 750/2100 | 750/1900 | 750/1900 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | 84 | 84 |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1826 | 1826 | 1826 | 1826 | 1826 | 1826 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 66 | 66 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.26 | 0.27 | 0.26 | 0.26 | 0.302 | 0.323 |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 Y | 225/55 R17 Y | 225/55 R17 Y | 245/45 R18 Y | 245/40 R19 98Y XL | 265/40 R19 |
Tyre dimensions rear | 225/55 R17 Y | 225/55 R17 Y | 225/55 R17 Y | 245/45 R18 Y | 275/35 R19 100Y XL | 295/35 R19 |
Wheel size front | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 8.0J x 19 ET43 | 9.5J x 19 |
Wheel size rear | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 9.0J x 19 ET49 | 10.0J x 19 |
Brake dimensions front | - | - | - | - | 370 x 36 | 360 x 36 |
Brake dimensions rear | - | - | - | - | 360 x 24 | 360 x 26 |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.9/- | 11.6/- | 11.9/- | 12.5/- | 12.5/- |
Overall length [mm] | 4935 | 4935 | 4935 | 4935 | 4953 | 4984 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1860/2065 | 1860/2065 | 1907/2065 |
Overall height [mm] | 1460 | 1460 | 1460 | 1467 | 1447 | 1460 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1604 | 1604 | 1604 | 1600 | 1628 | 1649 |
Rear wheel track [mm] | 1608 | 1606 | 1608 | 1598 | 1598 | 1595 |
Forward overhang [mm] | 853 | 853 | 853 | 853 | - | - |
Rear overhang [mm] | 1143 | 1143 | 1143 | 1143 | - | - |
Clearance [mm] | 97 | 97 | 97 | 97 | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 14.5 | 14.5 | 14.5 | 14.5 | - | - |
Approach angle rear [°] | 11.8 | 11.8 | 11.8 | 11.8 | - | - |
Transition angle [°] | 8.7 | 8.7 | 8.7 | 8.7 | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
Front elbow/shoulder width [mm] | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 63 AMG S 4MATIC+ | E 300e | E 300e 4MATIC | E 200d | E 220d | E 220d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 3982 | 1991 | 1991 | 1597 | 1950 | 1950 |
Maximum output / speed [kW/min-1] | 450/5750-6500 | 155/5500 combustion 90 el. 235 total | 155/5500 combustion 90 el. 235 total | 118/3800 | 143/3800 | 143/3800 |
Maximum torque [Nm/min-1] | 850/2500-4500 | 350/1200-4000 combustion 440/0-2000 el. 700 total | 350/1200-4000 combustion 440/0-2000 el. 700 total | 260/1600-2600 | 400/1600-2800 | 400/1600-2800 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83.0 x 92.0 | 83.0 x 92.0 | 80,0 x 79,5 | 82.0 x 92.3 | 82.0 x 92.3 |
Compression ratio | 8.6:1 | 10.0:1 | 10.0:1 | 15,7:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | 4x4 | Rear | Rear | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 300 | 250 | 245 | 222 | 235 | 232 |
Acceleration 0–100 km/h [s] | 3.4 | 5.8 | 5.9 | 8.8 | 7.4 | 7.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 15.7 | - | - | 5.5-5.2 | 6.0-5.7 | 6.7-6.1 |
Out of town [l] | 9.3 | - | - | 4.3-4.0 | 4.4-4.1 | 4.8-4.5 |
Combined [l] | 11.6 | 2.2-1.9 [13.0 kWh] | 2.0 [14.0-13.6 kWh] | 4.7-4.4 | 5.0-4.7 | 5.4-5.1 |
CO2 emissions [g/km] | 267 | 49-43 | 46 | 125-117 | 130-123 | 143-134 |
Low speed [l] | 19.3-19.1 | - | - | 7.3-6.4 | 8.0-7.0 | 8.4-7.5 |
Medium speed [l] | 12.7-12.3 | - | - | 5.9-5.0 | 6.4-5.5 | 6.5-5.7 |
High speed [l] | 10.6-10.1 | - | - | 5.1-4.1 | 5.4-4.4 | 5.5-4.7 |
Extra high speed [l] | 11.0-10.5 | - | - | 6.0-4.7 | 6.2-5.0 | 6.3-5.3 |
Combined speed [l] | 12.4-11.9 | 2.0-1.5 [16.8-15.3 kWh] | 1.9-1.7 [16.8-16.0 kWh] | 5.9-4.8 | 6.3-5.2 | 6.4-5.5 |
CO2 emissions [g/km] | 281-270 | 44-33 | 44-38 | 155-126 | 164-135 | 167-144 |
Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | Lithium-Ionen-Akkumulator, 13.5 kWh | Lithium-Ionen-Akkumulator, 13.5 kWh | - | - | - |
Range with fully charged battery [km] | - | 45-52 | 44-48 | - | - | - |
Charging time | - |
|
| - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 2010 | 1990 | 2065 | 1735 | 1750 | 1810 |
Overall weight [kg] | 2555 | 2650 | 2725 | 2395 | 2410 | 2470 |
Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | 84 | 84 |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
Boot volume [l] | 540 | 370 | 370 | 540 | 540 | 540 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1826 | 1826 | 1826 | 1826 | 1826 | 1826 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 50 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | 25 | 25 | 25 |
Air resistance [Cd] | 0.323 | 0.27 | 0.27 | 0.25 | 0.26 | 0.27 |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 265/35 ZR20 99Y XL | 245/45 R18 | 245/45 R18 | 225/55 R17 Y | 225/55 R17 Y | 225/55 R17 Y |
Tyre dimensions rear | 295/30 ZR20 101Y XL | 275/40 R18 | 275/40 R18 | 225/55 R17 Y | 225/55 R17 Y | 225/55 R17 Y |
Wheel size front | 9.5J x 20 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 |
Wheel size rear | 10.0J x 20 | 9.0J x 18 ET52.5 | 9.0J x 18 ET52.5 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 |
Brake dimensions front | 390 x 36 | - | - | - | - | - |
Brake dimensions rear | 360 x 26 | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 12.5/- | 11.6/- | 11.9/- | 11.6/- | 11.6/- | 11.9/- |
Overall length [mm] | 4984 | 4935 | 4935 | 4935 | 4935 | 4935 |
Overall width without/including mirrors [mm] | 1907/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1460 | 1475 | 1481 | 1460 | 1460 | 1466 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1649 | 1594 | 1596 | 1604 | 1604 | 1604 |
Rear wheel track [mm] | 1595 | 1577 | 1575 | 1608 | 1608 | 1606 |
Forward overhang [mm] | - | 853 | 853 | 853 | 853 | 853 |
Rear overhang [mm] | - | 1143 | 1143 | 1143 | 1143 | 1143 |
Clearance [mm] | - | 97 | 97 | 97 | 97 | 97 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 |
Approach angle rear [°] | - | 11.8 | 11.8 | 11.8 | 11.8 | 11.8 |
Transition angle [°] | - | 8.7 | 8.7 | 8.7 | 8.7 | 8.7 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
Front elbow/shoulder width [mm] | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 400d 4MATIC | E 300 de | E 300 de 4MATIC | ||||
---|---|---|---|---|---|---|
Date of sale | - | - | - | |||
Engine type | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric | |||
Number of cylinders/valves | 6/24 | 4/16 | 4/16 | |||
Engine displacement [cm³] | 2925 | 1950 | 1950 | |||
Maximum output / speed [kW/min-1] | 243/3600-4200 | 143/3800 combustion 90 el. 225 total | 143/3800 combustion 90 el. 225 total | |||
Maximum torque [Nm/min-1] | 700/1200-3200 | 400/1600-2800 combustion 440/0-2000 el. 700 total | 400/1600-2800 combustion 440/0-2000 el. 700 total | |||
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |||
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | |||
Oil volume [l] | - | - | - | |||
Coolant volume [l] | - | - | - | |||
Technical specifications |
|
|
| |||
Drive axle | 4x4 | Rear | 4x4 | |||
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
Drive specifications |
|
|
| |||
Top speed [km/h] | 250 | 240 | 235 | |||
Acceleration 0–100 km/h [s] | 5.1 | 5.9 | 5.9 | |||
Acceleration 0–80 km/h [s] | - | - | - | |||
Acceleration 80–120 km/h [s] | - | - | - | |||
City [l] | 8.6-8.1 | - | - | |||
Out of town [l] | 5.2-4.9 | - | - | |||
Combined [l] | 6.5-6.1 | 2.6-2.2 [14.2-13.4 kWh] | 1.8-1.5 [15.0-13.6 kWh] | |||
CO2 emissions [g/km] | 170-161 | 42-37 | - | |||
Low speed [l] | 11.0-10.5 | - | - | |||
Medium speed [l] | 8.0-7.2 | - | - | |||
High speed [l] | 6.4-5.5 | - | - | |||
Extra high speed [l] | 6.8-5.7 | - | - | |||
Combined speed [l] | 7.5-6.6 | 1.6-1.2 [17.3-16.0 kWh] | 1.7-1.3 [17.1-16.2 kWh] | |||
CO2 emissions [g/km] | 196-172 | - | - | |||
Emission standard | Euro 6d | Euro 6d | Euro 6d | |||
Standard for fuel consumption measurement | - | - | - | |||
Energy class | - | - | - | |||
Stationary vehicle noise [dB] | - | - | - | |||
Driving noise [dB] | - | - | - | |||
System voltage [V] | - | - | - | |||
Battery type and capacity | - | Lithium-Ionen-Akkumulator, 13.5 kWh | Lithium-Ionen-Akkumulator, 13.5 kWh | |||
Range with fully charged battery [km] | - | 44-51 | 42-49 | |||
Charging time | - |
|
| |||
Number of modules/cells | - | - | - | |||
Battery weight [kg] | - | - | - | |||
Charger | - | - | - | |||
Standby weight [kg] | 1920 | 2060 | 2130 | |||
Overall weight [kg] | 2580 | 2720 | 2760 | |||
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | |||
Maximum front/rear axle load [kg] | - | - | - | |||
Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | |||
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
Boot volume [l] | 540 | 370 | 370 | |||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
Boot length [mm] | - | - | - | |||
Boot length with rear seats folded [mm] | - | - | - | |||
Boot width between wheels/max [mm] | - | - | - | |||
Boot height to headliner/ceiling [mm] | - | - | - | |||
Loading edge height [mm] | - | - | - | |||
Height of the open boot door [mm] | 1826 | 1826 | 1826 | |||
Boot opening height [mm] | - | - | - | |||
Boot opening width min/max [mm] | - | - | - | |||
Number of doors | 4 | 4 | 4 | |||
Number of seats | 5 | 5 | 5 | |||
Fuel tank volume [l] | 50 | 50 | 50 | |||
AdBlue tank volume [l] | 25 | 25 | 25 | |||
Air resistance [Cd] | 0.26 | 0.26 | 0.28 | |||
Front suspension | four-link | four-link | four-link | |||
Rear suspension | five-link | five-link | five-link | |||
Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | |||
Tyre dimensions rear | 245/45 R18 | 275/40 R18 | 275/40 R18 | |||
Wheel size front | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | |||
Wheel size rear | 8.0J x 18 ET43 | 9.0J x 18 ET52,5 | 9.0J x 18 ET52,5 | |||
Brake dimensions front | - | - | - | |||
Brake dimensions rear | - | - | - | |||
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
Number of steering wheel turns | - | - | - | |||
Turning diameter track/circumference [m] | 11.9/- | 11.6/- | 11.9/- | |||
Overall length [mm] | 4935 | 4935 | 4935 | |||
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | |||
Overall height [mm] | 1467 | 1475 | 1481 | |||
Wheelbase [mm] | 2939 | 2939 | 2939 | |||
Front wheel track [mm] | 1598 | 1594 | 1575 | |||
Rear wheel track [mm] | 1600 | 1577 | 1596 | |||
Forward overhang [mm] | 853 | 853 | 853 | |||
Rear overhang [mm] | 1143 | 1143 | 1143 | |||
Clearance [mm] | 97 | 97 | 97 | |||
Wading depth [mm] | - | - | - | |||
Approach angle front [°] | 14.5 | 14.5 | 14.5 | |||
Approach angle rear [°] | 11.8 | 11.8 | 11.8 | |||
Transition angle [°] | 8.7 | 8.7 | 8.7 | |||
Climbing rate [°] | - | - | - | |||
Maximum side tilt [°] | - | - | - | |||
Headroom front [mm] | 1052 | 1052 | 1052 | |||
Headroom rear [mm] | 971 | 971 | 971 | |||
Front elbow/shoulder width [mm] | 1468/1499 | 1468/1499 | 1468/1499 | |||
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | |||
Legroom front knees/total [mm] | - | - | - | |||
Legroom rear knees/total [mm] | - | - | - |
Estate
E 200 | E 200 4MATIC | E 300 | E450 4MATIC | E 53 AMG 4MATIC+ | E 63 AMG 4MATIC+ | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | from to 2021 |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 8/32 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 2999 | 2999 | 3982 |
Maximum output / speed [kW/min-1] | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 190/5500-6100 10 el. | 270/5500-6100 16 el. | 320/6100 16 el. | 420/5750-6500 |
Maximum torque [Nm/min-1] | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 370/1650-4000 150 el. | 500/1600-5500 250 el. | 520/1800-5800 250 el. | 750/2250-5000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.4 | 83.0 x 92.4 | 83,0 x 92,0 |
Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 8.6:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 231 | 225 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 7.7 | 7.8 | 6.5 | 5.2 | 4.6 | 3.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.4-9.0 | 9.7-9.2 | 9.4-9.0 | 11.9-11.2 | 12.0-11.7 | - |
Out of town [l] | 6.1-5.7 | 6.2-5.8 | 6.1-5.7 | 6.9-6.4 | 7.3-7.0 | - |
Combined [l] | 7.3-6.9 | 7.5-7.1 | 7.3-6.9 | 8.7-8.1 | 9.0-8.7 | - |
CO2 emissions [g/km] | 166-158 | 171-162 | 167-158 | 198-187 | 207-200 | - |
Low speed [l] | 11.9-11.0 | 11.9-11.2 | 11.9-11.0 | 14.3-13.5 | 14.3-14.0 | 19.4-19.2 |
Medium speed [l] | 8.7-7.6 | 8.8-7.8 | 8.7-7.6 | 9.4-8.4 | 9.7-9.2 | 12.9-12.5 |
High speed [l] | 7.3-6.2 | 7.5-6.6 | 7.4-6.2 | 8.1-7.1 | 8.4-7.9 | 10.8-10.4 |
Extra high speed [l] | 8.5-7.0 | 8.6-7.3 | 8.6-7.1 | 8.9-7.6 | 9.2-8.6 | 11.4-10.9 |
Combined speed [l] | 8.6-7.4 | 8.8-7.7 | 8.7-7.5 | 9.5-8.4 | 9.7-9.2 | 12.6-12.2 |
CO2 emissions [g/km] | 196-168 | 199-174 | 197-169 | 215-191 | 221-210 | 286-277 |
Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | 48 | 48 | 48 | 48 | 48 | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1795 | 1860 | 1815 | 2025 | 2020 | 2060 |
Overall weight [kg] | 2475 | 2540 | 2495 | 2705 | 2585 | 2665 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/1900 | 750/1900 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | 84 | 84 |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 640 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1182/1820 | 1182/1820 | 1182/1820 | 1182/1820 | 1182/1820 | 1182/1820 |
Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | -/820 | -/820 | -/820 |
Loading edge height [mm] | 569 | 569 | 569 | 569 | 569 | 569 |
Height of the open boot door [mm] | 2055 | 2055 | 2055 | 2055 | 2055 | 2055 |
Boot opening height [mm] | 737 | 737 | 737 | 737 | 737 | 737 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 66 | 66 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.285 | 0.285 | 0.285 | 0.28 | 0.315 | 0.32 |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 Y | 225/55 R17 Y | 225/55 R17 Y | 245/45 R18 Y | 245/40 R19 98Y XL | 265/40 R19 |
Tyre dimensions rear | 225/55 R17 Y | 225/55 R17 Y | 225/55 R17 Y | 245/45 R18 Y | 275/35 R19 100Y XL | 295/35 R19 |
Wheel size front | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 8.0J x 19 ET43 | 9.5J x 19 |
Wheel size rear | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 9.0J x 19 ET49 | 10.0J x 19 |
Brake dimensions front | - | - | - | - | 370 x 36 | 360 x 36 |
Brake dimensions rear | - | - | - | - | 360 x 24 | 360 x 26 |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.9/- | 11.6/- | 11.9/- | 12.5/- | 12.5/- |
Overall length [mm] | 4945 | 4945 | 4945 | 4945 | 4965 | 4945 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1860/2065 | 1860/2065 | 1907/2065 |
Overall height [mm] | 1460 | 1466 | 1460 | 1467 | 1461 | 1460 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1604 | 1604 | 1604 | 1605 | 1628 | 1649 |
Rear wheel track [mm] | 1613 | 1611 | 1613 | 1598 | 1598 | 1595 |
Forward overhang [mm] | 853 | 853 | 853 | 853 | - | - |
Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | - | 1153 |
Clearance [mm] | 101 | 101 | 101 | 101 | - | 101 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | - | 13.8 |
Approach angle rear [°] | 15.2 | 15.2 | 15.2 | 15.2 | - | 15.2 |
Transition angle [°] | 10.2 | 10.2 | 10.2 | 10.2 | - | 10.2 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
Front elbow/shoulder width [mm] | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 63 AMG S 4MATIC+ | E 200 4MATIC All-Terrain | E450 4MATIC All-Terrain | E 300e | E 200d | E 220d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 8/32 | 4/16 | 6/24 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 3982 | 1991 | 2999 | 1991 | 1597 | 1950 |
Maximum output / speed [kW/min-1] | 450/5750-6500 | 145/5500-6100 10 el. | 270/5500-6100 16 el. | 155/5500 combustion 90 el. 235 total | 118/3800 | 143/3800 |
Maximum torque [Nm/min-1] | 850/2500-4500 | 320/1650-4000 150 el. | 500/1600-5500 250 el. | 350/1200-4000 combustion 440/0-2000 el. 700 total | 260/1600-2600 | 400/1600-2800 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.4 | 83.0 x 92.0 | 80,0 x 79,5 | 82.0 x 92.3 |
Compression ratio | 8.6:1 | 10.5:1 | 10.5:1 | 10.0:1 | 15,7:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | 4x4 | Rear | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 290 | 225 | 250 | 245 | 213 | 228 |
Acceleration 0–100 km/h [s] | 3.5 | 8.1 | 5.4 | 5.9 | 9.2 | 7.8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 15.9-15.8 | 9.9-9.8 | 11.7-11.6 | - | 5.7-5.3 | 6.1-5.8 |
Out of town [l] | 9.6 | 6.6-6.5 | 6.8-6.7 | - | 4.7-4.3 | 4.6-4.3 |
Combined [l] | 11.9 | 7.8-7.7 | 8.6-8.5 | 2.0 [13.7-13.0 kWh] | 5.0-4.7 | 5.1-4.9 |
CO2 emissions [g/km] | 273-271 | 178-176 | 197-194 | 46 | 133-124 | 135-128 |
Low speed [l] | 19.4-19.2 | 12.4-11.9 | 13.6-13.5 | - | 7.5-6.7 | 8.2-7.3 |
Medium speed [l] | 12.9-12.5 | 8.9-8.4 | 9.1-8.7 | - | 6.1-5.3 | 6.6-5.8 |
High speed [l] | 10.8-10.4 | 7.8-7.2 | 7.9-7.5 | - | 5.3-4.4 | 5.7-4.7 |
Extra high speed [l] | 11.4-10.9 | 8.6-8.0 | 8.6-8.0 | - | 6.3-5.1 | 6.6-5.4 |
Combined speed [l] | 12.6-12.1 | 8.9-8.4 | 9.2-8.7 | 1.9-1.7 [16.5-16.0 kWh] | 6.1-5.1 | 6.5-5.5 |
CO2 emissions [g/km] | 286-276 | 202-190 | 209-198 | 42-38 | 161-135 | 170-145 |
Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | 48 | 48 | - | - | - |
Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh | - | - |
Range with fully charged battery [km] | - | - | - | 47-49 | - | - |
Charging time | - | - | - |
| - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 2070 | 1915 | 2065 | 2075 | 1835 | 1845 |
Overall weight [kg] | 2635 | 2540 | 2690 | 2755 | 2515 | 2525 |
Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | 84 | 84 |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
Boot volume [l] | 640 | 640 | 640 | 480 | 640 | 640 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1182/1820 | 1182/1820 | 1182/1820 | -/1660 | 1182/1820 | 1182/1820 |
Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | -/820 | -/820 | -/820 |
Loading edge height [mm] | 569 | 569 | 569 | 569 | 569 | 569 |
Height of the open boot door [mm] | 2055 | 2098 | 2098 | 2055 | 2055 | 2055 |
Boot opening height [mm] | 737 | 737 | 737 | 737 | 737 | 737 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 50 | 66 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | 25 | 25 |
Air resistance [Cd] | 0.324 | 0.28 | 0.28 | 0.29 | 0.27 | 0.29 |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 265/35 ZR20 99Y XL | 245/45 R19 | 245/45 R19 | 245/45 R18 | 225/55 R17 Y | 225/55 R17 Y |
Tyre dimensions rear | 295/30 ZR20 101Y XL | 245/45 R19 | 245/45 R19 | 275/40 R18 | 225/55 R17 Y | 225/55 R17 Y |
Wheel size front | 9.5J x 20 | 8.0J x 19 ET38 | 8.0J x 19 ET38 | 8.0J x 18 ET43 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 |
Wheel size rear | 10.0J x 20 | 8.0J x 19 ET38 | 8.0J x 19 ET38 | 9.0J x 18 ET52.5 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 |
Brake dimensions front | 390 x 36 | - | - | - | - | - |
Brake dimensions rear | 360 x 26 | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 12.5/- | 11.9/- | 11.9/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4996 | 4947 | 4947 | 4945 | 4945 | 4945 |
Overall width without/including mirrors [mm] | 1907/2065 | 1861/2065 | 1861/2065 | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1474 | 1497 | 1497 | 1476 | 1460 | 1460 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1649 | 1610 | 1610 | 1583 | 1604 | 1604 |
Rear wheel track [mm] | 1595 | 1607 | 1607 | 1594 | 1613 | 1613 |
Forward overhang [mm] | - | 855 | 855 | 853 | 853 | 853 |
Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
Clearance [mm] | 101 | 136 | 136 | 101 | 101 | 101 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.8 | 17.3 | 17.3 | 13.8 | 13.8 | 13.8 |
Approach angle rear [°] | 15.2 | 16.9 | 16.9 | 15.2 | 15.2 | 15.2 |
Transition angle [°] | 10.2 | 13.5 | 13.5 | 10.2 | 10.2 | 10.2 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
Front elbow/shoulder width [mm] | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 220d 4MATIC | E 300d 4MATIC | E 400d 4MATIC | E 220d 4MATIC All-Terrain | E 400d 4MATIC All-Terrain | E 300 de | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric |
Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 4/16 | 6/24 | 4/16 |
Engine displacement [cm³] | 1950 | 1993 | 2925 | 1950 | 2925 | 1950 |
Maximum output / speed [kW/min-1] | 143/3800 | 195/4200 15 el. | 243/3600-4200 | 143/3800 | 243/3600-4200 | 143/3800 combustion 90 el. 225 total |
Maximum torque [Nm/min-1] | 400/1600-2800 | 550/1800-2200 200 el. | 700/1200-3200 | 400/1600-2800 | 700/1200-3200 | 400/1600-2800 combustion 440/0-2000 el. 700 total |
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 226 | 250 | 250 | 221 | 250 | 235 |
Acceleration 0–100 km/h [s] | 7.9 | 6.6 | 5.3 | 8.1 | 5.6 | 6.0 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.0-6.4 | 7.8-7.4 | 8.8-8.4 | 7.0-6.9 | 8.4-8.2 | - |
Out of town [l] | 5.0-4.7 | 4.9-4.6 | 5.5-5.1 | 5.3-5.3 | 5.8-5.7 | - |
Combined [l] | 5.7-5.3 | 5.9-5.6 | 6.7-6.3 | 5.9-5.8 | 6.7-6.6 | 2.9-1.5 [14.8-14.1 kWh] |
CO2 emissions [g/km] | 149-140 | 156-147 | 175-166 | 156-153 | 177-174 | 46-40 |
Low speed [l] | 8.7-7.7 | 8.9-8.4 | 11.2-10.5 | 8.9-8.2 | 11.1-10.9 | - |
Medium speed [l] | 6.6-5.9 | 7.1-6.3 | 8.1-7.3 | 6.9-6.3 | 8.3-7.8 | - |
High speed [l] | 5.6-4.9 | 5.9-5.0 | 6.6-5.7 | 5.9-5.3 | 6.5-6.1 | - |
Extra high speed [l] | 6.5-5.6 | 6.5-5.5 | 7.0-6.0 | 6.7-6.2 | 7.0-6.6 | - |
Combined speed [l] | 6.6-5.7 | 6.8-5.9 | 7.6-6.8 | 6.8-6.2 | 7.7-7.2 | 1.8-1.3 [17.7-16.5 kWh] |
CO2 emissions [g/km] | 172-150 | 177-154 | 200-177 | 177-163 | 202-190 | 46-35 |
Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | 48 | - | - | - | - |
Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh |
Range with fully charged battery [km] | - | - | - | - | - | 44-49 |
Charging time | - | - | - | - | - |
|
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1910 | 2010 | 2015 | 1965 | 2060 | 2145 |
Overall weight [kg] | 2590 | 2690 | 2695 | 2590 | 2685 | 2820 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | 84 | 84 |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1182/1820 | 1182/1820 | 1182/1820 | 1182/1820 | 1182/1820 | -/1660 |
Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | -/820 | -/820 | -/820 |
Loading edge height [mm] | 569 | 569 | 569 | 569 | 569 | 569 |
Height of the open boot door [mm] | 2055 | 2055 | 2055 | 2098 | 2098 | 2055 |
Boot opening height [mm] | 737 | 737 | 737 | 737 | 737 | 737 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | 25 | 25 | 25 | 25 | 25 | 25 |
Air resistance [Cd] | 0.29 | - | 0.29 | 0.33 | 0.3 | 0.285 |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 Y | 225/55 R17 Y | 245/45 R18 | 245/45 R19 | 245/45 R19 | 245/45 R18 |
Tyre dimensions rear | 225/55 R17 Y | 225/55 R17 Y | 245/45 R18 | 245/45 R19 | 245/45 R19 | 275/40 R18 |
Wheel size front | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 ET43 | 8.0J x 19 ET38 | 8.0J x 19 ET38 | 8.0J x 18 ET43 |
Wheel size rear | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 ET43 | 8.0J x 19 ET38 | 8.0J x 19 ET38 | 9.0J x 18 ET52,5 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.6/- |
Overall length [mm] | 4945 | 4945 | 4945 | 4947 | 4947 | 4945 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1861/2065 | 1861/2065 | 1852/2065 |
Overall height [mm] | 1466 | 1466 | 1467 | 1497 | 1497 | 1475 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1604 | 1611 | 1598 | 1607 | 1607 | 1594 |
Rear wheel track [mm] | 1611 | 1604 | 1605 | 1610 | 1610 | 1583 |
Forward overhang [mm] | 853 | 853 | 853 | 855 | 855 | 853 |
Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
Clearance [mm] | 101 | 101 | 101 | 136 | 136 | 101 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.8 | 13.8 | 13.8 | 17.3 | 17.3 | 13.8 |
Approach angle rear [°] | 15.2 | 15.2 | 15.2 | 16.9 | 16.9 | 15.2 |
Transition angle [°] | 10.2 | 10.2 | 10.2 | 13.5 | 13.5 | 10.2 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
Front elbow/shoulder width [mm] | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 | 1468/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 300 de 4MATIC | ||||||
---|---|---|---|---|---|---|
Date of sale | - | |||||
Engine type | Diesel supercharged + Electric | |||||
Number of cylinders/valves | 4/16 | |||||
Engine displacement [cm³] | 1950 | |||||
Maximum output / speed [kW/min-1] | 143/3800 combustion 90 el. 225 total | |||||
Maximum torque [Nm/min-1] | 400/1600-2800 combustion 440/0-2000 el. 700 total | |||||
Bore and stroke [mm x mm] | 82.0 x 92.3 | |||||
Compression ratio | 15.5:1 | |||||
Oil volume [l] | - | |||||
Coolant volume [l] | - | |||||
Technical specifications |
| |||||
Drive axle | 4x4 | |||||
Gearbox | 9 gear automatic | |||||
Drive specifications |
| |||||
Top speed [km/h] | 230 | |||||
Acceleration 0–100 km/h [s] | 6.0 | |||||
Acceleration 0–80 km/h [s] | - | |||||
Acceleration 80–120 km/h [s] | - | |||||
City [l] | - | |||||
Out of town [l] | - | |||||
Combined [l] | 1.6 [14.3-14.1 kWh] | |||||
CO2 emissions [g/km] | 43 | |||||
Low speed [l] | - | |||||
Medium speed [l] | - | |||||
High speed [l] | - | |||||
Extra high speed [l] | - | |||||
Combined speed [l] | 1.5-1.4 [16.8-16.3 kWh] | |||||
CO2 emissions [g/km] | 40-37 | |||||
Emission standard | Euro 6d | |||||
Standard for fuel consumption measurement | - | |||||
Energy class | - | |||||
Stationary vehicle noise [dB] | - | |||||
Driving noise [dB] | - | |||||
System voltage [V] | - | |||||
Battery type and capacity | Lithium-Ionen-Akkumulator, 13.5 kWh | |||||
Range with fully charged battery [km] | 45-47 | |||||
Charging time |
| |||||
Number of modules/cells | - | |||||
Battery weight [kg] | - | |||||
Charger | - | |||||
Standby weight [kg] | 2215 | |||||
Overall weight [kg] | 2850 | |||||
Maximum trailer weight unbraked/braked [kg] | 750/2100 | |||||
Maximum front/rear axle load [kg] | - | |||||
Maximum vertical load on the tow bar [kg] | 84 | |||||
Maximum load on roof/carrier [kg] | 100/- | |||||
Boot volume [l] | 480 | |||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | |||||
Boot length [mm] | 1175 | |||||
Boot length with rear seats folded [mm] | 2005 | |||||
Boot width between wheels/max [mm] | 1100/- | |||||
Boot height to headliner/ceiling [mm] | -/820 | |||||
Loading edge height [mm] | 569 | |||||
Height of the open boot door [mm] | 2055 | |||||
Boot opening height [mm] | 737 | |||||
Boot opening width min/max [mm] | - | |||||
Number of doors | 5 | |||||
Number of seats | 5 | |||||
Fuel tank volume [l] | 50 | |||||
AdBlue tank volume [l] | 25 | |||||
Air resistance [Cd] | 0.28 | |||||
Front suspension | four-link | |||||
Rear suspension | five-link | |||||
Tyre dimensions front | 245/45 R18 | |||||
Tyre dimensions rear | 275/40 R18 | |||||
Wheel size front | 8.0J x 18 ET43 | |||||
Wheel size rear | 9.0J x 18 ET52,5 | |||||
Brake dimensions front | - | |||||
Brake dimensions rear | - | |||||
Steering | Rack & pinion with electro-mechanical power steering | |||||
Number of steering wheel turns | - | |||||
Turning diameter track/circumference [m] | 11.9/- | |||||
Overall length [mm] | 4945 | |||||
Overall width without/including mirrors [mm] | 1852/2065 | |||||
Overall height [mm] | 1482 | |||||
Wheelbase [mm] | 2939 | |||||
Front wheel track [mm] | 1596 | |||||
Rear wheel track [mm] | 1581 | |||||
Forward overhang [mm] | 853 | |||||
Rear overhang [mm] | 1153 | |||||
Clearance [mm] | 101 | |||||
Wading depth [mm] | - | |||||
Approach angle front [°] | 13.8 | |||||
Approach angle rear [°] | 15.2 | |||||
Transition angle [°] | 10.2 | |||||
Climbing rate [°] | - | |||||
Maximum side tilt [°] | - | |||||
Headroom front [mm] | 1060 | |||||
Headroom rear [mm] | 1004 | |||||
Front elbow/shoulder width [mm] | 1468/1499 | |||||
Rear elbow/shoulder width [mm] | 1450/1494 | |||||
Legroom front knees/total [mm] | - | |||||
Legroom rear knees/total [mm] | - |
Coupé
E 200 | E 200 4MATIC | E 300 | E450 4MATIC | E 53 AMG 4MATIC+ | E 220d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 2999 | 2999 | 1950 |
Maximum output / speed [kW/min-1] | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 190/5500-6100 10 el. | 270/5500-6100 16 el. | 320/6100 16 el. | 143/3800 |
Maximum torque [Nm/min-1] | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 370/1650-4000 150 el. | 500/1600-5500 250 el. | 520/1800-5800 250 el. | 400/1600-2800 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.4 | 83.0 x 92.4 | 82.0 x 92.3 |
Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 237 | 231 | 250 | 250 | 250 | 234 |
Acceleration 0–100 km/h [s] | 7,5 | 7,6 | 6,4 | 5,0 | 4,4 | 7,6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9,3-8,8 | 9,1-9,3 | 9,3-8,8 | 11,8-11,1 | 11,9-11,6 | 6,0-5,7 |
Out of town [l] | 5,7-5,3 | 6,0-5,6 | 5,8-5,3 | 6,7-6,2 | 7,2-6,9 | 4,4-4,1 |
Combined [l] | 7,0-6,6 | 7,1-6,7 | 7,1-6,7 | 8,5-8,0 | 8,9-8,6 | 5,0-4,7 |
CO2 emissions [g/km] | 161-151 | 163-154 | 161-151 | 195-184 | 204-198 | 131-123 |
Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | 48 | 48 | 48 | 48 | 48 | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1750 | 1810 | 1775 | 1965 | 1970 | 1800 |
Overall weight [kg] | 2290 | 2350 | 2315 | 2505 | 2425 | 2340 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | - | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | - | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 100/- | 75/- |
Boot volume [l] | 405 | 405 | 405 | 405 | 425 | 425 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 66 | 50 | 66 | 66 | 66 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | 23.5 |
Air resistance [Cd] | 0.27 | 0.28 | 0.27 | 0.26 | 0.317 | 0.269 |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/40 R19 98Y XL | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 275/35 R19 100Y XL | 225/55 R17 |
Wheel size front | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 8.0J x 19 ET43 | 7.5J x 17 H2 ET40 |
Wheel size rear | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 9.0J x 19 ET49 | 7.5J x 17 H2 ET40 |
Brake dimensions front | - | - | - | - | 370 x 36 | - |
Brake dimensions rear | - | - | - | - | 360 x 24 | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.37/- | 11.61/- | 11.37/- | 11.61/- | 12.3/- | 11.37/- |
Overall length [mm] | 4835 | 4835 | 4835 | 4835 | 4846 | 4835 |
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 |
Overall height [mm] | 1430 | 1438 | 1430 | 1439 | 1430 | 1430 |
Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
Front wheel track [mm] | 1605 | 1604 | 1605 | 1604 | 1627 | 1605 |
Rear wheel track [mm] | 1609 | 1610 | 1609 | 1598 | 1595 | 1609 |
Forward overhang [mm] | 850 | 850 | 850 | 850 | 850 | 850 |
Rear overhang [mm] | 1112 | 1112 | 1112 | 1112 | 1112 | 1112 |
Clearance [mm] | 98 | 98 | 98 | 98 | 98 | 98 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 |
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 |
Rear elbow/shoulder width [mm] | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 220d 4MATIC | E 300d 4MATIC | E 400d 4MATIC | ||||
---|---|---|---|---|---|---|
Date of sale | - | - | - | |||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
Number of cylinders/valves | 4/16 | 4/16 | 6/24 | |||
Engine displacement [cm³] | 1950 | 1993 | 2925 | |||
Maximum output / speed [kW/min-1] | 143/3800 | 195/4200 15 el. | 243/3600-4200 | |||
Maximum torque [Nm/min-1] | 400/1600-2800 | 550/1800-2200 200 el. | 700/1200-3200 | |||
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |||
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | |||
Oil volume [l] | - | - | - | |||
Coolant volume [l] | - | - | - | |||
Technical specifications |
|
|
| |||
Drive axle | 4x4 | 4x4 | 4x4 | |||
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
Drive specifications |
|
|
| |||
Top speed [km/h] | 229 | 250 | 250 | |||
Acceleration 0–100 km/h [s] | 7,7 | 6,4 | 5,3 | |||
Acceleration 0–80 km/h [s] | - | - | - | |||
Acceleration 80–120 km/h [s] | - | - | - | |||
City [l] | 6,9-6,3 | 7,7-7,3 | 8,8-8,3 | |||
Out of town [l] | 4,9-4,6 | 4,8-4,5 | 5,3-5,0 | |||
Combined [l] | 5,6-5,2 | 5,9-5,5 | 6,6-6,2 | |||
CO2 emissions [g/km] | 147-137 | 154-146 | 174-165 | |||
Emission standard | Euro 6d | Euro 6d | Euro 6d | |||
Standard for fuel consumption measurement | - | - | - | |||
Energy class | - | - | - | |||
Stationary vehicle noise [dB] | - | - | - | |||
Driving noise [dB] | - | - | - | |||
System voltage [V] | - | 48 | - | |||
Battery type and capacity | - | - | - | |||
Range with fully charged battery [km] | - | - | - | |||
Charging time | - | - | - | |||
Number of modules/cells | - | - | - | |||
Battery weight [kg] | - | - | - | |||
Charger | - | - | - | |||
Standby weight [kg] | 1855 | 1970 | 1965 | |||
Overall weight [kg] | 2395 | 2510 | 2505 | |||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | |||
Maximum front/rear axle load [kg] | - | - | - | |||
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
Boot volume [l] | 425 | 405 | 425 | |||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
Boot length [mm] | - | - | - | |||
Boot length with rear seats folded [mm] | - | - | - | |||
Boot width between wheels/max [mm] | - | - | - | |||
Boot height to headliner/ceiling [mm] | - | - | - | |||
Loading edge height [mm] | - | - | - | |||
Height of the open boot door [mm] | 1740 | 1740 | 1740 | |||
Boot opening height [mm] | - | - | - | |||
Boot opening width min/max [mm] | - | - | - | |||
Number of doors | 2 | 2 | 2 | |||
Number of seats | 4 | 4 | 4 | |||
Fuel tank volume [l] | 50 | 50 | 50 | |||
AdBlue tank volume [l] | 23.5 | 23.5 | 23.5 | |||
Air resistance [Cd] | 0.271 | - | 0.28 | |||
Front suspension | four-link | four-link | four-link | |||
Rear suspension | five-link | five-link | five-link | |||
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 245/45 R18 | |||
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 245/45 R18 | |||
Wheel size front | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 ET43 | |||
Wheel size rear | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 ET43 | |||
Brake dimensions front | - | - | - | |||
Brake dimensions rear | - | - | - | |||
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
Number of steering wheel turns | - | - | - | |||
Turning diameter track/circumference [m] | 11.61/- | 11.61/- | 11.61/- | |||
Overall length [mm] | 4835 | 4835 | 4835 | |||
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | |||
Overall height [mm] | 1438 | 1438 | 1439 | |||
Wheelbase [mm] | 2873 | 2873 | 2873 | |||
Front wheel track [mm] | 1604 | 1610 | 1598 | |||
Rear wheel track [mm] | 1610 | 1604 | 1604 | |||
Forward overhang [mm] | 850 | 850 | 850 | |||
Rear overhang [mm] | 1112 | 1112 | 1112 | |||
Clearance [mm] | 98 | 98 | 98 | |||
Wading depth [mm] | - | - | - | |||
Approach angle front [°] | 12.8 | 12.8 | 12.8 | |||
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | |||
Transition angle [°] | 9.5 | 9.5 | 9.5 | |||
Climbing rate [°] | - | - | - | |||
Maximum side tilt [°] | - | - | - | |||
Headroom front [mm] | 1039 | 1039 | 1039 | |||
Headroom rear [mm] | 925 | 925 | 925 | |||
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | |||
Rear elbow/shoulder width [mm] | 1277/1341 | 1277/1341 | 1277/1341 | |||
Legroom front knees/total [mm] | - | - | - | |||
Legroom rear knees/total [mm] | - | - | - |
Convertible
E 200 | E 200 4MATIC | E 300 | E450 4MATIC | E 53 AMG 4MATIC+ | E 220d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 2999 | 2999 | 1950 |
Maximum output / speed [kW/min-1] | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 190/5500-6100 10 el. | 270/5500-6100 16 el. | 320/6100 16 el. | 143/3800 |
Maximum torque [Nm/min-1] | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 370/1650-4000 150 el. | 500/1600-5500 250 el. | 520/1800-5800 250 el. | 400/1600-2800 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.4 | 83.0 x 92.4 | 82.0 x 92.3 |
Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 234 | 230 | 250 | 250 | 250 | 228 |
Acceleration 0–100 km/h [s] | 7,8 | 7,9 | 6,6 | 5,2 | 4,6 | 7,8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9,4-9,0 | 9,5-9,2 | 9,5-9,2 | 11,9-11,2 | 12,1-11,7 | 6,1-5,9 |
Out of town [l] | 6,0-5,7 | 6,3-5,9 | 6,1-5,8 | 6,9-6,4 | 7,5-7,1 | 4,6-4,3 |
Combined [l] | 7,2-6,9 | 7,5-7,1 | 7,4-7,0 | 8,7-8,2 | 9,2-8,8 | 5,2-4,9 |
CO2 emissions [g/km] | 165-157 | 171-162 | 168-160 | 199-187 | 210-201 | 137-129 |
Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | 48 | 48 | 48 | 48 | 48 | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1830 | 1890 | 1855 | 2040 | 2055 | 1870 |
Overall weight [kg] | 2340 | 2400 | 2365 | 2550 | 2475 | 2380 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | - | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | - | 75 |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 285-360 | 285-360 | 285-360 | 285-360 | 310-385 | 310-385 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 50 | 50 | 66 | 66 | 66 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | 14 or 23.5 |
Air resistance [Cd] | 0.29 | 0.3 | 0.29 | 0.29 | 0.333 | 0.29 |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/40 R19 98Y XL | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 275/35 R19 100Y XL | 225/55 R17 |
Wheel size front | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 8.0J x 19 ET43 | 7.5J x 17 H2 ET40 |
Wheel size rear | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 H2 ET43 | 9.0J x 19 ET49 | 7.5J x 17 H2 ET40 |
Brake dimensions front | - | - | - | - | 370 x 36 | - |
Brake dimensions rear | - | - | - | - | 360 x 24 | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.37/- | 11.61/- | 11.37/- | 11.61/- | 12.3/- | 11.37/- |
Overall length [mm] | 4835 | 4835 | 4835 | 4835 | 4846 | 4835 |
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 |
Overall height [mm] | 1428 | 1436 | 1428 | 1437 | 1426 | 1430 |
Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
Front wheel track [mm] | 1605 | 1604 | 1605 | 1604 | 1627 | 1605 |
Rear wheel track [mm] | 1609 | 1610 | 1609 | 1598 | 1595 | 1609 |
Forward overhang [mm] | 850 | 850 | 850 | 850 | 850 | 850 |
Rear overhang [mm] | 1112 | 1112 | 1112 | 1112 | 1112 | 1112 |
Clearance [mm] | 98 | 98 | 98 | 98 | 98 | 98 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 |
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 |
Rear elbow/shoulder width [mm] | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 220d 4MATIC | E 300d 4MATIC | E 400d 4MATIC | ||||
---|---|---|---|---|---|---|
Date of sale | - | - | - | |||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
Number of cylinders/valves | 4/16 | 4/16 | 6/24 | |||
Engine displacement [cm³] | 1950 | 1993 | 2925 | |||
Maximum output / speed [kW/min-1] | 143/3800 | 195/4200 15 el. | 243/3600-4200 | |||
Maximum torque [Nm/min-1] | 400/1600-2800 | 550/1800-2200 200 el. | 700/1200-3200 | |||
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |||
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | |||
Oil volume [l] | - | - | - | |||
Coolant volume [l] | - | - | - | |||
Technical specifications |
|
|
| |||
Drive axle | 4x4 | 4x4 | 4x4 | |||
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
Drive specifications |
|
|
| |||
Top speed [km/h] | 226 | 250 | 250 | |||
Acceleration 0–100 km/h [s] | 7,9 | 6,6 | 5,4 | |||
Acceleration 0–80 km/h [s] | - | - | - | |||
Acceleration 80–120 km/h [s] | - | - | - | |||
City [l] | 7,0-6,4 | 7,7-7,4 | 8,8-8,4 | |||
Out of town [l] | 5,0-4,7 | 4,9-4,6 | 5,5-5,1 | |||
Combined [l] | 5,7-5,3 | 5,9-5,6 | 6,7-6,3 | |||
CO2 emissions [g/km] | 150-140 | 156-148 | 176-166 | |||
Emission standard | Euro 6d | Euro 6d | Euro 6d | |||
Standard for fuel consumption measurement | - | - | - | |||
Energy class | - | - | - | |||
Stationary vehicle noise [dB] | - | - | - | |||
Driving noise [dB] | - | - | - | |||
System voltage [V] | - | 48 | - | |||
Battery type and capacity | - | - | - | |||
Range with fully charged battery [km] | - | - | - | |||
Charging time | - | - | - | |||
Number of modules/cells | - | - | - | |||
Battery weight [kg] | - | - | - | |||
Charger | - | - | - | |||
Standby weight [kg] | 1925 | 2045 | 2035 | |||
Overall weight [kg] | 2435 | 2555 | 2545 | |||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | |||
Maximum front/rear axle load [kg] | - | - | - | |||
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
Maximum load on roof/carrier [kg] | - | - | - | |||
Boot volume [l] | 310-385 | 285-360 | 310-385 | |||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
Boot length [mm] | - | - | - | |||
Boot length with rear seats folded [mm] | - | - | - | |||
Boot width between wheels/max [mm] | - | - | - | |||
Boot height to headliner/ceiling [mm] | - | - | - | |||
Loading edge height [mm] | - | - | - | |||
Height of the open boot door [mm] | 1572 | 1572 | 1572 | |||
Boot opening height [mm] | - | - | - | |||
Boot opening width min/max [mm] | - | - | - | |||
Number of doors | 2 | 2 | 2 | |||
Number of seats | 4 | 4 | 4 | |||
Fuel tank volume [l] | 50 | 50 | 50 | |||
AdBlue tank volume [l] | 14 or 23.5 | 14 or 23.5 | 14 or 23.5 | |||
Air resistance [Cd] | 0.29 | - | 0.29 | |||
Front suspension | four-link | four-link | four-link | |||
Rear suspension | five-link | five-link | five-link | |||
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 245/45 R18 | |||
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 245/45 R18 | |||
Wheel size front | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 ET43 | |||
Wheel size rear | 7.5J x 17 H2 ET40 | 7.5J x 17 H2 ET40 | 8.0J x 18 ET43 | |||
Brake dimensions front | - | - | - | |||
Brake dimensions rear | - | - | - | |||
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
Number of steering wheel turns | - | - | - | |||
Turning diameter track/circumference [m] | 11.61/- | 11.61/- | 11.61/- | |||
Overall length [mm] | 4835 | 4835 | 4835 | |||
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | |||
Overall height [mm] | 1436 | 1436 | 1437 | |||
Wheelbase [mm] | 2873 | 2873 | 2873 | |||
Front wheel track [mm] | 1604 | 1610 | 1598 | |||
Rear wheel track [mm] | 1610 | 1604 | 1604 | |||
Forward overhang [mm] | 850 | 850 | 850 | |||
Rear overhang [mm] | 1112 | 1112 | 1112 | |||
Clearance [mm] | 98 | 98 | 98 | |||
Wading depth [mm] | - | - | - | |||
Approach angle front [°] | 12.8 | 12.8 | 12.8 | |||
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | |||
Transition angle [°] | 9.5 | 9.5 | 9.5 | |||
Climbing rate [°] | - | - | - | |||
Maximum side tilt [°] | - | - | - | |||
Headroom front [mm] | 1039 | 1039 | 1039 | |||
Headroom rear [mm] | 925 | 925 | 925 | |||
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | |||
Rear elbow/shoulder width [mm] | 1277/1341 | 1277/1341 | 1277/1341 | |||
Legroom front knees/total [mm] | - | - | - | |||
Legroom rear knees/total [mm] | - | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
