Mercedes-Benz E
Date of manufacture
2/2016 – 2020 (Sedan)
2016 – 2020 (Estate)
12/2016 – 2020 (Coupé)
2017 – 2020 (Convertible)
Platform
MRA
Manufacturing locations
Sindelfingen, Germany
Bremen, Germany
Beijing, People's Republic of China
Pune, India
Designer
Drummond Jacoy
Robert Lešnik
Tags
E-segment
German cars
The Mercedes-Benz E has been manufactured since 2016 in four body styles - sedan, estate, coupe and cabriolet. The car is built on the MRA platform and offers petrol, diesel and hybrid engines. The most powerful model is the E 63 AMG S 4MATIC+ with 450 kW, and the fastest is the E 63 AMG S 4MATIC+, reaching a top speed of 250 km/h and accelerating from 0-100 km/h in 3.4 seconds. The most economical version, the E 300 de, has a fuel consumption of 1.6 l/100 km and CO2 emissions of 44 g/km. The sedan's boot has a capacity of 540 l, the estate 640 l, the coupe 425 l and the cabriolet 310-385 l. The model underwent EURONCAP safety tests in 2016 and achieved a rating of 5 out of 5.
Car body style

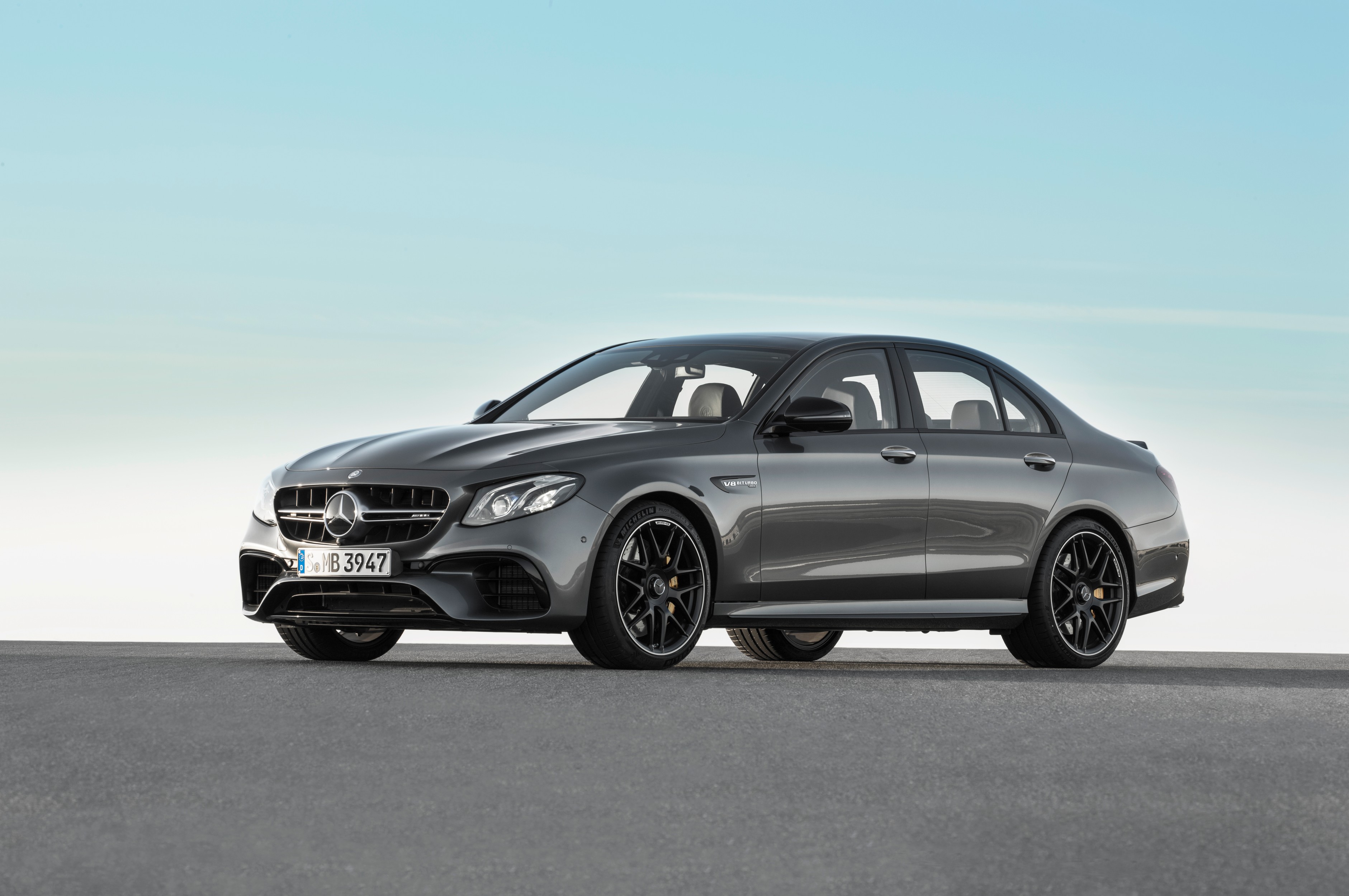

Sedan
Date of manufacture
2/2016 – 2020Internal designation
W213Engine size

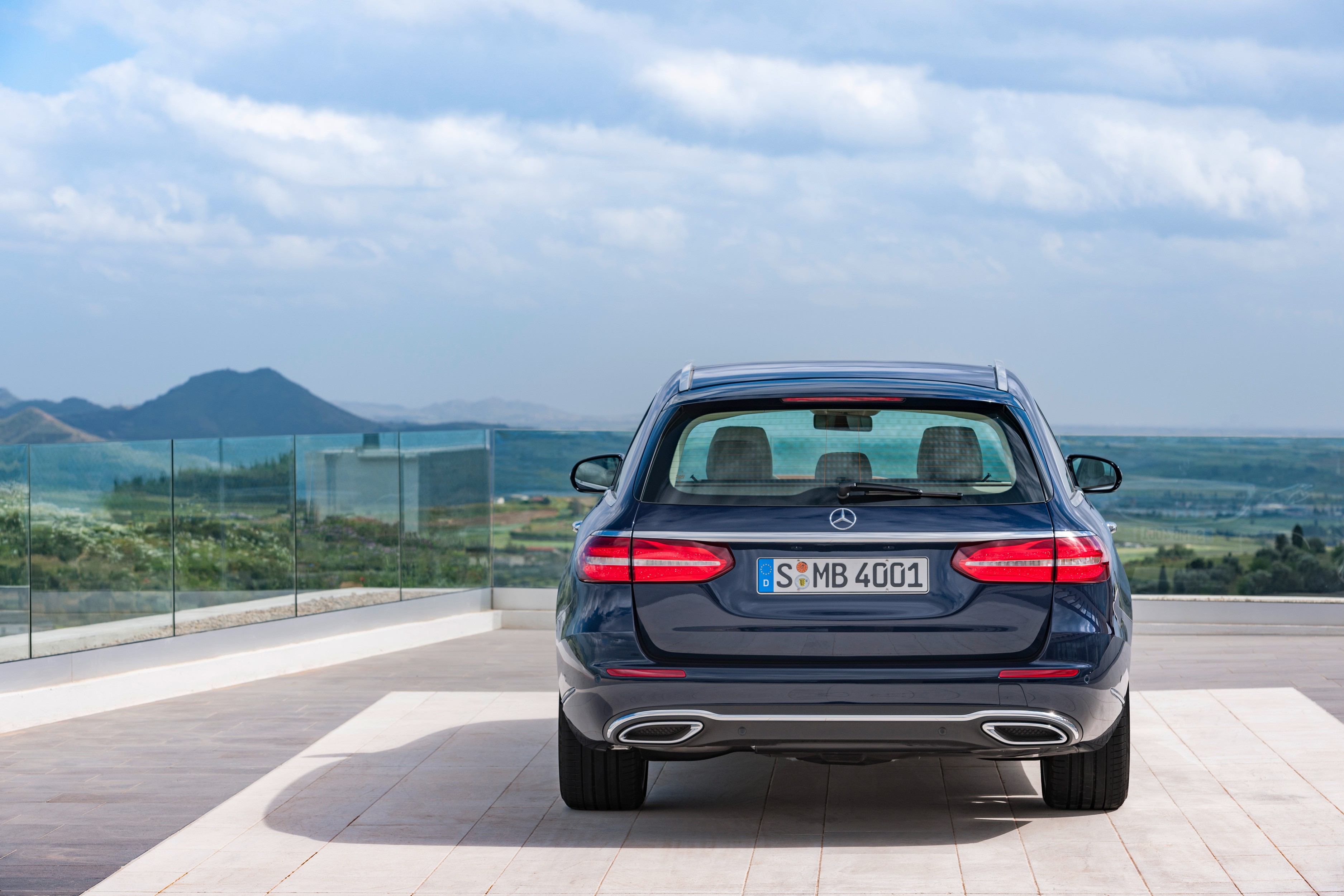

Estate
Date of manufacture
2016 – 2020Internal designation
S213Engine size
Petrol

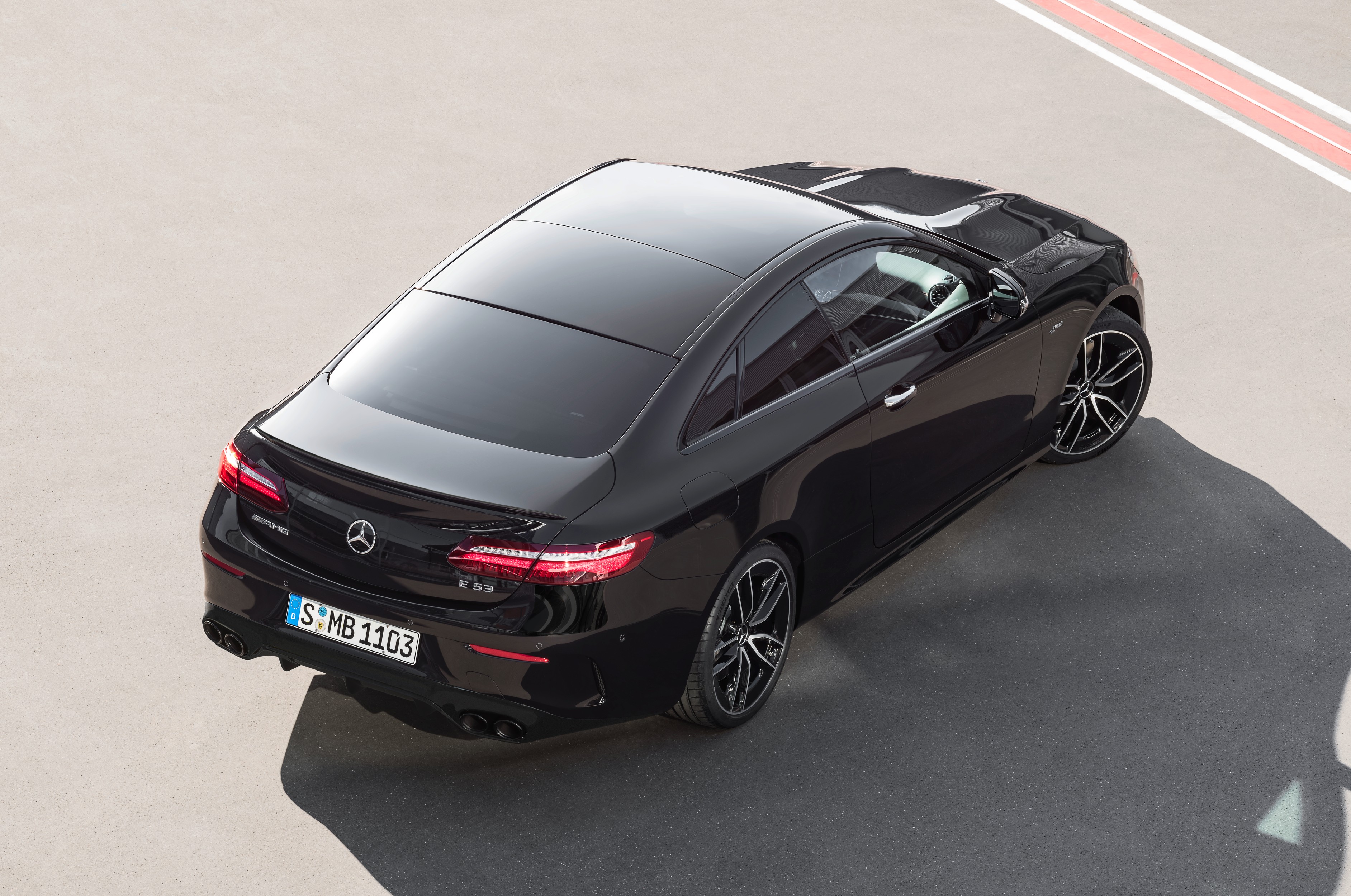

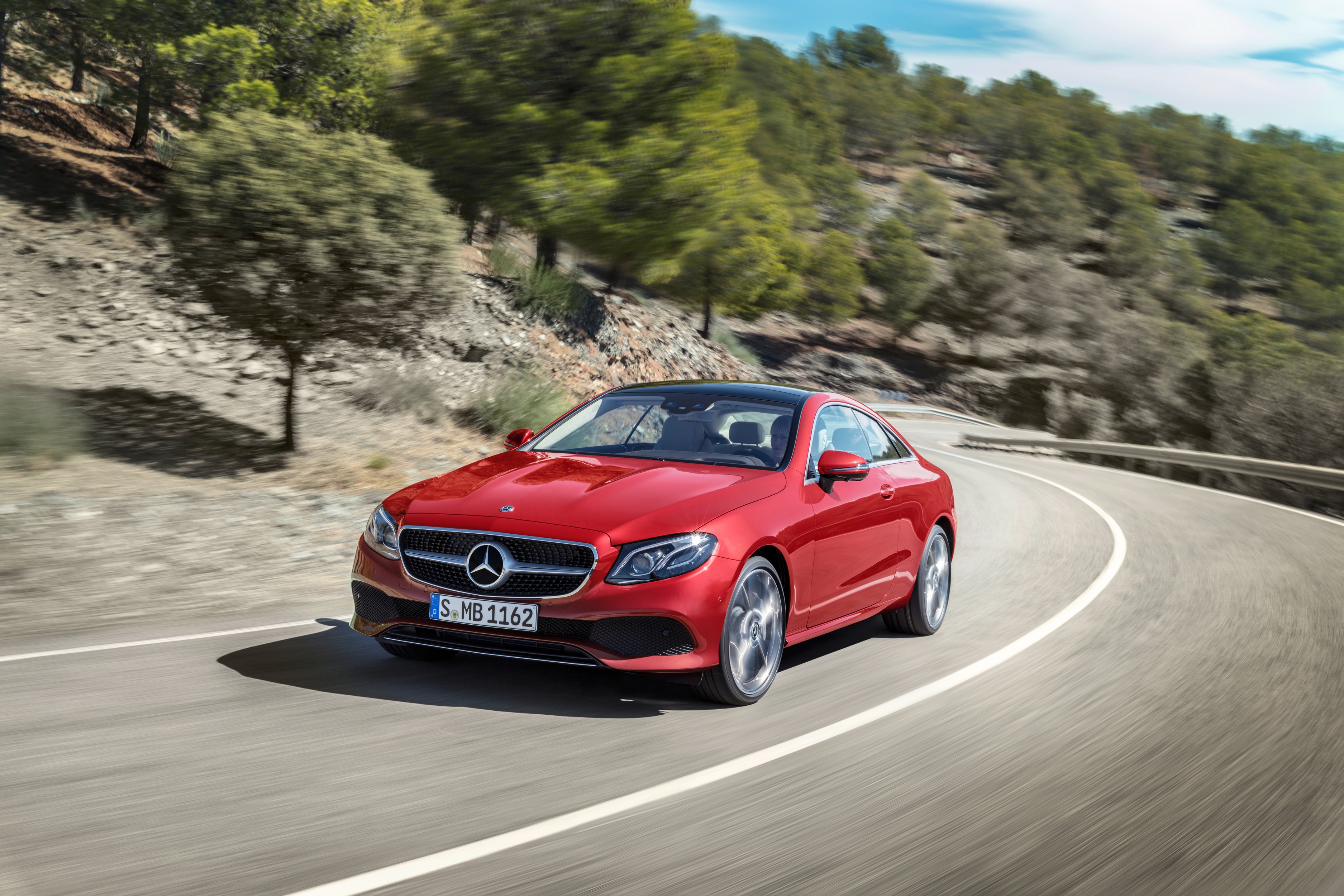

Coupé
Date of manufacture
12/2016 – 2020Internal designation

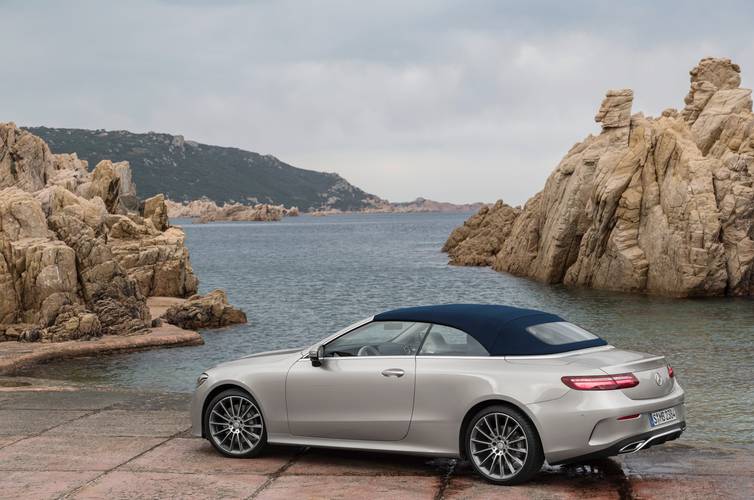

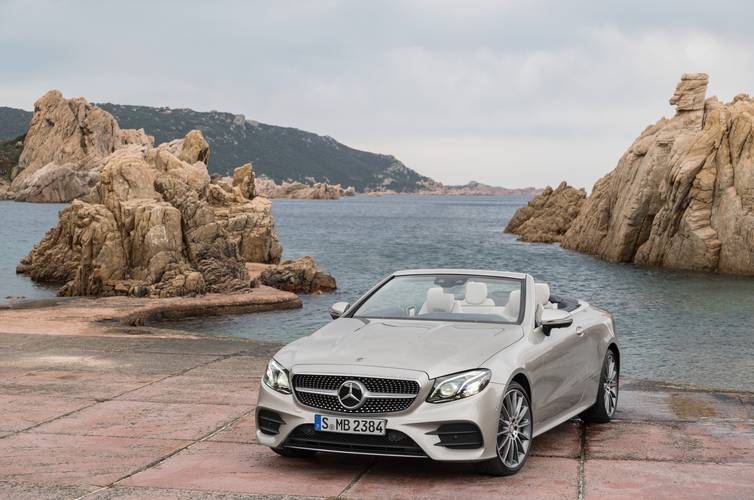

C238Convertible
Date of manufacture
2017 – 2020Internal designation
A238Technical data
Sedan
E 200 | E 200 | E 200 4MATIC | E 200 | E 200 4MATIC | E 250 | |
---|---|---|---|---|---|---|
Date of sale | from to 2018 | from to 2019 | from to 2019 | from 2019 to | from 2019 to | from to 2018 |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 135/5500 | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 155/5500 |
Maximum torque [Nm/min-1] | 300/1200-4000 | 300/1200-4000 | 300/1200-4000 | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 350/1200-4000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 10.5:1 | 10.5:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | Rear | 4x4 | Rear |
Gearbox | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications | - |
|
|
|
|
|
Top speed [km/h] | 240 | 240 | 233 | 240 | 232 | 250 |
Acceleration 0–100 km/h [s] | 8.1 | 7.7 | 7.9 | 7.5 | 7.6 | 6.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.8-8.1 | 9.3-7.6 | 9.9-8.5 | 8.5-8.0 | 9.3-8.6 | 8.0-7.6 |
Out of town [l] | 5.6-5.0 | 5.9-4.9 | 6.3-5.6 | 5.4-5.0 | 6.0-5.6 | 5.3-4.9 |
Combined [l] | 6.8-6.1 | 7.2-5.9 | 7.6-6.8 | 6.5-6.1 | 7.2-6.7 | 6.3-5.9 |
CO2 emissions [g/km] | 153-140 | 163-132 | 173-152 | 149-139 | 164-153 | 142-132 |
Emission standard | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | 48 | 48 | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1575 | 1605 | 1665 | 1704 | 1754 | 1615 |
Overall weight [kg] | 2215 | 2245 | 2305 | 2364 | 2414 | 2255 |
Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1900 | 750/2000 | 750/1900 | 750/2100 | 750/2000 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1833 | 1833 | 1833 | 1833 | 1833 | 1833 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/65 R16 | 205/65 R16 | 225/55 R17 | 205/65 R16 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 225/55 R17 | 205/65 R16 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.0J x 16 ET32 | 7.0J x 16 ET32 | 7.5J x 17 ET40 | 7.0J x 16 ET32 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Wheel size rear | 7.0J x 16 ET32 | 7.0J x 16 ET32 | 7.5J x 17 ET40 | 7.0J x 16 ET32 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4923 | 4923 | 4923 | 4923 | 4923 | 4923 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1468 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1619 | 1619 | 1619 | 1619 | 1619 | 1619 |
Rear wheel track [mm] | 1619 | 1619 | 1619 | 1619 | 1619 | 1619 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | 841 |
Rear overhang [mm] | 1143 | 1143 | 1143 | 1143 | 1143 | 1143 |
Clearance [mm] | 103 | 103 | 103 | 103 | 103 | 103 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 |
Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
Transition angle [°] | 8.7 | 8.7 | 8.7 | 8.7 | 8.7 | 8.7 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 300 | E 300 | E 350 | E 400 4MATIC | E 450 4MATIC | E 43 AMG 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from to 2019 | from 2019 to | from 2018 to | from to 2018 | from 2018 to | from to 2018 |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 3498 | 2996 | 2996 |
Maximum output / speed [kW/min-1] | 180/5500 | 190/5500-6100 10 el. | 220 10 el. | 245/5250-6000 | 270/5500-6000 | 270/5500-6000 |
Maximum torque [Nm/min-1] | 370/1300-4000 | 370/1650-4000 150 el. | 400/3000-4000 | 480/1200-4000 | 500/1800-4500 | 520/2000-4200 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 92,6 x 86,0 | 88,0 x 82,1 | 88,0 x 82,1 |
Compression ratio | 9,8:1 | 10.5:1 | 10.0:1 | 10,5:1 | 10,7:1 | 10,7:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 6.2 | 6.3 | 5.9 | 5.2 | 5.6 | 4.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 10.0-8.2 | 8.6-8.0 | 9.7-9.2 | 10.8-10.5 | 12.2-12.1 | 11.0-10.9 |
Out of town [l] | 6.7-5.2 | 5.4-5.1 | 6.0-5.3 | 6.3-5.9 | 6.5-6.3 | 6.8-6.7 |
Combined [l] | 7.9-6.3 | 6.6-6.1 | 7.4-6.7 | 7.9-7.6 | 8.6-8.4 | 8.4-8.2 |
CO2 emissions [g/km] | 181-144 | 150-140 | 169-153 | 179-173 | 196-192 | 192-187 |
Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | 48 | 48 | - | - | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1655 | 1756 | 1771 | 1820 | 1845 | 1840 |
Overall weight [kg] | 2295 | 2416 | 2431 | 2460 | 2485 | 2415 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1833 | 1833 | 1833 | 1833 | 1833 | 1833 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/40 ZR19 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/45 R18 | 275/35 ZR19 |
Wheel size front | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 19 |
Wheel size rear | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 9.0J x 19 |
Brake dimensions front | - | - | - | - | - | 360 x 36 |
Brake dimensions rear | - | - | - | - | - | 320 x 24 |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 12.5/- |
Overall length [mm] | 4923 | 4923 | 4923 | 4923 | 4923 | 4942 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1860/- |
Overall height [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1447 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1619 | 1619 | 1619 | 1619 | 1619 | 1628 |
Rear wheel track [mm] | 1619 | 1619 | 1619 | 1619 | 1619 | 1598 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | - |
Rear overhang [mm] | 1143 | 1143 | 1143 | 1143 | 1143 | - |
Clearance [mm] | 103 | 103 | 103 | 103 | 103 | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | - |
Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | - |
Transition angle [°] | 8.7 | 8.7 | 8.7 | 8.7 | 8.7 | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 53 AMG 4MATIC+ | E 63 AMG 4MATIC+ | E 63 AMG S 4MATIC+ | E 350e | E 300e | E 200d | |
---|---|---|---|---|---|---|
Date of sale | from 2018 to | - | - | from to 2018 | from 2018 to | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 2999 | 3982 | 3982 | 1991 | 1991 | 1950 |
Maximum output / speed [kW/min-1] | 320/6100 16 el. | 420/5750-6500 | 450/5750-6500 | 155/5500 combustion 65 el. 210 total | 155/5500 combustion 90 el. 235 total | 110 |
Maximum torque [Nm/min-1] | 520/1800-5800 250 el. | 750/2250-5000 | 850/2500-4500 | 350/1200-4000 combustion 440/0-1000 el. 550 total | 350/1200-4000 combustion 440/0-2000 el. 700 total | 360/1400-2800 |
Bore and stroke [mm x mm] | 83.0 x 92.4 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.0 | 83.0 x 92.0 | 82.0 x 92.3 |
Compression ratio | 10.5:1 | 8.6:1 | 8.6:1 | 10.0:1 | 10.0:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | 4x4 | Rear | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 [130 el.] | 250 [130 el.] | 224 |
Acceleration 0–100 km/h [s] | 4.5 | 3.5 | 3.4 | 6.2 | 5.7 | 8.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 11.5-11.4 | 14.5-11.4 | 14.5-11.4 | - | - | 5.6-4.3 |
Out of town [l] | 7.2-7.0 | 8.6-7.3 | 8.6-7.3 | - | - | 4.3-3.6 |
Combined [l] | 8.7-8.6 | 10.8-8.8 | 10.8-8.8 | 2.5-2.1 [11.5 kWh] | 2.1 [14.5 kWh] | 4.8-3.9 |
CO2 emissions [g/km] | 200-197 | 245-199 | 245-199 | 57-49 | 46 | 127-102 |
Emission standard | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | 48 | - | - | - | - | - |
Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 6.4 kWh | Lithium-Ionen-Akkumulator, 13.5 kWh | - |
Range with fully charged battery [km] | - | - | - | 33 | 50 | - |
Charging time | - | - | - | - |
| - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1945 | 1950 | 1955 | 1925 | 1985 | 1680 |
Overall weight [kg] | 2495 | 2525 | 2525 | 2565 | 2625 | 2320 |
Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 540 | 540 | 540 | 540 | 370 | 540 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1833 | 1833 | 1833 | 1833 | 1833 | 1833 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 66 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | 25 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 245/40 ZR19 | 265/40 R19 | 265/35 R20 | 245/45 R18 | 245/45 R18 | 205/65 R16 |
Tyre dimensions rear | 275/35 ZR19 | 295/35 R19 | 295/30 R20 | 275/40 R18 | 275/40 R18 | 205/65 R16 |
Wheel size front | 8.0J x 19 ET43 | 9.5J x 19 | 9.5J x 20 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 7.0J x 16 |
Wheel size rear | 9.0J x 19 ET 49 | 10.0J x 19 | 10.0J x 20 | 9.0J x 18 ET53 | 9.0J x 18 ET52.5 | 7.0J x 16 |
Brake dimensions front | 370 x 36 | 360 x 36 | 390 x 36 | - | - | - |
Brake dimensions rear | 360 x 24 | 360 x 26 | 360 x 26 | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 12.5/- | 12.5/- | 12.5/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4942 | 4993 | 4993 | 4923 | 4923 | 4923 |
Overall width without/including mirrors [mm] | 1860/- | 1907/- | 1907/- | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1447 | 1460 | 1460 | 1468 | 1468 | 1468 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1628 | 1649 | 1649 | 1619 | 1619 | 1619 |
Rear wheel track [mm] | 1598 | 1595 | 1595 | 1619 | 1619 | 1619 |
Forward overhang [mm] | - | - | - | 841 | 841 | 841 |
Rear overhang [mm] | - | - | - | 1143 | 1143 | 1143 |
Clearance [mm] | - | - | - | 103 | 103 | 103 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | 15.2 | 15.2 | 15.2 |
Approach angle rear [°] | - | - | - | 12.4 | 12.4 | 12.4 |
Transition angle [°] | - | - | - | 8.7 | 8.7 | 8.7 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 200d | E 220d | E 220d 4MATIC | E 300d | E 350d | E 350d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from 2019 to | - | - | from 2018 to | from to 2018 | from to 2018 |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
Engine displacement [cm³] | 1597 | 1950 | 1950 | 1950 | 2987 | 2987 |
Maximum output / speed [kW/min-1] | 118/3800 | 143/3800 | 143/3800 | 180/4200 | 190/3400 | 190/3400 |
Maximum torque [Nm/min-1] | 260/1600-2600 | 400/1600-2800 | 400/1600-2800 | 500/1600-2400 | 620/1600-2400 | 620/1600-2400 |
Bore and stroke [mm x mm] | 80,0 x 79,5 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 83.0 x 92.0 | 83.0 x 92.0 |
Compression ratio | 15,7:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 226 | 240 | 239 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 8.4 | 7.3 | 7.5 | 6.2 | 5.9 | 5.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 5.4-4.9 | 5.6-4.3 | 5.9-4.9 | 6.4-6.3 | 7.8-7.6 | 8.8-8.1 |
Out of town [l] | 4.2-3.7 | 4.3-3.6 | 4.7-4.1 | 4.5-4.1 | 5.4-5.1 | 5.6-5.0 |
Combined [l] | 4.7-4.2 | 4.8-3.9 | 5.1-4.5 | 5.2-5.0 | 6.3-6.0 | 6.8-6.1 |
CO2 emissions [g/km] | 123-110 | 127-102 | 135-117 | 137-131 | 167-159 | 153-140 |
Emission standard | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 | Euro 6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1680 | 1680 | 1735 | 1735 | 1800 | 1845 |
Overall weight [kg] | 2320 | 2320 | 2375 | 2370 | 2440 | 2485 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1833 | 1833 | 1833 | 1833 | 1833 | 1833 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | 25 | 25 | 25 | 25 | 25 | 25 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/65 R16 | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 ET40 | 7.5J x 17 | 7.5J x 17 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 ET40 | 7.5J x 17 | 7.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4923 | 4923 | 4923 | 4923 | 4923 | 4923 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1468 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1619 | 1619 | 1619 | 1619 | 1619 | 1619 |
Rear wheel track [mm] | 1619 | 1619 | 1619 | 1619 | 1619 | 1619 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | 841 |
Rear overhang [mm] | 1143 | 1143 | 1143 | 1143 | 1143 | 1143 |
Clearance [mm] | 103 | 103 | 103 | 103 | 103 | 103 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 |
Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
Transition angle [°] | 8.7 | 8.7 | 8.7 | 8.7 | 8.7 | 8.7 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 350d | E 400d 4MATIC | E 300 de | ||||
---|---|---|---|---|---|---|
Date of sale | from 2018 to | from 2018 to | from 2019 to | |||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | |||
Number of cylinders/valves | 6/24 | 6/24 | 4/16 | |||
Engine displacement [cm³] | 2925 | 2925 | 1950 | |||
Maximum output / speed [kW/min-1] | 210/4600 | 250/4400 | 143/3800 combustion 90 el. 225 total | |||
Maximum torque [Nm/min-1] | 600/1200-3200 | 700/1200-3200 | 400/1600-2800 combustion 440/0-2000 el. 700 total | |||
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |||
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | |||
Oil volume [l] | - | - | - | |||
Coolant volume [l] | - | - | - | |||
Technical specifications |
|
|
| |||
Drive axle | Rear | 4x4 | Rear | |||
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
Drive specifications |
|
|
| |||
Top speed [km/h] | 250 | 250 | 240 | |||
Acceleration 0–100 km/h [s] | 5.7 | 4.9 | 5.9 | |||
Acceleration 0–80 km/h [s] | - | - | - | |||
Acceleration 80–120 km/h [s] | - | - | - | |||
City [l] | 6.4-6.3 | 7.1-6.8 | - | |||
Out of town [l] | 4.8-4.6 | 5.3-5.0 | - | |||
Combined [l] | 5.4-5.2 | 6.0-5.7 | 1.6 [18.7 kWh] | |||
CO2 emissions [g/km] | 143-138 | 157-150 | 44-41 | |||
Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |||
Standard for fuel consumption measurement | - | - | - | |||
Energy class | - | - | - | |||
Stationary vehicle noise [dB] | - | - | - | |||
Driving noise [dB] | - | - | - | |||
System voltage [V] | - | - | - | |||
Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh | |||
Range with fully charged battery [km] | - | - | - | |||
Charging time | - | - |
| |||
Number of modules/cells | - | - | - | |||
Battery weight [kg] | - | - | - | |||
Charger | - | - | - | |||
Standby weight [kg] | 1840 | 1905 | 2060 | |||
Overall weight [kg] | 2480 | 2545 | 2700 | |||
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | |||
Maximum front/rear axle load [kg] | - | - | - | |||
Maximum vertical load on the tow bar [kg] | - | - | - | |||
Maximum load on roof/carrier [kg] | - | - | - | |||
Boot volume [l] | 540 | 540 | 370 | |||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
Boot length [mm] | - | - | - | |||
Boot length with rear seats folded [mm] | - | - | - | |||
Boot width between wheels/max [mm] | - | - | - | |||
Boot height to headliner/ceiling [mm] | - | - | - | |||
Loading edge height [mm] | - | - | - | |||
Height of the open boot door [mm] | 1833 | 1833 | 1833 | |||
Boot opening height [mm] | - | - | - | |||
Boot opening width min/max [mm] | - | - | - | |||
Number of doors | 4 | 4 | 4 | |||
Number of seats | 5 | 5 | 5 | |||
Fuel tank volume [l] | 50 | 50 | 50 | |||
AdBlue tank volume [l] | 25 | 25 | 25 | |||
Air resistance [Cd] | - | - | - | |||
Front suspension | four-link | four-link | four-link | |||
Rear suspension | five-link | five-link | five-link | |||
Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | |||
Tyre dimensions rear | 245/45 R18 | 245/45 R18 | 275/40 R18 | |||
Wheel size front | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | |||
Wheel size rear | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 9.0J x 18 ET52,5 | |||
Brake dimensions front | - | - | - | |||
Brake dimensions rear | - | - | - | |||
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
Number of steering wheel turns | - | - | - | |||
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | |||
Overall length [mm] | 4923 | 4923 | 4923 | |||
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | |||
Overall height [mm] | 1468 | 1468 | 1468 | |||
Wheelbase [mm] | 2939 | 2939 | 2939 | |||
Front wheel track [mm] | 1619 | 1619 | 1619 | |||
Rear wheel track [mm] | 1619 | 1619 | 1619 | |||
Forward overhang [mm] | 841 | 841 | 841 | |||
Rear overhang [mm] | 1143 | 1143 | 1143 | |||
Clearance [mm] | 103 | 103 | 103 | |||
Wading depth [mm] | - | - | - | |||
Approach angle front [°] | 15.2 | 15.2 | 15.2 | |||
Approach angle rear [°] | 12.4 | 12.4 | 12.4 | |||
Transition angle [°] | 8.7 | 8.7 | 8.7 | |||
Climbing rate [°] | - | - | - | |||
Maximum side tilt [°] | - | - | - | |||
Headroom front [mm] | 1051 | 1051 | 1051 | |||
Headroom rear [mm] | 971 | 971 | 971 | |||
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | |||
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | |||
Legroom front knees/total [mm] | - | - | - | |||
Legroom rear knees/total [mm] | - | - | - |
Estate
E 200 | E 200 4MATIC | E 200 | E 200 4MATIC | E 250 | E 300 | |
---|---|---|---|---|---|---|
Date of sale | from to 2019 | from to 2019 | from 2019 to | from 2019 to | from to 2018 | from 2019 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 155/5500 | 190/5500-6100 10 el. |
Maximum torque [Nm/min-1] | 300/1200-4000 | 300/1200-4000 | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 350/1200-4000 | 370/1650-4000 150 el. |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 9,8:1 | 9,8:1 | 10.5:1 | 10.5:1 | 9,8:1 | 10.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 231 | 228 | 231 | 225 | 243 | 250 |
Acceleration 0–100 km/h [s] | 8.1 | 8.3 | 7.8 | 7.9 | 7.2 | 6.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.2-7.8 | 9.0-8.7 | 8.6-8.1 | 9.3-8.7 | 8.2-7.8 | 8.7-8.2 |
Out of town [l] | 5.6-5.2 | 6.4-6.0 | 5.8-5.4 | 6.1-5.7 | 5.6-5.2 | 5.8-5.4 |
Combined [l] | 6.6-6.2 | 7.5-7.1 | 6.8-6.4 | 7.3-6.8 | 6.6-6.2 | 6.9-6.4 |
CO2 emissions [g/km] | 149-138 | 168-159 | 156-146 | 166-156 | 149-138 | 157-147 |
Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 48 | 48 | - | 48 |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1705 | 1770 | 1799 | 1849 | 1720 | 1845 |
Overall weight [kg] | 2375 | 2440 | 2479 | 2529 | 2390 | 2525 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 640 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 |
Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
Boot height to headliner/ceiling [mm] | -/819 | -/819 | -/819 | -/819 | -/819 | -/819 |
Loading edge height [mm] | 584 | 584 | 584 | 584 | 584 | 584 |
Height of the open boot door [mm] | 2070 | 2070 | 2070 | 2070 | 2070 | 2070 |
Boot opening height [mm] | 737 | 737 | 737 | 737 | 737 | 737 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Wheel size rear | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4933 | 4933 | 4933 | 4933 | 4933 | 4933 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | 841 |
Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
Clearance [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
Approach angle rear [°] | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 |
Transition angle [°] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1061 | 1061 | 1061 | 1061 | 1061 | 1061 |
Headroom rear [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 400 4MATIC | E 450 4MATIC | E 43 AMG 4MATIC | E 53 AMG 4MATIC+ | E 63 AMG 4MATIC+ | E 63 AMG S 4MATIC+ | |
---|---|---|---|---|---|---|
Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2018 to | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
Engine displacement [cm³] | 3498 | 2996 | 2996 | 2999 | 3982 | 3982 |
Maximum output / speed [kW/min-1] | 245/5250-6000 | 270/5500-6000 | 270/5500-6000 | 320/6100 16 el. | 420/5750-6500 | 450/5750-6500 |
Maximum torque [Nm/min-1] | 480/1200-4000 | 500/1800-4500 | 520/2000-4200 | 520/1800-5800 250 el. | 750/2250-5000 | 850/2500-4500 |
Bore and stroke [mm x mm] | 92,6 x 86,0 | 88,0 x 82,1 | 88,0 x 82,1 | 83.0 x 92.4 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,5:1 | 10,7:1 | 10,7:1 | 10.5:1 | 8.6:1 | 8.6:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 5.4 | 5.3 | 4.7 | 4.5 | 3.6 | 3.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 11.1-10.8 | 12.3-12.1 | 11.1-11.0 | 11.6-11.5 | 14.5-11.7 | 14.5-11.7 |
Out of town [l] | 6.6-6.3 | 6.9-6.4 | 7.1-7.0 | 7.3-7.2 | 8.6-7.5 | 8.7-7.5 |
Combined [l] | 8.2-7.9 | 8.9-8.5 | 8.6-8.4 | 8.9-8.7 | 10.8-9.1 | 10.8-9.1 |
CO2 emissions [g/km] | 186-180 | 203-194 | 197-192 | 203-200 | 246-206 | 246-206 |
Emission standard | Euro 6 | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | 48 | - | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1910 | 1945 | 1930 | 2020 | 2060 | 2070 |
Overall weight [kg] | 2580 | 2615 | 2505 | 2585 | 2635 | 2635 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 640 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 |
Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
Boot height to headliner/ceiling [mm] | -/819 | -/819 | -/819 | -/819 | -/819 | -/819 |
Loading edge height [mm] | 584 | 584 | 584 | 584 | 584 | 584 |
Height of the open boot door [mm] | 2070 | 2070 | 2070 | 2070 | 2070 | 2070 |
Boot opening height [mm] | 737 | 737 | 737 | 737 | 737 | 737 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/40 ZR19 | 245/40 ZR19 | 265/40 R19 | 265/35 R20 |
Tyre dimensions rear | 245/45 R18 | 245/45 R18 | 275/35 ZR19 | 275/35 ZR19 | 295/35 R19 | 295/30 R20 |
Wheel size front | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 19 | 8.0J x 19 ET43 | 9.5J x 19 | 9.5J x 20 |
Wheel size rear | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 9.0J x 19 | 9.0J x 19 ET 49 | 10.0J x 19 | 10.0J x 20 |
Brake dimensions front | - | - | 360 x 36 | 370 x 36 | 360 x 36 | 390 x 36 |
Brake dimensions rear | - | - | 320 x 24 | 360 x 24 | 360 x 26 | 360 x 26 |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 12.5/- | 12.5/- | 12.5/- | 12.5/- |
Overall length [mm] | 4933 | 4933 | 4933 | 4933 | 4933 | 4933 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1860/- | 1860/- | 1907/- | 1907/- |
Overall height [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
Forward overhang [mm] | 841 | 841 | - | - | - | - |
Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
Clearance [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
Approach angle rear [°] | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 |
Transition angle [°] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1061 | 1061 | 1061 | 1061 | 1061 | 1061 |
Headroom rear [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 200d | E 200d | E 220d | E 220d 4MATIC | E 300d | E 350d | |
---|---|---|---|---|---|---|
Date of sale | - | from 2019 to | - | - | from 2018 to | from to 2018 |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
Engine displacement [cm³] | 1950 | 1597 | 1950 | 1950 | 1950 | 2987 |
Maximum output / speed [kW/min-1] | 110 | 118/3800 | 143/3800 | 143/3800 | 180/4200 | 190/3400 |
Maximum torque [Nm/min-1] | 360/1400-2800 | 260/1600-2600 | 400/1600-2800 | 400/1600-2800 | 500/1600-2400 | 620/1600-2400 |
Bore and stroke [mm x mm] | 82.0 x 92.3 | 80,0 x 79,5 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 83.0 x 92.0 |
Compression ratio | 15.5:1 | 15,7:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 217 | 217 | 235 | 233 | 250 | 250 |
Acceleration 0–100 km/h [s] | 8.7 | 8.7 | 7.7 | 7.8 | 6.5 | 6.0 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 4.9-4.5 | 5.5-5.1 | 4.9-4.5 | 5.7-5.3 | 6.7-6.5 | 7.6-7.3 |
Out of town [l] | 4.4-3.9 | 4.5-4.0 | 4.4-3.9 | 5.0-4.5 | 4.7-4.4 | 5.1-4.7 |
Combined [l] | 4.6-4.2 | 4.9-4.4 | 4.6-4.2 | 5.2-4.9 | 5.4-5.2 | 6.1-5.6 |
CO2 emissions [g/km] | 120-109 | 128-117 | 120-109 | 137-126 | 144-138 | 162-148 |
Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1780 | 1780 | 1780 | 1840 | 1840 | 1890 |
Overall weight [kg] | 2450 | 2450 | 2450 | 2510 | 2495 | 2560 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 640 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 |
Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
Boot height to headliner/ceiling [mm] | -/819 | -/819 | -/819 | -/819 | -/819 | -/819 |
Loading edge height [mm] | 584 | 584 | 584 | 584 | 584 | 584 |
Height of the open boot door [mm] | 2070 | 2070 | 2070 | 2070 | 2070 | 2070 |
Boot opening height [mm] | 737 | 737 | 737 | 737 | 737 | 737 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | 25 | 25 | 25 | 25 | 25 | 25 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 |
Wheel size rear | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4933 | 4933 | 4933 | 4933 | 4933 | 4933 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | 841 |
Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
Clearance [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
Approach angle rear [°] | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 |
Transition angle [°] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1061 | 1061 | 1061 | 1061 | 1061 | 1061 |
Headroom rear [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 350d 4MATIC | E 350d | E 400d 4MATIC | E 220d 4MATIC All-Terrain | E 350d 4MATIC All-Terrain | E 400d 4MATIC All-Terrain | |
---|---|---|---|---|---|---|
Date of sale | from to 2018 | from 2018 to | from 2018 to | from 2017 to | from 2017 to 2018 | from 2018 to |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 4/16 | 6/24 | 6/24 |
Engine displacement [cm³] | 2987 | 2925 | 2925 | 1950 | 2987 | 2925 |
Maximum output / speed [kW/min-1] | 190/3400 | 210/4600 | 250/4400 | 143/3800 | 190/3400 | 250/4400 |
Maximum torque [Nm/min-1] | 620/1600-2400 | 600/1200-3200 | 700/1200-3200 | 400/1600-2800 | 620/1600-2400 | 700/1200-3200 |
Bore and stroke [mm x mm] | 83.0 x 92.0 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 83.0 x 92.0 | 82.0 x 92.3 |
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | 4x4 | 4x4 | 4x4 | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 231 | 250 | 250 |
Acceleration 0–100 km/h [s] | 6.0 | 5.7 | 5.1 | 8.0 | 6.2 | 5.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.9-7.7 | 6.6-6.3 | 7.3-6.9 | 6.6-5.5 | 8.1-8.0 | 7.7-7.6 |
Out of town [l] | 5.6-5.4 | 5.1-4.8 | 5.5-5.1 | 5.3-5.0 | 5.8-5.7 | 5.8-5.7 |
Combined [l] | 6.6-6.3 | 5.7-5.4 | 6.1-5.8 | 5.8-5.2 | 6.8-6.7 | 6.5-6.4 |
CO2 emissions [g/km] | 174-166 | 149-141 | 162-152 | 152-137 | 179-177 | 171-168 |
Emission standard | Euro 6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1940 | 1935 | 1995 | 1945 | 2010 | 2055 |
Overall weight [kg] | 2610 | 2605 | 2665 | 2570 | 2680 | 2690 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 640 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 |
Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
Boot height to headliner/ceiling [mm] | -/819 | -/819 | -/819 | -/819 | -/819 | -/819 |
Loading edge height [mm] | 584 | 584 | 584 | 584 | 584 | 584 |
Height of the open boot door [mm] | 2070 | 2070 | 2070 | 2098 | 2098 | 2098 |
Boot opening height [mm] | 737 | 737 | 737 | 737 | 737 | 737 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | 25 | 25 | 25 | 25 | 25 | 25 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R19 | 245/45 R19 | 245/45 R19 |
Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R19 | 245/45 R19 | 245/45 R19 |
Wheel size front | 7.5J x 17 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 19 ET38 | 8.0J x 19 ET38 | 8.0J x 19 ET38 |
Wheel size rear | 7.5J x 17 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 19 ET38 | 8.0J x 19 ET38 | 8.0J x 19 ET38 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.9/- | 11.9/- | 11.9/- |
Overall length [mm] | 4933 | 4933 | 4933 | 4947 | 4947 | 4947 |
Overall width without/including mirrors [mm] | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 | 1852/2065 |
Overall height [mm] | 1475 | 1475 | 1475 | 1497 | 1497 | 1497 |
Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
Front wheel track [mm] | 1600 | 1600 | 1600 | 1604 | 1604 | 1604 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1604 | 1604 | 1604 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | 841 |
Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
Clearance [mm] | 112 | 112 | 112 | 136 | 136 | 136 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 14.8 | 14.8 | 14.8 | 17.3 | 17.3 | 17.3 |
Approach angle rear [°] | 16.7 | 16.7 | 16.7 | 16.9 | 16.9 | 16.9 |
Transition angle [°] | 11.3 | 11.3 | 11.3 | 13.5 | 13.5 | 13.5 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1061 | 1061 | 1061 | 1061 | 1061 | 1061 |
Headroom rear [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
Front elbow/shoulder width [mm] | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 | 1467/1499 |
Rear elbow/shoulder width [mm] | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 | 1450/1494 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 300 de | ||||||
---|---|---|---|---|---|---|
Date of sale | from 2019 to | |||||
Engine type | Diesel supercharged + Electric | |||||
Number of cylinders/valves | 4/16 | |||||
Engine displacement [cm³] | 1950 | |||||
Maximum output / speed [kW/min-1] | 143/3800 combustion 90 el. 225 total | |||||
Maximum torque [Nm/min-1] | 400/1600-2800 combustion 440/0-2000 el. 700 total | |||||
Bore and stroke [mm x mm] | 82.0 x 92.3 | |||||
Compression ratio | 15.5:1 | |||||
Oil volume [l] | - | |||||
Coolant volume [l] | - | |||||
Technical specifications |
| |||||
Drive axle | Rear | |||||
Gearbox | 9 gear automatic | |||||
Drive specifications |
| |||||
Top speed [km/h] | 250 [130 el.] | |||||
Acceleration 0–100 km/h [s] | 5.9 | |||||
Acceleration 0–80 km/h [s] | - | |||||
Acceleration 80–120 km/h [s] | - | |||||
City [l] | - | |||||
Out of town [l] | - | |||||
Combined [l] | 1.6 [19.7 kWh] | |||||
CO2 emissions [g/km] | 44-41 | |||||
Emission standard | Euro 6d-TEMP | |||||
Standard for fuel consumption measurement | - | |||||
Energy class | - | |||||
Stationary vehicle noise [dB] | - | |||||
Driving noise [dB] | - | |||||
System voltage [V] | - | |||||
Battery type and capacity | Lithium-Ionen-Akkumulator, 13.5 kWh | |||||
Range with fully charged battery [km] | - | |||||
Charging time |
| |||||
Number of modules/cells | - | |||||
Battery weight [kg] | - | |||||
Charger | - | |||||
Standby weight [kg] | 2140 | |||||
Overall weight [kg] | 2800 | |||||
Maximum trailer weight unbraked/braked [kg] | 750/2100 | |||||
Maximum front/rear axle load [kg] | - | |||||
Maximum vertical load on the tow bar [kg] | - | |||||
Maximum load on roof/carrier [kg] | - | |||||
Boot volume [l] | 480 | |||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | |||||
Boot length [mm] | 1175 | |||||
Boot length with rear seats folded [mm] | 2005 | |||||
Boot width between wheels/max [mm] | 1100/- | |||||
Boot height to headliner/ceiling [mm] | -/819 | |||||
Loading edge height [mm] | 584 | |||||
Height of the open boot door [mm] | 2070 | |||||
Boot opening height [mm] | 737 | |||||
Boot opening width min/max [mm] | - | |||||
Number of doors | 5 | |||||
Number of seats | 5 | |||||
Fuel tank volume [l] | 50 | |||||
AdBlue tank volume [l] | 25 | |||||
Air resistance [Cd] | - | |||||
Front suspension | four-link | |||||
Rear suspension | five-link | |||||
Tyre dimensions front | 245/45 R18 | |||||
Tyre dimensions rear | 275/40 R18 | |||||
Wheel size front | 8.0J x 18 ET43 | |||||
Wheel size rear | 9.0J x 18 ET52,5 | |||||
Brake dimensions front | - | |||||
Brake dimensions rear | - | |||||
Steering | Rack & pinion with electro-mechanical power steering | |||||
Number of steering wheel turns | - | |||||
Turning diameter track/circumference [m] | 11.6/- | |||||
Overall length [mm] | 4933 | |||||
Overall width without/including mirrors [mm] | 1852/2065 | |||||
Overall height [mm] | 1475 | |||||
Wheelbase [mm] | 2939 | |||||
Front wheel track [mm] | 1600 | |||||
Rear wheel track [mm] | 1609 | |||||
Forward overhang [mm] | 841 | |||||
Rear overhang [mm] | 1153 | |||||
Clearance [mm] | 112 | |||||
Wading depth [mm] | - | |||||
Approach angle front [°] | 14.8 | |||||
Approach angle rear [°] | 16.7 | |||||
Transition angle [°] | 11.3 | |||||
Climbing rate [°] | - | |||||
Maximum side tilt [°] | - | |||||
Headroom front [mm] | 1061 | |||||
Headroom rear [mm] | 1005 | |||||
Front elbow/shoulder width [mm] | 1467/1499 | |||||
Rear elbow/shoulder width [mm] | 1450/1494 | |||||
Legroom front knees/total [mm] | - | |||||
Legroom rear knees/total [mm] | - |
Coupé
E 200 | E 200 4MATIC | E 200 | E 200 4MATIC | E 300 | E 300 | |
---|---|---|---|---|---|---|
Date of sale | from to 2019 | from to 2019 | from 2019 to | from 2019 to | from to 2019 | from 2019 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 180/5500 | 190/5500-6100 10 el. |
Maximum torque [Nm/min-1] | 300/1200-4000 | 300/1200-4000 | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 370/1300-4000 | 370/1650-4000 150 el. |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 9,8:1 | 9,8:1 | 10.5:1 | 10.5:1 | 9,8:1 | 10.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 240 | 235 | 237 | 231 | 250 | 250 |
Acceleration 0–100 km/h [s] | 7.8 | 8.0 | 7.6 | 7.7 | 6.6 | 6.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.6-9.2 | 10.2-9.7 | 8.5-8.2 | 9.3-8.9 | 10.0 | 8.7-8.5 |
Out of town [l] | 6.2-5.7 | 6.5-6.4 | 5.5-5.3 | 6.1-5.9 | 6.7 | 5.6-5.4 |
Combined [l] | 7.4-7.0 | 7.9-7.6 | 6.6-6.4 | 7.3-7.0 | 7.9 | 6.8-6.6 |
CO2 emissions [g/km] | 170-159 | 180-174 | 151-146 | 166-160 | 181 | 155-150 |
Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 48 | 48 | - | 48 |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1755 | 1825 | 1735 | 1805 | 1685 | 1785 |
Overall weight [kg] | 2250 | 2320 | 2270 | 2340 | 2250 | 2320 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 425 | 425 | 425 | 425 | 425 | 425 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Wheel size rear | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4826 | 4826 | 4826 | 4826 | 4826 | 4826 |
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 |
Overall height [mm] | 1430 | 1430 | 1430 | 1430 | 1430 | 1430 |
Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | 841 |
Rear overhang [mm] | 1112 | 1112 | 1112 | 1112 | 1112 | 1112 |
Clearance [mm] | 98 | 98 | 98 | 98 | 98 | 98 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 |
Rear elbow/shoulder width [mm] | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 350 | E 400 4MATIC | E 450 4MATIC | E 53 AMG 4MATIC+ | E 220d | E 220d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from 2018 to | from to 2018 | from 2018 to | from 2018 to | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 3498 | 2996 | 2999 | 1950 | 1950 |
Maximum output / speed [kW/min-1] | 220 10 el. | 245/5250-6000 | 270/5500-6000 | 320/6100 16 el. | 143/3800 | 143/3800 |
Maximum torque [Nm/min-1] | 400/3000-4000 | 480/1200-4000 | 500/1800-4500 | 520/1800-5800 250 el. | 400/1600-2800 | 400/1600-2800 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 92,6 x 86,0 | 88,0 x 82,1 | 83.0 x 92.4 | 82.0 x 92.3 | 82.0 x 92.3 |
Compression ratio | 10.0:1 | 10,5:1 | 10,7:1 | 10.5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | 4x4 | 4x4 | Rear | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 242 | 239 |
Acceleration 0–100 km/h [s] | 5.9 | 5.3 | 5.6 | 4.4 | 7.4 | 7.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.4-9.1 | 11.2-11.0 | 12.3-12.2 | 11.6-11.4 | 5.9-5.7 | 6.4-6.0 |
Out of town [l] | 5.9-5.6 | 6.7-6.4 | 6.8-6.5 | 7.3-7.1 | 4.5-4.3 | 4.9-4.7 |
Combined [l] | 7.26.9 | 8.4-8.1 | 8.8-8.6 | 8.8-8.7 | 5.0-4.3 | 5.3-5.2 |
CO2 emissions [g/km] | 164-157 | 189-183 | 202-197 | 203-199 | 132-126 | 141-137 |
Emission standard | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | 48 | - | - | 48 | - | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1795 | 1845 | 1860 | 1970 | 1790 | 1855 |
Overall weight [kg] | 2330 | 2360 | 2365 | 2425 | 2320 | 2385 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | - | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 405 | 425 | 425 | 425 | 425 | 425 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | 25 | 25 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/40 ZR19 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 275/35 ZR19 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 19 ET43 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Wheel size rear | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 9.0J x 19 ET 49 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Brake dimensions front | - | - | - | 370 x 36 | - | - |
Brake dimensions rear | - | - | - | 360 x 24 | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 12.5/- | 11.6/- | 11.6/- |
Overall length [mm] | 4826 | 4826 | 4826 | 4826 | 4826 | 4826 |
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 |
Overall height [mm] | 1430 | 1430 | 1430 | 1430 | 1430 | 1430 |
Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
Forward overhang [mm] | 841 | 841 | 841 | - | 841 | 841 |
Rear overhang [mm] | 1112 | 1112 | 1112 | 1112 | 1112 | 1112 |
Clearance [mm] | 98 | 98 | 98 | 98 | 98 | 98 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 |
Rear elbow/shoulder width [mm] | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 | 1277/1341 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 300d | E 350d | E 400d 4MATIC | ||||
---|---|---|---|---|---|---|
Date of sale | from 2018 to | from 2018 to | from 2018 to | |||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
Number of cylinders/valves | 4/16 | 6/24 | 6/24 | |||
Engine displacement [cm³] | 1950 | 2925 | 2925 | |||
Maximum output / speed [kW/min-1] | 180/4200 | 210/4600 | 250/4400 | |||
Maximum torque [Nm/min-1] | 500/1600-2400 | 600/1200-3200 | 700/1200-3200 | |||
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |||
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | |||
Oil volume [l] | - | - | - | |||
Coolant volume [l] | - | - | - | |||
Technical specifications |
|
|
| |||
Drive axle | Rear | Rear | 4x4 | |||
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
Drive specifications |
|
|
| |||
Top speed [km/h] | 250 | 250 | 250 | |||
Acceleration 0–100 km/h [s] | 6.3 | 5.9 | 5.1 | |||
Acceleration 0–80 km/h [s] | - | - | - | |||
Acceleration 80–120 km/h [s] | - | - | - | |||
City [l] | 6.6-6.2 | 6.5-6.4 | 7.1-6.8 | |||
Out of town [l] | 4.7-4.1 | 5.0-4.8 | 5.4-5.1 | |||
Combined [l] | 5.3-5.0 | 5.6-5.4 | 6.0-5.7 | |||
CO2 emissions [g/km] | 140-133 | 147-142 | 158-151 | |||
Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |||
Standard for fuel consumption measurement | - | - | - | |||
Energy class | - | - | - | |||
Stationary vehicle noise [dB] | - | - | - | |||
Driving noise [dB] | - | - | - | |||
Standby weight [kg] | 1810 | 1865 | 1940 | |||
Overall weight [kg] | 2385 | 2365 | 2440 | |||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | |||
Maximum front/rear axle load [kg] | - | - | - | |||
Maximum vertical load on the tow bar [kg] | - | - | - | |||
Maximum load on roof/carrier [kg] | - | - | - | |||
Boot volume [l] | 425 | 425 | 425 | |||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
Boot length [mm] | - | - | - | |||
Boot length with rear seats folded [mm] | - | - | - | |||
Boot width between wheels/max [mm] | - | - | - | |||
Boot height to headliner/ceiling [mm] | - | - | - | |||
Loading edge height [mm] | - | - | - | |||
Height of the open boot door [mm] | 1740 | 1740 | 1740 | |||
Boot opening height [mm] | - | - | - | |||
Boot opening width min/max [mm] | - | - | - | |||
Number of doors | 2 | 2 | 2 | |||
Number of seats | 4 | 4 | 4 | |||
Fuel tank volume [l] | 50 | 50 | 50 | |||
AdBlue tank volume [l] | 25 | 25 | 25 | |||
Air resistance [Cd] | - | - | - | |||
Front suspension | four-link | four-link | four-link | |||
Rear suspension | five-link | five-link | five-link | |||
Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | |||
Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | |||
Wheel size front | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | |||
Wheel size rear | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | |||
Brake dimensions front | - | - | - | |||
Brake dimensions rear | - | - | - | |||
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
Number of steering wheel turns | - | - | - | |||
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | |||
Overall length [mm] | 4826 | 4826 | 4826 | |||
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | |||
Overall height [mm] | 1430 | 1430 | 1430 | |||
Wheelbase [mm] | 2873 | 2873 | 2873 | |||
Front wheel track [mm] | 1605 | 1605 | 1605 | |||
Rear wheel track [mm] | 1609 | 1609 | 1609 | |||
Forward overhang [mm] | 841 | 841 | 841 | |||
Rear overhang [mm] | 1112 | 1112 | 1112 | |||
Clearance [mm] | 98 | 98 | 98 | |||
Wading depth [mm] | - | - | - | |||
Approach angle front [°] | 13.0 | 13.0 | 13.0 | |||
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | |||
Transition angle [°] | 9.5 | 9.5 | 9.5 | |||
Climbing rate [°] | - | - | - | |||
Maximum side tilt [°] | - | - | - | |||
Headroom front [mm] | 1039 | 1039 | 1039 | |||
Headroom rear [mm] | 925 | 925 | 925 | |||
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | |||
Rear elbow/shoulder width [mm] | 1277/1341 | 1277/1341 | 1277/1341 | |||
Legroom front knees/total [mm] | - | - | - | |||
Legroom rear knees/total [mm] | - | - | - |
Convertible
E 200 | E 200 4MATIC | E 200 | E 200 4MATIC | E 300 | E 300 | |
---|---|---|---|---|---|---|
Date of sale | from to 2019 | from to 2019 | from 2019 to | from 2019 to | from to 2019 | from 2019 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 145/5500-6100 10 el. | 145/5500-6100 10 el. | 180/5500 | 190/5500-6100 10 el. |
Maximum torque [Nm/min-1] | 300/1200-4000 | 300/1200-4000 | 320/1650-4000 150 el. | 320/1650-4000 150 el. | 370/1300-4000 | 370/1650-4000 150 el. |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 9,8:1 | 9,8:1 | 10.5:1 | 10.5:1 | 9,8:1 | 10.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 234 | 230 | 234 | 230 | 250 | 250 |
Acceleration 0–100 km/h [s] | 8.1 | 8.3 | 7,9 | 8,0 | 6.6 | 6,6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.8-9.5 | 10.3-9.7 | 8,8-8,3 | 9,5-9,0 | 10.0 | 9,0-8,5 |
Out of town [l] | 6.5-6.0 | 6.6-6.4 | 5,8-5,4 | 6,3-5,9 | 6.7 | 5,9-5,5 |
Combined [l] | 7.7-7.2 | 7.9-7.7 | 6,9-6,5 | 7,5-7,0 | 7.9 | 7,0-6,6 |
CO2 emissions [g/km] | 176-165 | 181-175 | 157-148 | 171-160 | 181 | 161-152 |
Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 48 | 48 | - | 48 |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1775 | 1825 | 1833 | 1903 | 1795 | 1915 |
Overall weight [kg] | 2250 | 2320 | 2343 | 2413 | 2280 | 2425 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Wheel size rear | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4826 | 4826 | 4826 | 4826 | 4826 | 4826 |
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 |
Overall height [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
Forward overhang [mm] | 841 | 841 | 841 | 841 | 841 | 841 |
Rear overhang [mm] | 1112 | 1112 | 1112 | 1112 | 1112 | 1112 |
Clearance [mm] | 98 | 98 | 98 | 98 | 98 | 98 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
Headroom rear [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 |
Rear elbow/shoulder width [mm] | 1228/1308 | 1228/1308 | 1228/1308 | 1228/1308 | 1228/1308 | 1228/1308 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 350 | E 400 4MATIC | E 450 4MATIC | E 53 AMG 4MATIC+ | E 220d | E 220d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from 2018 to | from to 2018 | from 2018 to | from 2018 to | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 3498 | 2996 | 2999 | 1950 | 1950 |
Maximum output / speed [kW/min-1] | 220 10 el. | 245/5250-6000 | 270/5500-6000 | 320/6100 16 el. | 143/3800 | 143/3800 |
Maximum torque [Nm/min-1] | 400/3000-4000 | 480/1200-4000 | 500/1800-4500 | 520/1800-5800 250 el. | 400/1600-2800 | 400/1600-2800 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 92,6 x 86,0 | 88,0 x 82,1 | 83.0 x 92.4 | 82.0 x 92.3 | 82.0 x 92.3 |
Compression ratio | 10.0:1 | 10,5:1 | 10,7:1 | 10.5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | 4x4 | 4x4 | Rear | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 237 | 234 |
Acceleration 0–100 km/h [s] | 6,1 | 5.5 | 5,3 | 4,5 | 7,7 | 7,9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 10,0-9,2 | 11.4-11.2 | 12,3-12,1 | 11,6-11,5 | 6,1-5,8 | 6,4-5,9 |
Out of town [l] | 6,5-5,6 | 6.9-6.6 | 6,8-6,4 | 7,4-7,2 | 4,8-4,4 | 5,0-4,6 |
Combined [l] | 7,8-7,0 | 8.6-8.3 | 8,9-8,5 | 8,9-8,8 | 5,3-4,9 | 5,4-5,2 |
CO2 emissions [g/km] | 178-159 | 194-187 | 202-194 | 204-201 | 139-129 | 142-137 |
Emission standard | Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | 48 | - | - | 48 | - | - |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1892 | 1935 | 1958 | 2060 | 1858 | 1928 |
Overall weight [kg] | 2402 | 2415 | 2468 | 2480 | 2338 | 2408 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | - | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 285-360 | 310-385 | 310-385 | 310-385 | 310-385 | 310-385 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | 14 | 14 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/40 ZR19 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 275/35 ZR19 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 8.0J x 19 ET43 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Wheel size rear | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | 9.0J x 19 ET 49 | 7.5J x 17 ET40 | 7.5J x 17 ET40 |
Brake dimensions front | - | - | - | 370 x 36 | - | - |
Brake dimensions rear | - | - | - | 360 x 24 | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 12.5/- | 11.6/- | 11.6/- |
Overall length [mm] | 4826 | 4826 | 4826 | 4826 | 4826 | 4826 |
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 | 1860/2055 |
Overall height [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
Forward overhang [mm] | 841 | 841 | 841 | - | 841 | 841 |
Rear overhang [mm] | 1112 | 1112 | 1112 | 1112 | 1112 | 1112 |
Clearance [mm] | 98 | 98 | 98 | 98 | 98 | 98 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
Headroom rear [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 | 1424/1492 |
Rear elbow/shoulder width [mm] | 1228/1308 | 1228/1308 | 1228/1308 | 1228/1308 | 1228/1308 | 1228/1308 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
E 300d | E 350d | E 400d 4MATIC | ||||
---|---|---|---|---|---|---|
Date of sale | from 2018 to | from 2018 to | from 2018 to | |||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
Number of cylinders/valves | 4/16 | 6/24 | 6/24 | |||
Engine displacement [cm³] | 1950 | 2925 | 2925 | |||
Maximum output / speed [kW/min-1] | 180/4200 | 210/4600 | 250/4400 | |||
Maximum torque [Nm/min-1] | 500/1600-2400 | 600/1200-3200 | 700/1200-3200 | |||
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |||
Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | |||
Oil volume [l] | - | - | - | |||
Coolant volume [l] | - | - | - | |||
Technical specifications |
|
|
| |||
Drive axle | Rear | Rear | 4x4 | |||
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
Drive specifications |
|
|
| |||
Top speed [km/h] | 250 | 250 | 250 | |||
Acceleration 0–100 km/h [s] | 6,6 | 6,0 | 5,2 | |||
Acceleration 0–80 km/h [s] | - | - | - | |||
Acceleration 80–120 km/h [s] | - | - | - | |||
City [l] | 6,9-6,3 | 6,5-6,3 | 7,3-6,9 | |||
Out of town [l] | 5,0-4,5 | 5,1-4,7 | 5,5-5,2 | |||
Combined [l] | 5,6-5,2 | 5,7-5,3 | 6,2-5,8 | |||
CO2 emissions [g/km] | 148-139 | 149-145 | 162-158 | |||
Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |||
Standard for fuel consumption measurement | - | - | - | |||
Energy class | - | - | - | |||
Stationary vehicle noise [dB] | - | - | - | |||
Driving noise [dB] | - | - | - | |||
Standby weight [kg] | 1878 | 1933 | 2013 | |||
Overall weight [kg] | 2358 | 2388 | 2468 | |||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | |||
Maximum front/rear axle load [kg] | - | - | - | |||
Maximum vertical load on the tow bar [kg] | - | - | - | |||
Maximum load on roof/carrier [kg] | - | - | - | |||
Boot volume [l] | 310-385 | 310-385 | 310-385 | |||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
Boot length [mm] | - | - | - | |||
Boot length with rear seats folded [mm] | - | - | - | |||
Boot width between wheels/max [mm] | - | - | - | |||
Boot height to headliner/ceiling [mm] | - | - | - | |||
Loading edge height [mm] | - | - | - | |||
Height of the open boot door [mm] | 1572 | 1572 | 1572 | |||
Boot opening height [mm] | - | - | - | |||
Boot opening width min/max [mm] | - | - | - | |||
Number of doors | 2 | 2 | 2 | |||
Number of seats | 4 | 4 | 4 | |||
Fuel tank volume [l] | 50 | 50 | 50 | |||
AdBlue tank volume [l] | 14 | 14 | 14 | |||
Air resistance [Cd] | - | - | - | |||
Front suspension | four-link | four-link | four-link | |||
Rear suspension | five-link | five-link | five-link | |||
Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | |||
Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | |||
Wheel size front | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | |||
Wheel size rear | 7.5J x 17 ET40 | 8.0J x 18 ET43 | 8.0J x 18 ET43 | |||
Brake dimensions front | - | - | - | |||
Brake dimensions rear | - | - | - | |||
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
Number of steering wheel turns | - | - | - | |||
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | |||
Overall length [mm] | 4826 | 4826 | 4826 | |||
Overall width without/including mirrors [mm] | 1860/2055 | 1860/2055 | 1860/2055 | |||
Overall height [mm] | 1428 | 1428 | 1428 | |||
Wheelbase [mm] | 2873 | 2873 | 2873 | |||
Front wheel track [mm] | 1605 | 1605 | 1605 | |||
Rear wheel track [mm] | 1609 | 1609 | 1609 | |||
Forward overhang [mm] | 841 | 841 | 841 | |||
Rear overhang [mm] | 1112 | 1112 | 1112 | |||
Clearance [mm] | 98 | 98 | 98 | |||
Wading depth [mm] | - | - | - | |||
Approach angle front [°] | 13.0 | 13.0 | 13.0 | |||
Approach angle rear [°] | 14.4 | 14.4 | 14.4 | |||
Transition angle [°] | 9.5 | 9.5 | 9.5 | |||
Climbing rate [°] | - | - | - | |||
Maximum side tilt [°] | - | - | - | |||
Headroom front [mm] | 1034 | 1034 | 1034 | |||
Headroom rear [mm] | 925 | 925 | 925 | |||
Front elbow/shoulder width [mm] | 1424/1492 | 1424/1492 | 1424/1492 | |||
Rear elbow/shoulder width [mm] | 1228/1308 | 1228/1308 | 1228/1308 | |||
Legroom front knees/total [mm] | - | - | - | |||
Legroom rear knees/total [mm] | - | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
