Mercedes-Benz E

E W212 S212 C207 A207 2013

Date of manufacture

2013 – 2016 (Sedan)

2013 – 2016 (Estate)

2013 – 2017 (Coupé)

2013 – 2017 (Convertible)

Platform

-

Manufacturing locations

Sindelfingen, Germany

Bremen, Germany

Toluca, Mexico

Beijing, People's Republic of China

Designer

Michael Frei

Tags

E-segment

German cars

The Mercedes-Benz E is available in four versions - sedan, estate, coupe and cabriolet. It has been manufactured since 2013 in Germany, Mexico and China. Hybrid and plug-in hybrid versions are available. The engine range includes petrol, diesel and hybrid power units. The most powerful variant, the E 63 AMG S 4MATIC, produces 430 kW and has a top speed of 250 km/h. It accelerates from 0 to 100 km/h in 3.6 seconds. The most fuel-efficient model is the E 300 BlueTEC HYBRID, with a fuel consumption of 3.8 l/100 km and CO2 emissions of 99 g/km. The sedan has a boot capacity of 540 l, the estate 695 l, the coupe 450 l and the cabriolet 300–390 l. The model underwent EURONCAP safety tests in 2010 and received a rating of 5 out of 5.

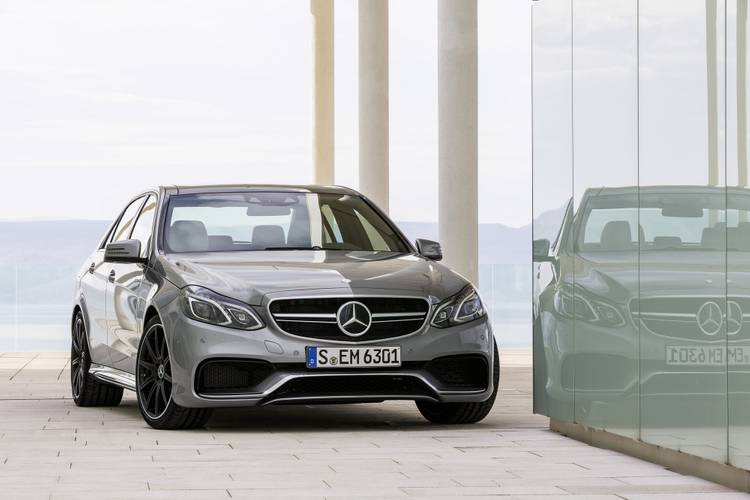

Car body style

Sedan

after upgrade (facelift)

Date of manufacture

2013 – 2016

Internal designation

W212

Engine size

Petrol

E 200 Natural Gas Drive

E 63 AMG 4MATIC

E 63 AMG S 4MATIC

Diesel

E 220 CDI BlueEFFICIENCY Edition

E 220 CDI BlueEFFICIENCY Edition

E 220 BlueTEC BlueEFFICIENCY Edition

E 220 BlueTEC BlueEFFICIENCY Edition

E 250 CDI 4MATIC

E 250 BlueTEC 4MATIC

E 350 BlueTEC 4MATIC

E 350 BlueTEC 4MATIC

Diesel + Electric

E 300 BlueTEC HYBRID

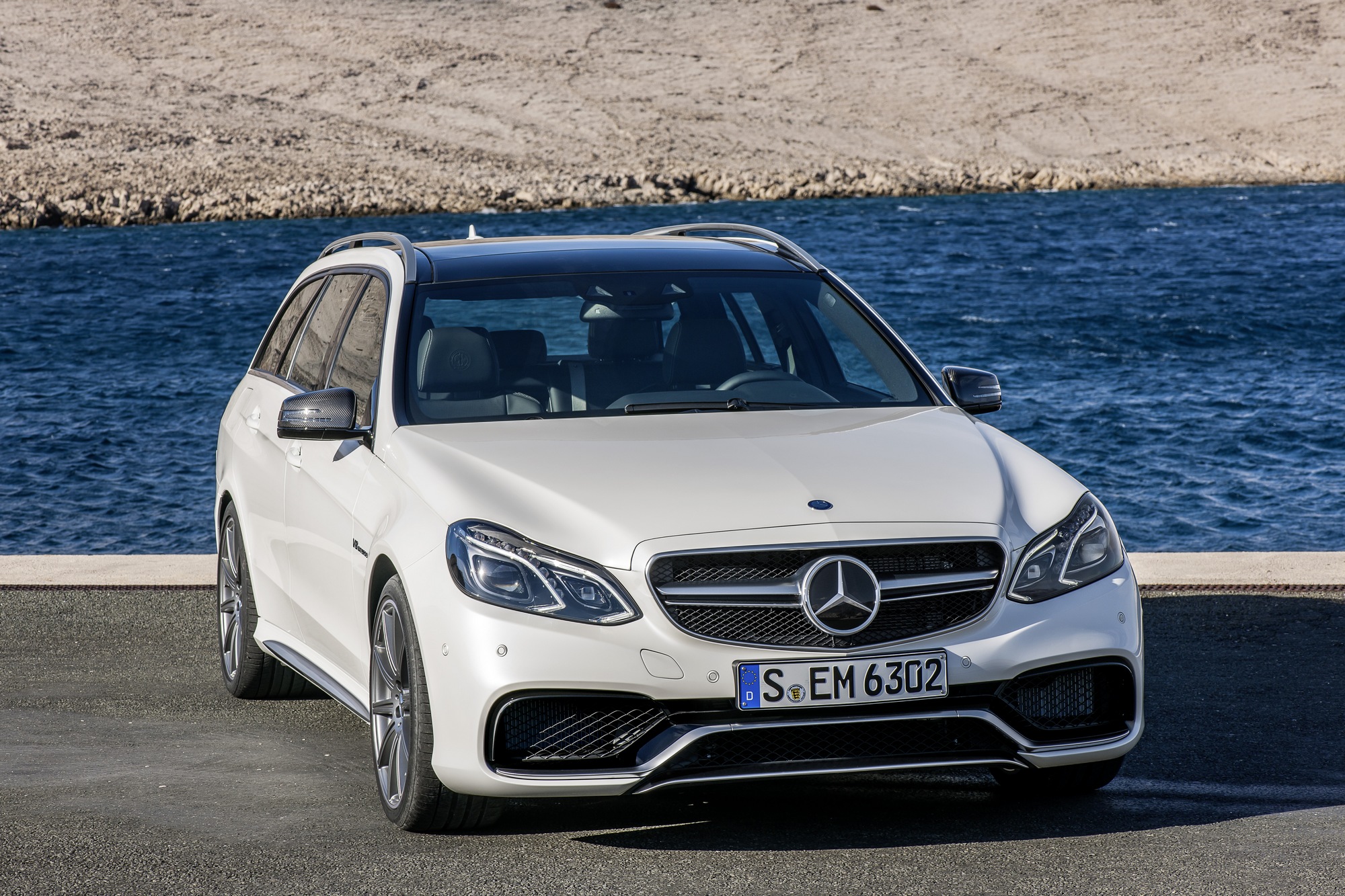

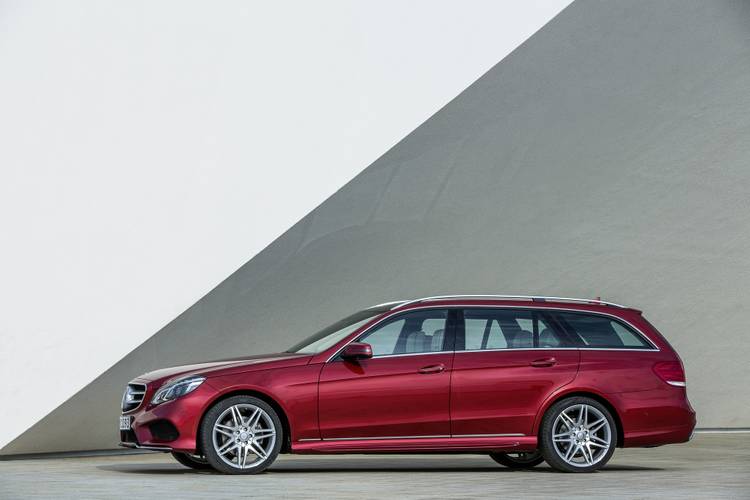

Estate

after upgrade (facelift)

Date of manufacture

2013 – 2016

Internal designation

S212

Engine size

Petrol

E 63 AMG 4MATIC

E 63 AMG S 4MATIC

Diesel

E 220 BlueTEC BlueEFFICIENCY Edition

E 220 BlueTEC 4MATIC

E 250 CDI 4MATIC

E 250 BlueTEC 4MATIC

E 350 BlueTEC 4MATIC

E 350 BlueTEC 4MATIC

Diesel + Electric

E 300 BlueTEC HYBRID

Coupé

after upgrade (facelift)

Date of manufacture

2013 – 2017

Internal designation

C207

Engine size

Petrol

Diesel

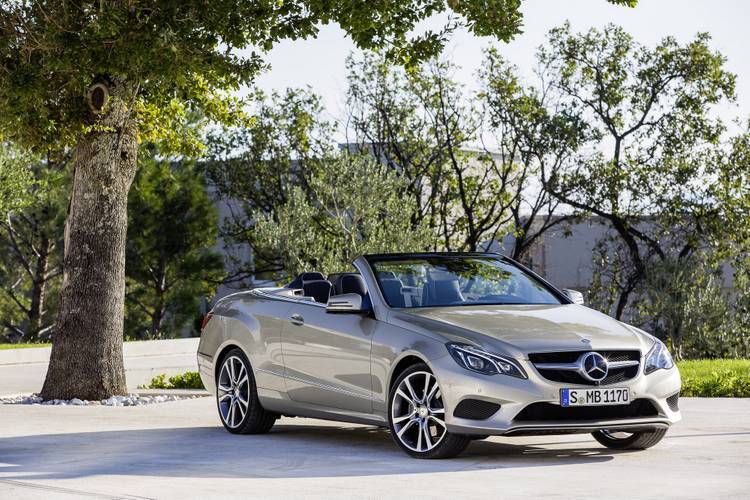

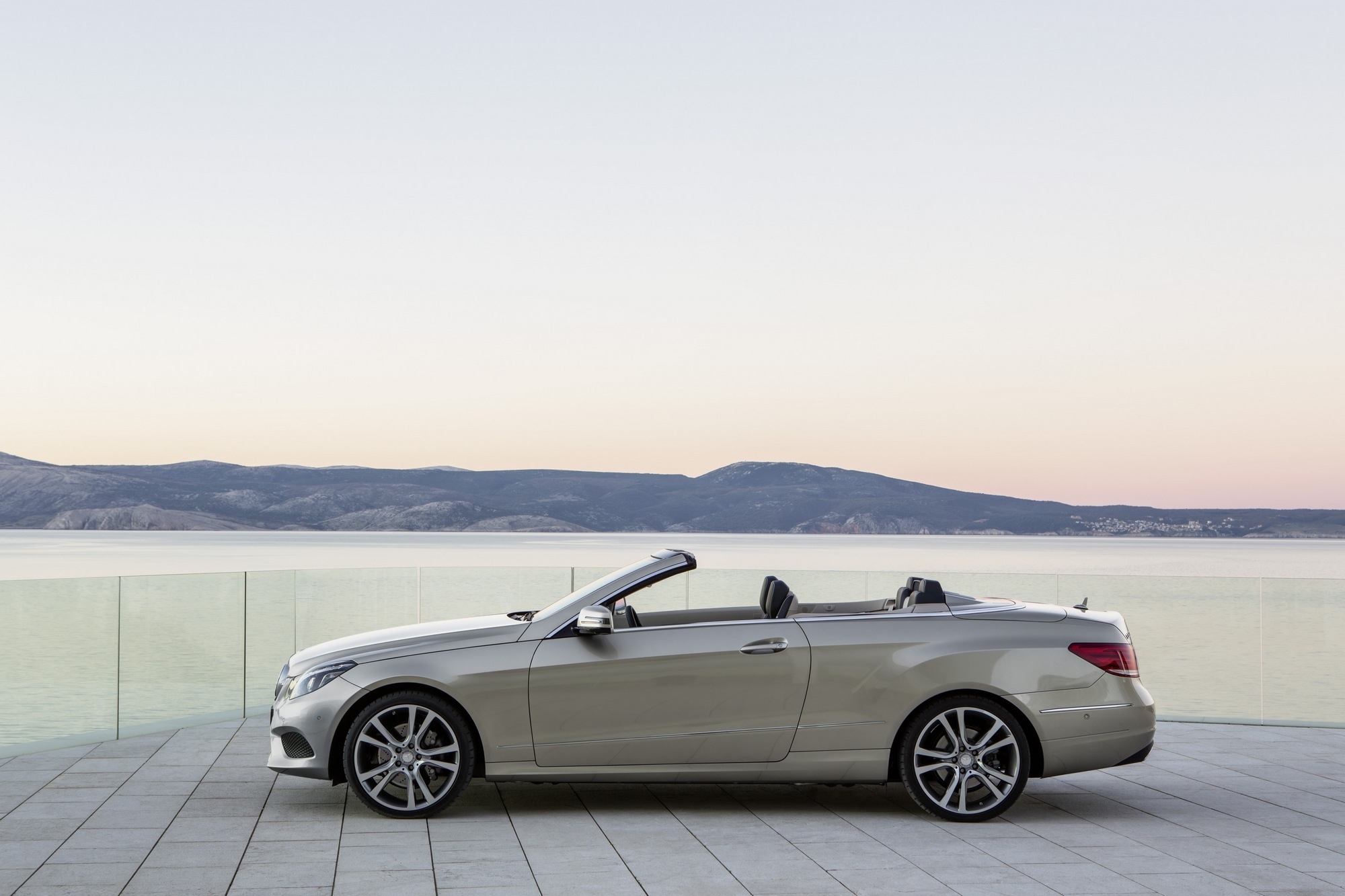

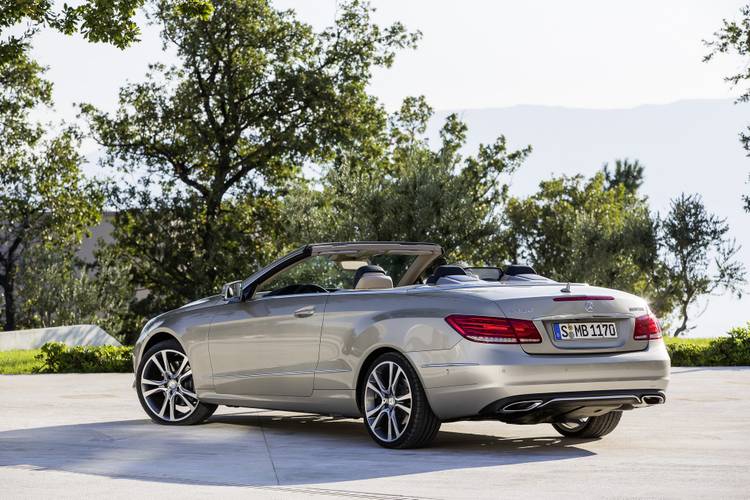

Convertible

after upgrade (facelift)

Date of manufacture

2013 – 2017

Internal designation

A207

Engine size

Petrol

Diesel

Euro NCAP

pre-facelift version (2010)

Technical data

Sedan

	E 200 Natural Gas Drive	E 200	E 200	E 250	E 300	E 300 4MATIC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	4/16	4/16	6/24	6/24
Engine displacement [cm³]	1991	1991	1991	1991	3498	3498
Maximum output / speed [kW/min-1]	115/5000	135/5500	135/5500	155/5500	185/6500	185/6500
Maximum torque [Nm/min-1]	270/1250	270/1200-4000	270/1200-4000	350/1200-4000	340/3500-4500	340/3500-4500
Bore and stroke [mm x mm]	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	92,9 x 86,0	92,9 x 86,0
Compression ratio	11,0:1	9,8:1	9,8:1	9,8:1	12,0:1	12,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	combustion of petrol or CNG direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system

Drive axle	Rear	Rear	Rear	Rear	Rear	4x4
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	220	233	233	243	250	245
Acceleration 0–100 km/h [s]	10.4	8.2	7.9	7.4	7.1	7.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.3-8.5 [5.8-5.9 kg]	8.0-8.4	7.5-7.7	7.5-7.7	9.5	9.9
Out of town [l]	5.2-5.4 [3.4-3.6 kg]	5.0-5.3	4.8-5.1	4.8-5.1	5.3-5.6	5.9-6.0
Combined [l]	6.3-6.6 [4.3-4.4 kg]	6.1-6.5	5.8-6.1	5.8-6.1	6.8-7.0	7.4-7.5
CO2 emissions [g/km]	147-153 [116-120]	142-151	135-142	135-142	159-164	174-176

Emission standard	EU6	EU6	EU6	EU6	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1795	1615	1655	1680	1735	1825
Overall weight [kg]	2300	2180	2210	2245	2300	2390
Maximum trailer weight unbraked/braked [kg]	750/1900	750/1700	750/1900	750/1900	750/2000	750/2100
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	400	540	540	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	20 [59 kg]	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.26	0.26	0.26	0.26	0.26	0.27
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R16	205/60 R16	205/60 R16	225/55 R16	225/55 R16	245/45 R17
Tyre dimensions rear	225/55 R16	205/60 R16	205/60 R16	225/55 R16	225/55 R16	245/45 R17
Wheel size front	7.5J x 16 ET46.5	7.0J x 16 ET38	7.0J x 16 ET38	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48
Wheel size rear	7.5J x 16 ET46.5	7.0J x 16 ET38	7.0J x 16 ET38	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-

Overall length [mm]	4879	4879	4879	4879	4879	4879
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1474	1474	1474	1474	1474	1474
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1598	1598	1598	1598	1598	1598
Rear wheel track [mm]	1614	1614	1614	1614	1614	1614
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1156	1156	1156	1156	1156	1156
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 350	E 350 4MATIC	E 400	E 400 4MATIC	E 500	E 500 4MATIC
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24	8/32	8/32
Engine displacement [cm³]	3498	3498	3498	3498	4663	4663
Maximum output / speed [kW/min-1]	225/6500	225/6500	245/5250-6000	245/5250-6000	300/5000-5750	300/5000-5750
Maximum torque [Nm/min-1]	370/3500-5250	370/3500-5250	480/1200-4000	480/1200-4000	600/1600-4750	600/1600-4750
Bore and stroke [mm x mm]	92,9 x 86,0	92,9 x 86,0	92,9 x 86,0	92,9 x 86,0	92,6 x 86,0	92,6 x 86,0
Compression ratio	12,0:1	12,0:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system

Drive axle	Rear	4x4	Rear	4x4	Rear	4x4
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	250	250	250	250	250	250
Acceleration 0–100 km/h [s]	6.3	6.6	5.3	5.3	4.9	4.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9.5	9.9	9.4-9.6	9.9-10.1	11.9-12.6	12.4-13.0
Out of town [l]	5.3-5.6	5.9-6.0	5.4-5.6	5.9-6.2	6.7-7.0	7.2-7.6
Combined [l]	6.8-7.0	7.4-7.5	6.9-7.1	7.4-7.7	8.9	9.4
CO2 emissions [g/km]	159-164	174-176	160-165	172-178	207-209	219

Emission standard	EU5	EU5	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1735	1825	1785	1845	1905	1955
Overall weight [kg]	2300	2390	2360	2410	2440	2470
Maximum trailer weight unbraked/braked [kg]	750/2000	750/2100	750/2000	750/2100	750/2100	750/2100
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	540	540	540	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	59	59	59	59	80	80
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.26	0.28	0.28	0.28	0.28	0.28
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R16	245/45 R17	245/45 R17	245/45 R17	245/45 R17	245/45 R17
Tyre dimensions rear	225/55 R16	245/45 R17	245/45 R17	245/45 R17	245/45 R17	245/45 R17
Wheel size front	7.5J x 16 ET46.5	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48
Wheel size rear	7.5J x 16 ET46.5	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-	11.50/-

Overall length [mm]	4879	4879	4879	4879	4879	4879
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1474	1474	1474	1474	1474	1474
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1598	1598	1598	1598	1598	1598
Rear wheel track [mm]	1614	1614	1614	1614	1614	1614
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1156	1156	1156	1156	1156	1156
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 63 AMG	E 63 AMG 4MATIC	E 63 AMG S 4MATIC	E 200 CDI	E 200 CDI	E 200 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	8/32	8/32	8/32	4/16	4/16	4/16
Engine displacement [cm³]	5461	5461	5461	2143	2143	2143
Maximum output / speed [kW/min-1]	410/5500	410/5500	430/5500	100/2800-4600	100/2800-4600	100/2800-4600
Maximum torque [Nm/min-1]	720/1750-5250	720/1750-5250	800/1750-5000	360/1600-2600	360/1600-2600	360/1600-2600
Bore and stroke [mm x mm]	98,0 x 90,5	98,0 x 90,5	98,0 x 90,5	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0
Compression ratio	10,0:1	10,0:1	10,0:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	multi-clutch automatic gearbox AMG SPEEDSHIFT MCT	permanent all-wheel drive 4MATIC multi-clutch automatic gearbox AMG SPEEDSHIFT MCT	permanent all-wheel drive 4MATIC multi-clutch automatic gearbox AMG SPEEDSHIFT MCT	-	automatic gearbox 7G‐TRONIC PLUS	-

Top speed [km/h]	250	250	250	210	207	210
Acceleration 0–100 km/h [s]	4.2	3.7	3.6	10.2	9.5	10.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	13.8	14.4	14.4	5.8-6.0	6.0-6.1	5.6-5.9
Out of town [l]	7.5	7.9	7.9	4.2-4.5	4.2-4.6	4.0-4.2
Combined [l]	9.8	10.3	10.3	4.8-5.1	4.9-5.2	4.6-4.8
CO2 emissions [g/km]	230	242	242	125-134	127-135	119-125

Emission standard	EU6	EU6	EU6	EU5	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1845	1920	1940	1735	1735	1735
Overall weight [kg]	2390	2425	2425	2300	2300	2320
Maximum trailer weight unbraked/braked [kg]	-	-	-	750/1900	750/1900	750/1900
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	540	540	540	540	540	490
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	66	66	66	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	0.25	0.25	0.25
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	255/40 ZR18	255/35 ZR19	255/35 ZR19	205/60 R16	205/60 R16	205/60 R16
Tyre dimensions rear	285/35 ZR18	285/30 ZR19	285/30 ZR19	205/60 R16	205/60 R16	205/60 R16
Wheel size front	9.0J x 18 ET37	9.0J x 19 ET37	9.0J x 19 ET37	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38
Wheel size rear	9.5J x 18 ET52	9.5J x 19 ET52	9.5J x 19 ET52	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38
Brake dimensions front	390 x 36	390 x 36	390 x 36	-	-	-
Brake dimensions rear	360 x 26	360 x 26	360 x 26	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.35/-	11.75/-	11.75/-	11.28/-	11.28/-	11.28/-

Overall length [mm]	4892	4892	4892	4879	4879	4879
Overall width without/including mirrors [mm]	1873/-	1873/-	1873/-	1854/2071	1854/2071	1854/2071
Overall height [mm]	1450	1466	1466	1474	1474	1474
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1625	1625	1625	1598	1598	1598
Rear wheel track [mm]	1597	1597	1597	1614	1614	1614
Forward overhang [mm]	-	-	-	849	849	849
Rear overhang [mm]	-	-	-	1156	1156	1156
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 200 BlueTEC	E 220 CDI	E 220 CDI BlueEFFICIENCY Edition	E 220 CDI	E 220 CDI BlueEFFICIENCY Edition	E 220 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2143	2143	2143	2143	2143	2143
Maximum output / speed [kW/min-1]	100/2800-4600	125/3000-4200	125/3000-4200	125/3000-4200	125/3000-4200	125/3000-4200
Maximum torque [Nm/min-1]	360/1600-2600	400/1400-2800	400/1400-2800	400/1400-2800	400/1400-2800	400/1400-2800
Bore and stroke [mm x mm]	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	7 gear automatic	6 gear manual	6 gear manual	7 gear automatic	7 gear automatic	6 gear manual
Drive specifications	automatic gearbox 7G‐TRONIC PLUS	-	-	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	-

Top speed [km/h]	207	228	228	227	227	228
Acceleration 0–100 km/h [s]	9.5	8.7	8.7	8.4	8.4	8.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.6-5.9	5.8-6.1	5.5	5.6-6.1	5.6-5.9	5.5-5.9
Out of town [l]	3.9-4.3	4.1-4.3	4.0	4.1-4.4	3.9-4.2	3.9-4.3
Combined [l]	4.6-4.9	4.7-5.0	4.5	4.6-5.0	4.5-4.8	4.5-4.9
CO2 emissions [g/km]	119-128	123-129	119	123-131	118-128	118-127

Emission standard	EU6	EU5	EU5	EU5	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1735	1735	1735	1735	1735	1735
Overall weight [kg]	2320	2300	2210	2300	2265	2320
Maximum trailer weight unbraked/braked [kg]	750/1900	750/1900	-	750/2000	-	750/1900
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	490	540	540	540	540	490
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	59	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.25	0.25	0.25	0.26	0.26	0.25
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Tyre dimensions rear	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Wheel size front	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38
Wheel size rear	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-

Overall length [mm]	4879	4879	4879	4879	4879	4879
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1474	1474	1474	1474	1474	1474
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1598	1598	1598	1598	1598	1598
Rear wheel track [mm]	1614	1614	1614	1614	1614	1614
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1156	1156	1156	1156	1156	1156
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 220 BlueTEC BlueEFFICIENCY Edition	E 220 BlueTEC	E 220 BlueTEC BlueEFFICIENCY Edition	E 250 CDI	E 250 CDI	E 250 CDI 4MATIC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2143	2143	2143	2143	2143	2143
Maximum output / speed [kW/min-1]	125/3000-4200	125/3000-4200	125/3000-4200	150/3800	150/3800	150/3800
Maximum torque [Nm/min-1]	400/1400-2800	400/1400-2800	400/1400-2800	500/1600-1800	500/1600-1800	500/1600-1800
Bore and stroke [mm x mm]	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system

Drive axle	Rear	Rear	Rear	Rear	Rear	4x4
Gearbox	6 gear manual	9 gear automatic	9 gear automatic	6 gear manual	7 gear automatic	7 gear automatic
Drive specifications	-	automatic gearbox 9G‐TRONIC	automatic gearbox 9G‐TRONIC	-	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	228	230	230	240	242	238
Acceleration 0–100 km/h [s]	8.6	8.2	8.2	7.7	7.5	7.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.3-5.9	5.3-5.6	5.2-5.5	5.9-6.2	5.7-6.2	6.4-6.6
Out of town [l]	3.8-4.3	3.9-4.2	3.7-4.1	4.2-4.4	4.2-4.5	4.6-5.0
Combined [l]	4.4-4.9	4.5-4.7	4.3-4.6	4.8-5.1	4.7-5.1	5.7-5.7
CO2 emissions [g/km]	115-127	116-123	111-120	126-132	126-134	140-149

Emission standard	EU6	EU6	EU6	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1735	1760	1735	1765	1775	1845
Overall weight [kg]	2210	2345	2270	2330	2330	2410
Maximum trailer weight unbraked/braked [kg]	-	750/2000	-	750/1900	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	490	490	490	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	59	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.25	0.25	0.25	0.25	0.26	0.26
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/60 R16	205/60 R16	205/60 R16	225/55 R16	225/55 R16	245/45 R17
Tyre dimensions rear	205/60 R16	205/60 R16	205/60 R16	225/55 R16	225/55 R16	245/45 R17
Wheel size front	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48
Wheel size rear	7.0J x 16 ET38	7.0J x 16 ET38	7.0J x 16 ET38	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-

Overall length [mm]	4879	4879	4879	4879	4879	4879
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1474	1474	1474	1474	1474	1474
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1598	1598	1598	1598	1598	1598
Rear wheel track [mm]	1614	1614	1614	1614	1614	1614
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1156	1156	1156	1156	1156	1156
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 250 BlueTEC	E 250 BlueTEC	E 250 BlueTEC 4MATIC	E 300 BlueTEC	E 300 BlueTEC	E 350 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	2143	2143	2143	2987	2987	2987
Maximum output / speed [kW/min-1]	150/3800	150/3800	150/3800	170/3800	170/3800	185/3600
Maximum torque [Nm/min-1]	500/1600-1800	500/1600-1800	500/1600-1800	540/1600-2400	540/1600-2400	620/1600-2400
Bore and stroke [mm x mm]	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0
Compression ratio	16,2:1	16,2:1	16,2:1	15,5:1	15,5:1	15,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	Rear	4x4	Rear	Rear	Rear
Gearbox	6 gear manual	9 gear automatic	7 gear automatic	7 gear automatic	9 gear automatic	9 gear automatic
Drive specifications	-	automatic gearbox 9G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐PLUS	automatic gearbox 9G‐TRONIC	automatic gearbox 9G‐TRONIC

Top speed [km/h]	240	245	238	250	250	250
Acceleration 0–100 km/h [s]	7.5	7.4	7.8	7.1	7.1	6.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.6-6.0	5.3-5.6	6.3-6.4	6.9-7.2	6.1-6.3	6.4-6.7
Out of town [l]	4.0-4.4	3.9-4.2	4.4-4.6	4.7-5.1	4.5-4.8	4.7-5.1
Combined [l]	4.6-5.0	4.5-4.7	5.1-5.3	5.5-5.9	5.0-5.3	5.3-5.6
CO2 emissions [g/km]	121-130	116-123	135-139	144-154	133-139	138-148

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1785	1800	1875	1885	1845	1885
Overall weight [kg]	2370	2385	2440	2440	2390	2440
Maximum trailer weight unbraked/braked [kg]	750/1900	750/2000	750/2100	750/2100	750/2100	750/2100
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	490	490	490	490	490	490
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	59	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.26	0.26	0.27	0.26	0.26	0.27
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R16	225/55 R16	245/45 R17	225/55 R16	225/55 R16	225/55 R16
Tyre dimensions rear	225/55 R16	225/55 R16	245/45 R17	225/55 R16	225/55 R16	225/55 R16
Wheel size front	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5
Wheel size rear	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.50/-	11.28/-	11.28/-	11.28/-

Overall length [mm]	4879	4879	4879	4879	4879	4879
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1474	1474	1474	1474	1474	1474
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1598	1598	1598	1598	1598	1598
Rear wheel track [mm]	1614	1614	1614	1614	1614	1614
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1156	1156	1156	1156	1156	1156
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 350 BlueTEC 4MATIC	E 350 BlueTEC	E 350 BlueTEC 4MATIC	E 300 BlueTEC HYBRID
Date of sale	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged + Electric
Number of cylinders/valves	6/24	6/24	6/24	4/16
Engine displacement [cm³]	2987	2987	2987	2143
Maximum output / speed [kW/min-1]	185/3600	190/3400	190/3400	150/4200 combustion 20/1800 el.
Maximum torque [Nm/min-1]	620/1600-2400	620/1600-2400	620/1600-2400	500/1600-1800 combustion 250 el.
Bore and stroke [mm x mm]	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	83,9 x 99,0
Compression ratio	15,5:1	15,5:1	15,5:1	16,2:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	Full Hybrid direct injection Common Rail supercharging by twin turbochargers particulate filter brake energy recuperation

Drive axle	4x4	Rear	4x4	Rear
Gearbox	7 gear automatic	9 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 9G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	245	250	250	242
Acceleration 0–100 km/h [s]	6.7	6.4	6.6	7.1
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	7.3-7.7	6.1-6.3	6.5-7.0	3.9-4.1
Out of town [l]	5.1-5.5	4.5-4.8	5.2-5.5	3.8-4.1
Combined [l]	5.9-6.4	5.0-5.3	6.7-6.0	3.8-4.1
CO2 emissions [g/km]	159-169	133-139	150-156	99-109

Emission standard	EU6	EU6	EU6	EU5
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

System voltage [V]	-	-	-	-
Battery type and capacity	-	-	-	Lithium-Ionen-Akkumulator, 0.8 kWh
Range with fully charged battery [km]	-	-	-	-
Charging time	-	-	-	-
Number of modules/cells	-	-	-	-
Battery weight [kg]	-	-	-	-
Charger	-	-	-	-

Standby weight [kg]	1955	1845	1915	1845
Overall weight [kg]	2500	2390	2460	2430
Maximum trailer weight unbraked/braked [kg]	750/2100	750/2100	750/2100	300/300
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-

Boot volume [l]	490	490	490	505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5
Fuel tank volume [l]	59	59	59	59
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.27	0.27	0.27	0.26
Front suspension	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink
Tyre dimensions front	245/45 R17	225/55 R16	245/45 R17	225/55 R16
Tyre dimensions rear	245/45 R17	225/55 R16	245/45 R17	225/55 R16
Wheel size front	8.0J x 17 ET48	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Wheel size rear	8.0J x 17 ET48	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.28/-	11.28/-

Overall length [mm]	4879	4879	4879	4879
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1474	1474	1474	1474
Wheelbase [mm]	2874	2874	2874	2874
Front wheel track [mm]	1598	1598	1598	1598
Rear wheel track [mm]	1614	1614	1614	1614
Forward overhang [mm]	849	849	849	849
Rear overhang [mm]	1156	1156	1156	1156
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048
Headroom rear [mm]	972	972	972	972
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Estate

	E 200	E 200	E 250	E 300	E 300 4MATIC	E 350
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1991	1991	1991	3498	3498	3498
Maximum output / speed [kW/min-1]	135/5500	135/5500	155/5500	185/6500	185/6500	225/6500
Maximum torque [Nm/min-1]	270/1200-4000	270/1200-4000	350/1200-4000	340/3500-4500	340/3500-4500	370/3500-5250
Bore and stroke [mm x mm]	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	92,9 x 86,0	92,9 x 86,0	92,9 x 86,0
Compression ratio	9,8:1	9,8:1	9,8:1	12,0:1	12,0:1	12,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system

Drive axle	Rear	Rear	Rear	Rear	4x4	Rear
Gearbox	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	-	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	226	225	233	250	243	250
Acceleration 0–100 km/h [s]	8.5	8.3	7.8	7.5	7.8	6.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.4-8.6	7.5-7.8	7.6-7.9	9.6-9.7	10.3	9.6-9.7
Out of town [l]	5.2-5.6	5.0-5.3	5.1-5.4	5.6-5.8	6.4-6.6	5.6-5.8
Combined [l]	6.4-6.7	6.0-6.2	6.1-6.3	7.1-7.2	7.8-7.9	7.1-7.2
CO2 emissions [g/km]	149-157	139-145	141-167	165-169	184-186	165-169

Emission standard	EU6	EU6	EU6	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1735	1735	1785	1845	1925	1845
Overall weight [kg]	2330	2330	2380	2440	2520	2440
Maximum trailer weight unbraked/braked [kg]	750/2100	750/2100	750/2100	750/2100	750/2100	750/2100
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	695	695	695	695	695	695
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1950	-/1950	-/1950	-/1950	-/1950	-/1950
Boot length [mm]	1197	1197	1197	1197	1197	1197
Boot length with rear seats folded [mm]	2001	2001	2001	2001	2001	2001
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/836	-/836	-/836	-/836	-/836	-/836
Loading edge height [mm]	562	562	562	562	562	562
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	771	771	771	771	771	771
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	59	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R16	225/55 R16	225/55 R16	225/55 R16	245/45 R17	225/55 R16
Tyre dimensions rear	225/55 R16	225/55 R16	225/55 R16	225/55 R16	245/45 R17	225/55 R16
Wheel size front	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Wheel size rear	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.28/-	11.28/-	11.50/-	11.28/-

Overall length [mm]	4905	4905	4905	4905	4905	4905
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1507	1507	1507	1507	1507	1507
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1583	1583	1583	1583	1583	1583
Rear wheel track [mm]	1604	1604	1604	1604	1604	1604
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1182	1182	1182	1182	1182	1182
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1056	1056	1056	1056	1056	1056
Headroom rear [mm]	1012	1012	1012	1012	1012	1012
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 350 4MATIC	E 400	E 400 4MATIC	E 500	E 500 4MATIC	E 63 AMG 4MATIC
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	6/24	6/24	6/24	8/32	8/32	8/32
Engine displacement [cm³]	3498	3498	3498	4663	4663	5461
Maximum output / speed [kW/min-1]	225/6500	245/5250-6000	245/5250-6000	300/5000-5750	300/5000-5750	410/5500
Maximum torque [Nm/min-1]	370/3500-5250	480/1200-4000	480/1200-4000	600/1600-4750	600/1600-4750	720/1750-5250
Bore and stroke [mm x mm]	92,9 x 86,0	92,9 x 86,0	92,9 x 86,0	92,6 x 86,0	92,6 x 86,0	98,0 x 90,5
Compression ratio	12,0:1	10,5:1	10,5:1	10,5:1	10,5:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system

Drive axle	4x4	Rear	4x4	Rear	4x4	Rear
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC multi-clutch automatic gearbox AMG SPEEDSHIFT MCT

Top speed [km/h]	250	250	250	250	250	250
Acceleration 0–100 km/h [s]	7.1	5.4	5.4	5.0	4.9	3.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.3	9.6-9.7	10.1-10.3	12.1	12.8	14.4
Out of town [l]	6.4-6.6	5.8	6.3-6.4	7.3	7.9	8.2
Combined [l]	7.8-7.9	7.2-7.3	7.7-7.9	9.1	9.7	10.5
CO2 emissions [g/km]	184-186	168-170	180-183	212	227	246

Emission standard	EU5	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1925	1885	1935	1985	2035	2025
Overall weight [kg]	2520	2460	2495	2580	2630	2580
Maximum trailer weight unbraked/braked [kg]	750/2100	750/2100	750/2100	750/2100	750/2100	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	695	695	695	695	695	695
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1950	-/1950	-/1950	-/1950	-/1950	-/1950
Boot length [mm]	1197	1197	1197	1197	1197	1197
Boot length with rear seats folded [mm]	2001	2001	2001	2001	2001	2001
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/836	-/836	-/836	-/836	-/836	-/836
Loading edge height [mm]	562	562	562	562	562	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	771	771	771	771	771	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	59	59	59	80	80	66
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.31	0.31	0.31	0.31	0.31	-
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	245/45 R17	245/45 R17	245/45 R17	245/45 R17	245/45 R17	255/35 ZR19
Tyre dimensions rear	245/45 R17	245/45 R17	245/45 R17	245/45 R17	245/45 R17	285/30 ZR19
Wheel size front	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	9.0J x 19 ET37
Wheel size rear	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	8.0J x 17 ET48	9.5J x 19 ET52
Brake dimensions front	-	-	-	-	-	390 x 36
Brake dimensions rear	-	-	-	-	-	360 x 26
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.50/-	11.28/-	11.50/-	11.28/-	11.50/-	11.75/-

Overall length [mm]	4905	4905	4905	4905	4905	4904
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1873/-
Overall height [mm]	1507	1507	1507	1507	1507	1522
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1583	1583	1583	1583	1583	1625
Rear wheel track [mm]	1604	1604	1604	1604	1604	1597
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1182	1182	1182	1182	1182	1182
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1056	1056	1056	1056	1056	1056
Headroom rear [mm]	1012	1012	1012	1012	1012	1012
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 63 AMG S 4MATIC	E 200 CDI	E 200 CDI	E 200 BlueTEC	E 200 BlueTEC	E 220 CDI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	8/32	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	5461	2143	2143	2143	2143	2143
Maximum output / speed [kW/min-1]	430/5500	100/2800-4600	100/2800-4600	100/2800-4600	100/2800-4600	125/3000-4200
Maximum torque [Nm/min-1]	800/1750-5000	360/1600-2600	360/1600-2600	360/1600-2600	360/1600-2600	400/1400-2800
Bore and stroke [mm x mm]	98,0 x 90,5	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0
Compression ratio	10,0:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	permanent all-wheel drive 4MATIC multi-clutch automatic gearbox AMG SPEEDSHIFT MCT	-	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 7G‐TRONIC PLUS	-

Top speed [km/h]	250	205	203	205	203	220
Acceleration 0–100 km/h [s]	3.7	10.9	10.1	10.7	9.8	8.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	14.4	6.2-6.4	6.4-6.5	6.1	5.7-5.9	6.0-6.1
Out of town [l]	8.2	4.5-4.8	4.6-4.8	4.3-4.5	4.2-4.3	4.4-4.6
Combined [l]	10.5	5.2-5.4	5.3-5.4	4.9-5.1	4.8-5.0	5.0-5.2
CO2 emissions [g/km]	246	135-141	137-141	129-133	125-129	132-135

Emission standard	EU6	EU5	EU5	EU6	EU6	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	2045	1845	1845	1845	1845	1845
Overall weight [kg]	2580	2440	2440	2410	2410	2440
Maximum trailer weight unbraked/braked [kg]	-	750/1900	750/2100	750/1900	750/2100	750/1900
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	695	695	695	600	600	695
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1950	-/1950	-/1950	-/1855	-/1855	-/1950
Boot length [mm]	1197	1197	1197	1197	1197	1197
Boot length with rear seats folded [mm]	2001	2001	2001	2001	2001	2001
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/836	-/836	-/836	-/836	-/836	-/836
Loading edge height [mm]	-	562	562	562	562	562
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	771	771	771	771	771
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	66	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	0.29	0.29	0.29	0.29	0.29
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	255/35 ZR19	225/55 R16	225/55 R16	225/55 R16	225/55 R16	225/55 R16
Tyre dimensions rear	285/30 ZR19	225/55 R16	225/55 R16	225/55 R16	225/55 R16	225/55 R16
Wheel size front	9.0J x 19 ET37	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5
Wheel size rear	9.5J x 19 ET52	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5
Brake dimensions front	390 x 36	-	-	-	-	-
Brake dimensions rear	360 x 26	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.75/-	11.28/-	11.28/-	11.28/-	11.28/-	11.28/-

Overall length [mm]	4904	4905	4905	4905	4905	4905
Overall width without/including mirrors [mm]	1873/-	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1522	1507	1507	1507	1507	1507
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1625	1583	1583	1583	1583	1583
Rear wheel track [mm]	1597	1604	1604	1604	1604	1604
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1182	1182	1182	1182	1182	1182
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1056	1056	1056	1056	1056	1056
Headroom rear [mm]	1012	1012	1012	1012	1012	1012
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 220 CDI	E 220 BlueTEC	E 220 BlueTEC	E 220 BlueTEC BlueEFFICIENCY Edition	E 220 BlueTEC 4MATIC	E 250 CDI
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2143	2143	2143	2143	2143	2143
Maximum output / speed [kW/min-1]	125/3000-4200	125/3000-4200	125/3000-4200	125/3000-4200	125/3000-4200	150/3800
Maximum torque [Nm/min-1]	400/1400-2800	400/1400-2800	400/1400-2800	400/1400-2800	400/1400-2800	500/1600-1800
Bore and stroke [mm x mm]	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system

Drive axle	Rear	Rear	Rear	Rear	4x4	Rear
Gearbox	7 gear automatic	6 gear manual	9 gear automatic	9 gear automatic	7 gear automatic	6 gear manual
Drive specifications	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 9G‐TRONIC	automatic gearbox 9G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	-

Top speed [km/h]	216	220	222	222	214	232
Acceleration 0–100 km/h [s]	8.6	8.9	8.6	8.6	8.9	7.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.2-6.4	5.8-6.0	5.5-5.6	5.3-5.6	6.5-6.6	6.0-6.1
Out of town [l]	4.5-4.8	4.3-4.5	4.2-4.3	4.0-4.3	4.9	4.5-4.7
Combined [l]	5.2-5.4	4.9-5.1	4.7-4.9	4.5-4.8	5.5-5.6	5.1-5.3
CO2 emissions [g/km]	133-141	127-132	124-127	118-124	143-145	134-138

Emission standard	EU5	EU6	EU6	EU6	EU6	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1845	1845	1865	1845	1955	1885
Overall weight [kg]	2440	2510	2530	2410	2535	2480
Maximum trailer weight unbraked/braked [kg]	750/2000	750/1900	750/2100	-	750/2100	750/1900
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	695	600	600	600	600	695
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1950	-/1855	-/1855	-/1855	-/1855	-/1950
Boot length [mm]	1197	1197	1197	1197	1197	1197
Boot length with rear seats folded [mm]	2001	2001	2001	2001	2001	2001
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/836	-/836	-/836	-/836	-/836	-/836
Loading edge height [mm]	562	562	562	562	562	562
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	771	771	771	771	771	771
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	59	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.29	0.3	0.29	0.3	0.29
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R16	225/55 R16	225/55 R16	225/55 R16	245/45 R17	225/55 R16
Tyre dimensions rear	225/55 R16	225/55 R16	225/55 R16	225/55 R16	245/45 R17	225/55 R16
Wheel size front	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Wheel size rear	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.28/-	11.28/-	11.50/-	11.28/-

Overall length [mm]	4905	4905	4905	4905	4905	4905
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1507	1507	1507	1507	1507	1507
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1583	1583	1583	1583	1583	1583
Rear wheel track [mm]	1604	1604	1604	1604	1604	1604
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1182	1182	1182	1182	1182	1182
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1056	1056	1056	1056	1056	1056
Headroom rear [mm]	1012	1012	1012	1012	1012	1012
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 250 CDI	E 250 CDI 4MATIC	E 250 BlueTEC	E 250 BlueTEC	E 250 BlueTEC 4MATIC	E 300 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	6/24
Engine displacement [cm³]	2143	2143	2143	2143	2143	2987
Maximum output / speed [kW/min-1]	150/3800	150/3800	150/3800	150/3800	150/3800	170/3800
Maximum torque [Nm/min-1]	500/1600-1800	500/1600-1800	500/1600-1800	500/1600-1800	500/1600-1800	540/1600-2400
Bore and stroke [mm x mm]	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,0 x 92,0
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	15,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	4x4	Rear	Rear	4x4	Rear
Gearbox	7 gear automatic	7 gear automatic	6 gear manual	9 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 9G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐PLUS

Top speed [km/h]	232	230	232	236	230	240
Acceleration 0–100 km/h [s]	7.8	8.1	7.8	7.7	8.1	7.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.3-6.5	6.7	5.9-6.1	5.5-5.7	6.3-6.6	7.0-7.4
Out of town [l]	4.6-4.9	5.1-5.2	4.4-4.6	4.2-4.4	4.7-5.0	5.0-5.4
Combined [l]	5.2-5.5	5.8-5.9	5.0-5.2	4.7-4.9	5.3-5.6	5.7-6.2
CO2 emissions [g/km]	135-145	150-155	130-135	124-127	140-147	152-162

Emission standard	EU5	EU5	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1885	1955	1905	1915	1955	1955
Overall weight [kg]	2480	2550	2500	2510	2535	2550
Maximum trailer weight unbraked/braked [kg]	750/2100	750/2100	750/1900	750/2100	750/2100	750/2100
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	695	695	600	600	600	600
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1950	-/1950	-/1855	-/1855	-/1855	-/1855
Boot length [mm]	1197	1197	1197	1197	1197	1197
Boot length with rear seats folded [mm]	2001	2001	2001	2001	2001	2001
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/836	-/836	-/836	-/836	-/836	-/836
Loading edge height [mm]	562	562	562	562	562	562
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	771	771	771	771	771	771
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	59	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.3	0.29	0.29	0.3	0.3
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R16	245/45 R17	225/55 R16	225/55 R16	245/45 R17	225/55 R16
Tyre dimensions rear	225/55 R16	245/45 R17	225/55 R16	225/55 R16	245/45 R17	225/55 R16
Wheel size front	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Wheel size rear	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.50/-	11.28/-	11.28/-	11.50/-	11.28/-

Overall length [mm]	4905	4905	4905	4905	4905	4905
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1507	1507	1507	1507	1507	1507
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1583	1583	1583	1583	1583	1583
Rear wheel track [mm]	1604	1604	1604	1604	1604	1604
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1182	1182	1182	1182	1182	1182
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1056	1056	1056	1056	1056	1056
Headroom rear [mm]	1012	1012	1012	1012	1012	1012
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 300 BlueTEC	E 350 BlueTEC	E 350 BlueTEC 4MATIC	E 350 BlueTEC	E 350 BlueTEC 4MATIC	E 300 BlueTEC HYBRID
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged + Electric
Number of cylinders/valves	6/24	6/24	6/24	6/24	6/24	4/16
Engine displacement [cm³]	2987	2987	2987	2987	2987	2143
Maximum output / speed [kW/min-1]	170/3800	185/3600	185/3600	190/3400	190/3400	150/4200 combustion 20/1800 el.
Maximum torque [Nm/min-1]	540/1600-2400	620/1600-2400	620/1600-2400	620/1600-2400	620/1600-2400	500/1600-1800 combustion 250 el.
Bore and stroke [mm x mm]	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	83,9 x 99,0
Compression ratio	15,5:1	15,5:1	15,5:1	15,5:1	15,5:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	Full Hybrid direct injection Common Rail supercharging by twin turbochargers particulate filter brake energy recuperation

Drive axle	Rear	Rear	4x4	Rear	4x4	Rear
Gearbox	9 gear automatic	9 gear automatic	7 gear automatic	9 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	automatic gearbox 9G‐TRONIC	automatic gearbox 9G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 9G‐TRONIC	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	250	250	240	250	240	232
Acceleration 0–100 km/h [s]	6.6	6.9	7.0	6.6	6.8	7.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.1-6.2	6.6-6.8	7.7-7.9	6.1-6.2	7.2	4.1-4.2
Out of town [l]	4.8-5.0	4.9-5.1	5.4-5.7	4.8-5.0	5.5-5.8	4.1-4.3
Combined [l]	5.3-5.5	5.5-5.7	6.4-6.5	5.3-5.5	6.1-6.3	4.1-4.3
CO2 emissions [g/km]	138-142	144-150	170-173	138-142	160-166	109-114

Emission standard	EU6	EU6	EU6	EU6	EU6	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	-	-
Battery type and capacity	-	-	-	-	-	Lithium-Ionen-Akkumulator, 0.8 kWh
Range with fully charged battery [km]	-	-	-	-	-	-
Charging time	-	-	-	-	-	-
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1955	1955	2035	1955	2015	1955
Overall weight [kg]	2550	2550	2630	2550	2610	2550
Maximum trailer weight unbraked/braked [kg]	750/2100	750/2100	750/2100	750/2100	750/2100	300/300
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	600	600	600	600	600	650
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1855	-/1855	-/1855	-/1855	-/1855	-/1905
Boot length [mm]	1197	1197	1197	1197	1197	1197
Boot length with rear seats folded [mm]	2001	2001	2001	2001	2001	2001
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/836	-/836	-/836	-/836	-/836	-/836
Loading edge height [mm]	562	562	562	562	562	562
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	771	771	771	771	771	771
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	59	59	59	59	59	59
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.31	0.3	0.31	0.29
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R16	225/55 R16	245/45 R17	225/55 R16	245/45 R17	225/55 R16
Tyre dimensions rear	225/55 R16	225/55 R16	245/45 R17	225/55 R16	245/45 R17	225/55 R16
Wheel size front	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Wheel size rear	7.5J x 16 ET46.5	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5	8.0J x 17 ET48	7.5J x 16 ET46.5
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.28/-	11.28/-	11.50/-	11.28/-	11.50/-	11.28/-

Overall length [mm]	4905	4905	4905	4905	4905	4905
Overall width without/including mirrors [mm]	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071	1854/2071
Overall height [mm]	1507	1507	1507	1507	1507	1507
Wheelbase [mm]	2874	2874	2874	2874	2874	2874
Front wheel track [mm]	1583	1583	1583	1583	1583	1583
Rear wheel track [mm]	1604	1604	1604	1604	1604	1604
Forward overhang [mm]	849	849	849	849	849	849
Rear overhang [mm]	1182	1182	1182	1182	1182	1182
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1056	1056	1056	1056	1056	1056
Headroom rear [mm]	1012	1012	1012	1012	1012	1012
Front elbow/shoulder width [mm]	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467	1490/1467
Rear elbow/shoulder width [mm]	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446	1505/1446
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Coupé

	E 200	E 200	E 250	E 300	E 320	E 350
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol	Ignition supercharged	Petrol
Number of cylinders/valves	4/16	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1991	1991	1991	3498	2996	3498
Maximum output / speed [kW/min-1]	135/5500	135/5500	155/5500	185/6500	200/5000-6000	225/6500
Maximum torque [Nm/min-1]	270/1200-4000	270/1200-4000	350/1200-4000	340/3500-4500	400/1300-4500	370/3500-5250
Bore and stroke [mm x mm]	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	92,9 x 86,0	88,0 x 82,1	92,9 x 86,0
Compression ratio	9,8:1	9,8:1	9,8:1	12,0:1	10,5:1	12,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves start&stop system

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	-	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	240	240	250	250	250	250
Acceleration 0–100 km/h [s]	8.0	7.8	7.1	6.9	6.6	6.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.3-8.4	7.4-7.7	7.5-7.8	9.5-9.9	10.5-10.6	9.5-9.9
Out of town [l]	4.8-5.3	4.5-5.0	4.6-5.1	5.3-5.7	5.6-5.7	5.3-5.7
Combined [l]	6.1-6.4	5.6-6.0	5.7-6.1	6.9-7.2	7.4-7.5	6.9-7.2
CO2 emissions [g/km]	142-150	130-140	132-142	160-164	172-176	160-164

Emission standard	EU6	EU6	EU6	EU5	EU6	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1585	1615	1615	1685	1725	1685
Overall weight [kg]	2055	2085	2085	2155	2195	2155
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	450	450	450	450	450	450
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	66	66	66	66	66	66
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.25	0.25	0.25	0.27	0.28	0.27
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Tyre dimensions rear	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Wheel size front	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Wheel size rear	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.15/-	11.15/-	11.15/-	11.15/-	11.15/-	11.15/-

Overall length [mm]	4703	4703	4703	4703	4703	4703
Overall width without/including mirrors [mm]	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016
Overall height [mm]	1397	1397	1397	1397	1397	1397
Wheelbase [mm]	2760	2760	2760	2760	2760	2760
Front wheel track [mm]	1538	1538	1538	1538	1538	1538
Rear wheel track [mm]	1541	1541	1541	1541	1541	1541
Forward overhang [mm]	862	862	862	862	862	862
Rear overhang [mm]	1081	1081	1081	1081	1081	1081
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	910	910	910	910	910	910
Front elbow/shoulder width [mm]	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374
Rear elbow/shoulder width [mm]	1328/1243	1328/1243	1328/1243	1328/1243	1328/1243	1328/1243
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 350 4MATIC	E 400	E 500	E 220 CDI	E 220 CDI	E 220 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	8/32	4/16	4/16	4/16
Engine displacement [cm³]	3498	3498	4663	2143	2143	2143
Maximum output / speed [kW/min-1]	225/6500	245/5250-6000	300/5000-5750	125/3000-4200	125/3000-4200	125/3000-4200
Maximum torque [Nm/min-1]	370/3500-5250	480/1200-4000	600/1600-4750	400/1400-2800	400/1400-2800	400/1400-2800
Bore and stroke [mm x mm]	92,9 x 86,0	92,9 x 86,0	92,6 x 86,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0
Compression ratio	12,0:1	10,5:1	10,5:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	4x4	Rear	Rear	Rear	Rear	Rear
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 7G‐TRONIC PLUS	-

Top speed [km/h]	250	250	250	235	234	235
Acceleration 0–100 km/h [s]	6.5	5.2	4.8	8.5	8.3	8.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.4-11.5	9.3-9.5	11.9	5.7-5.9	5.8-6.0	5.3-5.8
Out of town [l]	6.4-6.6	5.2-5.4	6.9	3.8-4.2	3.9-4.3	3.6-4.3
Combined [l]	8.3-8.4	6.7-6.9	8.7	4.5-4.8	4.6-4.9	4.3-4.8
CO2 emissions [g/km]	193-196	157-161	203	118-126	119-129	110-127

Emission standard	EU5	EU6	EU6	EU5	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1735	1735	1815	1705	1715	1725
Overall weight [kg]	2225	2205	2255	2175	2185	2195
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	-	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	450	450	450	450	450	400
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	66	66	66	66	66	66
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.28	0.28	0.29	0.25	0.25	0.25
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	235/45 R17	235/45 R17	235/40 R18	235/45 R17	235/45 R17	235/45 R17
Tyre dimensions rear	235/45 R17	235/45 R17	255/35 R8	235/45 R17	235/45 R17	235/45 R17
Wheel size front	7.5J x 17 ET45	7.5J x 17 ET45	8.0J x 18 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Wheel size rear	7.5J x 17 ET45	7.5J x 17 ET45	8.5 J x 18 ET49	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.15/-	11.15/-	11.19/-	11.15/-	11.15/-	11.15/-

Overall length [mm]	4703	4703	4703	4703	4703	4703
Overall width without/including mirrors [mm]	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016
Overall height [mm]	1397	1397	1397	1397	1397	1397
Wheelbase [mm]	2760	2760	2760	2760	2760	2760
Front wheel track [mm]	1538	1538	1538	1538	1538	1538
Rear wheel track [mm]	1541	1541	1541	1541	1541	1541
Forward overhang [mm]	862	862	862	862	862	862
Rear overhang [mm]	1081	1081	1081	1081	1081	1081
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	910	910	910	910	910	910
Front elbow/shoulder width [mm]	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374
Rear elbow/shoulder width [mm]	1328/1243	1328/1243	1328/1243	1328/1243	1328/1243	1328/1243
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 220 BlueTEC	E 250 CDI	E 250 CDI	E 250 BlueTEC	E 250 BlueTEC	E 350 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	6/24
Engine displacement [cm³]	2143	2143	2143	2143	2143	2987
Maximum output / speed [kW/min-1]	125/3000-4200	150/3800	150/3800	150/3800	150/3800	185/3600
Maximum torque [Nm/min-1]	400/1400-2800	500/1600-1800	500/1600-1800	500/1600-1800	500/1600-1800	620/1600-2400
Bore and stroke [mm x mm]	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,0 x 92,0
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	15,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	9 gear automatic	6 gear manual	7 gear automatic	6 gear manual	9 gear automatic	9 gear automatic
Drive specifications	automatic gearbox 9G‐TRONIC	-	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 9G‐TRONIC	automatic gearbox 9G‐TRONIC

Top speed [km/h]	237	250	250	250	250	250
Acceleration 0–100 km/h [s]	8.1	7.4	7.3	7.4	7.3	6.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.2-5.5	5.7-6.2	5.8-6.0	5.5-5.9	5.2-5.5	6.8-7.0
Out of town [l]	3.6-4.1	3.9-4.5	3.9-4.3	3.8-4.3	3.6-4.1	4.7-4.8
Combined [l]	4.2-4.6	4.5-5.1	4.6-4.9	4.4-4.9	4.2-4.6	5.4-5.6
CO2 emissions [g/km]	106-120	119-133	119-129	116-129	106-120	143-149

Emission standard	EU6	EU5	EU5	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1735	1735	1735	1735	1735	1805
Overall weight [kg]	2205	2205	2205	2205	2205	2255
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	400	450	450	400	400	400
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	66	66	66	66	66	66
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.25	0.25	0.25	0.25	0.25	0.27
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Tyre dimensions rear	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Wheel size front	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Wheel size rear	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.25/-	11.15/-	11.15/-	11.15/-	11.15/-	11.15/-

Overall length [mm]	4703	4703	4703	4703	4703	4703
Overall width without/including mirrors [mm]	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016
Overall height [mm]	1397	1397	1397	1397	1397	1397
Wheelbase [mm]	2760	2760	2760	2760	2760	2760
Front wheel track [mm]	1538	1538	1538	1538	1538	1538
Rear wheel track [mm]	1541	1541	1541	1541	1541	1541
Forward overhang [mm]	862	862	862	862	862	862
Rear overhang [mm]	1081	1081	1081	1081	1081	1081
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	910	910	910	910	910	910
Front elbow/shoulder width [mm]	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374
Rear elbow/shoulder width [mm]	1328/1243	1328/1243	1328/1243	1328/1243	1328/1243	1328/1243
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 350 BlueTEC
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	6/24
Engine displacement [cm³]	2987
Maximum output / speed [kW/min-1]	190/3400
Maximum torque [Nm/min-1]	620/1600-2400
Bore and stroke [mm x mm]	83,0 x 92,0
Compression ratio	15,5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear
Gearbox	9 gear automatic
Drive specifications	automatic gearbox 9G‐TRONIC

Top speed [km/h]	250
Acceleration 0–100 km/h [s]	6.2
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	6.1
Out of town [l]	4.6-4.7
Combined [l]	5.1-5.2
CO2 emissions [g/km]	134-136

Emission standard	EU6
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1785
Overall weight [kg]	2235
Maximum trailer weight unbraked/braked [kg]	750/1800
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	100/-

Boot volume [l]	400
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	2
Number of seats	4
Fuel tank volume [l]	66
AdBlue tank volume [l]	-
Air resistance [Cd]	0.27
Front suspension	three-link
Rear suspension	multilink
Tyre dimensions front	235/45 R17
Tyre dimensions rear	235/45 R17
Wheel size front	7.5J x 17 ET45
Wheel size rear	7.5J x 17 ET45
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	11.15/-

Overall length [mm]	4703
Overall width without/including mirrors [mm]	1786/2016
Overall height [mm]	1397
Wheelbase [mm]	2760
Front wheel track [mm]	1538
Rear wheel track [mm]	1541
Forward overhang [mm]	862
Rear overhang [mm]	1081
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	1021
Headroom rear [mm]	910
Front elbow/shoulder width [mm]	1454/1374
Rear elbow/shoulder width [mm]	1328/1243
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Convertible

	E 200	E 200	E 250	E 300	E 320	E 350
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol	Ignition supercharged	Petrol
Number of cylinders/valves	4/16	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1991	1991	1991	3498	2996	3498
Maximum output / speed [kW/min-1]	135/5500	135/5500	155/5500	185/6500	200/5000-6000	225/6500
Maximum torque [Nm/min-1]	270/1200-4000	270/1200-4000	350/1200-4000	340/3500-4500	400/1300-4500	370/3500-5250
Bore and stroke [mm x mm]	83,0 x 92,0	83,0 x 92,0	83,0 x 92,0	92,9 x 86,0	88,0 x 82,1	92,9 x 86,0
Compression ratio	9,8:1	9,8:1	9,8:1	12,0:1	10,5:1	12,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection BlueDIRECT turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves start&stop system

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	-	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	235	235	245	250	250	250
Acceleration 0–100 km/h [s]	8.6	8.2	7.5	7.2	6.9	6.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.2-8.5	7.9-8.6	8.0-8.7	10.0-10.2	10.7-11.0	10.0-10.2
Out of town [l]	5.2-5.6	5.2-5.5	5.3-5.6	5.6-5.9	6.0-6.3	5.6-5.9
Combined [l]	6.4-6.6	6.2-6.7	6.3-6.8	7.2-7.5	7.7-8.1	7.2-7.5
CO2 emissions [g/km]	150-154	143-153	145-155	169-175	179-187	169-175

Emission standard	EU6	EU6	EU6	EU5	EU6	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1715	1735	1765	1805	1845	1805
Overall weight [kg]	2185	2205	2235	2275	2315	2275
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	300-390	300-390	300-390	300-390	300-390	300-390
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	66	66	66	66	66	66
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.29	0.29	0.3	0.29
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Tyre dimensions rear	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Wheel size front	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Wheel size rear	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.15/-	11.15/-	11.15/-	11.15/-	11.15/-	11.15/-

Overall length [mm]	4703	4703	4703	4703	4703	4703
Overall width without/including mirrors [mm]	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016
Overall height [mm]	1398	1398	1398	1398	1398	1398
Wheelbase [mm]	2760	2760	2760	2760	2760	2760
Front wheel track [mm]	1538	1538	1538	1538	1538	1538
Rear wheel track [mm]	1541	1541	1541	1541	1541	1541
Forward overhang [mm]	862	862	862	862	862	862
Rear overhang [mm]	1081	1081	1081	1081	1081	1081
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1019	1019	1019	1019	1019	1019
Headroom rear [mm]	919	919	919	919	919	919
Front elbow/shoulder width [mm]	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374
Rear elbow/shoulder width [mm]	1288/1214	1288/1214	1288/1214	1288/1214	1288/1214	1288/1214
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 400	E 500	E 220 CDI	E 220 CDI	E 220 BlueTEC	E 220 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	8/32	4/16	4/16	4/16	4/16
Engine displacement [cm³]	3498	4663	2143	2143	2143	2143
Maximum output / speed [kW/min-1]	245/5250-6000	300/5000-5750	125/3000-4200	125/3000-4200	125/3000-4200	125/3000-4200
Maximum torque [Nm/min-1]	480/1200-4000	600/1600-4750	400/1400-2800	400/1400-2800	400/1400-2800	400/1400-2800
Bore and stroke [mm x mm]	92,9 x 86,0	92,6 x 86,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0
Compression ratio	10,5:1	10,5:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection variable timing of intake and exhaust valves supercharging by twin turbochargers start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	7 gear automatic	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	9 gear automatic
Drive specifications	automatic gearbox 7G‐TRONIC PLUS	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 9G‐TRONIC

Top speed [km/h]	250	250	232	230	230	230
Acceleration 0–100 km/h [s]	5.3	4.9	8.8	8.7	8.8	8.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9.9-10.0	12.3-12.5	5.9-6.2	5.8-5.9	5.7-6.0	5.5-5.7
Out of town [l]	5.6-5.9	7.3-7.5	4.2-4.6	4.2-4.4	4.2-4.5	4.1-4.4
Combined [l]	7.1-7.5	9.2-9.3	4.9-5.2	4.8-4.9	4.7-5.1	4.5-4.8
CO2 emissions [g/km]	165-173	213-216	127-134	126-128	123-132	120-127

Emission standard	EU6	EU6	EU5	EU5	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1845	1945	1825	1835	1845	1845
Overall weight [kg]	2315	2350	2295	2305	2315	2315
Maximum trailer weight unbraked/braked [kg]	750/1800	-	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	300-390	300-390	300-390	300-390	300-390	300-390
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	66	66	66	66	66	66
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.31	0.29	0.29	0.29	0.29
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	235/45 R17	235/40 R18	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Tyre dimensions rear	235/45 R17	255/35 R8	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Wheel size front	7.5J x 17 ET45	8.0J x 18 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Wheel size rear	7.5J x 17 ET45	8.5 J x 18 ET49	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.15/-	11.19/-	11.15/-	11.15/-	11.15/-	11.25/-

Overall length [mm]	4703	4703	4703	4703	4703	4703
Overall width without/including mirrors [mm]	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016
Overall height [mm]	1398	1398	1398	1398	1398	1398
Wheelbase [mm]	2760	2760	2760	2760	2760	2760
Front wheel track [mm]	1538	1538	1538	1538	1538	1538
Rear wheel track [mm]	1541	1541	1541	1541	1541	1541
Forward overhang [mm]	862	862	862	862	862	862
Rear overhang [mm]	1081	1081	1081	1081	1081	1081
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1019	1019	1019	1019	1019	1019
Headroom rear [mm]	919	919	919	919	919	919
Front elbow/shoulder width [mm]	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374
Rear elbow/shoulder width [mm]	1288/1214	1288/1214	1288/1214	1288/1214	1288/1214	1288/1214
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	E 250 CDI	E 250 CDI	E 250 BlueTEC	E 250 BlueTEC	E 350 BlueTEC	E 350 BlueTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	6/24	6/24
Engine displacement [cm³]	2143	2143	2143	2143	2987	2987
Maximum output / speed [kW/min-1]	150/3800	150/3800	150/3800	150/3800	185/3600	190/3400
Maximum torque [Nm/min-1]	500/1600-1800	500/1600-1800	500/1600-1800	500/1600-1800	620/1600-2400	620/1600-2400
Bore and stroke [mm x mm]	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,9 x 99,0	83,0 x 92,0	83,0 x 92,0
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	15,5:1	15,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection	direct injection Common Rail turbo-supercharged particulate filter start&stop system SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	7 gear automatic	6 gear manual	9 gear automatic	9 gear automatic	9 gear automatic
Drive specifications	-	automatic gearbox 7G‐TRONIC PLUS	-	automatic gearbox 9G‐TRONIC	automatic gearbox 9G‐TRONIC	automatic gearbox 9G‐TRONIC

Top speed [km/h]	245	243	243	243	250	250
Acceleration 0–100 km/h [s]	7.8	7.7	7.7	7.7	6.7	6.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.9-6.2	5.8-5.9	5.8-6.1	5.6-5.8	7.0-7.1	6.2-6.5
Out of town [l]	4.2-4.6	4.2-4.4	4.3-4.6	4.2-4.5	4.9-5.1	4.8-5.2
Combined [l]	4.9-5.2	4.8-4.9	4.8-5.2	4.7-4.9	5.6-5.8	5.3-5.6
CO2 emissions [g/km]	127-134	126-128	126-135	123-130	149-154	139-148

Emission standard	EU5	EU5	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1845	1845	1860	1865	1935	1915
Overall weight [kg]	2315	2315	2330	2335	2350	2345
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	300-390	300-390	300-390	300-390	300-390	300-390
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	66	66	66	66	66	66
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.29	0.29	0.29	0.29
Front suspension	three-link	three-link	three-link	three-link	three-link	three-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Tyre dimensions rear	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17	235/45 R17
Wheel size front	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Wheel size rear	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45	7.5J x 17 ET45
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.15/-	11.15/-	11.15/-	11.15/-	11.15/-	11.15/-

Overall length [mm]	4703	4703	4703	4703	4703	4703
Overall width without/including mirrors [mm]	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016	1786/2016
Overall height [mm]	1398	1398	1398	1398	1398	1398
Wheelbase [mm]	2760	2760	2760	2760	2760	2760
Front wheel track [mm]	1538	1538	1538	1538	1538	1538
Rear wheel track [mm]	1541	1541	1541	1541	1541	1541
Forward overhang [mm]	862	862	862	862	862	862
Rear overhang [mm]	1081	1081	1081	1081	1081	1081
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1019	1019	1019	1019	1019	1019
Headroom rear [mm]	919	919	919	919	919	919
Front elbow/shoulder width [mm]	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374	1454/1374
Rear elbow/shoulder width [mm]	1288/1214	1288/1214	1288/1214	1288/1214	1288/1214	1288/1214
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Gallery

Mercedes-Benz E W212 facelift 2013 sedan

Mercedes-Benz E W212 facelift 2014 sedan

Mercedes-Benz E W212 facelift 2015 sedan

Mercedes-Benz E W212 facelift 2016 sedan

Mercedes-Benz E W212 facelift 2013 sedan

Mercedes-Benz E W212 facelift 2014 sedan

Mercedes-Benz E W212 facelift 2013 sedan

Mercedes-Benz E W212 facelift 2014 sedan

Mercedes-Benz E W212 facelift 2015 sedan

Mercedes-Benz E W212 facelift 2014 sedan

Mercedes-Benz E W212 facelift 2013 sedan

Mercedes-Benz E 63 AMG W212 facelift 2013 sedan

Mercedes-Benz E 63 AMG W212 facelift 2014 sedan

Mercedes-Benz E 63 AMG W212 facelift 2015 sedan

Mercedes-Benz E W212 facelift 2013 interior

Mercedes-Benz E W212 facelift 2013 rear seats

Mercedes-Benz E W212 facelift 2013 boot

Mercedes-Benz E S212 facelift 2013 wagon

Mercedes-Benz E S212 facelift 2014 wagon

Mercedes-Benz E S212 facelift 2015 wagon

Mercedes-Benz E S212 facelift 2016 wagon

Mercedes-Benz E S212 facelift 2013 wagon

Mercedes-Benz E 63 AMG S212 facelift 2013 wagon

Mercedes-Benz E 63 AMG S212 facelift 2014 wagon

Mercedes-Benz E 63 AMG S212 facelift 2015 wagon

Mercedes-Benz E 63 AMG S212 facelift 2016 wagon

Mercedes-Benz E S212 facelift 2013 boot

Mercedes-Benz E S212 facelift 2014 boot

Mercedes-Benz E S212 facelift 2015 rear folding seats

Mercedes-Benz E C207 facelift 2013 rear seats

Mercedes-Benz E A207 facelift 2013 convertible

Mercedes-Benz E A207 facelift 2014 convertible

Mercedes-Benz E A207 facelift 2015 convertible

Mercedes-Benz E A207 facelift 2016 convertible

Mercedes-Benz E A207 facelift 2013 convertible

Mercedes-Benz E A207 facelift 2013 convertible

Mercedes-Benz E A207 facelift 2014 convertible

Mercedes-Benz E A207 facelift 2015 convertible

Mercedes-Benz E A207 facelift 2016 convertible

Mercedes-Benz E A207 facelift 2016 convertible

Mercedes-Benz E A207 facelift 2014 convertible

Mercedes-Benz E A207 facelift 2015 convertible

Mercedes-Benz E A207 facelift 2013 front seats

Mercedes-Benz E A207 facelift 2013 rear seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
