Mercedes-Benz CLS
Date of manufacture
2012 – 6/2014 (Estate)
2011 – 6/2014 (Coupé)
Platform
-
Manufacturing locations
Sindelfingen, Germany
Designer
Hubert Lee
Tags
E-segment
German cars
Mercedes-Benz CLS is a luxury vehicle that has been produced in two versions - coupe and estate - since 2011. The car is made in Germany and offers a wide range of petrol and diesel engines. The most powerful model is the CLS 63 AMG S 4MATIC with a maximum output of 430 kW, the fastest version reaches a speed of 250 km/h in 3.6 seconds, while the most economical model, the CLS 250 CDI, has a fuel consumption of 5.1 l/100 km with CO2 emissions of 134 g/km. The trunk of the coupe body has a capacity of 520 l and for the estate version it is 590 l.
Car body style
Estate (Shooting Brake)
Date of manufacture
2012 – 6/2014Internal designation
X218Coupé
Date of manufacture
2011 – 6/2014Internal designation
W218Technical data
Estate (Shooting Brake)
| CLS 350 | CLS 500 | CLS 500 4MATIC | CLS 63 AMG | CLS 63 AMG | CLS 63 AMG 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 3498 | 4663 | 4663 | 5461 | 5461 | 5461 |
| Maximum output / speed [kW/min-1] | 225/6500 | 300/5000-5750 | 300/5000-5750 | 386/5250 | 410/5500 | 410/5500 |
| Maximum torque [Nm/min-1] | 370/3500-5250 | 600/1600-4750 | 600/1600-4750 | 700/1750-5000 | 720/1750-5250 | 720/1750-5250 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 98,0 x 90,5 | 98,0 x 90,5 | 98,0 x 90,5 |
| Compression ratio | 12,0:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.7 | 5.0 | 4.9 | 4.4 | 4.3 | 3.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.7-9.8 | 12.7-12.8 | 13.3-13.4 | 14.0 | 14.0 | 14.4 |
| Out of town [l] | 5.8-5.9 | 7.1-7.2 | 7.8-7.9 | 7.8 | 7.8 | 8.4 |
| Combined [l] | 7.3-7.4 | 9.2-9.3 | 9.8-9.9 | 10.1 | 10.1 | 10.6 |
| CO2 emissions [g/km] | 169-172 | 214-216 | 229-231 | 235 | 235 | 248 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1830 | 1955 | 2005 | 1955 | 1955 | 2025 |
| Overall weight [kg] | 2355 | 2480 | 2530 | 2540 | 2530 | 2560 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |

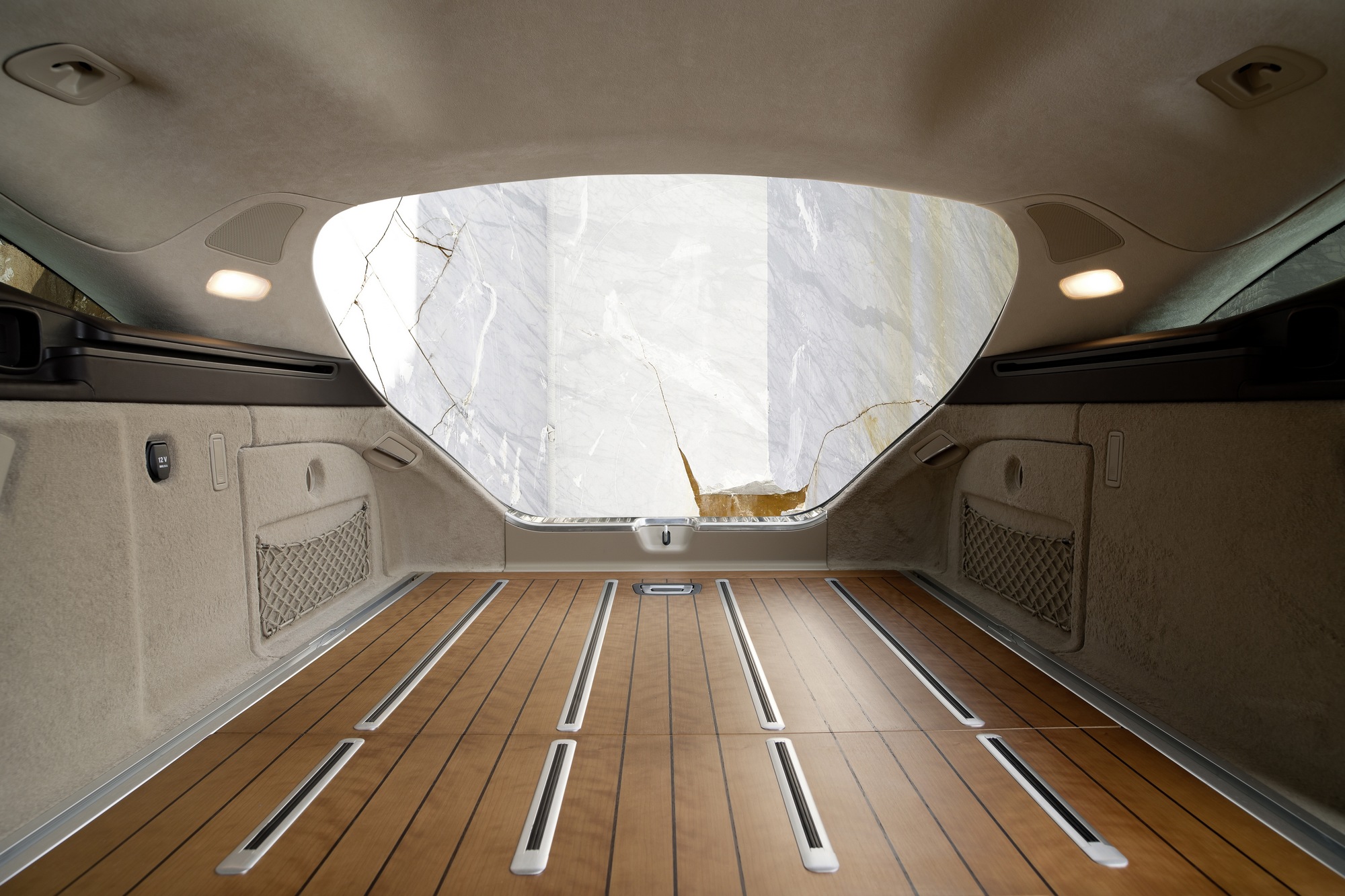

| Boot volume [l] | 590 | 590 | 590 | 590 | 590 | 590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | 1158 | 1158 | 1158 | 1158 | 1158 | 1158 |
| Boot length with rear seats folded [mm] | 1937 | 1937 | 1937 | 1937 | 1937 | 1937 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/748 | -/748 | -/748 | -/748 | -/748 | -/748 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 576 | 576 | 576 | 576 | 576 | 576 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.3 | 0.31 | - | - |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/45 R17 | 255/40 R18 | 255/40 R18 | 255/35 ZR 19 | 255/35 ZR 19 XL | 255/35 ZR 19 XL |
| Tyre dimensions rear | 245/45 R17 | 255/40 R18 | 255/40 R18 | 285/30 ZR 19 | 285/30 ZR 19 XL | 285/30 ZR 19 XL |
| Wheel size front | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 9.0J x 19 ET 37 | 9.0J x 19 ET 37 | 9.0J x 19 ET 37 |
| Wheel size rear | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 10.0J x 19 ET 47 | 10.0J x 19 ET 47 | 10.0J x 19 ET 47 |
| Brake dimensions front | - | - | - | 360 x 36 | 360 x 36 | 360 x 36 |
| Brake dimensions rear | - | - | - | 360 x 26 | 360 x 26 | 360 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.27/- | 11.27/- | 11.27/- | 11.30/- | 11.35/- | 11.75/- |
| Overall length [mm] | 4956 | 4956 | 4956 | 4999 | 4999 | 4999 |
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 |
| Overall height [mm] | 1416 | 1416 | 1416 | 1413 | 1413 | 1436 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1596 | 1596 | 1596 | 1625 | 1625 | 1625 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1607 | 1607 | 1607 |
| Forward overhang [mm] | 901 | 901 | 901 | - | - | - |
| Rear overhang [mm] | 1181 | 1181 | 1181 | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 |
| Rear elbow/shoulder width [mm] | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLS 63 AMG S 4MATIC | CLS 250 CDI | 350 CDI | 350 CDI 4MATIC | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 8/32 | 4/16 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 5461 | 2143 | 2987 | 2987 | ||
| Maximum output / speed [kW/min-1] | 430/5500 | 150/3800 | 195/3800 | 195/3800 | ||
| Maximum torque [Nm/min-1] | 800/1750-5000 | 500/1600-1800 | 620/1600-2400 | 620/1600-2400 | ||
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 83,0 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 | ||
| Compression ratio | 10,0:1 | 16,2:1 | 15,5:1 | 15,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | Rear | Rear | 4x4 | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 250 | 235 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 3.7 | 7.8 | 6.6 | 6.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 14.4 | 6.3-6.4 | 7.3-7.5 | 7.9-8.0 | ||
| Out of town [l] | 8.4 | 4.7-4.8 | 5.3-5.4 | 5.9-6.0 | ||
| Combined [l] | 10.6 | 5.3-5.4 | 6.0-6.1 | 6.6-6.7 | ||
| CO2 emissions [g/km] | 248 | 139-143 | 159-162 | 174-176 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 2025 | 1865 | 1910 | 1970 | ||
| Overall weight [kg] | 2560 | 2390 | 2435 | 2495 | ||
| Maximum trailer weight unbraked/braked [kg] | - | 750/2100 | 750/2100 | 750/2100 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 590 | 590 | 590 | 590 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | ||
| Boot length [mm] | 1158 | 1158 | 1158 | 1158 | ||
| Boot length with rear seats folded [mm] | 1937 | 1937 | 1937 | 1937 | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | -/748 | -/748 | -/748 | -/748 | ||
| Loading edge height [mm] | 640 | 640 | 640 | 640 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 576 | 576 | 576 | 576 | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 66 | 80 | 80 | 80 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | 0.29 | 0.29 | 0.29 | ||
| Front suspension | multilink | multilink | multilink | multilink | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 255/35 ZR 19 XL | 245/45 R17 | 245/45 R17 | 245/45 R17 | ||
| Tyre dimensions rear | 285/30 ZR 19 XL | 245/45 R17 | 245/45 R17 | 245/45 R17 | ||
| Wheel size front | 9.0J x 19 ET 37 | 8.0J x 17 ET 30 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | ||
| Wheel size rear | 10.0J x 19 ET 47 | 8.0J x 17 ET 30 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | ||
| Brake dimensions front | 360 x 36 | - | - | - | ||
| Brake dimensions rear | 360 x 26 | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.75/- | 11.27/- | 11.27/- | 11.27/- | ||
| Overall length [mm] | 4999 | 4956 | 4956 | 4956 | ||
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | ||
| Overall height [mm] | 1436 | 1416 | 1416 | 1416 | ||
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | ||
| Front wheel track [mm] | 1625 | 1596 | 1596 | 1596 | ||
| Rear wheel track [mm] | 1607 | 1626 | 1626 | 1626 | ||
| Forward overhang [mm] | - | 901 | 901 | 901 | ||
| Rear overhang [mm] | - | 1181 | 1181 | 1181 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | ||
| Headroom rear [mm] | 974 | 974 | 974 | 974 | ||
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | ||
| Rear elbow/shoulder width [mm] | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Coupé
| CLS 350 | CLS 500 | CLS 500 4MATIC | CLS 63 AMG | CLS 63 AMG | CLS 63 AMG 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 3498 | 4663 | 4663 | 5461 | 5461 | 5461 |
| Maximum output / speed [kW/min-1] | 225/6500 | 300/5000-5750 | 300/5000-5750 | 386/5250 | 410/5500 | 410/5500 |
| Maximum torque [Nm/min-1] | 370/3500-5250 | 600/1600-4750 | 600/1600-4750 | 700/1750-5000 | 720/1750-5250 | 720/1750-5250 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 98,0 x 90,5 | 98,0 x 90,5 | 98,0 x 90,5 |
| Compression ratio | 12,0:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.1 | 4.9 | 4.8 | 4.4 | 4.2 | 3.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1-9.5 | 12.5 | 13.4-13.5 | 13.9 | 13.9 | 14.4 |
| Out of town [l] | 5.4-5.6 | 6.9 | 7.4-7.5 | 7.6 | 7.6 | 8.0 |
| Combined [l] | 6.8-7.0 | 9.0 | 9.6-9.7 | 9.9 | 9.9 | 10.4 |
| CO2 emissions [g/km] | 159-164 | 209 | 224-226 | 231 | 231 | 243 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1890 | 1940 | 1870 | 1870 | 1945 |
| Overall weight [kg] | 2220 | 2375 | 2425 | 2415 | 2390 | 2415 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 80 | 80 | 80 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.28 | 0.3 | 0.3 | 0.3 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/45 R17 | 255/40 R18 | 255/40 R18 | 255/35 ZR 19 XL | 255/35 ZR 19 XL | 255/35 ZR 19 XL |
| Tyre dimensions rear | 245/45 R17 | 255/40 R18 | 255/40 R18 | 285/30 ZR 19 XL | 285/30 ZR 19 XL | 285/30 ZR 19 XL |
| Wheel size front | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 9.0J x 19 ET 37 | 9.0J x 19 ET 37 | 9.0J x 19 ET 37 |
| Wheel size rear | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 10.0J x 19 ET 47 | 10.0J x 19 ET 47 | 10.0J x 19 ET 47 |
| Brake dimensions front | - | - | - | 360 x 36 | 360 x 36 | 360 x 36 |
| Brake dimensions rear | - | - | - | 360 x 26 | 360 x 26 | 360 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.27/- | 11.27/- | 11.27/- | 11.35/- | 11.35/- | 11.75/- |
| Overall length [mm] | 4940 | 4940 | 4940 | 4996 | 4995 | 4995 |
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 |
| Overall height [mm] | 1416 | 1416 | 1416 | 1406 | 1396 | 1416 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1594 | 1594 | 1594 | 1625 | 1625 | 1625 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1604 | 1607 | 1607 |
| Forward overhang [mm] | 901 | 901 | 901 | - | - | - |
| Rear overhang [mm] | 1165 | 1165 | 1165 | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 |
| Rear elbow/shoulder width [mm] | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLS 63 AMG S 4MATIC | CLS 250 CDI | CLS 350 CDI BlueTEC | CLS 350 CDI BlueTEC 4MATIC | 350 CDI | 350 CDI 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 5461 | 2143 | 2987 | 2987 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 430/5500 | 150/3800 | 185/3600 | 185/3600 | 195/3800 | 195/3800 |
| Maximum torque [Nm/min-1] | 800/1750-5000 | 500/1600-1800 | 620/1600-2400 | 620/1600-2400 | 620/1600-2400 | 620/1600-2400 |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 83,0 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,0:1 | 16,2:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 242 | 250 | 245 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 3.6 | 7.5 | 6.6 | 6.7 | 6.2 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.4 | 6.4-6.5 | 6.8 | 7.3-7.4 | 7.8 | 8.8 |
| Out of town [l] | 8.0 | 4.4-4.5 | 4.7-4.9 | 5.3-5.5 | 5.0-5.1 | 5.6-5.8 |
| Combined [l] | 10.4 | 5.1-5.3 | 5.5-5.6 | 6.1-6.2 | 6.0-6.1 | 6.7-6.9 |
| CO2 emissions [g/km] | 243 | 134-138 | 144-146 | 160-164 | 159-160 | 177-181 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1945 | 1785 | 1845 | 1935 | 1815 | 1875 |
| Overall weight [kg] | 2415 | 2270 | 2330 | 2420 | 2300 | 2360 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 470 | 470 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 66 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.26 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/35 ZR 19 XL | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Tyre dimensions rear | 285/30 ZR 19 XL | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Wheel size front | 9.0J x 19 ET 37 | 8.0J x 17 ET 30 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 |
| Wheel size rear | 10.0J x 19 ET 47 | 8.0J x 17 ET 30 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 |
| Brake dimensions front | 360 x 36 | - | - | - | - | - |
| Brake dimensions rear | 360 x 26 | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.75/- | 11.27/- | 11.27/- | 11.27/- | 11.27/- | 11.27/- |
| Overall length [mm] | 4994 | 4940 | 4940 | 4940 | 4940 | 4940 |
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 |
| Overall height [mm] | 1416 | 1416 | 1416 | 1416 | 1416 | 1416 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1625 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Rear wheel track [mm] | 1607 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | - | 901 | 901 | 901 | 901 | 901 |
| Rear overhang [mm] | - | 1165 | 1165 | 1165 | 1165 | 1165 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 |
| Rear elbow/shoulder width [mm] | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
