	CLS 280 / 300	CLS 350 CGI	CLS 500	CLS 63 AMG	CLS 320 CDI / 350 CDI
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	6/24	6/24	8/32	8/32	6/24
Engine displacement [cm³]	2996	3498	5461	6208	2987
Maximum output / speed [kW/min-1]	170/6000	215/6400	285/6000	378/6800	165/3800
Maximum torque [Nm/min-1]	300/2500-5000	365/3000-5100	530/2800-4800	630/5200	540/1600-2400
Bore and stroke [mm x mm]	88,0 x 82,1	92,9 x 86,0	98,0 x 90,5	102,2 x 94,6	83,0 x 92,0
Compression ratio	11,3:1	12,2:1	10,7:1	11,3:1	17,7:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	variable valve timing	direct injection variable valve timing	variable timing of intake and exhaust valves	variable timing of intake and exhaust valves	direct injection Common Rail turbo-supercharged particulate filter

Drive axle	Rear	Rear	Rear	Rear	Rear
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	automatic gearbox 7G‐TRONIC	automatic gearbox 7G‐TRONIC	automatic gearbox 7G‐TRONIC	automatic gearbox AMG SPEEDSHIFT PLUS 7G‐TRONIC	automatic gearbox 7G‐TRONIC

Top speed [km/h]	245	250	250	250	246
Acceleration 0–100 km/h [s]	7.7	6.7	5.4	4.5	7.0
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	13.8-14.1	13.0-13.2	17.0-17.2	22.6	10.6-11.0
Out of town [l]	7.4-7.7	7.0-7.2	8.5-8.7	9.9	5.9-6.4
Combined [l]	9.8-10.0	9.1-9.3	11.6-11.8	14.5	7.6-8.1
CO2 emissions [g/km]	233-237	217-222	275-280	345	200-215

Emission standard	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1730	1735	1835	1905	1815
Overall weight [kg]	2195	2200	2300	2370	2280
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	-	100/-

Boot volume [l]	505	505	495	495	505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	4	4	4	4	4
Number of seats	4	4	4	4	4
Fuel tank volume [l]	80	80	80	80	80
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.31	0.31	0.3
Front suspension	four-link	four-link	four-link	four-link	four-link
Rear suspension	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	245/45 R 17	245/45 R 17 W	245/40 R 18	255/35 R19	245/45 R17 W
Tyre dimensions rear	245/45 R 17	245/45 R 17 W	245/40 R 18	285/30 R19	245/45 R17 W
Wheel size front	8.5 J x 17 ET 28	8.5 J x 17 ET 28	-	8.5 J x 19 ET25	8.5 J x 17 ET 28
Wheel size rear	8.5 J x 17 ET 28	8.5 J x 17 ET 28	-	9.5 J x 19 ET28	8.5 J x 17 ET 28
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	11.20/-	11.21/-	11.21/-	11.50/-	11.21/-

Overall length [mm]	4917	4917	4917	4917	4917
Overall width without/including mirrors [mm]	1873/2107	1873/2107	1873/2107	1873/2107	1873/2107
Overall height [mm]	1430	1430	1430	1430	1430
Wheelbase [mm]	2854	2854	2854	2854	2854
Front wheel track [mm]	1593	1593	1593	1593	1593
Rear wheel track [mm]	1603	1603	1603	1603	1603
Forward overhang [mm]	891	891	891	891	891
Rear overhang [mm]	1172	1172	1172	1172	1172
Clearance [mm]	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	975	975	975	975	975
Headroom rear [mm]	924	924	924	924	924
Front elbow/shoulder width [mm]	1429/1472	1429/1472	1429/1472	1429/1472	1429/1472
Rear elbow/shoulder width [mm]	1422/1464	1422/1464	1422/1464	1422/1464	1422/1464
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Gallery

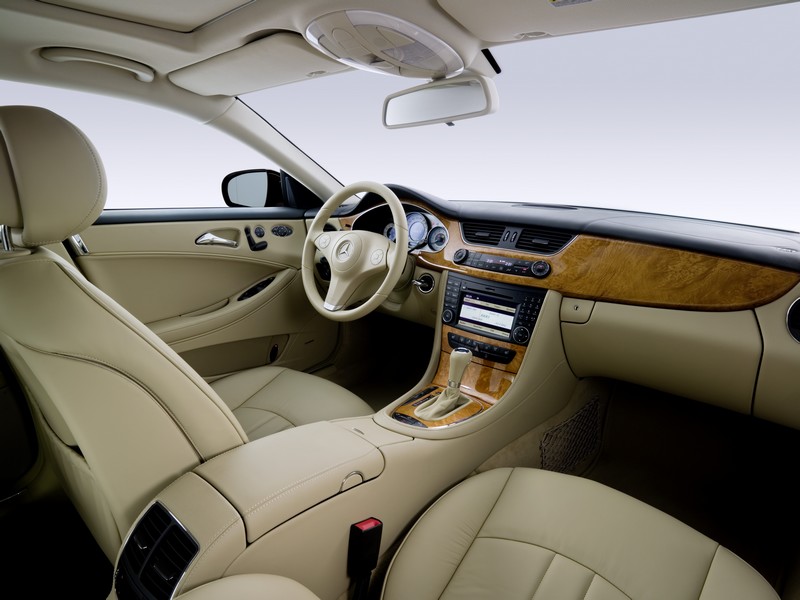

Mercedes-Benz CLS W219 2008 facelift interior

Mercedes-Benz CLS AMG W219 2008 facelift interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
