Mercedes-Benz CLA
Date of manufacture
1/2015 – 2016 (Estate)
1/2013 – 2016 (Coupé)
Platform
MFA
Manufacturing locations
Kecskemét, Hungary
Designer
Mark Fetherston
Robert Lešnik
Tags
C-segment
German cars
The Mercedes-Benz CLA has been available in two versions - estate and coupe - since 2013. The car is manufactured in Hungary on the MFA platform and offers a wide range of engines, the most powerful of which is the CLA 45 AMG 4MATIC with a power output of 280 kW. This model has a top speed of 250 km/h and the best acceleration from 0-100 km/h in 4.2 seconds. The most fuel-efficient version of the CLA 180 CDI has a fuel consumption of 3.7 l/100 km and emissions of 98 g/km. The car has a luggage compartment volume of 470 l (coupe) and 495 l (estate). The vehicle's safety was rated 5 out of 5 by EURONCAP in 2013.
Car body style

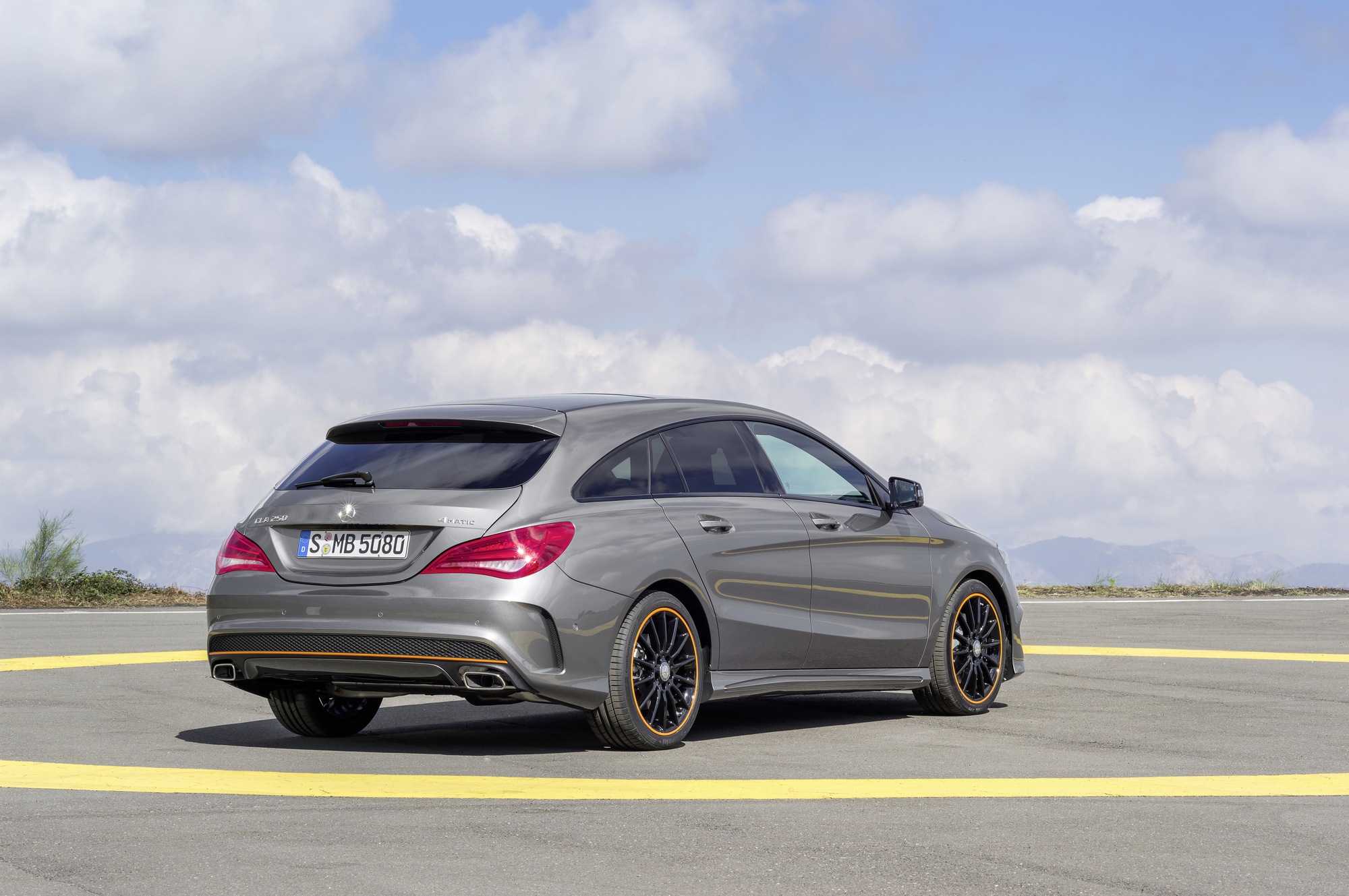

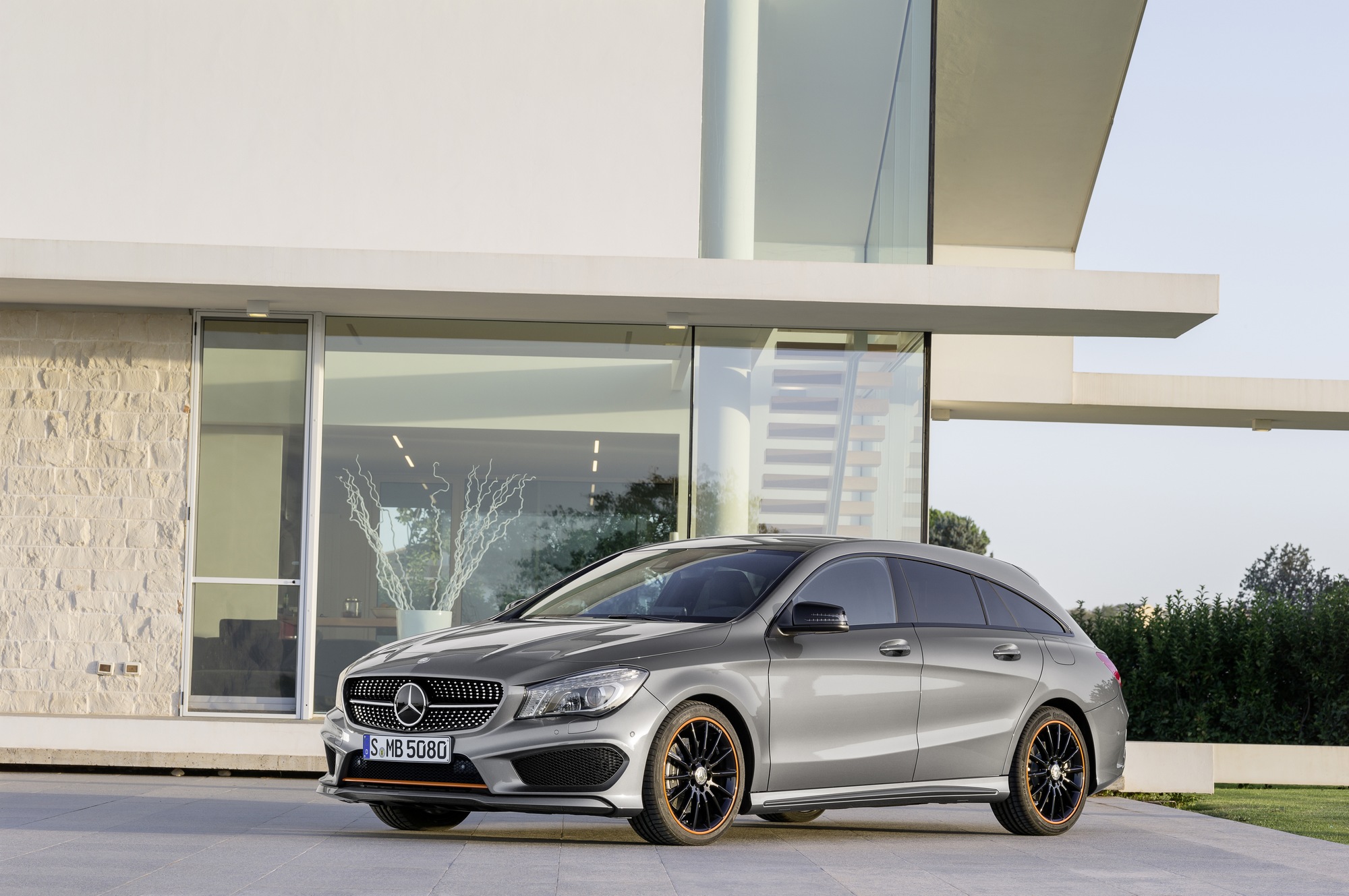

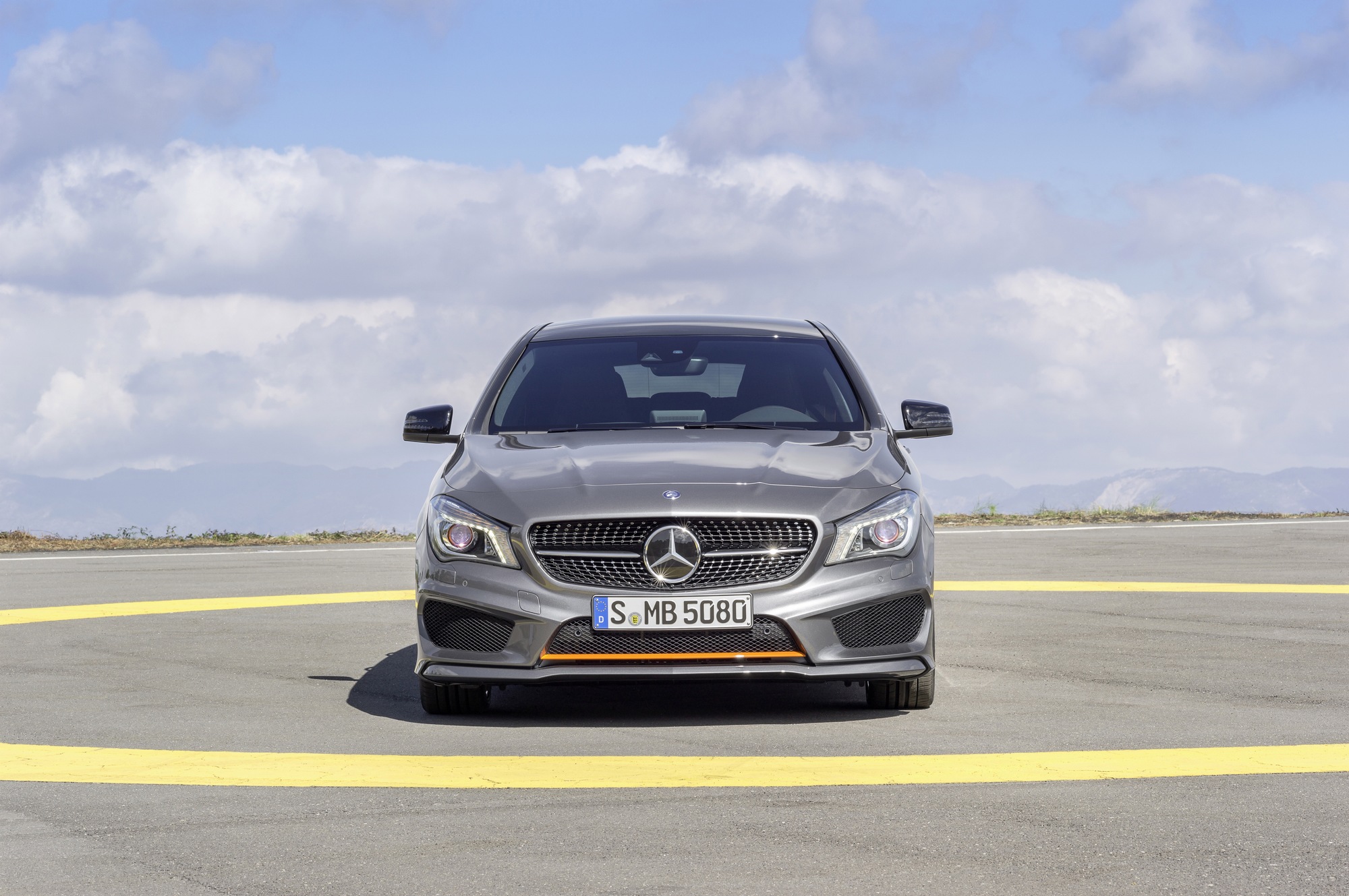

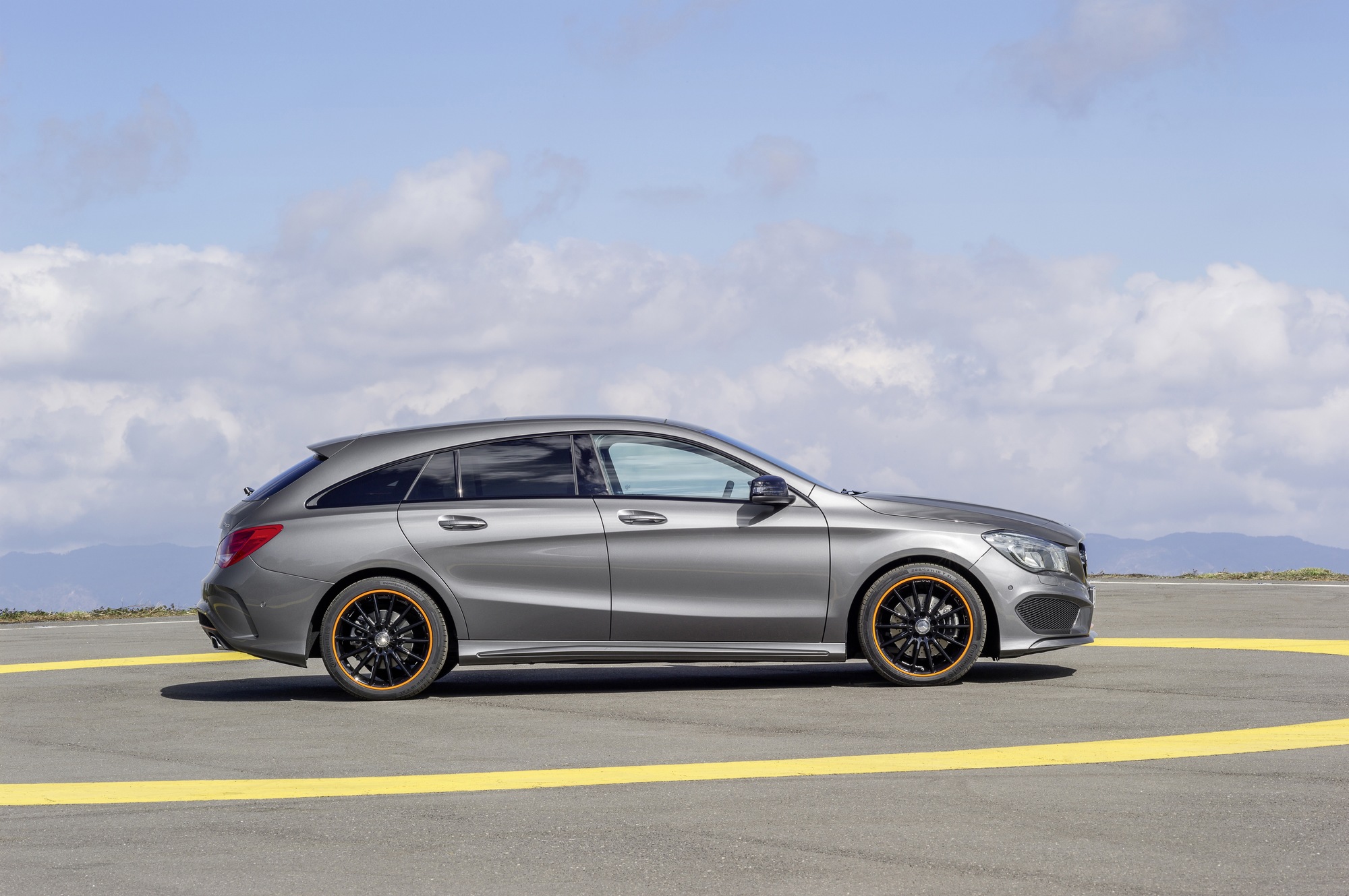

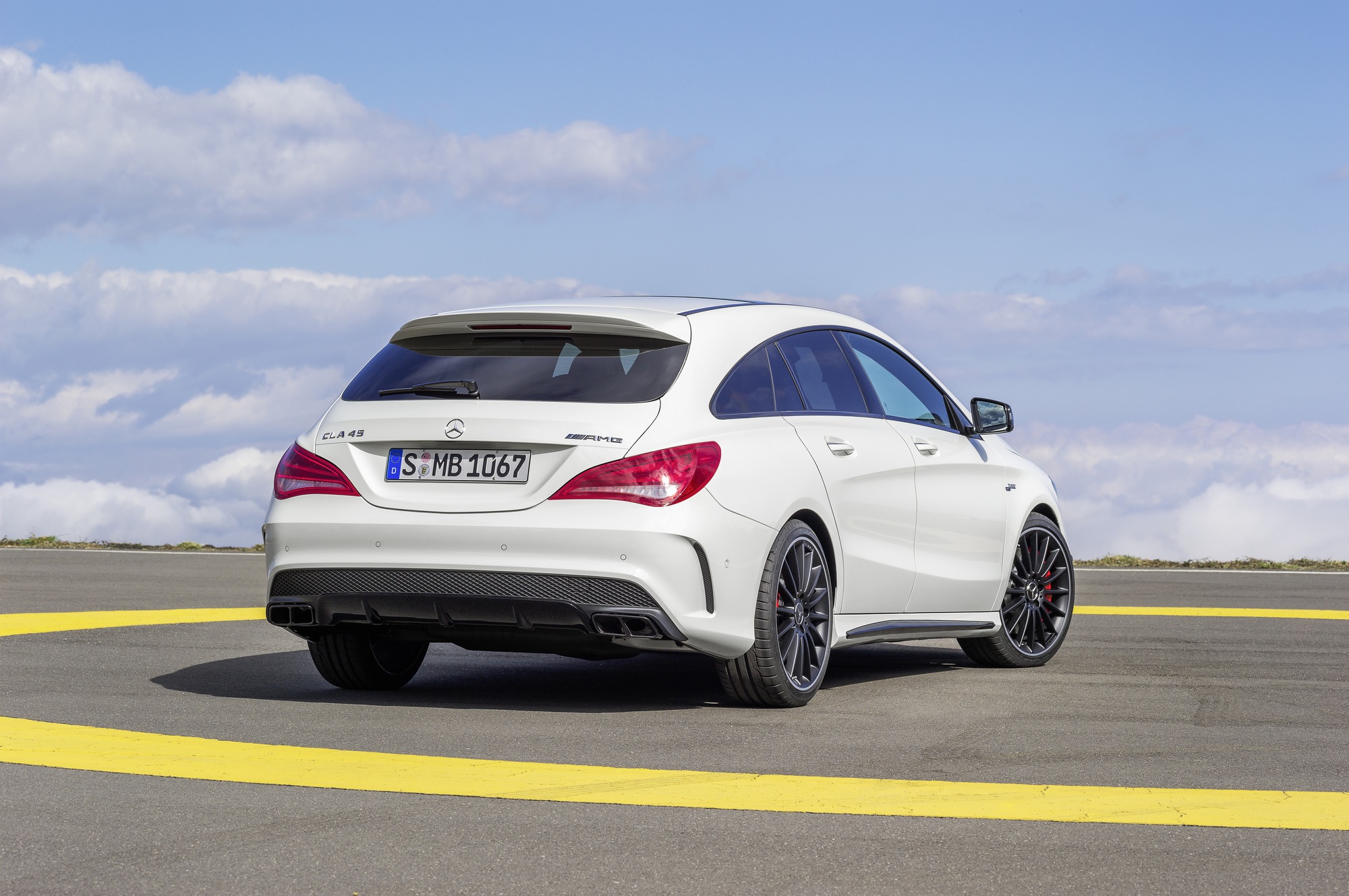

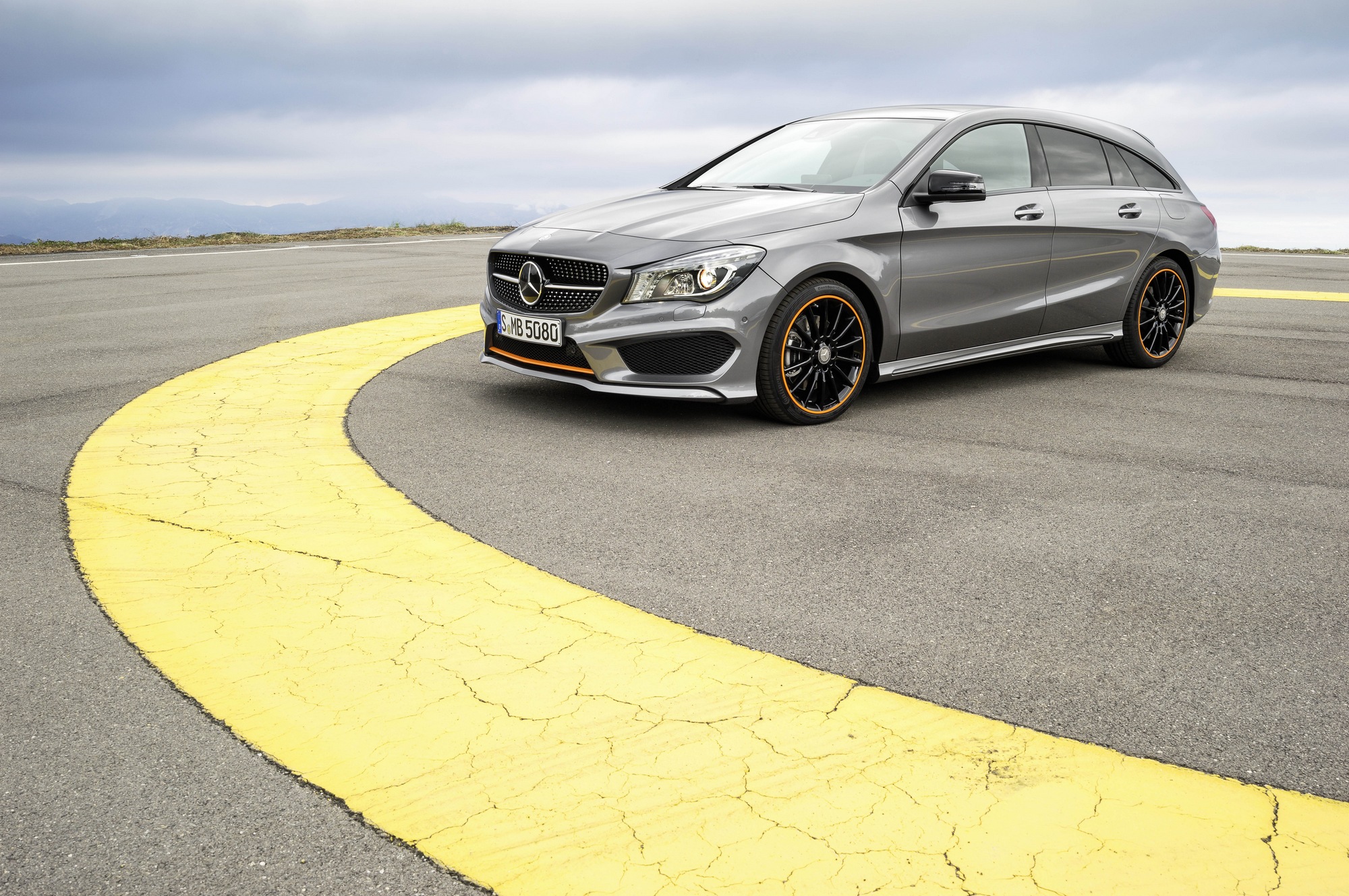

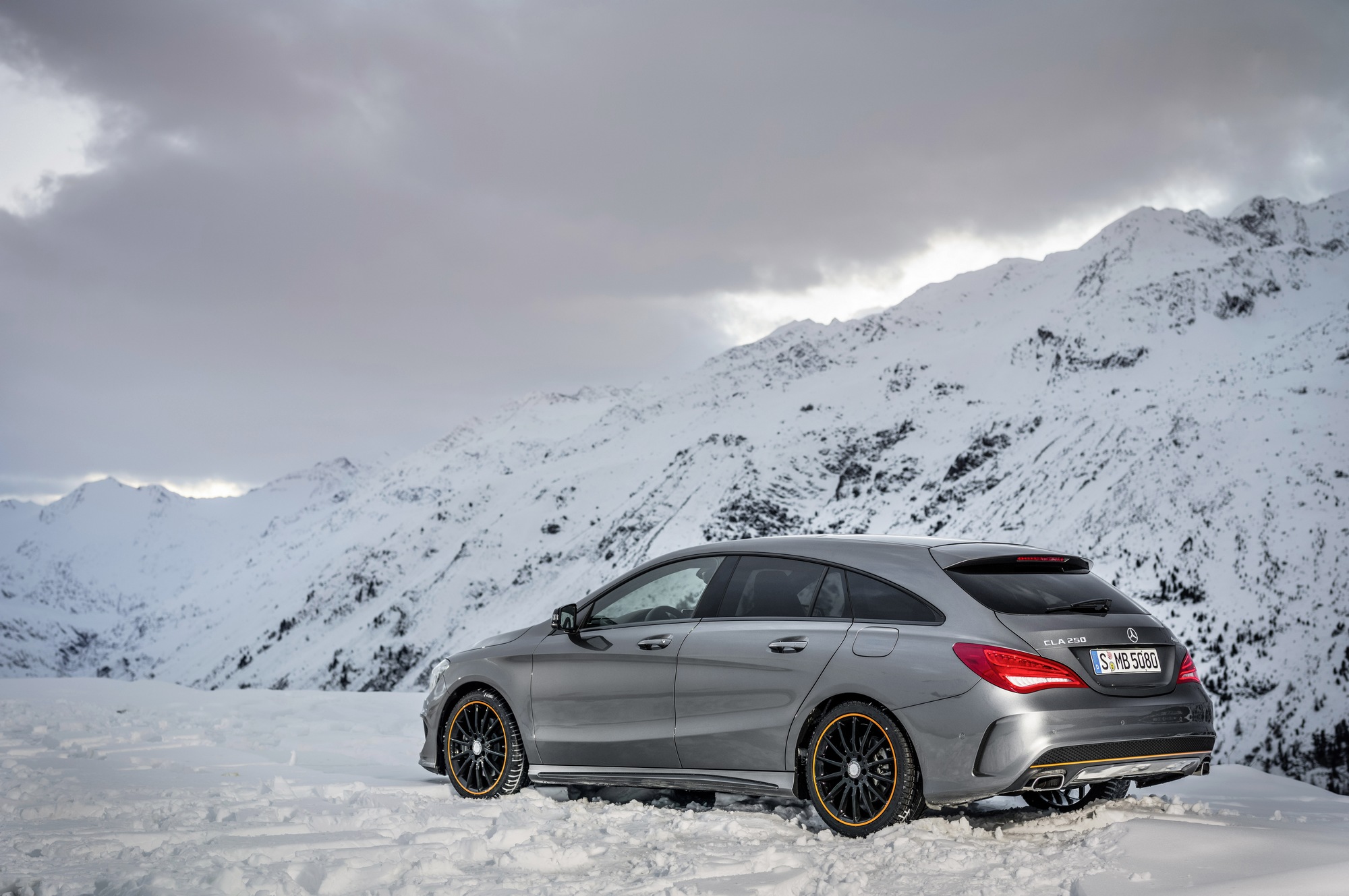

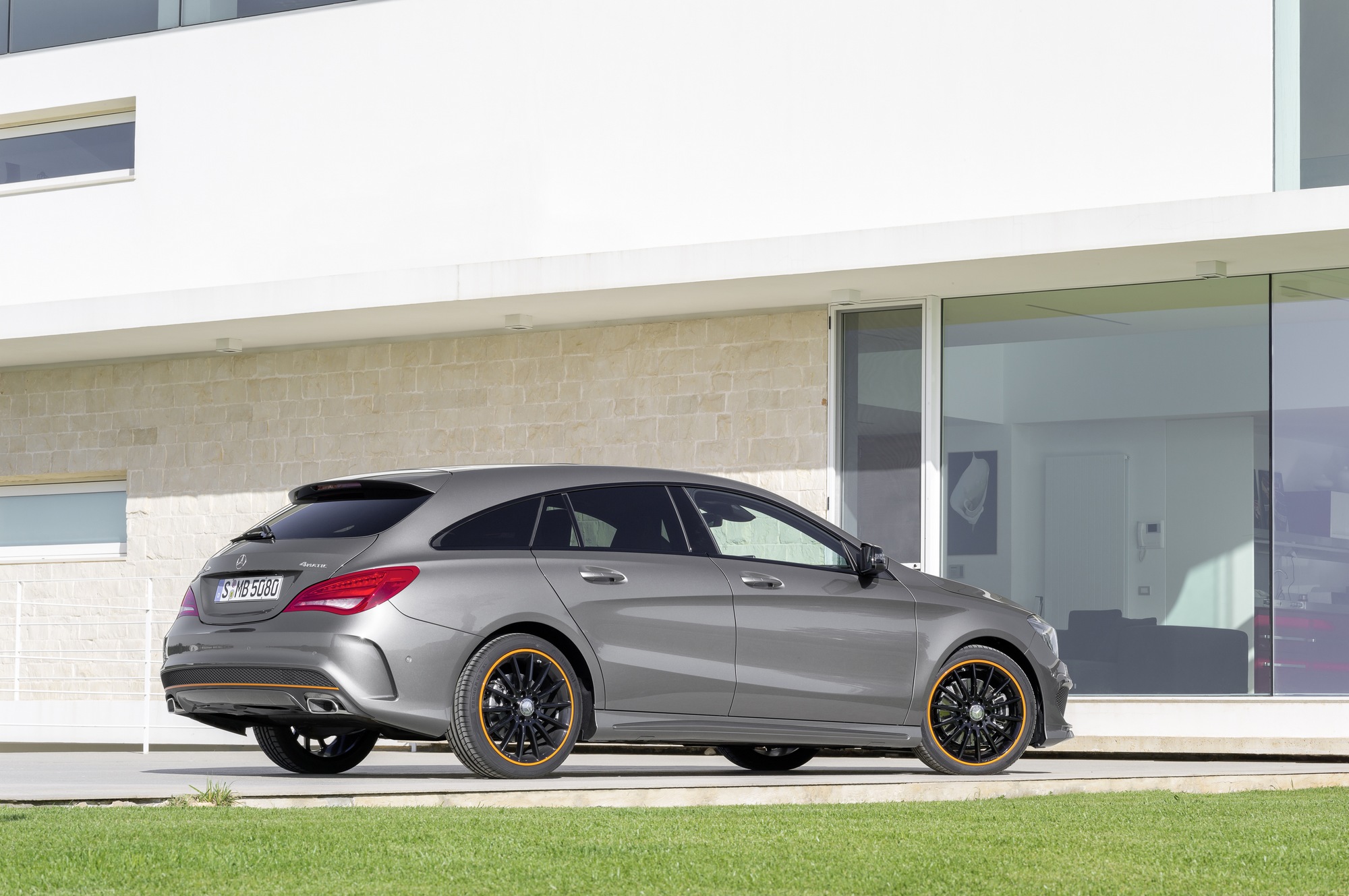

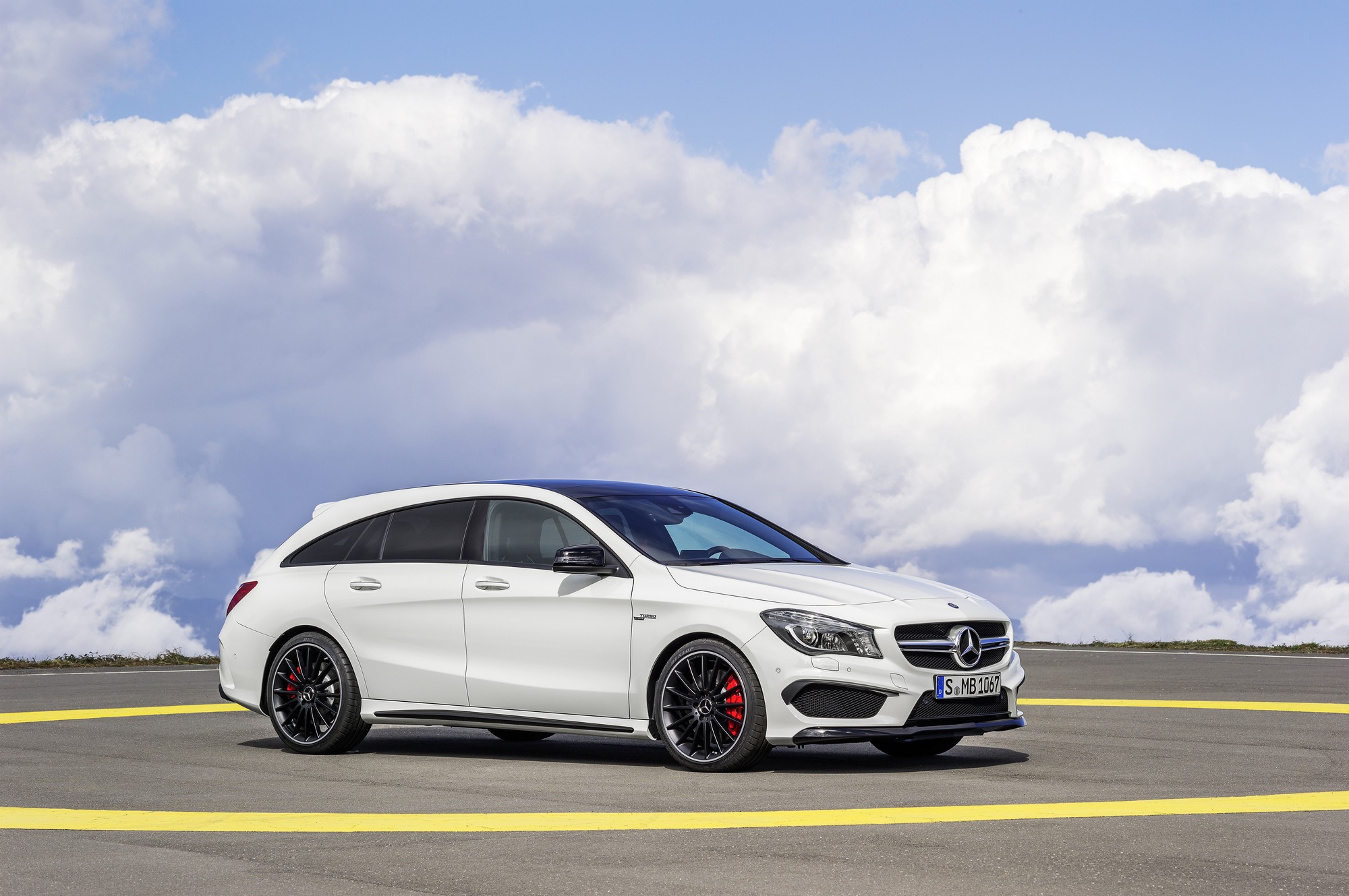

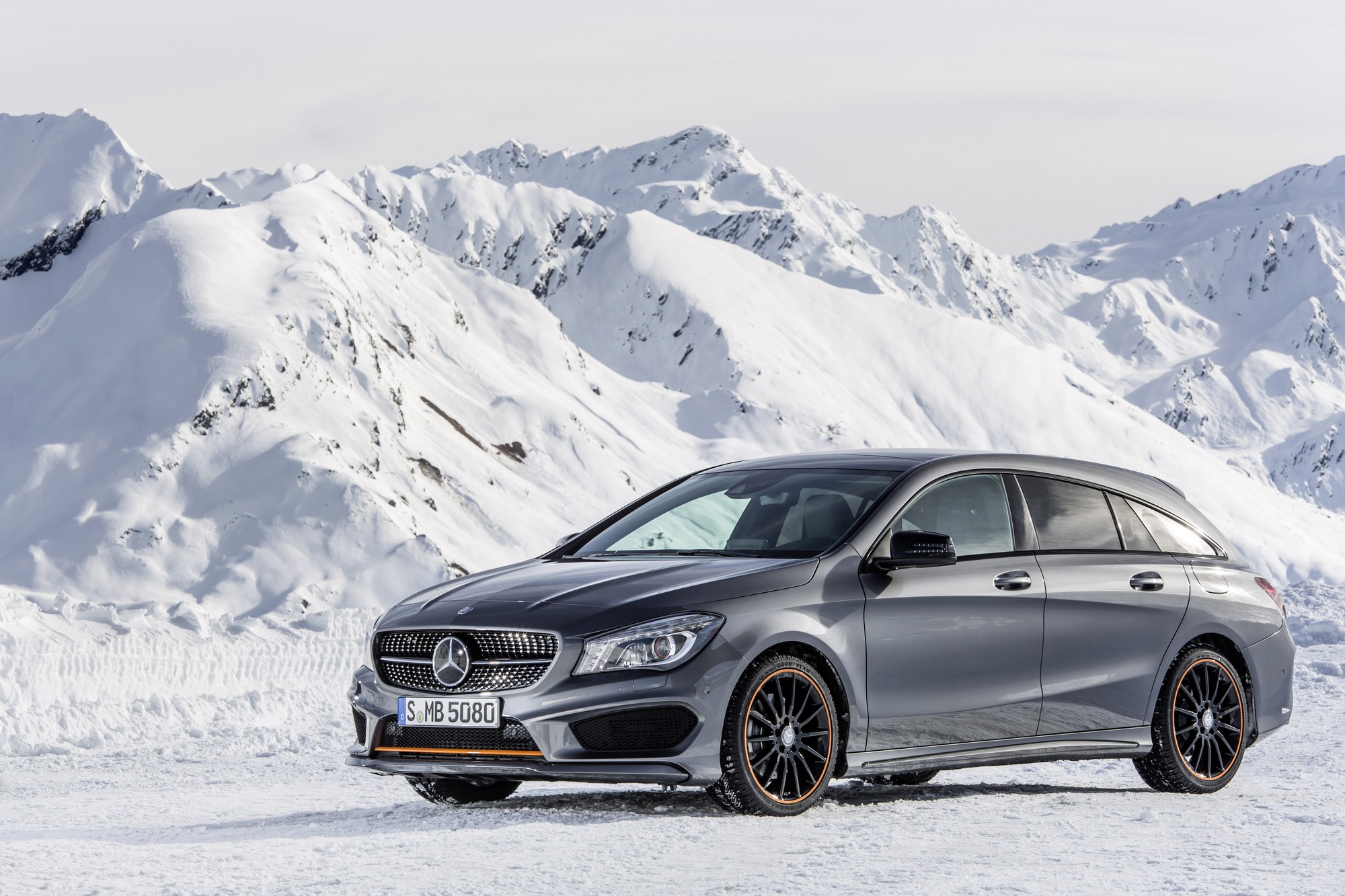

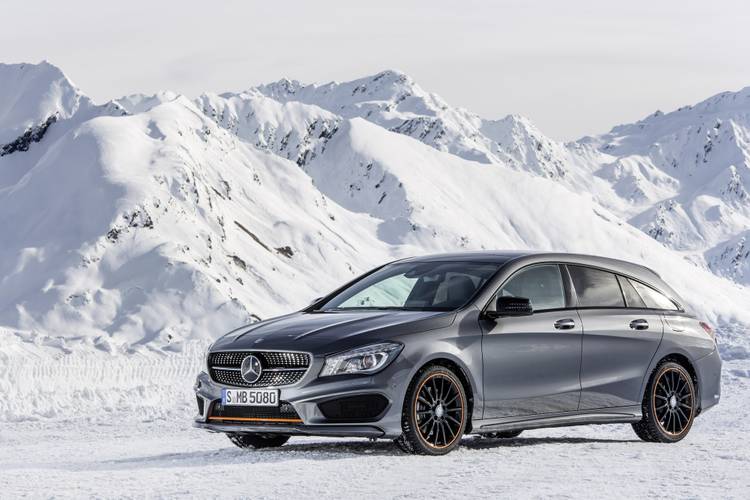

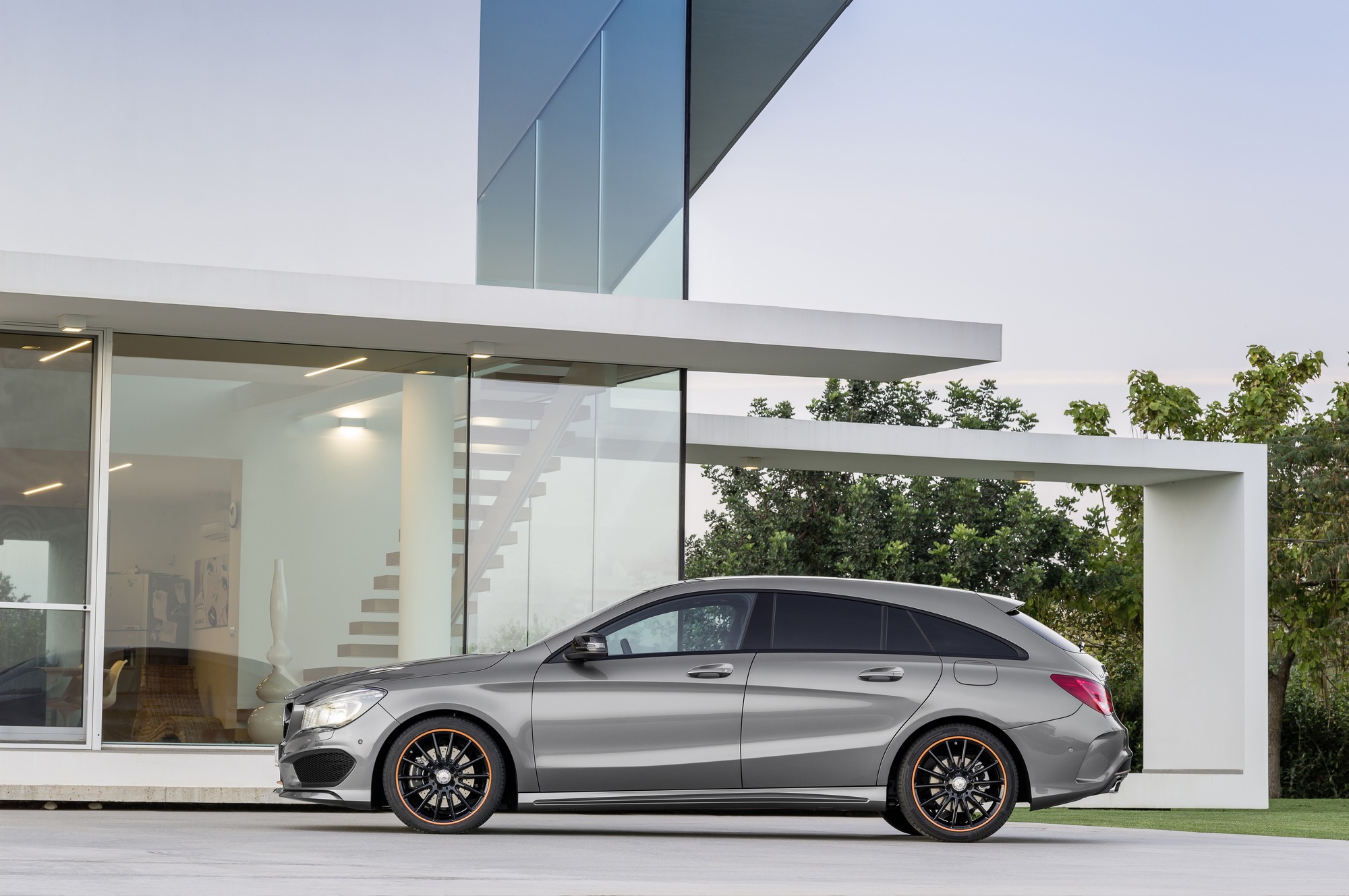

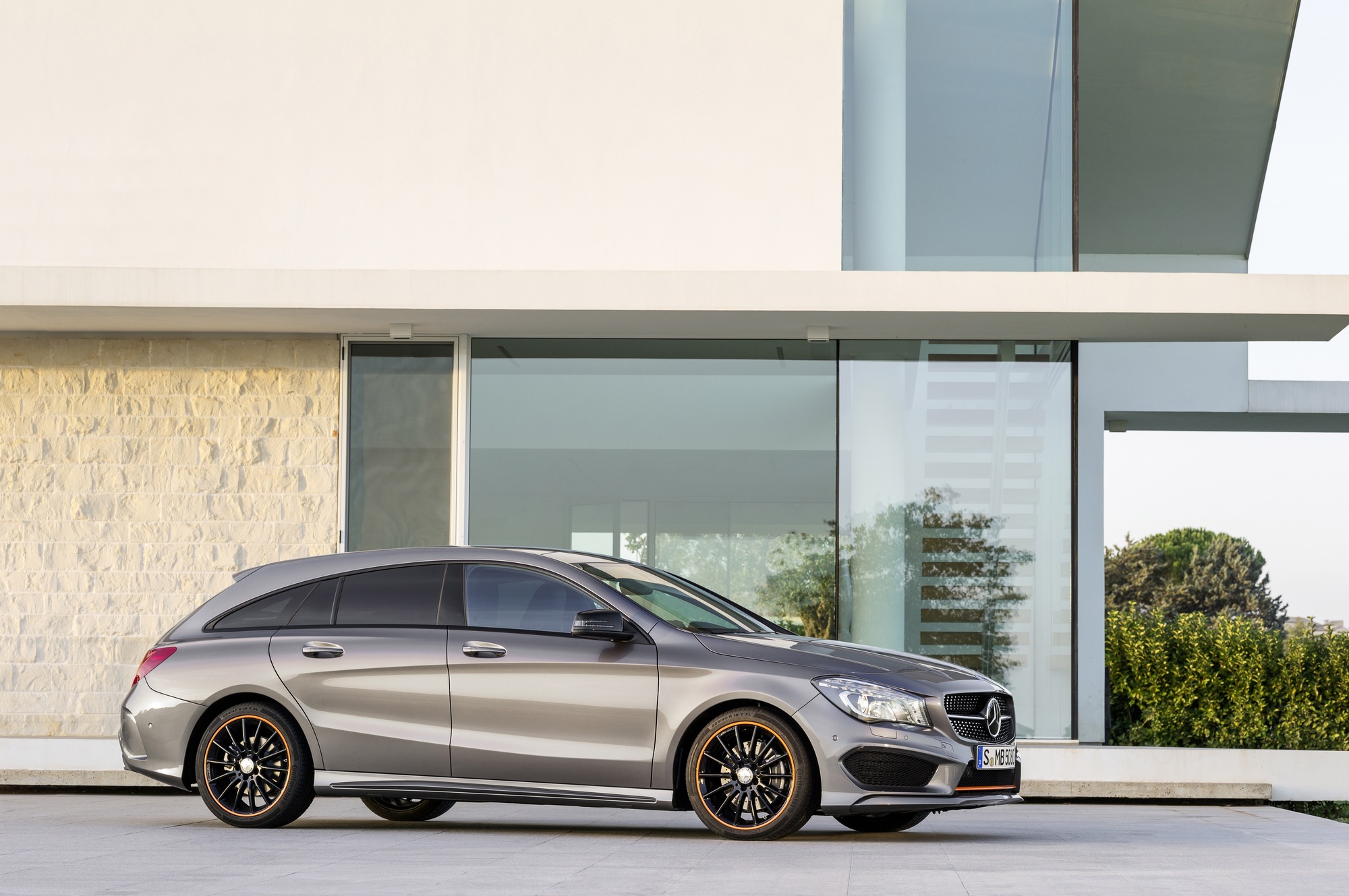

Estate (Shooting Brake)
Date of manufacture
1/2015 – 2016Internal designation

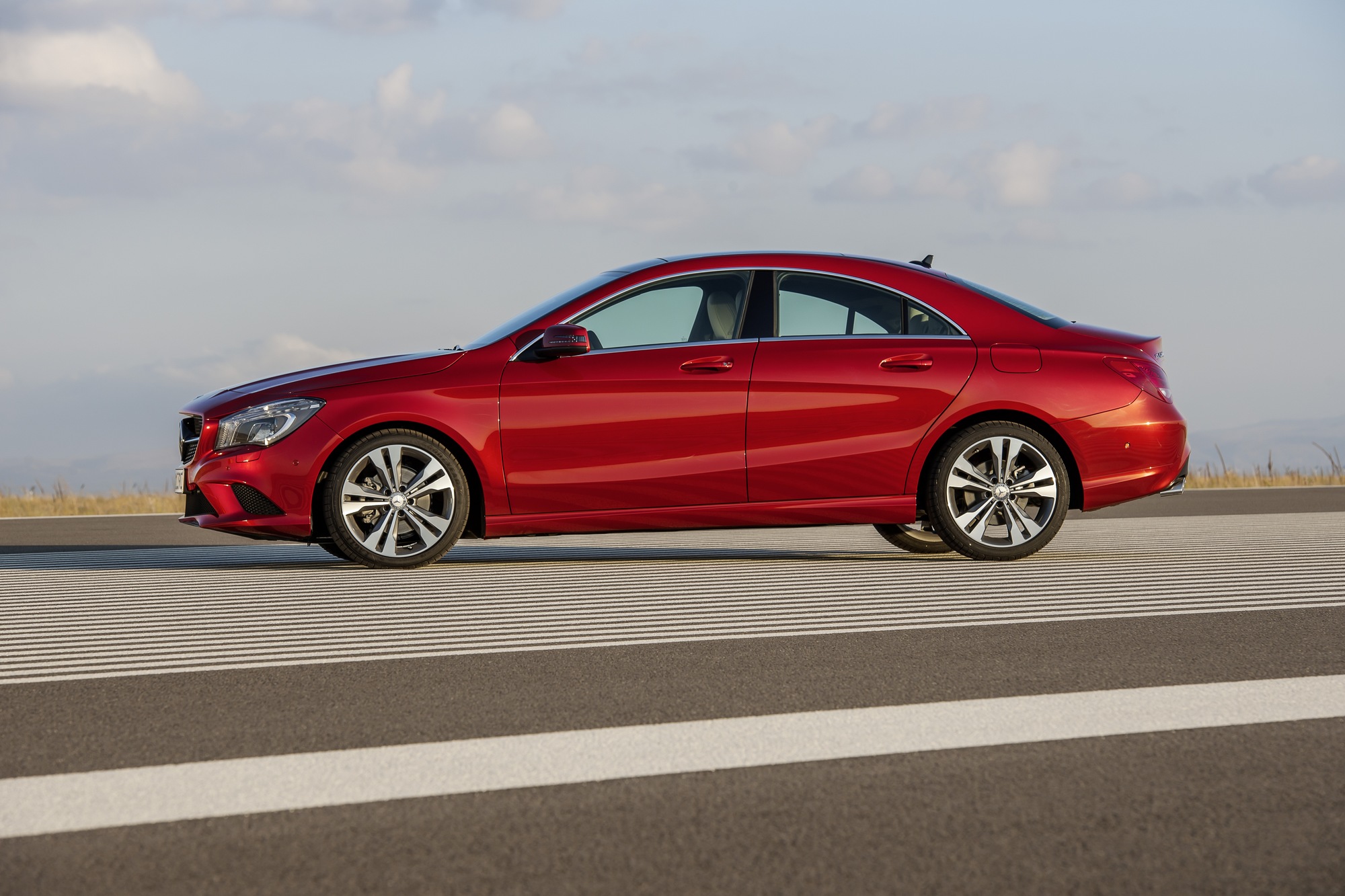

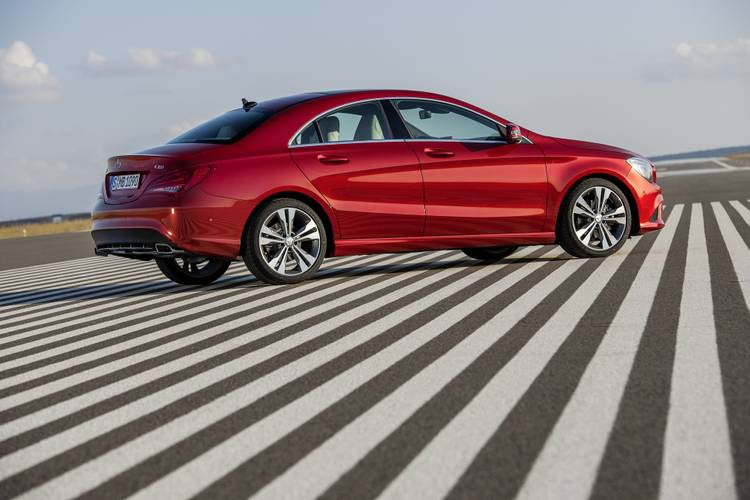

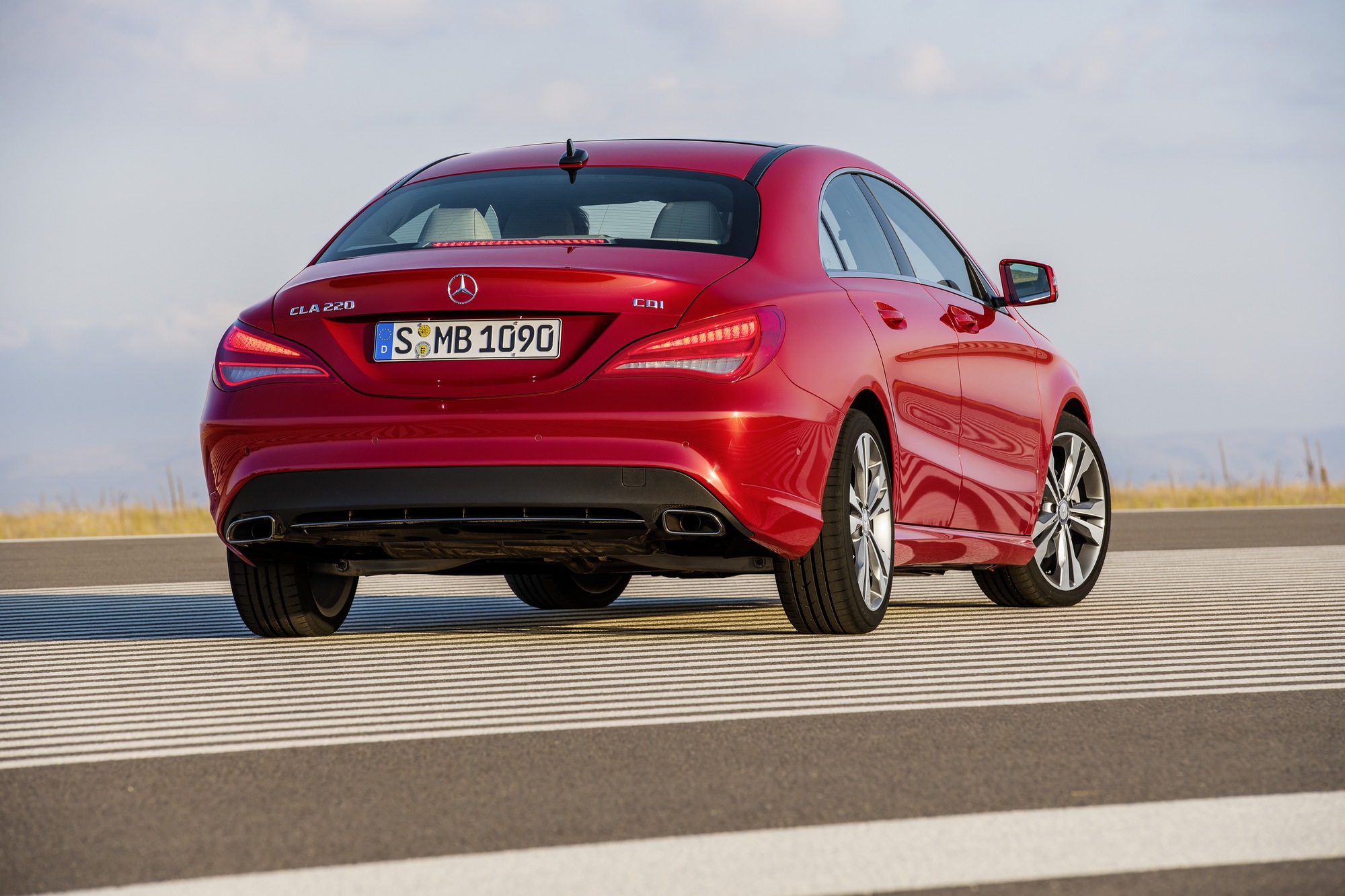

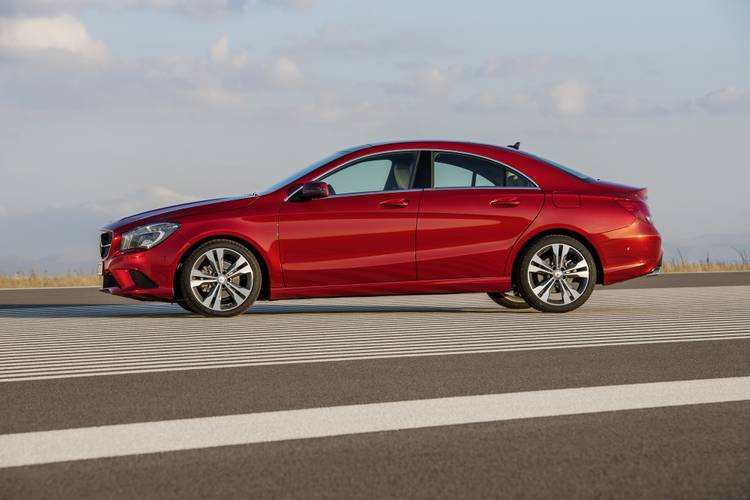

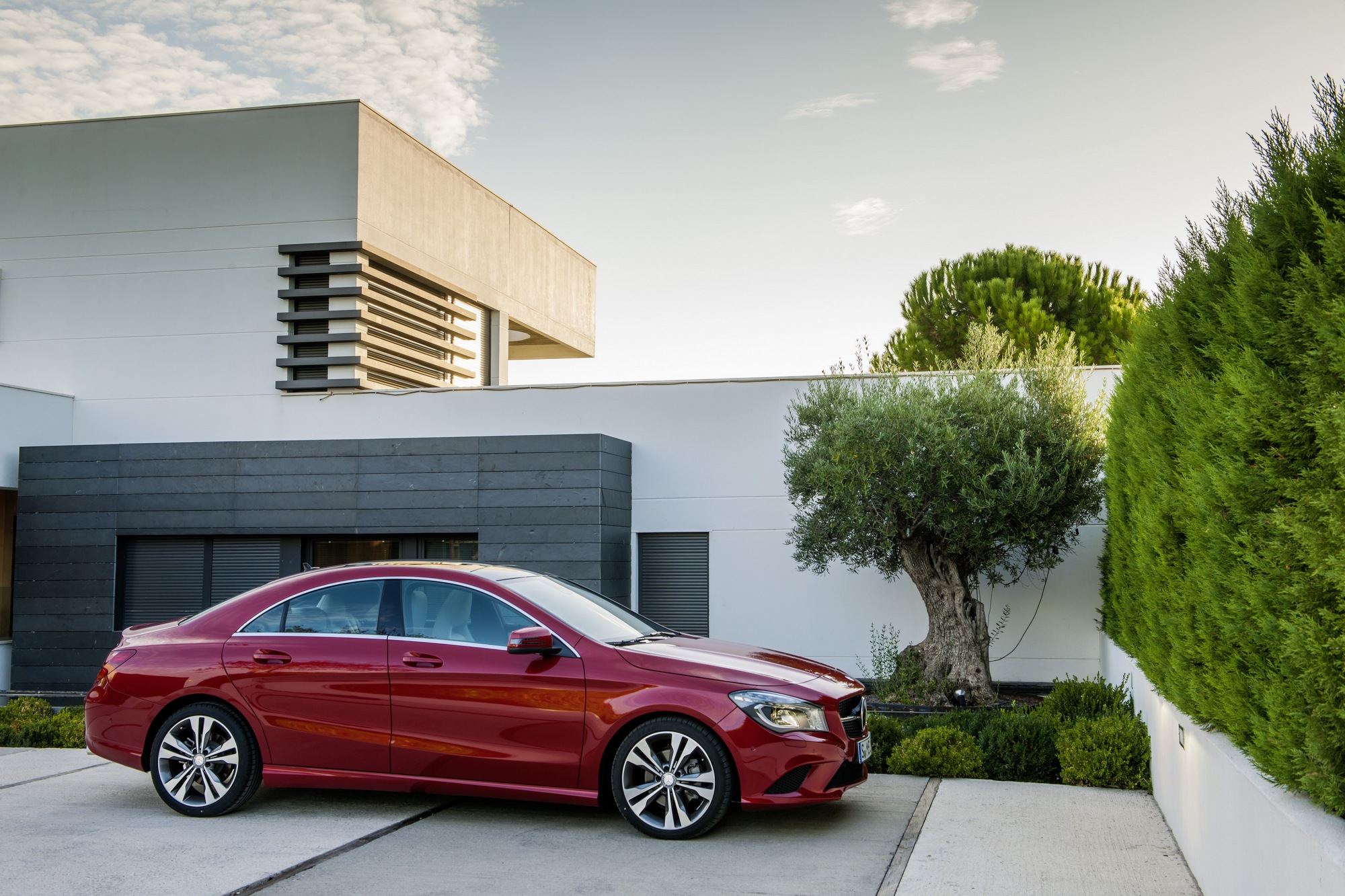

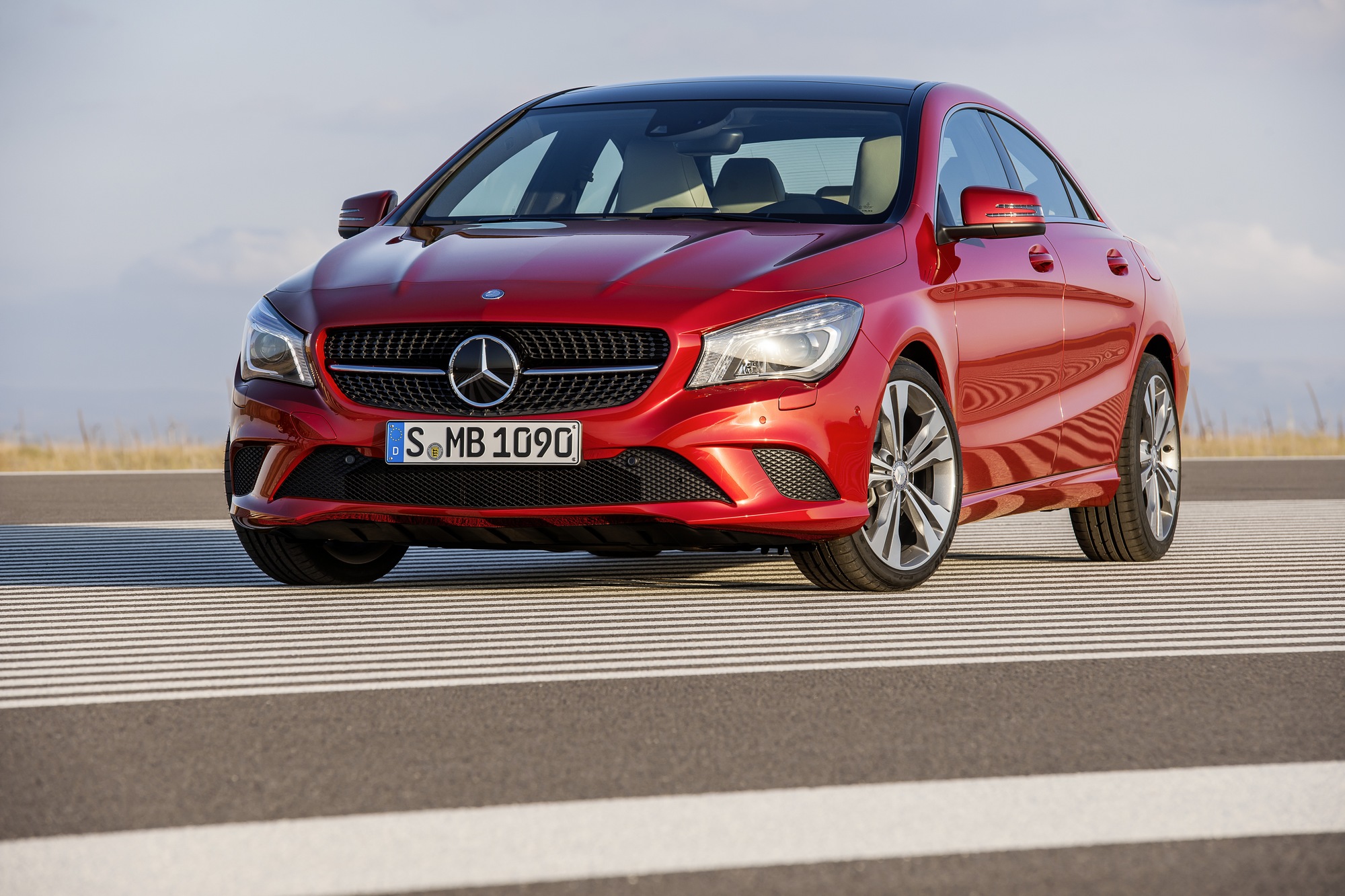

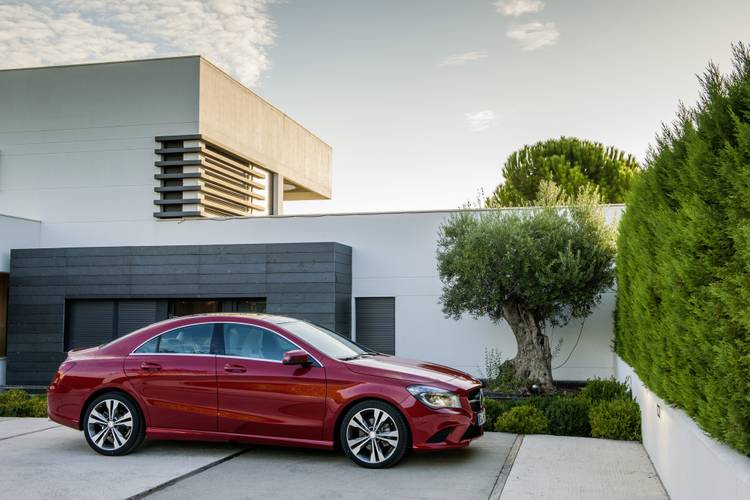

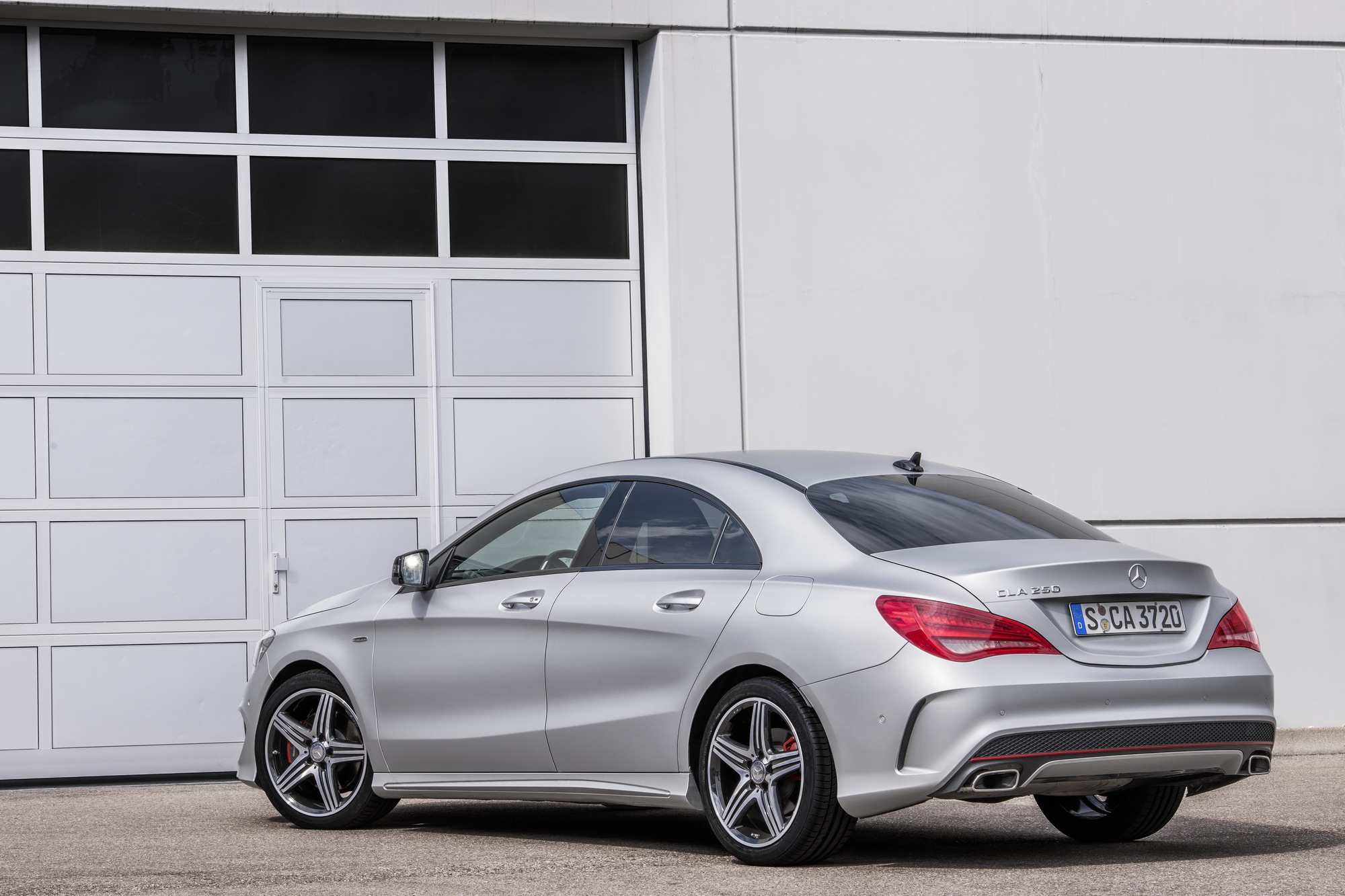

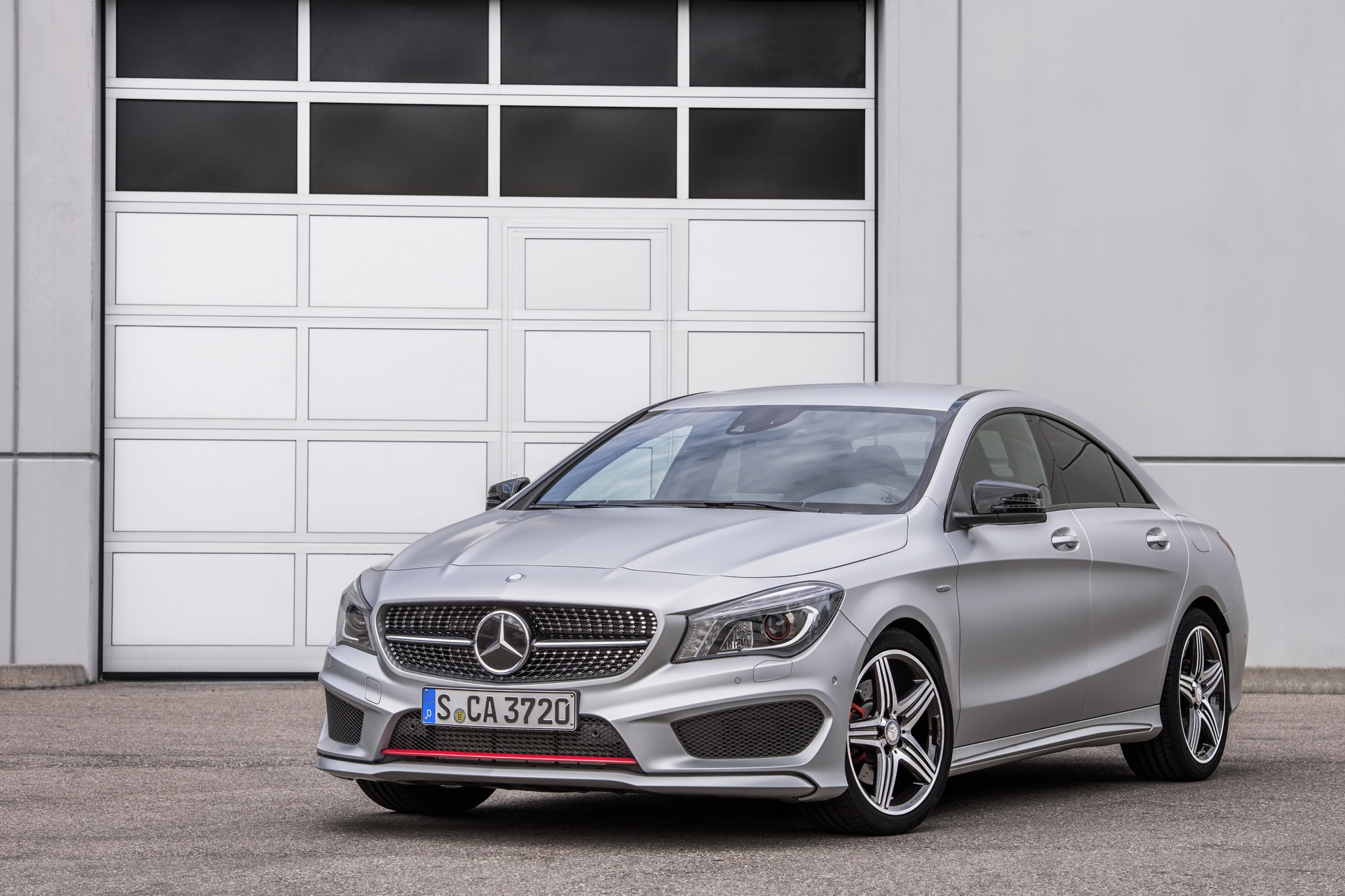

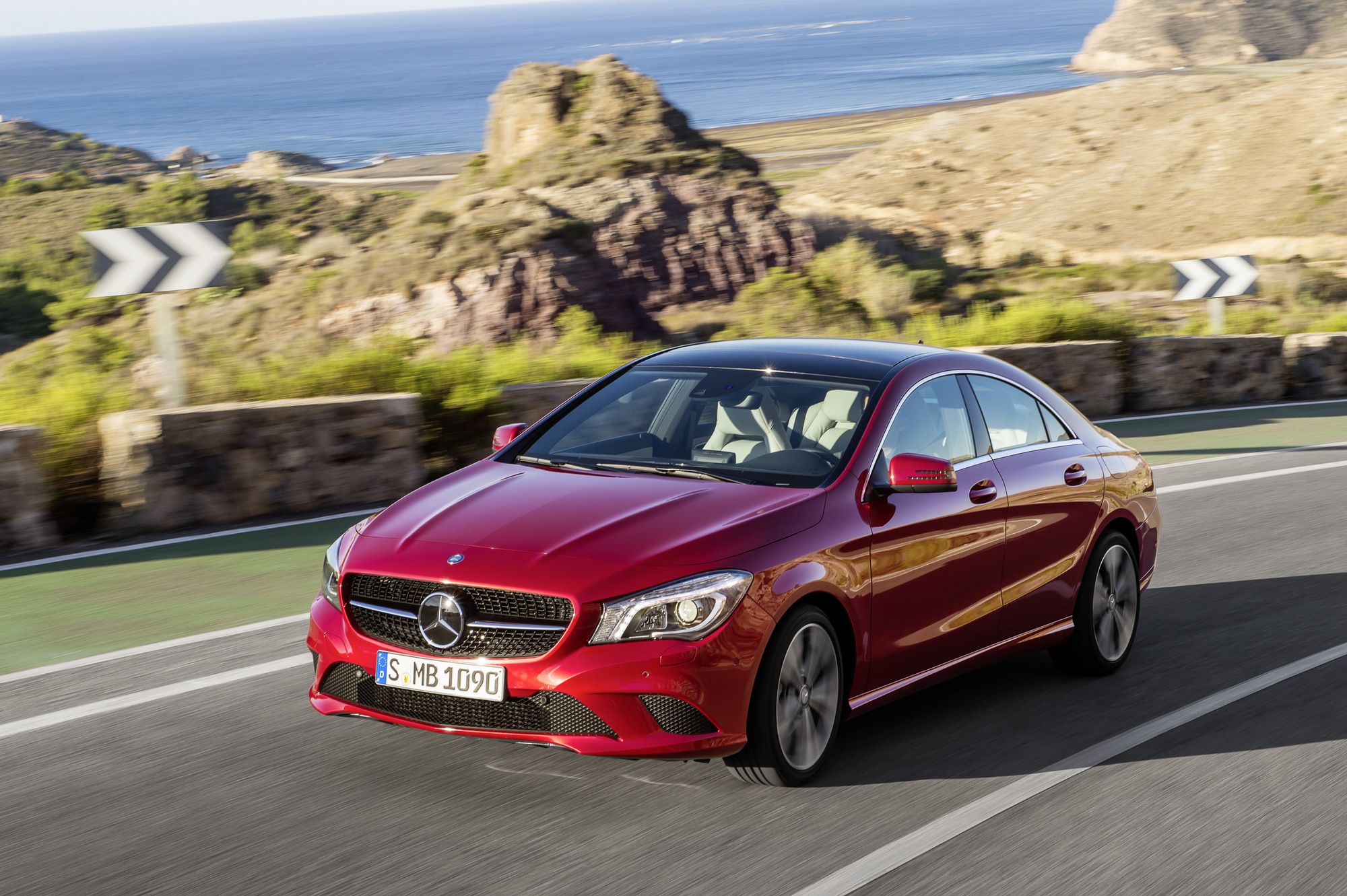

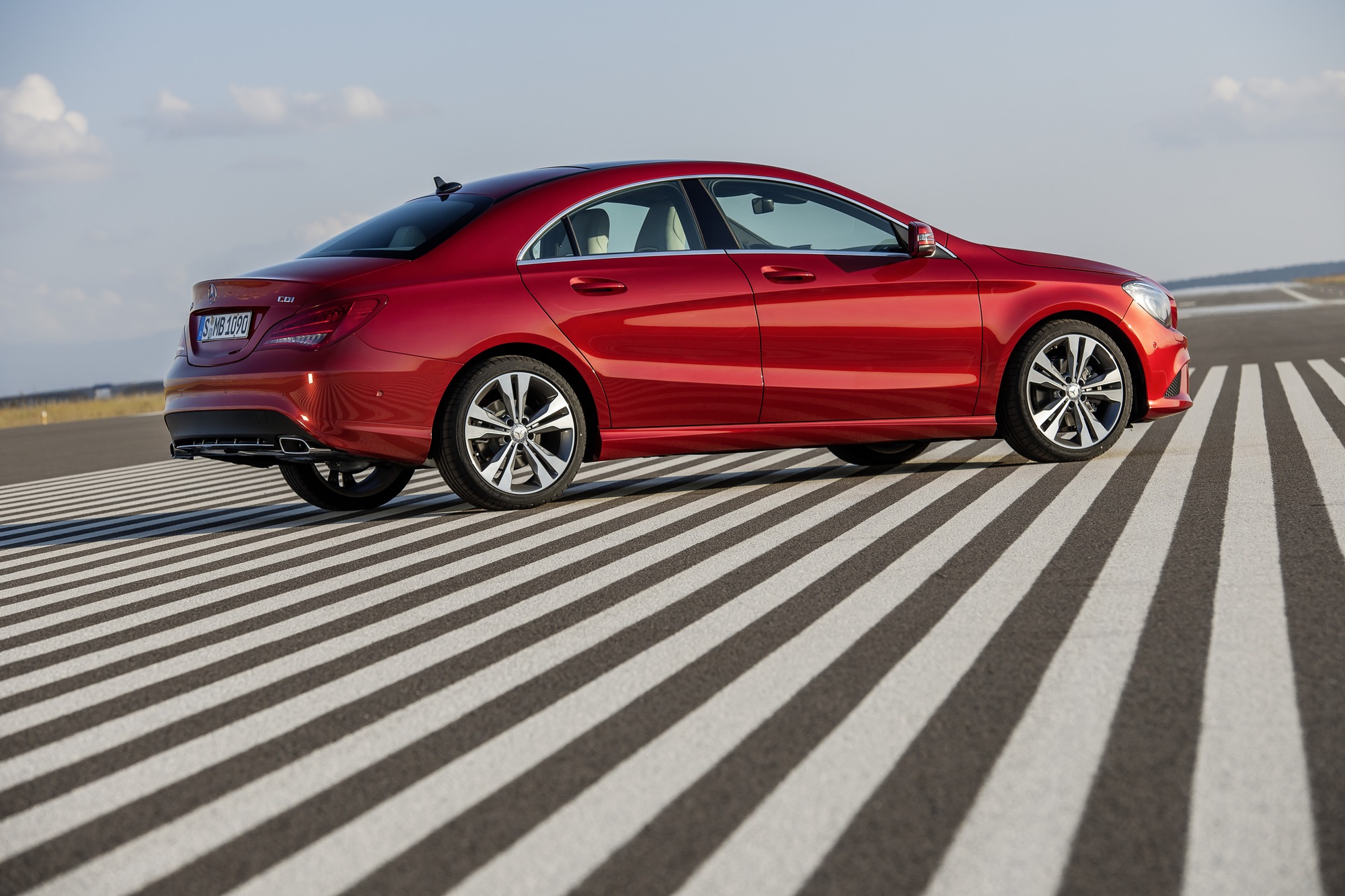

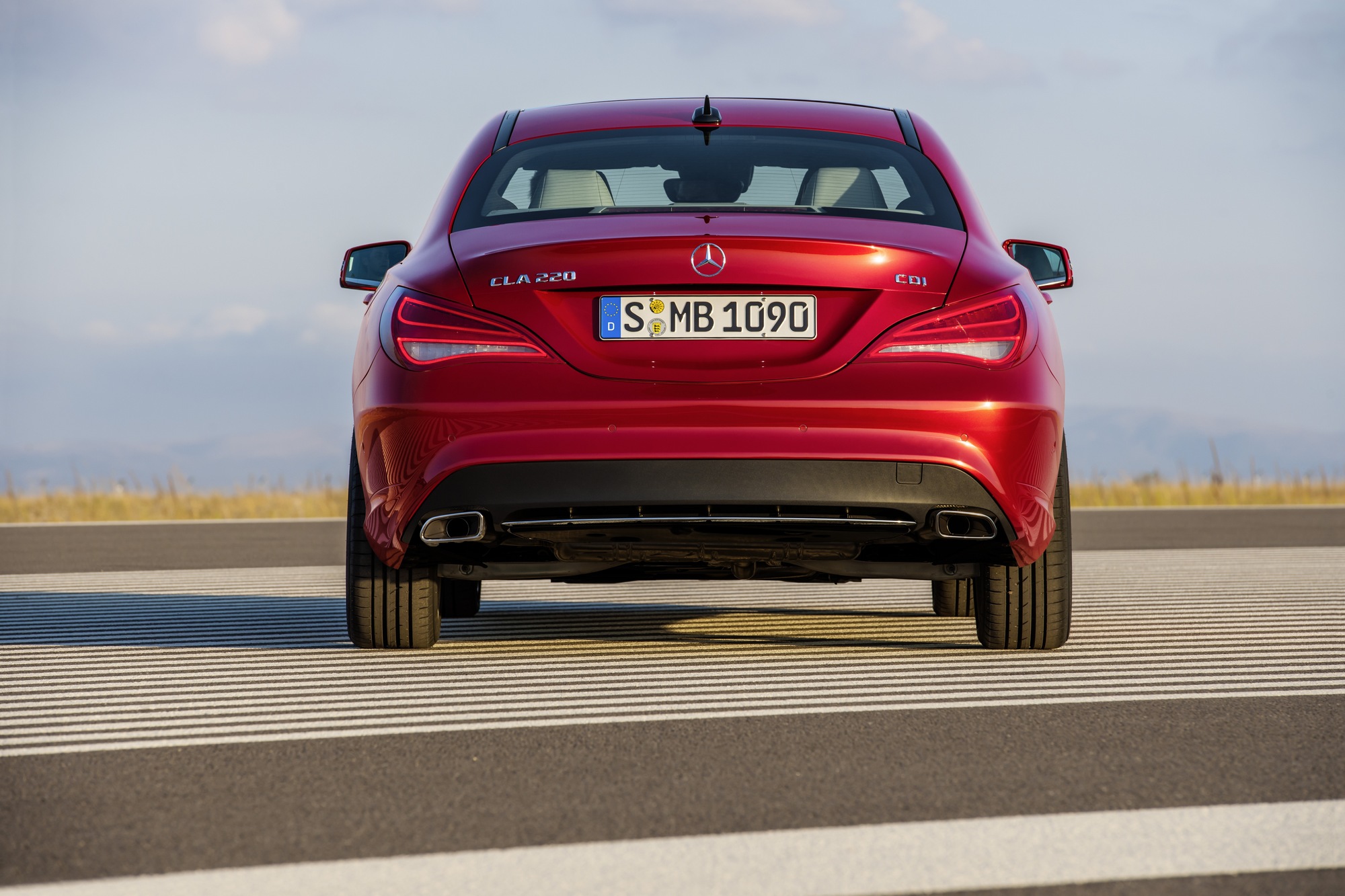

X117 Coupé
Date of manufacture
1/2013 – 2016Internal designation
C117
Technical data
Estate (Shooting Brake)
| CLA 180 | CLA 180 | CLA 200 | CLA 200 | CLA 250 | CLA 250 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 155/5500 | 155/5500 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 250/1250-4000 | 250/1250-4000 | 350/1200-4000 | 350/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 210 | 225 | 225 | 240 | 240 |
| Acceleration 0–100 km/h [s] | 9.1 | 8.8 | 8.5 | 8.2 | 6.8 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4-7.9 | 6.9-7.3 | 7.5-7.9 | 6.9-7.3 | 8.7-8.8 | 8.1 |
| Out of town [l] | 4.4-4.9 | 4.4-4.7 | 4.5-4.9 | 4.4-4.7 | 5.2-5.4 | 4.7-5.0 |
| Combined [l] | 5.5-6.0 | 5.3-5.6 | 5.6-6.0 | 5.3-5.6 | 6.6-6.7 | 6.0-6.2 |
| CO2 emissions [g/km] | 128-140 | 124-132 | 130-140 | 124-132 | 151-156 | 139-143 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1430 | 1460 | 1430 | 1460 | 1470 | 1500 |
| Overall weight [kg] | 1955 | 1955 | 1955 | 1955 | 1995 | 1995 |
| Maximum trailer weight unbraked/braked [kg] | 715/1200 | 730/1200 | 715/1400 | 730/1400 | 735/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |

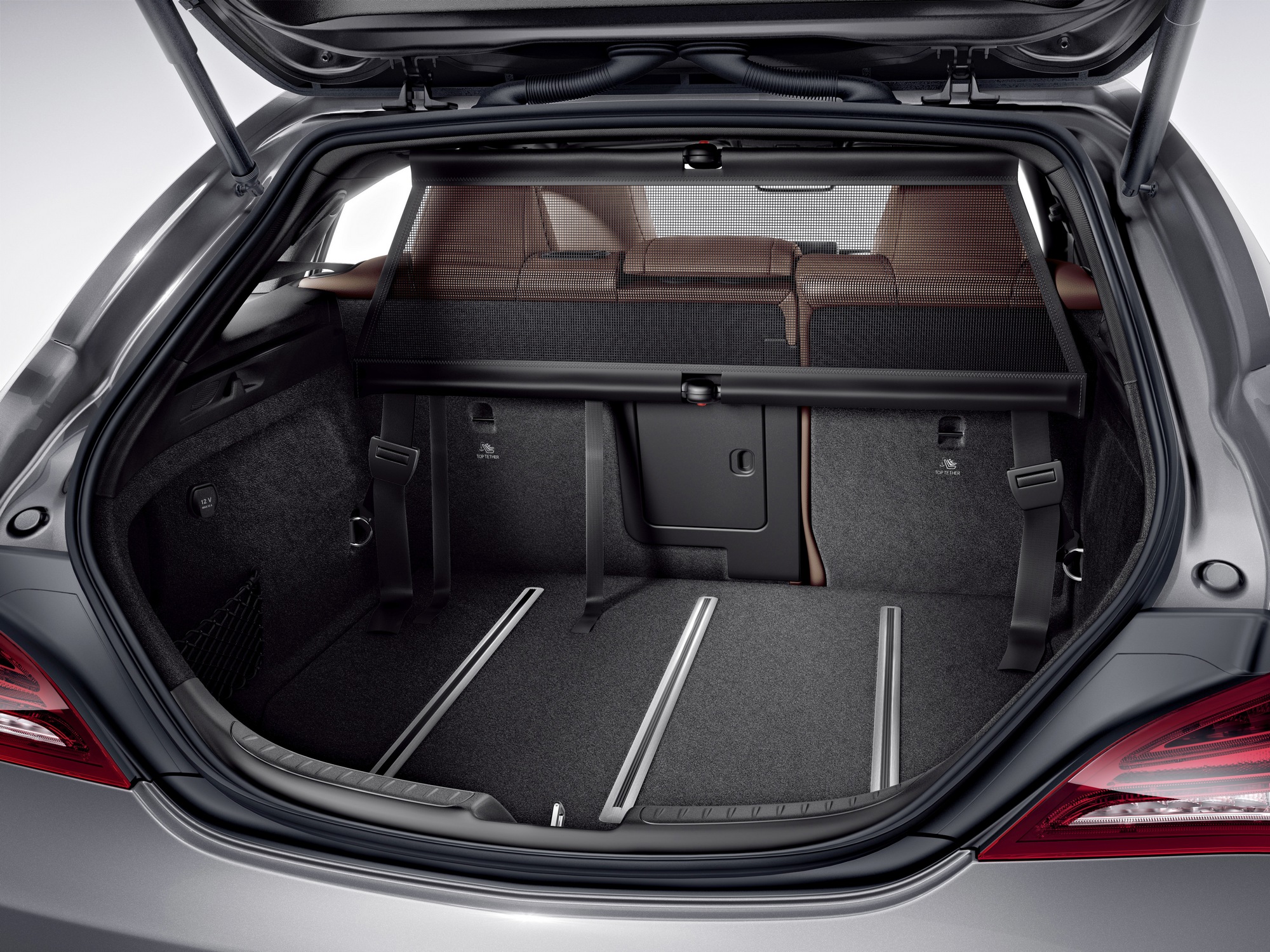

| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |

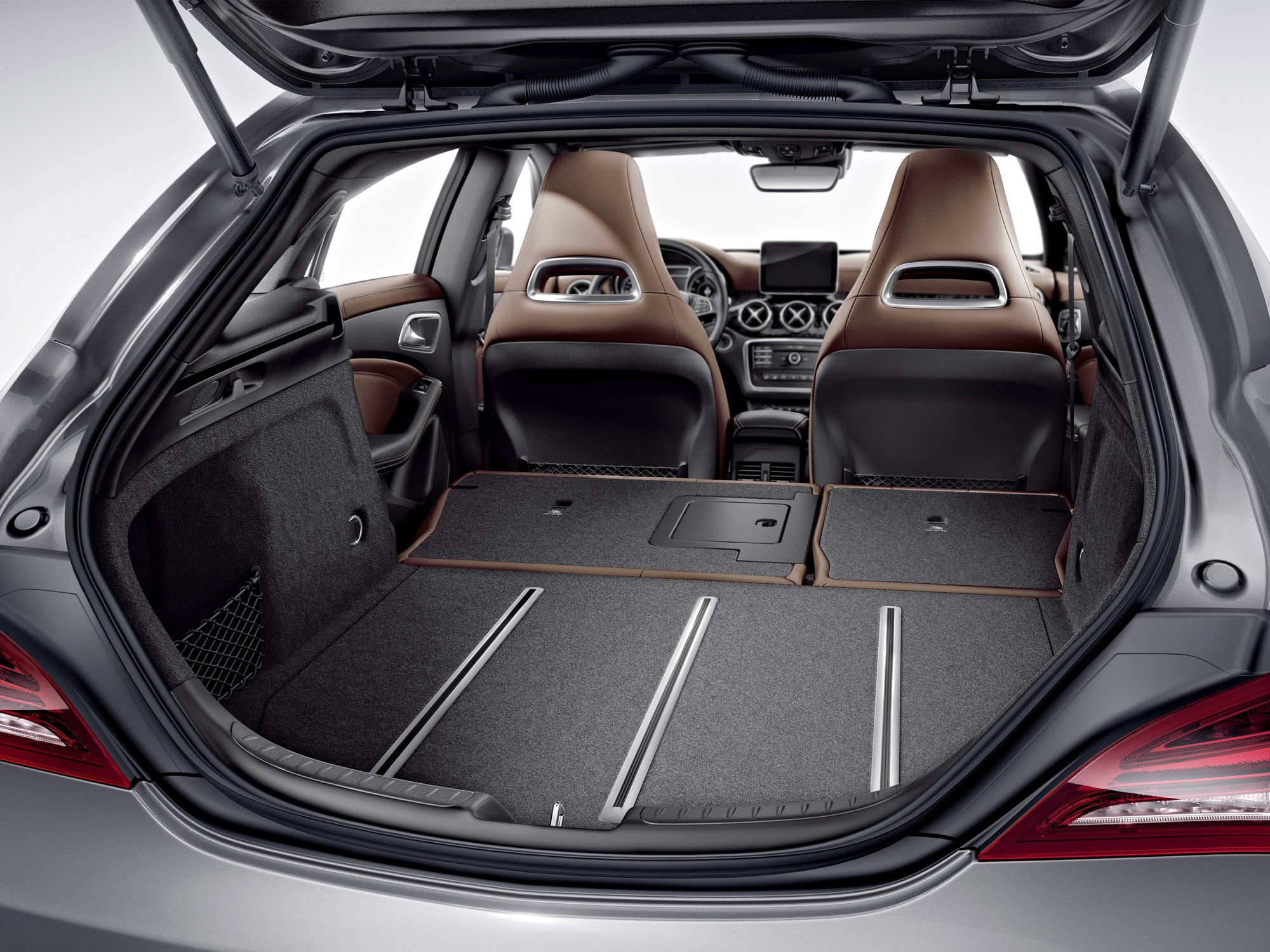

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |

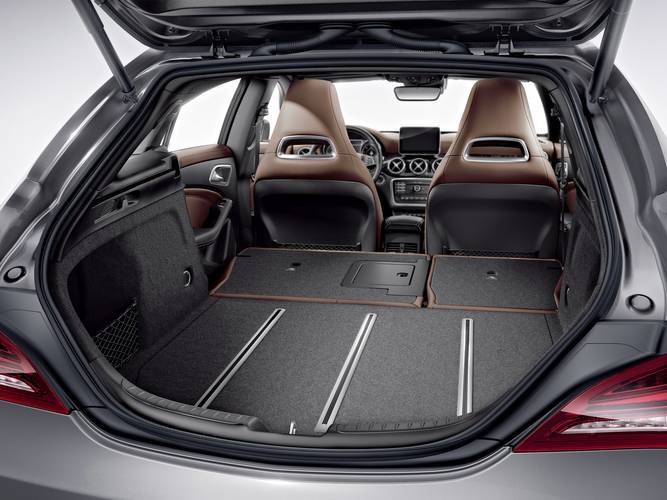

| Boot length with rear seats folded [mm] | 1760 | 1760 | 1760 | 1760 | 1760 | 1760 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/703 | -/703 | -/703 | -/703 | -/703 | -/703 |
| Loading edge height [mm] | 555 | 555 | 555 | 555 | 555 | 555 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 571 | 571 | 571 | 571 | 571 | 571 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.27 | 0.28 | 0.28 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 |
| Wheel size rear | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4630 | 4630 | 4630 | 4630 | 4630 | 4630 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1435 | 1435 | 1439 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1542 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1541 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

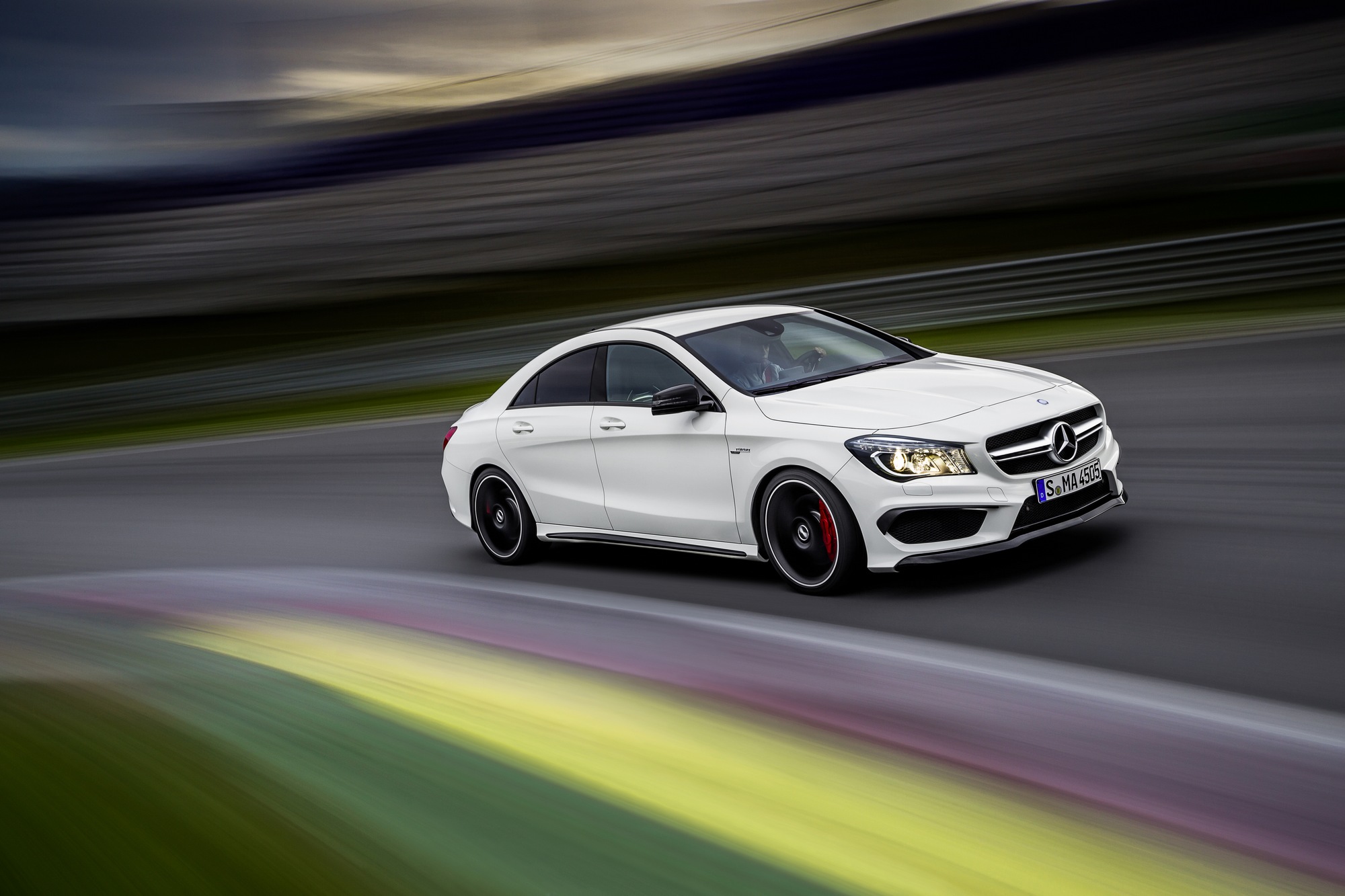

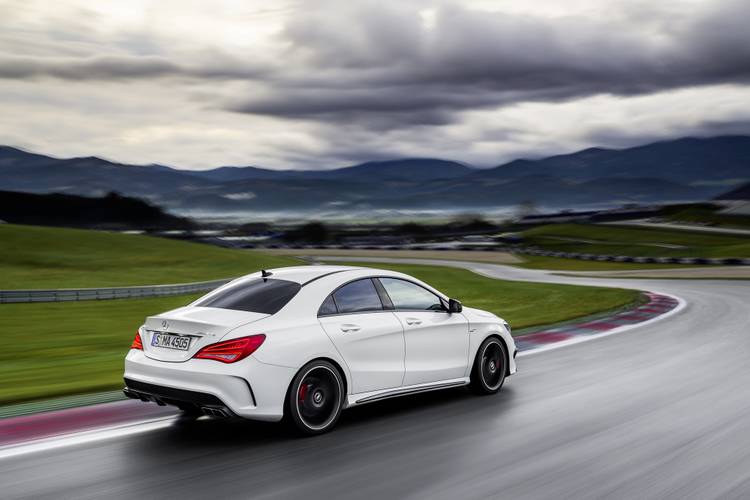

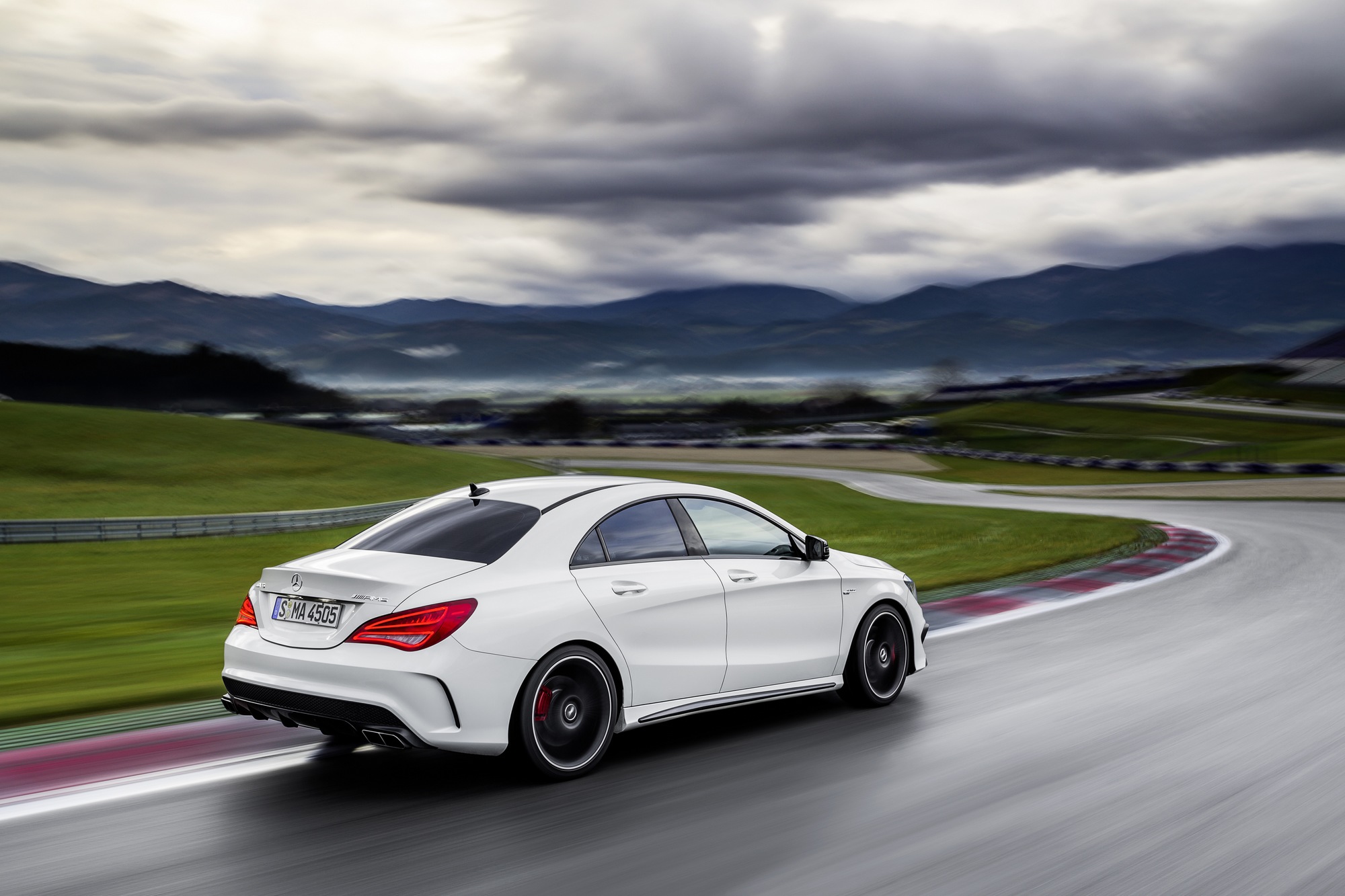

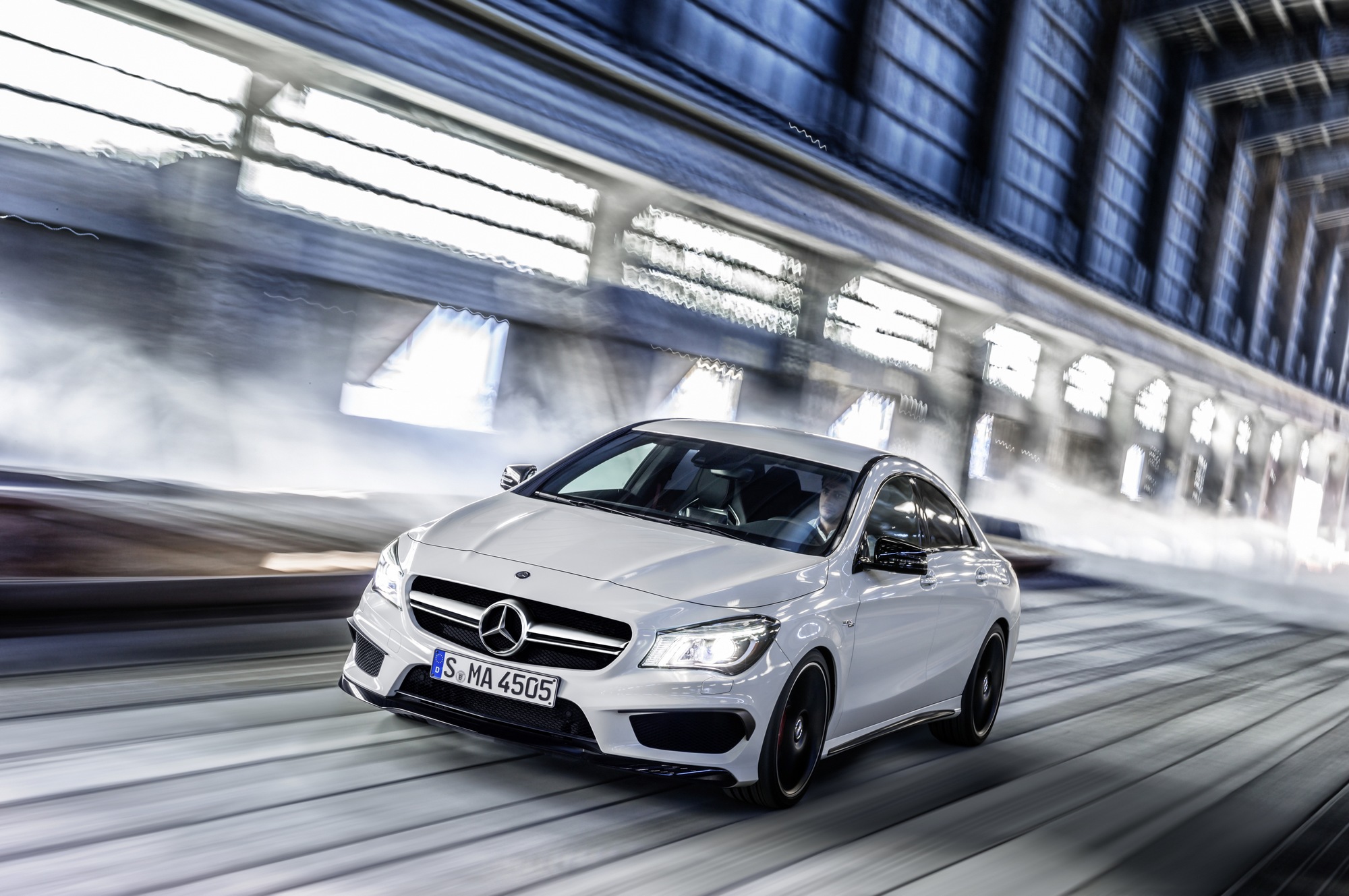

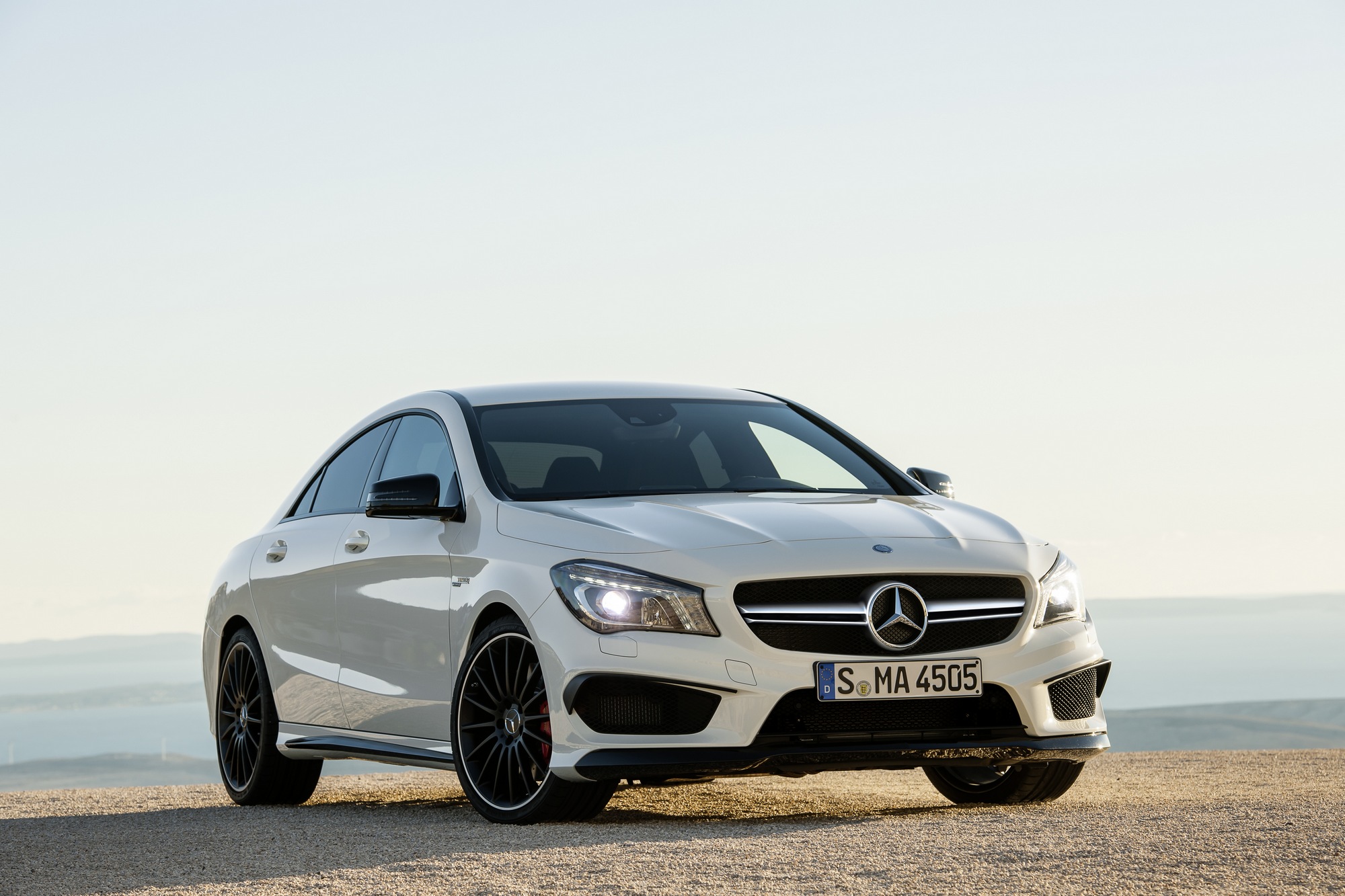

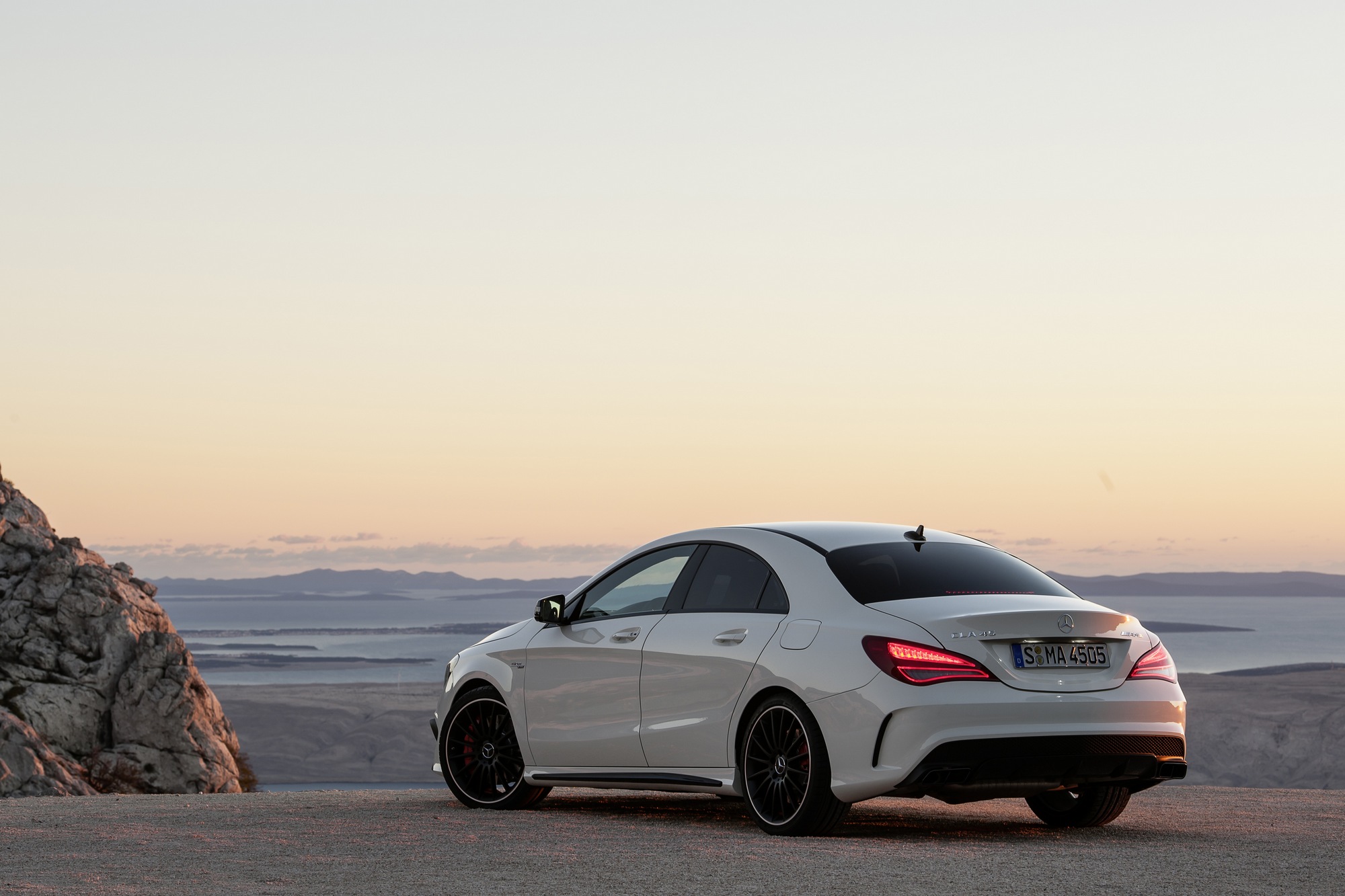

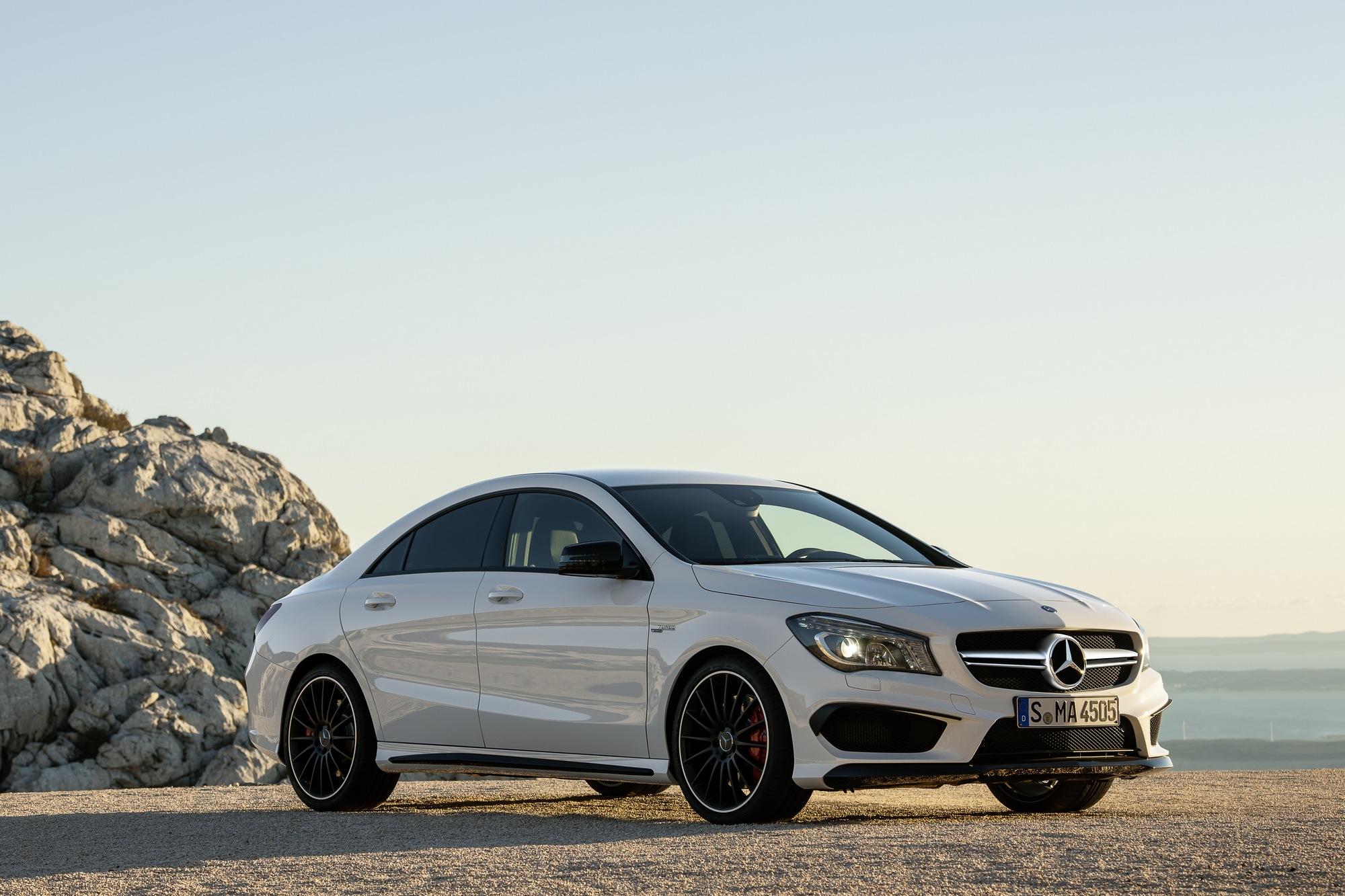

| CLA 250 4MATIC | CLA 45 AMG 4MATIC | CLA 45 AMG 4MATIC | CLA 180 CDI | CLA 180 CDI | CLA 200 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1461 | 1461 | 2143 |
| Maximum output / speed [kW/min-1] | 155/5500 | 265/6000 | 280/6000 | 80/4000 | 80/4000 | 100/3200-4400 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 450/2250-5000 | 475/2250-5000 | 260/1750-2500 | 260/1750-2500 | 300/1400-3000 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 | 83,0 x 99,0 |
| Compression ratio | 9,8:1 | 8,6:1 | 8,6:1 | 15,5:1 | 15,5:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 240 | 250 | 250 | 200 | 200 | 215 |
| Acceleration 0–100 km/h [s] | 6.7 | 4.7 | 4.3 | 11.9 | 11.9 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6-8.7 | - | 9.2-9.6 | 4.4-4.7 | 4.7-4.9 | 5.2-5.5 |
| Out of town [l] | 5.4-5.6 | - | 5.6-6.0 | 3.6-3.9 | 3.8-4.0 | 3.4-3.7 |
| Combined [l] | 6.6-6.8 | 7.1-6.9 | 6.9-7.3 | 3.9-4.2 | 4.1-4.3 | 4.1-4.4 |
| CO2 emissions [g/km] | 152-156 | 161-165 | 162-171 | 101-110 | 107-114 | 108-115 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1555 | 1615 | 1615 | 1465 | 1495 | 1530 |
| Overall weight [kg] | 2050 | 2120 | 2120 | 1990 | 1990 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | - | - | 730/1200 | 745/1200 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Boot length with rear seats folded [mm] | 1760 | 1760 | 1760 | 1760 | 1760 | 1760 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/703 | -/703 | -/703 | -/703 | -/703 | -/703 |
| Loading edge height [mm] | 555 | 555 | 555 | 555 | 555 | 555 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 571 | 571 | 571 | 571 | 571 | 571 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 56 | 56 | 56 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.34 | 0.34 | 0.26 | 0.27 | 0.27 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/45 R17 | 235/40 ZR18 | 235/40 ZR18 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 225/45 R17 | 235/40 ZR18 | 235/40 ZR18 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.5 J x 17 ET52.5 | 8.0J x 18 ET48 | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Wheel size rear | 7.5 J x 17 ET52.5 | 8.0J x 18 ET48 | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Brake dimensions front | - | 350 x 32 | 350 x 32 | - | - | - |
| Brake dimensions rear | - | 330 x 22 | 330 x 22 | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.04/- | 11.04/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4630 | 4691 | 4691 | 4630 | 4630 | 4630 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1439 | 1417 | 1417 | 1435 | 1435 | 1435 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1542 | 1557 | 1557 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1541 | 1561 | 1561 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 200 CDI | CLA 200 CDI 4MATIC | CLA 220 CDI | CLA 220 CDI 4MATIC | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | ||
| Maximum output / speed [kW/min-1] | 100/3200-4400 | 100/3200-4400 | 130/3600-3800 | 130/3600-3800 | ||
| Maximum torque [Nm/min-1] | 300/1400-3000 | 300/1400-3000 | 350/1400-3400 | 350/1400-3400 | ||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | Front | 4x4 | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 215 | 212 | 228 | 225 | ||
| Acceleration 0–100 km/h [s] | 9.2 | 9.2 | 7.8 | 7.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.7-4.9 | 5.7-6.2 | 4.8-5.0 | 5.7-6.1 | ||
| Out of town [l] | 3.4-3.8 | 4.0-4.4 | 3.6-3.9 | 4.0-4.4 | ||
| Combined [l] | 3.9-4.2 | 4.6-5.0 | 4.0-4.3 | 4.6-5.0 | ||
| CO2 emissions [g/km] | 101-111 | 121-131 | 105-112 | 121-131 | ||
| Emission standard | EU6 | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1555 | 1615 | 1555 | 1615 | ||
| Overall weight [kg] | 2050 | 2100 | 2050 | 2100 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 495 | 495 | 495 | 495 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | ||
| Boot length [mm] | 1003 | 1003 | 1003 | 1003 | ||
| Boot length with rear seats folded [mm] | 1760 | 1760 | 1760 | 1760 | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | -/703 | -/703 | -/703 | -/703 | ||
| Loading edge height [mm] | 555 | 555 | 555 | 555 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 571 | 571 | 571 | 571 | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 56 | 50 | 56 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.27 | 0.28 | 0.29 | 0.3 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | four-link | four-link | four-link | four-link | ||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | ||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | ||
| Wheel size front | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | ||
| Wheel size rear | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | ||
| Overall length [mm] | 4630 | 4630 | 4630 | 4630 | ||
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | ||
| Overall height [mm] | 1435 | 1439 | 1435 | 1439 | ||
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | ||
| Front wheel track [mm] | 1549 | 1549 | 1542 | 1542 | ||
| Rear wheel track [mm] | 1547 | 1547 | 1541 | 1541 | ||
| Forward overhang [mm] | 915 | 915 | 915 | 915 | ||
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | ||
| Headroom rear [mm] | 947 | 947 | 947 | 947 | ||
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | ||
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Coupé
| CLA 180 | CLA 180 BlueEFFICIENCY | CLA 180 | CLA 200 | CLA 200 | CLA 250 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1595 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 155/5500 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 200/1250-4000 | 250/1250-4000 | 250/1250-4000 | 350/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 210 | 190 | 210 | 230 | 230 | 240 |
| Acceleration 0–100 km/h [s] | 9.0 | 9.9 | 8.7 | 8.2 | 7.9 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4-7.7 | 6.8 | 6.8-7.1 | 7.5-7.7 | 6.8-7.1 | 8.6-8.8 |
| Out of town [l] | 4.2-4.6 | 4.0 | 4.2-4.6 | 4.3-4.6 | 4.2-4.6 | 5.0-5.3 |
| Combined [l] | 5.4-5.7 | 5.0 | 5.1-5.5 | 5.5-5.7 | 5.1-5.5 | 6.4-6.6 |
| CO2 emissions [g/km] | 125-133 | 118 | 119-126 | 126-133 | 119-126 | 148-153 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1390 | 1430 | 1395 | 1430 | 1450 |
| Overall weight [kg] | 1920 | 1850 | 1920 | 1920 | 1920 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 695/1200 | 715/1200 | 695/1400 | 715/1400 | 725/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 40 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.23 | 0.22 | 0.24 | 0.26 | 0.26 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Wheel size front | 6.5 J x 16 ET49 | - | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 |
| Wheel size rear | 6.5 J x 16 ET49 | - | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4630 | 4630 | 4630 | 4630 | 4630 | 4630 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1432 | 1432 | 1432 | 1432 | 1432 | 1432 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1542 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1541 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 250 | CLA 250 4MATIC | CLA 45 AMG 4MATIC | CLA 45 AMG 4MATIC | CLA 180 CDI | CLA 180 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 155/5500 | 155/5500 | 265/6000 | 280/6000 | 80/4000 | 80/4000 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 350/1200-4000 | 450/2250-5000 | 475/2250-5000 | 260/1750-2500 | 260/1750-2500 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 8,6:1 | 8,6:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 240 | 240 | 250 | 250 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 6.5 | 6.6 | 4.6 | 4.2 | 11.6 | 11.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8-7.9 | 8.3-8.5 | 8.8-9.1 | 9.2-9.6 | 4.3-4.7 | 4.4-4.7 |
| Out of town [l] | 4.6-4.8 | 5.3-5.6 | 5.8-5.9 | 5.6-6.0 | 3.3-3.7 | 3.5-3.9 |
| Combined [l] | 5.7-5.9 | 6.4-6.6 | 6.9-7.1 | 6.9-7.3 | 3.7-4.0 | 3.8-4.2 |
| CO2 emissions [g/km] | 134-138 | 150-154 | 161-165 | 162-171 | 98-108 | 100-109 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU5/EU6 | EU5/EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1480 | 1540 | 1585 | 1585 | 1450 | 1475 |
| Overall weight [kg] | 1965 | 2025 | 2075 | 2075 | 1955 | 1955 |
| Maximum trailer weight unbraked/braked [kg] | 740/1500 | 750/1500 | - | - | 725/1200 | 735/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 56 | 56 | 56 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.29 | 0.32 | 0.32 | 0.25 | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 235/40 ZR18 | 235/40 ZR18 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 235/40 ZR18 | 235/40 ZR18 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 8.0J x 18 ET48 | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Wheel size rear | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 8.0J x 18 ET48 | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Brake dimensions front | - | - | 350 x 32 | 350 x 32 | - | - |
| Brake dimensions rear | - | - | 330 x 22 | 330 x 22 | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.04/- | 11.04/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4630 | 4630 | 4691 | 4691 | 4630 | 4630 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1432 | 1432 | 1416 | 1416 | 1432 | 1432 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1542 | 1542 | 1557 | 1557 | 1549 | 1549 |
| Rear wheel track [mm] | 1541 | 1541 | 1561 | 1561 | 1547 | 1547 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 200 CDI | CLA 200 CDI | CLA 200 CDI | CLA 200 CDI | CLA 200 CDI 4MATIC | CLA 220 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1796 | 1796 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 100/3600-4400 | 100/3600-4400 | 100/3200-4400 | 100/3200-4400 | 100/3200-4400 | 125/3400-4000 |
| Maximum torque [Nm/min-1] | 300/1600-3000 | 300/1600-3000 | 300/1400-3000 | 300/1400-3000 | 300/1400-3000 | 350/1400-3400 |
| Bore and stroke [mm x mm] | 83,0 x 83,0 | 83,0 x 83,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 220 | 220 | 220 | 220 | 216 | 228 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.3 | 9.5 | 9.0 | 9.0 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3-5.5 | 5.0-5.2 | 5.2-5.5 | 4.7-5.1 | 5.5-5.8 | 5.5-5.7 |
| Out of town [l] | 3.5-3.8 | 3.7-4.2 | 3.3-3.7 | 3.4-3.7 | 4.0-4.3 | 4.0-4.2 |
| Combined [l] | 4.2-4.4 | 4.2-4.5 | 4.0-4.4 | 3.8-4.2 | 4.6-4.9 | 4.6-4.8 |
| CO2 emissions [g/km] | 106-117 | 109-118 | 104-114 | 100-110 | 119-127 | 119-125 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1480 | 1505 | 1500 | 1525 | 1580 | 1580 |
| Overall weight [kg] | 1985 | 1985 | 2005 | 2005 | 2060 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 740/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 56 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.25 | 0.25 | 0.25 | 0.25 | 0.26 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Wheel size front | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 |
| Wheel size rear | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4630 | 4630 | 4630 | 4630 | 4630 | 4630 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1432 | 1432 | 1432 | 1432 | 1432 | 1432 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1542 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1541 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 220 CDI | CLA 220 CDI 4MATIC | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2143 | 2143 | ||||
| Maximum output / speed [kW/min-1] | 130/3600-3800 | 130/3600-3800 | ||||
| Maximum torque [Nm/min-1] | 350/1400-3400 | 350/1400-3400 | ||||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | ||||
| Compression ratio | 16,2:1 | 16,2:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 232 | 230 | ||||
| Acceleration 0–100 km/h [s] | 7.7 | 7.7 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.9-5.2 | 5.5-5.8 | ||||
| Out of town [l] | 3.5-3.7 | 4.0-4.3 | ||||
| Combined [l] | 4.0-4.2 | 4.6-4.9 | ||||
| CO2 emissions [g/km] | 104-111 | 119-127 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1525 | 1580 | ||||
| Overall weight [kg] | 2005 | 2060 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 470 | 470 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 56 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.27 | 0.28 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | four-link | four-link | ||||
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | ||||
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | ||||
| Wheel size front | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | ||||
| Wheel size rear | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | ||||
| Overall length [mm] | 4630 | 4630 | ||||
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | ||||
| Overall height [mm] | 1432 | 1432 | ||||
| Wheelbase [mm] | 2699 | 2699 | ||||
| Front wheel track [mm] | 1542 | 1542 | ||||
| Rear wheel track [mm] | 1541 | 1541 | ||||
| Forward overhang [mm] | 915 | 915 | ||||
| Rear overhang [mm] | 1016 | 1016 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1006 | 1006 | ||||
| Headroom rear [mm] | 905 | 905 | ||||
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | ||||
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
