	CL 500 BlueEFFICIENCY	CL 500 BlueEFFICIENCY	CL 600	CL 63 AMG	CL 63 AMG Performance	CL 65 AMG
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	8/32	8/32	12/36	8/32	8/32	12/36
Engine displacement [cm³]	4663	4663	5513	5461	5461	5980
Maximum output / speed [kW/min-1]	320/5250	320/5250	380/5000	400	420/5500	463/4800
Maximum torque [Nm/min-1]	700/1800-3500	700/1800-3500	830/1800-3500	800	900/2250-3750	1000/2300-4300
Bore and stroke [mm x mm]	92,9 x 86,0	92,9 x 86,0	82,0 x 87,0	98,0 x 90,5	98,0 x 90,5	82,6 x 93,0
Compression ratio	10,5:1	10,5:1	9,0:1	10,0:1	10,0:1	9,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection supercharging by twin turbochargers variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection supercharging by twin turbochargers variable timing of intake and exhaust valves start&stop system brake energy recuperation	supercharging by twin turbochargers	direct injection supercharging by twin turbochargers variable timing of intake and exhaust valves	direct injection supercharging by twin turbochargers variable timing of intake and exhaust valves	supercharging by twin turbochargers

Drive axle	Rear	4x4	Rear	Rear	Rear	Rear
Gearbox	7 gear automatic	7 gear automatic	5 gear automatic	7 gear automatic	7 gear automatic	5 gear automatic
Drive specifications	automatic gearbox 7G‐TRONIC PLUS	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS	automatic gearbox	multi-clutch automatic gearbox AMG SPEEDSHIFT MCT	multi-clutch automatic gearbox AMG SPEEDSHIFT MCT	automatic gearbox AMG SPEEDSHIFT

Top speed [km/h]	250	250	250	250	300	250
Acceleration 0–100 km/h [s]	4.9	4.9	4.6	4.5	4.4	4.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	13.5-13.9	13.9-14.0	21.1-21.2	14.4	14.4	21.8
Out of town [l]	7.2-7.6	7.6-7.9	9.6-9.9	8.2	8.2	9.9
Combined [l]	9.5-9.9	9.9-10.1	13.8-14.0	10.5	10.5	14.3
CO2 emissions [g/km]	224-232	237-242	322-328	244	244	334

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	2070	2120	2185	2135	2135	2245
Overall weight [kg]	2585	2555	2620	2585	2585	2645
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	490	490	490	490	490	490
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	83	83	90	90	90	90
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.26	0.27	0.27	0.27	0.27	0.28
Front suspension	four-link	four-link	four-link	four-link	four-link	four-link
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	255/45 R18	255/45 R18	255/45 R18	255/40 ZR19	255/40 ZR19	255/35 ZR20
Tyre dimensions rear	255/45 R18	255/45 R18	275/45 R18	275/40 ZR19	275/40 ZR19	275/35 ZR20
Wheel size front	8.5J x 18 ET43	8.5J x 18 ET43	8.5 J x 18 ET 43	8.5 J x 19 ET 43	8.5 J x 19 ET 43	8.5J x 20 ET43
Wheel size rear	8.5J x 18 ET43	8.5J x 18 ET43	9.5 J x 18 ET 43	9.5 J x 19 ET 43	9.5 J x 19 ET 43	9.5J x 20 ET43
Brake dimensions front	350 x 32	350 x 32	360 x 36	-	-	-
Brake dimensions rear	320 x 24	320 x 24	330 x 26	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.63/-	11.63/-	11.63/-	11.60/-	11.60/-	11.60/-

Overall length [mm]	5095	5095	5095	5106	5106	5106
Overall width without/including mirrors [mm]	1871/2130	1871/2130	1871/2130	1871/2130	1871/2130	1871/2130
Overall height [mm]	1419	1419	1419	1426	1426	1428
Wheelbase [mm]	2955	2955	2955	2955	2955	2955
Front wheel track [mm]	1601	1601	1601	1601	1601	1601
Rear wheel track [mm]	1607	1607	1607	1607	1607	1607
Forward overhang [mm]	947	947	947	947	947	947
Rear overhang [mm]	1193	1193	1193	1193	1193	1193
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	936	936	936	936	936	936
Headroom rear [mm]	925	925	925	925	925	925
Front elbow/shoulder width [mm]	1505/1575	1505/1575	1505/1575	1505/1575	1505/1575	1505/1575
Rear elbow/shoulder width [mm]	1403/1422	1403/1422	1403/1422	1403/1422	1403/1422	1403/1422
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Gallery

Mercedes-Benz CL C216 facelift 2010 interior

Mercedes-Benz CL C216 facelift 2011 interior

Mercedes-Benz CL C216 facelift 2012 interior

Mercedes-Benz CL C216 facelift 2010 front seats

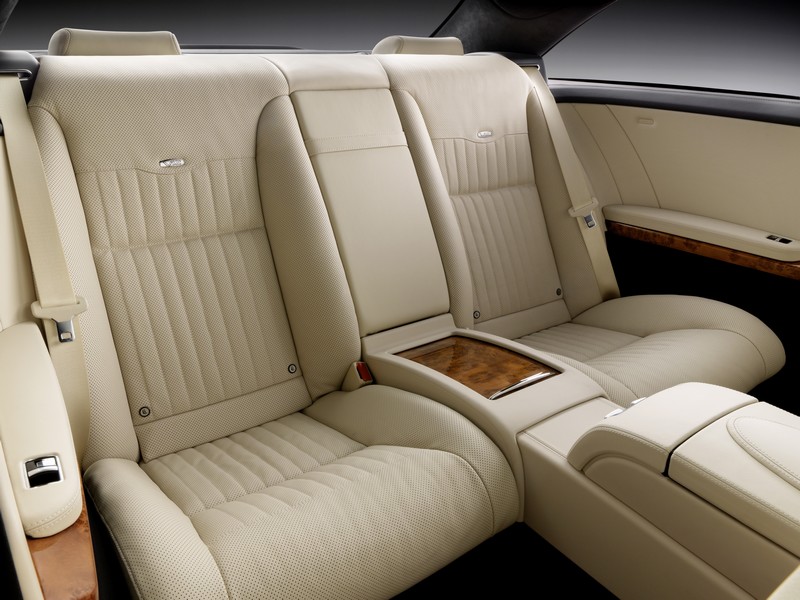

Mercedes-Benz CL C216 facelift 2012 rear seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
