Mercedes-Benz C
Date of manufacture
2018 – 2021 (Sedan)
2018 – 2021 (Estate)
2018 – 2021 (Coupé)
2018 – 2021 (Convertible)
Platform
MRA
Manufacturing locations
Bremen, Germany
Beijing, People's Republic of China
Tuscaloosa, Alabama, USA
Pune, India
Designer
Robert Lesnik
Tags
D-segment
German cars
The Mercedes-Benz C is a car that can be purchased in four different body versions: sedan, estate, coupe and cabriolet. It has been manufactured since 2018 in countries such as Germany, the People's Republic of China, the United States and India. The MRA platform provides the car with a solid structure and offers gasoline, diesel and hybrid engines. The most powerful variant is the C 63 AMG S with 375 kW and a maximum speed of 290 km/h. The most economical variant is the C 300 de with a consumption of 1.6 l/100 km and CO2 emissions of 42 g/km. The volume of the luggage compartment varies depending on the type of body - 455 l for the sedan, 460 l for the estate, 380 l for the coupe and 285-360 l for the cabriolet. The safety of the car was tested in 2014 by the EURONCAP organization and achieved a rating of 5 out of 5.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2018 – 2021Internal designation
W205Engine size
Diesel + Electric

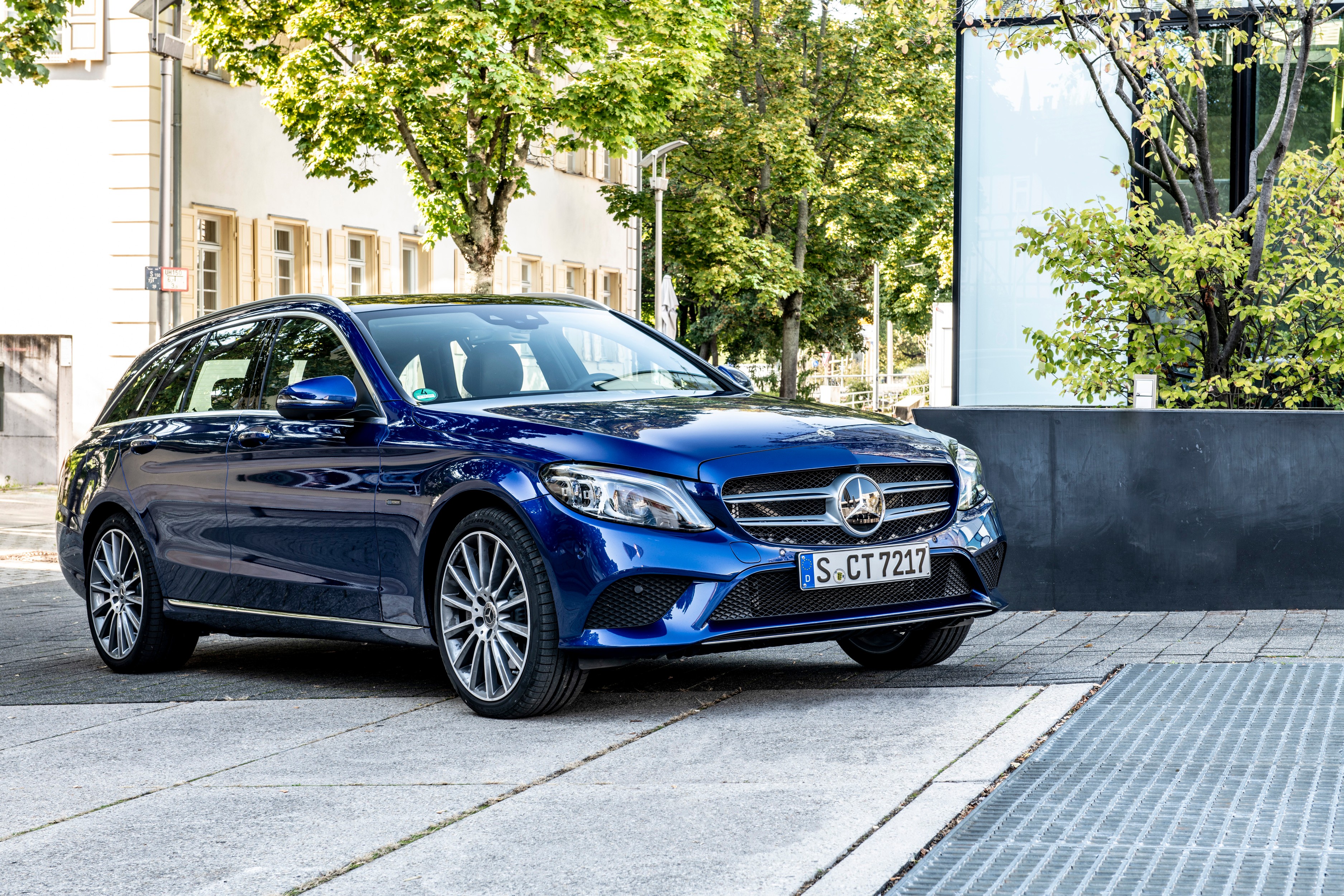

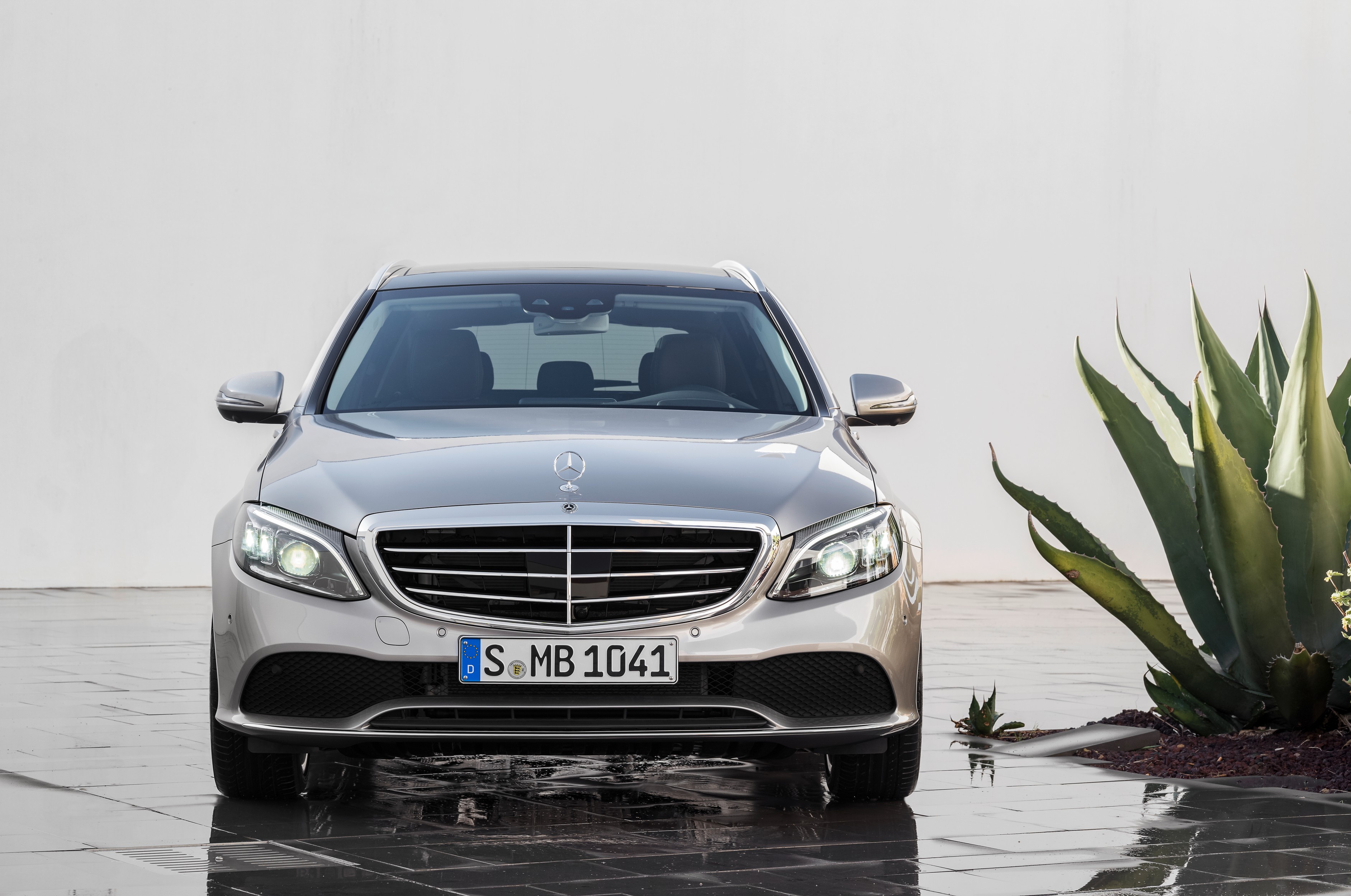

Estate
after upgrade (facelift)
Date of manufacture
2018 – 2021Internal designation
S205Engine size
Petrol + ElectricDieselDiesel + Electric
Coupé
after upgrade (facelift)
Date of manufacture
2018 – 2021Internal designation
C205Convertible
after upgrade (facelift)
Date of manufacture
2018 – 2021Internal designation
A205Technical data
Sedan
C 180 | C 180 | C 200 | C 200 4MATIC | C 300 | C 300 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1497 | 1497 | 1497 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 115/5300 | 115 | 135/5800-6100 combustion 10 el. | 135/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. |
Maximum torque [Nm/min-1] | 250/1200-4000 | 250 | 280/3000-6100 | 280/3000-6100 | 370/1800-4000 | 370/1800-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 80.4 x 73.7 | 80.4 x 73.7 | 80.4 x 73.7 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10.5:1 | 10.5:1 | 10.5:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
Gearbox | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications | - |
|
|
|
|
|
Top speed [km/h] | 231 | 223 | 239 | 234 | 250 | 250 |
Acceleration 0–100 km/h [s] | 8,3 | 8,6 | 7,7 | 8,1 | 6,0 | 5,8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7,9-7,5 | 8,4-8,0 | 8,6-8,0 | 9,4-8,9 | 8,8-7,9 | 9,3-8,4 |
Out of town [l] | 5,3-5,0 | 5,4-5,1 | 5,1-4,7 | 5,6-5,1 | 5,3-4,8 | 5,7-5,2 |
Combined [l] | 6,2-5,9 | 6,5-6,2 | 6,3-5,9 | 6,9-6,5 | 6,5-6,0 | 7,0-6,4 |
CO2 emissions [g/km] | 142-134 | 147-140 | 145-135 | 158-153 | 149-140 | 160-150 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 48 | 48 | 48 | 48 |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1437 | 1466 | 1514 | 1580 | 1595 | 1660 |
Overall weight [kg] | 2017 | 2046 | 2094 | 2160 | 2175 | 2240 |
Maximum trailer weight unbraked/braked [kg] | 720/1400 | 710/1800 | 710/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 455 | 455 | 435 | 435 | 455 | 455 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 W | 225/50 R17 W | 225/50 R17 W |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 W | 225/50 R17 W | 225/50 R17 W |
Wheel size front | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Wheel size rear | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Brake dimensions front | - | - | 305 | 305 | 330 | 330 |
Brake dimensions rear | - | - | 300 | 300 | 300 | 300 |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1442 | 1442 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 400 4MATIC | C 43 AMG 4MATIC | C 63 AMG | C 63 AMG S | C 300 e | C 300 e 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric |
Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 |
Engine displacement [cm³] | 2996 | 2996 | 3982 | 3982 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 245/5250-6000 | 287/6100 | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 90 el. 235 total | 155/5500 combustion 90 el. 235 total |
Maximum torque [Nm/min-1] | 480/1600-4000 | 520/2500-5000 | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 400 el. 700 total | 350/1200-4000 combustion 400 el. 700 total |
Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,7:1 | 10,7:1 | 10,5:1 | 10,5:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 290 | 250 | 250 |
Acceleration 0–100 km/h [s] | 4.9 | 4,7 | 4,1 | 4,0 | 5,4 | 5,4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 11.1-10.6 | 12,7-12,2 | 13,5 | 13,5 | - | - |
Out of town [l] | 6.6-6.2 | 7,5-7,0 | 7,8 | 7,9 | - | - |
Combined [l] | 8.3-7.8 | 9,3-9,1 | 9,9 | 9,9 | 2.0-1.8 [15.6-14.3 el.] | 2.3-1.9 [16.2-14.5 el.] |
CO2 emissions [g/km] | 189-179 | 213-208 | 227 | 227 | 47-41 | 52-43 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh | Lithium-Ionen-Akkumulator, 13.5 kWh |
Range with fully charged battery [km] | - | - | - | - | 54-59 | 51-58 |
Charging time | - | - | - | - |
|
|
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1615 | 1717 | 1752 | 1761 | 1823 | 1903 |
Overall weight [kg] | 2195 | 2237 | 2182 | 2186 | 2358 | 2438 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 455 | 435 | 435 | 435 | 300 | 300 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 W | 225/45 R18 | - | 245/35 R19 | 225/45 R18 | 225/45 R18 |
Tyre dimensions rear | 225/50 R17 W | 245/40 R18 | - | 265/35 R19 | 225/45 R18 | 225/45 R18 |
Wheel size front | 7.0J x 17 ET48,5 | 7,5J x 18 H ET33 | - | 8,5J x 19 ET38 | 7.5 J x 18 ET44 | 7.5 J x 18 ET44 |
Wheel size rear | 7.0J x 17 ET48,5 | 8,5J x 18 H ET49 | - | 9,5J x 19 ET56 | 7.5 J x 18 ET44 | 7.5 J x 18 ET44 |
Brake dimensions front | - | 360 | - | - | - | - |
Brake dimensions rear | - | 320 | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4699 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1442 | 1429 | 1442 | 1442 | 1442 | 1442 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1588 | 1602 | 1588 | 1588 | 1588 | 1588 |
Rear wheel track [mm] | 1570 | 1558 | 1570 | 1570 | 1570 | 1570 |
Forward overhang [mm] | 790 | - | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | - | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 300 de | ||||||
---|---|---|---|---|---|---|
Date of sale | - | |||||
Engine type | Diesel supercharged + Electric | |||||
Number of cylinders/valves | 4/16 | |||||
Engine displacement [cm³] | 1950 | |||||
Maximum output / speed [kW/min-1] | 143/3800 combustion 90 el. 225 total | |||||
Maximum torque [Nm/min-1] | 400/1600-2800 combustion 440 el. 700 total | |||||
Bore and stroke [mm x mm] | 82.0 x 92.3 | |||||
Compression ratio | 15.5:1 | |||||
Oil volume [l] | - | |||||
Coolant volume [l] | - | |||||
Technical specifications |
| |||||
Drive axle | Rear | |||||
Gearbox | 9 gear automatic | |||||
Drive specifications |
| |||||
Top speed [km/h] | 250 [130 el.] | |||||
Acceleration 0–100 km/h [s] | 5,6 | |||||
Acceleration 0–80 km/h [s] | - | |||||
Acceleration 80–120 km/h [s] | - | |||||
City [l] | - | |||||
Out of town [l] | - | |||||
Combined [l] | 1,6-1,27 [15.8-15.0 el.] | |||||
CO2 emissions [g/km] | 42-32 | |||||
Emission standard | Euro 6d-TEMP - Euro 6d | |||||
Standard for fuel consumption measurement | - | |||||
Energy class | - | |||||
Stationary vehicle noise [dB] | - | |||||
Driving noise [dB] | - | |||||
System voltage [V] | - | |||||
Battery type and capacity | Lithium-Ionen-Akkumulator, 13.5 kWh | |||||
Range with fully charged battery [km] | 53-58 | |||||
Charging time |
| |||||
Number of modules/cells | - | |||||
Battery weight [kg] | - | |||||
Charger | - | |||||
Standby weight [kg] | 1898 | |||||
Overall weight [kg] | 2428 | |||||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
Maximum front/rear axle load [kg] | - | |||||
Maximum vertical load on the tow bar [kg] | - | |||||
Maximum load on roof/carrier [kg] | - | |||||
Boot volume [l] | 300 | |||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
Boot length [mm] | - | |||||
Boot length with rear seats folded [mm] | - | |||||
Boot width between wheels/max [mm] | - | |||||
Boot height to headliner/ceiling [mm] | - | |||||
Loading edge height [mm] | - | |||||
Height of the open boot door [mm] | 1763 | |||||
Boot opening height [mm] | - | |||||
Boot opening width min/max [mm] | - | |||||
Number of doors | 4 | |||||
Number of seats | 5 | |||||
Fuel tank volume [l] | 50 | |||||
AdBlue tank volume [l] | - | |||||
Air resistance [Cd] | - | |||||
Front suspension | multilink | |||||
Rear suspension | multilink | |||||
Tyre dimensions front | 225/45 R18 | |||||
Tyre dimensions rear | 225/45 R18 | |||||
Wheel size front | 7.5 J x 18 ET44 | |||||
Wheel size rear | 7.5 J x 18 ET44 | |||||
Brake dimensions front | - | |||||
Brake dimensions rear | - | |||||
Steering | Rack & pinion with electro-mechanical power steering | |||||
Number of steering wheel turns | - | |||||
Turning diameter track/circumference [m] | -/11.22 | |||||
Overall length [mm] | 4686 | |||||
Overall width without/including mirrors [mm] | 1810/2020 | |||||
Overall height [mm] | 1442 | |||||
Wheelbase [mm] | 2840 | |||||
Front wheel track [mm] | 1588 | |||||
Rear wheel track [mm] | 1570 | |||||
Forward overhang [mm] | 790 | |||||
Rear overhang [mm] | 1056 | |||||
Clearance [mm] | 92 | |||||
Wading depth [mm] | - | |||||
Approach angle front [°] | 13.6 | |||||
Approach angle rear [°] | 14.2 | |||||
Transition angle [°] | 8.9 | |||||
Climbing rate [°] | - | |||||
Maximum side tilt [°] | - | |||||
Headroom front [mm] | 1039 | |||||
Headroom rear [mm] | 942 | |||||
Front elbow/shoulder width [mm] | 1404/1454 | |||||
Rear elbow/shoulder width [mm] | 1398/1462 | |||||
Legroom front knees/total [mm] | - | |||||
Legroom rear knees/total [mm] | - |
Estate
C 180 | C 180 | C 200 | C 200 4MATIC | C 300 | C 300 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1497 | 1497 | 1497 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 115/5300 | 115 | 135/5800-6100 combustion 10 el. | 135/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. |
Maximum torque [Nm/min-1] | 250/1200-4000 | 250 | 280/3000-6100 | 280/3000-6100 | 370/1800-4000 | 370/1800-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 80.4 x 73.7 | 80.4 x 73.7 | 80.4 x 73.7 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10.5:1 | 10.5:1 | 10.5:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
Gearbox | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications | - |
|
|
|
|
|
Top speed [km/h] | 226 | 220 | 235 | 230 | 250 | 250 |
Acceleration 0–100 km/h [s] | 8,5 | 8,8 | 7,9 | 8,4 | 6,1 | 6,0 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8,2-7,5 | 8,6-8,3 | 8,8-8,2 | 9,4-8,9 | 8,9-8,2 | 9,3-8,5 |
Out of town [l] | 5,5-5,1 | 5,8-5,4 | 5,4-5,0 | 5,8-5,3 | 5,6-5,2 | 5,9-5,3 |
Combined [l] | 6,5-6,0 | 6,8-6,5 | 6,6-6,2 | 7,1-6,6 | 6,8-6,3 | 7,1-6,5 |
CO2 emissions [g/km] | 148-136 | 155-147 | 151-146 | 163-157 | 156-147 | 163-153 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 48 | 48 | 48 | 48 |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1492 | 1521 | 1553 | 1616 | 1650 | 1720 |
Overall weight [kg] | 2082 | 2111 | 2143 | 2206 | 2240 | 2310 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 460 | 460 | 440 | 440 | 460 | 460 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1480 | -/1460 | -/1460 | -/1480 | -/1480 |
Boot length [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 W | 225/50 R17 W | 225/50 R17 W |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 W | 225/50 R17 W | 225/50 R17 W |
Wheel size front | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Wheel size rear | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Brake dimensions front | - | - | 305 | 305 | 330 | 330 |
Brake dimensions rear | - | - | 300 | 300 | 300 | 300 |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
Approach angle rear [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 400 4MATIC | C 43 AMG 4MATIC | C 63 AMG | C 63 AMG S | C 300 e | C 180d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 |
Engine displacement [cm³] | 2996 | 2996 | 3982 | 3982 | 1991 | 1597 |
Maximum output / speed [kW/min-1] | 245/5250-6000 | 287/6100 | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 90 el. 235 total | 90/3200-4600 |
Maximum torque [Nm/min-1] | 480/1600-4000 | 520/2500-5000 | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 400 el. 700 total | 300/1400-2800 |
Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 80,0 x 79,5 |
Compression ratio | 10,7:1 | 10,7:1 | 10,5:1 | 10,5:1 | 9,8:1 | 15,7:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 6 gear manual |
Drive specifications |
|
|
|
|
| - |
Top speed [km/h] | 250 | 250 | 250 | 280 | 250 | 201 |
Acceleration 0–100 km/h [s] | 5,0 | 4,8 | 4,2 | 4,1 | 5,5 | 10,2 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 11,3-10,8 | 12,9-12,5 | 13,5 | 13,5 | - | 6,4-6,3 |
Out of town [l] | 6,5-6,1 | 7,8-7,4 | 7,9 | 7,9 | - | 4,1-3,8 |
Combined [l] | 8,3-7,9 | 9,6-9,3 | 10,0 | 10,0 | 2.2-1.9 [16.3-14.9 el.] | 5,0-4,7 |
CO2 emissions [g/km] | 189-184 | 219-214 | 228 | 229 | 50-44 | 132-124 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh | - |
Range with fully charged battery [km] | - | - | - | - | 52-57 | - |
Charging time | - | - | - | - |
| - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1677 | 1772 | 1822 | 1831 | 1878 | 1602 |
Overall weight [kg] | 2267 | 2332 | 2247 | 2246 | 2423 | 2192 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 460 | 460 | 460 | 460 | 315 | 460 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1480 | -/1480 | -/1480 | -/1335 | -/1480 |
Boot length [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 50 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 W | 225/45 R18 | - | 245/35 R19 | 225/45 R18 | 205/60 R16 |
Tyre dimensions rear | 225/50 R17 W | 245/40 R18 | - | 265/35 R19 | 225/45 R18 | 205/60 R16 |
Wheel size front | 7.0J x 17 ET48,5 | 7,5J x 18 H ET33 | - | 8,5J x 19 ET38 | 7.5 J x 18 ET44 | 6.5J x 16 ET38 |
Wheel size rear | 7.0J x 17 ET48,5 | 8,5J x 18 H ET49 | - | 9,5J x 19 ET56 | 7.5 J x 18 ET44 | 6.5J x 16 ET38 |
Brake dimensions front | - | 360 | - | - | - | - |
Brake dimensions rear | - | 320 | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
Approach angle rear [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 200d | C 220d | C 220d 4MATIC | C 300d | C 300d 4MATIC | C 300 de | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1597 | 1950 | 1950 | 1950 | 1950 | 1950 |
Maximum output / speed [kW/min-1] | 118/3800 | 143/3800 | 143/3800 | 180/4200 | 180/4200 | 143/3800 combustion 90 el. 225 total |
Maximum torque [Nm/min-1] | 260/1600-2600 | 400/1600-2800 | 400/1600-2800 | 500/1600-2400 | 500/1600-2400 | 400/1600-2800 combustion 440 el. 700 total |
Bore and stroke [mm x mm] | 80,0 x 79,5 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
Compression ratio | 15,7:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | Rear | 4x4 | Rear |
Gearbox | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications | - |
|
|
|
|
|
Top speed [km/h] | 220 | 233 | 228 | 250 | 250 | 250 [130 el.] |
Acceleration 0–100 km/h [s] | 8,7 | 7,0 | 7,4 | 6,0 | 6,0 | 5,7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6,7-6,3 | 5,4-5,2 | 6,6-5,6 | 6,6-6,0 | 7,4-6,9 | - |
Out of town [l] | 4,1-3,9 | 4,3-4,0 | 4,5-4,4 | 4,5-4,1 | 4,8-4,4 | - |
Combined [l] | 5,1-4,8 | 4,7-4,4 | 5,2-4,9 | 5,3-4,8 | 5,7-5,3 | 1,6-1,4 [16.1-15.2 el.] |
CO2 emissions [g/km] | 133-115 | 124-123 | 136-132 | 139-131 | 151-145 | 43-37 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh |
Range with fully charged battery [km] | - | - | - | - | - | 52-57 |
Charging time | - | - | - | - | - |
|
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1607 | 1617 | 1735 | 1719 | 1745 | 1958 |
Overall weight [kg] | 2197 | 2207 | 2325 | 2309 | 2335 | 2483 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 315 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1480 | -/1480 | -/1480 | -/1480 | -/1335 |
Boot length [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 225/50 R17 W | 225/50 R17 W | 225/50 R17 W | 225/45 R18 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 225/50 R17 W | 225/50 R17 W | 225/50 R17 W | 225/45 R18 |
Wheel size front | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.5 J x 18 ET44 |
Wheel size rear | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.5 J x 18 ET44 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
Approach angle rear [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
Coupé
C 180 | C 180 | C 200 | C 200 4MATIC | C 300 | C 300 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1497 | 1497 | 1497 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 115/5300 | 115 | 135/5800-6100 combustion 10 el. | 135/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. |
Maximum torque [Nm/min-1] | 250/1200-4000 | 250 | 280/3000-6100 | 280/3000-6100 | 370/1800-4000 | 370/1800-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 80.4 x 73.7 | 80.4 x 73.7 | 80.4 x 73.7 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10.5:1 | 10.5:1 | 10.5:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
Gearbox | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications | - |
|
|
|
|
|
Top speed [km/h] | 231 | 223 | 239 | 234 | 250 | 250 |
Acceleration 0–100 km/h [s] | 8,5 | 8,9 | 7,9 | 8,4 | 6,0 | 6,0 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8,2-7,5 | 8,6-8,2 | 9,0-8,3 | 9,4-8,9 | 8,6-7,9 | 9,3-8,4 |
Out of town [l] | 5,3-4,9 | 5,6-5,2 | 5,2-4,8 | 5,6-5,1 | 5,3-4,8 | 5,6-5,2 |
Combined [l] | 6,3-5,8 | 6,7-6,3 | 6,5-6,0 | 6,9-6,5 | 6,5-6,0 | 7,0-6,4 |
CO2 emissions [g/km] | 145-137 | 152-148 | 149-142 | 162-153 | 150-140 | 159-150 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 48 | 48 | 48 | 48 |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1514 | 1549 | 1599 | 1623 | 1641 | 1696 |
Overall weight [kg] | 2009 | 2044 | 2094 | 2118 | 2136 | 2191 |
Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 380 | 380 | 360 | 360 | 360 | 360 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1805 | 1805 | 1805 | 1805 | 1805 | 1805 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 41 | 41 | 50 | 50 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Wheel size rear | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Brake dimensions front | - | - | - | - | 330 | - |
Brake dimensions rear | - | - | - | - | 300 | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1405 | 1405 | 1405 | 1405 | 1405 | 1405 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 88 | 88 | 88 | 88 | 88 | 88 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
Approach angle rear [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 400 4MATIC | C 43 AMG 4MATIC | C 63 AMG | C 63 AMG S | C 220d | C 220d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 |
Engine displacement [cm³] | 2996 | 2996 | 3982 | 3982 | 1950 | 1950 |
Maximum output / speed [kW/min-1] | 245/5250-6000 | 287/6100 | 350/5500-6250 | 375/5500-6250 | 143/3800 | 143/3800 |
Maximum torque [Nm/min-1] | 480/1600-4000 | 520/2500-5000 | 650/1750-4500 | 700/1750-4500 | 400/1600-2800 | 400/1600-2800 |
Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 82.0 x 92.3 | 82.0 x 92.3 |
Compression ratio | 10,7:1 | 10,7:1 | 10,5:1 | 10,5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 290 | 240 | 233 |
Acceleration 0–100 km/h [s] | 4,9 | 4,7 | 4,0 | 3,9 | 7,0 | 7,3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 11,2-10,8 | 12,9-12,4 | 14,0 | 14,0 | 5,5-5,3 | 6,3-5,6 |
Out of town [l] | 6,3-5,9 | 7,6-7,2 | 7,8 | 7,8 | 4,2-3,9 | 4,4-4,3 |
Combined [l] | 8,1-7,7 | 9,5-9,2 | 10,1 | 10,1 | 4,7-4,4 | 5,1-4,8 |
CO2 emissions [g/km] | 186-180 | 217-211 | 230 | 230 | 124-123 | 134-129 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1690 | 1766 | 1818 | 1830 | 1656 | 1711 |
Overall weight [kg] | 2185 | 2201 | 2163 | 2170 | 2151 | 2206 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 380 | 400 | 355 | 355 | 380 | 380 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1805 | 1805 | 1805 | 1805 | 1805 | 1805 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/45 R18 | 255/40 R18 | 255/35 R19 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 245/40 R18 | 285/35 R18 | 285/30 R19 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0J x 17 ET48,5 | 7.5J x 18 H ET33 | 9.0J x 18 ET25 | 9,0J x 19 ET25 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Wheel size rear | 7.0J x 17 ET48,5 | 8,5J x 18 H ET49 | 10.5J x 18 ET57 | 10,5 J x 19 ET57 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Brake dimensions front | 342 | 360 | - | - | - | - |
Brake dimensions rear | 300 | 320 | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/12.1 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4693 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1405 | 1402 | 1405 | 1405 | 1405 | 1405 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 88 | 88 | 88 | 88 | 88 | 88 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
Approach angle rear [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 300d | C 300d 4MATIC | |||||
---|---|---|---|---|---|---|
Date of sale | - | - | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/16 | 4/16 | ||||
Engine displacement [cm³] | 1950 | 1950 | ||||
Maximum output / speed [kW/min-1] | 180/4200 | 180/4200 | ||||
Maximum torque [Nm/min-1] | 500/1600-2400 | 500/1600-2400 | ||||
Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | ||||
Compression ratio | 15.5:1 | 15.5:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Rear | 4x4 | ||||
Gearbox | 9 gear automatic | 9 gear automatic | ||||
Drive specifications |
|
| ||||
Top speed [km/h] | 250 | 250 | ||||
Acceleration 0–100 km/h [s] | 6,0 | 6,0 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 6,6-6,0 | 7,3-6,9 | ||||
Out of town [l] | 4,3-3,9 | 4,6-4,2 | ||||
Combined [l] | 5,2-4,7 | 5,6-5,2 | ||||
CO2 emissions [g/km] | 136-128 | 148-141 | ||||
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1696 | 1741 | ||||
Overall weight [kg] | 2191 | 2236 | ||||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | ||||
Maximum front/rear axle load [kg] | - | - | ||||
Maximum vertical load on the tow bar [kg] | - | - | ||||
Maximum load on roof/carrier [kg] | - | - | ||||
Boot volume [l] | 380 | 380 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
Boot length [mm] | - | - | ||||
Boot length with rear seats folded [mm] | - | - | ||||
Boot width between wheels/max [mm] | - | - | ||||
Boot height to headliner/ceiling [mm] | - | - | ||||
Loading edge height [mm] | - | - | ||||
Height of the open boot door [mm] | 1805 | 1805 | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 2 | 2 | ||||
Number of seats | 4 | 4 | ||||
Fuel tank volume [l] | 50 | 50 | ||||
AdBlue tank volume [l] | - | - | ||||
Air resistance [Cd] | - | - | ||||
Front suspension | multilink | multilink | ||||
Rear suspension | multilink | multilink | ||||
Tyre dimensions front | 225/50 R17 | 225/50 R17 | ||||
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | ||||
Wheel size front | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | ||||
Wheel size rear | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | ||||
Brake dimensions front | - | - | ||||
Brake dimensions rear | - | - | ||||
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | ||||
Overall length [mm] | 4686 | 4686 | ||||
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | ||||
Overall height [mm] | 1405 | 1405 | ||||
Wheelbase [mm] | 2840 | 2840 | ||||
Front wheel track [mm] | 1567 | 1567 | ||||
Rear wheel track [mm] | 1551 | 1551 | ||||
Forward overhang [mm] | 790 | 790 | ||||
Rear overhang [mm] | 1056 | 1056 | ||||
Clearance [mm] | 88 | 88 | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | 13.2 | 13.2 | ||||
Approach angle rear [°] | 14.3 | 14.3 | ||||
Transition angle [°] | 8.8 | 8.8 | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | 1023 | 1023 | ||||
Headroom rear [mm] | 905 | 905 | ||||
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | ||||
Rear elbow/shoulder width [mm] | 1312/1358 | 1312/1358 | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Convertible
C 180 | C 180 | C 200 | C 200 4MATIC | C 300 | C 300 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1497 | 1497 | 1497 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 115/5300 | 115 | 135/5800-6100 combustion 10 el. | 135/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. | 190/5800-6100 combustion 10 el. |
Maximum torque [Nm/min-1] | 250/1200-4000 | 250 | 280/3000-6100 | 280/3000-6100 | 370/1800-4000 | 370/1800-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 80.4 x 73.7 | 80.4 x 73.7 | 80.4 x 73.7 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10.5:1 | 10.5:1 | 10.5:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
Gearbox | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications | - |
|
|
|
|
|
Top speed [km/h] | 226 | 250 | 235 | 230 | 250 | 250 |
Acceleration 0–100 km/h [s] | 9,2 | 9,5 | 8,5 | 8,8 | 6,3 | 6,3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8,6-8,3 | 8,8-8,4 | 9,1-8,6 | 9,8-9,1 | 9,1-8,3 | 9,5-8,6 |
Out of town [l] | 5,8-5,5 | 5,8-5,4 | 5,5-5,0 | 5,9-5,4 | 5,7-5,2 | 5,9-5,4 |
Combined [l] | 6,9-6,5 | 6,9-6,5 | 6,8-6,4 | 7,3-6,9 | 6,9-6,3 | 7,2-6,5 |
CO2 emissions [g/km] | 156-152 | 158-153 | 155-150 | 168-161 | 158-148 | 165-154 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 48 | 48 | 48 | 48 |
Battery type and capacity | - | - | - | - | - | - |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1660 | 1685 | 1705 | 1765 | 1783 | 1833 |
Overall weight [kg] | 2125 | 2150 | 2170 | 2230 | 2248 | 2298 |
Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 285-360 | 285-360 | 260-335 | 260-335 | 260-335 | 260-335 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1486 | 1486 | 1486 | 1486 | 1486 | 1486 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 41 | 41 | 50 | 50 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Wheel size rear | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Brake dimensions front | - | - | - | - | 330 | - |
Brake dimensions rear | - | - | - | - | 300 | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1409 | 1409 | 1409 | 1409 | 1409 | 1409 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 88 | 88 | 88 | 88 | 88 | 88 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
Approach angle rear [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 400 4MATIC | C 43 AMG 4MATIC | C 63 AMG | C 63 AMG S | C 220d | C 220d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 |
Engine displacement [cm³] | 2996 | 2996 | 3982 | 3982 | 1950 | 1950 |
Maximum output / speed [kW/min-1] | 245/5250-6000 | 287/6100 | 350/5500-6250 | 375/5500-6250 | 143/3800 | 143/3800 |
Maximum torque [Nm/min-1] | 480/1600-4000 | 520/2500-5000 | 650/1750-4500 | 700/1750-4500 | 400/1600-2800 | 400/1600-2800 |
Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 82.0 x 92.3 | 82.0 x 92.3 |
Compression ratio | 10,7:1 | 10,7:1 | 10,5:1 | 10,5:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | 4x4 |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 280 | 250 | 233 | 228 |
Acceleration 0–100 km/h [s] | 5,2 | 4,8 | 4,1 | 4,2 | 7,5 | 7,8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 11,5-11,0 | 13,0-12,7 | 14,5 | 14,5 | 5,7-5,6 | 6,4-5,8 |
Out of town [l] | 6,7-6,2 | 7,9-7,5 | 8,0 | 8,0 | 4,5-4,3 | 4,6-4,5 |
Combined [l] | 8,4-8,2 | 9,8-9,5 | 10,4 | 10,4 | 5,0-4,8 | 5,3-5,0 |
CO2 emissions [g/km] | 193-187 | 223-217 | 236 | 236 | 131-133 | 139-135 |
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1832 | 1905 | 1954 | 1936 | 1792 | 1847 |
Overall weight [kg] | 2297 | 2335 | 2294 | 2286 | 2257 | 2312 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1486 | 1486 | 1486 | 1486 | 1486 | 1486 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/45 R18 | 255/40 R18 | 255/35 R19 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 245/40 R18 | 285/35 R18 | 285/30 R19 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0J x 17 ET48,5 | 7.5J x 18 H ET33 | 9.0J x 18 ET25 | 9,0J x 19 ET25 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Wheel size rear | 7.0J x 17 ET48,5 | 8,5J x 18 H ET49 | 10.5J x 18 ET57 | 10,5 J x 19 ET57 | 7.0J x 17 ET48,5 | 7.0J x 17 ET48,5 |
Brake dimensions front | 342 | 360 | - | - | - | - |
Brake dimensions rear | 300 | 320 | - | - | - | - |
Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/12.1 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4693 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1409 | 1409 | 1409 | 1409 | 1409 | 1409 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 88 | 88 | 88 | 88 | 88 | 88 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
Approach angle rear [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 300d | ||||||
---|---|---|---|---|---|---|
Date of sale | - | |||||
Engine type | Diesel supercharged | |||||
Number of cylinders/valves | 4/16 | |||||
Engine displacement [cm³] | 1950 | |||||
Maximum output / speed [kW/min-1] | 180/4200 | |||||
Maximum torque [Nm/min-1] | 500/1600-2400 | |||||
Bore and stroke [mm x mm] | 82.0 x 92.3 | |||||
Compression ratio | 15.5:1 | |||||
Oil volume [l] | - | |||||
Coolant volume [l] | - | |||||
Technical specifications |
| |||||
Drive axle | Rear | |||||
Gearbox | 9 gear automatic | |||||
Drive specifications |
| |||||
Top speed [km/h] | 250 | |||||
Acceleration 0–100 km/h [s] | 6,3 | |||||
Acceleration 0–80 km/h [s] | - | |||||
Acceleration 80–120 km/h [s] | - | |||||
City [l] | 6,8-6,2 | |||||
Out of town [l] | 4,6-4,2 | |||||
Combined [l] | 5,4-4,9 | |||||
CO2 emissions [g/km] | 143-135 | |||||
Emission standard | Euro 6d-TEMP - Euro 6d | |||||
Standard for fuel consumption measurement | - | |||||
Energy class | - | |||||
Stationary vehicle noise [dB] | - | |||||
Driving noise [dB] | - | |||||
Standby weight [kg] | 1827 | |||||
Overall weight [kg] | 2292 | |||||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
Maximum front/rear axle load [kg] | - | |||||
Maximum vertical load on the tow bar [kg] | - | |||||
Maximum load on roof/carrier [kg] | - | |||||
Boot volume [l] | 285-360 | |||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
Boot length [mm] | - | |||||
Boot length with rear seats folded [mm] | - | |||||
Boot width between wheels/max [mm] | - | |||||
Boot height to headliner/ceiling [mm] | - | |||||
Loading edge height [mm] | - | |||||
Height of the open boot door [mm] | 1486 | |||||
Boot opening height [mm] | - | |||||
Boot opening width min/max [mm] | - | |||||
Number of doors | 2 | |||||
Number of seats | 4 | |||||
Fuel tank volume [l] | 50 | |||||
AdBlue tank volume [l] | - | |||||
Air resistance [Cd] | - | |||||
Front suspension | multilink | |||||
Rear suspension | multilink | |||||
Tyre dimensions front | 225/50 R17 | |||||
Tyre dimensions rear | 225/50 R17 | |||||
Wheel size front | 7.0J x 17 ET48,5 | |||||
Wheel size rear | 7.0J x 17 ET48,5 | |||||
Brake dimensions front | - | |||||
Brake dimensions rear | - | |||||
Steering | Rack & pinion with electro-mechanical power steering | |||||
Number of steering wheel turns | - | |||||
Turning diameter track/circumference [m] | -/11.22 | |||||
Overall length [mm] | 4686 | |||||
Overall width without/including mirrors [mm] | 1810/2016 | |||||
Overall height [mm] | 1409 | |||||
Wheelbase [mm] | 2840 | |||||
Front wheel track [mm] | 1567 | |||||
Rear wheel track [mm] | 1551 | |||||
Forward overhang [mm] | 790 | |||||
Rear overhang [mm] | 1056 | |||||
Clearance [mm] | 88 | |||||
Wading depth [mm] | - | |||||
Approach angle front [°] | 13.2 | |||||
Approach angle rear [°] | 12.6 | |||||
Transition angle [°] | 8.8 | |||||
Climbing rate [°] | - | |||||
Maximum side tilt [°] | - | |||||
Headroom front [mm] | 1021 | |||||
Headroom rear [mm] | 914 | |||||
Front elbow/shoulder width [mm] | 1392/1472 | |||||
Rear elbow/shoulder width [mm] | 1214/1302 | |||||
Legroom front knees/total [mm] | - | |||||
Legroom rear knees/total [mm] | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
