Mercedes-Benz C
Date of manufacture
2/2014 – 2018 (Sedan)
5/2014 – 2018 (Estate)
8/2015 – 2018 (Coupé)
7/2016 – 2018 (Convertible)
Platform
MRA
Manufacturing locations
Bremen, Germany
Beijing, People's Republic of China
Tuscaloosa, Alabama, USA
Pune, India
Designer
Robert Lesnik
Tags
D-segment
German cars
The Mercedes-Benz C is available in four body styles: sedan, estate, coupe and cabriolet. The vehicle manufactured since 2014 can come from Germany, the People's Republic of China, the USA or India and is built on the MRA platform. Its offer also includes hybrid and plug-in hybrid versions. The engine range includes petrol, diesel and hybrid engines with the highest power of 375 kW (C 63 AMG S). The same model has the highest speed of 250 km/h and the best acceleration 0-100 km/h in 3.9 seconds. The C 350 e has the lowest consumption of 2.1 l/100 km and emissions of 48 g/km. The sedan version offers a luggage compartment size of 480 l, the estate version 490 l, the coupe version 400 l and the cabriolet version 285-360 l. The car was tested in the EURONCAP safety area and achieved a rating of 5 out of 5 points.
Car body style

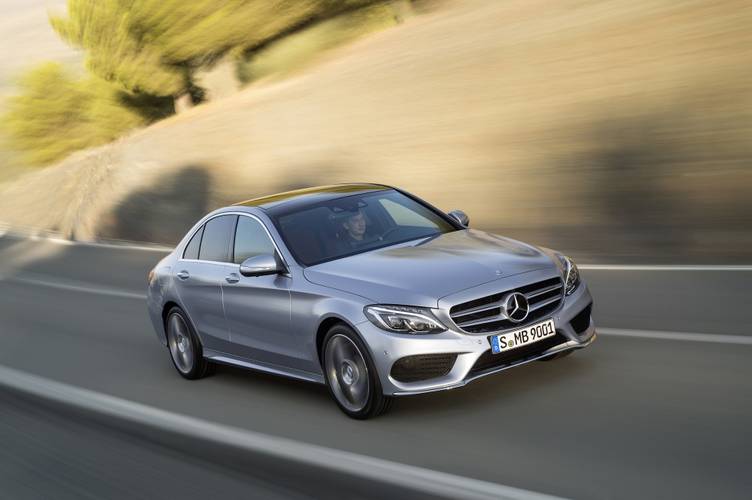

Sedan
Date of manufacture
2/2014 – 2018Internal designation
W205Engine size
Petrol + Electric
Diesel

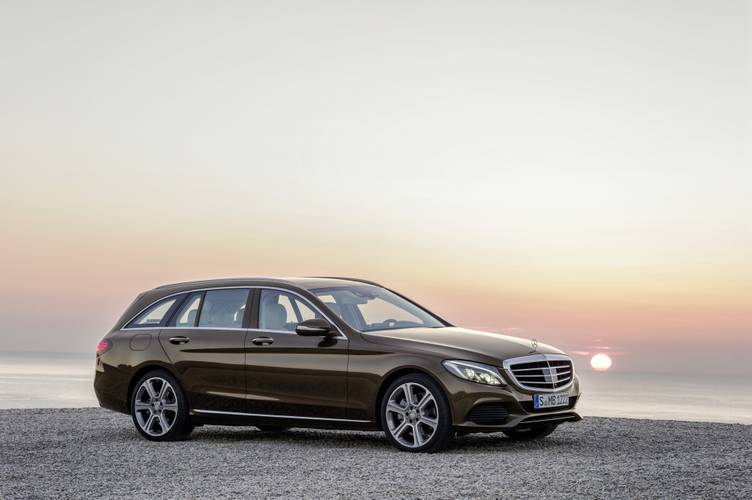

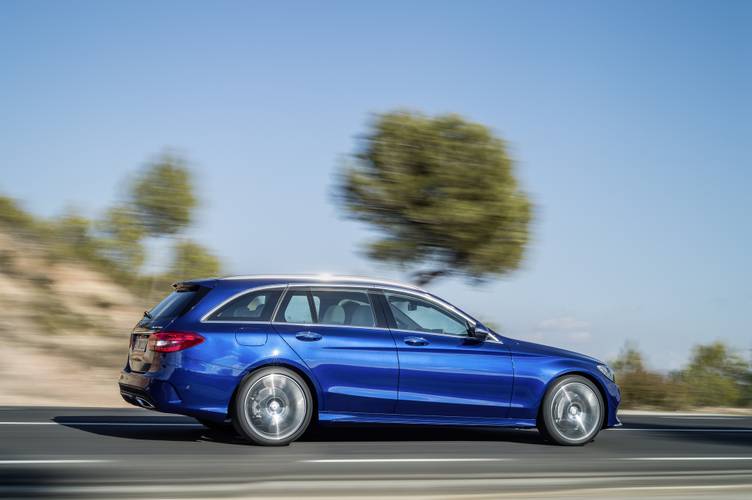

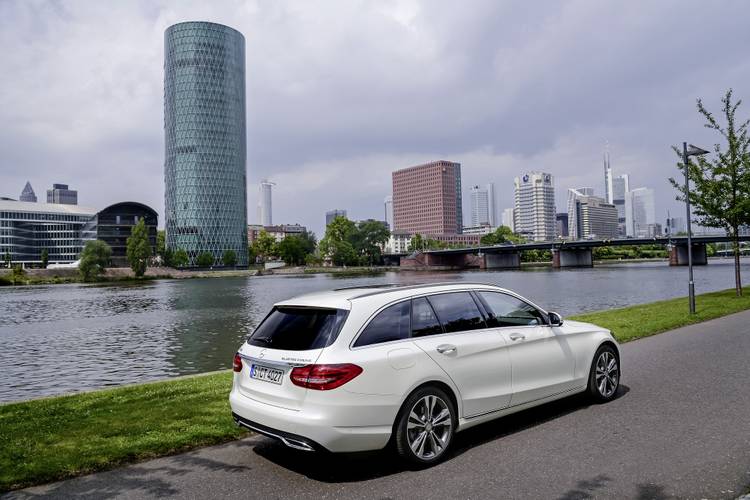

Estate
Date of manufacture
5/2014 – 2018Internal designation
S205Engine size
Petrol + Electric
Coupé
Date of manufacture
8/2015 – 2018Internal designation

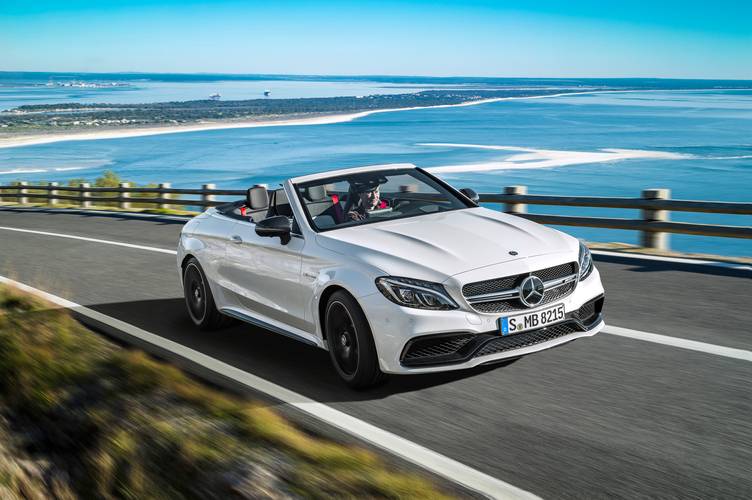

C205Convertible
Date of manufacture
7/2016 – 2018Internal designation
A205Technical data
Sedan
C 160 | C 160 | C 180 | C 180 | C 180 | C 200 | |
---|---|---|---|---|---|---|
Date of sale | - | from 2016 to | - | from to 2016 | from 2016 to | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1595 | 1991 |
Maximum output / speed [kW/min-1] | 95/5000 | 95/5000 | 115/5300 | 115/5300 | 115/5300 | 135/5500 |
Maximum torque [Nm/min-1] | 210/1200-4000 | 210/1200-4000 | 250/1200-4000 | 250/1200-4000 | 250/1200-4000 | 300/1200-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 6 gear manual | 9 gear automatic | 6 gear manual | 7 gear automatic | 9 gear automatic | 6 gear manual |
Drive specifications | - |
| - |
|
| - |
Top speed [km/h] | 216 | 214 | 225 | 223 | 225 | 237 |
Acceleration 0–100 km/h [s] | 9.6 | 9.8 | 8.2 | 8.5 | 8.3 | 7.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.7-7.1 | 7.8-7.5 | 6.4-6.7 | 6.8-7.4 | 7.8-7.5 | 6.8-7.5 |
Out of town [l] | 4.3-4.9 | 5.4-4.9 | 4.2-4.7 | 4.6-4.9 | 5.4-4.9 | 4.4-4.9 |
Combined [l] | 5.2-5.7 | 6.3-5.9 | 5.0-5.5 | 5.4-5.9 | 6.3-5.9 | 5.3-5.9 |
CO2 emissions [g/km] | 120-133 | 142-132 | 116-126 | 126-135 | 142-132 | 123-136 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1395 | 1395 | 1395 | 1425 | 1425 | 1450 |
Overall weight [kg] | 1960 | 1960 | 1960 | 1990 | 1990 | 2015 |
Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1400 | 695/1400 | 710/1800 | 710/1800 | 725/1600 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Wheel size front | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.5 J x 16 ET 38 |
Wheel size rear | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.5 J x 16 ET 38 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1442 | 1442 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 200 | C 200 | C 200 4MATIC | C 200 4MATIC | C 250 | C 250 | |
---|---|---|---|---|---|---|
Date of sale | from to 2016 | from 2016 to | from to 2016 | from 2016 to | from to 2016 | from 2016 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 135/5500 | 135/5500 | 155/5500 | 155/5500 |
Maximum torque [Nm/min-1] | 300/1200-4000 | 300/1200-4000 | 300/1200-4000 | 300/1200-4000 | 350/1200-4000 | 350/1200-4000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
Gearbox | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 235 | 237 | 229 | 234 | 250 | 250 |
Acceleration 0–100 km/h [s] | 7.3 | 7.2 | 7.6 | 7.4 | 6.6 | 6.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.8-7.4 | 7.7-7.3 | 7.3-7.6 | 9.2-8.8 | 6.8-7.4 | 7.9-7.4 |
Out of town [l] | 4.4-4.9 | 5.1-4.5 | 5.3-5.8 | 6.1-5.7 | 4.4-4.9 | 5.2-4.6 |
Combined [l] | 5.3-5.8 | 6.1-5.6 | 6.1-6.5 | 7.2-6.8 | 5.3-5.8 | 6.2-5.7 |
CO2 emissions [g/km] | 123-135 | 137-126 | 141-151 | 162-153 | 123-135 | 139-128 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1465 | 1465 | 1545 | 1545 | 1480 | 1480 |
Overall weight [kg] | 2030 | 2030 | 2110 | 2110 | 2045 | 2045 |
Maximum trailer weight unbraked/braked [kg] | 730/1800 | 730/1800 | 750/1800 | 750/1800 | 740/1800 | 740/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 | 205/60 R16 | 205/60 R16 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 | 205/60 R16 | 205/60 R16 |
Wheel size front | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 |
Wheel size rear | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.45 | -/11.45 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1442 | 1442 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 300 | C 300 | C 400 4MATIC | C 400 4MATIC | C 450 AMG 4MATIC | C 43 AMG 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from to 2016 | from 2016 to | from to 2016 | from 2016 to | from to 2016 | from 2016 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
Engine displacement [cm³] | 1991 | 1991 | 2996 | 2996 | 2996 | 2996 |
Maximum output / speed [kW/min-1] | 180/5500 | 180/5500 | 245/5250-6000 | 245/5250-6000 | 270/5500-6000 | 270/5500-6000 |
Maximum torque [Nm/min-1] | 370/1300-4000 | 370/1300-4000 | 480/1600-4000 | 480/1600-4000 | 520/2000-4200 | 520/2000-4200 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 |
Compression ratio | 9,8:1 | 9,8:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | 4x4 | 4x4 |
Gearbox | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 5.9 | 5.9 | 5.2 | 4.9 | 4.9 | 4.7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.2-8.8 | 8.7-8.3 | 9.8-10.2 | 10.9-10.6 | 10.2-10.3 | 10.8-10.6 |
Out of town [l] | 5.2-5.7 | 5.7-5.1 | 5.8-6.3 | 6.2-5.8 | 6.2-6.4 | 6.4-6.2 |
Combined [l] | 6.3-6.8 | 6.8-6.3 | 7.3-7.8 | 8.0-7.6 | 7.6-7.9 | 8.0-7.8 |
CO2 emissions [g/km] | 146-157 | 154-143 | 170-181 | 181-172 | 178-183 | 183-178 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1520 | 1520 | 1645 | 1645 | 1690 | 1690 |
Overall weight [kg] | 2085 | 2085 | 2210 | 2210 | 2225 | 2225 |
Maximum trailer weight unbraked/braked [kg] | - | - | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 435 | 435 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/45 ZR18 | 225/45 ZR18 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 ZR18 | 245/40 ZR18 |
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.5J x 18 ET33 | 7.5J x 18 ET33 |
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 8.5J x 18 ET49 | 8.5J x 18 ET49 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.45 | -/11.45 | -/11.45 | -/11.45 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1429 | 1429 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1578 | 1578 |
Rear wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1554 | 1554 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 63 AMG | C 63 AMG S | C 350 e | C 180d | C 180d | C 200d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 3982 | 3982 | 1991 | 1598 | 1598 | 1598 |
Maximum output / speed [kW/min-1] | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 60/2000 el. 205 total | 85/3000-4600 | 85/3000-4600 | 100/3800 |
Maximum torque [Nm/min-1] | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 340 el. | 280/1500-2800 | 280/1500-2800 | 300/1500-3000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 80,0 x 79,5 | 80,0 x 79,5 | 80,0 x 79,5 |
Compression ratio | 10,5:1 | 10,5:1 | 9,8:1 | 15,7:1 | 15,7:1 | 15,7:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
Drive specifications |
|
|
| - |
| - |
Top speed [km/h] | 250 | 250 | 250 | 205 | 204 | 218 |
Acceleration 0–100 km/h [s] | 4.1 | 4.0 | 5.9 | 11.1 | 11.6 | 9.7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 10.8 | 10.8-11.0 | - | 4.7-4.9 | 5.1-5.5 | 4.7-4.9 |
Out of town [l] | 6.7 | 6.7-6.9 | - | 3.5-3.7 | 3.6-4.1 | 3.5-3.7 |
Combined [l] | 8.2 | 8.2-8.4 | 2.1-2.4 [11.0-13.2 kWh] | 3.9-4.2 | 4.2-4.6 | 3.9-4.2 |
CO2 emissions [g/km] | 192 | 192-195 | 48-54 | 99-110 | 109-119 | 99-110 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 6.38 kWh | - | - | - |
Range with fully charged battery [km] | - | - | 31 | - | - | - |
Charging time | - | - |
| - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | 100 | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1715 | 1730 | 1780 | 1485 | 1505 | 1485 |
Overall weight [kg] | 2175 | 2180 | 2305 | 2055 | 2075 | 2055 |
Maximum trailer weight unbraked/braked [kg] | - | - | - | 740/1600 | 750/1600 | 740/1600 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 435 | 435 | 335 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 50 | 41 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.32 | 0.33 | 0.27 | 0.24 | 0.24 | 0.26 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 245/40 R18 | 245/35 R19 | 225/50 R17 | 195/65 R16 | 195/65 R16 | 195/65 R16 |
Tyre dimensions rear | 265/40 R18 | 265/35 R19 | 245/45 R17 | 195/65 R16 | 195/65 R16 | 195/65 R16 |
Wheel size front | 8.5J x 18 ET38 | 8.5J x 19 ET38 | 7.0J x 17 ET 48.5 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 |
Wheel size rear | 9.5J x 18 ET56 | 9.5J x 19 ET56 | 8.0J x 17 ET 54 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 |
Brake dimensions front | 360 x 36 | 360 x 36 | - | - | - | - |
Brake dimensions rear | 330 x 26 | 360 x 26 | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.29 | -/11.29 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4756 | 4756 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1426 | 1426 | 1442 | 1442 | 1442 | 1442 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1609 | 1609 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1546 | 1546 | 1573 | 1573 | 1573 | 1573 |
Forward overhang [mm] | - | - | 790 | 790 | 790 | 790 |
Rear overhang [mm] | - | - | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 200d | C 200d | C 220d | C 220d | C 220d | C 220d BlueEFFICIENCY Edition | |
---|---|---|---|---|---|---|
Date of sale | from to 2016 | from 2016 to | - | from to 2016 | from 2016 to | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1598 | 1598 | 2143 | 2143 | 2143 | 2143 |
Maximum output / speed [kW/min-1] | 100/3800 | 100/3800 | 125/3000-4200 | 125/3000-4200 | 125/3000-4200 | 120/3000-4200 |
Maximum torque [Nm/min-1] | 300/1500-3000 | 300/1500-3000 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 |
Bore and stroke [mm x mm] | 80,0 x 79,5 | 80,0 x 79,5 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
Compression ratio | 15,7:1 | 15,7:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 7 gear automatic | 9 gear automatic | 6 gear manual | 7 gear automatic | 9 gear automatic | 7 gear automatic |
Drive specifications |
|
| - |
|
|
|
Top speed [km/h] | 216 | 214 | 234 | 233 | 235 | 233 |
Acceleration 0–100 km/h [s] | 10.2 | 10.2 | 7.7 | 7.4 | 7.5 | 7.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 5.1-5.5 | 5.7-5.7 | 4.8-5.0 | 5.3-5.6 | 5.7-5.4 | 5.0-5.7 |
Out of town [l] | 3.6-4.1 | 4.2-3.7 | 3.4-3.7 | 3.6-4.1 | 4.2-3.6 | 3.4-4.0 |
Combined [l] | 4.2-4.6 | 4.7-4.4 | 4.0-4.2 | 4.3-4.6 | 4.7-4.4 | 4.0-4.6 |
CO2 emissions [g/km] | 109-119 | 124-112 | 103-110 | 109-121 | 124-112 | 106-118 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1505 | 1505 | 1550 | 1570 | 1570 | 1505 |
Overall weight [kg] | 2075 | 2075 | 2115 | 2135 | 2135 | 1970 |
Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1800 | 750/1800 | 750/1800 | - |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.24 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 195/65 R16 | 195/65 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 195/65 R16 |
Tyre dimensions rear | 195/65 R16 | 195/65 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 195/65 R16 |
Wheel size front | 6.0 J x 16 | 6.0 J x 16 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.0 J x 16 |
Wheel size rear | 6.0 J x 16 | 6.0 J x 16 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.0 J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1442 | 1442 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 220d 4MATIC | C 220d 4MATIC | C 250d | C 250d | C 250d 4MATIC | C 250d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from to 2016 | from 2016 to | from to 2016 | from 2016 to | from to 2016 | from 2016 to |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
Maximum output / speed [kW/min-1] | 125/3000-4200 | 125/3000-4200 | 150/3800 | 150/3800 | 150/3800 | 150/3800 |
Maximum torque [Nm/min-1] | 400/1400-2800 | 400/1400-2800 | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 |
Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
Gearbox | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 228 | 230 | 247 | 247 | 240 | 242 |
Acceleration 0–100 km/h [s] | 7.7 | 7.5 | 6.6 | 6.6 | 6.9 | 6.8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 5.9-6.1 | 5.8-5.4 | 5.3-5.6 | 5.7-5.4 | 5.9-6.1 | 5.8-5.4 |
Out of town [l] | 4.3-4.4 | 4.6-4.2 | 3.6-4.1 | 4.2-3.7 | 4.3-4.4 | 4.6-4.2 |
Combined [l] | 4.8-5.0 | 5.0-4.6 | 4.3-4.6 | 4.7-4.4 | 4.8-5.0 | 5.0-4.6 |
CO2 emissions [g/km] | 127-134 | 132-122 | 109-121 | 124-112 | 127-134 | 132-122 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1635 | 1635 | 1595 | 1595 | 1660 | 1660 |
Overall weight [kg] | 2220 | 2220 | 2160 | 2160 | 2225 | 2225 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.3 | 0.3 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 |
Wheel size rear | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.45 | -/11.45 | -/11.22 | -/11.22 | -/11.45 | -/11.45 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1442 | 1442 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 300h | ||||||
---|---|---|---|---|---|---|
Date of sale | - | |||||
Engine type | Diesel supercharged + Electric | |||||
Number of cylinders/valves | 4/16 | |||||
Engine displacement [cm³] | 2143 | |||||
Maximum output / speed [kW/min-1] | 150/3800 combustion 20/1800 el. | |||||
Maximum torque [Nm/min-1] | 500/1600-1800 combustion 250 el. | |||||
Bore and stroke [mm x mm] | 83,0 x 99,0 | |||||
Compression ratio | 16,2:1 | |||||
Oil volume [l] | - | |||||
Coolant volume [l] | - | |||||
Technical specifications |
| |||||
Drive axle | Rear | |||||
Gearbox | 7 gear automatic | |||||
Drive specifications |
| |||||
Top speed [km/h] | 244 | |||||
Acceleration 0–100 km/h [s] | 6.4 | |||||
Acceleration 0–80 km/h [s] | - | |||||
Acceleration 80–120 km/h [s] | - | |||||
City [l] | 3.9-4.1 | |||||
Out of town [l] | 3.4-3.9 | |||||
Combined [l] | 3.6-3.9 | |||||
CO2 emissions [g/km] | 94-103 | |||||
Emission standard | EU6 | |||||
Standard for fuel consumption measurement | - | |||||
Energy class | - | |||||
Stationary vehicle noise [dB] | - | |||||
Driving noise [dB] | - | |||||
Standby weight [kg] | 1715 | |||||
Overall weight [kg] | 2280 | |||||
Maximum trailer weight unbraked/braked [kg] | - | |||||
Maximum front/rear axle load [kg] | - | |||||
Maximum vertical load on the tow bar [kg] | - | |||||
Maximum load on roof/carrier [kg] | 75/- | |||||
Boot volume [l] | 435 | |||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
Boot length [mm] | - | |||||
Boot length with rear seats folded [mm] | - | |||||
Boot width between wheels/max [mm] | - | |||||
Boot height to headliner/ceiling [mm] | - | |||||
Loading edge height [mm] | - | |||||
Height of the open boot door [mm] | 1763 | |||||
Boot opening height [mm] | - | |||||
Boot opening width min/max [mm] | - | |||||
Number of doors | 4 | |||||
Number of seats | 5 | |||||
Fuel tank volume [l] | 50 | |||||
AdBlue tank volume [l] | - | |||||
Air resistance [Cd] | 0.27 | |||||
Front suspension | multilink | |||||
Rear suspension | multilink | |||||
Tyre dimensions front | 205/60 R16 | |||||
Tyre dimensions rear | 205/60 R16 | |||||
Wheel size front | 6.5J x 16 ET38 | |||||
Wheel size rear | 6.5J x 16 ET38 | |||||
Brake dimensions front | - | |||||
Brake dimensions rear | - | |||||
Steering | - | |||||
Number of steering wheel turns | - | |||||
Turning diameter track/circumference [m] | -/11.22 | |||||
Overall length [mm] | 4686 | |||||
Overall width without/including mirrors [mm] | 1810/2020 | |||||
Overall height [mm] | 1442 | |||||
Wheelbase [mm] | 2840 | |||||
Front wheel track [mm] | 1584 | |||||
Rear wheel track [mm] | 1573 | |||||
Forward overhang [mm] | 790 | |||||
Rear overhang [mm] | 1056 | |||||
Clearance [mm] | 92 | |||||
Wading depth [mm] | - | |||||
Approach angle front [°] | 13.5 | |||||
Approach angle rear [°] | 14.2 | |||||
Transition angle [°] | 8.9 | |||||
Climbing rate [°] | - | |||||
Maximum side tilt [°] | - | |||||
Headroom front [mm] | 1039 | |||||
Headroom rear [mm] | 942 | |||||
Front elbow/shoulder width [mm] | 1404/1454 | |||||
Rear elbow/shoulder width [mm] | 1398/1462 | |||||
Legroom front knees/total [mm] | - | |||||
Legroom rear knees/total [mm] | - |
Estate
C 160 | C 160 | C 180 | C 180 | C 180 | C 200 | |
---|---|---|---|---|---|---|
Date of sale | - | from 2016 to | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1595 | 1991 |
Maximum output / speed [kW/min-1] | 95/5000 | 95/5000 | 115/5300 | 115/5300 | 115/5300 | 135/5500 |
Maximum torque [Nm/min-1] | 210/1200-4000 | 210/1200-4000 | 250/1200-4000 | 250/1200-4000 | 250/1200-4000 | 300/1200-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 6 gear manual | 9 gear automatic | 6 gear manual | 7 gear automatic | 9 gear automatic | 6 gear manual |
Drive specifications | - |
| - |
|
| - |
Top speed [km/h] | 210 | 208 | 223 | 221 | 222 | 235 |
Acceleration 0–100 km/h [s] | 9.9 | 10.2 | 8.4 | 8.7 | 8.5 | 7.7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.7-7.0 | 7.8-7.6 | 6.7-7.0 | 7.0 | 7.8-7.6 | 7.0-7.2 |
Out of town [l] | 4.6-4.9 | 5.5-5.1 | 4.6-4.9 | 4.7-5.2 | 5.5-5.1 | 4.6-5.1 |
Combined [l] | 5.4-5.7 | 6.4-6.0 | 5.4-5.7 | 5.6-5.8 | 6.4-6.0 | 5.5-5.8 |
CO2 emissions [g/km] | 125-132 | 144-135 | 125-132 | 129-135 | 144-135 | 128-134 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1470 | 1470 | 1470 | 1500 | 1500 | 1495 |
Overall weight [kg] | 2045 | 2045 | 2045 | 2075 | 2075 | 2070 |
Maximum trailer weight unbraked/braked [kg] | 735/1400 | 735/1400 | 735/1600 | 745/1800 | 745/1800 | 745/1600 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
Boot length [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Wheel size front | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.5 J x 16 ET 38 |
Wheel size rear | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.0 J x 16 | 6.5 J x 16 ET 38 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 200 | C 200 | C 200 4MATIC | C 200 4MATIC | C 250 | C 250 | |
---|---|---|---|---|---|---|
Date of sale | from to 2016 | from 2016 to | from to 2016 | from 2016 to | from to 2016 | from 2016 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 135/5500 | 135/5500 | 155/5500 | 155/5500 |
Maximum torque [Nm/min-1] | 300/1200-4000 | 300/1200-4000 | 300/1200-4000 | 300/1200-4000 | 350/1200-4000 | 350/1200-4000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
Gearbox | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 233 | 235 | 227 | 229 | 244 | 244 |
Acceleration 0–100 km/h [s] | 7.5 | 7.3 | 7.8 | 7.6 | 6.8 | 6.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.0-7.7 | 7.8-7.4 | 7.4-7.6 | 9.2-8.8 | 7.1-7.8 | 8.0-7.6 |
Out of town [l] | 4.6-5.2 | 5.2-4.7 | 5.5-5.9 | 6.2-5.8 | 4.7-5.3 | 5.4-4.9 |
Combined [l] | 5.5-6.1 | 6.2-5.7 | 6.2-6.5 | 7.3-6.9 | 5.6-6.2 | 6.4-6.0 |
CO2 emissions [g/km] | 128-142 | 139-129 | 143-152 | 165-155 | 130-144 | 144-133 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1525 | 1525 | - | - | 1545 | 1545 |
Overall weight [kg] | 2100 | 2100 | - | - | 2120 | 2120 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
Boot length [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 | 205/60 R16 | 205/60 R16 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 | 205/60 R16 | 205/60 R16 |
Wheel size front | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 |
Wheel size rear | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 6.5 J x 16 ET 38 | 6.5 J x 16 ET 38 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.45 | -/11.45 | -/11.22 | -/11.22 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 300 | C 300 | C 400 4MATIC | C 400 4MATIC | C 450 AMG 4MATIC | C 43 AMG 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from to 2016 | from 2016 to | from to 2016 | from 2016 to | from to 2016 | from 2016 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
Engine displacement [cm³] | 1991 | 1991 | 2996 | 2996 | 2996 | 2996 |
Maximum output / speed [kW/min-1] | 180/5500 | 180/5500 | 245/5250-6000 | 245/5250-6000 | 270/5500-6000 | 270/5500-6000 |
Maximum torque [Nm/min-1] | 370/1300-4000 | 370/1300-4000 | 480/1600-4000 | 480/1600-4000 | 520/2000-4200 | 520/2000-4200 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 |
Compression ratio | 9,8:1 | 9,8:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | 4x4 | 4x4 |
Gearbox | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 6.1 | 6.1 | 5.2 | 5.0 | 5.0 | 4.8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.3-8.8 | 8.8-8.4 | 9.9-10.3 | 10.9-10.7 | 10.2-10.4 | 10.8-10.7 |
Out of town [l] | 5.4-5.8 | 5.8-5.3 | 5.9-6.4 | 6.3-6.0 | 6.3-6.5 | 6.5-6.4 |
Combined [l] | 6.4-6.8 | 6.9-6.5 | 7.4-7.8 | 8.1-7.7 | 7.7-7.9 | 8.1-7.9 |
CO2 emissions [g/km] | 149-159 | 156-146 | 173-182 | 183-174 | 180-185 | 185-181 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | - | - | 1730 | 1730 | 1735 | 1735 |
Overall weight [kg] | - | - | 2305 | 2305 | 2320 | 2320 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
Boot length [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 590 | 590 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | - | - |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.3 | 0.3 | 0.31 | 0.31 | 0.35 | 0.35 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/45 ZR18 | 225/45 ZR18 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 ZR18 | 245/40 ZR18 |
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.5J x 18 ET33 | 7.5J x 18 ET33 |
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 8.5J x 18 ET49 | 8.5J x 18 ET49 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.45 | -/11.45 | -/11.45 | -/11.45 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4714 | 4714 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1440 | 1440 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1578 | 1578 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1554 | 1554 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | - | - |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | - | - |
Clearance [mm] | 92 | 92 | 92 | 92 | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | - | - |
Approach angle rear [°] | 14.0 | 14.0 | 14.0 | 14.0 | - | - |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 63 AMG | C 63 AMG S | C 350 e | C 180d | C 180d | C 200d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 3982 | 3982 | 1991 | 1598 | 1598 | 1598 |
Maximum output / speed [kW/min-1] | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 60/2000 el. 205 total | 85/3000-4600 | 85/3000-4600 | 100/3800 |
Maximum torque [Nm/min-1] | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 340 el. | 280/1500-2800 | 280/1500-2800 | 300/1500-3000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 80,0 x 79,5 | 80,0 x 79,5 | 80,0 x 79,5 |
Compression ratio | 10,5:1 | 10,5:1 | 9,8:1 | 15,7:1 | 15,7:1 | 15,7:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
Drive specifications |
|
|
| - |
| - |
Top speed [km/h] | 250 | 250 | 246 | 201 | 200 | 214 |
Acceleration 0–100 km/h [s] | 4.2 | 4.1 | 6.2 | 11.5 | 12.0 | 10.1 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 10.9 | 10.9-11.2 | - | 5.1-5.5 | 5.2-5.7 | 5.1-5.5 |
Out of town [l] | 6.9 | 6.9-7.1 | - | 3.8-4.1 | 3.8-4.3 | 3.8-4.1 |
Combined [l] | 8.4 | 8.4-8.6 | 2.1-2.4 [11.7-13.8 kWh] | 4.3-4.6 | 4.3-4.8 | 4.3-4.6 |
CO2 emissions [g/km] | 196 | 196-200 | 49-55 | 109-120 | 114-124 | 109-120 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 6.38 kWh | - | - | - |
Range with fully charged battery [km] | - | - | 31 | - | - | - |
Charging time | - | - |
| - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | 100 | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1785 | 1800 | 1840 | 1550 | 1585 | 1545 |
Overall weight [kg] | 2260 | 2260 | 2305 | 2125 | 2160 | 2120 |
Maximum trailer weight unbraked/braked [kg] | - | - | 750/1600 | 750/1600 | 750/1600 | 750/1600 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 490 | 490 | 450 | 490 | 490 | 490 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1470 | -/1510 | -/1510 | -/1510 |
Boot length [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | - | - | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | - | - | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | - | - | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 66 | 66 | 50 | 41 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.33 | 0.34 | 0.27 | 0.27 | 0.27 | 0.27 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 245/40 R18 | 245/35 R19 | 225/50 R17 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Tyre dimensions rear | 265/40 R18 | 265/35 R19 | 245/45 R17 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Wheel size front | 8.5J x 18 ET38 | 8.5J x 19 ET38 | 7.0J x 17 ET 48.5 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 |
Wheel size rear | 9.5J x 18 ET56 | 9.5J x 19 ET56 | 8.0J x 17 ET 54 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 |
Brake dimensions front | 360 x 36 | 360 x 36 | - | - | - | - |
Brake dimensions rear | 330 x 26 | 360 x 26 | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.29 | -/11.29 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4771 | 4771 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1839/- | 1839/- | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1441 | 1441 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1609 | 1609 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1546 | 1546 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | - | - | 790 | 790 | 790 | 790 |
Rear overhang [mm] | - | - | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | - | - | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | - | - | 14.0 | 14.0 | 14.0 | 14.0 |
Transition angle [°] | - | - | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 200d | C 200d | C 220d | C 220d | C 220d | C 220d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | from to 2016 | from 2016 to | from to 2016 |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1598 | 1598 | 2143 | 2143 | 2143 | 2143 |
Maximum output / speed [kW/min-1] | 100/3800 | 100/3800 | 125/3000-4200 | 125/3000-4200 | 125/3000-4200 | 125/3000-4200 |
Maximum torque [Nm/min-1] | 300/1500-3000 | 300/1500-3000 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 |
Bore and stroke [mm x mm] | 80,0 x 79,5 | 80,0 x 79,5 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
Compression ratio | 15,7:1 | 15,7:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
Gearbox | 7 gear automatic | 9 gear automatic | 6 gear manual | 7 gear automatic | 9 gear automatic | 7 gear automatic |
Drive specifications |
|
| - |
|
|
|
Top speed [km/h] | 212 | 210 | 230 | 229 | 231 | 223 |
Acceleration 0–100 km/h [s] | 10.6 | 10.6 | 7.9 | 7.6 | 7.5 | 7.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 5.2-5.7 | 5.9-5.3 | 5.2-5.4 | 5.3-5.7 | 5.9-5.3 | 6.0 |
Out of town [l] | 3.8-4.3 | 4.4-3.8 | 3.7-4.1 | 3.8-4.2 | 4.4-3.8 | 4.4-4.8 |
Combined [l] | 4.3-4.8 | 5.0-4.4 | 4.3-4.5 | 4.4-4.8 | 5.0-4.4 | 5.0-5.2 |
CO2 emissions [g/km] | 114-124 | 127-114 | 108-115 | 114-122 | 127-114 | 129-137 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1580 | 1580 | 1595 | 1615 | 1615 | - |
Overall weight [kg] | 2155 | 2155 | 2170 | 2190 | 2190 | - |
Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
Boot length [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 41 | 41 | 41 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.27 | 0.27 | 0.28 | 0.28 | 0.28 | 0.28 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 |
Wheel size front | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET 48.5 |
Wheel size rear | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET 48.5 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.45 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 220d 4MATIC | C 250d | C 250d | C 250d 4MATIC | C 250d 4MATIC | C 300h | |
---|---|---|---|---|---|---|
Date of sale | from 2016 to | from to 2016 | from 2016 to | from to 2016 | from 2016 to | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
Maximum output / speed [kW/min-1] | 125/3000-4200 | 150/3800 | 150/3800 | 150/3800 | 150/3800 | 150/3800 combustion 20/1800 el. |
Maximum torque [Nm/min-1] | 400/1400-2800 | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 |
Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | Rear | 4x4 | 4x4 | Rear |
Gearbox | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 225 | 241 | 245 | 235 | 237 | 238 |
Acceleration 0–100 km/h [s] | 7.7 | 6.9 | 6.9 | 7.2 | 7.0 | 6.7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 5.8-5.5 | 5.4-5.8 | 6.0-5.4 | 6.0 | 5.8-5.5 | 4.0-4.2 |
Out of town [l] | 4.7-4.3 | 3.9-4.3 | 4.5-3.9 | 4.4-4.8 | 4.7-4.3 | 3.7-4.4 |
Combined [l] | 5.1-4.7 | 4.5-4.9 | 5.1-4.5 | 5.0-5.2 | 5.1-4.7 | 3.8-4.2 |
CO2 emissions [g/km] | 134-124 | 117-125 | 130-117 | 129-137 | 134-124 | 99-106 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | - | 1660 | 1660 | 1710 | 1710 | 1765 |
Overall weight [kg] | - | 2235 | 2235 | 2285 | 2285 | 2340 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1600 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 450 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1470 |
Boot length [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
Boot length with rear seats folded [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | -/795 | -/795 | -/795 | -/795 | -/795 | -/795 |
Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | 709 | 709 | 709 | 709 | 709 | 709 |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 41 | 50 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.29 | 0.29 | 0.29 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0J x 17 ET 48.5 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 |
Wheel size rear | 7.0J x 17 ET 48.5 | 6.5J x 16 ET38 | 6.5J x 16 ET38 | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 | 7.0J x 17 ET 48.5 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.45 | -/11.22 | -/11.22 | -/11.45 | -/11.45 | -/11.22 |
Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
Overall width without/including mirrors [mm] | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 | 1810/2020 |
Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
Approach angle rear [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
Transition angle [°] | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 | 1404/1454 |
Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
Coupé
C 180 | C 180 | C 180 | C 200 | C 200 | C 200 | |
---|---|---|---|---|---|---|
Date of sale | - | from to 2016 | from 2016 to | - | from to 2016 | from 2016 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1595 | 1595 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 115/5300 | 115/5300 | 115/5300 | 135/5500 | 135/5500 | 135/5500 |
Maximum torque [Nm/min-1] | 250/1200-4000 | 250/1200-4000 | 250/1200-4000 | 300/1200-4000 | 300/1200-4000 | 300/1200-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 6 gear manual | 7 gear automatic | 9 gear automatic | 6 gear manual | 7 gear automatic | 9 gear automatic |
Drive specifications | - |
|
| - |
|
|
Top speed [km/h] | 225 | 223 | 226 | 237 | 235 | 240 |
Acceleration 0–100 km/h [s] | 8.5 | 8.8 | 8.5 | 7.7 | 7.3 | 7.3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.8-7.2 | 6.8-7.4 | 7.8-7.5 | 6.8-7.5 | 6.9-7.5 | 7.9-7.5 |
Out of town [l] | 4.4-5.0 | 4.6-4.9 | 5.4-4.9 | 4.4-4.9 | 4.5-5.0 | 5.2-4.7 |
Combined [l] | 5.3-5.8 | 5.4-5.9 | 6.3-5.9 | 5.3-5.9 | 5.4-5.9 | 6.2-5.8 |
CO2 emissions [g/km] | 122-135 | 126-135 | 142-132 | 123-136 | 125-137 | 140-129 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1475 | 1505 | 1505 | 1505 | 1525 | 1525 |
Overall weight [kg] | 1955 | 1985 | 1985 | 1985 | 2005 | 2005 |
Maximum trailer weight unbraked/braked [kg] | 740/1400 | 750/1800 | 750/1800 | 750/1600 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1805 | 1805 | 1805 | 1805 | 1805 | 1805 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 41 | 41 | 41 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1405 | 1405 | 1405 | 1405 | 1405 | 1405 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 89 | 89 | 89 | 89 | 89 | 89 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
Approach angle rear [°] | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 200 4MATIC | C 250 | C 250 | C 300 | C 300 | C 400 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from 2016 to | from to 2016 | from 2016 to | from to 2016 | from 2016 to | from 2016 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 2996 |
Maximum output / speed [kW/min-1] | 135/5500 | 155/5500 | 155/5500 | 180/5500 | 180/5500 | 245/5250-6000 |
Maximum torque [Nm/min-1] | 300/1200-4000 | 350/1200-4000 | 350/1200-4000 | 370/1300-4000 | 370/1300-4000 | 480/1600-4000 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 88,0 x 82,1 |
Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 10,7:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | Rear | Rear | Rear | 4x4 |
Gearbox | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 229 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 7.5 | 6.8 | 6.6 | 6.0 | 6.0 | 4.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.2-8.8 | 6.9-7.5 | 8.0-7.5 | 8.2-8.8 | 8.7-8.3 | 10.9-10.6 |
Out of town [l] | 6.1-5.7 | 4.5-5.0 | 5.3-4.7 | 5.2-5.7 | 5.7-5.1 | 6.2-5.8 |
Combined [l] | 7.2-6.8 | 5.4-5.9 | 6.3-5.8 | 6.3-6.8 | 6.8-6.3 | 8.0-7.6 |
CO2 emissions [g/km] | 162-153 | 125-137 | 141-130 | 146-157 | 154-143 | 181-172 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1595 | 1540 | 1540 | 1565 | 1565 | 1805 |
Overall weight [kg] | 2075 | 2020 | 2020 | 2045 | 2045 | 2285 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1805 | 1805 | 1805 | 1805 | 1805 | 1805 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 50 | 50 | 50 | 66 | 66 | 66 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.45 | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.45 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2020 |
Overall height [mm] | 1405 | 1405 | 1405 | 1405 | 1405 | 1405 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 89 | 89 | 89 | 89 | 89 | 89 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
Approach angle rear [°] | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 43 AMG 4MATIC | C 63 AMG | C 63 AMG S | C 220d | C 220d | C 220d 4MATIC | |
---|---|---|---|---|---|---|
Date of sale | from 2016 to | - | - | - | - | from 2016 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 2996 | 3982 | 3982 | 2143 | 2143 | 2143 |
Maximum output / speed [kW/min-1] | 270/5500-6000 | 350/5500-6250 | 375/5500-6250 | 125/3000-4200 | 125/3000-4200 | 125/3000-4200 |
Maximum torque [Nm/min-1] | 520/2000-4200 | 650/1750-4500 | 700/1750-4500 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 |
Bore and stroke [mm x mm] | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
Compression ratio | 10,7:1 | 10,5:1 | 10,5:1 | 16,2:1 | 16,2:1 | 16,2:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | Rear | Rear | Rear | 4x4 |
Gearbox | 9 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 9 gear automatic | 9 gear automatic |
Drive specifications |
|
|
| - |
|
|
Top speed [km/h] | 250 | 250 | 250 | 234 | 234 | 231 |
Acceleration 0–100 km/h [s] | 4.7 | 4.0 | 3.9 | 7.8 | 7.5 | 7.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 10.8-10.6 | 11.4-11.9 | 11.4-11.9 | 5.0-5.3 | 5.7-5.4 | 5.8-5.4 |
Out of town [l] | 6.4-6.2 | 6.9-7.1 | 6.9-7.1 | 3.6-3.9 | 4.2-3.7 | 4.6-4.2 |
Combined [l] | 8.0-7.8 | 8.6-8.9 | 8.6-8.9 | 4.1-4.4 | 4.7-4.4 | 5.0-4.6 |
CO2 emissions [g/km] | 183-178 | 200-209 | 200-209 | 106-116 | 124-112 | 132-122 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1870 | 1785 | 1800 | 1605 | 1615 | 1670 |
Overall weight [kg] | 2315 | 2155 | 2160 | 2085 | 2095 | 2150 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | - | - | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 400 | 355 | 355 | 400 | 400 | 400 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1805 | 1805 | 1805 | 1805 | 1805 | 1805 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 66 | 66 | 66 | 41 | 41 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | 0.35 | 0.35 | 0.26 | 0.26 | 0.26 |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/45 ZR18 | 245/40 R18 | 245/35 R19 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 245/40 ZR18 | 265/40 R18 | 265/35 R19 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.5J x 18 ET33 | 8.5J x 18 ET38 | 8.5J x 19 ET38 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Wheel size rear | 8.5J x 18 ET49 | 9.5J x 18 ET56 | 9.5J x 19 ET56 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Brake dimensions front | 360 x 36 | 360 x 36 | 360 x 36 or 390 x 36 | - | - | - |
Brake dimensions rear | 320 x 24 | 330 x 26 or 360 x 36 | 360 x 26 | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.45 | -/11.29 | -/11.29 | -/11.22 | -/11.22 | -/11.45 |
Overall length [mm] | 4702 | 4756 | 4756 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2020 | 1839/- | 1839/- | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1405 | 1405 | 1405 | 1405 | 1405 | 1405 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1563 | 1609 | 1609 | 1563 | 1563 | 1563 |
Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
Forward overhang [mm] | 790 | - | - | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | - | - | 1056 | 1056 | 1056 |
Clearance [mm] | 89 | 89 | 89 | 89 | 89 | 89 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
Approach angle rear [°] | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 | 1312/1358 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 250d | C 250d 4MATIC | |||||
---|---|---|---|---|---|---|
Date of sale | - | from 2016 to | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/16 | 4/16 | ||||
Engine displacement [cm³] | 2143 | 2143 | ||||
Maximum output / speed [kW/min-1] | 150/3800 | 150/3800 | ||||
Maximum torque [Nm/min-1] | 500/1600-1800 | 500/1600-1800 | ||||
Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | ||||
Compression ratio | 16,2:1 | 16,2:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Rear | 4x4 | ||||
Gearbox | 9 gear automatic | 9 gear automatic | ||||
Drive specifications |
|
| ||||
Top speed [km/h] | 247 | 241 | ||||
Acceleration 0–100 km/h [s] | 6.7 | 6.9 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 5.5-5.0 | 5.8-5.4 | ||||
Out of town [l] | 4.5-4.0 | 4.6-4.2 | ||||
Combined [l] | 4.8-4.4 | 5.0-4.6 | ||||
CO2 emissions [g/km] | 127-115 | 132-122 | ||||
Emission standard | EU6 | EU6 | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1645 | 1685 | ||||
Overall weight [kg] | 2125 | 2165 | ||||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | ||||
Maximum front/rear axle load [kg] | - | - | ||||
Maximum vertical load on the tow bar [kg] | - | - | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 400 | 400 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
Boot length [mm] | - | - | ||||
Boot length with rear seats folded [mm] | - | - | ||||
Boot width between wheels/max [mm] | - | - | ||||
Boot height to headliner/ceiling [mm] | - | - | ||||
Loading edge height [mm] | - | - | ||||
Height of the open boot door [mm] | 1805 | 1805 | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 2 | 2 | ||||
Number of seats | 4 | 4 | ||||
Fuel tank volume [l] | 50 | 50 | ||||
AdBlue tank volume [l] | - | - | ||||
Air resistance [Cd] | 0.28 | 0.28 | ||||
Front suspension | multilink | multilink | ||||
Rear suspension | multilink | multilink | ||||
Tyre dimensions front | 225/50 R17 | 225/50 R17 | ||||
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | ||||
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | ||||
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | ||||
Brake dimensions front | - | - | ||||
Brake dimensions rear | - | - | ||||
Steering | - | - | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | -/11.22 | -/11.45 | ||||
Overall length [mm] | 4686 | 4686 | ||||
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | ||||
Overall height [mm] | 1405 | 1405 | ||||
Wheelbase [mm] | 2840 | 2840 | ||||
Front wheel track [mm] | 1563 | 1563 | ||||
Rear wheel track [mm] | 1546 | 1546 | ||||
Forward overhang [mm] | 790 | 790 | ||||
Rear overhang [mm] | 1056 | 1056 | ||||
Clearance [mm] | 89 | 89 | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | 13.1 | 13.1 | ||||
Approach angle rear [°] | 14.5 | 14.5 | ||||
Transition angle [°] | 8.8 | 8.8 | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | 1023 | 1023 | ||||
Headroom rear [mm] | 905 | 905 | ||||
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | ||||
Rear elbow/shoulder width [mm] | 1312/1358 | 1312/1358 | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Convertible
C 180 | C 180 | C 200 | C 200 | C 200 4MATIC | C 250 | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1595 | 1595 | 1991 | 1991 | 1991 | 1991 |
Maximum output / speed [kW/min-1] | 115/5300 | 115/5300 | 135/5500 | 135/5500 | 135/5500 | 155/5500 |
Maximum torque [Nm/min-1] | 250/1200-4000 | 250/1200-4000 | 300/1200-4000 | 300/1200-4000 | 300/1200-4000 | 350/1200-4000 |
Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
Compression ratio | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
Gearbox | 6 gear manual | 9 gear automatic | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic |
Drive specifications | - |
| - |
|
|
|
Top speed [km/h] | 222 | 220 | 235 | 233 | 227 | 244 |
Acceleration 0–100 km/h [s] | 8.9 | 8.9 | 8.2 | 7.8 | 8.0 | 6.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.8-7.6 | 7.9-7.7 | 7.7-7.5 | 8.1-7.8 | 9.5-9.1 | 8.2-7.8 |
Out of town [l] | 5.4-5.1 | 5.7-5.3 | 5.5-5.1 | 5.5-5.1 | 6.5-6.1 | 5.7-5.2 |
Combined [l] | 6.3-6.0 | 6.5-6.2 | 6.3-6.0 | 6.5-6.1 | 7.5-7.2 | 6.6-6.2 |
CO2 emissions [g/km] | 143-135 | 149-140 | 143-136 | 147-138 | 171-162 | 150-140 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1600 | 1615 | 1645 | 1665 | 1725 | 1665 |
Overall weight [kg] | 2080 | 2095 | 2125 | 2145 | 2205 | 2145 |
Maximum trailer weight unbraked/braked [kg] | 740/1400 | 750/1800 | 750/1600 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 41 | 41 | 50 | 50 | 50 | 50 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.22 | -/11.22 | -/11.22 | -/11.45 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1409 | 1409 | 1409 | 1409 | 1409 | 1409 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 89 | 89 | 89 | 89 | 89 | 89 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
Approach angle rear [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 300 | C 400 4MATIC | C 43 AMG 4MATIC | C 63 AMG | C 63 AMG S | C 220d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 |
Engine displacement [cm³] | 1991 | 2996 | 2996 | 3982 | 3982 | 2143 |
Maximum output / speed [kW/min-1] | 180/5500 | 245/5250-6000 | 270/5500-6000 | 350/5500-6250 | 375/5500-6250 | 125/3000-4200 |
Maximum torque [Nm/min-1] | 370/1300-4000 | 480/1600-4000 | 520/2000-4200 | 650/1750-4500 | 700/1750-4500 | 400/1400-2800 |
Bore and stroke [mm x mm] | 83,0 x 92,0 | 88,0 x 82,1 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 99,0 |
Compression ratio | 9,8:1 | 10,7:1 | 10,7:1 | 10,5:1 | 10,5:1 | 16,2:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | Rear |
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
Drive specifications |
|
|
|
|
| - |
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 231 |
Acceleration 0–100 km/h [s] | 6.4 | 5.2 | 4.8 | 4.2 | 4.1 | 8.3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.9-8.6 | 11.2-10.9 | 11.2-11.0 | 12.4-12.0 | 12.0 | 5.7-5.4 |
Out of town [l] | 6.0-5.6 | 6.6-6.3 | 6.9-6.7 | 7.5-7.2 | 7.2 | 4.3-3.9 |
Combined [l] | 7.1-6.7 | 8.3-8.0 | 8.4-8.3 | 9.3-8.9 | 8.9 | 4.8-4.5 |
CO2 emissions [g/km] | 161-151 | 189-181 | 194-190 | 218-208 | 208 | 126-116 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1690 | 1805 | 1870 | 1910 | 1925 | 1735 |
Overall weight [kg] | 2170 | 2285 | 2315 | 2275 | 2280 | 2215 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | - | - | 750/1800 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 | 285-360 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 41 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/45 ZR18 | 255/40 ZR18 | 255/35 ZR19 | 225/50 R17 |
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 245/40 ZR18 | 285/35 ZR18 | 285/30 ZR19 | 225/50 R17 |
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.5J x 18 ET33 | 9.0J x 18 ET25 | 9.0J x 19 ET25 | 7.0 J x 17 ET 48.5 |
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 8.5J x 18 ET49 | 10.5J x 18 ET57 | 10.5J x 19 ET57 | 7.0 J x 17 ET 48.5 |
Brake dimensions front | - | - | 360 x 36 | 360 x 36 | 390 x 36 | - |
Brake dimensions rear | - | - | 320 x 24 | 360 x 26 | 360 x 26 | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/11.22 | -/11.45 | -/11.45 | -/11.29 | -/11.29 | -/11.22 |
Overall length [mm] | 4686 | 4686 | 4686 | 4686 | 4686 | 4686 |
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 | 1810/2016 |
Overall height [mm] | 1409 | 1409 | 1409 | 1409 | 1409 | 1409 |
Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
Forward overhang [mm] | 790 | 790 | 790 | 790 | 790 | 790 |
Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
Clearance [mm] | 89 | 89 | 89 | 89 | 89 | 89 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
Approach angle rear [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
Transition angle [°] | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 | 1392/1472 |
Rear elbow/shoulder width [mm] | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 | 1214/1302 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
C 220d | C 220d 4MATIC | C 250d | ||||
---|---|---|---|---|---|---|
Date of sale | - | - | - | |||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
Engine displacement [cm³] | 2143 | 2143 | 2143 | |||
Maximum output / speed [kW/min-1] | 125/3000-4200 | 125/3000-4200 | 150/3800 | |||
Maximum torque [Nm/min-1] | 400/1400-2800 | 400/1400-2800 | 500/1600-1800 | |||
Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | |||
Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | |||
Oil volume [l] | - | - | - | |||
Coolant volume [l] | - | - | - | |||
Technical specifications |
|
|
| |||
Drive axle | Rear | 4x4 | Rear | |||
Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
Drive specifications |
|
|
| |||
Top speed [km/h] | 231 | 225 | 243 | |||
Acceleration 0–100 km/h [s] | 8.2 | 8.1 | 7.2 | |||
Acceleration 0–80 km/h [s] | - | - | - | |||
Acceleration 80–120 km/h [s] | - | - | - | |||
City [l] | 5.7-5.2 | 6.1-5.8 | 5.7-5.2 | |||
Out of town [l] | 4.8-4.3 | 4.9-4.7 | 5.0-4.3 | |||
Combined [l] | 5.2-4.6 | 5.3-5.0 | 5.2-4.6 | |||
CO2 emissions [g/km] | 133-121 | 140-130 | 133-121 | |||
Emission standard | EU6 | EU6 | EU6 | |||
Standard for fuel consumption measurement | - | - | - | |||
Energy class | - | - | - | |||
Stationary vehicle noise [dB] | - | - | - | |||
Driving noise [dB] | - | - | - | |||
Standby weight [kg] | 1745 | 1805 | 1770 | |||
Overall weight [kg] | 2225 | 2285 | 2250 | |||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | |||
Maximum front/rear axle load [kg] | - | - | - | |||
Maximum vertical load on the tow bar [kg] | - | - | - | |||
Maximum load on roof/carrier [kg] | - | - | - | |||
Boot volume [l] | 285-360 | 285-360 | 285-360 | |||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
Boot length [mm] | - | - | - | |||
Boot length with rear seats folded [mm] | - | - | - | |||
Boot width between wheels/max [mm] | - | - | - | |||
Boot height to headliner/ceiling [mm] | - | - | - | |||
Loading edge height [mm] | - | - | - | |||
Height of the open boot door [mm] | 1989 | 1989 | 1989 | |||
Boot opening height [mm] | - | - | - | |||
Boot opening width min/max [mm] | - | - | - | |||
Number of doors | 2 | 2 | 2 | |||
Number of seats | 4 | 4 | 4 | |||
Fuel tank volume [l] | 41 | 41 | 50 | |||
AdBlue tank volume [l] | - | - | - | |||
Air resistance [Cd] | - | - | - | |||
Front suspension | multilink | multilink | multilink | |||
Rear suspension | multilink | multilink | multilink | |||
Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | |||
Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | |||
Wheel size front | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | |||
Wheel size rear | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | 7.0 J x 17 ET 48.5 | |||
Brake dimensions front | - | - | - | |||
Brake dimensions rear | - | - | - | |||
Steering | - | - | - | |||
Number of steering wheel turns | - | - | - | |||
Turning diameter track/circumference [m] | -/11.22 | -/11.45 | -/11.22 | |||
Overall length [mm] | 4686 | 4686 | 4686 | |||
Overall width without/including mirrors [mm] | 1810/2016 | 1810/2016 | 1810/2016 | |||
Overall height [mm] | 1409 | 1409 | 1409 | |||
Wheelbase [mm] | 2840 | 2840 | 2840 | |||
Front wheel track [mm] | 1563 | 1563 | 1563 | |||
Rear wheel track [mm] | 1546 | 1546 | 1546 | |||
Forward overhang [mm] | 790 | 790 | 790 | |||
Rear overhang [mm] | 1056 | 1056 | 1056 | |||
Clearance [mm] | 89 | 89 | 89 | |||
Wading depth [mm] | - | - | - | |||
Approach angle front [°] | 13.1 | 13.1 | 13.1 | |||
Approach angle rear [°] | 12.6 | 12.6 | 12.6 | |||
Transition angle [°] | 8.8 | 8.8 | 8.8 | |||
Climbing rate [°] | - | - | - | |||
Maximum side tilt [°] | - | - | - | |||
Headroom front [mm] | 1021 | 1021 | 1021 | |||
Headroom rear [mm] | 914 | 914 | 914 | |||
Front elbow/shoulder width [mm] | 1392/1472 | 1392/1472 | 1392/1472 | |||
Rear elbow/shoulder width [mm] | 1214/1302 | 1214/1302 | 1214/1302 | |||
Legroom front knees/total [mm] | - | - | - | |||
Legroom rear knees/total [mm] | - | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
