Mercedes-Benz C
Date of manufacture
2011 – 2013 (Sedan)
2011 – 2014 (Estate)
2011 – 2015 (Coupé)
Platform
-
Manufacturing locations
Bremen, Germany
Sindelfingen, Germany
Beijing, People's Republic of China
Designer
Karl Heinz Bauer
Tags
D-segment
German cars
Mercedes-Benz C is available in three different variants - sedan, estate and coupe. Production of the car began in 2011 and takes place both in Germany and in China. The engine range includes petrol and diesel engines. The most powerful model is the C 63 AMG Black Series with a maximum power of 380 kW. It reaches a top speed of 300 km/h and the best acceleration 0-100 km/h in 4.2 seconds. On the other hand, the most comfortable model C 220 CDI BlueEFFICIENCY Edition has a consumption of 4.1 l/100 km and emissions of 109 g/km. The size of the luggage compartment of the sedan model is 475 l, of the coupe 450 l and of the estate 485 l. As for safety, EURONCAP rated this car 5 stars out of 5 in 2011.
Car body style

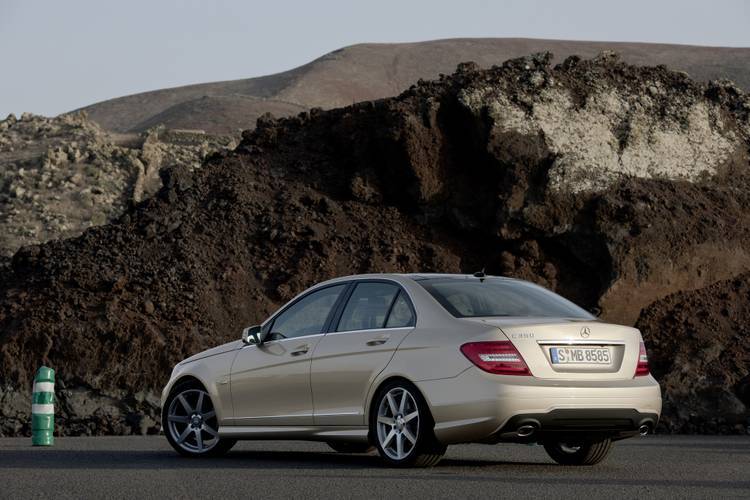

Sedan
after upgrade (facelift)
Date of manufacture
2011 – 2013Internal designation
W204Engine size
Petrol
Diesel
Estate
after upgrade (facelift)
Date of manufacture
2011 – 2014Internal designation
S204Engine size
Petrol
Diesel

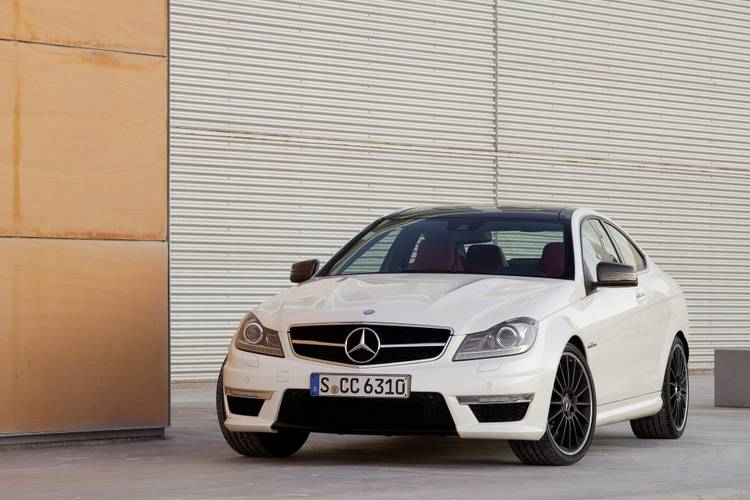

Coupé
Date of manufacture
2011 – 2015Internal designation
C204Engine size
Petrol
Technical data
Sedan
| C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 200 BlueEFFICIENCY | C 200 BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1796 | 1796 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 115/5300 | 115/5300 | 115/5000 | 115/5000 | 135/5250 | 135/5250 |
| Maximum torque [Nm/min-1] | 250/1250-4000 | 250/1250-4000 | 250/1600-4200 | 250/1600-4200 | 270/1800-4600 | 270/1800-4600 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 | 9,3:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 225 | 223 | 225 | 223 | 237 | 235 |
| Acceleration 0–100 km/h [s] | 8.5 | 8.5 | 9.0 | 8.9 | 8.2 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7-8.1 | 7.7-8.0 | 9.3-9.6 | 8.7-8.9 | 9.3-9.8 | 8.7-9.0 |
| Out of town [l] | 4.7-5.4 | 4.8-5.3 | 5.2-5.9 | 5.0-5.7 | 5.2-5.8 | 5.1-5.6 |
| Combined [l] | 5.8-6.4 | 5.8-6.3 | 6.7-7.3 | 6.4-6.9 | 6.6-7.2 | 6.4-6.9 |
| CO2 emissions [g/km] | 136-149 | 136-147 | 157-169 | 148-160 | 154-168 | 150-161 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1485 | 1480 | 1495 | 1500 | 1505 |
| Overall weight [kg] | 1985 | 2000 | 1995 | 2010 | 2015 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 735/1800 | 740/1800 | 740/1800 | 745/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 | 195/60 R16 | 195/60 R16 89V | 195/60 R16 89V | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/60 R16 | 195/60 R16 | 195/60 R16 89V | 195/60 R16 89V | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4591 | 4591 | 4591 | 4591 | 4591 | 4591 |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1541 | 1541 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1544 | 1544 |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 250 BlueEFFICIENCY | C 350 BlueEFFICIENCY | C 350 4MATIC BlueEFFICIENCY | C 63 AMG | C 63 AMG Edition 507 | C 180 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1796 | 3498 | 3498 | 6208 | 6208 | 2143 |
| Maximum output / speed [kW/min-1] | 150/5500 | 225/6500 | 225/6500 | 336/6800 | 373/6800 | 88/2800-4600 |
| Maximum torque [Nm/min-1] | 310/2000-4300 | 370/3500-5250 | 370/3500-5250 | 600/5000 | 610/5200 | 300/1400-2800 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 92,9 x 86,0 | 92,9 x 86,0 | 102,2 x 94,6 | 102,2 x 94,6 | 83,0 x 99,0 |
| Compression ratio | 9,3:1 | 12,0:1 | 12,0:1 | 11,3:1 | 11,3:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 240 | 250 | 250 | 250 | 280 | 208 |
| Acceleration 0–100 km/h [s] | 7.2 | 6.0 | 6.0 | 4.4 | 4.2 | 10.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7-9.0 | 9.4-9.6 | 10.0-10.1 | 18.2 | - | 5.9-6.9 |
| Out of town [l] | 5.1-5.6 | 5.3-5.6 | 5.9-6.1 | 8.4 | - | 4.1-4.7 |
| Combined [l] | 6.4-6.9 | 6.8-7.0 | 7.4-7.6 | 12.0 | 12.0 | 4.8-5.3 |
| CO2 emissions [g/km] | 150-161 | 159-164 | 174-178 | 280 | 280 | 125-139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1610 | 1670 | 1730 | - | 1565 |
| Overall weight [kg] | 2020 | 2125 | 2185 | 2185 | - | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | - | - | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 66 | 66 | 66 | 66 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.32 | 0.32 | 0.26 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 225/45 R17 | 235/40 R18 | 235/35 R19 | 195/60 R16 |
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 225/45 R17 | 255/35 R18 | 255/30 R19 | 195/60 R16 |
| Wheel size front | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 8.0J x 18 ET45 | - | 6.0J x 16 ET39 |
| Wheel size rear | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 9.0J x 18 ET54 | - | 6.0J x 16 ET39 |
| Brake dimensions front | - | - | - | 360 x 36 | - | - |
| Brake dimensions rear | - | - | - | 330 x 26 | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/11.10 | -/11.10 | -/10.84 |
| Overall length [mm] | 4591 | 4591 | 4591 | 4726 | 4726 | 4591 |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1770/2008 | 1795/- | 1795/- | 1770/2008 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1439 | 1439 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2765 | 2765 | 2760 |
| Front wheel track [mm] | 1541 | 1533 | 1533 | 1569 | 1569 | 1549 |
| Rear wheel track [mm] | 1544 | 1536 | 1536 | 1525 | 1525 | 1552 |
| Forward overhang [mm] | 775 | 775 | 775 | - | - | 775 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | - | - | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 180 CDI BlueEFFICIENCY | C 200 CDI BlueEFFICIENCY | C 200 CDI BlueEFFICIENCY | C 220 CDI BlueEFFICIENCY | C 220 CDI BlueEFFICIENCY | C 220 CDI BlueEFFICIENCY Edition | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 88/2800-4600 | 100/2800-4600 | 100/2800-4600 | 125/3000-4200 | 125/3000-4200 | 125/3000-4200 |
| Maximum torque [Nm/min-1] | 300/1400-2800 | 360/1600-2600 | 360/1600-2600 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 206 | 218 | 215 | 232 | 231 | 232 |
| Acceleration 0–100 km/h [s] | 10.5 | 9.2 | 9.1 | 8.4 | 8.1 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1-6.4 | 5.9-6.3 | 6.1-6.4 | 5.6-6.3 | 6.0-6.4 | 5.2 |
| Out of town [l] | 4.3-4.7 | 4.1-4.7 | 4.3-4.7 | 3.7-4.3 | 4.1-4.5 | 3.5 |
| Combined [l] | 4.9-5.3 | 4.8-5.3 | 4.9-5.3 | 4.4-5.1 | 4.8-5.2 | 4.1 |
| CO2 emissions [g/km] | 129-140 | 125-139 | 129-140 | 117-133 | 125-136 | 109 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1590 | 1565 | 1590 | 1600 | 1610 | 1600 |
| Overall weight [kg] | 2105 | 2080 | 2105 | 2115 | 2115 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 | 195/60 R16 | 195/60 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/60 R16 | 195/60 R16 | 195/60 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4591 | 4591 | 4591 | 4591 | 4591 | 4591 |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 220 CDI BlueEFFICIENCY Edition | C 220 CDI 4MATIC BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | C 250 CDI 4MATIC BlueEFFICIENCY | C 300 CDI 4MATIC BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2987 |
| Maximum output / speed [kW/min-1] | 125/3000-4200 | 125/3000-4200 | 150/3800 | 150/3800 | 150/4200 | 170/3800 |
| Maximum torque [Nm/min-1] | 400/1400-2800 | 400/1400-2800 | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 | 540/1600-2400 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 92,0 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 231 | 227 | 240 | 240 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 8.1 | 8.2 | 7.0 | 7.1 | 7.1 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 6.7-6.9 | 6.1-6.7 | 6.0-6.4 | 6.7-6.9 | 9.1-9.2 |
| Out of town [l] | 3.8 | 4.6-5.0 | 4.0-4.5 | 4.1-4.5 | 4.6-5.0 | 5.9-6.1 |
| Combined [l] | 4.4 | 5.4-5.7 | 4.8-5.3 | 4.8-5.2 | 5.4-5.7 | 7.0-7.2 |
| CO2 emissions [g/km] | 116 | 144-152 | 125-140 | 125-136 | 144-152 | 185-189 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1610 | 1675 | 1615 | 1615 | 1675 | 1735 |
| Overall weight [kg] | 2125 | 2190 | 2130 | 2130 | 2190 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.27 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4591 | 4591 | 4591 | 4591 | 4591 | 4591 |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1533 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1536 |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Rear overhang [mm] | 1056 | 1056 | 1056 | 1056 | 1056 | 1056 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 350 CDI BlueEFFICIENCY | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2987 | |||||
| Maximum output / speed [kW/min-1] | 195/3800 | |||||
| Maximum torque [Nm/min-1] | 620/1600-2400 | |||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 6.0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.2 | |||||
| Out of town [l] | 5.2-5.3 | |||||
| Combined [l] | 5.9-6.0 | |||||
| CO2 emissions [g/km] | 154-157 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1705 | |||||
| Overall weight [kg] | 2220 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 475 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 66 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.27 | |||||
| Front suspension | multilink | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 225/45 R17 | |||||
| Tyre dimensions rear | 225/45 R17 | |||||
| Wheel size front | 7.5J x 17 ET47 | |||||
| Wheel size rear | 7.5J x 17 ET47 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | -/10.84 | |||||
| Overall length [mm] | 4591 | |||||
| Overall width without/including mirrors [mm] | 1770/2008 | |||||
| Overall height [mm] | 1447 | |||||
| Wheelbase [mm] | 2760 | |||||
| Front wheel track [mm] | 1533 | |||||
| Rear wheel track [mm] | 1536 | |||||
| Forward overhang [mm] | 775 | |||||
| Rear overhang [mm] | 1056 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 984 | |||||
| Headroom rear [mm] | 942 | |||||
| Front elbow/shoulder width [mm] | 1390/1440 | |||||
| Rear elbow/shoulder width [mm] | 1398/1462 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate
| C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 200 BlueEFFICIENCY | C 200 BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1796 | 1796 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 115/5300 | 115/5300 | 115/5000 | 115/5000 | 135/5250 | 135/5250 |
| Maximum torque [Nm/min-1] | 250/1250-4000 | 250/1250-4000 | 250/1600-4200 | 250/1600-4200 | 270/1800-4600 | 270/1800-4600 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 | 9,3:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 218 | 216 | 218 | 216 | 228 | 226 |
| Acceleration 0–100 km/h [s] | 8.7 | 8.7 | 9.2 | 9.1 | 8.4 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7-8.0 | 7.6-7.9 | 9.3-9.9 | 8.7-9.0 | 9.6-10.2 | 8.9-9.1 |
| Out of town [l] | 4.9-5.5 | 4.9-5.5 | 5.4-6.1 | 5.4-5.8 | 5.5-6.2 | 5.4-5.7 |
| Combined [l] | 5.9-6.4 | 5.9-6.4 | 6.8-7.5 | 6.6-7.0 | 6.9-7.6 | 6.7-6.9 |
| CO2 emissions [g/km] | 139-120 | 139-149 | 160-176 | 155-163 | 160-177 | 155-162 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1545 | 1540 | 1555 | 1560 | 1565 |
| Overall weight [kg] | 2045 | 2085 | 2080 | 2095 | 2100 | 2105 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/798 | -/798 | -/798 | -/798 | -/798 | -/798 |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | multilink | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4606 | 4606 | 4606 | 4606 | 4606 | 4606 |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 250 BlueEFFICIENCY | C 350 BlueEFFICIENCY | C 63 AMG | C 63 AMG Edition 507 | C 180 CDI BlueEFFICIENCY | C 180 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1796 | 3498 | 6208 | 6208 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 150/5500 | 225/6500 | 336/6800 | 373/6800 | 88/2800-4600 | 88/2800-4600 |
| Maximum torque [Nm/min-1] | 310/2000-4300 | 370/3500-5250 | 600/5000 | 610/5200 | 300/1400-2800 | 300/1400-2800 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 92,9 x 86,0 | 102,2 x 94,6 | 102,2 x 94,6 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 9,3:1 | 12,0:1 | 11,3:1 | 11,3:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 233 | 250 | 250 | 280 | 201 | 200 |
| Acceleration 0–100 km/h [s] | 7.4 | 6.1 | 4.5 | 4.3 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.9-9.1 | 9.7-9.9 | 18.6 | 18.6 | 6.0-6.4 | 6.2-6.5 |
| Out of town [l] | 5.4-5.7 | 5.6-5.8 | 8.5 | 8.5 | 4.1-4.8 | 4.5-4.9 |
| Combined [l] | 6.7-6.9 | 6.8-7.0 | 12.2 | 12.2 | 4.8-5.4 | 5.1-5.5 |
| CO2 emissions [g/km] | 155-162 | 7.1-7.3 | 285 | 285 | 127-141 | 134-144 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1575 | 1670 | 1795 | - | 1615 | 1645 |
| Overall weight [kg] | 2115 | 2210 | 2275 | - | 2155 | 2185 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | - | - | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/798 | -/798 | -/798 | -/798 | -/798 | -/798 |
| Loading edge height [mm] | 592 | 592 | - | - | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | - | - | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 66 | 66 | 66 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.31 | 0.32 | - | 0.29 | 0.29 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 235/40 R18 | 235/35 R19 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 255/35 R18 | 255/30 R19 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 8.0J x 18 ET45 | - | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 9.0J x 18 ET54 | - | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | 360 x 36 | - | - | - |
| Brake dimensions rear | - | - | 330 x 26 | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/11.10 | -/11.10 | -/10.84 | -/10.84 |
| Overall length [mm] | 4606 | 4606 | 4711 | 4711 | 4606 | 4606 |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1795/- | 1795/- | 1770/2008 | 1770/2008 |
| Overall height [mm] | 1459 | 1459 | 1442 | 1442 | 1459 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2765 | 2765 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1533 | 1569 | 1569 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1536 | 1525 | 1525 | 1544 | 1544 |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 200 CDI BlueEFFICIENCY | C 200 CDI BlueEFFICIENCY | C 220 CDI BlueEFFICIENCY | C 220 CDI BlueEFFICIENCY | C 220 CDI BlueEFFICIENCY Edition | C 220 CDI 4MATIC BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 100/2800-4600 | 100/2800-4600 | 125/3000-4200 | 125/3000-4200 | 125/3000-4200 | 125/3000-4200 |
| Maximum torque [Nm/min-1] | 360/1600-2600 | 360/1600-2600 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 209 | 207 | 219 | 219 | 219 | 219 |
| Acceleration 0–100 km/h [s] | 9.6 | 9.5 | 8.5 | 8.3 | 8.5 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0-6.4 | 6.2-6.5 | 6.0-6.3 | 6.3-6.4 | 5.3 | 6.7-6.9 |
| Out of town [l] | 4.1-4.8 | 4.5-4.9 | 4.0-4.5 | 4.3-4.6 | 3.8 | 4.8-5.1 |
| Combined [l] | 4.8-5.4 | 5.1-5.5 | 4.7-5.2 | 5.1-5.3 | 4.3 | 5.5-5.8 |
| CO2 emissions [g/km] | 127-141 | 134-144 | 124-135 | 134-138 | 114 | 147-155 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1645 | 1655 | 1665 | 1655 | 1735 |
| Overall weight [kg] | 2155 | 2185 | 2195 | 2205 | 2195 | 2275 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | 1799 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/798 | -/798 | -/798 | -/798 | -/798 | -/798 |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | 592 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | three-link | three-link | three-link | three-link | three-link | three-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4606 | 4606 | 4606 | 4606 | 4606 | 4606 |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 250 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | C 250 CDI 4MATIC BlueEFFICIENCY | C 300 CDI 4MATIC BlueEFFICIENCY | C 350 CDI BlueEFFICIENCY | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2987 | 2987 | |
| Maximum output / speed [kW/min-1] | 150/3800 | 150/3800 | 150/4200 | 170/3800 | 195/3800 | |
| Maximum torque [Nm/min-1] | 500/1600-1800 | 500/1600-1800 | 500/1600-1800 | 540/1600-2400 | 620/1600-2400 | |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 | |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 15,5:1 | 15,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications | - |
|
|
|
| |
| Top speed [km/h] | 238 | 237 | 235 | 242 | 250 | |
| Acceleration 0–100 km/h [s] | 7.3 | 7.4 | 7.4 | 6.5 | 6.3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.3-6.7 | 6.3-6.4 | 6.7-6.9 | 9.2-9.3 | 7.3-7.4 | |
| Out of town [l] | 4.1-4.6 | 4.3-4.6 | 4.8-5.1 | 6.0-6.4 | 5.4 | |
| Combined [l] | 4.9-5.4 | 5.1-5.3 | 5.5-5.8 | 7.2-7.4 | 6.0-6.2 | |
| CO2 emissions [g/km] | 128-141 | 134-138 | 147-155 | 191-195 | 159-162 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1675 | 1675 | 1735 | 1795 | 1760 | |
| Overall weight [kg] | 2215 | 2215 | 2275 | 2325 | 2290 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 485 | 485 | 485 | 485 | 485 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | |
| Boot length with rear seats folded [mm] | 1799 | 1799 | 1799 | 1799 | 1799 | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | -/798 | -/798 | -/798 | -/798 | -/798 | |
| Loading edge height [mm] | 592 | 592 | 592 | 592 | 592 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 59 | 59 | 59 | 66 | 66 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.3 | 0.3 | |
| Front suspension | three-link | three-link | three-link | three-link | three-link | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | |
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | |
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | 7.5J x 17 ET47 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | |
| Overall length [mm] | 4606 | 4606 | 4606 | 4606 | 4606 | |
| Overall width without/including mirrors [mm] | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | 1770/2008 | |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1533 | 1533 | |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1536 | 1536 | |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | |
| Rear overhang [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | |
| Front elbow/shoulder width [mm] | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | 1390/1440 | |
| Rear elbow/shoulder width [mm] | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | 1398/1462 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Coupé
| C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 180 BlueEFFICIENCY | C 200 BlueEFFICIENCY | C 200 BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1796 | 1796 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 115/5300 | 115/5300 | 115/5000 | 115/5000 | 135/5250 | 135/5250 |
| Maximum torque [Nm/min-1] | 250/1250-4000 | 250/1250-4000 | 250/1600-4200 | 250/1600-4200 | 270/1800-4600 | 270/1800-4600 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 | 9,3:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 225 | 223 | 225 | 223 | 237 | 235 |
| Acceleration 0–100 km/h [s] | 8.5 | 8.5 | 9.0 | 8.9 | 8.2 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7-8.1 | 7.7-8.0 | 9.3-9.6 | 8.8-9.0 | 9.3-9.8 | 8.8-9.1 |
| Out of town [l] | 4.7-5.4 | 4.8-5.3 | 5.2-5.9 | 5.1-5.8 | 5.2-5.8 | 5.2-5.7 |
| Combined [l] | 5.8-6.4 | 5.8-6.3 | 6.7-7.3 | 6.5-7.0 | 6.6-7.2 | 6.5-7.0 |
| CO2 emissions [g/km] | 136-149 | 136-147 | 157-169 | 150-162 | 154-168 | 152-163 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1490 | 1505 | 1500 | 1520 | 1540 | 1545 |
| Overall weight [kg] | 1960 | 1975 | 1970 | 1990 | 2010 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | 745/1800 | 745/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.26 | 0.26 | 0.27 | 0.27 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 V | 195/60 R16 V | 195/60 R16 V | 195/60 R16 V | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 195/60 R16 V | 195/60 R16 V | 195/60 R16 V | 195/60 R16 V | 225/45 R17 | 225/45 R17 |
| Wheel size front | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Wheel size rear | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 6.0J x 16 ET39 | 7.5J x 17 ET47 | 7.5J x 17 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 | -/10.84 |
| Overall length [mm] | 4590 | 4590 | 4590 | 4590 | 4590 | 4590 |
| Overall width without/including mirrors [mm] | 1770/1997 | 1770/1997 | 1770/1997 | 1770/1997 | 1770/1997 | 1770/1997 |
| Overall height [mm] | 1406 | 1406 | 1406 | 1406 | 1406 | 1406 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1522 | 1533 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1536 | 1536 |
| Forward overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Rear overhang [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 901 | 901 | 901 | 901 | 901 | 901 |
| Front elbow/shoulder width [mm] | 1372/1443 | 1372/1443 | 1372/1443 | 1372/1443 | 1372/1443 | 1372/1443 |
| Rear elbow/shoulder width [mm] | 1278/1335 | 1278/1335 | 1278/1335 | 1278/1335 | 1278/1335 | 1278/1335 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 250 BlueEFFICIENCY | C 350 BlueEFFICIENCY | C 63 AMG | C 63 AMG Edition 507 | C 63 AMG Black Series | C 220 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 8/32 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1796 | 3498 | 6208 | 6208 | 6208 | 2143 |
| Maximum output / speed [kW/min-1] | 150/5500 | 225/6500 | 336/6800 | 373/6800 | 380/6800 | 125/3000-4200 |
| Maximum torque [Nm/min-1] | 310/2000-4300 | 370/3500-5250 | 600/5000 | 610/5200 | 620/5200 | 400/1400-2800 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 92,9 x 86,0 | 102,2 x 94,6 | 102,2 x 94,6 | 102,2 x 94,6 | 83,0 x 99,0 |
| Compression ratio | 9,3:1 | 12,0:1 | 11,3:1 | 11,3:1 | 11,3:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 240 | 250 | 250 | 280 | 300 | 232 |
| Acceleration 0–100 km/h [s] | 7.2 | 6.0 | 4.4 | 4.2 | 4.2 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8-9.1 | 9.4-9.6 | 18.2 | - | - | 5.6-6.3 |
| Out of town [l] | 5.2-5.7 | 5.3-5.6 | 8.4 | - | - | 3.7-4.3 |
| Combined [l] | 6.5-7.0 | 6.8-7.0 | 12.0 | 12.0 | 12.2 | 4.4-5.1 |
| CO2 emissions [g/km] | 152-163 | 159-164 | 280 | 280 | 286 | 117-133 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1550 | 1615 | 1730 | - | 1710 | 1615 |
| Overall weight [kg] | 2020 | 2085 | 2160 | - | 2015 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | - | - | - | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 3 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 2-5 | 4 |
| Fuel tank volume [l] | 59 | 66 | 66 | 66 | 66 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | - | - | 0.34 | 0.26 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 235/40 R18 | 235/35 R19 | 255/35 R19 | 205/55 R16 |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 255/35 R18 | 255/30 R19 | 285/30 R19 | 205/55 R16 |
| Wheel size front | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 8.0J x 18 ET45 | - | 9.0J x19 ET25 | 7.0J x 16 ET43 |
| Wheel size rear | 7.5J x 17 ET47 | 7.5J x 17 ET47 | 9.0J x 18 ET54 | - | 9.5J x 19 ET47 | 7.0J x 16 ET43 |
| Brake dimensions front | - | - | 360 x 36 | - | 390 x 36 | - |
| Brake dimensions rear | - | - | 330 x 26 | - | 360 x 26 | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/11.10 | -/11.10 | -/13.0 | -/10.84 |
| Overall length [mm] | 4590 | 4590 | 4707 | 4707 | 4764 | 4590 |
| Overall width without/including mirrors [mm] | 1770/1997 | 1770/1997 | 1795/- | 1795/- | 1997/- | 1770/1997 |
| Overall height [mm] | 1406 | 1406 | 1391 | 1391 | 1388 | 1406 |
| Wheelbase [mm] | 2760 | 2760 | 2765 | 2765 | 2765 | 2760 |
| Front wheel track [mm] | 1533 | 1533 | 1569 | 1569 | 1614 | 1541 |
| Rear wheel track [mm] | 1536 | 1536 | 1525 | 1525 | 1607 | 1544 |
| Forward overhang [mm] | 775 | 775 | - | - | - | 775 |
| Rear overhang [mm] | 1055 | 1055 | - | - | - | 1055 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 901 | 901 | 901 | 901 | 901 | 901 |
| Front elbow/shoulder width [mm] | 1372/1443 | 1372/1443 | 1372/1443 | 1372/1443 | 1372/1443 | 1372/1443 |
| Rear elbow/shoulder width [mm] | 1278/1335 | 1278/1335 | 1278/1335 | 1278/1335 | 1278/1335 | 1278/1335 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| C 220 CDI BlueEFFICIENCY | C 220 CDI BlueEFFICIENCY Edition | C 250 CDI BlueEFFICIENCY | C 250 CDI BlueEFFICIENCY | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | ||
| Maximum output / speed [kW/min-1] | 125/3000-4200 | 125/3000-4200 | 150/3800 | 150/3800 | ||
| Maximum torque [Nm/min-1] | 400/1400-2800 | 400/1400-2800 | 500/1600-1800 | 500/1600-1800 | ||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | Rear | Rear | Rear | ||
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | ||
| Drive specifications |
| - | - |
| ||
| Top speed [km/h] | 231 | 232 | 240 | 240 | ||
| Acceleration 0–100 km/h [s] | 8.1 | 8.4 | 7.0 | 7.1 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6.1-6.5 | 5.2 | 6.2-6.8 | 6.1-6.5 | ||
| Out of town [l] | 4.2-4.6 | 3.5 | 4.1-4.6 | 4.2-4.6 | ||
| Combined [l] | 4.9-5.3 | 4.1 | 4.9-5.4 | 4.9-5.3 | ||
| CO2 emissions [g/km] | 128-139 | 109 | 128-143 | 128-139 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1630 | 1615 | 1655 | 1660 | ||
| Overall weight [kg] | 2100 | 2085 | 2125 | 2130 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 450 | 450 | 450 | 450 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | ||
| Front suspension | multilink | multilink | multilink | multilink | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | ||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | ||
| Wheel size front | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | ||
| Wheel size rear | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.0J x 16 ET43 | 7.5J x 17 ET47 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | -/10.84 | -/10.84 | -/10.84 | -/10.84 | ||
| Overall length [mm] | 4590 | 4590 | 4590 | 4590 | ||
| Overall width without/including mirrors [mm] | 1770/1997 | 1770/1997 | 1770/1997 | 1770/1997 | ||
| Overall height [mm] | 1406 | 1406 | 1406 | 1406 | ||
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | ||
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1533 | ||
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1536 | ||
| Forward overhang [mm] | 775 | 775 | 775 | 775 | ||
| Rear overhang [mm] | 1055 | 1055 | 1055 | 1055 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | ||
| Headroom rear [mm] | 901 | 901 | 901 | 901 | ||
| Front elbow/shoulder width [mm] | 1372/1443 | 1372/1443 | 1372/1443 | 1372/1443 | ||
| Rear elbow/shoulder width [mm] | 1278/1335 | 1278/1335 | 1278/1335 | 1278/1335 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
