Mercedes-Benz B
Date of manufacture
9/2011 – 9/2014 (MPV)
Platform
MFA
Manufacturing locations
Rastatt, Germany
Kecskemét, Hungary
Designer
Mark Fetherston
Tags
Mid-size MPV
German cars
The Mercedes-Benz B has been available in MPV body style since 2011 and is produced in Germany and Hungary. It is built on the MFA platform and offers a wide range of engine options, including petrol and diesel engines. The most powerful model, the B250, produces 155 kW (240 hp) with a 0-100 km/h acceleration time of 6.8 seconds. The most efficient variant, the B180 CDI BlueEFFICIENCY, has a combined fuel consumption of 3.8 l/100 km and CO2 emissions of 98 g/km. There is also a generous luggage compartment with a capacity of 488 l. In 2011, this car was tested in the EURONCAP safety area, where it achieved a rating of 5 out of 5.
Car body style
Technical data
MPV
| B180 | B180 | B200 | B200 | B200 NGD | B200 NGD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 115/5000 | 115/5000 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 250/1250-4000 | 250/1250-4000 | 270/1250-4000 | 270/1250-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 190 | 190 | 220 | 220 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 10.4 | 10.2 | 8.6 | 8.4 | 9.2 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0-8.3 | 7.6 | 8.0-8.3 | 7.6 | 6.0 [kg] | 5.6 [kg] |
| Out of town [l] | 4.7-5.0 | 4.8-5.0 | 4.7-5.0 | 4.8-5.0 | 3.3-3.4 [kg] | 3.4 [kg] |
| Combined [l] | 5.9-6.2 | 5.8-5.9 | 5.9-6.2 | 5.8-5.9 | 4.3-4.4 [kg] | 4.2-4.3 [kg] |
| CO2 emissions [g/km] | 137-144 | 135-139 | 137-144 | 135-139 | 117-119 | 115-117 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1425 | 1395 | 1425 | 1505 | 1535 |
| Overall weight [kg] | 1960 | 1950 | 1960 | 1950 | 2020 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 710/1200 | 695/1400 | 710/1400 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

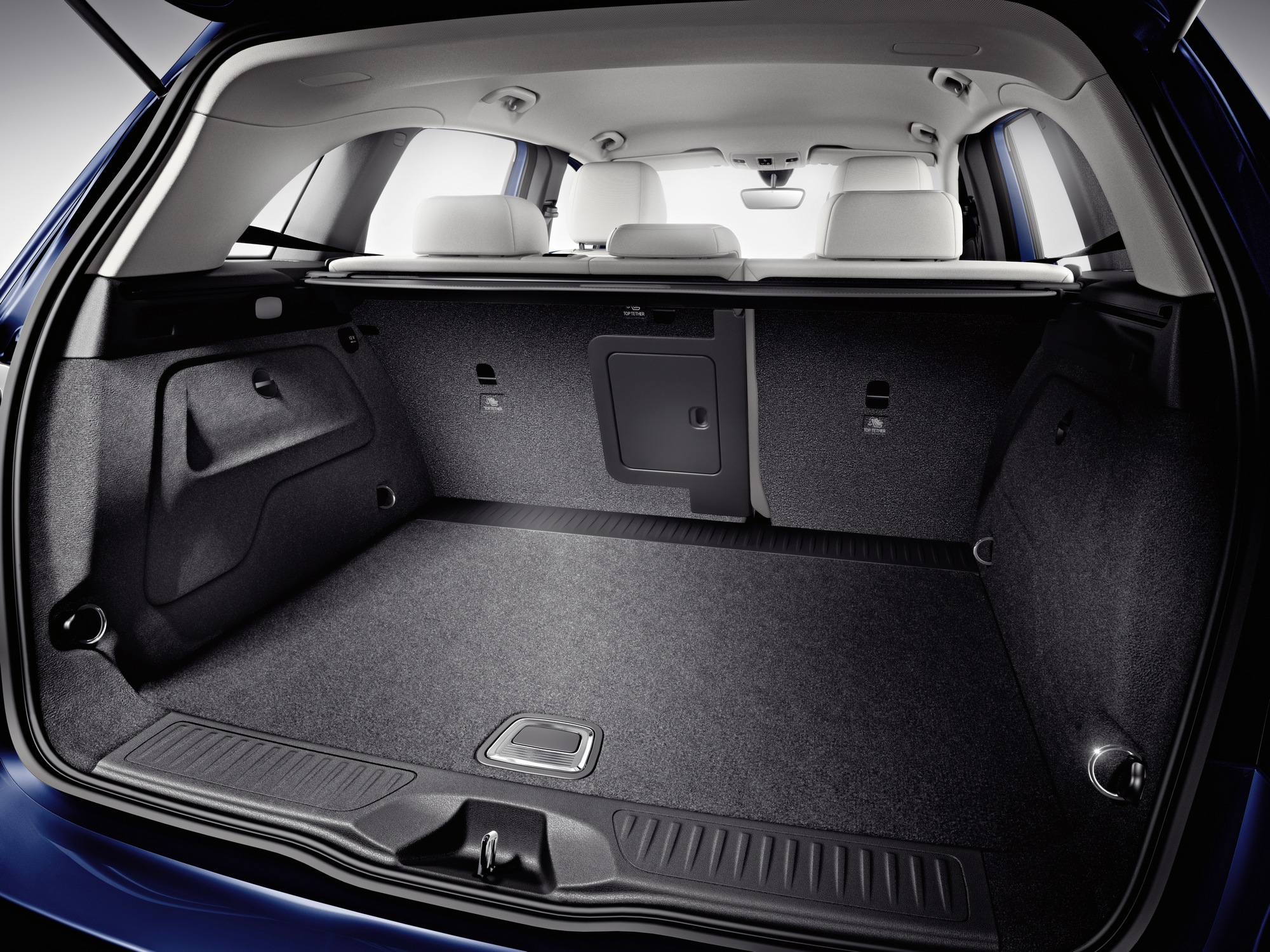

| Boot volume [l] | 488 | 488 | 488 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 |
| Boot length [mm] | 744 | 744 | 744 | 744 | 744 | 744 |

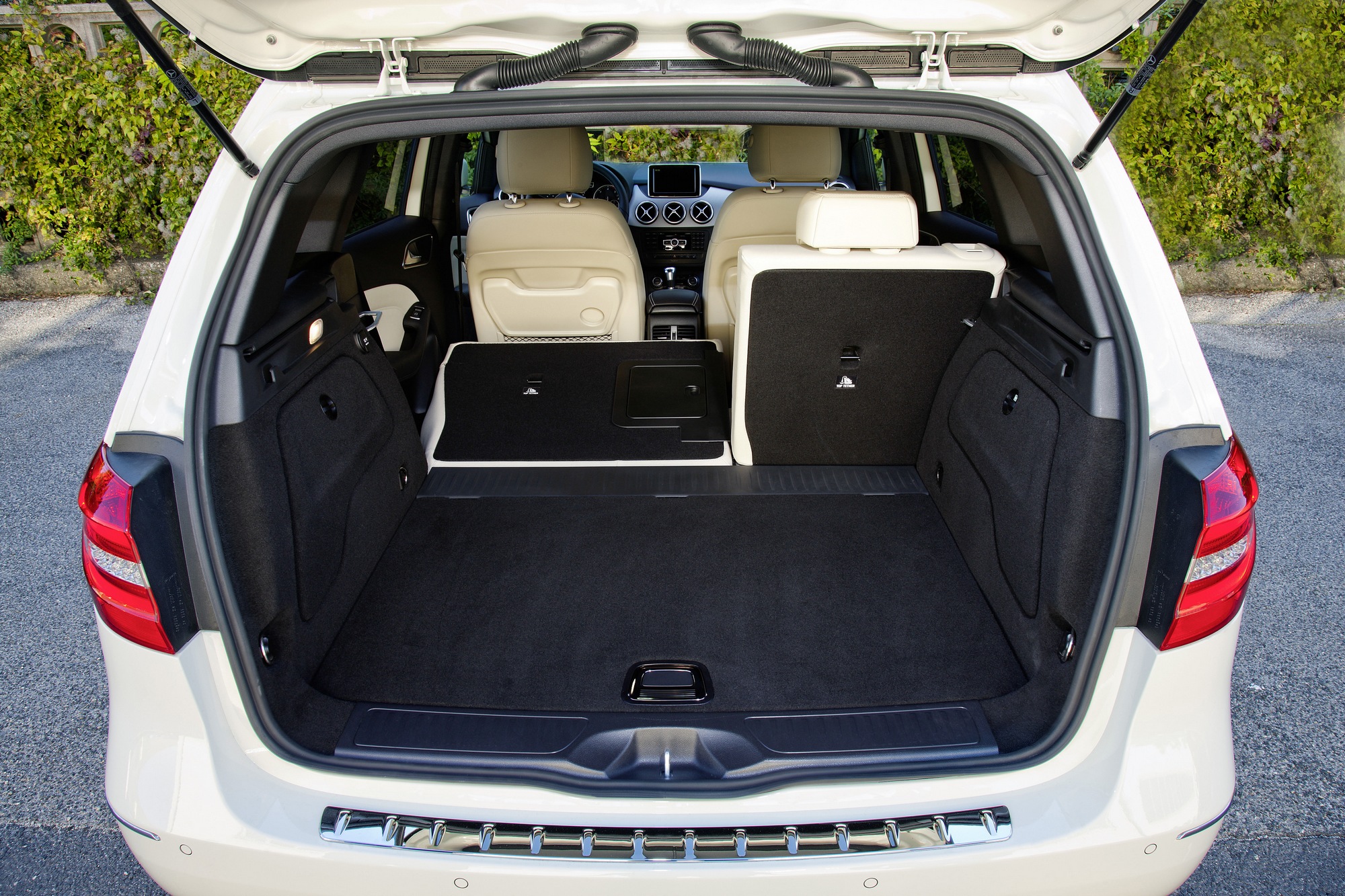

| Boot length with rear seats folded [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | 538 | 538 | 538 | 538 | 538 | 538 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 808 | 808 | 808 | 808 | 808 | 808 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 20 [kg] + 12 l benzín | 20 [kg] + 12 l benzín |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 T | 195/65 R15 T | 205/55 R16V | 205/55 R16V | 205/55 R16 91H | 205/55 R16 91H |
| Tyre dimensions rear | 195/65 R15 T | 195/65 R15 T | 205/55 R16V | 205/55 R16V | 205/55 R16 91H | 205/55 R16 91H |
| Wheel size front | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 |
| Wheel size rear | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4359 | 4359 | 4359 | 4359 | 4359 | 4359 |
| Overall width without/including mirrors [mm] | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1536 | 1536 |
| Rear wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1542 | 1542 |
| Forward overhang [mm] | 887 | 887 | 887 | 887 | 887 | 887 |
| Rear overhang [mm] | 773 | 773 | 773 | 773 | 773 | 773 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B220 4MATIC | B250 | B160 CDI | B160 CDI | B180 CDI | B180 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1991 | 1991 | 1461 | 1461 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 135/5500 | 155/5500 | 66/2750-4000 | 66/2750-4000 | 80/4000 | 80/4000 |
| Maximum torque [Nm/min-1] | 300/1200-4000 | 350/1200-4000 | 240/1700-2500 | 240/1700-2500 | 260/1750-2500 | 260/1750-2500 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
| - | - |
| Top speed [km/h] | 225 | 240 | 180 | 180 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 7.5 | 6.8 | 14.0 | 13.8 | 11.6 | 11.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 8.5-8.6 | 4.9-5.2 | 4.9-5.1 | 4.9-5.2 | 4.4 |
| Out of town [l] | 5.4-5.7 | 4.6-4.7 | 3.7-4.1 | 3.7-4.0 | 3.7-4.1 | 3.4 |
| Combined [l] | 6.5-6.7 | 6.1 | 4.1-4.5 | 4.1-4.4 | 4.1-4.5 | 3.8 |
| CO2 emissions [g/km] | 151-156 | 141-143 | 108-117 | 107-115 | 108-117 | 98 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1530 | 1475 | 1435 | 1465 | 1435 | 1425 |
| Overall weight [kg] | 2055 | 2000 | 2000 | 2000 | 2000 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 735/1500 | 715/1200 | 730/1200 | 715/1200 | 715/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 488 | 488 | 488 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 |
| Boot length [mm] | 744 | 744 | 744 | 744 | 744 | 744 |
| Boot length with rear seats folded [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | 538 | 538 | 538 | 538 | 538 | 538 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 808 | 808 | 808 | 808 | 808 | 808 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 56 | 50 | 50 | 50 | 50 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.29 | 0.26 | 0.26 | 0.26 | 0.24 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T |
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T |
| Wheel size front | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 |
| Wheel size rear | 6.5J x 16 ET49 | 7.5J x 17 ET52.5 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4359 | 4359 | 4359 | 4359 | 4359 | 4359 |
| Overall width without/including mirrors [mm] | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Forward overhang [mm] | 887 | 887 | 887 | 887 | 887 | 887 |
| Rear overhang [mm] | 773 | 773 | 773 | 773 | 773 | 773 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B180 CDI | B180 CDI | B180 CDI | B200 CDI | B200 CDI | B220 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1461 | 1796 | 1796 | 1796 | 1796 | 2143 |
| Maximum output / speed [kW/min-1] | 80/4000 | 80/3200-4600 | 80/3200-4600 | 100/3600-4400 | 100/3600-4400 | 125/3400-4000 |
| Maximum torque [Nm/min-1] | 260/1750-2500 | 250/1400-2800 | 250/1400-2800 | 300/1600-3000 | 300/1600-3000 | 350/1400-3400 |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 83,0 x 83,0 | 83,0 x 83,0 | 83,0 x 83,0 | 83,0 x 83,0 | 83,0 x 99,0 |
| Compression ratio | 15,5:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 190 | 190 | 190 | 210 | 210 | 220 |
| Acceleration 0–100 km/h [s] | 11.9 | 10.9 | 10.7 | 9.5 | 9.3 | 8.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.9-5.1 | 5.4-5.6 | 4.9-5.2 | 5.4-5.6 | 4.9-5.2 | 5.4-5.6 |
| Out of town [l] | 3.7-4.0 | 3.8-4.1 | 3.9-4.2 | 3.8-4.1 | 3.9-4.2 | 3.8-4.0 |
| Combined [l] | 4.1-4.4 | 4.4-4.6 | 4.2-4.5 | 4.4-4.6 | 4.2-4.5 | 4.4-4.6 |
| CO2 emissions [g/km] | 107-115 | 114-121 | 112-120 | 114-121 | 112-120 | 114-120 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1465 | 1475 | 1505 | 1475 | 1505 | 1505 |
| Overall weight [kg] | 2000 | 2030 | 2025 | 2030 | 2025 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 730/1200 | 735/1200 | 750/1200 | 735/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 488 | 488 | 488 | 488 | 488 | 488 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 | -/1547 |
| Boot length [mm] | 744 | 744 | 744 | 744 | 744 | 744 |
| Boot length with rear seats folded [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | 538 | 538 | 538 | 538 | 538 | 538 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 808 | 808 | 808 | 808 | 808 | 808 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 T | 195/65 R15 T | 195/65 R15 T | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 |
| Wheel size rear | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 15 ET47 | 6.5J x 16 ET49 | 6.5J x 16 ET49 | 6.5J x 16 ET49 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4359 | 4359 | 4359 | 4359 | 4359 | 4359 |
| Overall width without/including mirrors [mm] | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 | 1786/2010 |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Forward overhang [mm] | 887 | 887 | 887 | 887 | 887 | 887 |
| Rear overhang [mm] | 773 | 773 | 773 | 773 | 773 | 773 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 | 1411/1423 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

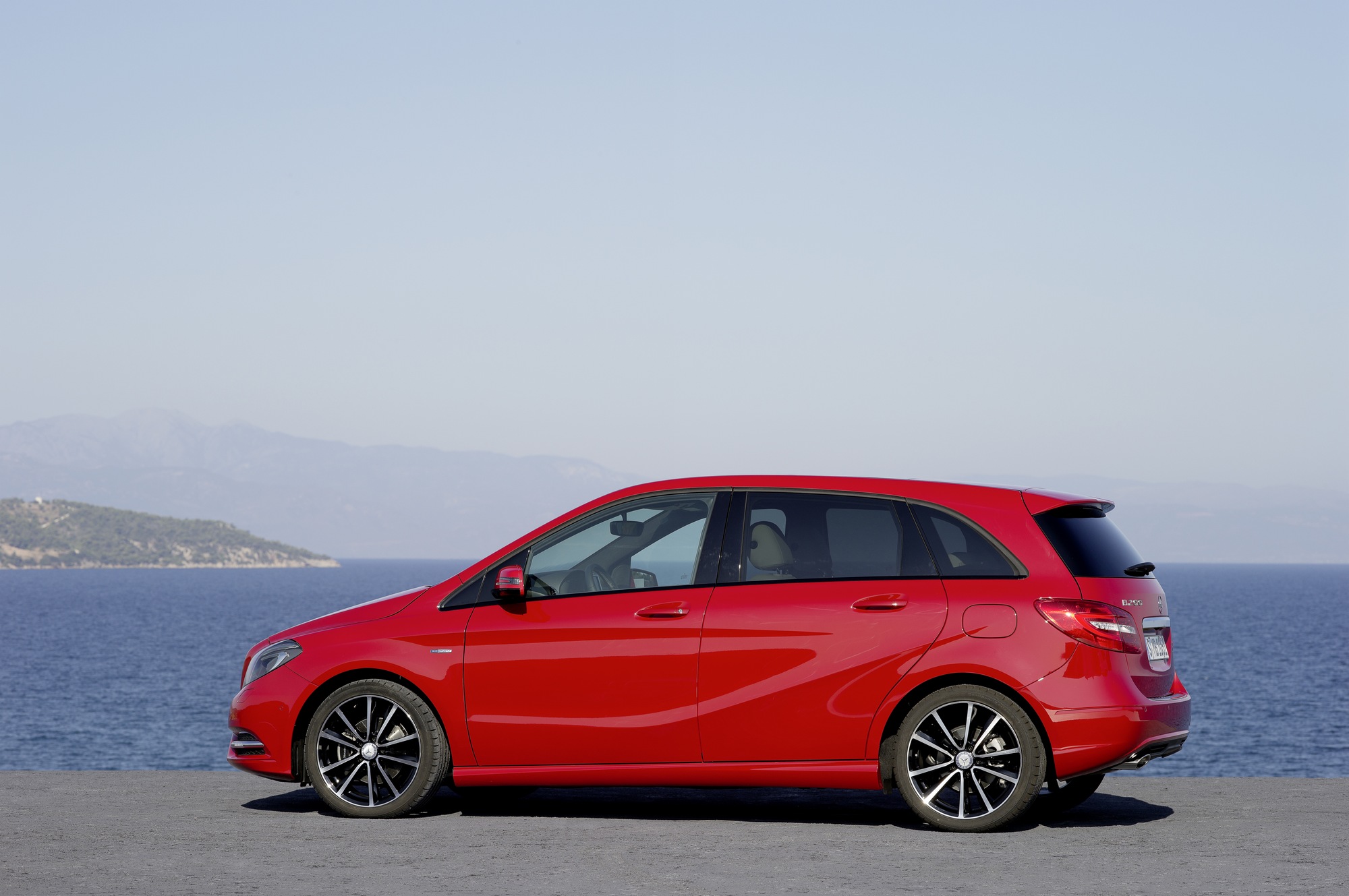

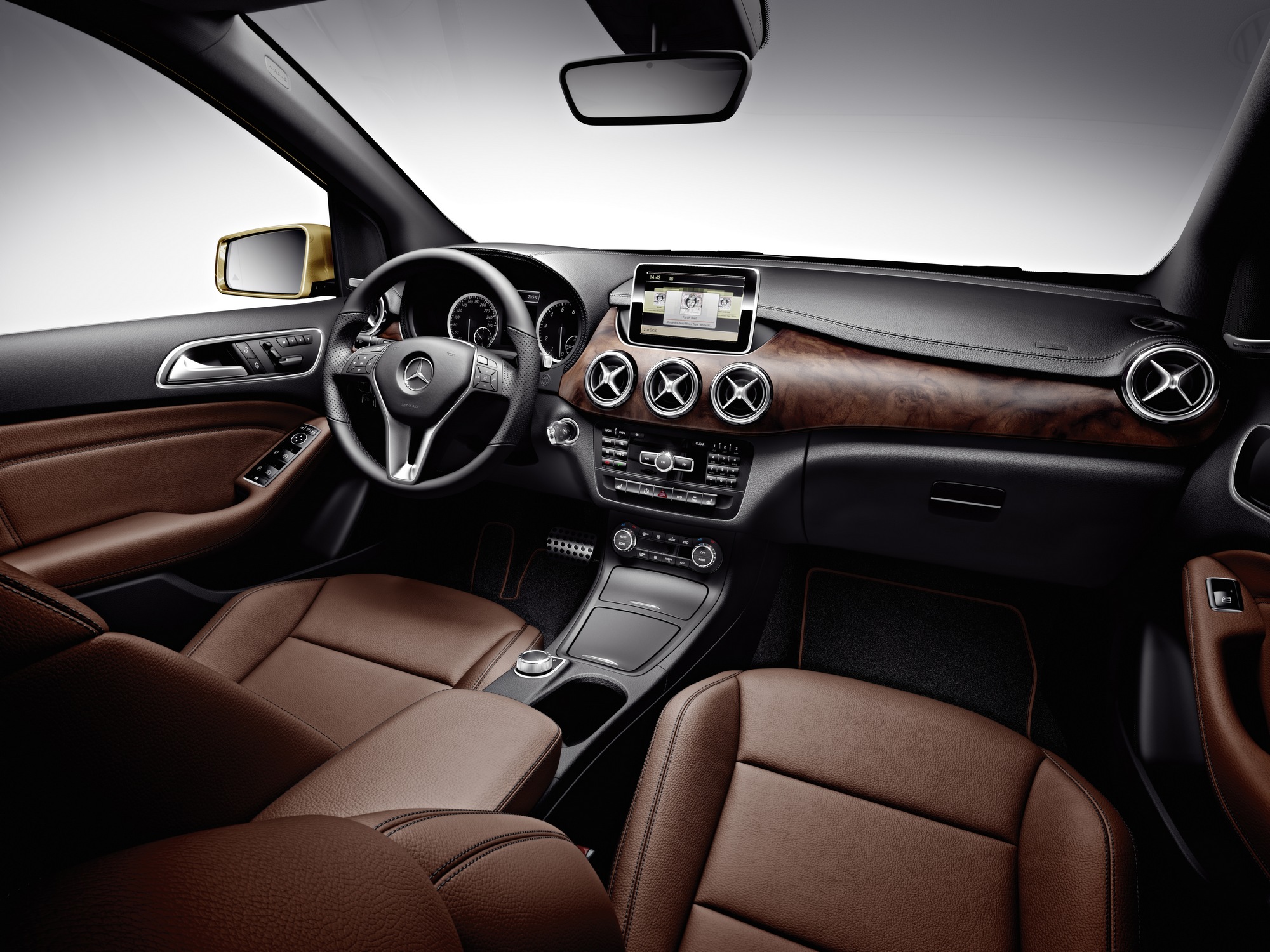

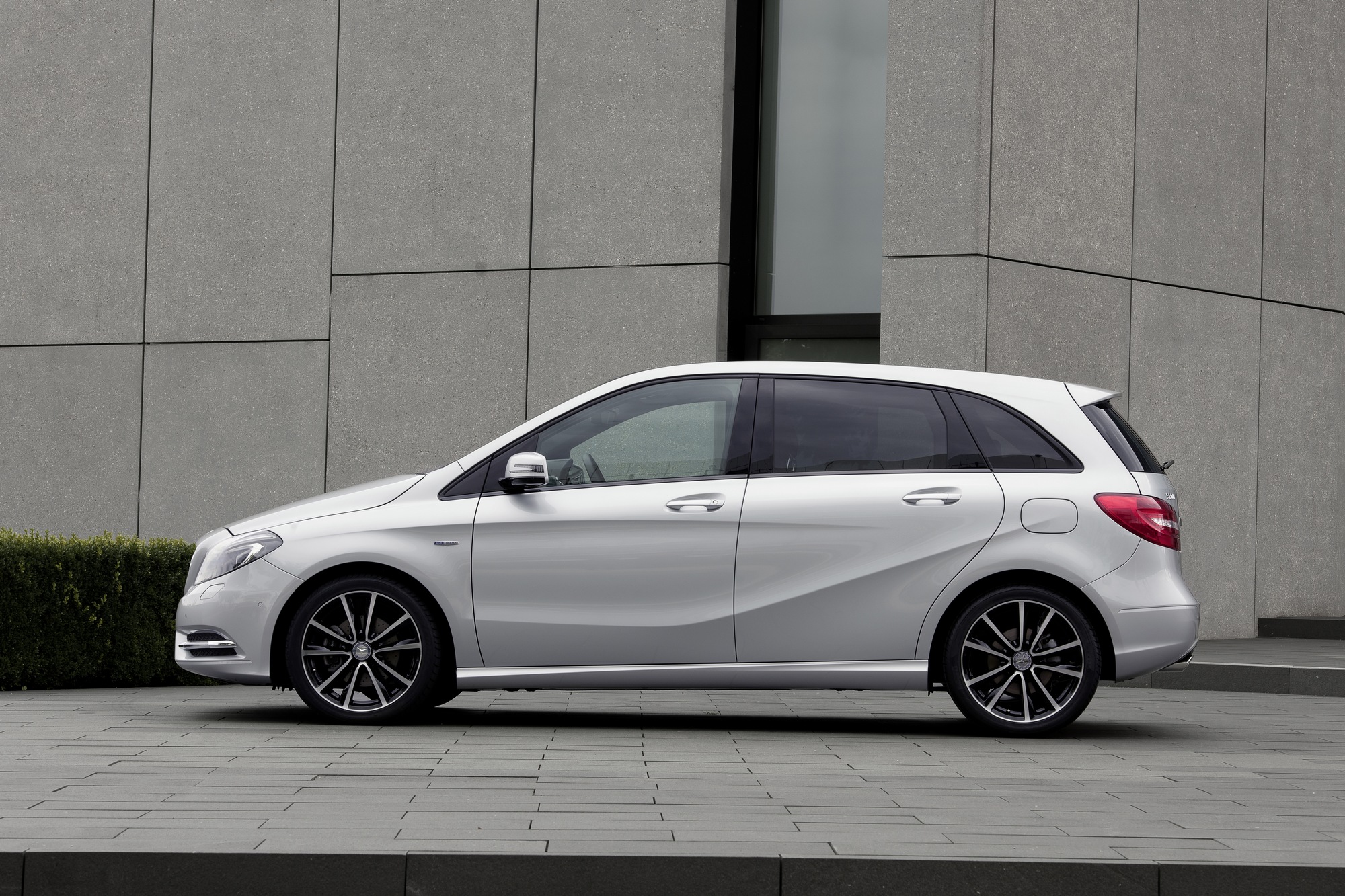

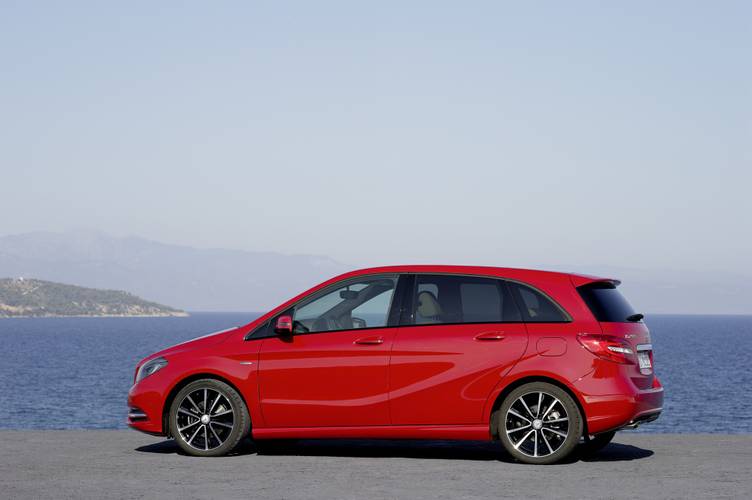

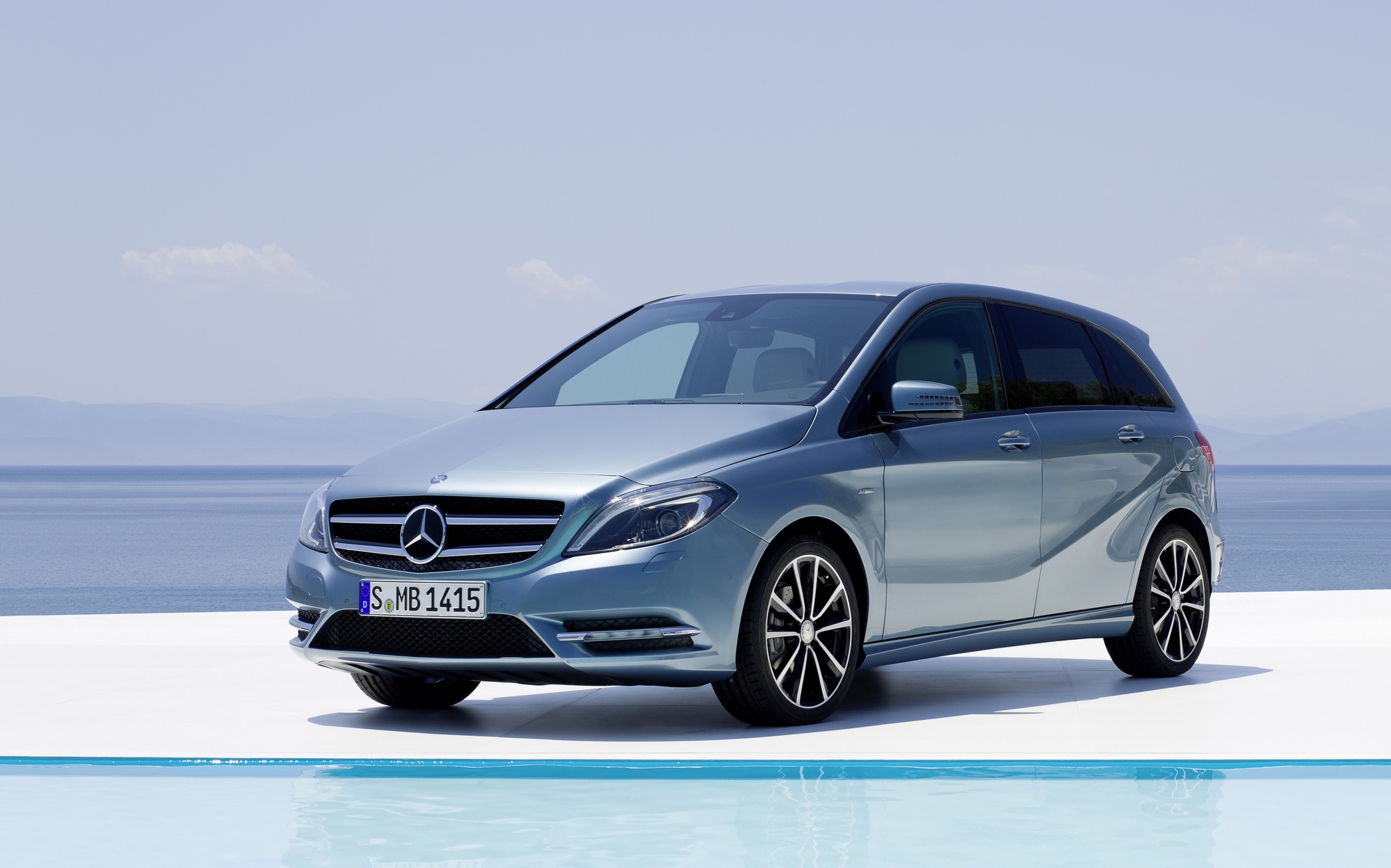

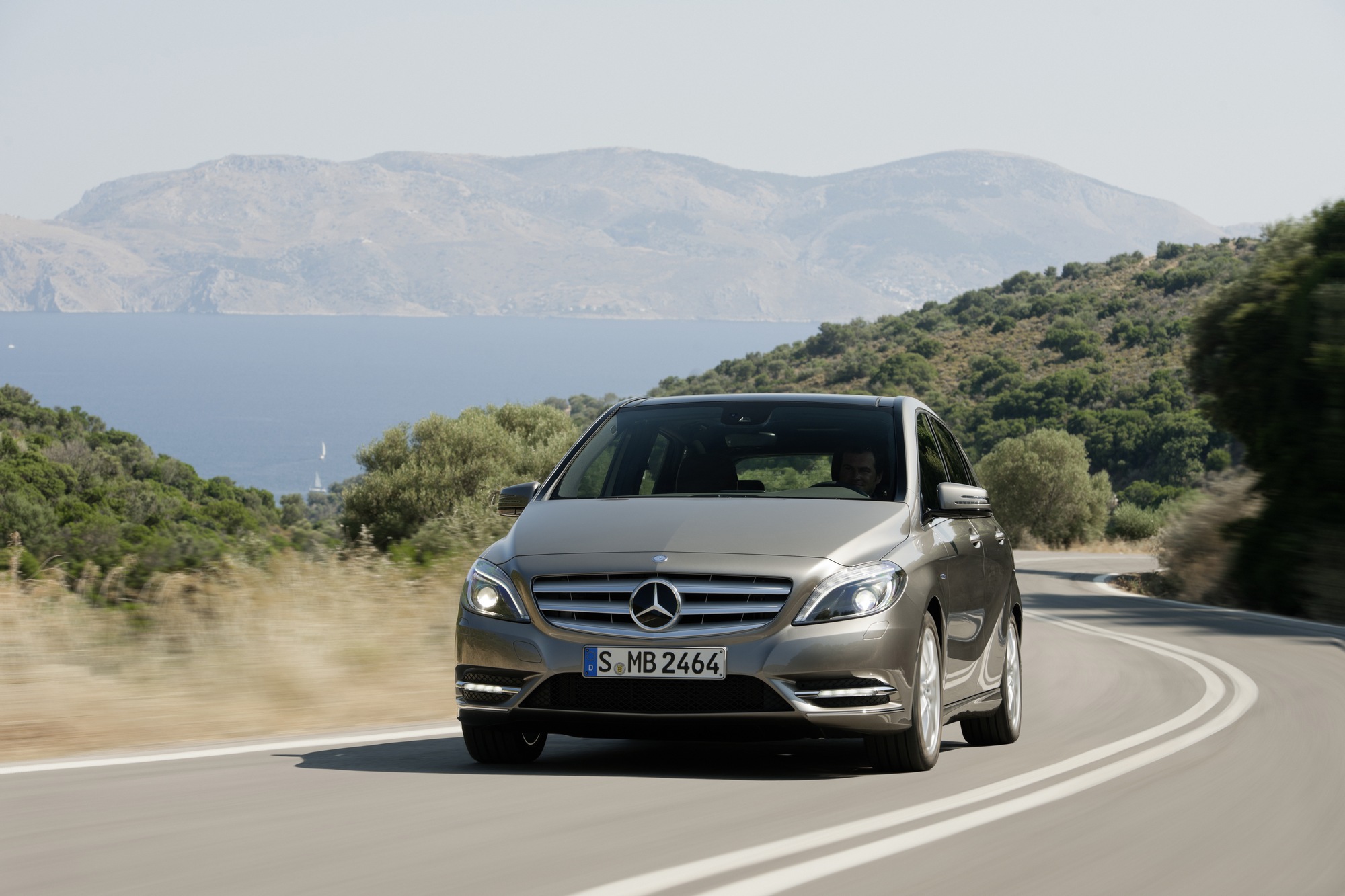

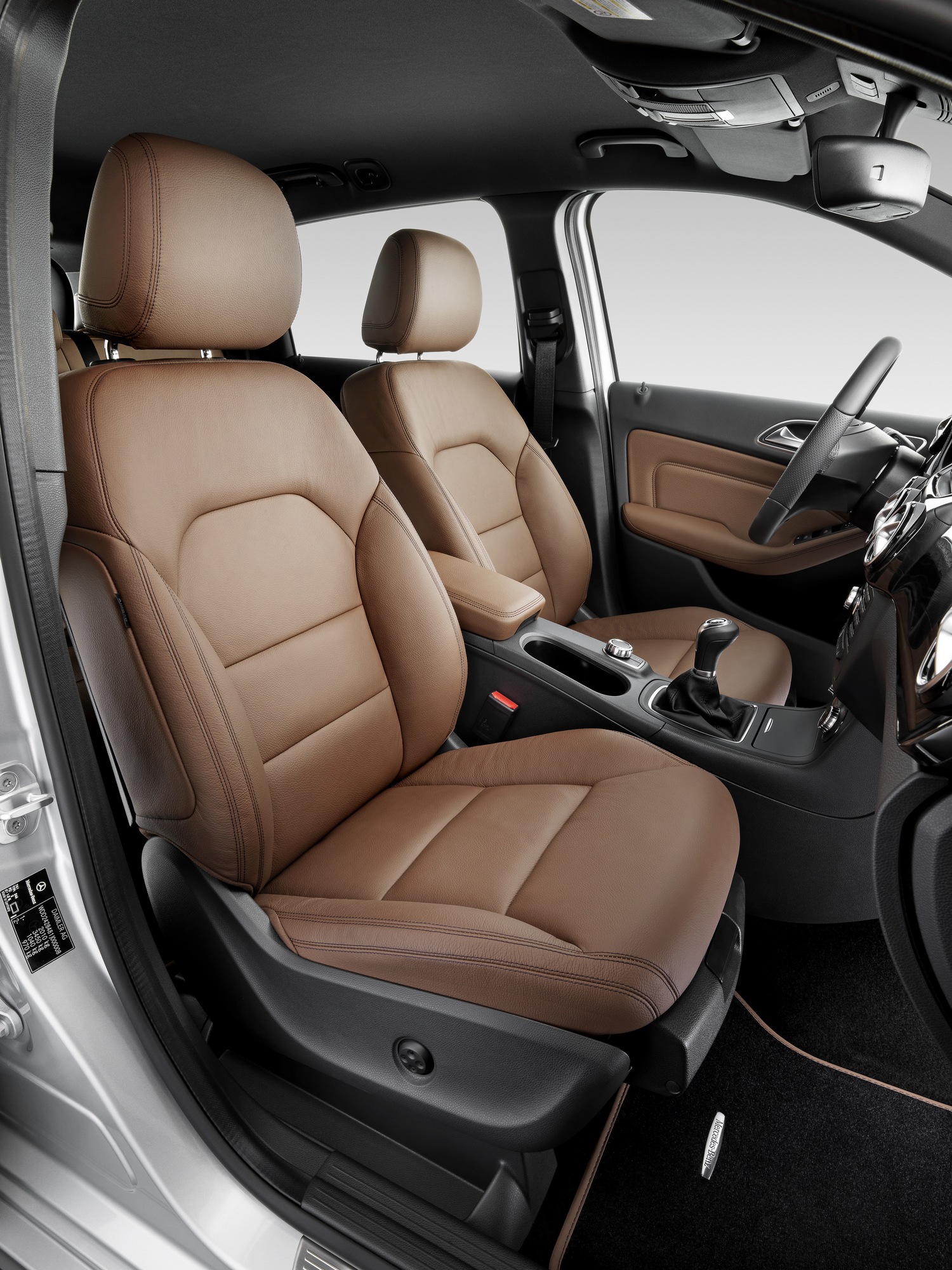

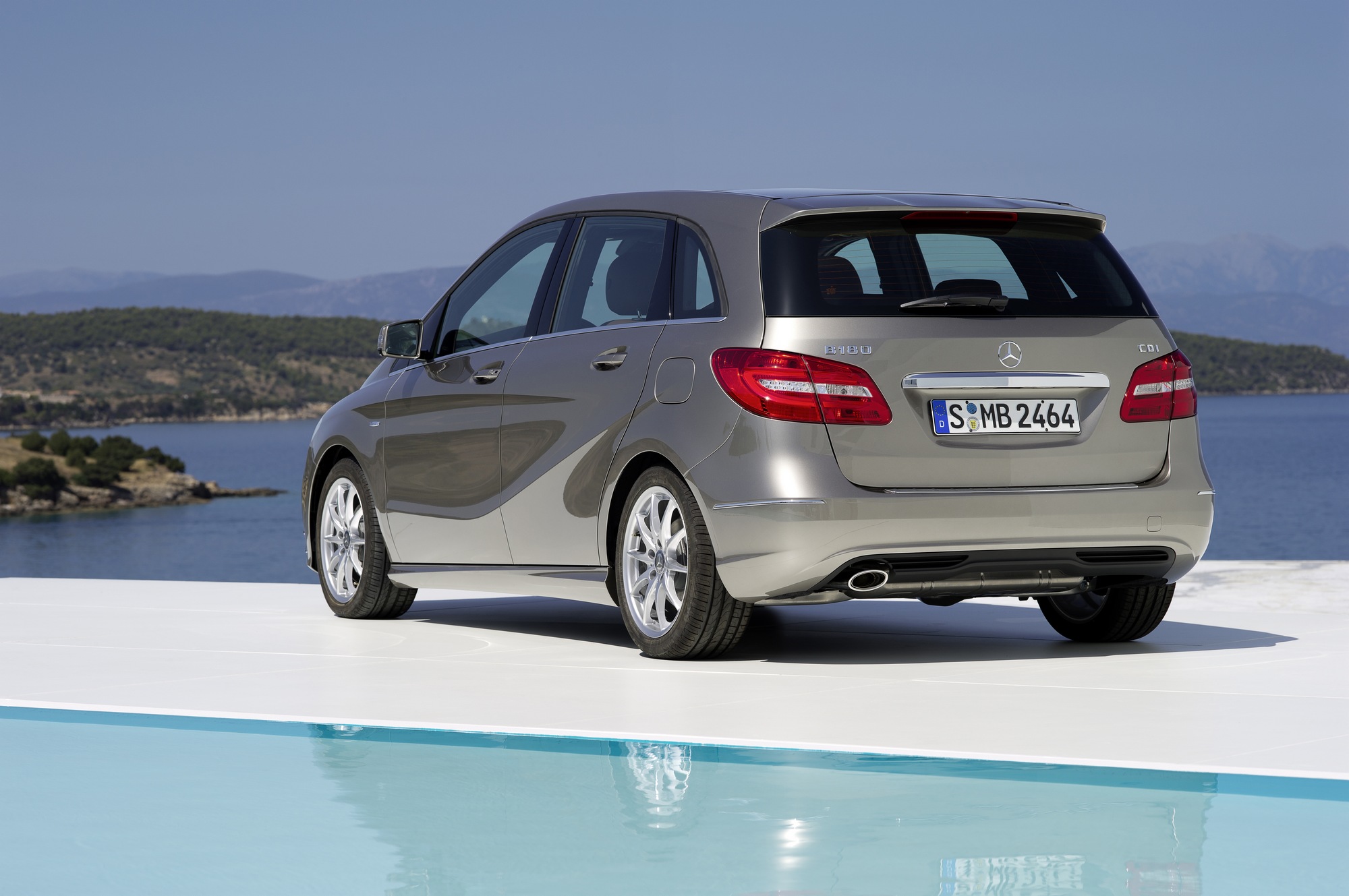

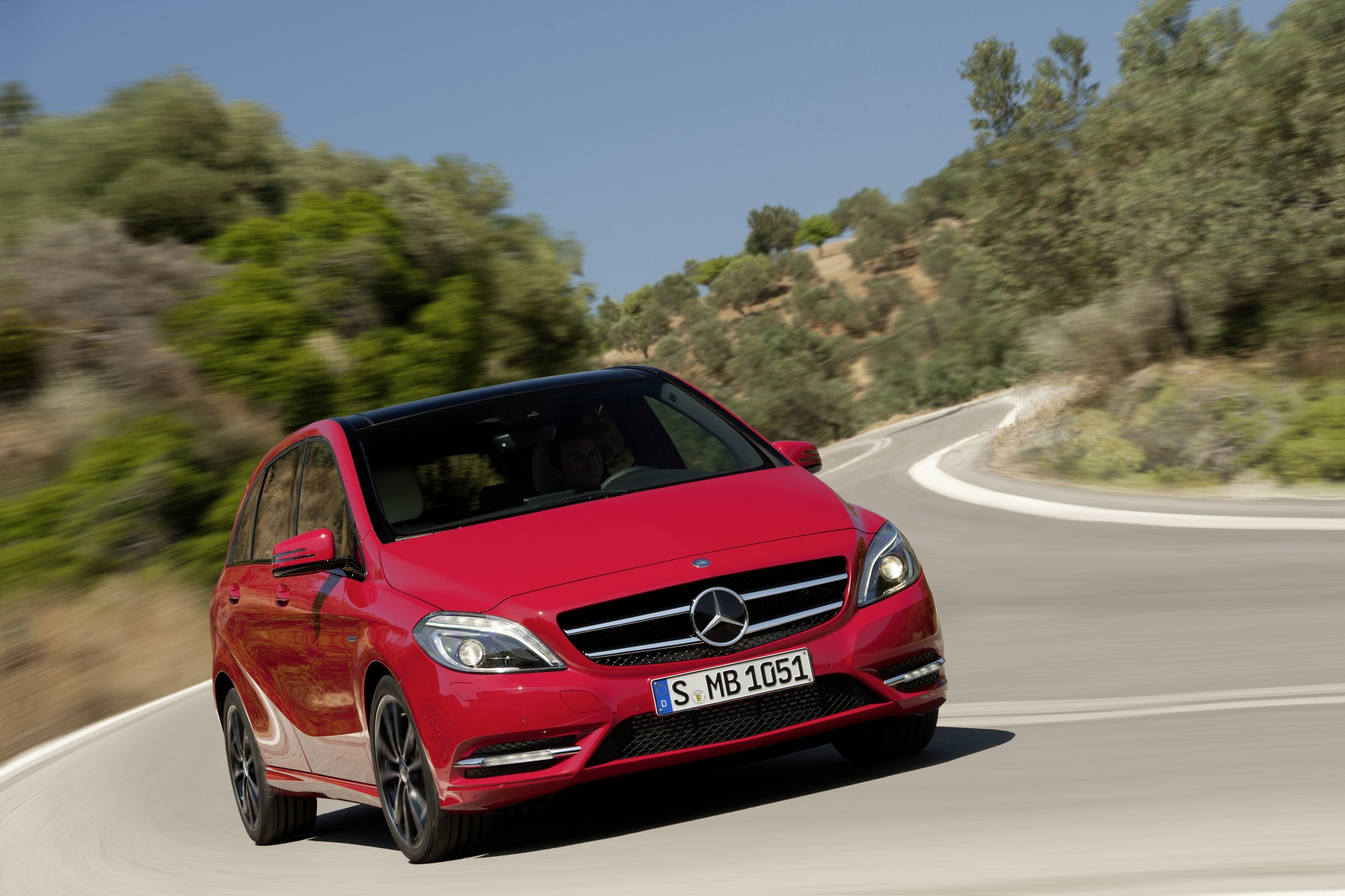

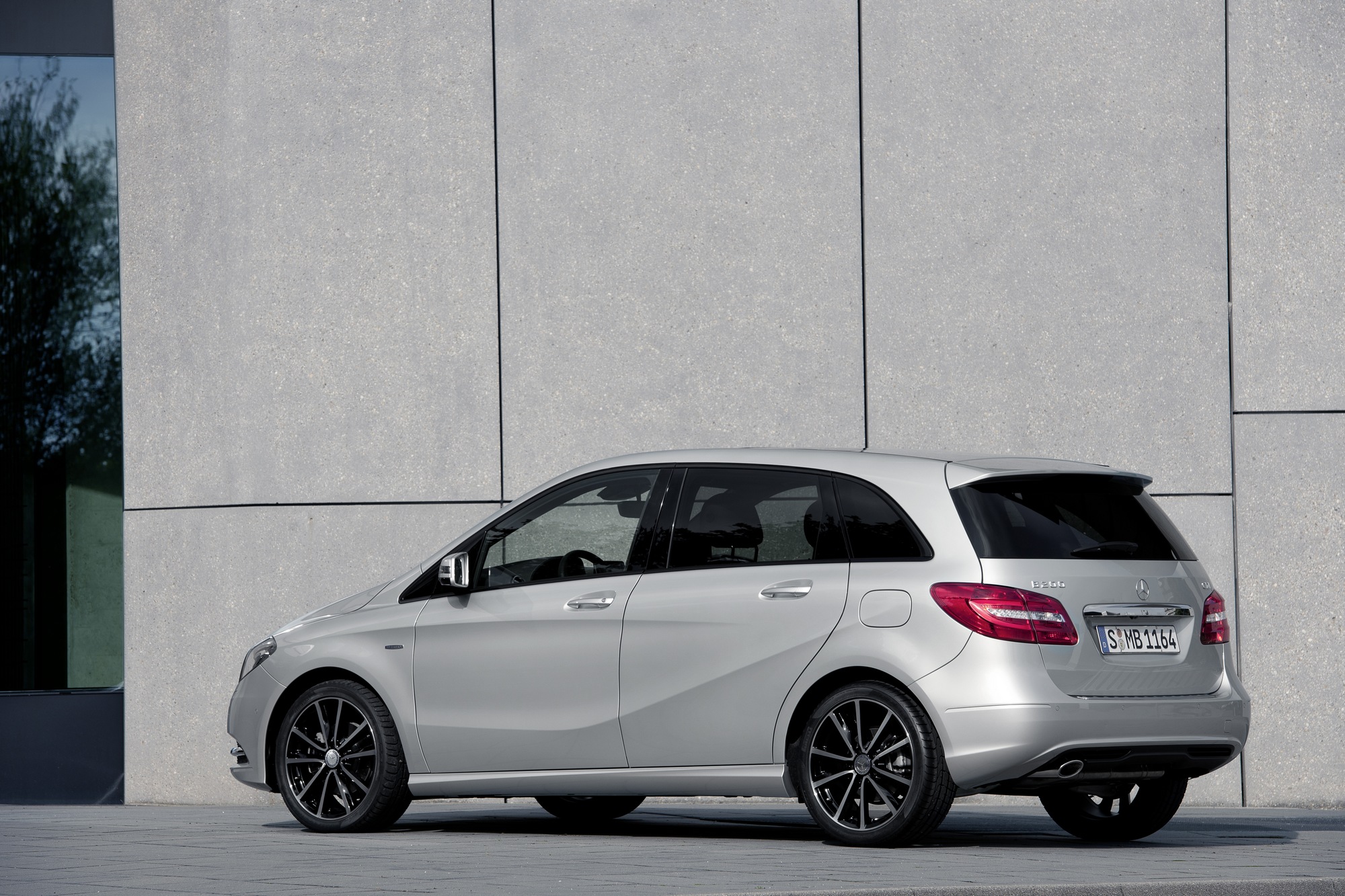

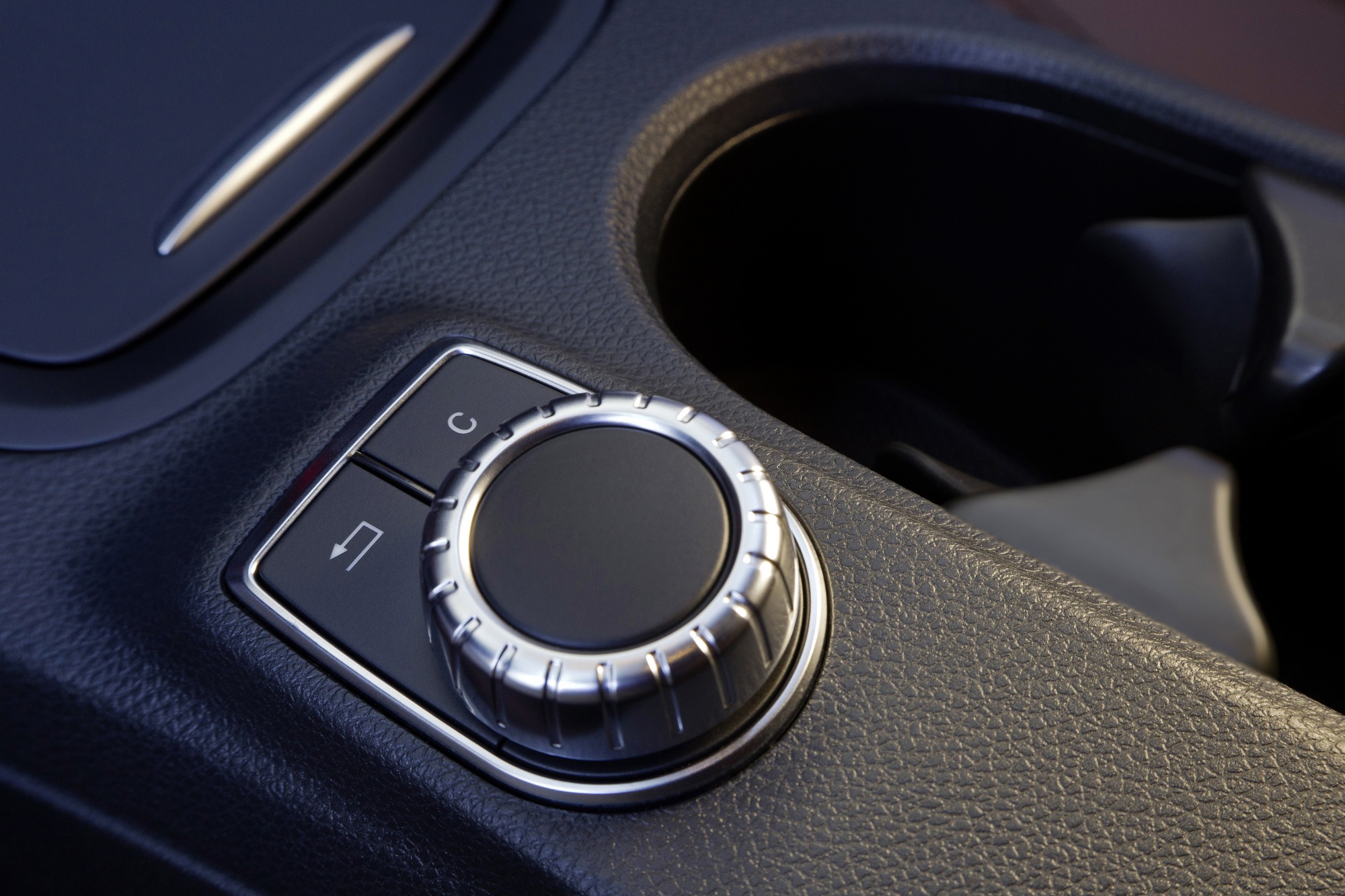

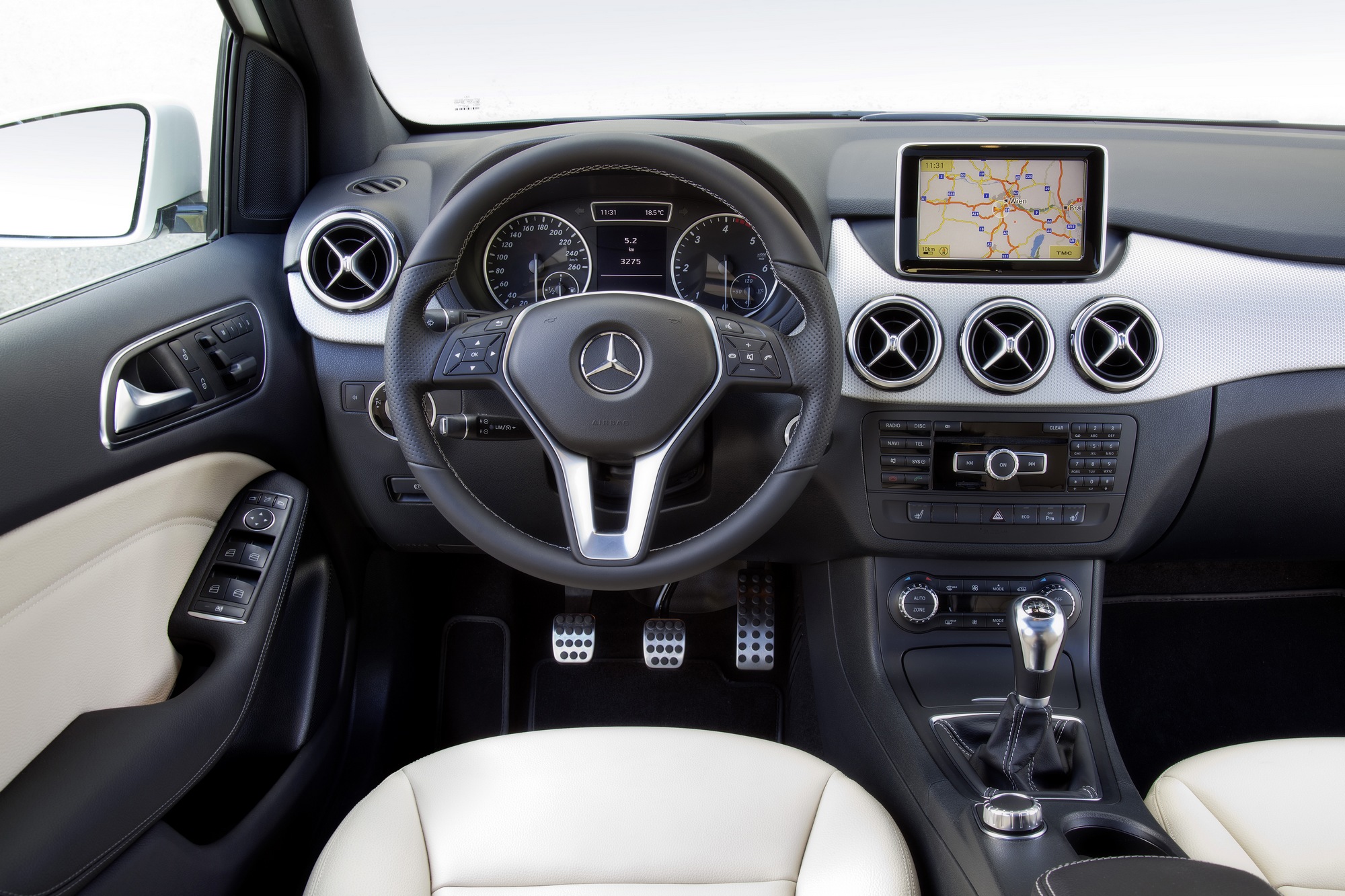

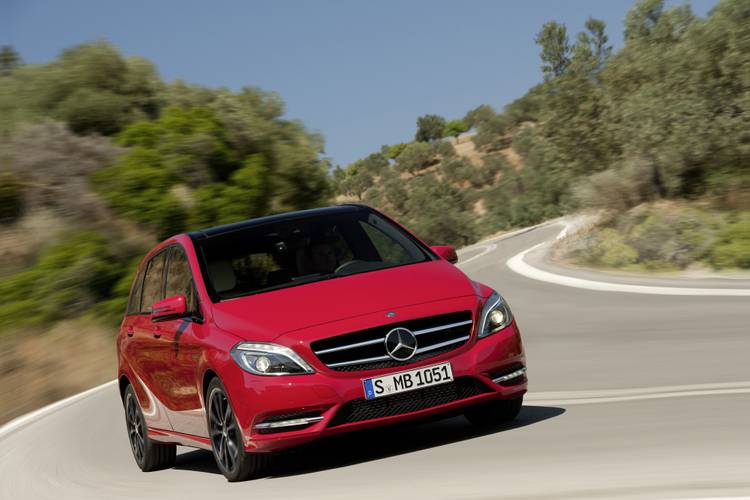

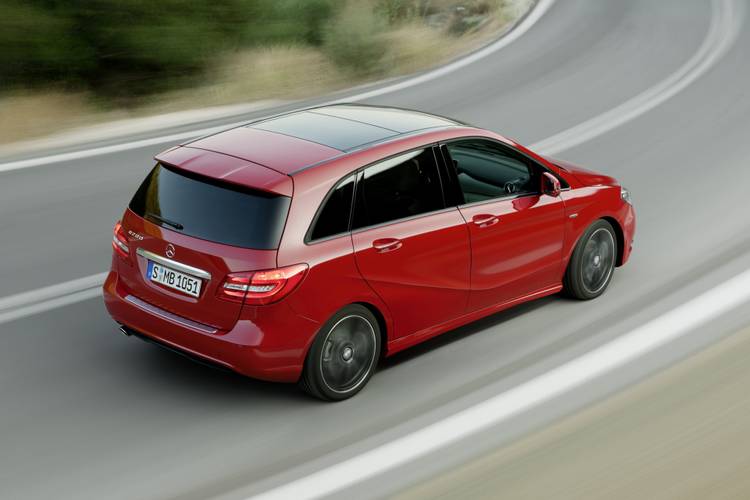

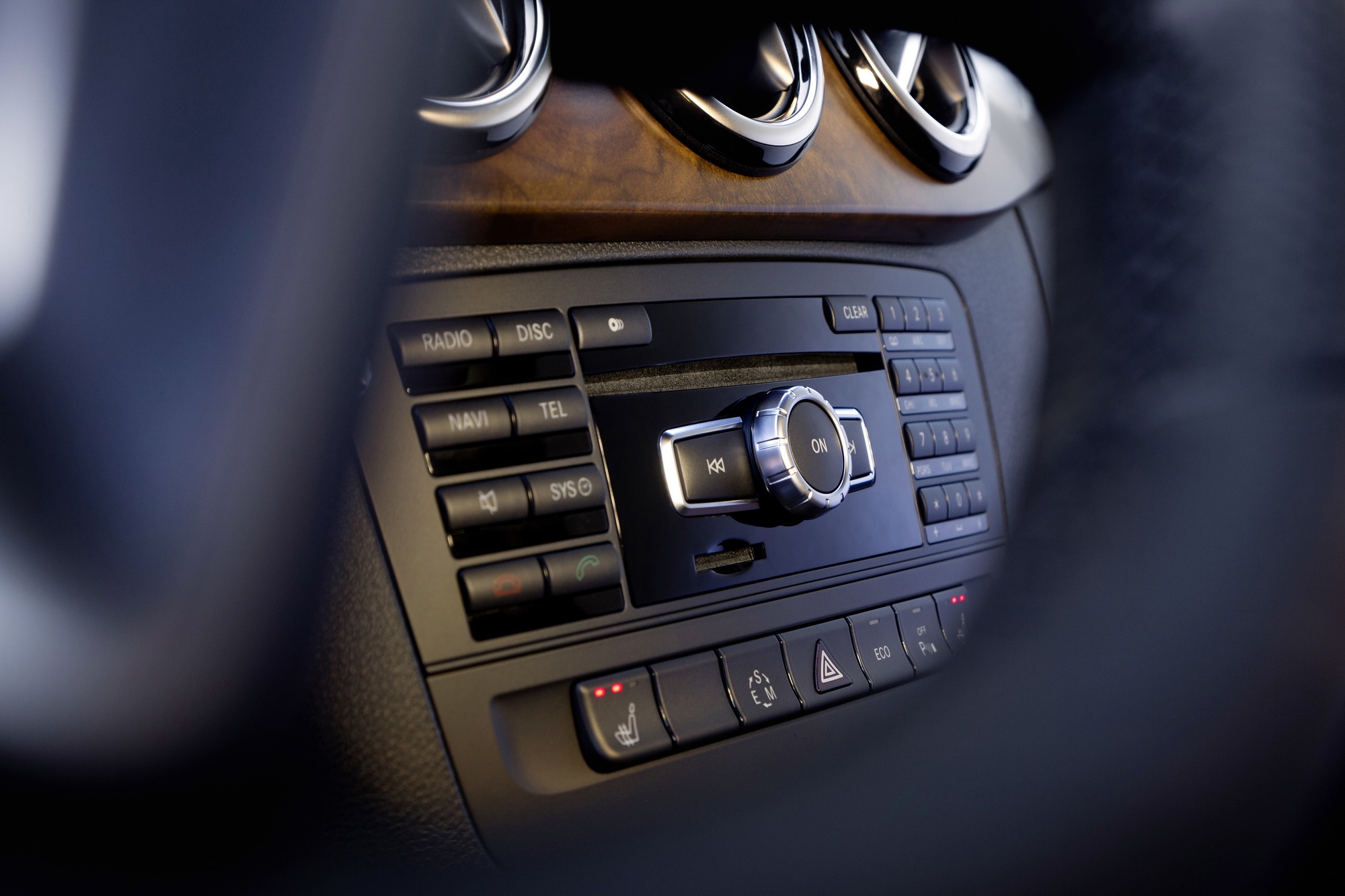

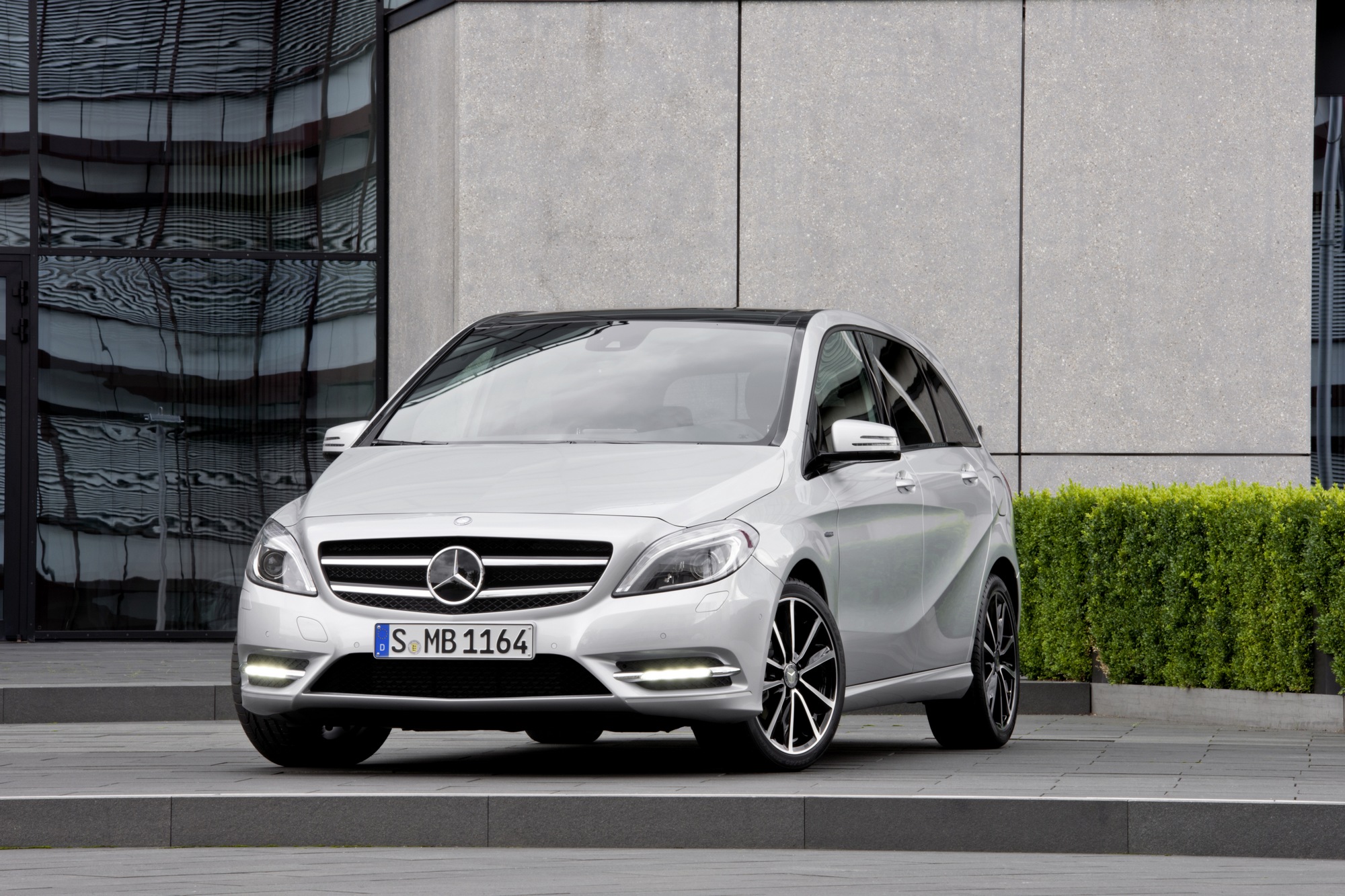

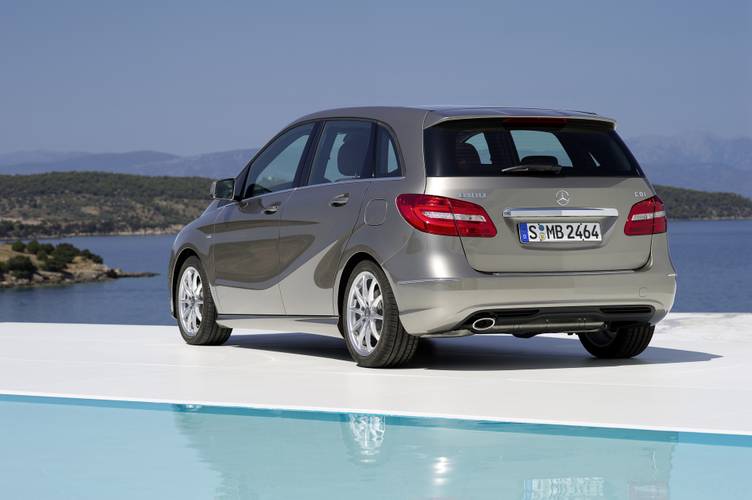

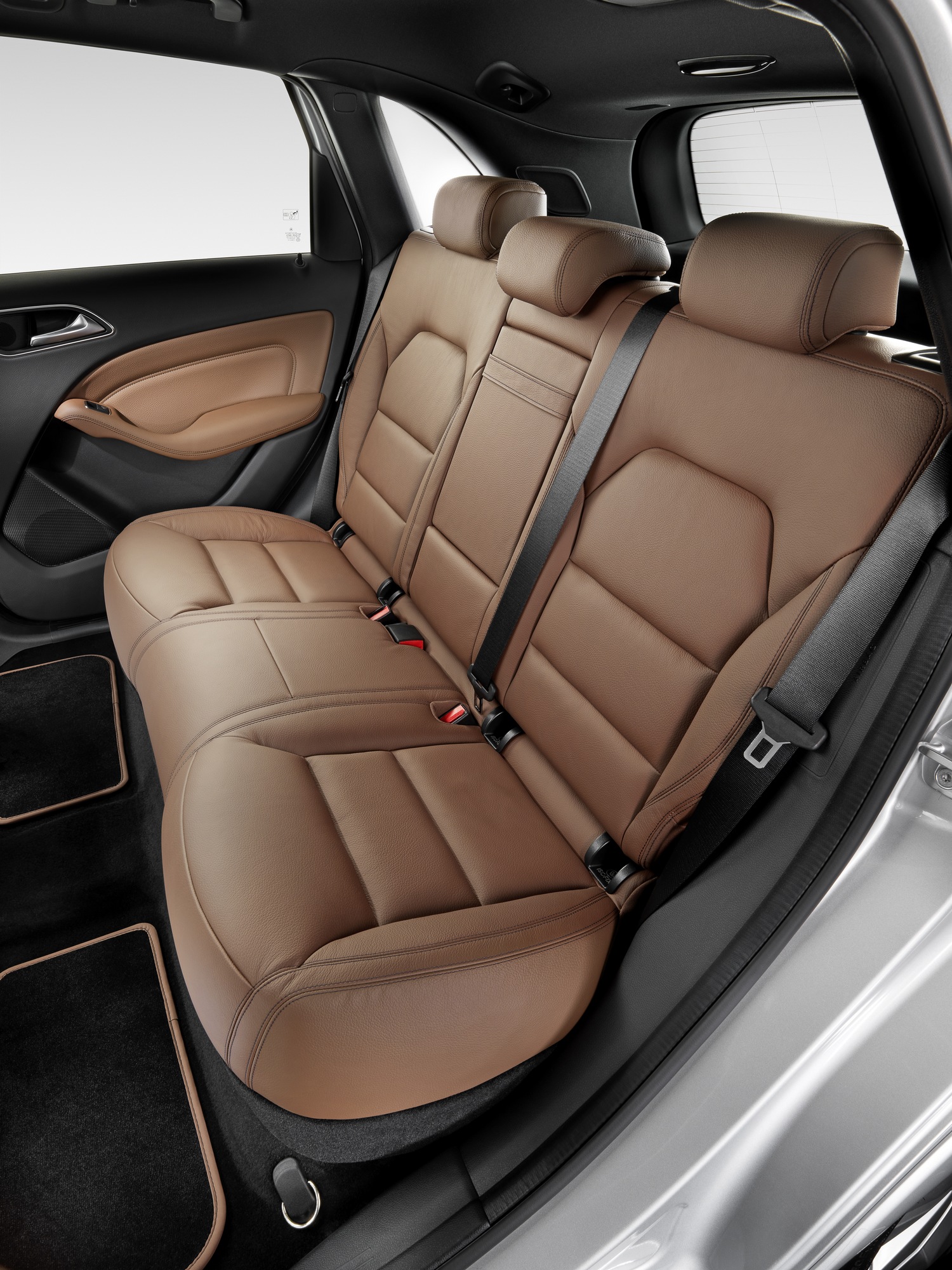

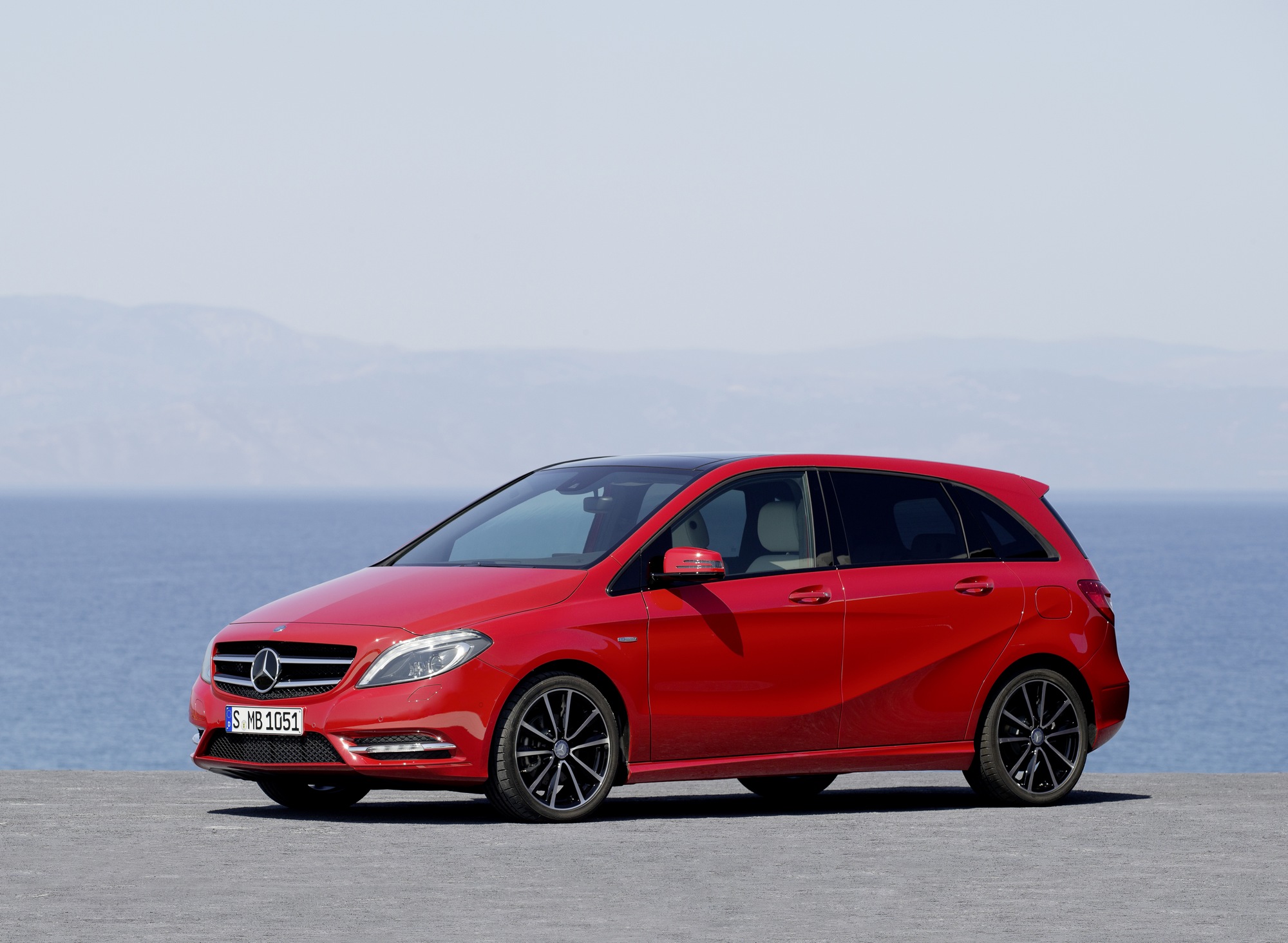

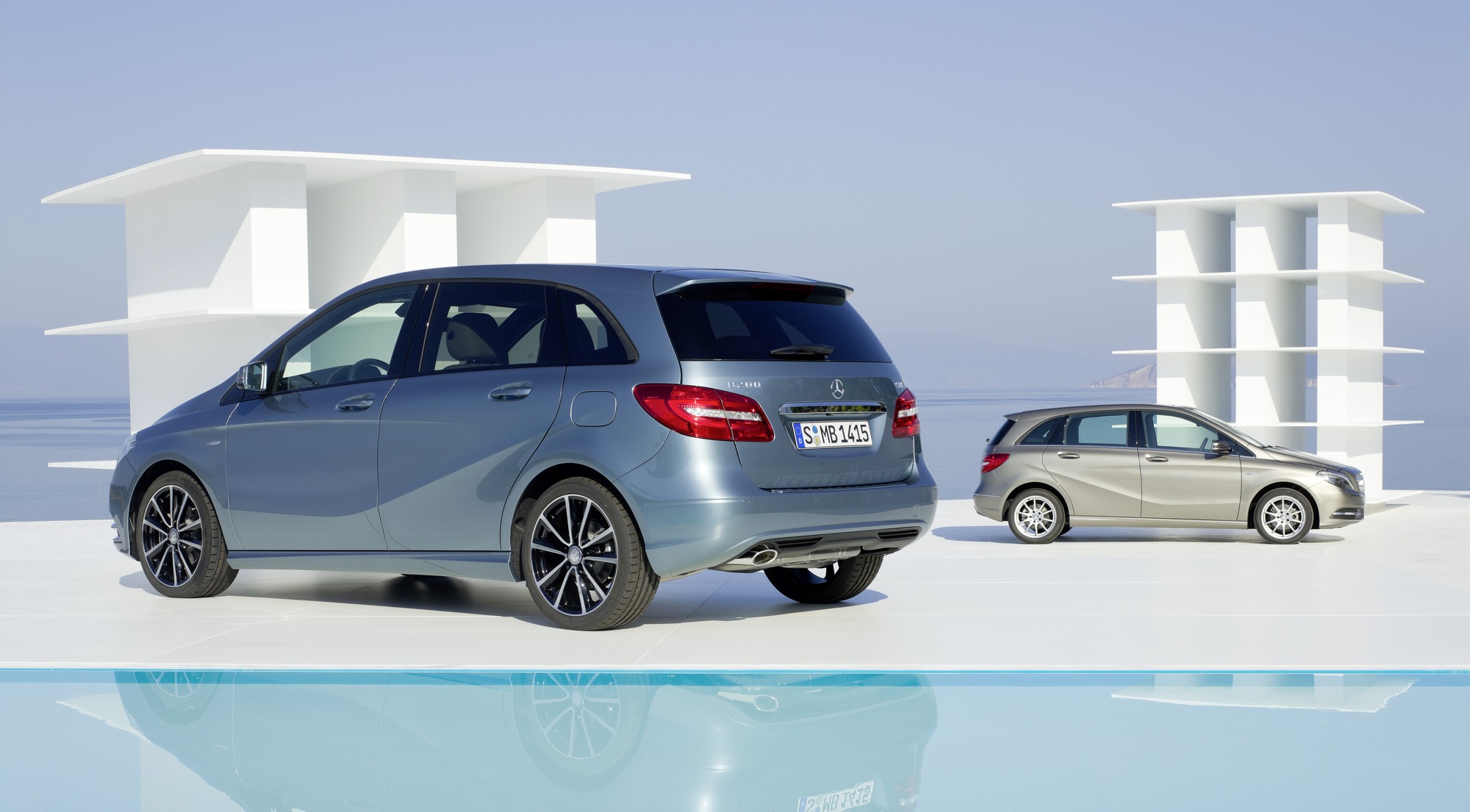

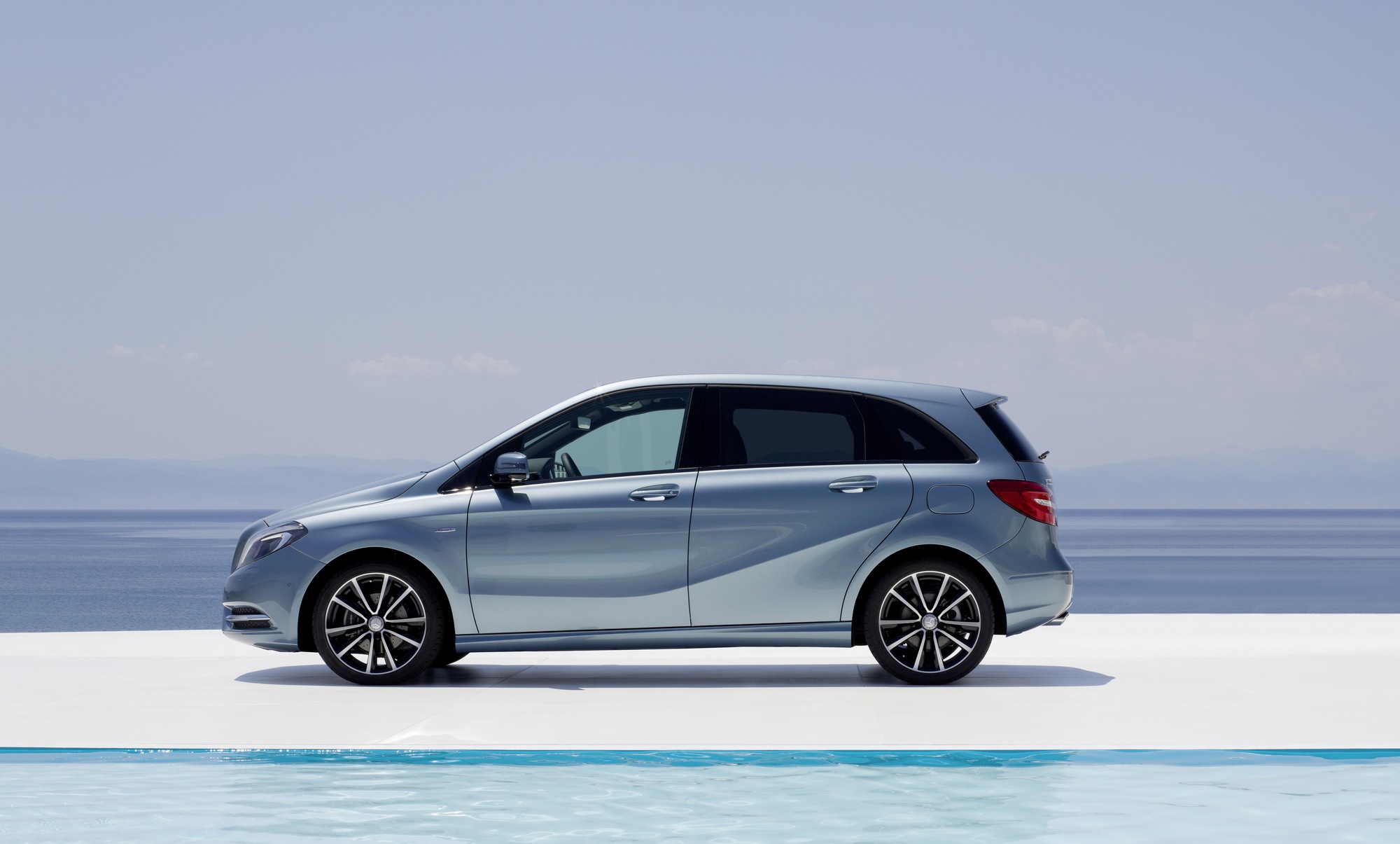

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
