Mercedes-Benz B
Date of manufacture
2008 – 2011 (MPV)
Platform
-
Manufacturing locations
Rastatt, Germany
Designer
-
Tags
Small MPV
German cars
Mercedes-Benz B has been produced since 2008 and offers a single MPV body style. The vehicle is manufactured in Germany and the engine range includes petrol and diesel powertrains, providing a wide range of options for every consumer. The most powerful model is the B 200 Turbo with a maximum output of 142 kW, which reaches a top speed of 225 km/h and the best acceleration from 0-100 km/h in 7.4 seconds. The most economical model B 200 CDI has a combined fuel consumption of 5.2 l/100 km and CO2 emissions of 136 g/km. The luggage compartment of the car has a volume of 544 l. In terms of safety, EURONCAP has awarded the vehicle a rating of 5 out of 5.
Car body style
MPV

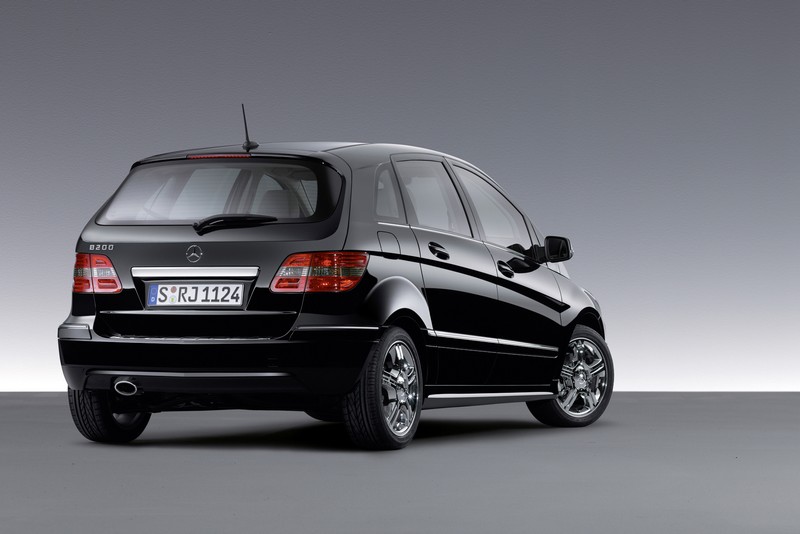

after upgrade (facelift)
Date of manufacture
2008 – 2011Internal designation
W245
Technical data
MPV
| B 160 | B 160 BlueEFFICIENCY | B 180 | B 180 BlueEFFICIENCY | B 180 NGT BlueEFFICIENCY | B 180 NGT BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1498 | 1498 | 1699 | 1699 | 2034 | 2034 |
| Maximum output / speed [kW/min-1] | 70/5200 | 70/5200 | 85/5500 | 85/5500 | 85/5750 | 85/5750 |
| Maximum torque [Nm/min-1] | 140/3500-4000 | 140/3500-4000 | 155/3500-4000 | 155/3500-4000 | 165/3500-4000 | 165/3500-4000 |
| Bore and stroke [mm x mm] | 83,0 x 69,2 | 83,0 x 69,2 | 83,0 x 78,5 | 83,0 x 78,5 | 83,0 x 94,0 | 83,0 x 94,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 1 gear automatic | 5 gear manual | 1 gear automatic | 5 gear manual | 5 gear manual | 1 gear automatic |
| Drive specifications |
| - |
| - | - |
|
| Top speed [km/h] | 168 | 174 | 180 | 184 | 184 | 180 |
| Acceleration 0–100 km/h [s] | 14.2 | 13.2 | 12.0 | 11.3 | 12.4 | 13.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7-8.9 | 8.1-8.2 | 9.2-9.4 | 8.0-8.2 | 9.7 (6.4) | 9.9 (6.5) |
| Out of town [l] | 6.2-6.4 | 5.4-5.6 | 6.2-6.4 | 5.3-5.7 | 5.9 (4.1) | 6.2 (4.3) |
| Combined [l] | 7.1-7.3 | 6.4-6.6 | 7.3-7.5 | 6.3-6.6 | 7.3 (4.9) | 7.6 (5.1) |
| CO2 emissions [g/km] | 168-183 | 149-152 | 173-177 | 146-153 | 170 (135) | 177 (139) |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1350 | 1320 | 1360 | 1330 | 1470 | 1515 |
| Overall weight [kg] | 1835 | 1835 | 1830 | 1830 | 1950 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 645/1000 | 645/1000 | 645/1300 | 645/1300 | 645/1300 | 645/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 544 | 544 | 544 | 544 | 416 | 416 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1530 | -/1530 | -/1530 | -/1530 | -/1530 | -/1530 |
| Boot length [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Boot length with rear seats folded [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/920 | -/920 | -/920 | -/920 | -/920 | -/920 |
| Loading edge height [mm] | 621 | 621 | 621 | 621 | 621 | 621 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 850 | 850 | 850 | 850 | 850 | 850 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 (16) | 54 (16) |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | parabolic rear axle | parabolic rear axle | parabolic rear axle | parabolic rear axle | parabolic rear axle | parabolic rear axle |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4273 | 4273 | 4273 | 4273 | 4273 | 4273 |
| Overall width without/including mirrors [mm] | 1777/2040 | 1777/2040 | 1777/2040 | 1777/2040 | 1777/2040 | 1777/2040 |
| Overall height [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Wheelbase [mm] | 2778 | 2778 | 2778 | 2778 | 2778 | 2778 |
| Front wheel track [mm] | 1556 | 1556 | 1556 | 1556 | 1556 | 1556 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 653 | 653 | 653 | 653 | 653 | 653 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1411/1422 | 1411/1422 | 1411/1422 | 1411/1422 | 1411/1422 | 1411/1422 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B 200 | B 200 | B 200 Turbo | B 200 Turbo | B 180 CDI | B 180 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2034 | 2034 | 2034 | 2034 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 100/5500 | 100/5500 | 142/4850 | 142/4850 | 80/4200 | 80/4200 |
| Maximum torque [Nm/min-1] | 185/3500-4000 | 185/3500-4000 | 280/1800-4850 | 280/1800-4850 | 250/1600-2600 | 250/1600-2600 |
| Bore and stroke [mm x mm] | 83,0 x 94,0 | 83,0 x 94,0 | 83,0 x 94,0 | 83,0 x 94,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 9,0:1 | 9,0:1 | 18,0:1 | 18,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 196 | 190 | 225 | 218 | 183 | 178 |
| Acceleration 0–100 km/h [s] | 10.1 | 10.2 | 7.6 | 7.4 | 11.3 | 11.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8-9.1 | 9.7-9.9 | 10.3-10.6 | 10.5-10.7 | 6.7 | 6.7-7.3 |
| Out of town [l] | 5.5-5.7 | 6.2-6.4 | 6.2-6.3 | 6.7-6.8 | 4.4-4.5 | 4.9-5.3 |
| Combined [l] | 6.7-7.0 | 7.5-7.7 | 7.7-7.9 | 8.1-8.2 | 5.2-5.3 | 5.6-6.0 |
| CO2 emissions [g/km] | 158-164 | 177-182 | 184-188 | 194-197 | 136-139 | 146-158 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1345 | 1390 | 1370 | 1405 | 1435 | 1470 |
| Overall weight [kg] | 1880 | 1880 | 1880 | 1880 | 1880 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 645/1500 | 645/1500 | 645/1500 | 645/1500 | 715/1500 | 715/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 544 | 544 | 544 | 544 | 544 | 544 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1530 | -/1530 | -/1530 | -/1530 | -/1530 | -/1530 |
| Boot length [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Boot length with rear seats folded [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/920 | -/920 | -/920 | -/920 | -/920 | -/920 |
| Loading edge height [mm] | 621 | 621 | 621 | 621 | 621 | 621 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 850 | 850 | 850 | 850 | 850 | 850 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | parabolic rear axle | parabolic rear axle | parabolic rear axle | parabolic rear axle | parabolic rear axle | parabolic rear axle |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4273 | 4273 | 4273 | 4273 | 4273 | 4273 |
| Overall width without/including mirrors [mm] | 1777/2040 | 1777/2040 | 1777/2040 | 1777/2040 | 1777/2040 | 1777/2040 |
| Overall height [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Wheelbase [mm] | 2778 | 2778 | 2778 | 2778 | 2778 | 2778 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 653 | 653 | 653 | 653 | 653 | 653 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1411/1422 | 1411/1422 | 1411/1422 | 1411/1422 | 1411/1422 | 1411/1422 |
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 | 1382/1446 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| B 200 CDI | B 200 CDI | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1991 | 1991 | ||||
| Maximum output / speed [kW/min-1] | 103/4200 | 103/4200 | ||||
| Maximum torque [Nm/min-1] | 300/1600-3000 | 300/1600-3000 | ||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | ||||
| Compression ratio | 18,0:1 | 18,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 1 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 200 | 195 | ||||
| Acceleration 0–100 km/h [s] | 9.6 | 9.7 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.6 | 6.7-8.0 | ||||
| Out of town [l] | 4.5-4.6 | 4.9-5.3 | ||||
| Combined [l] | 5.2-5.3 | 5.6-6.3 | ||||
| CO2 emissions [g/km] | 136-139 | 146-165 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1435 | 1470 | ||||
| Overall weight [kg] | 1880 | 1880 | ||||
| Maximum trailer weight unbraked/braked [kg] | 715/1500 | 715/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 544 | 544 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1530 | -/1530 | ||||
| Boot length [mm] | 898 | 898 | ||||
| Boot length with rear seats folded [mm] | 1475 | 1475 | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | -/920 | -/920 | ||||
| Loading edge height [mm] | 621 | 621 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 850 | 850 | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 54 | 54 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.3 | 0.3 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | parabolic rear axle | parabolic rear axle | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 6.0J x 16 | 6.0J x 16 | ||||
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | ||||
| Overall length [mm] | 4273 | 4273 | ||||
| Overall width without/including mirrors [mm] | 1777/2040 | 1777/2040 | ||||
| Overall height [mm] | 1603 | 1603 | ||||
| Wheelbase [mm] | 2778 | 2778 | ||||
| Front wheel track [mm] | 1552 | 1552 | ||||
| Rear wheel track [mm] | 1547 | 1547 | ||||
| Forward overhang [mm] | 842 | 842 | ||||
| Rear overhang [mm] | 653 | 653 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 989 | 989 | ||||
| Headroom rear [mm] | 980 | 980 | ||||
| Front elbow/shoulder width [mm] | 1411/1422 | 1411/1422 | ||||
| Rear elbow/shoulder width [mm] | 1382/1446 | 1382/1446 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
