Mazda MX-5

Date of manufacture

3/2015 – to this day (Roadster)

Platform

Mazda ND

Manufacturing locations

Hiroshima, Japan

Designer

Derek Jenkins

Car body style

Roadster

Date of manufacture

3/2015 – to this day

Internal designation

Engine size

1.5 Skyactiv - G130 RF

1.5 SKYACTIV-G 132 RF

2.0 Skyactiv - G160 RF

2.0 SKYACTIV-G 184 RF

Euro NCAP

Technical data

Roadster

	1.5 Skyactiv - G130	1.5 SKYACTIV-G 132	2.0 Skyactiv - G160	2.0 SKYACTIV-G 184	1.5 Skyactiv - G130 RF	1.5 SKYACTIV-G 132 RF
Date of sale	from to 2018	from 2018 to	from to 2018	from 2018 to	from 2017 to 2018	from 2018 to
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1496	1496	1998	1998	1496	1496
Maximum output / speed [kW/min-1]	96/7000	97/7000	118/6000	135/7000	96/7000	97/7000
Maximum torque [Nm/min-1]	150/4800	152/4500	200/4600	205/4000	150/4800	152/4500
Bore and stroke [mm x mm]	74,5 x 85,8	74,5 x 85,8	83,5 x 91,2	83,5 x 91,2	74,5 x 85,8	74,5 x 85,8
Compression ratio	13,0:1	13,0:1	13,0:1	13,0:1	13,0:1	13,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable valve timing Dual SV‐T	direct injection variable valve timing Dual SV‐T	direct injection variable valve timing Dual SV‐T start&stop system i‐stop brake energy recuperation i‐ELOOP	direct injection variable valve timing Dual SV‐T start&stop system i‐stop brake energy recuperation i‐ELOOP	direct injection variable valve timing Dual SV‐T	direct injection variable valve timing Dual SV‐T

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	-	-	-	-	-	-

Top speed [km/h]	204	204	214	219	203	203
Acceleration 0–100 km/h [s]	8.3	8.3	7.3	6.5	8.3	8.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.9	7.4	9.3	8.4	8.1	7.4
Out of town [l]	4.9	5.3	5.5	5.9	4.9	5.3
Combined [l]	6.0	6.1	6.7	6.9	6.1	6.1
CO2 emissions [g/km]	139	138	161	156	142	138

Low speed [l]	-	-	-	-	-	-
Medium speed [l]	-	-	-	-	-	-
High speed [l]	-	-	-	-	-	-
Extra high speed [l]	-	-	-	-	-	-
Combined speed [l]	-	6.3	-	6.9	-	6.3
CO2 emissions [g/km]	-	142	-	155	-	142

Emission standard	EU6	Euro 6d-TEMP - Euro 6d	EU6	Euro 6d-TEMP - Euro 6d	EU6	Euro 6d-TEMP - Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1090	1076-1102	1137	1105-1127	1127	1120-1139
Overall weight [kg]	1215	130	1260	1260	1265	1280
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-	-
Maximum front/rear axle load [kg]	610/605	625/605	645/615	645/615	620/645	635/645
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	130	130	130	130	127	127
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	640	640	640	640	640	640
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-/1100	-/1100	-/1100	-/1100	-/1100	-/1100
Boot height to headliner/ceiling [mm]	-/455	-/455	-/455	-/455	-/455	-/455
Loading edge height [mm]	821	821	828	828	816	816
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	808	808	808	808	769	769

Number of doors	2	2	2	2	2	2
Number of seats	2	2	2	2	2	2
Fuel tank volume [l]	45	45	45	45	45	45
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/50 R16	195/50 R16	205/45 R17	205/45 R17	195/50 R16	195/50 R16
Tyre dimensions rear	195/50 R16	195/50 R16	205/45 R17	205/45 R17	195/50 R16	195/50 R16
Wheel size front	6.5J x 16	6.5J x 16	7J x 17	7J x 17	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	7J x 17	7J x 17	6.5J x 16	6.5J x 16
Brake dimensions front	258	258	280	280	258	258
Brake dimensions rear	255	255	280	280	255	255
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	9.4/10.4	9.4/10.4	9.4/10.4	9.4/10.4	9.4/10.4	9.4/10.4

Overall length [mm]	3915	3915	3915	3915	3915	3915
Overall width without/including mirrors [mm]	1735/1918	1735/1918	1735/1918	1735/1918	1735/1918	1735/1918
Overall height [mm]	1225	1225	1230	1230	1230	1230
Wheelbase [mm]	2310	2310	2310	2310	2310	2310
Front wheel track [mm]	1495	1495	1495	1495	1495	1495
Rear wheel track [mm]	1505	1505	1505	1505	1505	1505
Forward overhang [mm]	760	760	760	760	760	760
Rear overhang [mm]	845	845	845	845	845	845
Clearance [mm]	141-149	141-149	141-149	141-149	141-147	141-147
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	950	950	950	950	936	936
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	1320/1325	1320/1325	1320/1325	1320/1325	1320/1325	1320/1325
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-/1096	-/1096	-/1096	-/1096	-/1096	-/1096
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 Skyactiv - G160 RF	2.0 Skyactiv - G160 RF	2.0 SKYACTIV-G 184 RF	2.0 SKYACTIV-G 184 RF
Date of sale	from 2017 to 2018	from 2017 to 2018	from 2018 to	from 2018 to 2020
Engine type	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1998	1998
Maximum output / speed [kW/min-1]	118/6000	118/6000	135/7000	135/7000
Maximum torque [Nm/min-1]	200/4600	200/4600	205/4000	205/4000
Bore and stroke [mm x mm]	83,5 x 91,2	83,5 x 91,2	83,5 x 91,2	83,5 x 91,2
Compression ratio	13,0:1	13,0:1	13,0:1	13,0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection variable valve timing Dual SV‐T start&stop system i‐stop brake energy recuperation i‐ELOOP	direct injection variable valve timing Dual SV‐T start&stop system i‐stop brake energy recuperation i‐ELOOP	direct injection variable valve timing Dual SV‐T start&stop system i‐stop brake energy recuperation i‐ELOOP	direct injection variable valve timing Dual SV‐T start&stop system i‐stop brake energy recuperation i‐ELOOP

Drive axle	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	six-speed automatic gearbox SKYACTIV-Drive	-	six-speed automatic gearbox SKYACTIV-Drive

Top speed [km/h]	215	194	220	199
Acceleration 0–100 km/h [s]	7.5	8.5	6.8	7.9
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	8.7	8.4	8.4	8.2
Out of town [l]	5.4	5.3	5.9	6.1
Combined [l]	6.6	6.4	6.9	6.9
CO2 emissions [g/km]	154	149	156	157

Low speed [l]	-	-	-	-
Medium speed [l]	-	-	-	-
High speed [l]	-	-	-	-
Extra high speed [l]	-	-	-	-
Combined speed [l]	-	-	6.9	7.6
CO2 emissions [g/km]	-	-	155	171

Emission standard	EU6	EU6	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1167	1191	1148-1168	1188-1195
Overall weight [kg]	1305	1320	1305	1320
Maximum trailer weight unbraked/braked [kg]	-	-	-	-
Maximum front/rear axle load [kg]	645/660	655/665	645/660	655/665
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	127	127	127	127
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-
Boot length [mm]	640	640	640	640
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-/1100	-/1100	-/1100	-/1100
Boot height to headliner/ceiling [mm]	-/455	-/455	-/455	-/455
Loading edge height [mm]	826	826	826	826
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	769	769	769	769

Number of doors	2	2	2	2
Number of seats	2	2	2	2
Fuel tank volume [l]	45	45	45	45
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	multilink	multilink	multilink	multilink
Tyre dimensions front	205/45 R17	205/45 R17	205/45 R17	205/45 R17
Tyre dimensions rear	205/45 R17	205/45 R17	205/45 R17	205/45 R17
Wheel size front	7J x 17	7J x 17	7J x 17	7J x 17
Wheel size rear	7J x 17	7J x 17	7J x 17	7J x 17
Brake dimensions front	280	280	280	280
Brake dimensions rear	280	280	280	280
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	9.4/10.4	9.4/10.4	9.4/10.4	9.4/10.4

Overall length [mm]	3915	3915	3915	3915
Overall width without/including mirrors [mm]	1735/1918	1735/1918	1735/1918	1735/1918
Overall height [mm]	1235	1235	1235	1235
Wheelbase [mm]	2310	2310	2310	2310
Front wheel track [mm]	1495	1495	1495	1495
Rear wheel track [mm]	1505	1505	1505	1505
Forward overhang [mm]	760	760	760	760
Rear overhang [mm]	845	845	845	845
Clearance [mm]	141-147	141-147	141-147	141-147
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	936	936	936	936
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	1320/1325	1320/1325	1320/1325	1320/1325
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-/1096	-/1096	-/1096	-/1096
Legroom rear knees/total [mm]	-	-	-	-

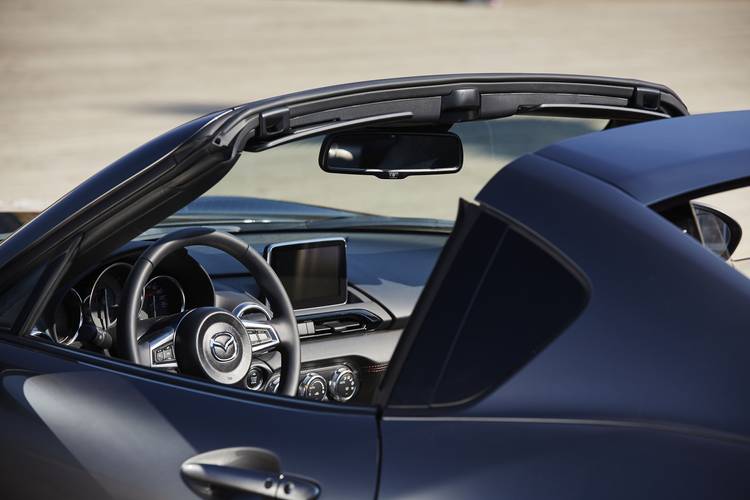

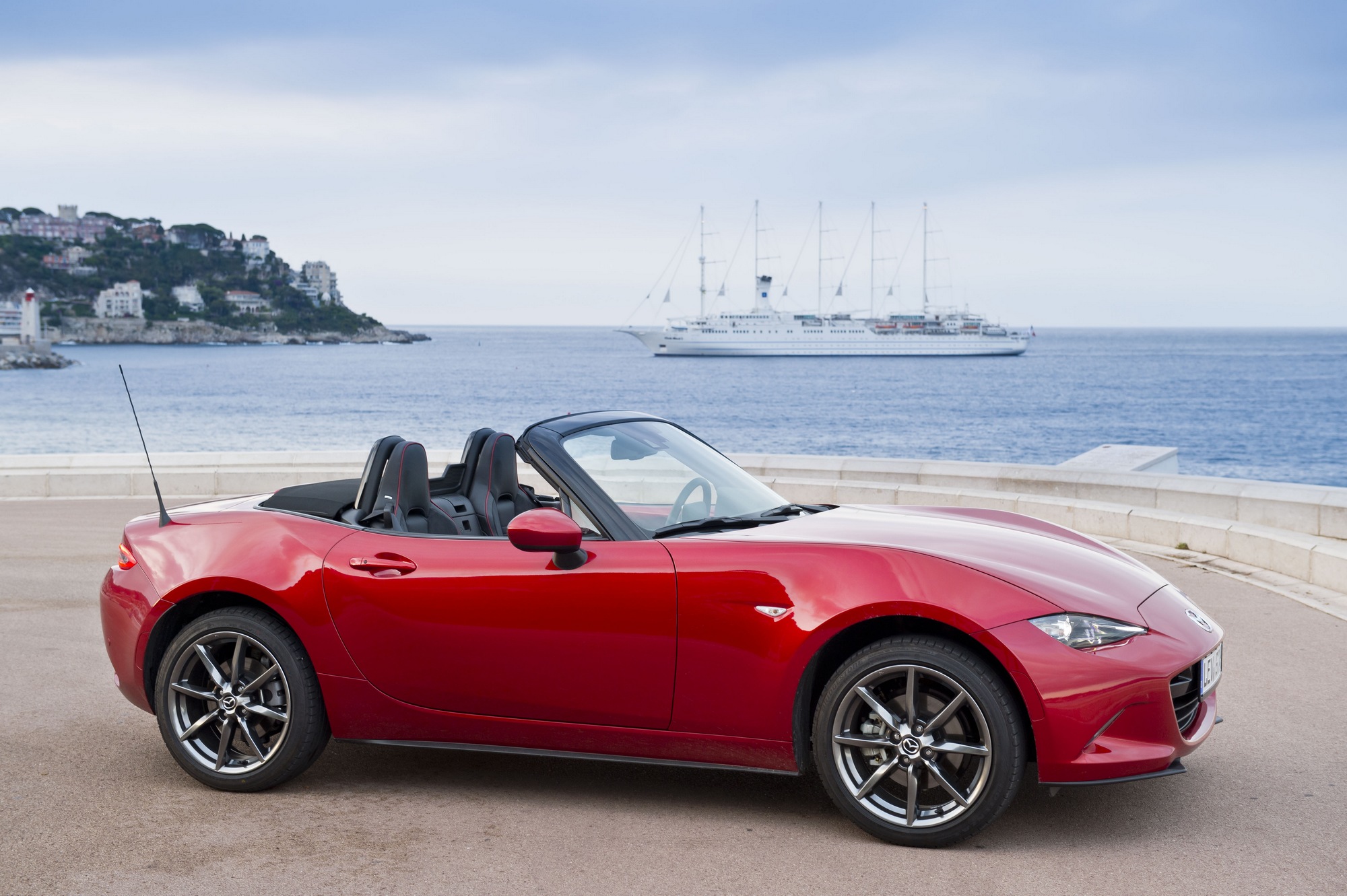

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
