Mazda CX-5
Date of manufacture
2017 – to this day (Medium SUV)
Platform
-
Manufacturing locations
Hiroshima, Japan
Hōfu, Japan
Nanjing, People's Republic of China
Vladivostok, Russia
Designer
Ikuo Maeda
Shinichi Isayama
Tags
Compact SUV
Japanese cars
The Mazda CX-5 is a premium mid-size SUV that has been manufactured in Japan, China and Russia since 2017. The powertrain lineup includes both petrol and diesel engines. The most powerful model, the 2.5 SKYACTIV-G 194 AWD, produces 143 kW of power and the fastest version, the 2.2 SKYACTIV-D 184, has a top speed of 211 km/h. The most fuel-efficient engine, the 2.2 SKYACTIV-D 150, has a fuel consumption of 5 l/100 km and emissions of 132 g/km. The 506-litre boot provides ample capacity for cargo. In terms of safety, the CX-5 model earned a 5 out of 5 rating from EURONCAP in 2017.
Car body style
Medium SUV
Date of manufacture
2017 – to this dayInternal designation
KFEngine size
PetrolDiesel
Technical data
Medium SUV
| 2.0 SKYACTIV-G 165 | 2.0 SKYACTIV-G 160 AWD | 2.0 SKYACTIV-G 160 AWD | 2.0 SKYACTIV-G 165 | 2.0 SKYACTIV-G 165 AWD | 2.0 SKYACTIV-G 165 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from 2018 to |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 121/6000 | 118/6000 | 118/6000 | 121/6000 | 121/6000 | 121/6000 |
| Maximum torque [Nm/min-1] | 210/4000 | 208/4000 | 208/4000 | 213/4000 | 213/4000 | 213/4000 |
| Bore and stroke [mm x mm] | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 |
| Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 13,0:1 | 13,0:1 | 13,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 201 | 198 | 188 | 201 | 198 | 188 |
| Acceleration 0–100 km/h [s] | 10,4 | 10,9 | 10,5 | 10,3 | 10,8 | 10,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9 | 8,1 | 8 | 7,7-7.1 [7,7 i‐ELOOP] | 8,8-8.0 | 8,4 |
| Out of town [l] | 5,6 | 5,9 | 5,8 | 5,6-5.3 [5,6 i‐ELOOP] | 6,2-5.7 | 6,1 |
| Combined [l] | 6,4 | 6,8 | 6,6 | 6,4-6.0 [6,4 i‐ELOOP] | 7,2-6.5 | 7,0 |
| CO2 emissions [g/km] | 149 | 159 | 155 | 146-135 [145 i‐ELOOP] | 163-147 | 159 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 7,4-6.8 [7,4 i‐ELOOP] | 8,2-7.6 | 8,3-7.8 |
| CO2 emissions [g/km] | - | - | - | 168-154 [168 i‐ELOOP] | 186-171 | 188-176 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1360-1487 | 1420-1556 | 1425-1561 | 1518-1595 | 1590-1660 | 1615-1685 |
| Overall weight [kg] | 2020 | 2080 | 2115 | 2020 | 2080 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 715/1800 | 745/2000 | 750/2000 | 750/1800 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | 1035/1085 | 1050/1130 | 1090/1135 |
| Maximum vertical load on the tow bar [kg] | - | - | - | 84 | 84 | 84 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 506 | 506 | 506 | 506 | 506 | 506 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1696 | 1696 | 1696 | 1696 | 1696 | 1696 |
| Boot width between wheels/max [mm] | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 |
| Boot height to headliner/ceiling [mm] | 505/- | 505/- | 505/- | 505/- | 505/- | 505/- |
| Loading edge height [mm] | 745 | 745 | 745 | 745 | 745 | 745 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Boot opening width min/max [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 56 | 58 | 58 | 56 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
| Brake dimensions rear | 303 | 303 | 303 | 303 | 303 | 303 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
| Overall length [mm] | 4550 | 4550 | 4550 | 4550 | 4550 | 4550 |
| Overall width without/including mirrors [mm] | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 |
| Overall height [mm] | 1675 | 1675 | 1675 | 1680 | 1680 | 1680 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1595 | 1595 |
| Rear wheel track [mm] | 1595 | 1596 | 1596 | 1595 | 1596 | 1596 |
| Forward overhang [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 192 | 192 | 192 | 185-193 | 185-193 | 185-193 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Front elbow/shoulder width [mm] | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 |
| Rear elbow/shoulder width [mm] | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 |
| Legroom front knees/total [mm] | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 |
| Legroom rear knees/total [mm] | 67/1007 | 67/1007 | 67/1007 | 67/1007 | 67/1007 | 67/1007 |
| Rating | - | - | - |   | - | - |
| Clean Air Index | - | - | - | 3.8/10 | - | - |
| Energy Efficiency Index | - | - | - | 4.1/10 | - | - |
| GHG index | - | - | - | 3.7/10 | - | - |
| 2.5 SKYACTIV-G 194 | 2.5 SKYACTIV-G 194 AWD | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 AWD | 2.2 SKYACTIV-D 150 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to | - | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2488 | 2488 | 2191 | 2191 | 2191 | 2191 |
| Maximum output / speed [kW/min-1] | 143/6000 | 143/6000 | 110/4500 | 110/4500 | 110/4500 | 110/4500 |
| Maximum torque [Nm/min-1] | 258/4000 | 258/4000 | 380/1800-2600 | 380/1800-2600 | 380/1800-2600 | 380/1800-2600 |
| Bore and stroke [mm x mm] | 89,0 x 100,0 | 89,0 x 100,0 | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 |
| Compression ratio | 13,0:1 | 13,0:1 | 14.0:1 | 14.0:1 | 14.0:1 | 14.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 195 | 195 | 204 | 200 | 199 | 196 |
| Acceleration 0–100 km/h [s] | 8.9 | 9,2 | 9,4 | 10,1 | 9,6 | 10,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2 | 9.3-8,7 | 5,9 | 6,7 | 6,3 | 6,7 |
| Out of town [l] | 5.8 | 6.4-6,1 | 4,6 | 5 | 4,9 | 5,3 |
| Combined [l] | 7.1 | 7.4-7,1 | 5 | 5,6 | 5,4 | 5,8 |
| CO2 emissions [g/km] | 161 | 169-162 | 132 | 147 | 142 | 152 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7.7 | 8.8-8.1 | - | - | - | - |
| CO2 emissions [g/km] | 174 | 197-184 | - | - | - | - |
| Emission standard | EURO 6d-Temp - Euro 6d | EURO 6 - Euro 6d | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1584-1657 | 1650-1715 | 1460-1594 | 1480-1602 | 1520-1657 | 1530-1667 |
| Overall weight [kg] | 2070 | 2140 | 2110 | 2120 | 2143 | 2143 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | 1125/1120 | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 84 | 84 | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 506 | 506 | 506 | 506 | 506 | 506 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1696 | 1696 | 1696 | 1696 | 1696 | 1696 |
| Boot width between wheels/max [mm] | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 |
| Boot height to headliner/ceiling [mm] | 505/- | 505/- | 505/- | 505/- | 505/- | 505/- |
| Loading edge height [mm] | 745 | 745 | 745 | 745 | 745 | 745 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Boot opening width min/max [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 56 | 56 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R19 | 225/55 R19 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/55 R19 | 225/55 R19 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 19 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 19 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
| Brake dimensions rear | 303 | 303 | 303 | 303 | 303 | 303 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
| Overall length [mm] | 4550 | 4550 | 4550 | 4550 | 4550 | 4550 |
| Overall width without/including mirrors [mm] | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 |
| Overall height [mm] | 1675 | 1675 | 1675 | 1675 | 1675 | 1675 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1595 | 1595 |
| Rear wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1596 | 1596 |
| Forward overhang [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 192 | 192 | 192 | 192 | 192 | 192 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Front elbow/shoulder width [mm] | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 |
| Rear elbow/shoulder width [mm] | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 |
| Legroom front knees/total [mm] | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 |
| Legroom rear knees/total [mm] | 67/1007 | 67/1007 | 67/1007 | 67/1007 | 67/1007 | 67/1007 |
| 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 AWD | 2.2 SKYACTIV-D 150 AWD | 2.2 SKYACTIV-D 175 | 2.2 SKYACTIV-D 175 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from 2018 to | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2191 | 2191 | 2191 | 2191 | 2191 | 2191 |
| Maximum output / speed [kW/min-1] | 110/4500 | 110/4500 | 110/4500 | 110/4500 | 129/4500 | 129/4500 |
| Maximum torque [Nm/min-1] | 380/1800-2600 | 380/1800-2600 | 380/1800-2600 | 380/1800-2600 | 420/2000 | 420/2000 |
| Bore and stroke [mm x mm] | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 |
| Compression ratio | 14,4:1 | 14,4:1 | 14,4:1 | 14,4:1 | 14,0:1 | 14,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 204 | 200 | 199 | 196 | 209 | 206 |
| Acceleration 0–100 km/h [s] | 9,9 | 10,7 | 10,1 | 10,9 | 9.0 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,6 [5,5 i‐ELOOP] | 6,1 | 5,8 | 6,3 | 6.3 | 6.7 |
| Out of town [l] | 4,6 [4,5 i‐ELOOP] | 5,1 | 4,8 | 5,1 | 4.9 | 5.3 |
| Combined [l] | 5,0 [4,9 i‐ELOOP] | 5,5 | 5,2 | 5,6 | 5.4 | 5.8 |
| CO2 emissions [g/km] | 130 [128 i‐ELOOP] | 143 | 137 | 147 | 142 | 152 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 5,9-5.6 [5,7 i‐ELOOP] | 6,5-6.1 | 6,6-6.3 | 7,2-6.6 | - | - |
| CO2 emissions [g/km] | 154-147 [151 i‐ELOOP] | 171-160 | 175-165 | 189-173 | - | - |
| Emission standard | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | - | - |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1655-1730 | 1686-1755 | 1734-1875 | 1749-1820 | 1520-1657 | 1535-1671 |
| Overall weight [kg] | 2130 | 2143 | 2220 | 2235 | 2143 | 2143 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2100 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1140/1090 | 1160/1100 | 1175/1145 | 1190/1145 | - | - |
| Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 494 | 494 | 494 | 494 | 506 | 506 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1608 | -/1608 | -/1608 | -/1608 | -/1620 | -/1620 |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1696 | 1696 | 1696 | 1696 | 1696 | 1696 |
| Boot width between wheels/max [mm] | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 | 1050/1448 |
| Boot height to headliner/ceiling [mm] | 505/- | 505/- | 505/- | 505/- | 505/- | 505/- |
| Loading edge height [mm] | 745 | 745 | 745 | 745 | 745 | 745 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Boot opening width min/max [mm] | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 | -/1125 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 56 | 56 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | 15 | 15 | 15 | 15 | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
| Brake dimensions rear | 303 | 303 | 303 | 303 | 303 | 303 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
| Overall length [mm] | 4550 | 4550 | 4550 | 4550 | 4550 | 4550 |
| Overall width without/including mirrors [mm] | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 | 1840/2115 |
| Overall height [mm] | 1680 | 1680 | 1680 | 1680 | 1675 | 1675 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1595 | 1595 |
| Rear wheel track [mm] | 1595 | 1595 | 1596 | 1596 | 1595 | 1596 |
| Forward overhang [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 185-193 | 185-193 | 185-193 | 185-193 | 192 | 192 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Front elbow/shoulder width [mm] | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 | 1402/1451 |
| Rear elbow/shoulder width [mm] | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 | 1405/1391 |
| Legroom front knees/total [mm] | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 |
| Legroom rear knees/total [mm] | 67/1007 | 67/1007 | 67/1007 | 67/1007 | 67/1007 | 67/1007 |
| 2.2 SKYACTIV-D 184 | 2.2 SKYACTIV-D 184 AWD | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2191 | 2191 | ||||
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | ||||
| Maximum torque [Nm/min-1] | 445/2000 | 445/2000 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,3 | 86,0 x 94,3 | ||||
| Compression ratio | 14,4:1 | 14,4:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 211 | 208 | ||||
| Acceleration 0–100 km/h [s] | 9,3 | 9,6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,8-5.5 | 6,3 | ||||
| Out of town [l] | 4,8-4.5 | 5,1 | ||||
| Combined [l] | 5,2-4.9 | 5,6 | ||||
| CO2 emissions [g/km] | 137-128 | 147 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 6,6-5.6 | 7,2-6.6 | ||||
| CO2 emissions [g/km] | 175-147 | 189-173 | ||||
| Emission standard | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1740-1810 | 1749-1820 | ||||
| Overall weight [kg] | 2220 | 2235 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2100 | ||||
| Maximum front/rear axle load [kg] | 1175/1145 | 1190/1145 | ||||
| Maximum vertical load on the tow bar [kg] | 84 | 84 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 494 | 494 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1608 | -/1608 | ||||
| Boot length [mm] | 965 | 965 | ||||
| Boot length with rear seats folded [mm] | 1696 | 1696 | ||||
| Boot width between wheels/max [mm] | 1050/1448 | 1050/1448 | ||||
| Boot height to headliner/ceiling [mm] | 505/- | 505/- | ||||
| Loading edge height [mm] | 745 | 745 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 779 | 779 | ||||
| Boot opening width min/max [mm] | -/1125 | -/1125 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 58 | 58 | ||||
| AdBlue tank volume [l] | 15 | 15 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/55 R19 | 225/55 R19 | ||||
| Tyre dimensions rear | 225/55 R19 | 225/55 R19 | ||||
| Wheel size front | 7.0J x 19 | 7.0J x 19 | ||||
| Wheel size rear | 7.0J x 19 | 7.0J x 19 | ||||
| Brake dimensions front | 297 | 297 | ||||
| Brake dimensions rear | 303 | 303 | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.0/12.0 | 11.0/12.0 | ||||
| Overall length [mm] | 4550 | 4550 | ||||
| Overall width without/including mirrors [mm] | 1840/2115 | 1840/2115 | ||||
| Overall height [mm] | 1680 | 1680 | ||||
| Wheelbase [mm] | 2700 | 2700 | ||||
| Front wheel track [mm] | 1595 | 1595 | ||||
| Rear wheel track [mm] | 1595 | 1596 | ||||
| Forward overhang [mm] | 950 | 950 | ||||
| Rear overhang [mm] | 900 | 900 | ||||
| Clearance [mm] | 193 | 193 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1007 | 1007 | ||||
| Headroom rear [mm] | 991 | 991 | ||||
| Front elbow/shoulder width [mm] | 1402/1451 | 1402/1451 | ||||
| Rear elbow/shoulder width [mm] | 1405/1391 | 1405/1391 | ||||
| Legroom front knees/total [mm] | -/1041 | -/1041 | ||||
| Legroom rear knees/total [mm] | 67/1007 | 67/1007 |

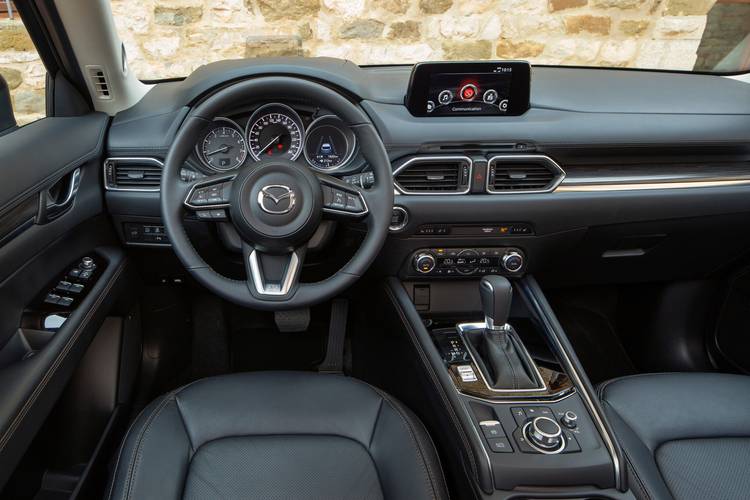

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
