Mazda CX-5
Date of manufacture
2015 – 2017 (SUV)
Platform
-
Manufacturing locations
Hiroshima, Japan
Nanjing, People's Republic of China
Vladivostok, Russia
Designer
Masashi Nakayama
Tags
Compact SUV
Japanese cars

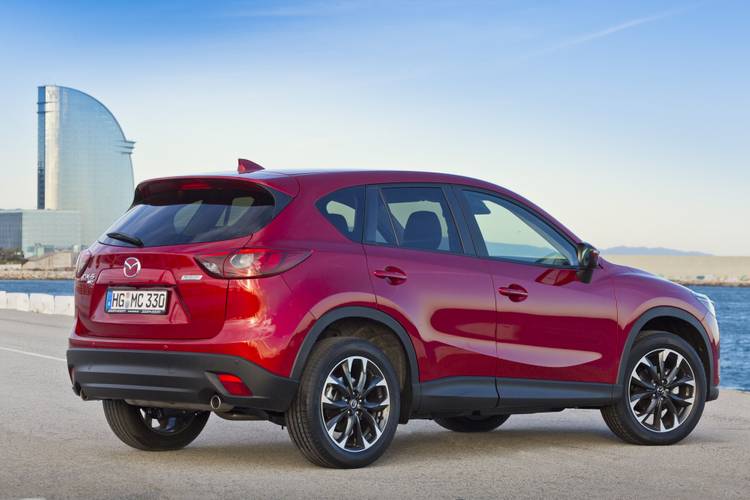

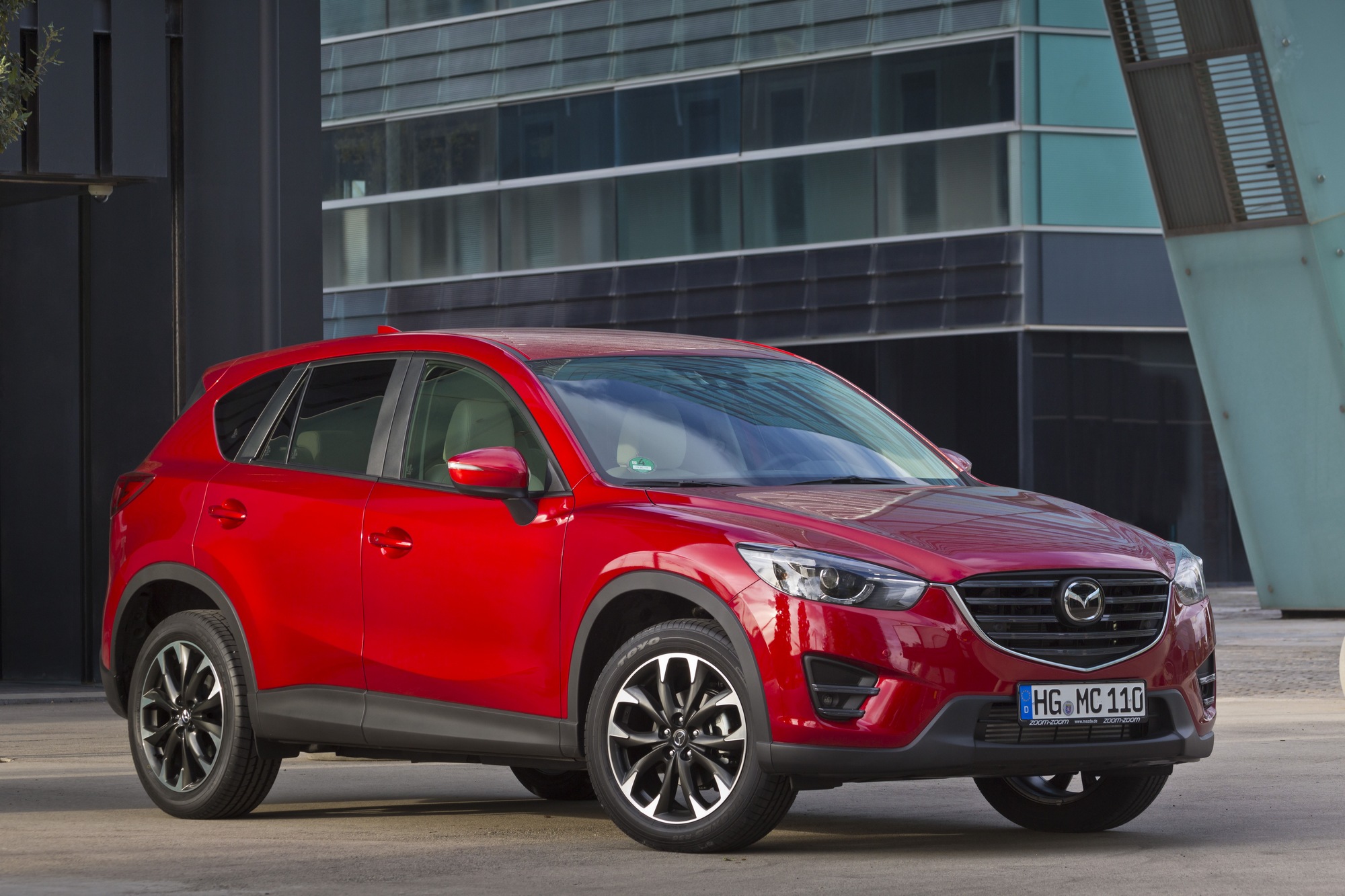

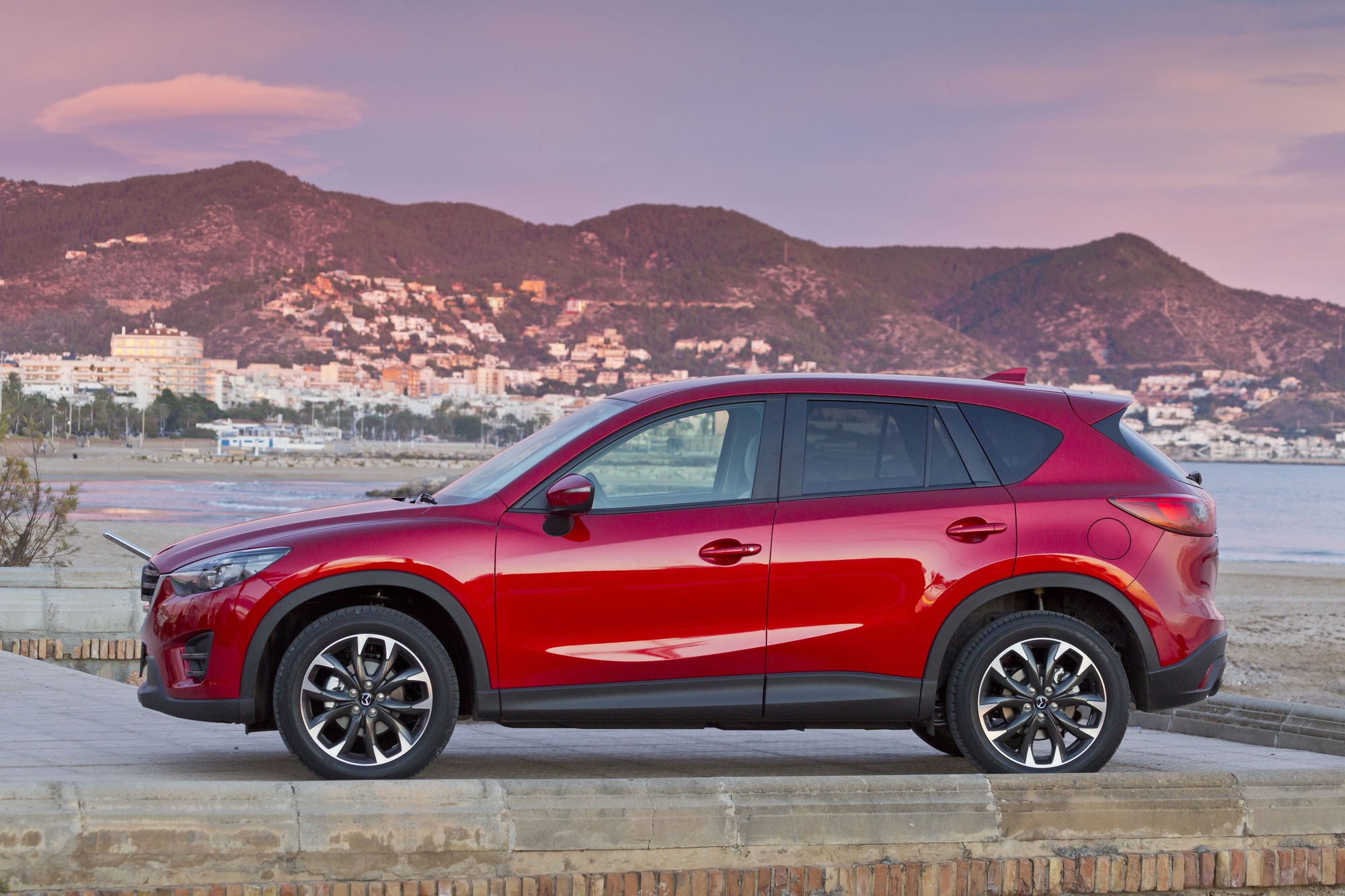

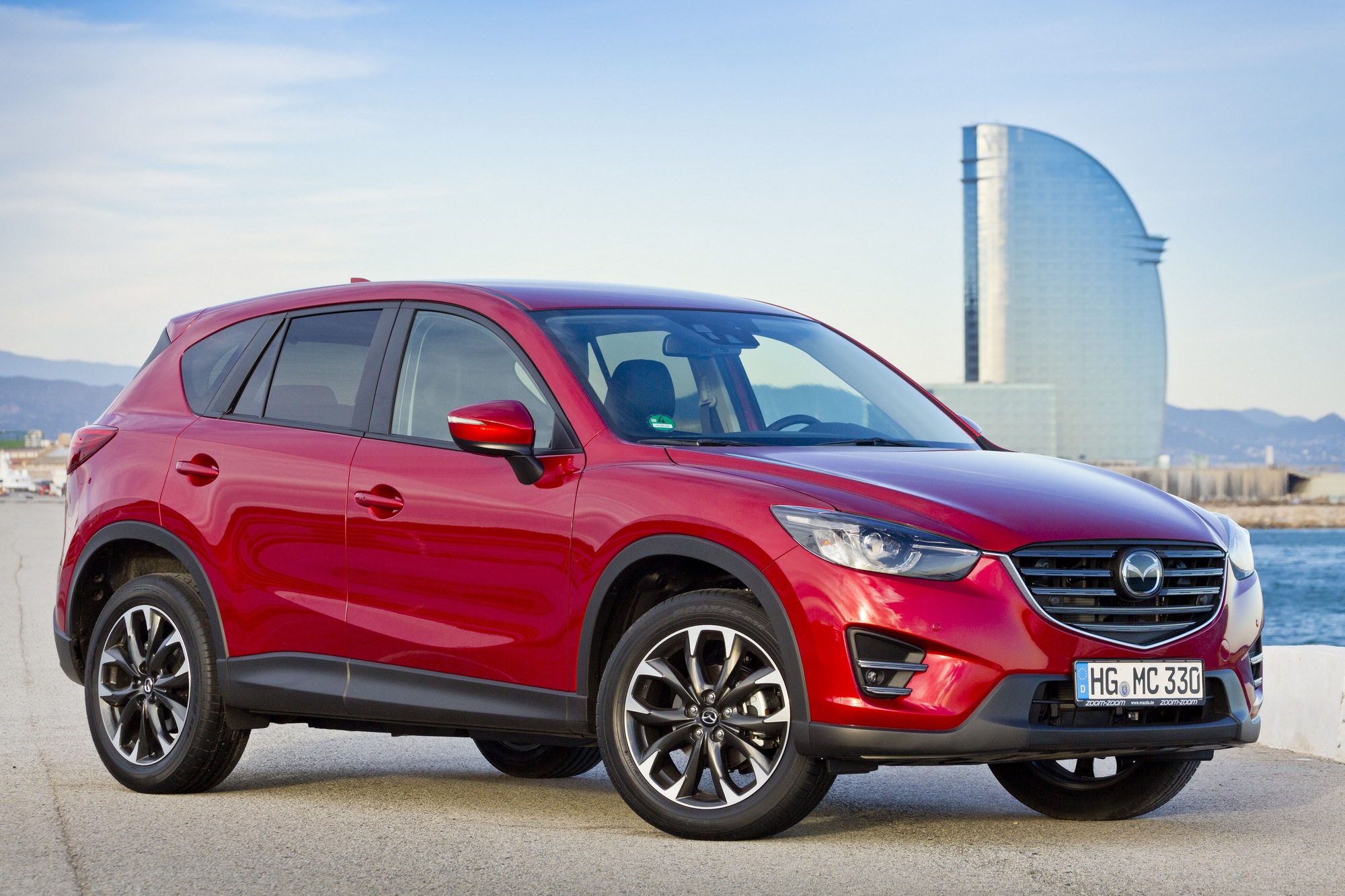

The Mazda CX-5 is available as an SUV. The car has been produced since 2015. Japan, the People's Republic of China and Russia are countries where the CX-5 model is manufactured. The engine range has gasoline and diesel engines. The highest power is achieved by the 2.5 SKYACTIV-G 192 AWD (141 kW). The 2.2 SKYACTIV-D 175 AWD is the fastest model in the range. The top speed is 207 km/h. The best acceleration 0-100 km/h in 8.0 seconds is achieved by the 2.5 SKYACTIV-G 192 AWD model. The most economical model is the 2.2 SKYACTIV-D 150 with a combined consumption of 4.6 l/100 km and CO2 emissions of 119 g/km. The trunk size is 503 l. The car passed the EURONCAP safety tests in 2012 and received a rating of 5 out of 5.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2015 – 2017Internal designation
KETechnical data
SUV
2.0 SKYACTIV-G 165 | 2.0 SKYACTIV-G 160 AWD | 2.0 SKYACTIV-G 160 AWD | 2.5 SKYACTIV-G 192 AWD | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1998 | 1998 | 1998 | 2488 | 2191 | 2191 |
Maximum output / speed [kW/min-1] | 121/6000 | 118/6000 | 118/6000 | 141/5700 | 110/4500 | 110/4500 |
Maximum torque [Nm/min-1] | 210/4000 | 208/4000 | 208/4000 | 256/4000 | 380/1800-2600 | 380/1800-2600 |
Bore and stroke [mm x mm] | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 89,0 x 100,0 | 86,0 x 94,2 | 86,0 x 94,2 |
Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 13,0:1 | 14,0:1 | 14,0:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | 4x4 | 4x4 | 4x4 | Front | Front |
Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
Drive specifications | - |
|
|
| - |
|
Top speed [km/h] | 200 | 197 | 187 | 194 | 202 | 198 |
Acceleration 0–100 km/h [s] | 9.2 | 10.5 | 9.6 | 8.0 | 9.2 | 10.0 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.5 | 8.1 | 8.1 | 9.3 | 5.4 | 6.2 |
Out of town [l] | 5.1 | 5.8 | 5.8 | 6.0 | 4.1 | 4.7 |
Combined [l] | 6.0 | 6.6 | 6.6 | 7.2 | 4.6 | 5.3 |
CO2 emissions [g/km] | 139 | 155 | 155 | 165 | 119 | 139 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1345 | 1425 | 1455 | 1500 | 1445 | 1480 |
Overall weight [kg] | 1930 | 2005 | 2035 | 2065 | 2035 | 2050 |
Maximum trailer weight unbraked/braked [kg] | 690/1800 | 725/1800 | 735/1800 | 750/1800 | 745/2000 | 750/2000 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 88 | 88 | 88 | 88 | 88 | 88 |
Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
Boot volume [l] | 503 | 503 | 503 | 503 | 503 | 503 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
Boot length [mm] | 982 | 982 | 982 | 982 | 982 | 982 |
Boot length with rear seats folded [mm] | 1758 | 1758 | 1758 | 1758 | 1758 | 1758 |
Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
Boot height to headliner/ceiling [mm] | -/865 | -/865 | -/865 | -/865 | -/865 | -/865 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 58 | 58 | 58 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 225/65 R17 102V | 225/65 R17 102V | 225/65 R17 102V | 225/55 R19 99V | 225/65 R17 102V | 225/65 R17 102V |
Tyre dimensions rear | 225/65 R17 102V | 225/65 R17 102V | 225/65 R17 102V | 225/55 R19 99V | 225/65 R17 102V | 225/65 R17 102V |
Wheel size front | 7J x 17 | 7J x 17 | 7J x 17 | 7J x 19 | 7J x 17 | 7J x 17 |
Wheel size rear | 7J x 17 | 7J x 17 | 7J x 17 | 7J x 19 | 7J x 17 | 7J x 17 |
Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
Brake dimensions rear | 303 | 303 | 303 | 303 | 303 | 303 |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.2/11.7 | 11.2/11.7 | 11.2/11.7 | 11.2/11.7 | 11.2/11.7 | 11.2/11.7 |
Overall length [mm] | 4555 | 4555 | 4555 | 4555 | 4555 | 4555 |
Overall width without/including mirrors [mm] | 1840/2168 | 1840/2168 | 1840/2168 | 1840/2168 | 1840/2168 | 1840/2168 |
Overall height [mm] | 1710 | 1710 | 1710 | 1710 | 1710 | 1710 |
Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
Front wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
Rear wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
Forward overhang [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
Rear overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
Clearance [mm] | 215 | 210 | 210 | 210 | 215 | 215 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 |
Approach angle rear [°] | 24.4 | 24.4 | 24.4 | 24.4 | 24.4 | 24.4 |
Transition angle [°] | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
Front elbow/shoulder width [mm] | 1402/1460 | -/1460 | -/1460 | -/1460 | -/1460 | -/1460 |
Rear elbow/shoulder width [mm] | 1363/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
Legroom front knees/total [mm] | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 |
Legroom rear knees/total [mm] | -/997 | -/997 | -/997 | -/997 | -/997 | -/997 |
2.2 SKYACTIV-D 150 AWD | 2.2 SKYACTIV-D 150 AWD | 2.2 SKYACTIV-D 175 AWD | 2.2 SKYACTIV-D 175 AWD | |||
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | ||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
Engine displacement [cm³] | 2191 | 2191 | 2191 | 2191 | ||
Maximum output / speed [kW/min-1] | 110/4500 | 110/4500 | 129/4500 | 129/4500 | ||
Maximum torque [Nm/min-1] | 380/1800-2600 | 380/1800-2600 | 420/2000 | 420/2000 | ||
Bore and stroke [mm x mm] | 86,0 x 94,2 | 86,0 x 94,2 | 86,0 x 94,2 | 86,0 x 94,2 | ||
Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 14,0:1 | ||
Oil volume [l] | - | - | - | - | ||
Coolant volume [l] | - | - | - | - | ||
Technical specifications |
|
|
|
| ||
Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
Drive specifications |
|
|
|
| ||
Top speed [km/h] | 197 | 194 | 207 | 204 | ||
Acceleration 0–100 km/h [s] | 9.4 | 10.2 | 8.8 | 9.4 | ||
Acceleration 0–80 km/h [s] | - | - | - | - | ||
Acceleration 80–120 km/h [s] | - | - | - | - | ||
City [l] | 6.0 | 6.4 | 6.0 | 6.4 | ||
Out of town [l] | 4.7 | 4.9 | 4.7 | 4.9 | ||
Combined [l] | 5.2 | 5.5 | 5.2 | 5.5 | ||
CO2 emissions [g/km] | 136 | 144 | 136 | 144 | ||
Emission standard | EU6 | EU6 | EU6 | EU6 | ||
Standard for fuel consumption measurement | - | - | - | - | ||
Energy class | - | - | - | - | ||
Stationary vehicle noise [dB] | - | - | - | - | ||
Driving noise [dB] | - | - | - | - | ||
Standby weight [kg] | 1530 | 1540 | 1530 | 1540 | ||
Overall weight [kg] | 2110 | 2125 | 2110 | 2125 | ||
Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | ||
Maximum front/rear axle load [kg] | - | - | - | - | ||
Maximum vertical load on the tow bar [kg] | 88 | 88 | 88 | 88 | ||
Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | ||
Boot volume [l] | 503 | 503 | 503 | 503 | ||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | ||
Boot length [mm] | 982 | 982 | 982 | 982 | ||
Boot length with rear seats folded [mm] | 1758 | 1758 | 1758 | 1758 | ||
Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | ||
Boot height to headliner/ceiling [mm] | -/865 | -/865 | -/865 | -/865 | ||
Loading edge height [mm] | - | - | - | - | ||
Height of the open boot door [mm] | - | - | - | - | ||
Boot opening height [mm] | - | - | - | - | ||
Boot opening width min/max [mm] | - | - | - | - | ||
Number of doors | 5 | 5 | 5 | 5 | ||
Number of seats | 5 | 5 | 5 | 5 | ||
Fuel tank volume [l] | 58 | 58 | 58 | 58 | ||
AdBlue tank volume [l] | - | - | - | - | ||
Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | ||
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
Rear suspension | multilink | multilink | multilink | multilink | ||
Tyre dimensions front | 225/65 R17 102V | 225/65 R17 102V | 225/55 R19 99V | 225/55 R19 99V | ||
Tyre dimensions rear | 225/65 R17 102V | 225/65 R17 102V | 225/55 R19 99V | 225/55 R19 99V | ||
Wheel size front | 7J x 17 | 7J x 17 | 7J x 19 | 7J x 19 | ||
Wheel size rear | 7J x 17 | 7J x 17 | 7J x 19 | 7J x 19 | ||
Brake dimensions front | 297 | 297 | 297 | 297 | ||
Brake dimensions rear | 303 | 303 | 303 | 303 | ||
Steering | - | - | - | - | ||
Number of steering wheel turns | - | - | - | - | ||
Turning diameter track/circumference [m] | 11.2/11.7 | 11.2/11.7 | 11.2/11.7 | 11.2/11.7 | ||
Overall length [mm] | 4555 | 4555 | 4555 | 4555 | ||
Overall width without/including mirrors [mm] | 1840/2168 | 1840/2168 | 1840/2168 | 1840/2168 | ||
Overall height [mm] | 1710 | 1710 | 1710 | 1710 | ||
Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | ||
Front wheel track [mm] | 1585 | 1585 | 1585 | 1585 | ||
Rear wheel track [mm] | 1590 | 1590 | 1590 | 1590 | ||
Forward overhang [mm] | 950 | 950 | 950 | 950 | ||
Rear overhang [mm] | 905 | 905 | 905 | 905 | ||
Clearance [mm] | 210 | 210 | 210 | 210 | ||
Wading depth [mm] | - | - | - | - | ||
Approach angle front [°] | 18.6 | 18.6 | 18.6 | 18.6 | ||
Approach angle rear [°] | 24.4 | 24.4 | 24.4 | 24.4 | ||
Transition angle [°] | 18.6 | 18.6 | 18.6 | 18.6 | ||
Climbing rate [°] | - | - | - | - | ||
Maximum side tilt [°] | - | - | - | - | ||
Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | ||
Headroom rear [mm] | 991 | 991 | 991 | 991 | ||
Front elbow/shoulder width [mm] | -/1460 | -/1460 | -/1460 | -/1460 | ||
Rear elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | ||
Legroom front knees/total [mm] | -/1041 | -/1041 | -/1041 | -/1041 | ||
Legroom rear knees/total [mm] | -/997 | -/997 | -/997 | -/997 |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
