Basic information Technical Specifications Gallery

Mazda CX-5

Date of manufacture

1/2012 – 2014 (SUV)

Platform

Manufacturing locations

Hiroshima, Japan

Nanjing, People's Republic of China

Vladivostok, Russia

Designer

Masashi Nakayama

Car body style

SUV

Date of manufacture

1/2012 – 2014

Internal designation

Engine size

Petrol

Diesel

Euro NCAP

Technical data

SUV

	2.0 SKYACTIV-G 165	2.0 SKYACTIV-G 160	2.0 SKYACTIV-G 160	2.2 SKYACTIV-D 150	2.2 SKYACTIV-D 150	2.2 SKYACTIV-D 150
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1998	2191	2191	2191
Maximum output / speed [kW/min-1]	121/6000	118/6000	118/6000	110/4500	110/4500	110/4500
Maximum torque [Nm/min-1]	210/4000	208/4000	208/4000	380/1800-2600	380/1800-2600	380/1800-2600
Bore and stroke [mm x mm]	83,5 x 91,2	83,5 x 91,2	83,5 x 91,2	86,0 x 94,2	86,0 x 94,2	86,0 x 94,2
Compression ratio	14,0:1	14,0:1	14,0:1	14,0:1	14,0:1	14,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection variable valve timing S‐VT start&stop system i‐Stop	direct injection variable valve timing S‐VT start&stop system i‐Stop	direct injection variable valve timing S‐VT start&stop system i‐Stop	direct injection Common Rail supercharging by a pair of differently sized turbochargers variable lift of exhaust valves particulate filter start&stop system i‐stop	direct injection Common Rail supercharging by a pair of differently sized turbochargers variable lift of exhaust valves particulate filter start&stop system i‐stop	direct injection Common Rail supercharging by a pair of differently sized turbochargers variable lift of exhaust valves particulate filter start&stop system i‐stop

Drive axle	Front	4x4	4x4	Front	Front	4x4
Gearbox	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	all-wheel drive AWD Active Torque Split	all-wheel drive AWD Active Torque Split automatic gearbox SKYACTIV‐Drive	-	automatic gearbox SKYACTIV‐Drive	all-wheel drive AWD Active Torque Split

Top speed [km/h]	200	197	187	202	198	197
Acceleration 0–100 km/h [s]	9.2	10.5	9.6	9.2	10.0	9.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.5	8.1	8.1	5.4	6.2	6.0
Out of town [l]	5.1	5.8	5.8	4.1	4.7	4.7
Combined [l]	6.0	6.6	6.6	4.6	5.3	5.2
CO2 emissions [g/km]	139	155	155	119	139	136

Emission standard	EU5	EU5	EU5	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1486	1563	1593	1520	1555	1605
Overall weight [kg]	1930	2000	2030	2035	2050	2105
Maximum trailer weight unbraked/braked [kg]	690/1800	725/1800	735/1800	745/2000	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	50/-	50/-	50/-	50/-	50/-	50/-

Boot volume [l]	463	463	463	463	463	463
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1620	-/1620	-/1620	-/1620	-/1620	-/1620
Boot length [mm]	982	982	982	982	982	982
Boot length with rear seats folded [mm]	1758	1758	1758	1758	1758	1758
Boot width between wheels/max [mm]	1050/1451	1050/1451	1050/1451	1050/1451	1050/1451	1050/1451
Boot height to headliner/ceiling [mm]	-/865	-/865	-/865	-/865	-/865	-/865
Loading edge height [mm]	742	742	742	742	742	742
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	827	827	827	827	827	827
Boot opening width min/max [mm]	-/1128	-/1128	-/1128	-/1128	-/1128	-/1128

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	56	58	58	56	56	58
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.33	0.33	0.33	0.33	0.33	0.33
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Tyre dimensions rear	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17	225/65 R17
Wheel size front	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17
Wheel size rear	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17
Brake dimensions front	297	297	297	297	297	297
Brake dimensions rear	303	303	303	303	303	303
Steering	-	-	-	-	-	-
Number of steering wheel turns	2.7	2.7	2.7	2.7	2.7	2.7
Turning diameter track/circumference [m]	11.2/11.7	11.2/11.7	11.2/11.7	11.2/11.7	11.2/11.7	11.2/11.7

Overall length [mm]	4540	4540	4540	4540	4540	4540
Overall width without/including mirrors [mm]	1840/2168	1840/2168	1840/2168	1840/2168	1840/2168	1840/2168
Overall height [mm]	1710	1710	1710	1710	1710	1710
Wheelbase [mm]	2700	2700	2700	2700	2700	2700
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1590	1590	1590	1590	1590	1590
Forward overhang [mm]	950	950	950	950	950	950
Rear overhang [mm]	905	905	905	905	905	905
Clearance [mm]	215	210	210	215	215	210
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	18.6	18.6	18.6	18.6	18.6	18.6
Approach angle rear [°]	24.4	24.4	24.4	24.4	24.4	24.4
Transition angle [°]	18.6	18.6	18.6	18.6	18.6	18.6
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1018	1018	1018	1018	1018	1018
Headroom rear [mm]	991	991	991	991	991	991
Front elbow/shoulder width [mm]	-/1460	-/1460	-/1460	-/1460	-/1460	-/1460
Rear elbow/shoulder width [mm]	-/1410	-/1410	-/1410	-/1410	-/1410	-/1410
Legroom front knees/total [mm]	-/1041	-/1041	-/1041	-/1041	-/1041	-/1041
Legroom rear knees/total [mm]	-/997	-/997	-/997	-/997	-/997	-/997

	2.2 SKYACTIV-D 150	2.2 SKYACTIV-D 175	2.2 SKYACTIV-D 175
Date of sale	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	2191	2191	2191
Maximum output / speed [kW/min-1]	110/4500	129/4500	129/4500
Maximum torque [Nm/min-1]	380/1800-2600	420/2000	420/2000
Bore and stroke [mm x mm]	86,0 x 94,2	86,0 x 94,2	86,0 x 94,2
Compression ratio	14,0:1	14,0:1	14,0:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail supercharging by a pair of differently sized turbochargers variable lift of exhaust valves particulate filter start&stop system i‐stop	direct injection Common Rail supercharging by a pair of differently sized turbochargers variable lift of exhaust valves particulate filter start&stop system i‐stop	direct injection Common Rail supercharging by a pair of differently sized turbochargers variable lift of exhaust valves particulate filter start&stop system i‐stop

Drive axle	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	all-wheel drive AWD Active Torque Split automatic gearbox SKYACTIV‐Drive	all-wheel drive AWD Active Torque Split	all-wheel drive AWD Active Torque Split automatic gearbox SKYACTIV‐Drive

Top speed [km/h]	194	207	204
Acceleration 0–100 km/h [s]	10.2	8.8	9.4
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	6.4	6.0	6.4
Out of town [l]	4.9	4.7	4.9
Combined [l]	5.5	5.2	5.5
CO2 emissions [g/km]	144	136	144

Emission standard	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1615	1605	1615
Overall weight [kg]	2120	2105	2120
Maximum trailer weight unbraked/braked [kg]	750/2000	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	50/-	50/-	50/-

Boot volume [l]	463	463	463
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1620	-/1620	-/1620
Boot length [mm]	982	982	982
Boot length with rear seats folded [mm]	1758	1758	1758
Boot width between wheels/max [mm]	1050/1451	1050/1451	1050/1451
Boot height to headliner/ceiling [mm]	-/865	-/865	-/865
Loading edge height [mm]	742	742	742
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	827	827	827
Boot opening width min/max [mm]	-/1128	-/1128	-/1128

Number of doors	5	5	5
Number of seats	5	5	5
Fuel tank volume [l]	58	58	58
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	0.33	0.33	0.33
Front suspension	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink
Tyre dimensions front	225/65 R17	225/55 R19	225/55 R19
Tyre dimensions rear	225/65 R17	225/55 R19	225/55 R19
Wheel size front	7J x 17	7J x 19	7J x 19
Wheel size rear	7J x 17	7J x 19	7J x 19
Brake dimensions front	297	297	297
Brake dimensions rear	303	303	303
Steering	-	-	-
Number of steering wheel turns	2.7	2.7	2.7
Turning diameter track/circumference [m]	11.2/11.7	11.2/11.7	11.2/11.7

Overall length [mm]	4540	4540	4540
Overall width without/including mirrors [mm]	1840/2168	1840/2168	1840/2168
Overall height [mm]	1710	1710	1710
Wheelbase [mm]	2700	2700	2700
Front wheel track [mm]	1585	1585	1585
Rear wheel track [mm]	1590	1590	1590
Forward overhang [mm]	950	950	950
Rear overhang [mm]	905	905	905
Clearance [mm]	210	210	210
Wading depth [mm]	-	-	-
Approach angle front [°]	18.6	18.6	18.6
Approach angle rear [°]	24.4	24.4	24.4
Transition angle [°]	18.6	18.6	18.6
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	1018	1018	1018
Headroom rear [mm]	991	991	991
Front elbow/shoulder width [mm]	-/1460	-/1460	-/1460
Rear elbow/shoulder width [mm]	-/1410	-/1410	-/1410
Legroom front knees/total [mm]	-/1041	-/1041	-/1041
Legroom rear knees/total [mm]	-/997	-/997	-/997

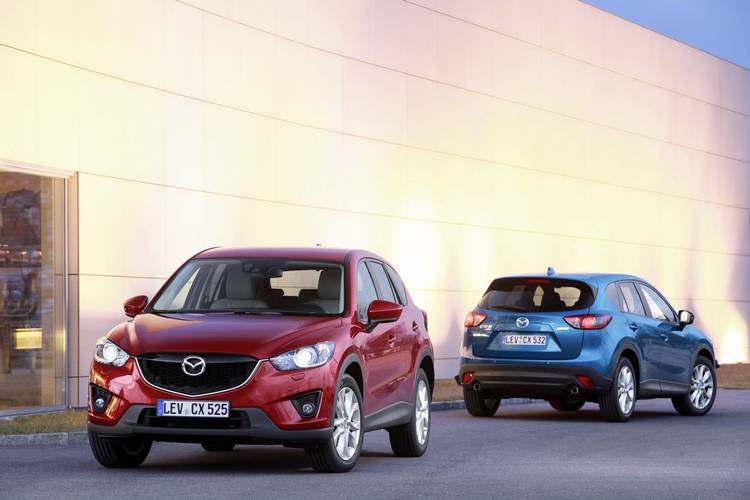

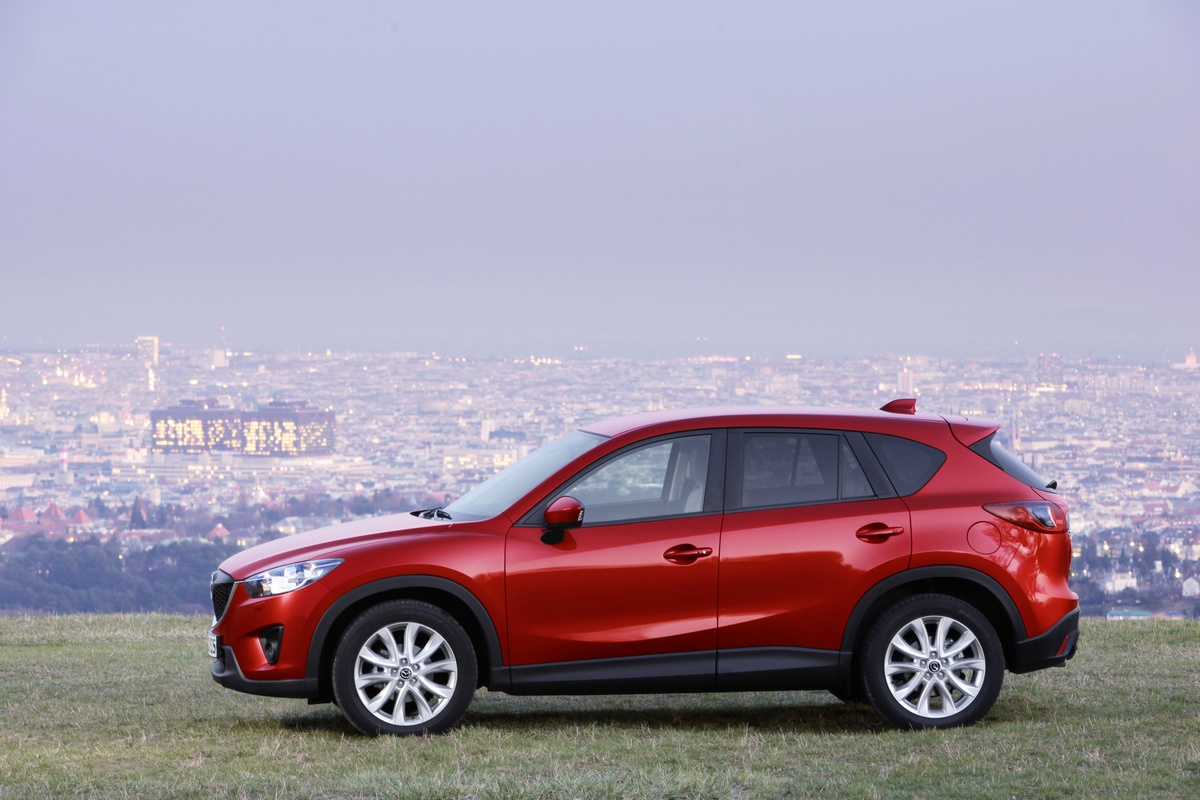

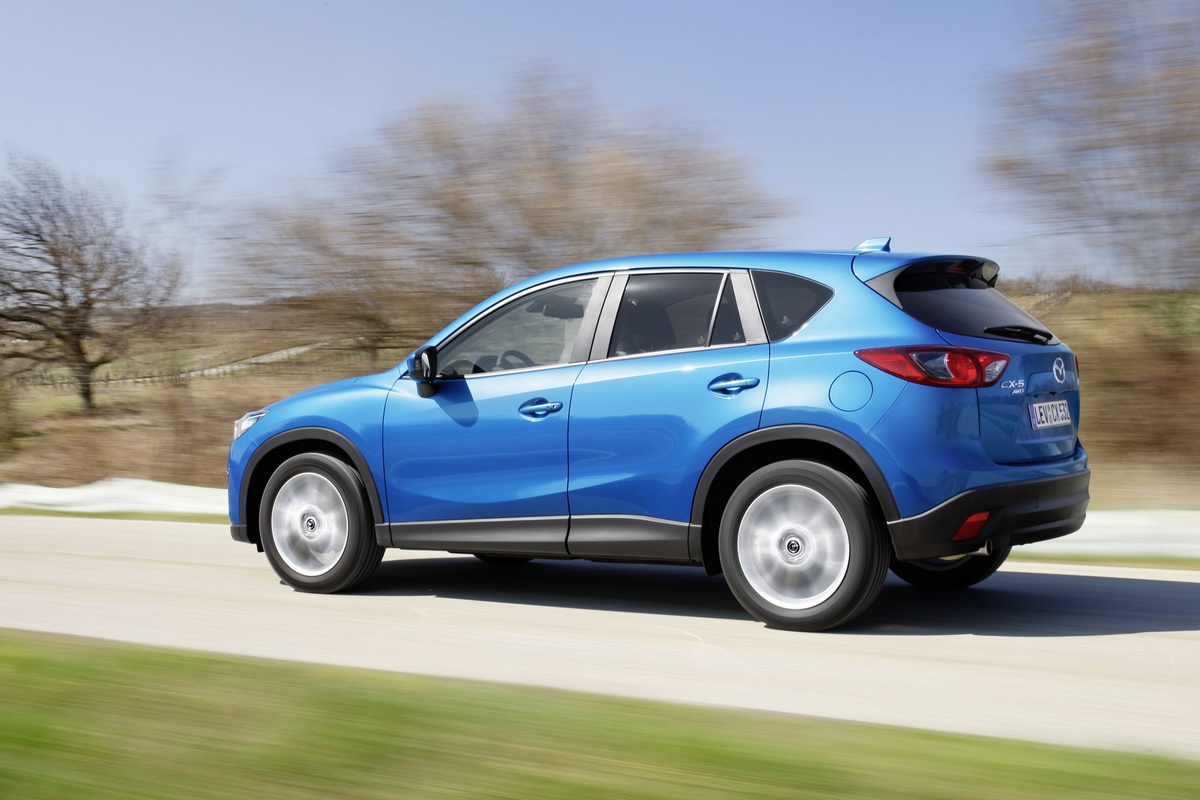

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
