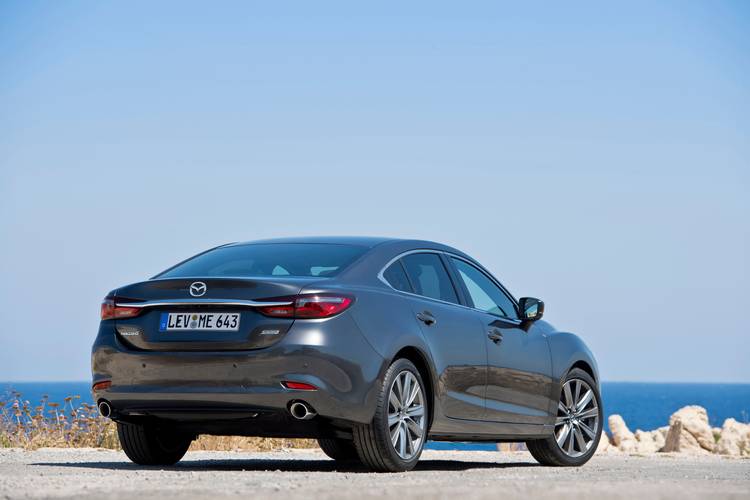

Mazda 6
Date of manufacture
2018 – to this day (Sedan)
2018 – to this day (Estate)
Platform
Mazda GJ
Manufacturing locations
Hōfu, Japan
Hiroshima, Japan
Designer
Akira Tamatani
Tags
D-segment
Japanese cars
The Mazda 6 is available in two body versions - sedan and estate. The car was developed by Japanese car manufacturer Mazda and was released on the market in 2018. It is built on the Mazda GJ platform and offers a wide range of engines, from petrol to diesel. The most powerful engine is the 2.5 SKYACTIV-G 194 with 143 kW, the highest speed is 227 km/h for the 2.2 SKYACTIV-D 175 model and the best acceleration from 0-100 km/h is 8.1 seconds again for the 2.5 SKYACTIV-G 194 model. The most economical version is the 2.2 SKYACTIV-D 150 with a combined consumption of 5.1 l/100 km and CO2 emissions of 137 g/km. The sedan trunk has a capacity of 480 l, while the estate has 522 l. The car underwent EURONCAP safety tests in 2018 and received a rating of 5 out of 5 stars.
Car body style
Sedan
after upgrade (facelift) (II.)
Date of manufacture
2018 – to this dayInternal designation
GJ Estate
after upgrade (facelift) (II.)
Date of manufacture
2018 – to this dayInternal designation
GJ
Technical data
Sedan
| 2.0 SKYACTIV-G 145 | 2.0 SKYACTIV-G 165 | 2.0 SKYACTIV-G 165 | 2.5 SKYACTIV-G 194 | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2021 | from to 2021 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 2488 | 2191 | 2191 |
| Maximum output / speed [kW/min-1] | 107/6000 | 121/6000 | 121/6000 | 143/5700 | 110/4500 | 110/4500 |
| Maximum torque [Nm/min-1] | 213/4000 | 213/4000 | 213/4000 | 258/4000 | 380/1800-2600 | 380/1800-2600 |
| Bore and stroke [mm x mm] | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 89,0 x 100,0 | 86,0 x 94,3 | 86,0 x 94,3 |
| Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 13,0:1 | 14,4:1 | 14,4:1 |
| Oil volume [l] | 4.9 | 4.9 | 4.9 | 5.4 | 6.0 | 6.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 208 | 216 | 209 | 223 | 211 | 205 |
| Acceleration 0–100 km/h [s] | 9,9 | 9,3 [9,4 i‐ELOOP] | 10,5 | 8,1 | 10,0 | 10,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,7 | 8,2 [8,1 i‐ELOOP] | 7,3 | 8,8 | 5.1 | 5.9 |
| Out of town [l] | 5,3 | 5,5 [5,4 i‐ELOOP] | 5,4 | 5,4 | 4,0 | 4,5 |
| Combined [l] | 6,2 | 6,5 [6,4 i‐ELOOP] | 6,2 | 6,7 | 4,4 | 5,1 |
| CO2 emissions [g/km] | 142 | 148 [146 i‐ELOOP] | 141 | 153 | 117 | 133 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,7 | 6,8 [6,7 i‐ELOOP] | 7,0 | 7,4 | 5,1 | 5,9 |
| CO2 emissions [g/km] | 152 | 154 [152 i‐ELOOP] | 159 | 167 | 137 | 152 |
| Emission standard | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp | EURO 6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1466-1530 | 1466-1535 | 1498-1562 | 1537-1610 | 1609-1674 | 1625-1689 |
| Overall weight [kg] | 2005 | 2005 | 2046 | 2095 | 2155 | 2172 |
| Maximum trailer weight unbraked/braked [kg] | 680/1500 | 680/1500 | 680/1500 | 680/1500 | 730/1600 | 730/1600 |
| Maximum front/rear axle load [kg] | 1046/1059 | 1046/1059 | 1083/1063 | 1129/1066 | 1064/1091 | 1191/1081 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
| Boot length with rear seats folded [mm] | 1961 | 1961 | 1961 | 1961 | 1961 | 1961 |
| Boot width between wheels/max [mm] | 1022/1422 | 1022/1422 | 1022/1422 | 1022/1422 | 1022/1422 | 1022/1422 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 719 | 719 | 719 | 719 | 719 | 719 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | 15 | 15 |
| Air resistance [Cd] | 0.295 | 0.295 | 0.295 | 0.295 | 0.295 | 0.295 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Tyre dimensions rear | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Wheel size front | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
| Brake dimensions rear | 278 | 278 | 278 | 278 | 278 | 278 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.81 | 2.81 | 2.81 | 2.81 | 2.81 | 2.81 |
| Turning diameter track/circumference [m] | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 |
| Overall length [mm] | 4870 | 4870 | 4870 | 4870 | 4870 | 4870 |
| Overall width without/including mirrors [mm] | 1870/2090 | 1870/2090 | 1870/2090 | 1870/2090 | 1870/2090 | 1870/2090 |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2830 | 2830 | 2830 | 2830 | 2830 | 2830 |
| Front wheel track [mm] | 1585 | 1595 | 1585 | 1595 | 1585 | 1585 |
| Rear wheel track [mm] | 1575 | 1585 | 1575 | 1585 | 1575 | 1575 |
| Forward overhang [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Rear overhang [mm] | 1085 | 1085 | 1085 | 1085 | 1085 | 1085 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 975 | 975 | 975 | 975 | 975 | 975 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 |
| Rear elbow/shoulder width [mm] | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | 87/984 | 87/984 | 87/984 | 87/984 | 87/984 | 87/984 |
| 2.2 SKYACTIV-D 175 | 2.2 SKYACTIV-D 175 | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from to 2021 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2191 | 2191 | ||||
| Maximum output / speed [kW/min-1] | 135/4500 | 135/4500 | ||||
| Maximum torque [Nm/min-1] | 445/2000 | 445/2000 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,3 | 86,0 x 94,3 | ||||
| Compression ratio | 14,4:1 | 14,4:1 | ||||
| Oil volume [l] | 6.0 | 6.0 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 227 | 220 | ||||
| Acceleration 0–100 km/h [s] | 8,5 | 9,0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.5 | 5,9 | ||||
| Out of town [l] | 4,1 | 4,5 | ||||
| Combined [l] | 4,7 | 5,1 | ||||
| CO2 emissions [g/km] | 124 | 133 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 5,3 | 5,9 | ||||
| CO2 emissions [g/km] | 140 | 152 | ||||
| Emission standard | EURO 6d-Temp | EURO 6d-Temp | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1621-1688 | 1636-1703 | ||||
| Overall weight [kg] | 2182 | 2200 | ||||
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 730/1600 | ||||
| Maximum front/rear axle load [kg] | 1176/1106 | 1193/1107 | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 480 | 480 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | 1190 | 1190 | ||||
| Boot length with rear seats folded [mm] | 1961 | 1961 | ||||
| Boot width between wheels/max [mm] | 1022/1422 | 1022/1422 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 719 | 719 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 62 | 62 | ||||
| AdBlue tank volume [l] | 15 | 15 | ||||
| Air resistance [Cd] | 0.295 | 0.295 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/45 R19 92W | 225/45 R19 92W | ||||
| Tyre dimensions rear | 225/45 R19 92W | 225/45 R19 92W | ||||
| Wheel size front | 7.0J x 19 | 7.0J x 19 | ||||
| Wheel size rear | 7.0J x 19 | 7.0J x 19 | ||||
| Brake dimensions front | 297 | 297 | ||||
| Brake dimensions rear | 278 | 278 | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | 2.81 | 2.81 | ||||
| Turning diameter track/circumference [m] | 11.2/12.0 | 11.2/12.0 | ||||
| Overall length [mm] | 4870 | 4870 | ||||
| Overall width without/including mirrors [mm] | 1870/2090 | 1870/2090 | ||||
| Overall height [mm] | 1450-14504870 | 1450 | ||||
| Wheelbase [mm] | 2830 | 2830 | ||||
| Front wheel track [mm] | 1595 | 1595 | ||||
| Rear wheel track [mm] | 1585 | 1585 | ||||
| Forward overhang [mm] | 960 | 960 | ||||
| Rear overhang [mm] | 1085 | 1085 | ||||
| Clearance [mm] | 165 | 165 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 975 | 975 | ||||
| Headroom rear [mm] | 942 | 942 | ||||
| Front elbow/shoulder width [mm] | -/1420 | -/1420 | ||||
| Rear elbow/shoulder width [mm] | -/1400 | -/1400 | ||||
| Legroom front knees/total [mm] | -/1073 | -/1073 | ||||
| Legroom rear knees/total [mm] | 87/984 | 87/984 |
Estate
| 2.0 SKYACTIV-G 145 | 2.0 SKYACTIV-G 165 | 2.0 SKYACTIV-G 165 | 2.5 SKYACTIV-G 194 | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2021 | from to 2021 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 2488 | 2191 | 2191 |
| Maximum output / speed [kW/min-1] | 107/6000 | 121/6000 | 121/6000 | 143/6000 | 110/4500 | 110/4500 |
| Maximum torque [Nm/min-1] | 213/4000 | 213/4000 | 213/4000 | 258/4000 | 380/1800-2600 | 380/1800-2600 |
| Bore and stroke [mm x mm] | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 89,0 x 100,0 | 86,0 x 94,3 | 86,0 x 94,3 |
| Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 13,0:1 | 14,4:1 | 14,4:1 |
| Oil volume [l] | 4.9 | 4.9 | 4.9 | 5.4 | 6.0 | 6.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 206 | 214 | 205 | 223 | 210 | 202 |
| Acceleration 0–100 km/h [s] | 10,0 | 9,3 [9,4 i‐ELOOP] | 10,6 [10,7 i‐ELOOP] | 8,1 | 10,2 | 10,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,7 | 8,4 [8,1 i‐ELOOP] | 7,7 [7,5 i‐ELOOP] | 8,9 | 5,2 | 5,8 |
| Out of town [l] | 5,4 | 5,4 [5,6 i‐ELOOP] | 5,5 [5,5 i‐ELOOP] | 5,6 | 4,1 | 4,6 |
| Combined [l] | 6,3 | 6,6 [6,5 i‐ELOOP] | 6,3 [6,2 i‐ELOOP] | 6,8 | 4,5 | 5,1 |
| CO2 emissions [g/km] | 144 | 150 [148 i‐ELOOP] | 144 [142 i‐ELOOP] | 156 | 119 | 134 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,8 | 6,9 [6,8 i‐ELOOP] | 7,2 [7,2 i‐ELOOP] | 7,6 | 5,3 | 6,0 |
| CO2 emissions [g/km] | 155 | 157 [155 i‐ELOOP] | 164 [163 i‐ELOOP] | 172 | 141 | 155 |
| Emission standard | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp - Euro 6d | EURO 6d-Temp | EURO 6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1474-1543 | 1486-1543 | 1510-1568 | 1541-1623 | 1625-1692 | 1638-1701 |
| Overall weight [kg] | 2042 | 2042 | 2071 | 2113 | 2189 | 2218 |
| Maximum trailer weight unbraked/braked [kg] | 680/1500 | 680/1500 | 680/1500 | 680/1500 | 730/1600 | 730/1600 |
| Maximum front/rear axle load [kg] | 1020/1122 | 1031/1111 | 1058/1113 | 1092/1121 | 1139/1151 | 1169/1150 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | - | - |
| Boot volume [l] | 522 | 522 | 522 | 522 | 522 | 522 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 |
| Boot length [mm] | 1113 | 1113 | 1113 | 1113 | 1113 | 1113 |
| Boot length with rear seats folded [mm] | 1873 | 1873 | 1873 | 1873 | 1873 | 1873 |
| Boot width between wheels/max [mm] | 1022/1422 | 1022/1422 | 1022/1422 | 1022/1422 | 1022/1422 | 1022/1422 |
| Boot height to headliner/ceiling [mm] | 502/- | 502/- | 502/- | 502/- | 502/- | 502/- |
| Loading edge height [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/1020 | -/1020 | -/1020 | -/1020 | -/1020 | -/1020 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | 15 | 15 |
| Air resistance [Cd] | 0.298 | 0.298 | 0.298 | 0.298 | 0.298 | 0.298 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Tyre dimensions rear | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Wheel size front | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
| Brake dimensions rear | 278 | 278 | 278 | 278 | 278 | 278 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 |
| Overall length [mm] | 4805 | 4805 | 4805 | 4805 | 4805 | 4805 |
| Overall width without/including mirrors [mm] | 1840/2090 | 1840/2090 | 1840/2090 | 1840/2090 | 1840/2090 | 1840/2090 |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
| Front wheel track [mm] | 1585 | 1595 | 1585 | 1595 | 1585 | 1585 |
| Rear wheel track [mm] | 1575 | 1585 | 1575 | 1585 | 1575 | 1575 |
| Forward overhang [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Rear overhang [mm] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 975 | 975 | 975 | 975 | 975 | 975 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 |
| Rear elbow/shoulder width [mm] | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | 64/955 | 64/955 | 64/955 | 64/955 | 64/955 | 64/955 |
| 2.2 SKYACTIV-D 150 AWD | 2.2 SKYACTIV-D 184 | 2.2 SKYACTIV-D 184 | 2.2 SKYACTIV-D 184 AWD | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from to 2021 | from to 2021 | from to 2021 | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 2191 | 2191 | 2191 | 2191 | ||
| Maximum output / speed [kW/min-1] | 110/4500 | 135/4000 | 135/4000 | 135/4000 | ||
| Maximum torque [Nm/min-1] | 380/1800-2600 | 445/2000 | 445/2000 | 445/2000 | ||
| Bore and stroke [mm x mm] | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 | 86,0 x 94,3 | ||
| Compression ratio | 14,4:1 | 14,4:1 | 14,4:1 | 14,4:1 | ||
| Oil volume [l] | 6.0 | 6.0 | 6.0 | 6.0 | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | Front | Front | 4x4 | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | ||
| Drive specifications |
| - |
|
| ||
| Top speed [km/h] | 201 | 225 | 219 | 212 | ||
| Acceleration 0–100 km/h [s] | 10,4 | 8,6 | 9,2 | 9,7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5,9 | 5,5 | 5,8 | 6,2 | ||
| Out of town [l] | 4,6 | 4,3 | 4,6 | 4,8 | ||
| Combined [l] | 5,1 | 4,8 | 5,1 | 5,4 | ||
| CO2 emissions [g/km] | 135 | 126 | 134 | 142 | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | 6,1 | 5,5 | 6,0 | 6,7 | ||
| CO2 emissions [g/km] | 162 | 144 | 155 | 176 | ||
| Emission standard | EURO 6d-Temp | EURO 6d-Temp | EURO 6d-Temp | EURO 6d-Temp | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1693-1749 | 1641-1706 | 1648-1714 | 1710-1775 | ||
| Overall weight [kg] | 2260 | 2217 | 2237 | 2260 | ||
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 730/1600 | 730/1600 | 730/1600 | ||
| Maximum front/rear axle load [kg] | 1176/1193 | 1151/1165 | 1177/1159 | 1191/1204 | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 522 | 522 | 522 | 522 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1664 | -/1664 | -/1664 | -/1664 | ||
| Boot length [mm] | 1113 | 1113 | 1113 | 1113 | ||
| Boot length with rear seats folded [mm] | 1873 | 1873 | 1873 | 1873 | ||
| Boot width between wheels/max [mm] | 1022/1422 | 1022/1422 | 1022/1422 | 1022/1422 | ||
| Boot height to headliner/ceiling [mm] | 502/- | 502/- | 502/- | 502/- | ||
| Loading edge height [mm] | 633 | 633 | 633 | 633 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | -/1020 | -/1020 | -/1020 | -/1020 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 52,5 | 62 | 62 | 52,5 | ||
| AdBlue tank volume [l] | 15 | 15 | 15 | 15 | ||
| Air resistance [Cd] | 0.298 | 0.298 | 0.298 | 0.298 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 225/55 R17 97V | 225/45 R19 92W | 225/45 R19 92W | 225/45 R19 92W | ||
| Tyre dimensions rear | 225/55 R17 97V | 225/45 R19 92W | 225/45 R19 92W | 225/45 R19 92W | ||
| Wheel size front | 7.0J x 17 | 7.0J x 19 | 7.0J x 19 | 7.0J x 19 | ||
| Wheel size rear | 7.0J x 17 | 7.0J x 19 | 7.0J x 19 | 7.0J x 19 | ||
| Brake dimensions front | 297 | 297 | 297 | 297 | ||
| Brake dimensions rear | 278 | 278 | 278 | 278 | ||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | ||
| Overall length [mm] | 4805 | 4805 | 4805 | 4805 | ||
| Overall width without/including mirrors [mm] | 1840/2090 | 1840/2090 | 1840/2090 | 1840/2090 | ||
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | ||
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | ||
| Front wheel track [mm] | 1585 | 1595 | 1595 | 1595 | ||
| Rear wheel track [mm] | 1575 | 1585 | 1585 | 1585 | ||
| Forward overhang [mm] | 950 | 950 | 950 | 950 | ||
| Rear overhang [mm] | 1100 | 1100 | 1100 | 1100 | ||
| Clearance [mm] | 165 | 165 | 165 | 165 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 975 | 975 | 975 | 975 | ||
| Headroom rear [mm] | 971 | 971 | 971 | 971 | ||
| Front elbow/shoulder width [mm] | -/1420 | -/1420 | -/1420 | -/1420 | ||
| Rear elbow/shoulder width [mm] | -/1398 | -/1398 | -/1398 | -/1398 | ||
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | ||
| Legroom rear knees/total [mm] | 64/955 | 64/955 | 64/955 | 64/955 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
