Mazda 6
Date of manufacture
12/2012 – 2014 (Sedan)
12/2012 – 2014 (Estate)
Platform
Mazda GJ
Manufacturing locations
Hōfu, Japan
Hiroshima, Japan
Designer
Akira Tamatani
Tags
D-segment
Japanese cars
The Mazda 6 has been produced since 2012 and is based on the Mazda GJ platform. It offers sedan and estate body styles, both with a luggage capacity of 489 liters (sedan) and 522 liters (estate). The engine range includes petrol and diesel units, the most powerful being the 2.5 SKYACTIV-G 192 with 141 kW, which reaches a top speed of 223 km/h and accelerates from 0-100 km/h in 7.8 seconds. The most economical version has a fuel consumption of 3.9 l/100 km and CO2 emissions of 104 g/km. The vehicle's safety was tested by EURONCAP in 2013, where it achieved a rating of 5 out of 5.
Car body style
Sedan
Date of manufacture
12/2012 – 2014Internal designation
GJEstate
Date of manufacture
12/2012 – 2014Internal designation
GJ
Technical data
Sedan
| 2.0 SKYACTIV-G 145 | 2.0 SKYACTIV-G 165 | 2.0 SKYACTIV-G 165 | 2.5 SKYACTIV-G 192 | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 2488 | 2191 | 2191 |
| Maximum output / speed [kW/min-1] | 107/6000 | 121/6000 | 121/6000 | 141/5700 | 110/4500 | 110/4500 |
| Maximum torque [Nm/min-1] | 210/4000 | 210/4000 | 210/4000 | 256/3250 | 380/1800-2600 | 380/1800-2600 |
| Bore and stroke [mm x mm] | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 89,0 x 100,0 | 86,0 x 94,3 | 86,0 x 94,3 |
| Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 13,0:1 | 14,0:1 | 14,0:1 |
| Oil volume [l] | 4.9 | 4.9 | 4.9 | 5.4 | 6.0 | 6.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 208 | 216 | 209 | 223 | 211 | 204 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.1 | 10.1 | 7.8 | 9.0 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1 | 7.5 | 7.7 | 8.5 | 5.1 | 5.9 |
| Out of town [l] | 4.6 | 4.9 | 5.0 | 5.0 | 3.6 | 4.2 |
| Combined [l] | 5.5 | 5.9 | 6.0 | 6.3 | 3.9 | 4.8 |
| CO2 emissions [g/km] | 129 | 135 | 139 | 148 | 104 | 127 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1300 | 1300 | 1330 | 1360 | 1405 | 1420 |
| Overall weight [kg] | 1935 | 1945 | 1975 | 2000 | 2055 | 2070 |
| Maximum trailer weight unbraked/braked [kg] | 680/1300 | 680/1500 | 680/1500 | 730/1500 | 730/1600 | 730/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 489 | 489 | 489 | 489 | 489 | 489 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
| Boot length with rear seats folded [mm] | 1961 | 1961 | 1961 | 1961 | 1961 | 1961 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Tyre dimensions rear | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Wheel size front | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
| Brake dimensions rear | 278 | 278 | 278 | 278 | 278 | 278 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.57 | 2.57 | 2.57 | 2.57 | 2.57 | 2.57 |
| Turning diameter track/circumference [m] | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 | 11.2/12.0 |
| Overall length [mm] | 4865 | 4865 | 4865 | 4865 | 4865 | 4865 |
| Overall width without/including mirrors [mm] | 1840/2113 | 1840/2113 | 1840/2113 | 1840/2113 | 1840/2113 | 1840/2113 |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2830 | 2830 | 2830 | 2830 | 2830 | 2830 |
| Front wheel track [mm] | 1585 | 1595 | 1585 | 1595 | 1585 | 1585 |
| Rear wheel track [mm] | 1575 | 1585 | 1575 | 1585 | 1575 | 1575 |
| Forward overhang [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Rear overhang [mm] | 1085 | 1085 | 1085 | 1085 | 1085 | 1085 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 975 | 975 | 975 | 975 | 975 | 975 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/984 | -/984 | -/984 | -/984 | -/984 | -/984 |
| 2.2 SKYACTIV-D 175 | 2.2 SKYACTIV-D 175 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2191 | 2191 | ||||
| Maximum output / speed [kW/min-1] | 129/4500 | 129/4500 | ||||
| Maximum torque [Nm/min-1] | 420/2000 | 420/2000 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,3 | 86,0 x 94,3 | ||||
| Compression ratio | 14,0:1 | 14,0:1 | ||||
| Oil volume [l] | 6.0 | 6.0 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 223 | 216 | ||||
| Acceleration 0–100 km/h [s] | 7.9 | 8.4 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.5 | 6.0 | ||||
| Out of town [l] | 3.9 | 4.2 | ||||
| Combined [l] | 4.5 | 4.8 | ||||
| CO2 emissions [g/km] | 119 | 127 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1405 | 1420 | ||||
| Overall weight [kg] | 2055 | 2070 | ||||
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 730/1600 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 489 | 489 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | 1190 | 1190 | ||||
| Boot length with rear seats folded [mm] | 1961 | 1961 | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 62 | 62 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.26 | 0.26 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/45 R19 92W | 225/45 R19 92W | ||||
| Tyre dimensions rear | 225/45 R19 92W | 225/45 R19 92W | ||||
| Wheel size front | 7.0J x 19 | 7.0J x 19 | ||||
| Wheel size rear | 7.0J x 19 | 7.0J x 19 | ||||
| Brake dimensions front | 297 | 297 | ||||
| Brake dimensions rear | 278 | 278 | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | 2.57 | 2.57 | ||||
| Turning diameter track/circumference [m] | 11.2/12.0 | 11.2/12.0 | ||||
| Overall length [mm] | 4865 | 4865 | ||||
| Overall width without/including mirrors [mm] | 1840/2113 | 1840/2113 | ||||
| Overall height [mm] | 1450 | 1450 | ||||
| Wheelbase [mm] | 2830 | 2830 | ||||
| Front wheel track [mm] | 1595 | 1595 | ||||
| Rear wheel track [mm] | 1585 | 1585 | ||||
| Forward overhang [mm] | 950 | 950 | ||||
| Rear overhang [mm] | 1085 | 1085 | ||||
| Clearance [mm] | 165 | 165 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 975 | 975 | ||||
| Headroom rear [mm] | 942 | 942 | ||||
| Front elbow/shoulder width [mm] | -/1450 | -/1450 | ||||
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | ||||
| Legroom front knees/total [mm] | -/1073 | -/1073 | ||||
| Legroom rear knees/total [mm] | -/984 | -/984 |

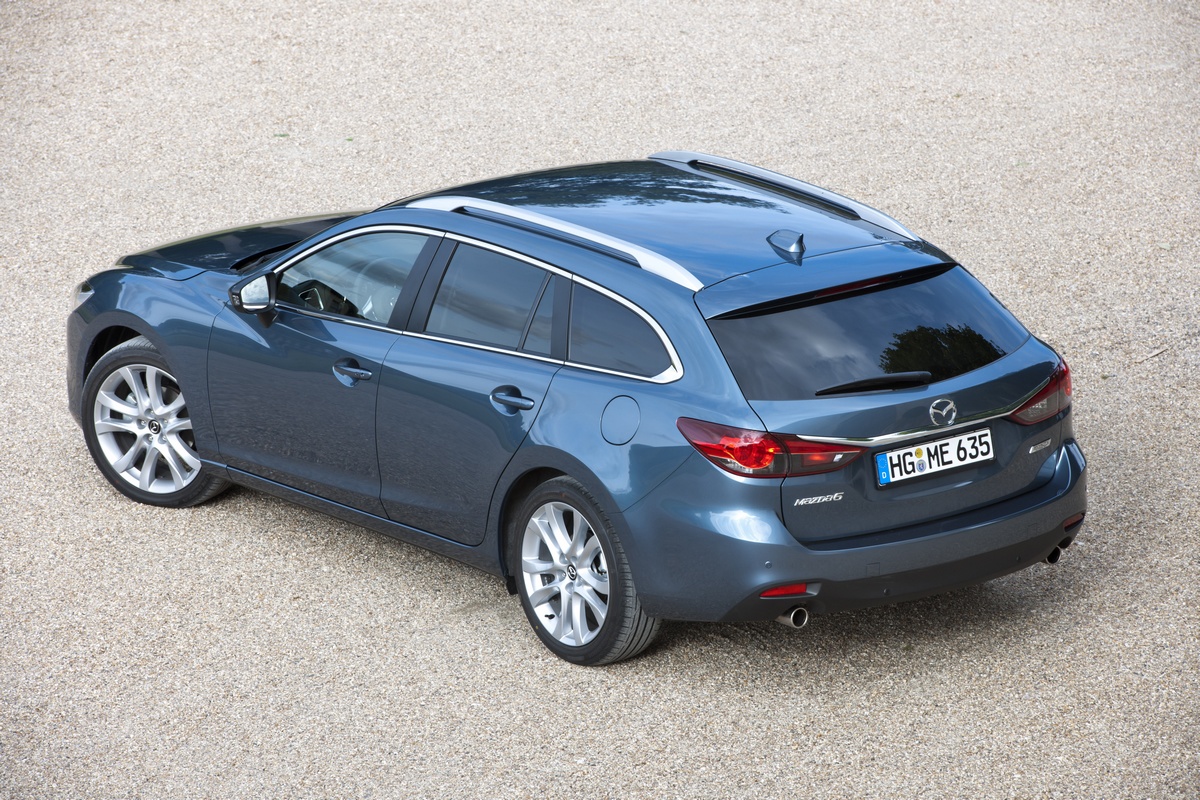

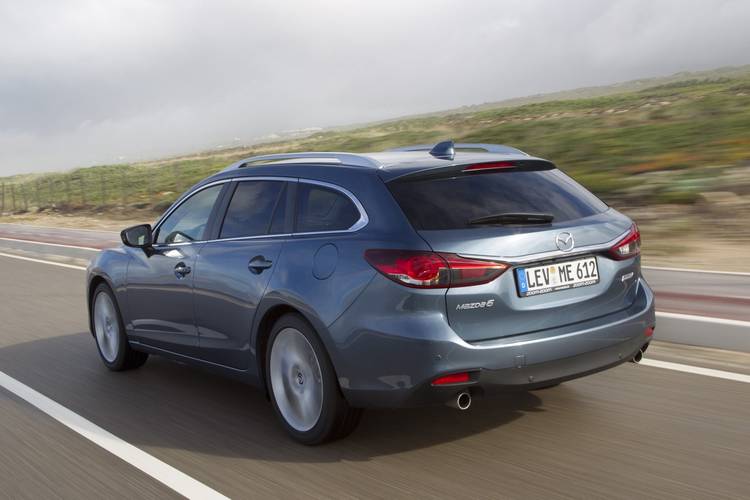

Estate
| 2.0 SKYACTIV-G 145 | 2.0 SKYACTIV-G 165 | 2.0 SKYACTIV-G 165 | 2.5 SKYACTIV-G 192 | 2.2 SKYACTIV-D 150 | 2.2 SKYACTIV-D 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 2488 | 2191 | 2191 |
| Maximum output / speed [kW/min-1] | 107/6000 | 121/6000 | 121/6000 | 141/5700 | 110/4500 | 110/4500 |
| Maximum torque [Nm/min-1] | 210/4000 | 210/4000 | 210/4000 | 256/3250 | 380/1800-2600 | 380/1800-2600 |
| Bore and stroke [mm x mm] | 83,5 x 91,2 | 83,5 x 91,2 | 83,5 x 91,2 | 89,0 x 100,0 | 86,0 x 94,3 | 86,0 x 94,3 |
| Compression ratio | 14,0:1 | 14,0:1 | 14,0:1 | 13,0:1 | 14,0:1 | 14,0:1 |
| Oil volume [l] | 4.9 | 4.9 | 4.9 | 5.4 | 6.0 | 6.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 206 | 214 | 206 | 220 | 210 | 202 |
| Acceleration 0–100 km/h [s] | 9.6 | 9.1 | 10.2 | 7.9 | 9.2 | 10.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 7.5 | 7.7 | 8.6 | 5.5 | 6.1 |
| Out of town [l] | 4.7 | 4.9 | 5.0 | 5.1 | 3.8 | 4.2 |
| Combined [l] | 5.6 | 5.9 | 6.0 | 6.4 | 4.2 | 4.9 |
| CO2 emissions [g/km] | 131 | 136 | 139 | 150 | 110 | 129 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1305 | 1320 | 1340 | 1375 | 1420 | 1430 |
| Overall weight [kg] | 1980 | 1990 | 2020 | 2040 | 2090 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 680/1300 | 680/1500 | 680/1500 | 730/1500 | 730/1600 | 730/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 522 | 522 | 522 | 522 | 522 | 522 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1648 | -/1648 | -/1648 | -/1648 | -/1648 | -/1648 |
| Boot length [mm] | 1113 | 1113 | 1113 | 1113 | 1113 | 1113 |
| Boot length with rear seats folded [mm] | 1873 | 1873 | 1873 | 1873 | 1873 | 1873 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | 502/- | 502/- | 502/- | 502/- | 502/- | 502/- |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Tyre dimensions rear | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/45 R19 92W | 225/55 R17 97V | 225/55 R17 97V |
| Wheel size front | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 19 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 297 | 297 | 297 | 297 | 297 | 297 |
| Brake dimensions rear | 278 | 278 | 278 | 278 | 278 | 278 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.57 | 2.57 | 2.57 | 2.57 | 2.57 | 2.57 |
| Turning diameter track/circumference [m] | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 | 11.0/11.8 |
| Overall length [mm] | 4800 | 4800 | 4800 | 4800 | 4800 | 4800 |
| Overall width without/including mirrors [mm] | 1840/2113 | 1840/2113 | 1840/2113 | 1840/2113 | 1840/2113 | 1840/2113 |
| Overall height [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
| Front wheel track [mm] | 1585 | 1595 | 1585 | 1595 | 1585 | 1585 |
| Rear wheel track [mm] | 1575 | 1585 | 1575 | 1585 | 1575 | 1575 |
| Forward overhang [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Rear overhang [mm] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 975 | 975 | 975 | 975 | 975 | 975 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Rear elbow/shoulder width [mm] | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 | -/1408 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/955 | -/955 | -/955 | -/955 | -/955 | -/955 |
| 2.2 SKYACTIV-D 175 | 2.2 SKYACTIV-D 175 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2191 | 2191 | ||||
| Maximum output / speed [kW/min-1] | 129/4500 | 129/4500 | ||||
| Maximum torque [Nm/min-1] | 420/2000 | 420/2000 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,3 | 86,0 x 94,3 | ||||
| Compression ratio | 14,0:1 | 14,0:1 | ||||
| Oil volume [l] | 6.0 | 6.0 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 221 | 215 | ||||
| Acceleration 0–100 km/h [s] | 8.0 | 8.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.7 | 6.1 | ||||
| Out of town [l] | 4.0 | 4.2 | ||||
| Combined [l] | 4.6 | 4.9 | ||||
| CO2 emissions [g/km] | 121 | 129 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1420 | 1430 | ||||
| Overall weight [kg] | 2090 | 2110 | ||||
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 730/1600 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 522 | 522 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1648 | -/1648 | ||||
| Boot length [mm] | 1113 | 1113 | ||||
| Boot length with rear seats folded [mm] | 1873 | 1873 | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | 502/- | 502/- | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 62 | 62 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.28 | 0.28 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/45 R19 92W | 225/45 R19 92W | ||||
| Tyre dimensions rear | 225/45 R19 92W | 225/45 R19 92W | ||||
| Wheel size front | 7.0J x 19 | 7.0J x 19 | ||||
| Wheel size rear | 7.0J x 19 | 7.0J x 19 | ||||
| Brake dimensions front | 297 | 297 | ||||
| Brake dimensions rear | 278 | 278 | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | 2.57 | 2.57 | ||||
| Turning diameter track/circumference [m] | 11.0/11.8 | 11.0/11.8 | ||||
| Overall length [mm] | 4800 | 4800 | ||||
| Overall width without/including mirrors [mm] | 1840/2113 | 1840/2113 | ||||
| Overall height [mm] | 1475 | 1475 | ||||
| Wheelbase [mm] | 2750 | 2750 | ||||
| Front wheel track [mm] | 1595 | 1595 | ||||
| Rear wheel track [mm] | 1585 | 1585 | ||||
| Forward overhang [mm] | 950 | 950 | ||||
| Rear overhang [mm] | 1100 | 1100 | ||||
| Clearance [mm] | 165 | 165 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 975 | 975 | ||||
| Headroom rear [mm] | 971 | 971 | ||||
| Front elbow/shoulder width [mm] | -/1450 | -/1450 | ||||
| Rear elbow/shoulder width [mm] | -/1408 | -/1408 | ||||
| Legroom front knees/total [mm] | -/1073 | -/1073 | ||||
| Legroom rear knees/total [mm] | -/955 | -/955 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
