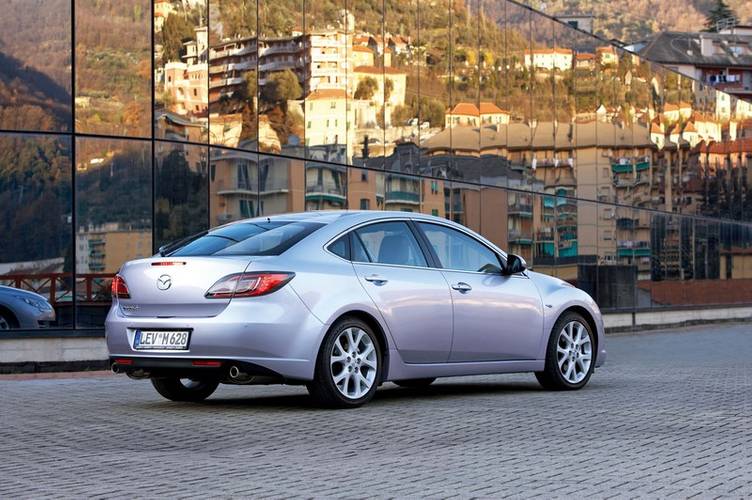

Mazda 6
Date of manufacture
2007 – 2010 (Sedan)
2007 – 2010 (Liftback)
2007 – 2010 (Estate)
Platform
Mazda GH chassis
Manufacturing locations
Hōfu, Japan
Flat Rock, USA
Designer
Youichi Sato
Tags
D-segment
Japanese cars
Mazda 6 has been manufactured since 2007 and is available in three body styles - sedan, liftback and estate. The car is based on the Mazda GH chassis and offers a wide range of petrol and diesel engines. The most powerful engine is the 2.2 MZR-CD with a maximum power of 136 kW and the fastest version 2.5 MZR reaches a speed of 220 km/h with acceleration from 0-100 km/h in 8.0 seconds. The most economical variant 2.2 MZR-CD has a fuel consumption of 5.5 l/100 km and CO2 emissions of 147 g/km. The size of the luggage compartment of the sedan is 519 l, of the liftback 510 l and of the estate 519 l. The Mazda 6 passed the EURONCAP safety tests in 2009 with a rating of 5 out of 5.
Car body style
Sedan
Date of manufacture
2007 – 2010Internal designation
GHEngine size
Liftback
Date of manufacture
2007 – 2010Internal designation
GHEngine size
Estate
Date of manufacture
2007 – 2010Internal designation
GHEngine size
Technical data
Sedan
| 1.8 MZR | 2.0 MZR | 2.0 MZR | 2.5 MZR | 2.2 MZR-CD | 2.0 MZR-CD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1999 | 1999 | 2488 | 2183 | 1998 |
| Maximum output / speed [kW/min-1] | 88/5500 | 108/6500 | 108/6500 | 125/6000 | 92/3500 | 103/3500 |
| Maximum torque [Nm/min-1] | 165/4300 | 184/4000 | 184/4000 | 226/4000 | 400/1800 | 330/2000 |
| Bore and stroke [mm x mm] | 83,0 x 83,1 | 87,5 x 83,1 | 87,5 x 83,1 | 89,0 x 100,0 | 86,0 x 94,0 | 86,0 x 86,0 |
| Compression ratio | 10,8:1 | 10,0:1 | 10,0:1 | 9,7:1 | 16,3:1 | 16,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 5 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 200 | 214 | 204 | 220 | 195 | 204 |
| Acceleration 0–100 km/h [s] | 11.3 | 9.9 | 10.8 | 8.0 | 10.6 | 10.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 9.8 | 11.1 | 11.1 | 7.0 | 6.7 |
| Out of town [l] | 5.1 | 5.4 | 5.7 | 6.3 | 4.7 | 5.0 |
| Combined [l] | 6.7 | 7.0 | 7.7 | 8.1 | 5.5 | 5.6 |
| CO2 emissions [g/km] | 159 | 166 | 182 | 192 | 147 | 149 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1355 | 1370 | 1395 | 1395 | 1520 | 1500 |
| Overall weight [kg] | 1885 | 1905 | 1935 | 1930 | 2055 | 2035 |
| Maximum trailer weight unbraked/braked [kg] | 550/1300 | 550/1500 | 550/1500 | 550/1500 | 550/1600 | 550/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 519 | 519 | 519 | 519 | 519 | 519 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1096 | 1096 | 1096 | 1096 | 1096 | 1096 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 215/50 R17 | 215/50 R17 | 225/45 R18 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 215/50 R17 | 215/50 R17 | 225/45 R18 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 299 | 299 | 299 | 299 | 299 | 299 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.4/11.8 | 11.0/11.4 | 11.0/11.4 |
| Overall length [mm] | 4735 | 4735 | 4735 | 4735 | 4735 | 4735 |
| Overall width without/including mirrors [mm] | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 |
| Overall height [mm] | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Wheelbase [mm] | 2725 | 2725 | 2725 | 2725 | 2725 | 2725 |
| Front wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1560 | 1560 |
| Rear wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Legroom front knees/total [mm] | -/1079 | -/1079 | -/1079 | -/1079 | -/1079 | -/1079 |
| Legroom rear knees/total [mm] | -/947 | -/947 | -/947 | -/947 | -/947 | -/947 |
| 2.2 MZR-CD | 2.2 MZR-CD | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2183 | 2183 | ||||
| Maximum output / speed [kW/min-1] | 120/3500 | 136/3500 | ||||
| Maximum torque [Nm/min-1] | 400/1800 | 400/1800 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,0 | 86,0 x 94,0 | ||||
| Compression ratio | 16,3:1 | 16,3:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 212 | 218 | ||||
| Acceleration 0–100 km/h [s] | 9.0 | 8.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.0 | 7.1 | ||||
| Out of town [l] | 4.7 | 4.7 | ||||
| Combined [l] | 5.5 | 5.6 | ||||
| CO2 emissions [g/km] | 147 | 149 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1520 | 1530 | ||||
| Overall weight [kg] | 2055 | 2065 | ||||
| Maximum trailer weight unbraked/braked [kg] | 550/1600 | 550/1600 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 519 | 519 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | 1096 | 1096 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | -/1000 | -/1000 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 64 | 64 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.27 | 0.27 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 215/50 R17 | 225/45 R18 | ||||
| Tyre dimensions rear | 215/50 R17 | 225/45 R18 | ||||
| Wheel size front | 7.0J x 17 | 7.5J x 18 | ||||
| Wheel size rear | 7.0J x 17 | 7.5J x 18 | ||||
| Brake dimensions front | 299 | 299 | ||||
| Brake dimensions rear | 280 | 280 | ||||
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.4/11.8 | ||||
| Overall length [mm] | 4735 | 4735 | ||||
| Overall width without/including mirrors [mm] | 1795/1998 | 1795/1998 | ||||
| Overall height [mm] | 1440 | 1440 | ||||
| Wheelbase [mm] | 2725 | 2725 | ||||
| Front wheel track [mm] | 1550 | 1550 | ||||
| Rear wheel track [mm] | 1550 | 1550 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 165 | 165 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1001 | 1001 | ||||
| Headroom rear [mm] | 955 | 955 | ||||
| Front elbow/shoulder width [mm] | -/1430 | -/1430 | ||||
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | ||||
| Legroom front knees/total [mm] | -/1079 | -/1079 | ||||
| Legroom rear knees/total [mm] | -/947 | -/947 |
Liftback
| 1.8 MZR | 2.0 MZR | 2.0 MZR | 2.5 MZR | 2.2 MZR-CD | 2.0 MZR-CD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1999 | 1999 | 2488 | 2183 | 1998 |
| Maximum output / speed [kW/min-1] | 88/5500 | 108/6500 | 108/6500 | 125/6000 | 92/3500 | 103/3500 |
| Maximum torque [Nm/min-1] | 165/4300 | 184/4000 | 184/4000 | 226/4000 | 310/1600 | 330/2000 |
| Bore and stroke [mm x mm] | 83,0 x 83,1 | 87,5 x 83,1 | 87,5 x 83,1 | 89,0 x 100,0 | 86,0 x 94,0 | 86,0 x 86,0 |
| Compression ratio | 10,8:1 | 10,0:1 | 10,0:1 | 9,7:1 | 16,3:1 | 16,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 5 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 198 | 212 | 202 | 220 | 195 | 201 |
| Acceleration 0–100 km/h [s] | 11.6 | 10.2 | 11.1 | 8.3 | 10.6 | 10.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6 | 9.9 | 11.1 | 11.1 | 7.0 | 6.7 |
| Out of town [l] | 5.3 | 5.5 | 5.7 | 6.3 | 4.7 | 5.0 |
| Combined [l] | 6.9 | 7.1 | 7.7 | 8.1 | 5.5 | 5.6 |
| CO2 emissions [g/km] | 162 | 168 | 182 | 192 | 147 | 149 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1410 | 1430 | 1430 | 1560 | 1530 |
| Overall weight [kg] | 1925 | 1950 | 1975 | 1970 | 2100 | 2075 |
| Maximum trailer weight unbraked/braked [kg] | 550/1300 | 550/1500 | 550/1500 | 550/1500 | 550/1600 | 550/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 510 | 510 | 510 | 510 | 510 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1702 | -/1702 | -/1702 | -/1702 | -/1702 | -/1702 |
| Boot length [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Boot length with rear seats folded [mm] | 1879 | 1879 | 1879 | 1879 | 1879 | 1879 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 215/50 R17 | 215/50 R17 | 225/45 R18 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 215/50 R17 | 215/50 R17 | 225/45 R18 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 299 | 299 | 299 | 299 | 299 | 299 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.4/11.8 | 11.0/11.4 | 11.0/11.4 |
| Overall length [mm] | 4735 | 4735 | 4735 | 4735 | 4735 | 4735 |
| Overall width without/including mirrors [mm] | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 |
| Overall height [mm] | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Wheelbase [mm] | 2725 | 2725 | 2725 | 2725 | 2725 | 2725 |
| Front wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1560 | 1560 |
| Rear wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Legroom front knees/total [mm] | -/1079 | -/1079 | -/1079 | -/1079 | -/1079 | -/1079 |
| Legroom rear knees/total [mm] | -/947 | -/947 | -/947 | -/947 | -/947 | -/947 |
| 2.2 MZR-CD | 2.2 MZR-CD | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2183 | 2183 | ||||
| Maximum output / speed [kW/min-1] | 120/3500 | 136/3500 | ||||
| Maximum torque [Nm/min-1] | 360/1600 | 400/1600 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,0 | 86,0 x 94,0 | ||||
| Compression ratio | 16,3:1 | 16,3:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 212 | 218 | ||||
| Acceleration 0–100 km/h [s] | 9.0 | 8.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.0 | 7.1 | ||||
| Out of town [l] | 4.7 | 4.7 | ||||
| Combined [l] | 5.5 | 5.6 | ||||
| CO2 emissions [g/km] | 147 | 149 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1560 | 1570 | ||||
| Overall weight [kg] | 2100 | 2110 | ||||
| Maximum trailer weight unbraked/braked [kg] | 550/1600 | 550/1600 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 510 | 510 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1702 | -/1702 | ||||
| Boot length [mm] | 1071 | 1071 | ||||
| Boot length with rear seats folded [mm] | 1879 | 1879 | ||||
| Boot width between wheels/max [mm] | -/1000 | -/1000 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 64 | 64 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.27 | 0.27 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 215/50 R17 | 225/45 R18 | ||||
| Tyre dimensions rear | 215/50 R17 | 225/45 R18 | ||||
| Wheel size front | 7.0J x 17 | 7.5J x 18 | ||||
| Wheel size rear | 7.0J x 17 | 7.5J x 18 | ||||
| Brake dimensions front | 299 | 299 | ||||
| Brake dimensions rear | 280 | 280 | ||||
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.4/11.8 | ||||
| Overall length [mm] | 4735 | 4735 | ||||
| Overall width without/including mirrors [mm] | 1795/1998 | 1795/1998 | ||||
| Overall height [mm] | 1440 | 1440 | ||||
| Wheelbase [mm] | 2725 | 2725 | ||||
| Front wheel track [mm] | 1550 | 1550 | ||||
| Rear wheel track [mm] | 1550 | 1550 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 165 | 165 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1001 | 1001 | ||||
| Headroom rear [mm] | 945 | 945 | ||||
| Front elbow/shoulder width [mm] | -/1430 | -/1430 | ||||
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | ||||
| Legroom front knees/total [mm] | -/1079 | -/1079 | ||||
| Legroom rear knees/total [mm] | -/947 | -/947 |
Estate
| 1.8 MZR | 2.0 MZR | 2.0 MZR | 2.5 MZR | 2.2 MZR-CD | 2.0 MZR-CD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1999 | 1999 | 2488 | 2183 | 1998 |
| Maximum output / speed [kW/min-1] | 88/5500 | 108/6500 | 108/6500 | 125/6000 | 92/3500 | 103/3500 |
| Maximum torque [Nm/min-1] | 165/4300 | 184/4000 | 184/4000 | 226/4000 | 310/1600 | 330/2000 |
| Bore and stroke [mm x mm] | 83,0 x 83,1 | 87,5 x 83,1 | 87,5 x 83,1 | 89,0 x 100,0 | 86,0 x 94,0 | 86,0 x 86,0 |
| Compression ratio | 10,8:1 | 10,0:1 | 10,0:1 | 9,7:1 | 16,3:1 | 16,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 5 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 194 | 208 | 198 | 217 | 192 | 198 |
| Acceleration 0–100 km/h [s] | 11.7 | 10.3 | 11.2 | 8.3 | 10.8 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.7 | 10.0 | 11.3 | 11.2 | 7.0 | 6.8 |
| Out of town [l] | 5.4 | 5.6 | 5.8 | 6.4 | 4.8 | 5.0 |
| Combined [l] | 7.0 | 7.2 | 7.8 | 8.2 | 5.6 | 5.7 |
| CO2 emissions [g/km] | 165 | 171 | 185 | 193 | 149 | 151 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1420 | 1430 | 1455 | 1455 | 1575 | 1545 |
| Overall weight [kg] | 1965 | 1970 | 2020 | 2010 | 2135 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 550/1300 | 550/1500 | 550/1500 | 550/1500 | 550/1600 | 550/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 519 | 519 | 519 | 519 | 519 | 519 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1751 | -/1751 | -/1751 | -/1751 | -/1751 | -/1751 |
| Boot length [mm] | 1119 | 1119 | 1119 | 1119 | 1119 | 1119 |
| Boot length with rear seats folded [mm] | 1926 | 1926 | 1926 | 1926 | 1926 | 1926 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 215/50 R17 | 215/50 R17 | 225/45 R18 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 215/50 R17 | 215/50 R17 | 225/45 R18 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 299 | 299 | 299 | 299 | 299 | 299 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.4/11.8 | 11.0/11.4 | 11.0/11.4 |
| Overall length [mm] | 4765 | 4765 | 4765 | 4765 | 4765 | 4765 |
| Overall width without/including mirrors [mm] | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 | 1795/1998 |
| Overall height [mm] | 1490 | 1490 | 1490 | 1490 | 1490 | 1490 |
| Wheelbase [mm] | 2725 | 2725 | 2725 | 2725 | 2725 | 2725 |
| Front wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1560 | 1560 |
| Rear wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Headroom rear [mm] | -/945 | -/945 | -/945 | -/945 | -/945 | -/945 |
| Front elbow/shoulder width [mm] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Legroom front knees/total [mm] | -/1079 | -/1079 | -/1079 | -/1079 | -/1079 | -/1079 |
| Legroom rear knees/total [mm] | -/947 | -/947 | -/947 | -/947 | -/947 | -/947 |
| 2.2 MZR-CD | 2.2 MZR-CD | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2183 | 2183 | ||||
| Maximum output / speed [kW/min-1] | 120/3500 | 136/3500 | ||||
| Maximum torque [Nm/min-1] | 360/1600 | 400/1600 | ||||
| Bore and stroke [mm x mm] | 86,0 x 94,0 | 86,0 x 94,0 | ||||
| Compression ratio | 16,3:1 | 16,3:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 210 | 216 | ||||
| Acceleration 0–100 km/h [s] | 9.2 | 8.5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.0 | 7.2 | ||||
| Out of town [l] | 4.8 | 4.8 | ||||
| Combined [l] | 5.6 | 5.7 | ||||
| CO2 emissions [g/km] | 149 | 152 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1575 | 1585 | ||||
| Overall weight [kg] | 2135 | 2145 | ||||
| Maximum trailer weight unbraked/braked [kg] | 550/1600 | 550/1600 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 519 | 519 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1751 | -/1751 | ||||
| Boot length [mm] | 1119 | 1119 | ||||
| Boot length with rear seats folded [mm] | 1926 | 1926 | ||||
| Boot width between wheels/max [mm] | -/1030 | -/1030 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 64 | 64 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.28 | 0.28 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 215/50 R17 | 225/45 R18 | ||||
| Tyre dimensions rear | 215/50 R17 | 225/45 R18 | ||||
| Wheel size front | 7.0J x 17 | 7.5J x 18 | ||||
| Wheel size rear | 7.0J x 17 | 7.5J x 18 | ||||
| Brake dimensions front | 299 | 299 | ||||
| Brake dimensions rear | 280 | 280 | ||||
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.4/11.8 | ||||
| Overall length [mm] | 4765 | 4765 | ||||
| Overall width without/including mirrors [mm] | 1795/1998 | 1795/1998 | ||||
| Overall height [mm] | 1490 | 1490 | ||||
| Wheelbase [mm] | 2725 | 2725 | ||||
| Front wheel track [mm] | 1550 | 1550 | ||||
| Rear wheel track [mm] | 1550 | 1550 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 165 | 165 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1001 | 1001 | ||||
| Headroom rear [mm] | -/945 | -/945 | ||||
| Front elbow/shoulder width [mm] | -/1430 | -/1430 | ||||
| Rear elbow/shoulder width [mm] | -/1410 | -/1410 | ||||
| Legroom front knees/total [mm] | -/1079 | -/1079 | ||||
| Legroom rear knees/total [mm] | -/947 | -/947 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
