Mazda 3
Date of manufacture
2019 – to this day (Five-door hatchback)
2019 – to this day (Sedan)
Platform
-
Manufacturing locations
Hōfu, Japan
Salamanca, Mexico
Rayong, Thailand
Designer
Yasutake Tsuchida
Tags
C-segment
Japanese cars
Mazda 3 is a modern model of car that has been manufactured since 2019 and is available in hatchback and sedan variants. This car is manufactured in Japan, Mexico and Thailand and offers a wide range of petrol and diesel engines. The most powerful model is the 2.0 SKYACTIV-X AWD 186 with 137 kW, which has a top speed of 216 km/h. The most fuel-efficient engine is the 1.8 SKYACTIV-D 116 with a fuel consumption of 4.8 l/100 km and emissions of 130 g/km. The sedan has a trunk size of 450 l, while the hatchback has 351 l. In 2019, Mazda 3 underwent EURONCAP safety tests and received a rating of 5 out of 5.
Car body style

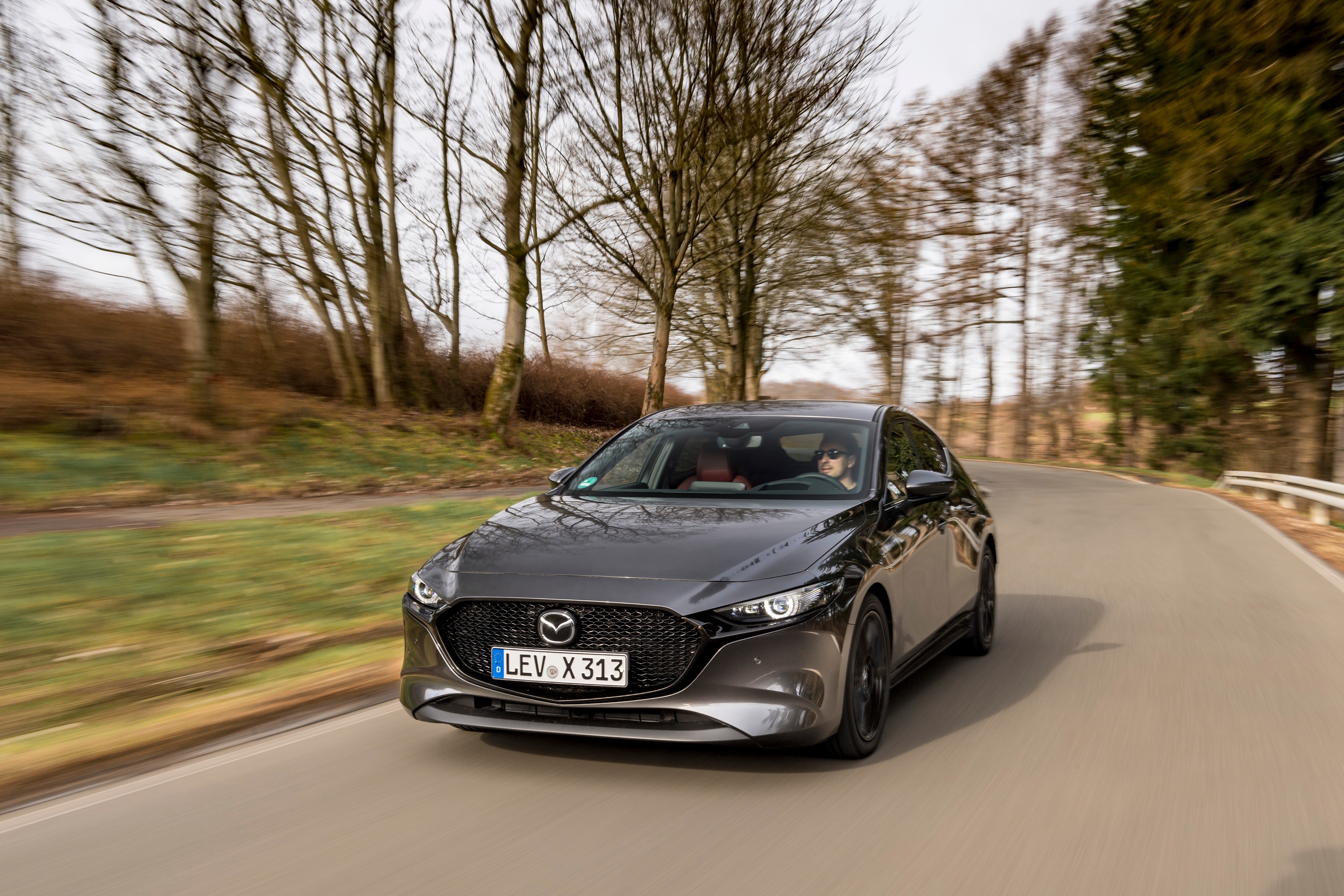

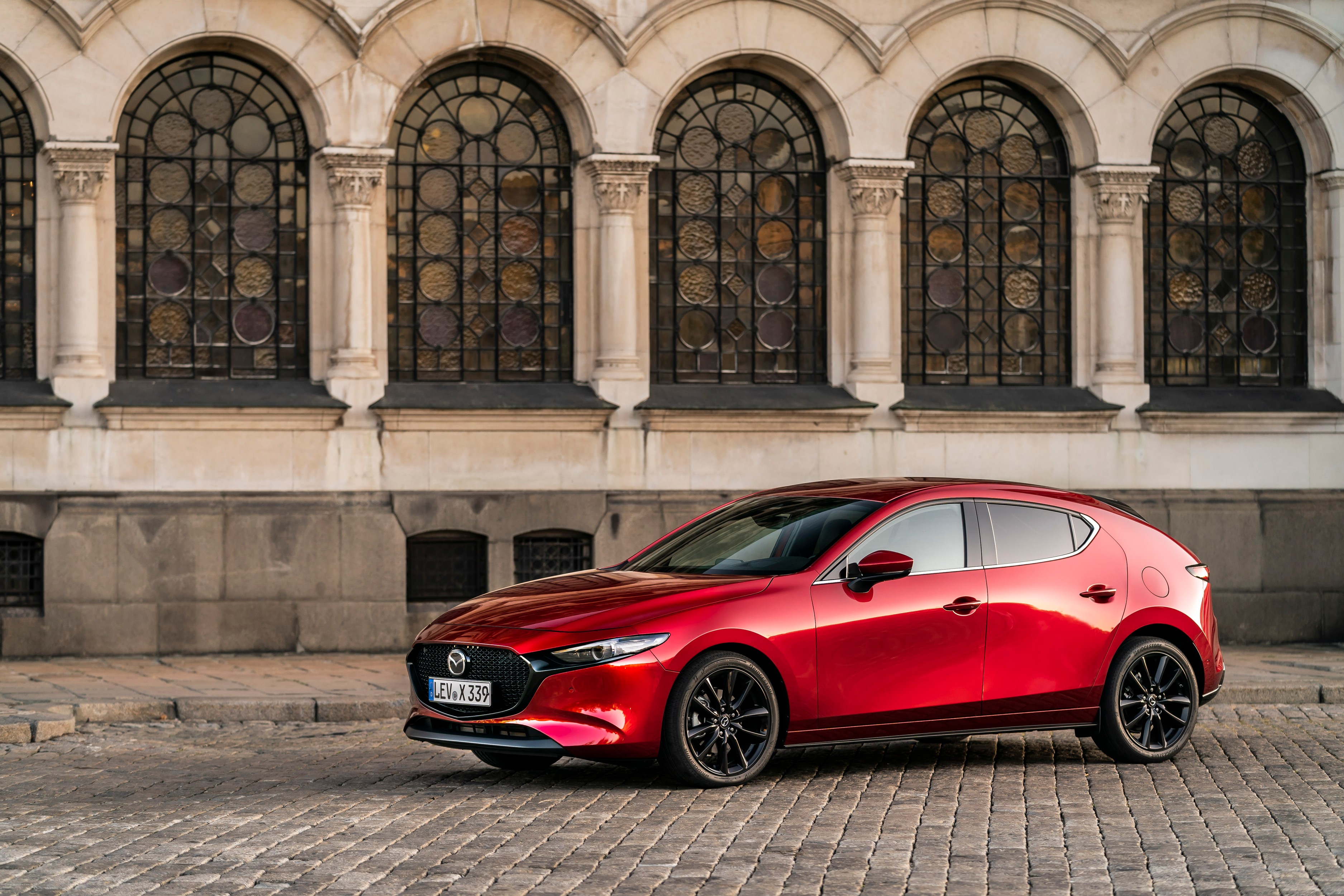

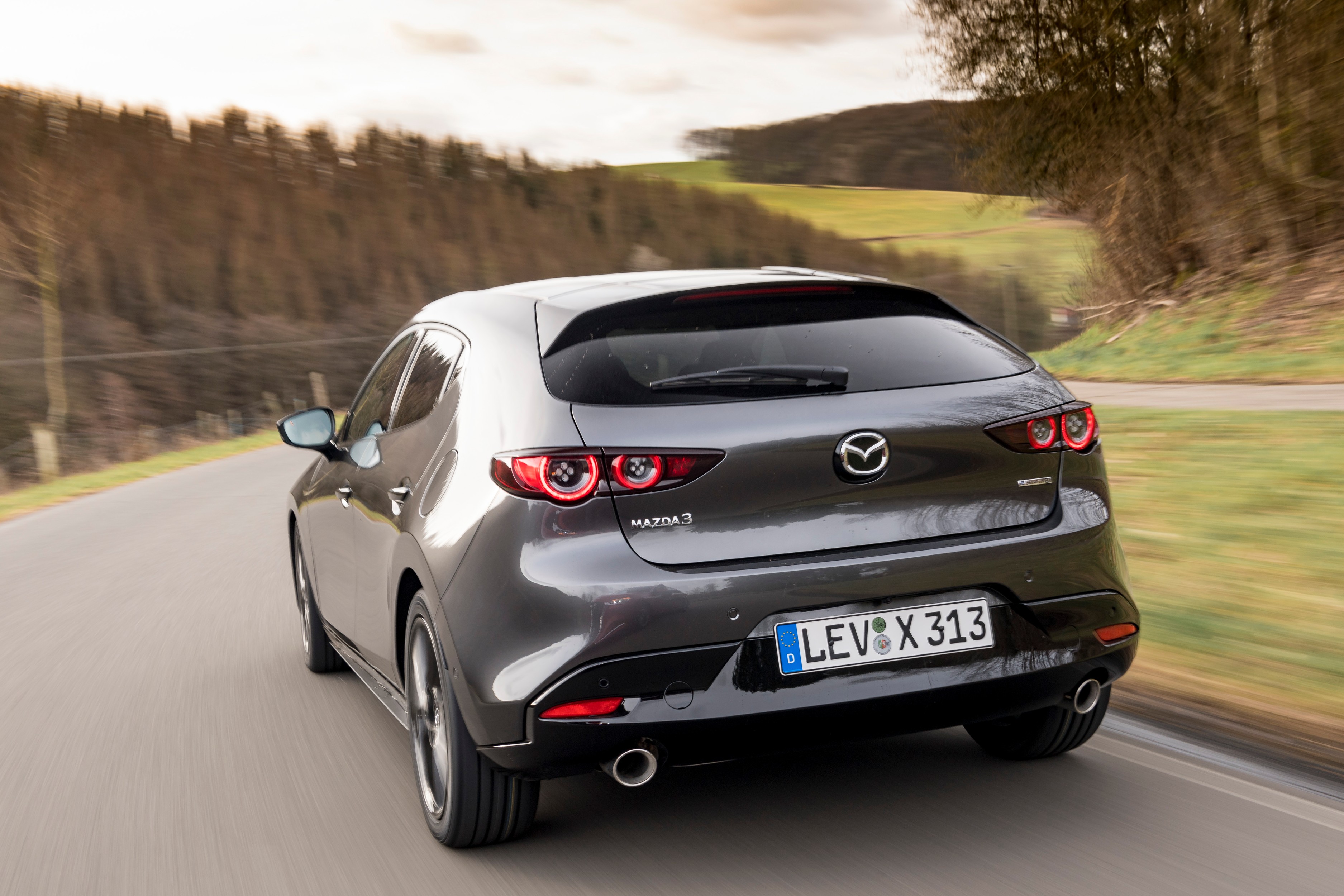

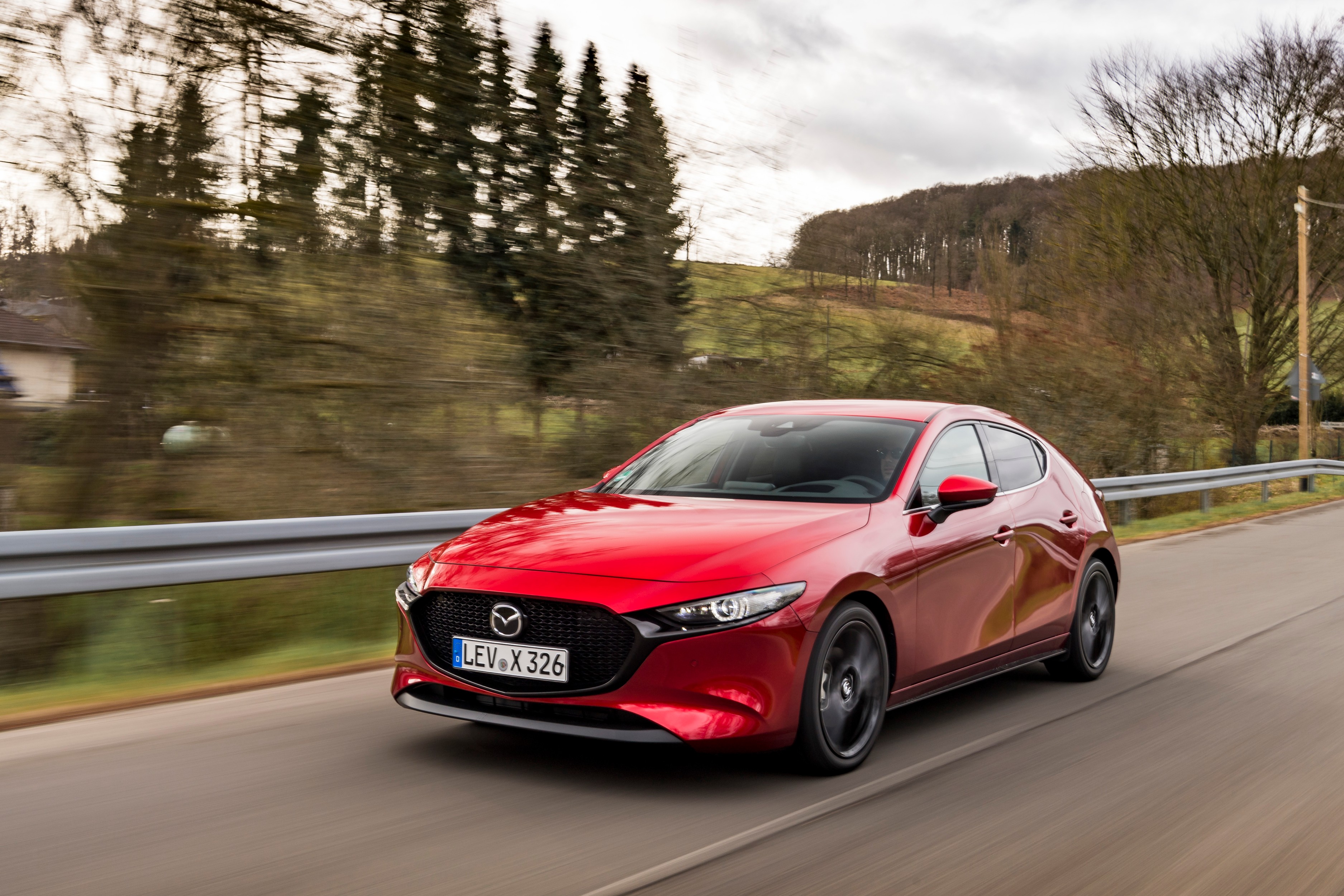

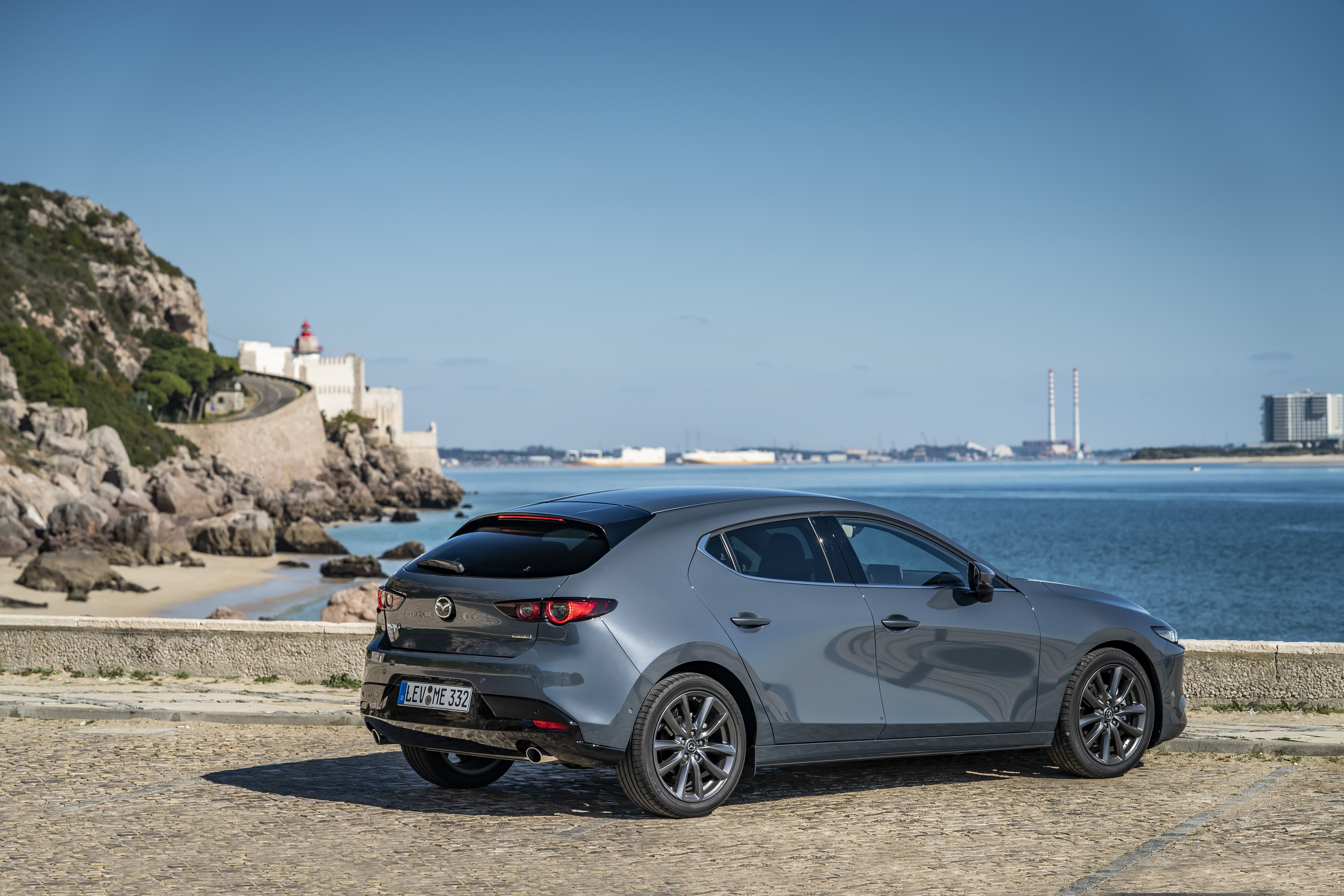

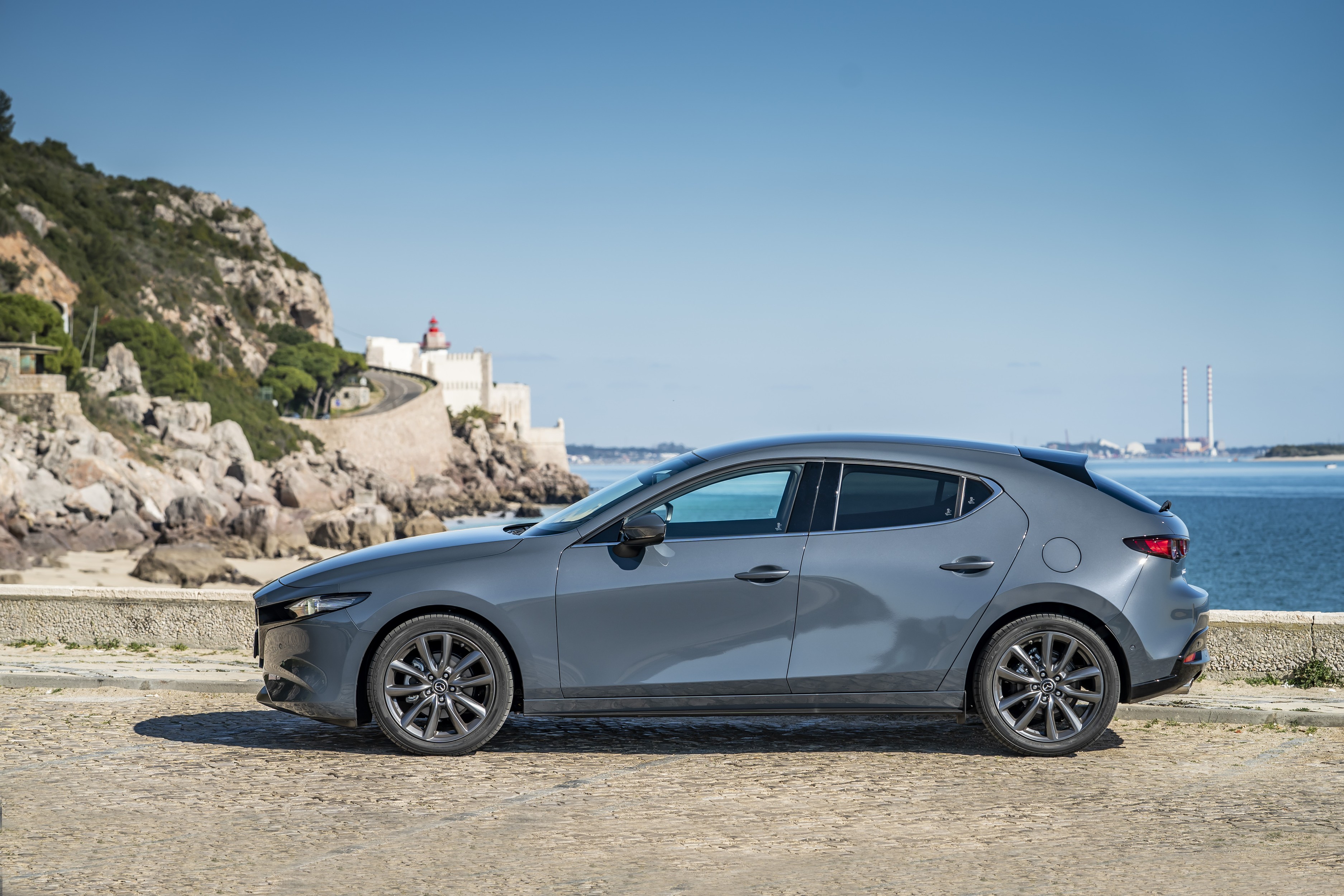

Five-door hatchback
Date of manufacture
2019 – to this dayInternal designation

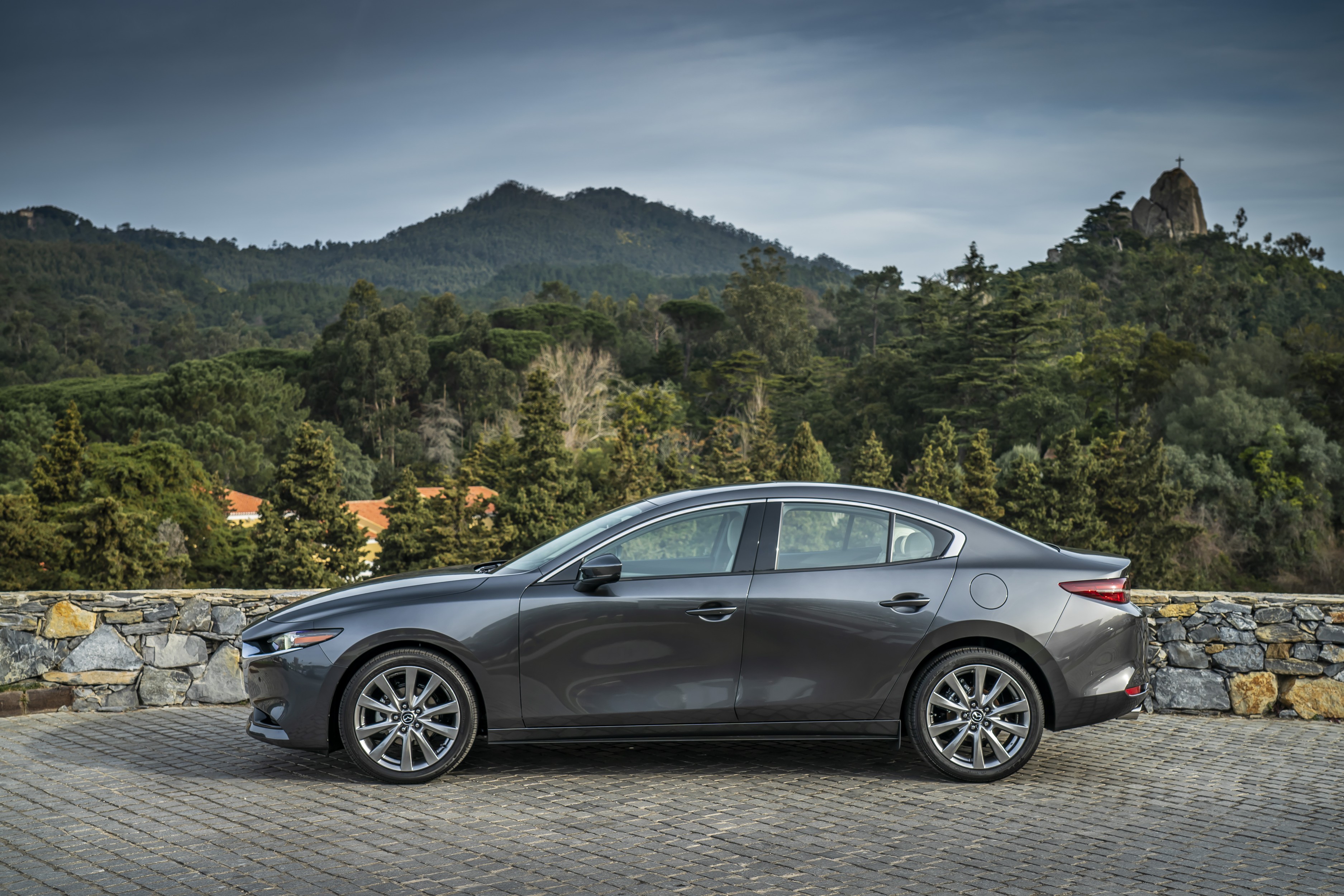

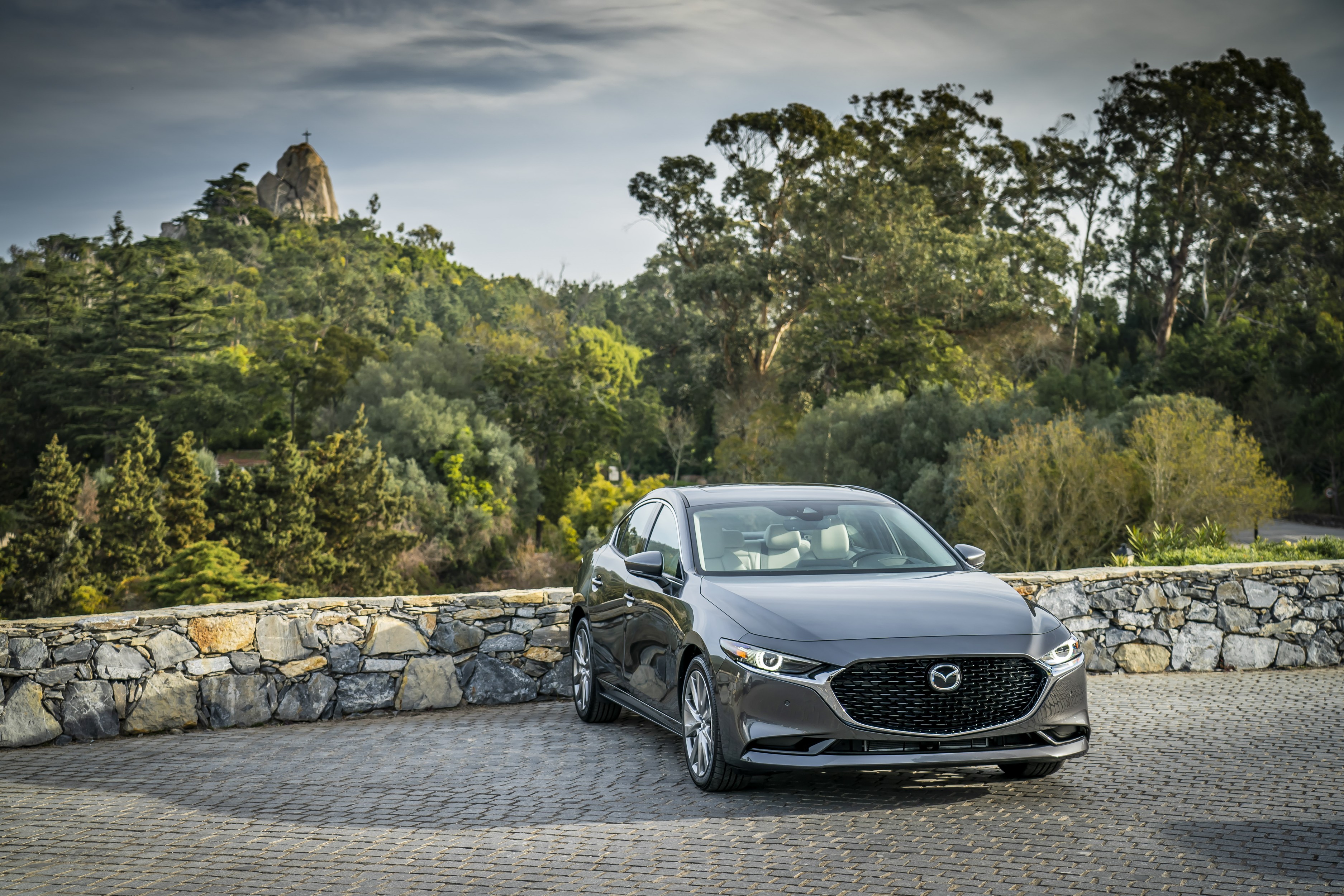

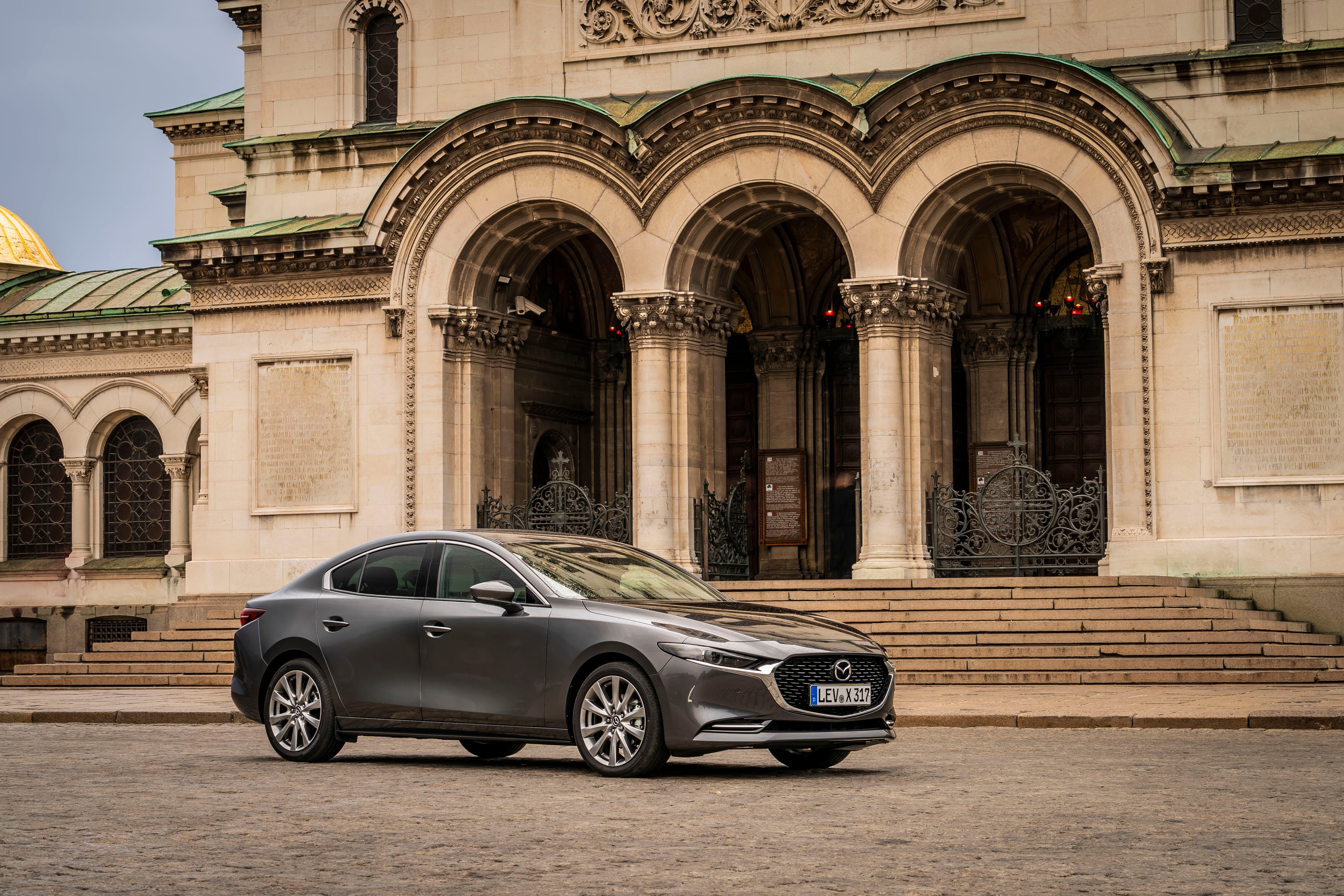

BPSedan
Date of manufacture
2019 – to this dayInternal designation
BP
Technical data
Five-door hatchback
| 2.0 SKYACTIV-G 122 | 2.0 SKYACTIV-G 122 | 2.0 SKYACTIV-G 150 | 2.0 SKYACTIV-G 150 | 2.0 SKYACTIV-X 180 | 2.0 SKYACTIV-X 180 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2021 | from to 2021 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 110/6000 | 110/6000 | 132/6000 | 132/6000 |
| Maximum torque [Nm/min-1] | 213/4000 | 213/4000 | 213/4000 | 213/4000 | 224/3000 | 224/3000 |
| Bore and stroke [mm x mm] | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 |
| Compression ratio | 13.0:1 | 13.0:1 | 13.0:1 | 13.0:1 | 16,3:1 | 16,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 197 | 197 | 206 | 204 | 216 | 216 |
| Acceleration 0–100 km/h [s] | 10,4 | 10,8 | 9,1 | 9,5 | 8,2 | 8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,2-6,1 | 6,9-6,6 | 6.2-6.1 | 6,9-6,6 | 5,1-4,9 | 6,4-6,2 |
| Out of town [l] | 4,5-4,3 | 4,9-4,7 | 4,5-4.3 | 4,9-4,7 | 4,2-4,1 | 4,8-4,7 |
| Combined [l] | 5,1-5,0 | 5,6-5,4 | 5,1-5.0 | 5,6-5,4 | 4,5-4,4 | 5,3 |
| CO2 emissions [g/km] | 116-111 | 127-122 | 116-111 | 127-122 | 103-100 | 120-119 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,1-5,5 | 6,5-6,0 | 6,1-5,5 | 6,5-6,0 | 5,8-5,5 | 6,3-6,2 |
| CO2 emissions [g/km] | 138-124 | 147-138 | 138-124 | 147-138 | 131-125 | 142 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 24 | 24 | 24 | 24 | 24 | 24 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1349-1439 | 1374-1464 | 1349-1439 | 1374-1464 | 1395-1486 | 1424-1515 |
| Overall weight [kg] | 1875 | 1907 | 1875 | 1907 | 1929 | 1952 |
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | 600/1300 | 600/1300 | 600/1300 | 600/1300 |
| Maximum front/rear axle load [kg] | 1004/946 | 1035/947 | 1004/946 | 1035/947 | 1067/937 | 1089/938 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

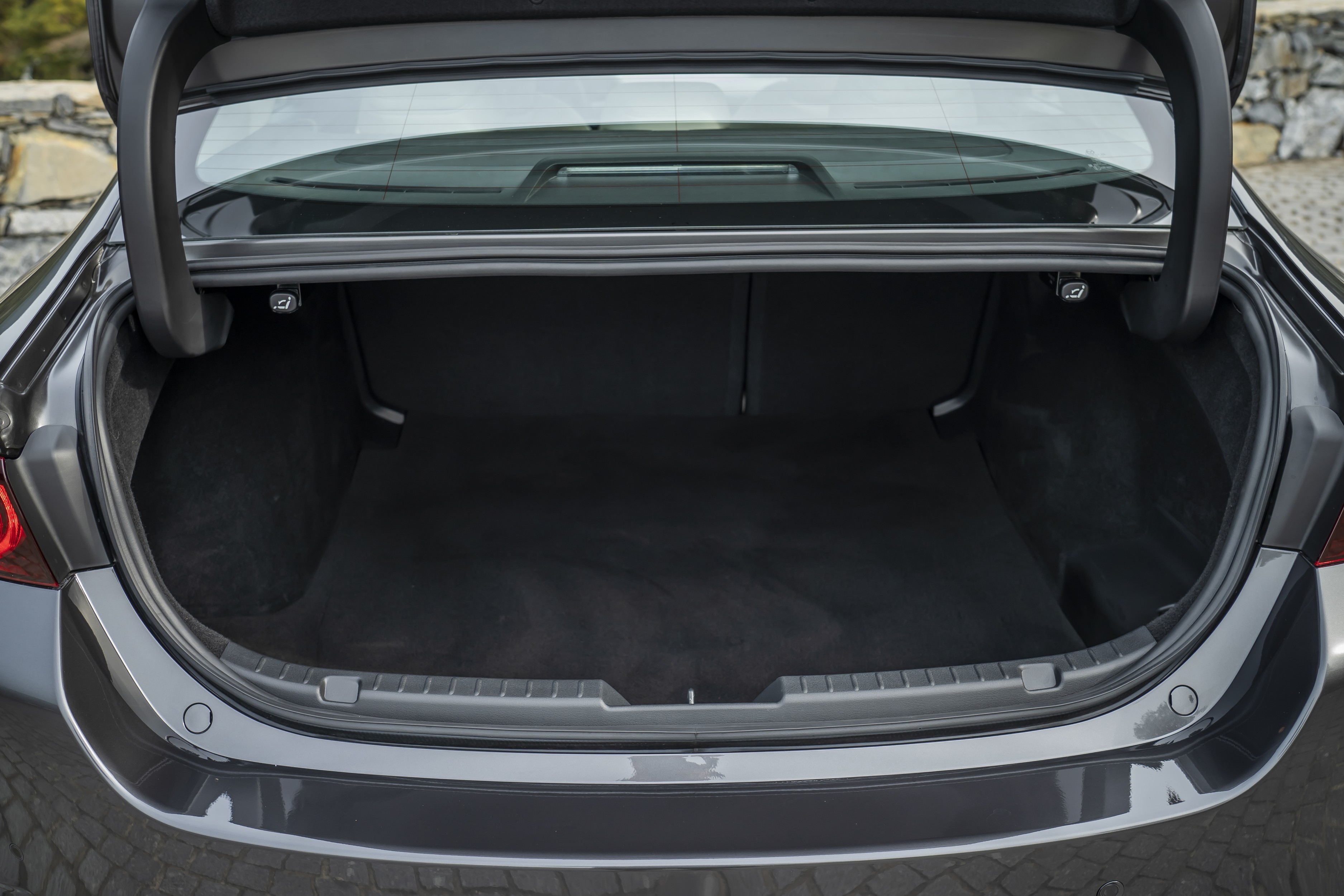

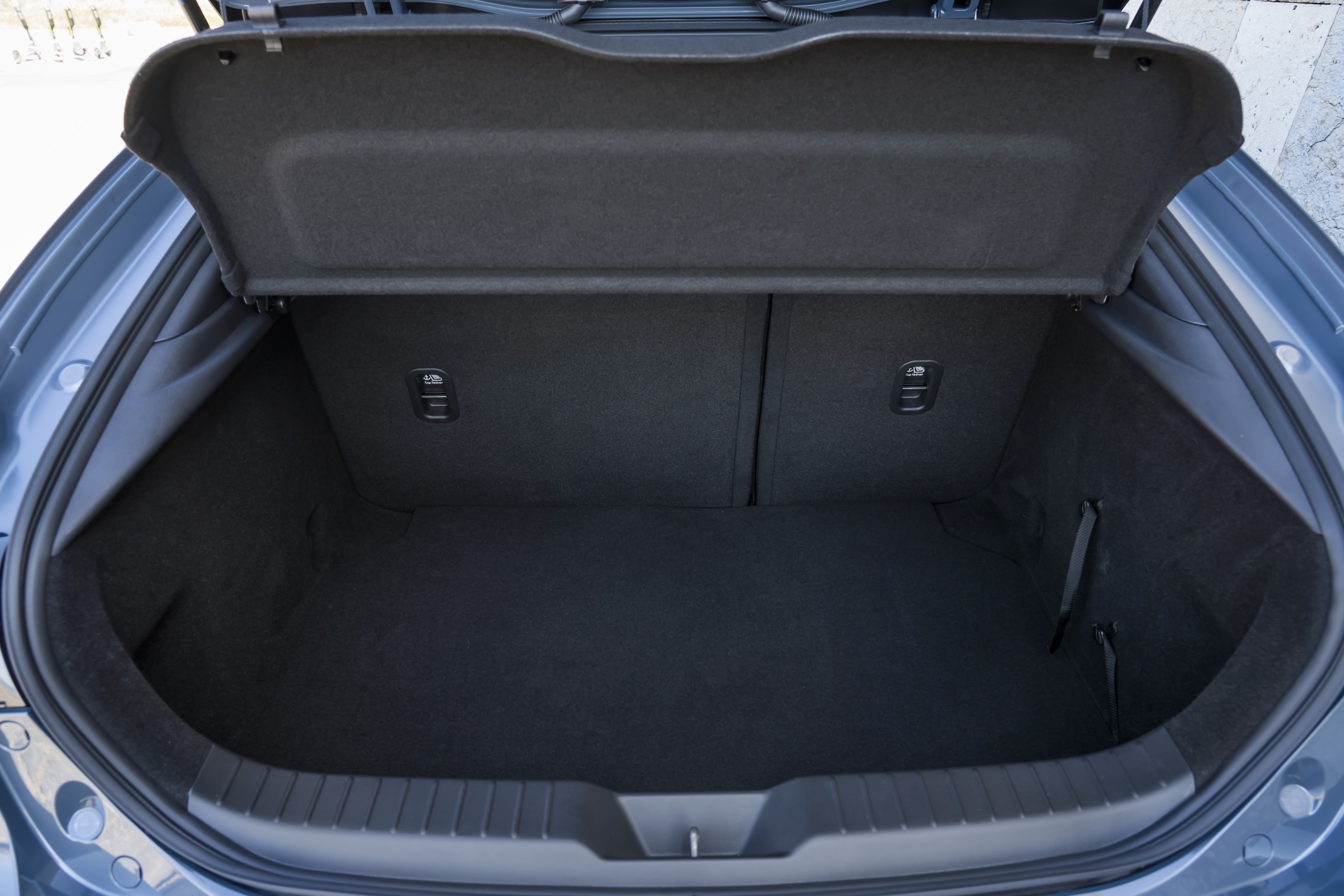

| Boot volume [l] | 351 | 351 | 351 | 351 | 351 | 351 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1026 | -/1026 | -/1026 | -/1026 | -/1026 | -/1026 |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Boot width between wheels/max [mm] | 1014/- | 1014/- | 1014/- | 1014/- | 1014/- | 1014/- |
| Boot height to headliner/ceiling [mm] | 482/- | 482/- | 482/- | 482/- | 482/- | 482/- |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/927 | -/927 | -/927 | -/927 | -/927 | -/927 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 295 | 295 | 295 | 295 | 295 | 295 |
| Brake dimensions rear | 265 | 265 | 265 | 265 | 265 | 265 |
| Steering | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 |
| Overall length [mm] | 4460 | 4460 | 4460 | 4460 | 4460 | 4460 |
| Overall width without/including mirrors [mm] | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Wheelbase [mm] | 2725 | 2725 | 2725 | 2725 | 2725 | 2725 |
| Front wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Rear wheel track [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 820 | 820 | 820 | 820 | 820 | 820 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 |
| Rear elbow/shoulder width [mm] | 1292/1356 | 1292/1356 | 1292/1356 | 1292/1356 | 1292/1356 | 1292/1356 |
| Legroom front knees/total [mm] | -/1075 | -/1075 | -/1075 | -/1075 | -/1075 | -/1075 |
| Legroom rear knees/total [mm] | -/891 | -/891 | -/891 | -/891 | -/891 | -/891 |
| 2.0 SKYACTIV-X AWD 180 | 2.0 SKYACTIV-X AWD 180 | 2.0 SKYACTIV-X 186 | 2.0 SKYACTIV-X 186 | 2.0 SKYACTIV-X AWD 186 | 2.0 SKYACTIV-X AWD 186 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from to 2021 | from 2021 to | from 2021 to | from 2021 to | from 2021 to |
| Engine type | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 132/6000 | 132/6000 | 137/6000 | 137/6000 | 137/6000 | 137/6000 |
| Maximum torque [Nm/min-1] | 224/3000 | 224/3000 | 240/3000 | 240/3000 | 240/3000 | 240/3000 |
| Bore and stroke [mm x mm] | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 |
| Compression ratio | 16,3:1 | 16,3:1 | 15.0:1 | 15.0:1 | 15.0:1 | 15.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 214 | 214 | 216 | 216 | 214 | 214 |
| Acceleration 0–100 km/h [s] | 8,5 | 8,9 | 8,1 | 8,5 | 8,4-8,3 | 8,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,5-5,4 | 6,6 | 5,6 | 6,3 | 6,0-5,9 | 6,3 |
| Out of town [l] | 4,4-4,3 | 4,9 | 4,2 | 4,8-4,7 | 4,6-4,5 | 5,1 |
| Combined [l] | 4,8 | 5,5 | 4,7 | 5,3-5,2 | 5,1-5,0 | 5,5 |
| CO2 emissions [g/km] | 109 | 125 | 106-105 | 120-119 | 116-114 | 124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,2 | 6,9 | 5,3-5,2 | 6,0-5,8 | 6,0 | 6,5 |
| CO2 emissions [g/km] | 142 | 157 | 121-118 | 137-133 | 135 | 146 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 24 | 24 | 24 | 24 | 24 | 24 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1451-1542 | 1484-1574 | 1395-1486 | 1424-1515 | 1451-1542 | 1484-1574 |
| Overall weight [kg] | 1980 | 2013 | 1929 | 1952 | 1980 | 2013 |
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | 600/1300 | 600/1300 | 600/1300 | 600/1300 |
| Maximum front/rear axle load [kg] | 1079/976 | 1108/980 | 1067/937 | 1089/938 | 1079/976 | 1108/980 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 351 | 351 | 351 | 351 | 351 | 351 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1026 | -/1026 | -/1026 | -/1026 | -/1026 | -/1026 |
| Boot length [mm] | 838 | 1563 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | - | - | 1563 | 1563 | 1563 | 1563 |
| Boot width between wheels/max [mm] | 1014/- | 1014/- | 1014/- | 1014/- | 1014/- | 1014/- |
| Boot height to headliner/ceiling [mm] | 482/- | 482/- | 482/- | 482/- | 482/- | 482/- |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/927 | -/927 | -/927 | -/927 | -/927 | -/927 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 51 | 51 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 295 | 295 | 295 | 295 | 295 | 295 |
| Brake dimensions rear | 265 | 265 | 265 | 265 | 265 | 265 |
| Steering | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 |
| Overall length [mm] | 4460 | 4460 | 4460 | 4460 | 4460 | 4460 |
| Overall width without/including mirrors [mm] | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Wheelbase [mm] | 2725 | 2725 | 2725 | 2725 | 2725 | 2725 |
| Front wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Rear wheel track [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 820 | 820 | 820 | 820 | 820 | 820 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 |
| Rear elbow/shoulder width [mm] | 1292/1356 | 1292/1356 | 1292/1356 | 1292/1356 | 1292/1356 | 1292/1356 |
| Legroom front knees/total [mm] | -/1075 | -/1075 | -/1075 | -/1075 | -/1075 | -/1075 |
| Legroom rear knees/total [mm] | -/891 | -/891 | -/891 | -/891 | -/891 | -/891 |
| 1.8 SKYACTIV-D 116 | 1.8 SKYACTIV-D 116 | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from to 2021 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1759 | 1759 | ||||
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | ||||
| Maximum torque [Nm/min-1] | 270/1600-2600 | 270/1600-2600 | ||||
| Bore and stroke [mm x mm] | 79.0 x 89.7 | 79.0 x 89.7 | ||||
| Compression ratio | 14,8:1 | 14,8:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 194 | 192 | ||||
| Acceleration 0–100 km/h [s] | 10,3 | 12,1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4,7-4,6 | 5,3-5,2 | ||||
| Out of town [l] | 3,8 | 4,5-4,3 | ||||
| Combined [l] | 4,2-4,1 | 4,9-4,7 | ||||
| CO2 emissions [g/km] | 109-107 | 127-121 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 5,1-5,0 | 5,7-5,6 | ||||
| CO2 emissions [g/km] | 133-131 | 151-148 | ||||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1374-1460 | 1395-1481 | ||||
| Overall weight [kg] | 1898 | 1919 | ||||
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | ||||
| Maximum front/rear axle load [kg] | 1042/931 | 1060/934 | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 351 | 351 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1026 | -/1026 | ||||
| Boot length [mm] | 838 | 838 | ||||
| Boot length with rear seats folded [mm] | 1563 | 1563 | ||||
| Boot width between wheels/max [mm] | 1014/- | 1014/- | ||||
| Boot height to headliner/ceiling [mm] | 482/- | 482/- | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | -/927 | -/927 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 51 | 51 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | ||||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | ||||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | ||||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | ||||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | ||||
| Brake dimensions front | 295 | 295 | ||||
| Brake dimensions rear | 265 | 265 | ||||
| Steering | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/11.38 | 10.6/11.38 | ||||
| Overall length [mm] | 4460 | 4460 | ||||
| Overall width without/including mirrors [mm] | 1795/2028 | 1795/2028 | ||||
| Overall height [mm] | 1435 | 1435 | ||||
| Wheelbase [mm] | 2725 | 2725 | ||||
| Front wheel track [mm] | 1570 | 1570 | ||||
| Rear wheel track [mm] | 1580 | 1580 | ||||
| Forward overhang [mm] | 915 | 915 | ||||
| Rear overhang [mm] | 820 | 820 | ||||
| Clearance [mm] | 135 | 135 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 965 | 965 | ||||
| Headroom rear [mm] | 947 | 947 | ||||
| Front elbow/shoulder width [mm] | 1387/1414 | 1387/1414 | ||||
| Rear elbow/shoulder width [mm] | 1292/1356 | 1292/1356 | ||||
| Legroom front knees/total [mm] | -/1075 | -/1075 | ||||
| Legroom rear knees/total [mm] | -/891 | -/891 |

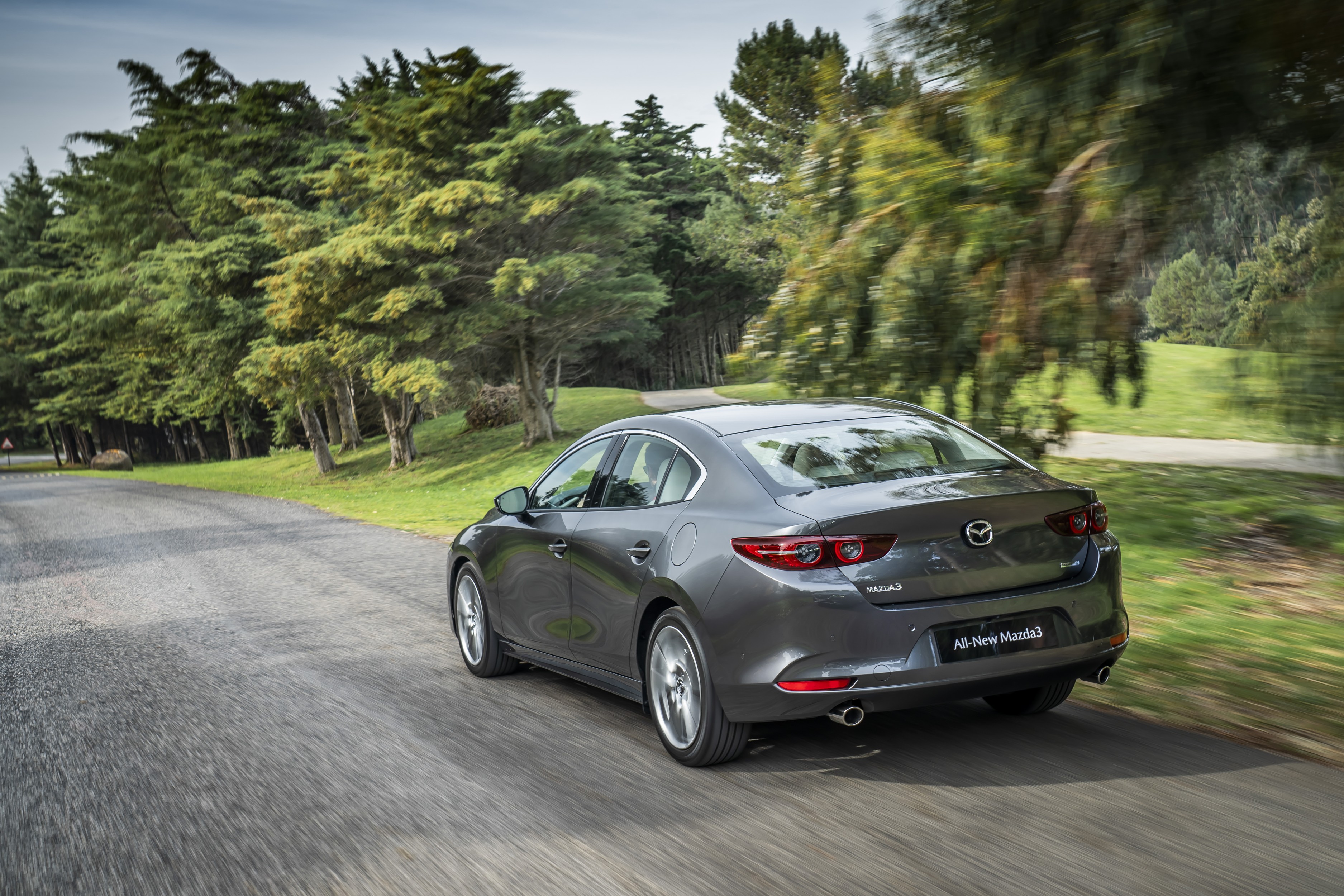

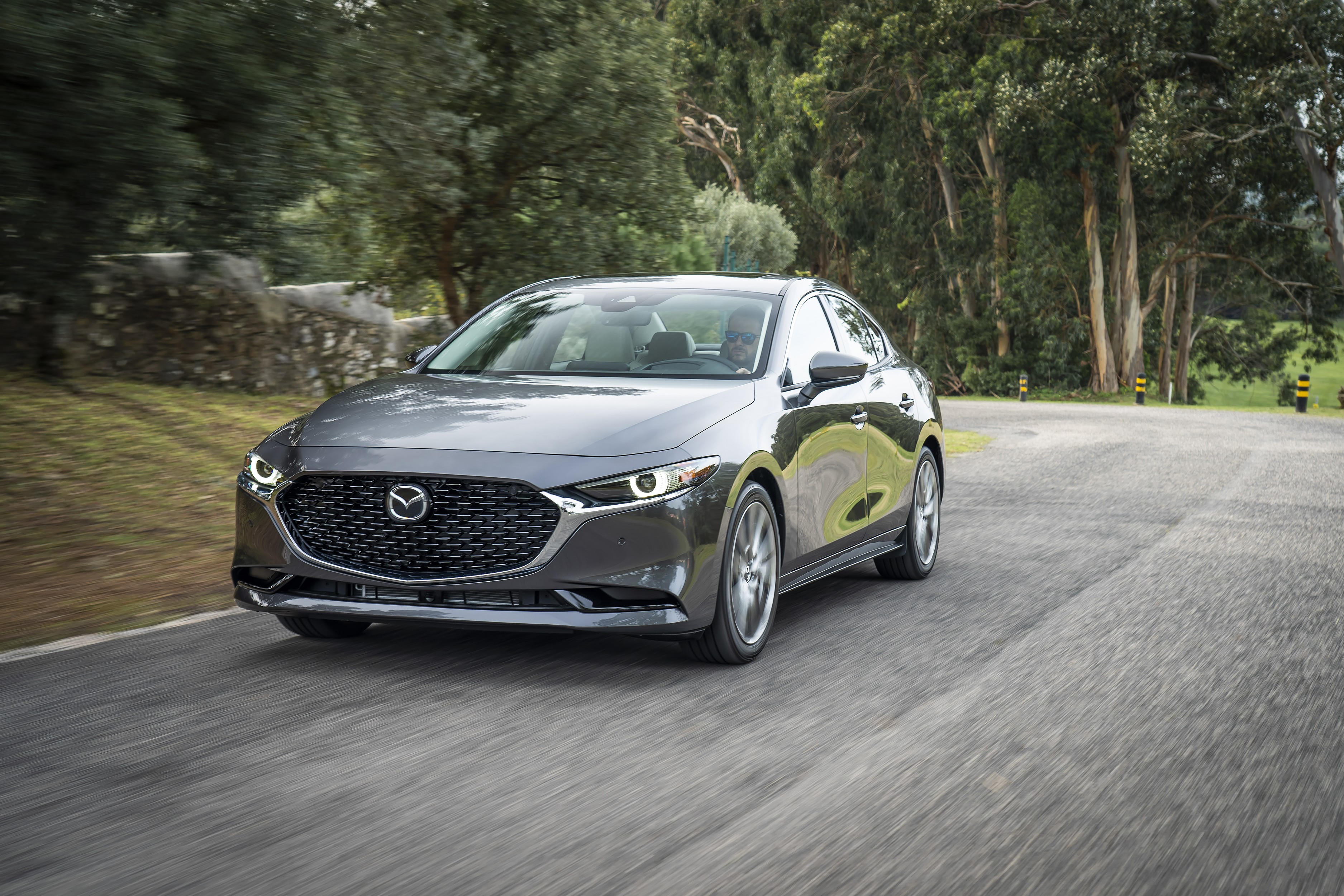

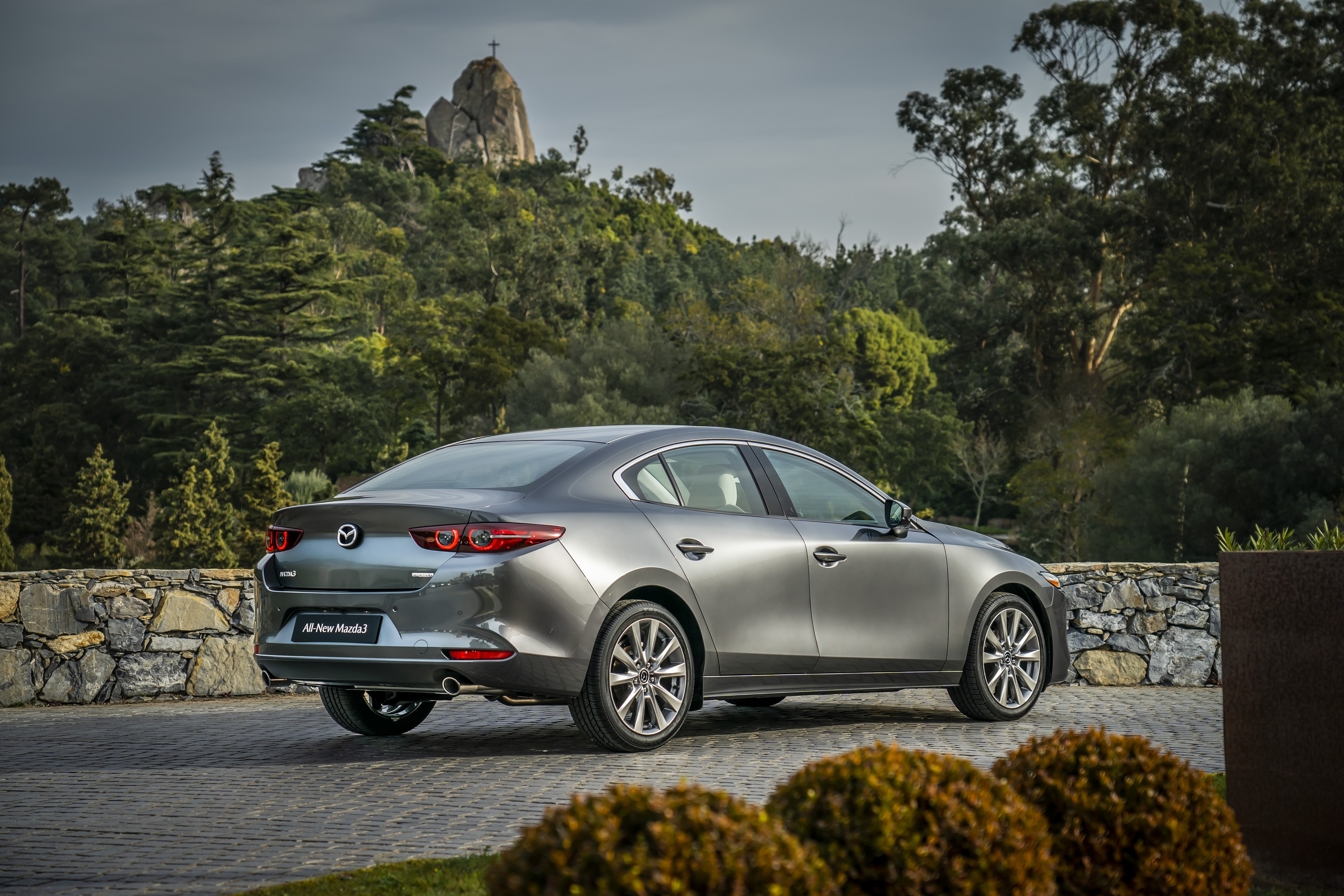

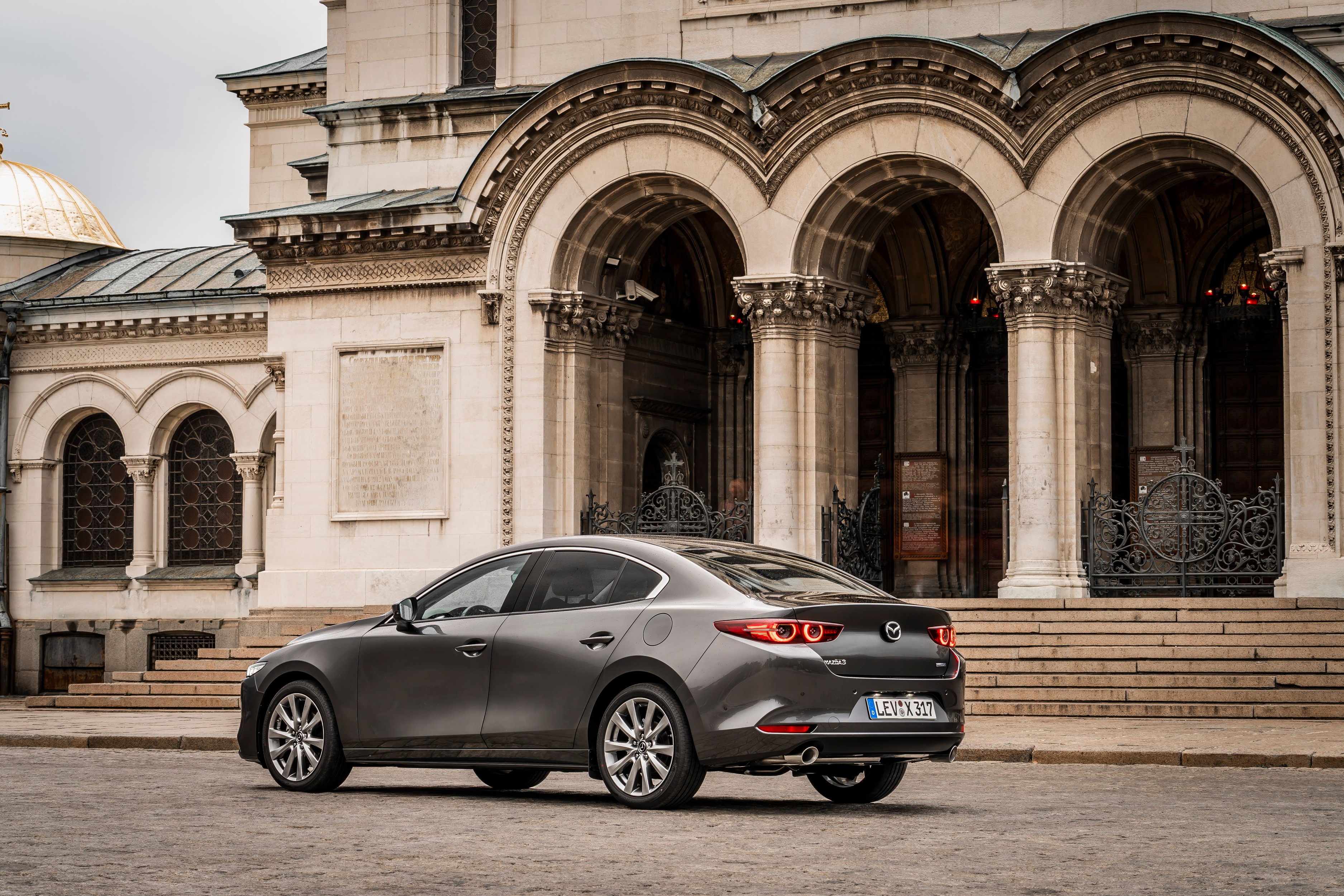

Sedan
| 2.0 SKYACTIV-G 122 | 2.0 SKYACTIV-G 122 | 2.0 SKYACTIV-G 150 | 2.0 SKYACTIV-G 150 | 2.0 SKYACTIV-X 180 | 2.0 SKYACTIV-X 180 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2021 | from to 2021 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 110/6000 | 110/6000 | 132/6000 | 132/6000 |
| Maximum torque [Nm/min-1] | 213/4000 | 213/4000 | 213/4000 | 213/4000 | 224/3000 | 224/3000 |
| Bore and stroke [mm x mm] | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 | 83.5 x 91.2 |
| Compression ratio | 13.0:1 | 13.0:1 | 13.0:1 | 13.0:1 | 16,3:1 | 16,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 202 | 200 | 211 | 210 | 216 | 216 |
| Acceleration 0–100 km/h [s] | 11.2 | 12.3 | 9,1 | 9,5 | 8.2 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 6.8-6.7 | 5.1 | 6.8-6.7 | 5.2-5.0 | 6.1 |
| Out of town [l] | 4.4-4.2 | 4.8-4.6 | 4.4-4.2 | 4.8-4.6 | 4.1-3.9 | 4.6 |
| Combined [l] | 5.0-4.9 | 5.5-5.3 | 5.0-4.9 | 5.5-5.3 | 4.5-4.3 | 5.2 |
| CO2 emissions [g/km] | 114-110 | 125-120 | 114-110 | 125-120 | 102-96 | 117 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 5.4 | 6.1-5.9 | 5.4 | 6.1-5.9 | 5.6-5.4 | 6.2 |
| CO2 emissions [g/km] | 124-123 | 139-136 | 124-123 | 139-136 | 127-122 | 142 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 24 | 24 | 24 | 24 | 24 | 24 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1350 | 1375 | 1350 | 1375 | 1395-1480 | 1426-1511 |
| Overall weight [kg] | 1869 | 1902 | 1869 | 1902 | 1927 | 1927 |
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | 600/1300 | 600/1300 | 600/1300 | 600/1300 |
| Maximum front/rear axle load [kg] | 982/887 | 1010/892 | 982/887 | 1010/892 | 1061/941 | 1083/940 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1138 | -/1138 | -/1138 | -/1138 | -/1138 | -/1138 |
| Boot length [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Boot length with rear seats folded [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Boot width between wheels/max [mm] | 1012/- | 1012/- | 1012/- | 1012/- | 1012/- | 1012/- |
| Boot height to headliner/ceiling [mm] | -/431 | -/431 | -/431 | -/431 | -/431 | -/431 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 295 | 295 | 295 | 295 | 295 | 295 |
| Brake dimensions rear | 265 | 265 | 265 | 265 | 265 | 265 |
| Steering | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 |
| Overall length [mm] | 4660 | 4660 | 4660 | 4660 | 4660 | 4660 |
| Overall width without/including mirrors [mm] | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 |
| Overall height [mm] | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Wheelbase [mm] | 2725 | 2725 | 2725 | 2725 | 2725 | 2725 |
| Front wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Rear wheel track [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 |
| Rear elbow/shoulder width [mm] | 1292/1359 | 1292/1359 | 1292/1359 | 1292/1359 | 1292/1359 | 1292/1359 |
| Legroom front knees/total [mm] | -/1075 | -/1075 | -/1075 | -/1075 | -/1075 | -/1075 |
| Legroom rear knees/total [mm] | -/891 | -/891 | -/891 | -/891 | -/891 | -/891 |
| 2.0 SKYACTIV-X 186 | 2.0 SKYACTIV-X 186 | 1.8 SKYACTIV-D 116 | 1.8 SKYACTIV-D 116 | |||
|---|---|---|---|---|---|---|
| Date of sale | from 2021 to | from 2021 to | from to 2021 | from to 2021 | ||
| Engine type | Diesel with homogeneous combustion chamber filling | Diesel with homogeneous combustion chamber filling | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1998 | 1998 | 1759 | 1759 | ||
| Maximum output / speed [kW/min-1] | 137/6000 | 137/6000 | 85/4000 | 85/4000 | ||
| Maximum torque [Nm/min-1] | 240/3000 | 240/3000 | 270/1600-2600 | 270/1600-2600 | ||
| Bore and stroke [mm x mm] | 83.5 x 91.2 | 83.5 x 91.2 | 79.0 x 89.7 | 79.0 x 89.7 | ||
| Compression ratio | 15.0:1 | 15.0:1 | 14,8:1 | 14,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 216 | 216 | 199 | 199 | ||
| Acceleration 0–100 km/h [s] | 8.1 | 8.5 | 10.3 | 12.1 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.6-5.5 | 6.4-6.2 | 4.7-4.6 | 5.3-5.1 | ||
| Out of town [l] | 4.1-4.0 | 4.9-4.6 | 3.9-3.8 | 4.4-4.2 | ||
| Combined [l] | 4.6-4.5 | 5.4-5.1 | 4.2-4.1 | 4.8-4.6 | ||
| CO2 emissions [g/km] | 104-101 | 121-117 | 108-106 | 126-120 | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | 5.1-5.0 | 5.9-5.7 | 5.0-4.8 | 5.7-5.5 | ||
| CO2 emissions [g/km] | 117-114 | 135-130 | 132-130 | 149-146 | ||
| Emission standard | Euro 6d | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | 24 | 24 | - | - | ||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.167 kWh | Lithium-Ionen-Akkumulator, 0.167 kWh | - | - | ||
| Range with fully charged battery [km] | - | - | - | - | ||
| Charging time | - | - | - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1395-1480 | 1426-1511 | 1374 | 1395 | ||
| Overall weight [kg] | 1927 | 1927 | 1894 | 1914 | ||
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | 600/1300 | 600/1300 | ||
| Maximum front/rear axle load [kg] | 1061/941 | 1083/940 | 1031/938 | 1052/937 | ||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 450 | 450 | 450 | 450 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1138 | -/1138 | -/1138 | -/1138 | ||
| Boot length [mm] | 1015 | 1015 | 1015 | 1015 | ||
| Boot length with rear seats folded [mm] | 1563 | 1563 | 1563 | 1563 | ||
| Boot width between wheels/max [mm] | 1012/- | 1012/- | 1012/- | 1012/- | ||
| Boot height to headliner/ceiling [mm] | -/431 | -/431 | -/431 | -/431 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | rigid with trailing arms and torsion bar | ||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | 295 | 295 | 295 | 295 | ||
| Brake dimensions rear | 265 | 265 | 265 | 265 | ||
| Steering | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | Rack & pinion with electric power steering EPS | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | 10.6/11.38 | ||
| Overall length [mm] | 4660 | 4660 | 4660 | 4660 | ||
| Overall width without/including mirrors [mm] | 1795/2028 | 1795/2028 | 1795/2028 | 1795/2028 | ||
| Overall height [mm] | 1440 | 1440 | 1440 | 1440 | ||
| Wheelbase [mm] | 2725 | 2725 | 2725 | 2725 | ||
| Front wheel track [mm] | 1570 | 1570 | 1570 | 1570 | ||
| Rear wheel track [mm] | 1580 | 1580 | 1580 | 1580 | ||
| Forward overhang [mm] | 915 | 915 | 915 | 915 | ||
| Rear overhang [mm] | 1020 | 1020 | 1020 | 1020 | ||
| Clearance [mm] | 135 | 135 | 135 | 135 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 965 | 965 | 965 | 965 | ||
| Headroom rear [mm] | 947 | 947 | 947 | 947 | ||
| Front elbow/shoulder width [mm] | 1387/1414 | 1387/1414 | 1387/1414 | 1387/1414 | ||
| Rear elbow/shoulder width [mm] | 1292/1359 | 1292/1359 | 1292/1359 | 1292/1359 | ||
| Legroom front knees/total [mm] | -/1075 | -/1075 | -/1075 | -/1075 | ||
| Legroom rear knees/total [mm] | -/891 | -/891 | -/891 | -/891 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
