Maserati Ghibli

Date of manufacture

2017 – 2020 (Sedan)

Platform

Maserati M156

Manufacturing locations

Turin, Italy

Designer

Centro Stile FCA

Car body style

Sedan

after upgrade (facelift) (I.)

Date of manufacture

2017 – 2020

Internal designation

M157

Engine size

Petrol

Diesel

Euro NCAP

Test year 2013

pre-facelift version (2013)

Technical data

Sedan

	Ghibli	Ghibli S	Ghibli S Q4	Ghibli Diesel
Date of sale	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24
Engine displacement [cm³]	2979	2979	2979	2987
Maximum output / speed [kW/min-1]	257/5500	316/5750	316/5750	202/4000
Maximum torque [Nm/min-1]	500/1750-4500	580/2250-4000	580/2250-4000	600/2000-2600
Bore and stroke [mm x mm]	86.5 x 84.5	86.5 x 84.5	86.5 x 84.5	83.0 x 92.0
Compression ratio	9.7:1	9.7:1	9.7:1	16.5:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection GDI supercharging by twin turbochargers Twin-Scroll variable timing of intake and exhaust valves start&stop system	direct injection GDI supercharging by twin turbochargers Twin-Scroll variable timing of intake and exhaust valves start&stop system	direct injection GDI supercharging by twin turbochargers Twin-Scroll variable timing of intake and exhaust valves start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system

Drive axle	Rear	Rear	4x4	Rear
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	eight-speed automatic gearbox	eight-speed automatic gearbox	automatically controlled all-wheel drive All Wheel Drive ATC eight-speed automatic gearbox	eight-speed automatic gearbox

Top speed [km/h]	267	286	286	250
Acceleration 0–100 km/h [s]	5.5	4.9	4.7	6.3
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	15.4-12.6	15.4-13.8	15.7-14.1	9.1-7.7
Out of town [l]	8.6-6.8	8.6-7.1	10.0-7.1	6.7-4.9
Combined [l]	11.1-8.9	11.1-9.6	11.8-9.7	7.6-5.9
CO2 emissions [g/km]	252-207	252-223	268-226	199-158

Emission standard	Euro 6 - Euro 6d-TEMP	Euro 6 - Euro 6d-TEMP	Euro 6 - Euro 6d-TEMP	Euro 6 - Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1810	1810	1870	1875
Overall weight [kg]	-	-	-	-
Maximum trailer weight unbraked/braked [kg]	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	4	4	4	4
Number of seats	5	5	5	5
Fuel tank volume [l]	80	80	80	70
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	multilink	multilink	multilink	multilink
Tyre dimensions front	235/50 R18	235/50 R18	235/50 R18	235/50 R18
Tyre dimensions rear	235/50 R18	275/45 R18	275/45 R18	235/50 R18
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	345 x 28	360 x 32	360 x 32	345 x 28
Brake dimensions rear	330 x 22	345 x 28	345 x 28	330 x 22
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	11.7/-	11.7/-	11.7/-	11.7/-

Overall length [mm]	4971	4971	4971	4971
Overall width without/including mirrors [mm]	1945/2100	1945/2100	1945/2100	1945/2100
Overall height [mm]	1461	1461	1461	1461
Wheelbase [mm]	2998	2998	2998	2998
Front wheel track [mm]	1635	1635	1635	1635
Rear wheel track [mm]	1653	1653	1653	1653
Forward overhang [mm]	935	935	935	935
Rear overhang [mm]	1038	1038	1038	1038
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

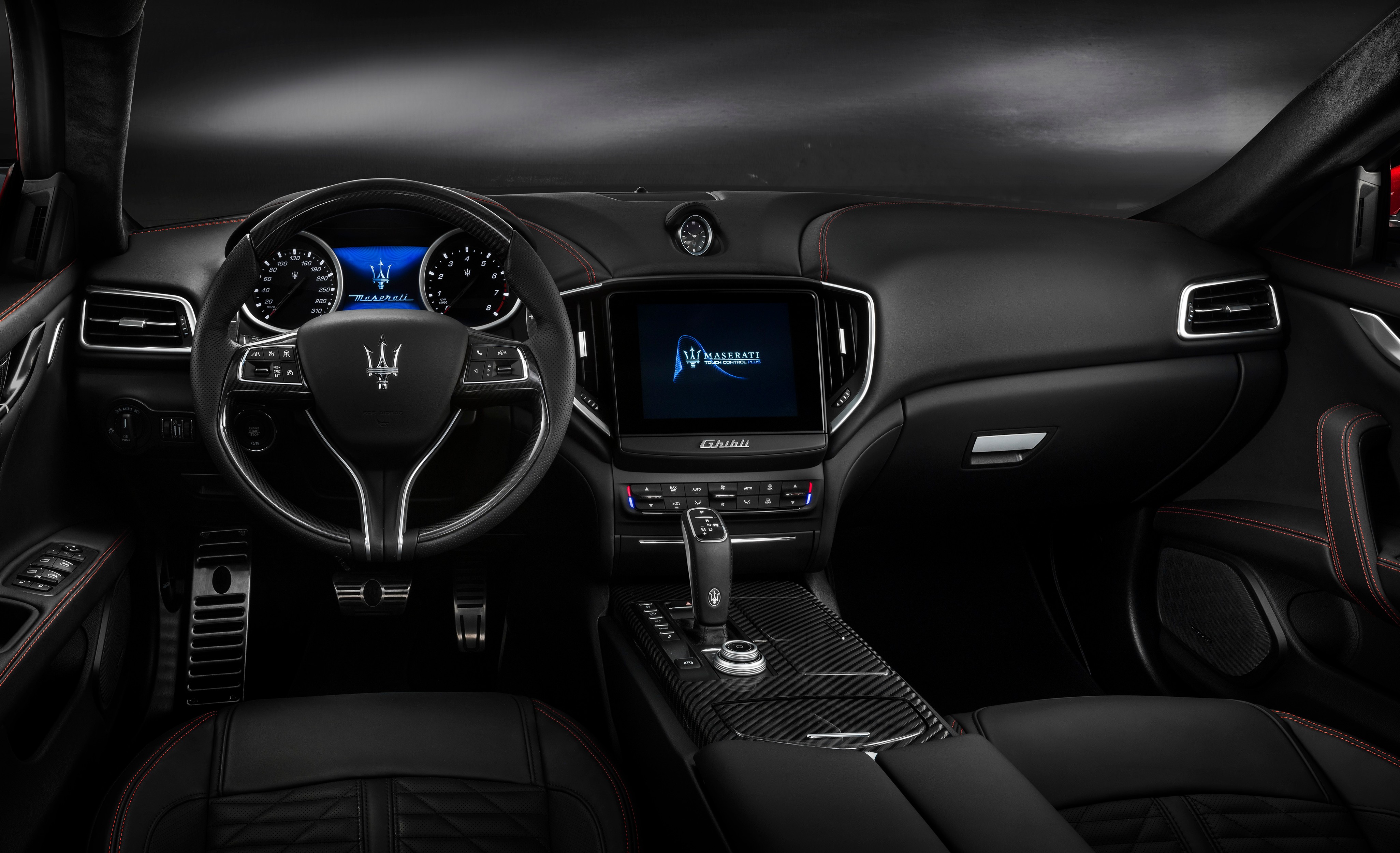

Maserati Ghibli M157 facelift 2018 interior

Maserati Ghibli M157 facelift 2018 front seats

Maserati Ghibli M157 facelift 2018 rear seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
