Lexus UX
Date of manufacture
12/2018 – to this day (Medium SUV)
Platform
TNGA GA-C
Manufacturing locations
Miyawaka, Japan
Designer
Chika Kako
Tags
Compact SUV
Japanese cars
The Lexus UX is a mid-size SUV that has been manufactured since 2018. The car is built on the TNGA GA-C platform and made in Japan. The powertrain lineup includes gasoline, hybrid and electric motors with a maximum power of 150 kW. The fastest variant is the 200 with a top speed of 190 km/h and the best 0-100 km/h acceleration of 7.5 seconds is achieved by the 300e model. The most fuel-efficient version is the 250h with a combined fuel consumption of 5.3 l/100 km and CO2 emissions of 120 g/km. The Lexus UX trunk has a capacity of 320 l and during EURONCAP safety tests it achieved a rating of 5 out of 5 according to the 2019 methodology. Hybrid and plug-in hybrid variants are also available.
Car body style
Medium SUV
Date of manufacture
12/2018 – to this dayInternal designation
ZA10Engine size
Technical data
Medium SUV
| 200 | 250h | 250h E-FOUR | 300e | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | - | - | from 2020 to | ||
| Engine type | Petrol | Petrol + Electric | Petrol + Electric | Electric | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | - | ||
| Engine displacement [cm³] | 1987 | 1987 | 1987 | - | ||
| Maximum output / speed [kW/min-1] | 126/6600 | 112/6000 combustion 80 el. 135 total | 112/6000 combustion 80 el. 5.3 el. in the rear 135 total | 150 | ||
| Maximum torque [Nm/min-1] | 205/4800 | 190/4400-5200 combustion 202 el. | 190/4400-5200 combustion 202 + 55 el. | 300 | ||
| Bore and stroke [mm x mm] | 80.5 x 97.6 | 80.5 x 97.6 | 80.5 x 97.6 | - | ||
| Compression ratio | 14.0:1 | 14.0:1 | 14.0:1 | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | 4x4 | Front | ||
| Gearbox | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 190 | 177 | 177 | 160 | ||
| Acceleration 0–100 km/h [s] | 9.2 | 8.5 | 8.7 | 7.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | 6.3 | 6.5 | 5.3 | ||
| City [l] | 6.5 | 3.9-3.7 | 4.2-4.1 | - | ||
| Out of town [l] | 4.9 | 4.4-4.3 | 4.6 | - | ||
| Combined [l] | 5.5 | 4.3-4.1 | 4.5-4.4 | - | ||
| CO2 emissions [g/km] | 126-125 | 97-94 | 103-101 | - | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | - | 5.3 | 5.8 | 17.1-16.8 | ||
| CO2 emissions [g/km] | - | 120 | 131 | - | ||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | - | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | - | 216 | 216 | 355 | ||
| Battery type and capacity | - | Nickel-metal hydride | Nickel-metal hydride | Lithium-Ionen-Akkumulator, 54.35 kWh | ||
| Range with fully charged battery [km] | - | - | - | 305-315 | ||
| Charging time | - | - | - |
| ||
| Number of modules/cells | - | -/180 | -/180 | -/288 | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1460-1540 | 1540-1620 | 1600-1680 | - | ||
| Overall weight [kg] | 1980 | 2110 | 2110 | - | ||
| Maximum trailer weight unbraked/braked [kg] | 750/750 | 750/750 | 750/750 | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||

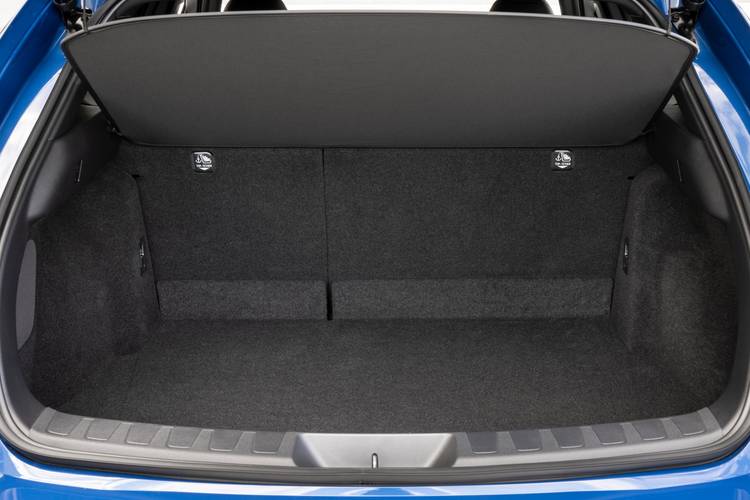

| Boot volume [l] | 334 | 320 | 283 | 367 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1245 | -/1231 | -/1194 | - | ||
| Boot length [mm] | 792 | 792 | 792 | 831 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | -/1252 | -/1252 | -/1252 | -/1336 | ||
| Boot height to headliner/ceiling [mm] | - | - | - | -/-669 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 47 | 43 | 43 | - | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.31 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | ||
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 305 x 28 | 305 x 28 | 305 x 28 | 305 x 28 | ||
| Brake dimensions rear | 281 x 12 | 281 x 12 | 281 x 12 | 317 x 18 | ||
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | ||
| Number of steering wheel turns | 2.76 | 2.76 | 2.76 | 2.76 | ||
| Turning diameter track/circumference [m] | 10.4/11.2 | 10.4/11.2 | 10.4/11.2 | 10.46/- | ||
| Overall length [mm] | 4495 | 4495 | 4495 | 4495 | ||
| Overall width without/including mirrors [mm] | 1840/2078 | 1840/2078 | 1840/2078 | 1840/2078 | ||
| Overall height [mm] | 1540 | 1540 | 1540 | 1545 | ||
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | ||
| Front wheel track [mm] | 1550 | 1550 | 1550 | 1550 | ||
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | ||
| Forward overhang [mm] | 970 | 970 | 970 | 970 | ||
| Rear overhang [mm] | 885 | 885 | 885 | 885 | ||
| Clearance [mm] | 160 | 160 | 160 | 140 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 14.0 | 14.0 | 14.0 | 14.4 | ||
| Approach angle rear [°] | 25.0 | 25.0 | 25.0 | 25.8 | ||
| Transition angle [°] | 16.0 | 16.0 | 16.0 | 22.9 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 947 | 947 | 947 | 948 | ||
| Headroom rear [mm] | 922 | 922 | 922 | 950 | ||
| Front elbow/shoulder width [mm] | 1368/1398 | 1368/1398 | 1368/1398 | 1384/1398 | ||
| Rear elbow/shoulder width [mm] | 1329/1344 | 1329/1344 | 1329/1344 | 1342/1338 | ||
| Legroom front knees/total [mm] | -/1068 | -/1068 | -/1068 | -/1065 | ||
| Legroom rear knees/total [mm] | -/842 | -/842 | -/842 | -/763 | ||
| Rating | - | - | - |   | ||
| Clean Air Index | - | - | - | 10.0/10 | ||
| Energy Efficiency Index | - | - | - | 9.7/10 | ||
| GHG index | - | - | - | 10.0/10 |
