Basic information Technical Specifications Gallery

Lexus RC

Date of manufacture

10/2014 – 2018 (Coupé)

Platform

Toyota New N

Manufacturing locations

Tahara, Japan

Designer

Pansoo Kwon

Car body style

Coupé

Date of manufacture

10/2014 – 2018

Internal designation

XC10

Engine size

Petrol

200t

RC F

Petrol + Electric

300h

Technical data

Coupé

	200t	RC F	300h
Date of sale	-	from 2015 to	-
Engine type	Ignition supercharged	Petrol	Petrol + Electric
Number of cylinders/valves	4/16	8/32	4/16
Engine displacement [cm³]	1998	4969	2494
Maximum output / speed [kW/min-1]	180/5800	351/7100	133/5800 combustion 105 el. 164 total
Maximum torque [Nm/min-1]	350/1650-4400	530/4800-5600	221/4200-5400 combustion 300 el.
Bore and stroke [mm x mm]	86,0 x 86,0	94,0 x 89,5	90,0 x 98,0
Compression ratio	10,0:1	12,3:1	13,0:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct and indirect injection system D‐4ST turbo-supercharged twin‐scroll variable valve timing VVT‐iW	direct and indirect injection system D‐4S variable timing of intake valves VVT‐ie variable exhaust valve timing VVT‐i	Full Hybrid direct and indirect injection system D‐4S variable timing of intake and exhaust valves VVT‐i electric synchronous motor with permanent magnet brake energy recuperation

Drive axle	Rear	Rear	Rear
Gearbox	8 gear automatic	8 gear automatic	1 gear automatic
Drive specifications	automatic gearbox Sport Direct Shift	automatic gearbox Sport Direct Shift	automatic gearbox with one variable ratio E‐CVT

Top speed [km/h]	230	270	190
Acceleration 0–100 km/h [s]	7.5	4.5	8.6
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	9.6-9.5	13.1	5.1-4.9
Out of town [l]	5.9-5.8	7.8	5.0-4.9
Combined [l]	7.2	10.8	5.0-4.9
CO2 emissions [g/km]	168-166	251	116-113

Emission standard	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

System voltage [V]	-	-	-
Battery type and capacity	-	-	Nickel-metal hydride
Range with fully charged battery [km]	-	-	-
Charging time	-	-	-
Number of modules/cells	-	-	-
Battery weight [kg]	-	-	-
Charger	-	-	-

Standby weight [kg]	1675-1725	1765-1840	1736-1775
Overall weight [kg]	2170	2250	2170
Maximum trailer weight unbraked/braked [kg]	-	-	-
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	374	366	340
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	2	2	2
Number of seats	4	4	4
Fuel tank volume [l]	66	66	66
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	0.285	0.33	0.285
Front suspension	double wishbone	double wishbone	double wishbone
Rear suspension	multilink	multilink	multilink
Tyre dimensions front	225/45 R18	255/35 R19	225/45 R18
Tyre dimensions rear	225/45 R18	275/35 R19	225/45 R18
Wheel size front	-	-	-
Wheel size rear	-	-	-
Brake dimensions front	334 x 30	380 x 34	334 x 30
Brake dimensions rear	310 x 18	345 x 28	310 x 18
Steering	-	-	-
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10.4/11.2	10.8/11.4	10.4/11.2

Overall length [mm]	4695	4705	4695
Overall width without/including mirrors [mm]	1840/2048	1845/2050	1840/2048
Overall height [mm]	1395	1390	1395
Wheelbase [mm]	2730	2730	2730
Front wheel track [mm]	1850	1555	1850
Rear wheel track [mm]	1600	1560	1600
Forward overhang [mm]	930	930	930
Rear overhang [mm]	1035	1045	1035
Clearance [mm]	135	130	135
Wading depth [mm]	-	-	-
Approach angle front [°]	12.4	-	12.4
Approach angle rear [°]	15.6	-	15.6
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	960	960	960
Headroom rear [mm]	888	888	888
Front elbow/shoulder width [mm]	1370/1288	1370/1288	1370/1288
Rear elbow/shoulder width [mm]	1215/1171	1215/1171	1215/1171
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

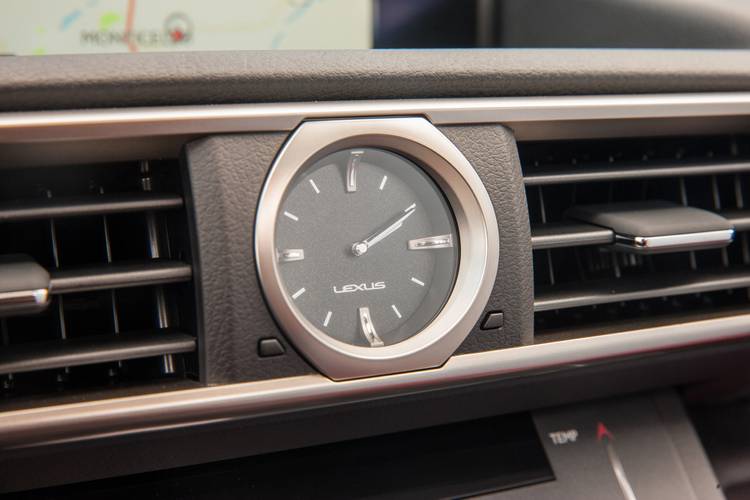

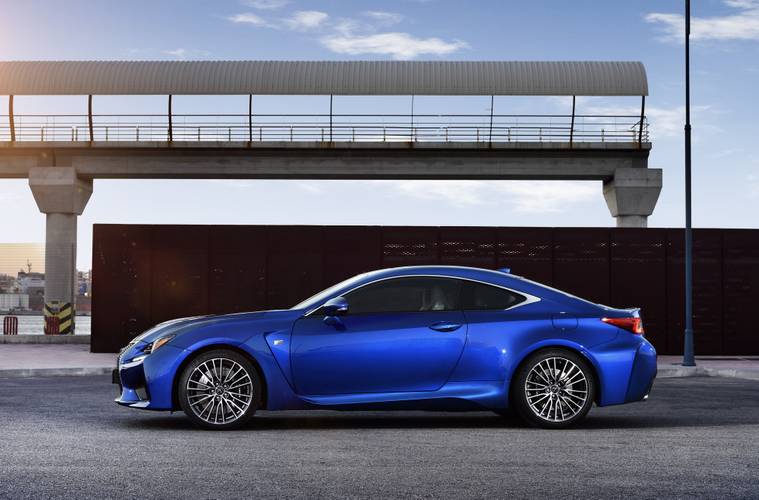

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
