Lexus IS

Date of manufacture

2008 – 2010 (Sedan)

Platform

Toyota N

Manufacturing locations

Tahara, Japan

Miyawaka, Japan

Designer

Kengo Matsumoto

Takahiro Kanno

Car body style

Sedan

after upgrade (facelift)

Date of manufacture

2008 – 2010

Internal designation

XE20

Engine size

Petrol

IS 250

IS F

Diesel

IS 220d

Euro NCAP

Pre-2009 Rating

pre-facelift version (2006)

Adults

Children

Pedestrians

Technical data

Sedan

	IS 250	IS 250	IS F	IS 220d
Date of sale	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	6/24	6/24	8/32	4/16
Engine displacement [cm³]	2500	2500	4969	2231
Maximum output / speed [kW/min-1]	153/6400	153/6400	311/6600	130/3600
Maximum torque [Nm/min-1]	252/4800	252/4800	505/5200	400/2000-2600
Bore and stroke [mm x mm]	83,0 x 77,0	83,0 x 77,0	-	86,0 x 96,0
Compression ratio	12,0:1	12,0:1	-	15,7:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection D‐4 variable timing of intake and exhaust valves VVT‐i	direct injection D‐4 variable timing of intake and exhaust valves VVT‐i	direct and indirect injection system D‐4S variable timing of intake valves VVT‐ie variable exhaust valve timing VVT‐i	direct injection Common Rail turbo-supercharged oxidation catalytic converter DPNR

Drive axle	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	6 gear automatic	8 gear automatic	6 gear manual
Drive specifications	-	automatic gearbox	automatic gearbox Sport Direct Shift	-

Top speed [km/h]	230	225	270	220
Acceleration 0–100 km/h [s]	8.4	8.4	4.8	8.9
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	13.5	12.5-12.7	16.8	7.1
Out of town [l]	7.7	6.9-7.0	8.3	4.8
Combined [l]	9.8	8.9-9.1	11.4	5.6
CO2 emissions [g/km]	231	209-214	270	148

Emission standard	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1570-1635	1530-1625	1700	1540-1655
Overall weight [kg]	2055	2045	2120	2075
Maximum trailer weight unbraked/braked [kg]	560/1500	560/1500	-	560/1500
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	398	398	378	398
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	4	4	4	4
Number of seats	5	5	5	5
Fuel tank volume [l]	65	65	64	65
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.27	0.27	0.27	0.27
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	205/55 R16	225/40 R19	205/55 R16
Tyre dimensions rear	205/55 R16	205/55 R16	255/35 R19	205/55 R16
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	-	-	360 x 30	-
Brake dimensions rear	-	-	345 x 28	-
Steering	-	-	-	-
Number of steering wheel turns	2.91	2.91	-	2.91
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4575	4575	4660	4575
Overall width without/including mirrors [mm]	1800/-	1800/-	1815/-	1800/-
Overall height [mm]	1425	1425	1415	1425
Wheelbase [mm]	2730	2730	2730	2730
Front wheel track [mm]	1535	1535	1560	1535
Rear wheel track [mm]	1545	1545	1520	1545
Forward overhang [mm]	820	820	885	820
Rear overhang [mm]	1035	1035	1045	1035
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

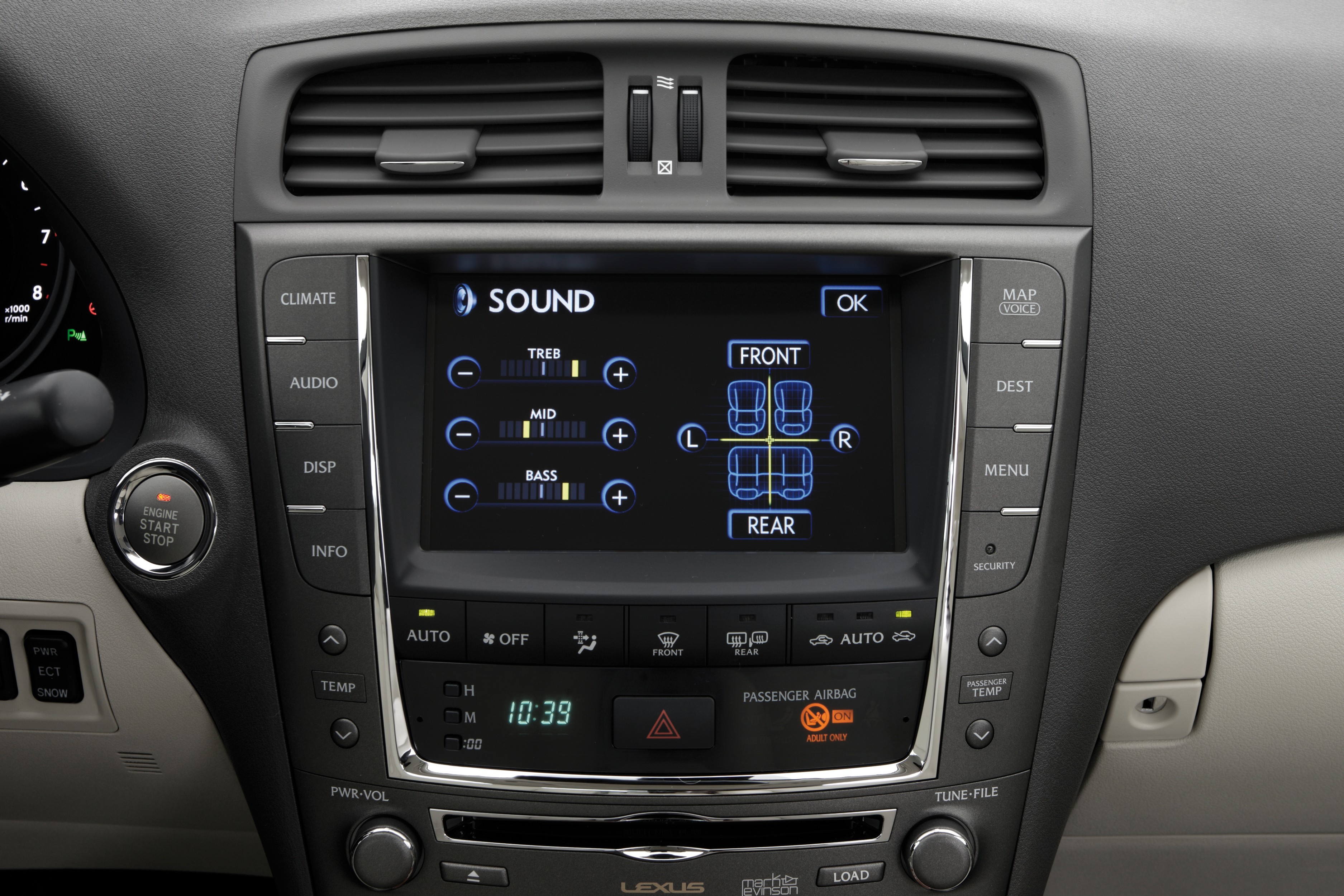

Lexus IS XE20 facelift 2008 infotainment
