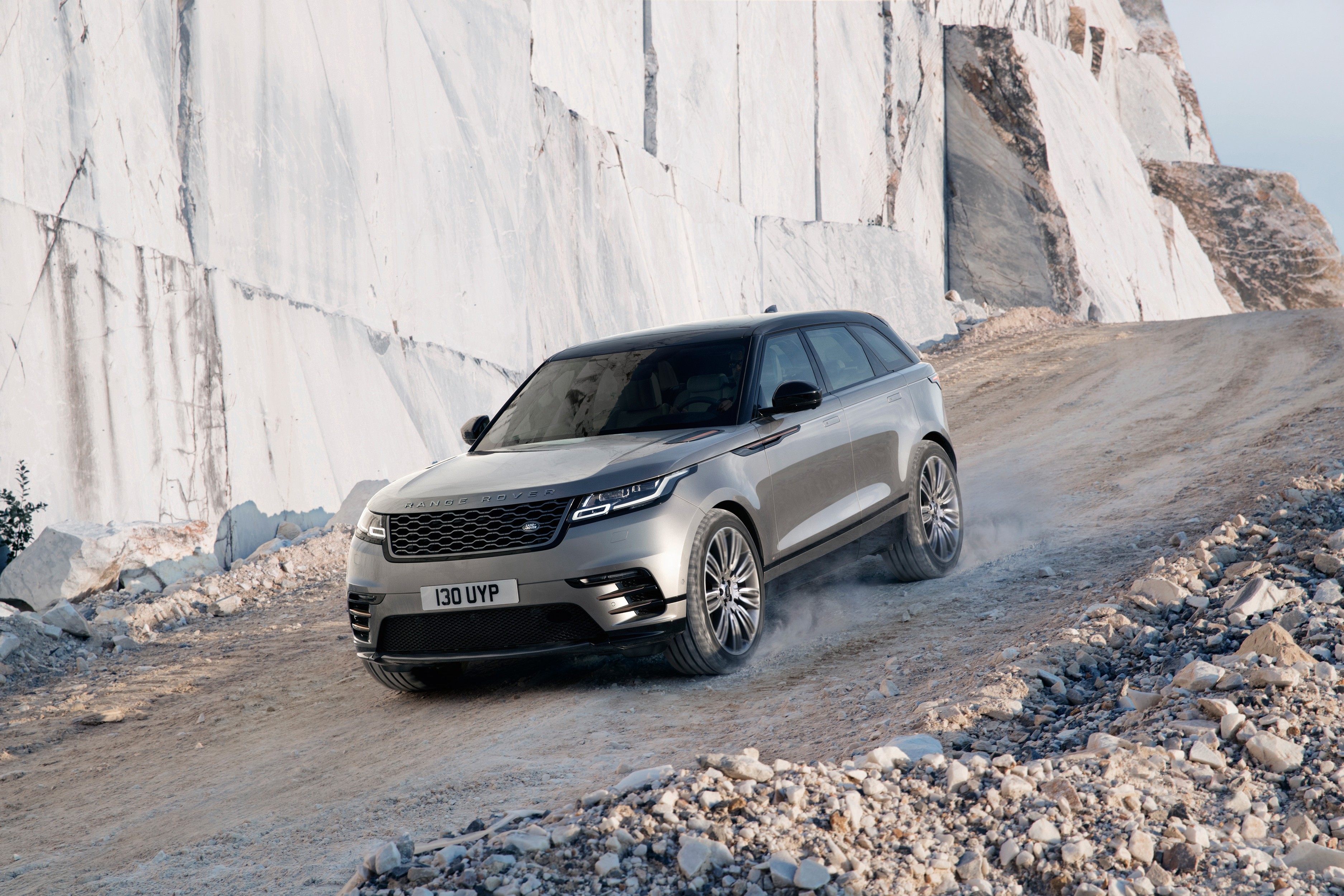

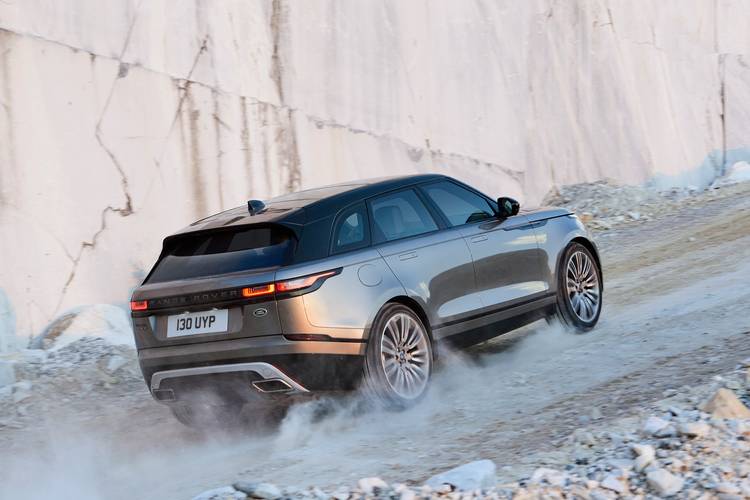

Land Rover Range Rover Velar
Date of manufacture
2017 – to this day (Medium SUV)
Platform
JLR D7a
Manufacturing locations
Solihull, United Kingdom
Designer
Gerry McGovern
Tags
Compact SUV
British cars
The Land Rover Range Rover Velar is a mid-size SUV that has been manufactured in the UK since 2017. It is built on the JLR D7a platform and offers petrol, diesel and hybrid engines. The most powerful version, the 5.0 V8 Supercharged 550 SVAutobiography, has a top speed of 274 km/h and 405 kW of power. The plug-in hybrid model P400e PHEV AWD has the lowest combined fuel consumption of 2.2 l/100 km and CO2 emissions of 49 g/km. The luggage compartment has a capacity of 673 l and the model was awarded a 5 out of 5 rating by EURONCAP in 2017.
Car body style
Medium SUV
Date of manufacture
2017 – to this dayInternal designation
L560
Technical data
Medium SUV
| P250 AWD | P300 AWD | P340 AWD | P340 MHEV AWB | P380 AWD | P400 MHEV AWB | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | from to 2020 | from 2020 to | from to 2020 | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 1997 | 2995 | 2996 | 2995 | 2996 |
| Maximum output / speed [kW/min-1] | 184/5500 | 221/5500 | 250/6500 | 250/5500-6500 | 280/6500 | 294/5500-6500 |
| Maximum torque [Nm/min-1] | 365/1300-4500 | 400/1500-4500 | 450/4500 | 480/1500-4500 | 450/4500 | 550/2000-5000 |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 83.0 x 92.3 | 84.5 x 89.0 | 83.0 x 92.29 | 84.5 x 89.0 | 83.0 x 92.29 |
| Compression ratio | 10.5:1 | 9.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 217 | 234 | 233 | 240 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.1-7.5 | 6.2 | 6.4 | 6.3 | 5.7 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 5.0-5.2 | 4.3 | 4.0 | 4.1 | 3.6 | 3.3 |
| City [l] | 9.5-9.4 | 10.0-10.1 | - | - | - | - |
| Out of town [l] | 6.7-6.5 | 9.1-6.9 | - | - | - | - |
| Combined [l] | 8.3-7.7 | 8.3-8.0 | 9.4 | - | 9.4 | 8.9 |
| CO2 emissions [g/km] | 189-173 | 189-182 | 214 | - | 214 | 202 |
| Low speed [l] | 13.2-12.2 | 13.7-12.9 | - | - | - | - |
| Medium speed [l] | 9.8-8.9 | 10.3-9.4 | - | - | - | - |
| High speed [l] | 8.8-7.8 | 8.9-8.1 | - | - | - | - |
| Extra high speed [l] | 10.5-9.4 | 10.9-10.5 | - | - | - | - |
| Combined speed [l] | 10.2-9.2 | 10.5-9.5 | - | - | - | 10.5-9.8 |
| CO2 emissions [g/km] | 231-208 | 238-215 | - | - | - | 238-221 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 48 | - | 48 |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, - kWh | - | Lithium-Ionen-Akkumulator, - kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1874-1950 | 1884 | 1954 | - | 1654 | 2085 |
| Overall weight [kg] | 2500-2550 | 2500 | - | - | - | 2670 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2500 | 750/2500 | - | 750/2500 | 750/2500 |
| Maximum front/rear axle load [kg] | 1200/1430 | 1200/1430 | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100-175 | 100-175 | 100-175 | 175 | 100-175 | 175 |
| Maximum load on roof/carrier [kg] | 79/- | 79/- | 79/- | 79/- | 79/- | 79/- |
| Boot volume [l] | 673 | 673 | 673 | 673 | 673 | 673 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1731 | -/1731 | -/1731 | -/1731 | -/1731 | -/1731 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Boot length with rear seats folded [mm] | 1795 | 1795 | 1795 | 1795 | 1795 | 1795 |
| Boot width between wheels/max [mm] | 1050/1247 | 1050/1247 | 1050/1247 | 1050/1247 | 1050/1247 | 1050/1247 |
| Boot height to headliner/ceiling [mm] | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 82 | 82 | 82 | 82 | 82 | 82 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.35 | 0.36 | 0.33 | 0.36 | 0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 325-350 | 350 | 350 | 370 | 350 | 370 |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 325 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.52 | 2.52 | 2.52 | 2.52 | 2.52 | 2.52 |
| Turning diameter track/circumference [m] | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 |
| Overall length [mm] | 4803 | 4803 | 4803 | 4803 | 4803 | 4803 |
| Overall width without/including mirrors [mm] | 2041/2145 | 2041/2145 | 2041/2145 | 2041/2145 | 2041/2145 | 2041/2145 |
| Overall height [mm] | 1685 | 1685 | 1685 | 1685 | 1685 | 1685 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Rear wheel track [mm] | 1657 | 1657 | 1657 | 1657 | 1657 | 1657 |
| Forward overhang [mm] | 834 | 834 | 834 | 834 | 834 | 834 |
| Rear overhang [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Clearance [mm] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] |
| Wading depth [mm] | 530 [580 subject to a surcharge] | 600 [650 subject to a surcharge] | 600 [650 subject to a surcharge] | 530 [580 subject to a surcharge] | 600 [650 subject to a surcharge] | 530 [580 subject to a surcharge] |
| Approach angle front [°] | 25.0 [27.5 subject to a surcharge] | 25.93 [28.89 subject to a surcharge] | 25.93 [28.89 subject to a surcharge] | 25.0 [27.5 subject to a surcharge] | 25.93 [28.89 subject to a surcharge] | 25.0 [27.5 subject to a surcharge] |
| Approach angle rear [°] | 27.0 [29.5 subject to a surcharge] | 27.3 [29.5 subject to a surcharge] | 27.3 [29.5 subject to a surcharge] | 27.0 [29.5 subject to a surcharge] | 27.3 [29.5 subject to a surcharge] | 27.0 [29.5 subject to a surcharge] |
| Transition angle [°] | 22.0 [23.5 subject to a surcharge] | 21 [23.5 subject to a surcharge] | 21 [23.5 subject to a surcharge] | 22.0 [23.5 subject to a surcharge] | 21 [23.5 subject to a surcharge] | 22.0 [23.5 subject to a surcharge] |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1023 | -/1023 | -/1023 | -/1023 | -/1023 | -/1023 |
| Legroom rear knees/total [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Third row of seats, headroom [mm] | - | - | - | - | - | - |
| Third row elbow/shoulder width [mm] | - | - | -/1086 | - | - | - |
| 5.0 V8 Supercharged 550 SVAutobiography | P400e PHEV AWD | D180 AWD | D200 AWD | D200 MHEV AWD | D240 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to 2020 | from 2020 to | from to 2020 | from 2020 to | from 2020 to | from to 2020 |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 5000 | 1997 | 1999 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 405/6000-6500 | 221/5500 combustion 105 el. 297/1500-4000 total | 132/2400 | 150/4250 | 150/4250 | 177/4000 |
| Maximum torque [Nm/min-1] | 680/2500-5500 | 400 combustion 275 el. 640/1500-3500 total | 430/1750-2500 | 430/1750-2500 | 430/1750-2500 | 500/1500 |
| Bore and stroke [mm x mm] | 92.5x 93.0 | 83.0 x 92.29 | 83.0 x 92.4 | 83.0 x 92.31 | 83.0 x 92.31 | 83.0 x 92.4 |
| Compression ratio | 9.5:1 | 9.5:1 | 15.5:1 | 16.5:1 | 16.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 274 | 209 [140 el.] | 201 | 210 | 210 | 217 |
| Acceleration 0–100 km/h [s] | 4.5 | 5.4 | 8.9 | 8.2 | 8.2 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 2.6 | - | 6.9 | 6.0 | 6.0 | 5.3 |
| City [l] | 16.7 | - | 6.9-6.7 | - | - | 7.8-7.6 |
| Out of town [l] | 9.0 | - | 5.4-5.2 | - | - | 5.6-5.5 |
| Combined [l] | 11.8 | 2.3 [17.2-17.1 kWh] | 5.9-5.7 | - | 5.3 | 6.4-6.2 |
| CO2 emissions [g/km] | 270 | 53-52 | 157-151 | - | 139 | 169-165 |
| Low speed [l] | 18.4 | - | 9.2-8.7 | - | - | 10.0-9.4 |
| Medium speed [l] | 12.1 | - | 7.3-6.5 | - | - | 7.7-6.8 |
| High speed [l] | 10.5 | - | 6.5-5.7 | - | - | 6.7-5.9 |
| Extra high speed [l] | 11.7 | - | 7.8-6.9 | - | - | 7.8-6.8 |
| Combined speed [l] | 12.3 | 2.6-2.2 | 7.5-6.7 | - | 7.0-6.3 | 7.7-6.9 |
| CO2 emissions [g/km] | 279 | 58-49 | 196-177 | - | 183-165 | 203-181 |
| Emission standard | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 48 | - |
| Battery type and capacity | - | Lithium-ion, 17.1 kWh (13.7 net) | - | - | Lithium-Ionen-Akkumulator, - kWh | - |
| Range with fully charged battery [km] | - | 53 | - | - | - | - |
| Charging time | - |
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2160 | 2233 | 1899 | 1946 | 2003 | 1911 |
| Overall weight [kg] | 2610 | 2720 | 2490 | - | 2590 | 2510 |
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2000 | 750/2400 | 750/2400 | 750/2400 | 750/2500 |
| Maximum front/rear axle load [kg] | - | - | 1190/1420 | - | - | 1210/1430 |
| Maximum vertical load on the tow bar [kg] | 100-175 | 175 | 100-175 | 175 | 175 | 100-175 |
| Maximum load on roof/carrier [kg] | 79/- | 79/- | 79/- | 79/- | 79/- | 79/- |
| Boot volume [l] | 673 | 673 | 673 | 673 | 673 | 673 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1731 | -/1731 | -/1731 | -/1731 | -/1731 | -/1731 |
| Boot length [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Boot length with rear seats folded [mm] | 1795 | 1795 | 1795 | 1795 | 1795 | 1795 |
| Boot width between wheels/max [mm] | 1050/1247 | 1050/1247 | 1050/1247 | 1050/1247 | 1050/1247 | 1050/1247 |
| Boot height to headliner/ceiling [mm] | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 82 | 69 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | 17 | 17 | 17 | 17 |
| Air resistance [Cd] | 0.35 | - | 0.32 | 0.32 | 0.32 | 0.34 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 395 | 370 | 325 | 350 | 350 | 325 |
| Brake dimensions rear | 396 | 325 | 325 | 325 | 325 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.52 | 2.52 | 2.52 | 2.52 | 2.52 | 2.52 |
| Turning diameter track/circumference [m] | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 |
| Overall length [mm] | 4806 | 4803 | 4803 | 4803 | 4803 | 4803 |
| Overall width without/including mirrors [mm] | 2041/2145 | 2041/2145 | 2041/2145 | 2041/2145 | 2041/2145 | 2041/2145 |
| Overall height [mm] | 1676 | 1685 | 1685 | 1685 | 1685 | 1685 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1644 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Rear wheel track [mm] | 1663 | 1657 | 1657 | 1657 | 1657 | 1657 |
| Forward overhang [mm] | 834 | 834 | 834 | 834 | 834 | 834 |
| Rear overhang [mm] | 1094 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Clearance [mm] | 205 [251 subject to a surcharge] | 214 or 213 | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] |
| Wading depth [mm] | 600 [650 subject to a surcharge] | 530 [580 subject to a surcharge] | 600 [650 subject to a surcharge] | 530 [580 subject to a surcharge] | 530 [580 subject to a surcharge] | 600 [650 subject to a surcharge] |
| Approach angle front [°] | 22.7 or 24.0 | 25.0 [27.5 subject to a surcharge] | 25.93 [28.89 subject to a surcharge] | 25.0 [27.5 subject to a surcharge] | 25.0 [27.5 subject to a surcharge] | 25.93 [28.89 subject to a surcharge] |
| Approach angle rear [°] | 24.7 or 27.5 | 27.0 [29.5 subject to a surcharge] | 27.3 [29.5 subject to a surcharge] | 27.0 [29.5 subject to a surcharge] | 27.0 [29.5 subject to a surcharge] | 27.3 [29.5 subject to a surcharge] |
| Transition angle [°] | 20.2 or 21.8 | 22.0 [23.5 subject to a surcharge] | 21 [23.5 subject to a surcharge] | 22.0 [23.5 subject to a surcharge] | 22.0 [23.5 subject to a surcharge] | 21 [23.5 subject to a surcharge] |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1023 | -/1023 | -/1023 | -/1023 | -/1023 | -/1023 |
| Legroom rear knees/total [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| D275 AWD | D300 AWD | D300 AWD | D300 MHEV AWD | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from 2020 to | from 2020 to | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 2993 | 2993 | 2996 | 2996 | ||
| Maximum output / speed [kW/min-1] | 202/3500-4250 | 221/4000 | 221/4000 | 221/4000 | ||
| Maximum torque [Nm/min-1] | 625/1500-2500 | 700/1500-1750 | 650/1500-2500 | 650/1500-2500 | ||
| Bore and stroke [mm x mm] | 83.0 x 92.4 | 83.0 x 92.4 | 83.0 x 92.31 | 83.0 x 92.31 | ||
| Compression ratio | 16.1:1 | 16.1:1 | 15.5:1 | 15.5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 218 | 241 | 230 | 230 | ||
| Acceleration 0–100 km/h [s] | 7.0 | 6.7 | 6.5 | 6.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | 5.7 | 5.1 | 4.5 | 4.5 | ||
| City [l] | 7.8-7.6 | 7.8-7.6 | - | - | ||
| Out of town [l] | 5.8-5.7 | 5.8-5.7 | - | - | ||
| Combined [l] | 6.6-6.4 | 6.6-6.4 | - | 6.9 | ||
| CO2 emissions [g/km] | 175-169 | 175-169 | - | 183 | ||
| Low speed [l] | 10.5-9.5 | 10.5-9.5 | - | - | ||
| Medium speed [l] | 7.8-7.1 | 7.8-7.1 | - | - | ||
| High speed [l] | 6.9-6.2 | 6.9-6.2 | - | - | ||
| Extra high speed [l] | 8.5-8.0 | 8.5-8.0 | - | - | ||
| Combined speed [l] | 8.1-7.4 | 8.1-7.4 | - | 8.0-7.4 | ||
| CO2 emissions [g/km] | 214-195 | 214-195 | - | 209-194 | ||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | - | - | - | 48 | ||
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, - kWh | ||
| Range with fully charged battery [km] | - | - | - | - | ||
| Charging time | - | - | - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 2029 | 2029 | 2068 | 2124 | ||
| Overall weight [kg] | 2610 | 2610 | 2710 | - | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | 750/2500 | ||
| Maximum front/rear axle load [kg] | 1270/140 | 1270/1470 | - | - | ||
| Maximum vertical load on the tow bar [kg] | 100-175 | 100-175 | 175 | 175 | ||
| Maximum load on roof/carrier [kg] | 79/- | 79/- | 79/- | 79/- | ||
| Boot volume [l] | 673 | 673 | 673 | 673 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1731 | -/1731 | -/1731 | -/1731 | ||
| Boot length [mm] | 1035 | 1035 | 1035 | 1035 | ||
| Boot length with rear seats folded [mm] | 1795 | 1795 | 1795 | 1795 | ||
| Boot width between wheels/max [mm] | 1050/1247 | 1050/1247 | 1050/1247 | 1050/1247 | ||
| Boot height to headliner/ceiling [mm] | -/1045 | -/1045 | -/1045 | -/1045 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | ||
| AdBlue tank volume [l] | 17 | 17 | 17 | 17 | ||
| Air resistance [Cd] | 0.34 | 0.35 | 0.33 | 0.33 | ||
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | - | - | - | - | ||
| Tyre dimensions rear | - | - | - | - | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 350 | 350 | 370 | 370 | ||
| Brake dimensions rear | 325 | 325 | 325 | 325 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | 2.52 | 2.52 | 2.52 | 2.52 | ||
| Turning diameter track/circumference [m] | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | ||
| Overall length [mm] | 4803 | 4803 | 4803 | 4803 | ||
| Overall width without/including mirrors [mm] | 2041/2145 | 2041/2145 | 2041/2145 | 2041/2145 | ||
| Overall height [mm] | 1685 | 1685 | 1685 | 1685 | ||
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | ||
| Front wheel track [mm] | 1640 | 1640 | 1640 | 1640 | ||
| Rear wheel track [mm] | 1657 | 1657 | 1657 | 1657 | ||
| Forward overhang [mm] | 834 | 834 | 834 | 834 | ||
| Rear overhang [mm] | 1089 | 1089 | 1089 | 1089 | ||
| Clearance [mm] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | 213 [251 subject to a surcharge] | ||
| Wading depth [mm] | 600 [650 subject to a surcharge] | 600 [650 subject to a surcharge] | 530 [580 subject to a surcharge] | 530 [580 subject to a surcharge] | ||
| Approach angle front [°] | 25.93 [28.89 subject to a surcharge] | 25.93 [28.89 subject to a surcharge] | 25.0 [27.5 subject to a surcharge] | 25.0 [27.5 subject to a surcharge] | ||
| Approach angle rear [°] | 27.3 [29.5 subject to a surcharge] | 27.3 [29.5 subject to a surcharge] | 27.0 [29.5 subject to a surcharge] | 27.0 [29.5 subject to a surcharge] | ||
| Transition angle [°] | 21 [23.5 subject to a surcharge] | 21 [23.5 subject to a surcharge] | 22.0 [23.5 subject to a surcharge] | 22.0 [23.5 subject to a surcharge] | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 970 | 970 | 970 | 970 | ||
| Headroom rear [mm] | 966 | 966 | 966 | 966 | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | -/1023 | -/1023 | -/1023 | -/1023 | ||
| Legroom rear knees/total [mm] | -/944 | -/944 | -/944 | -/944 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
