Land Rover Range Rover Evoque
Date of manufacture
2018 – to this day (Small SUV)
Platform
JLR D8
Manufacturing locations
Halewood, United Kingdom
Changshu, People's Republic of China
Designer
Gerry McGovern
Phil Simmons
Tags
Small SUV
British cars
The Land Rover Range Rover Evoque is a small SUV that has been manufactured in the UK and China since 2018. The vehicle is built on the JLR D8 platform and offers petrol, diesel and hybrid powertrains. The most powerful model, the P300e AWD, has 227 kW, the highest speed of 225 km/h is achieved by the D240 AWD and the most economical version, the P300e AWD, consumes 2 l/100 km with CO2 emissions of 44 g/km. The luggage compartment of the vehicle has a volume of 591 l. The Land Rover Range Rover Evoque has earned a 5 out of 5 rating in the EURONCAP safety tests according to the 2019 methodology.
Car body style
Technical data
Small SUV
| P160 | P200 AWD | P250 AWD | P300 AWD | P300e AWD | D150 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | - | - | - | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1497 | 1997 | 1997 | 1997 | 1497 | 1999 |
| Maximum output / speed [kW/min-1] | 118/5500 | 147/5500 | 184/5500 | 221/5500 | 147 combustion 80 el. 227/5500 total | 110/2400 |
| Maximum torque [Nm/min-1] | 260/1500-2500 | 320/1200-4000 | 365/1300-4500 | 400/1500-4500 | 540/2000-2500 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.35 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 9.5:1 | 10.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 8 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 199 | 216 | 221-230 | 221-242 | 213 [140 el.] | 201 |
| Acceleration 0–100 km/h [s] | 10.3 | 8.5 | 7.5 | 6.6 | 6.4 | 10.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.1 | 6.2 | 5.2 | 4.6 | 4.1 | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | 6.8 | 7.8-7.6 | 8.0-7.7 | 8.2-7.7 | 2.1 | 5.4 |
| CO2 emissions [g/km] | 154 | 178-172 | 182-175 | 188-174 | 48 | 143 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 8.3-8.0 | 9.6-8.9 | 9.6-8.9 | 9.6-9.0 | 2.0 [15.9 kWh] | - |
| CO2 emissions [g/km] | 188-180 | 217-201 | 217-201 | 217-203 | 44 | - |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | Lithium-ion, 15 kWh (12.17 net) | - |
| Range with fully charged battery [km] | - | - | - | - | 63 | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | 7/84 | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1792 | 1845 | 1893 | 1925 | 2157 | 1787 |
| Overall weight [kg] | 2300 | 2430 | 2430 | 2450 | 2660 | 2370 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/1800 | 750/1800 | 750/1800 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] |
| Boot length [mm] | 798 | 798 | 798 | 798 | 798 | 798 |
| Boot length with rear seats folded [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Boot width between wheels/max [mm] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 |
| Boot height to headliner/ceiling [mm] | -/754 | -/754 | -/754 | -/754 | -/754 | -/754 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1059/949 | 1059/949 | 1059/949 | 1059/949 | 1059/949 | 1059/949 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 67 | 67 | 67 | 56.5 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | 17.3 |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.34 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 325 or 349 | 325 or 349 | 349 | 349 | 349 | 325 or 349 |
| Brake dimensions rear | 300 | 300 | 325 | 325 | 325 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4371 | 4371 | 4371 | 4371 | 4371 | 4371 |
| Overall width without/including mirrors [mm] | 1996/2100 | 1996/2100 | 1996/2100 | 1996/2100 | 1996/2100 | 1996/2100 |
| Overall height [mm] | 1649 | 1649 | 1649 | 1649 | 1649 | 1649 |
| Wheelbase [mm] | 2681 | 2681 | 2681 | 2681 | 2681 | 2681 |
| Front wheel track [mm] | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 |
| Rear wheel track [mm] | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 810 | 810 | 810 | 810 | 810 | 810 |
| Clearance [mm] | 212 | 212 | 212 | 212 | 212 | 212 |
| Wading depth [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Approach angle front [°] | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 |
| Approach angle rear [°] | 30.6 | 30.6 | 30.6 | 30.6 | 30.6 | 30.6 |
| Transition angle [°] | 20.7 | 20.7 | 20.7 | 20.7 | 19.5 | 20.7 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1016 | -/1016 | -/1016 | -/1016 | -/1016 | -/1016 |
| Legroom rear knees/total [mm] | -/864 | -/864 | -/864 | -/864 | -/864 | -/864 |
| D150 AWD | D165 | D165 AWD | D180 AWD | D200 AWD | D240 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from 2020 to | from 2020 to | from to 2020 | from 2020 to | from to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 110/2400 | 120/5500 | 120/5500 | 132/2400 | 150/4250 | 177/2400 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1500-2500 | 380/1500-2500 | 430/1750-2500 | 430/1600-4000 | 500/1500-2500 |
| Bore and stroke [mm x mm] | 83.0 x 92.35 | 83.0 x 92.31 | 83.0 x 92.31 | 83.0 x 92.35 | 83.0 x 92.31 | 83.0 x 92.35 |
| Compression ratio | 15.5:1 | 16.5:1 | 16.5:1 | 15.5:1 | 16.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 6 gear manual | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 196 | 206 | 199 | 205 | 213 | 225 |
| Acceleration 0–100 km/h [s] | 11.2 | 10.1 | 9.8 | 9.3 | 8.5 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 6.9 | 7.9 | - | 6.2 | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | 5.6 | 5.0 | 5.3 | 5.8-5.7 | 5.2 | 6.3-6.2 |
| CO2 emissions [g/km] | 149 | 131 | 139 | 152-150 | 139 | 165-163 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6.5-6.0 | 6.8-6.4 | - | 7.0-6.5 | - |
| CO2 emissions [g/km] | - | 170-158 | 177-168 | - | 184-169 | - |
| Emission standard | Euro 6d-TEMP - Euro 6 | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6 | Euro 6d-TEMP - Euro 6 | Euro 6d-TEMP - Euro 6 | Euro 6d-TEMP - Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | - | 48 | 48 | 48 | 48 |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1891 | 1787 | 1891 | 1891 | 1941 | 1955 |
| Overall weight [kg] | 2490 | 2370 | 2490 | 2490 | 2490 | 2510 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1600 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] | 591 [472 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] | -/1383 [1156 VDA] |
| Boot length [mm] | 798 | 798 | 798 | 798 | 798 | 798 |
| Boot length with rear seats folded [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Boot width between wheels/max [mm] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 |
| Boot height to headliner/ceiling [mm] | -/754 | -/754 | -/754 | -/754 | -/754 | -/754 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1059/949 | 1059/949 | 1059/949 | 1059/949 | 1059/949 | 1059/949 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 325 | 325 or 349 | 325 or 349 | 325 | 349 | 349 |
| Brake dimensions rear | 300 | 300 | 300 | 300 | 300 | 325 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4371 | 4371 | 4371 | 4371 | 4371 | 4371 |
| Overall width without/including mirrors [mm] | 1996/2100 | 1996/2100 | 1996/2100 | 1996/2100 | 1996/2100 | 1996/2100 |
| Overall height [mm] | 1649 | 1649 | 1649 | 1649 | 1649 | 1649 |
| Wheelbase [mm] | 2681 | 2681 | 2681 | 2681 | 2681 | 2681 |
| Front wheel track [mm] | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 | 1625-1635 |
| Rear wheel track [mm] | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 | 1631-1642 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 810 | 810 | 810 | 810 | 810 | 810 |
| Clearance [mm] | 212 | 212 | 212 | 212 | 212 | 212 |
| Wading depth [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Approach angle front [°] | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 |
| Approach angle rear [°] | 30.6 | 30.6 | 30.6 | 30.6 | 30.6 | 30.6 |
| Transition angle [°] | 20.7 | 20.7 | 20.7 | 20.7 | 20.7 | 20.7 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 | -/1438 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1016 | -/1016 | -/1016 | -/1016 | -/1016 | -/1016 |
| Legroom rear knees/total [mm] | -/864 | -/864 | -/864 | -/864 | -/864 | -/864 |

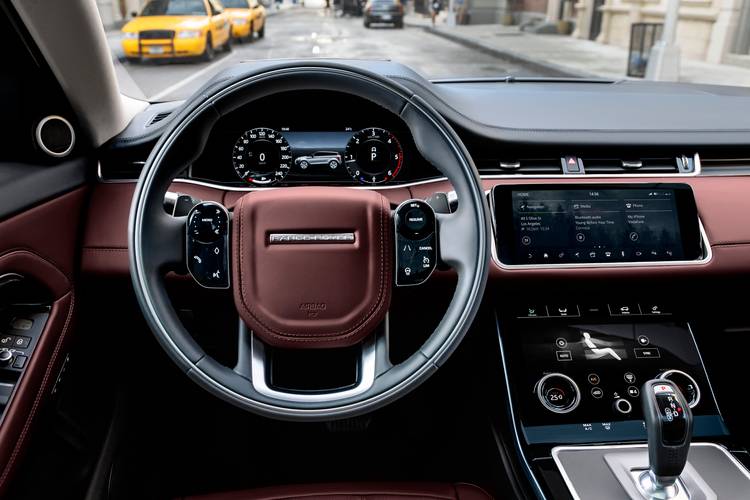

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
