Land Rover Range Rover Evoque
Date of manufacture
2014 – 2018 (Small SUV)
2014 – 2018 (Coupé)
2017 – 2018 (Convertible)
Platform
JLR D8
Manufacturing locations
Halewood, United Kingdom
Designer
Gerry McGovern
Tags
Small SUV
British cars
The Land Rover Range Rover Evoque has been manufactured in the UK since 2014 in the form of a small SUV, coupe and convertible. The vehicle is based on the JLR D8 platform and offers petrol and diesel engines with the most powerful engine being the 2.0 Si4 290 with 213 kW of power. The fastest model has a top speed of 231 km/h, while the most economical 2.2 eD4 150 consumes 4.2 l/100 km with emissions of 109 g/km. The boot capacity of the coupe is 500 l, the small SUV 575 l and the convertible 251 l. In terms of safety, the Land Rover Range Rover Evoque was rated 5 out of 5 by EURONCAP in 2011.
Car body style
Small SUV
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation
L538Engine size
Coupé
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation
L538Engine size
Convertible
Date of manufacture
2017 – 2018Internal designation
L538Engine size
Technical data
Small SUV
| 2.0 Si4 240 | 2.0 Si4 290 | 2.2 eD4 150 | 2.2 TD4 150 | 2.2 TD4 150 | 2.2 TD4 180 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 177/5500 | 213/5500 | 110/4000 | 110/4000 | 110/4000 | 132/4000 |
| Maximum torque [Nm/min-1] | 340/1750 | 400/1500 | 380/1500 | 380/1500 | 380/1500 | 430/1500 |
| Bore and stroke [mm x mm] | 87,5 ,0 x 83.1 | 87,5 ,0 x 83.1 | 83.0 x 92.35 | 83.0 x 92.35 | 83.0 x 92.35 | 83.0 x 92.35 |
| Compression ratio | 10.0:1 | 10.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 6 gear manual | 6 gear manual | 9 gear automatic | 6 gear manual |
| Drive specifications |
|
| - | - |
| - |
| Top speed [km/h] | 217 | 231 | 182 | 182 | 180 | 200 |
| Acceleration 0–100 km/h [s] | 7.6 | 6.3 | 11.2 | 10.8 | 10.0 | 10.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 9.6 | - | - | - | - |
| Out of town [l] | - | 6.5 | - | - | - | - |
| Combined [l] | 7.8 | 7.6 | 4.3 | 4.78 | 5.1 | 4.75 |
| CO2 emissions [g/km] | 181 | 173 | 113 | 125 | 134 | 125 |
| Emission standard | Euro 6 | Euro 5 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1655 | 1798 | 1543 | 1665 | 1674 | 1665 |
| Overall weight [kg] | 2350 | - | 2275 | 2350 | 2350 | 2350 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1500 | 750/1800 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | 1300/1145 | - | 1300/1145 | 1300/1145 | 1300/1145 | 1300/1145 |
| Maximum vertical load on the tow bar [kg] | 150 | 150 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 |
| Boot length [mm] | 795 | 795 | 795 | 795 | 795 | 795 |
| Boot length with rear seats folded [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
| Boot width between wheels/max [mm] | 1000/1105 | 1000/1105 | 1000/1105 | 1000/1105 | 1000/1105 | 1000/1105 |
| Boot height to headliner/ceiling [mm] | -/870 | -/870 | -/870 | -/870 | -/870 | -/870 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 710 | 710 | 710 | 710 | 710 | 710 |
| Boot opening width min/max [mm] | -/1060 | -/1060 | -/1060 | -/1060 | -/1060 | -/1060 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | 14.5 | 14.5 | 14.5 | 14.5 |
| Air resistance [Cd] | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 225/65 R17 | 235/60 R18 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 235/60 R18 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 8.0 x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 8.0 x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 325 | 349 | 300 | 325 | 325 | 325 |
| Brake dimensions rear | 317 | 317 | 317 | 317 | 317 | 317 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.31 | 2.31 | 2.31 | 2.31 | 2.31 | 2.31 |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
| Overall length [mm] | 4371 | 4371 | 4371 | 4371 | 4371 | 4371 |
| Overall width without/including mirrors [mm] | 1985/2090 | 1985/2090 | 1985/2090 | 1985/2090 | 1985/2090 | 1985/2090 |
| Overall height [mm] | 1660 | 1660 | 1660 | 1660 | 1660 | 1660 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1621 | 1621 | 1621 | 1621 | 1621 | 1621 |
| Rear wheel track [mm] | 1629 | 1629 | 1629 | 1629 | 1629 | 1629 |
| Forward overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Rear overhang [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Clearance [mm] | 212 | 212 | 212 | 212 | 212 | 212 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Approach angle rear [°] | 33 | 33 | 33 | 33 | 33 | 33 |
| Transition angle [°] | 22 | 22 | 22 | 22 | 22 | 22 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | -/1435 | -/1435 | -/1435 | -/1435 | -/1435 | -/1435 |
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 |
| Legroom front knees/total [mm] | -/1095 | -/1095 | -/1095 | -/1095 | -/1095 | -/1095 |
| Legroom rear knees/total [mm] | -/885 | -/885 | -/885 | -/885 | -/885 | -/885 |
| 2.2 TD4 180 | 2.2 TD4 240 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1999 | 1999 | ||||
| Maximum output / speed [kW/min-1] | 132/4000 | 177/4000 | ||||
| Maximum torque [Nm/min-1] | 430/1500 | 500/1500 | ||||
| Bore and stroke [mm x mm] | 83.0 x 92.35 | 83.0 x 92.35 | ||||
| Compression ratio | 15.5:1 | 15.34:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 9 gear automatic | 9 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 195 | 217 | ||||
| Acceleration 0–100 km/h [s] | 9.0 | 7.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | - | 6.9 | ||||
| Out of town [l] | - | 5.2 | ||||
| Combined [l] | 5.1 | 5.8 | ||||
| CO2 emissions [g/km] | 134 | 153 | ||||
| Emission standard | Euro 6 | Euro 6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1674 | 1825 | ||||
| Overall weight [kg] | 2350 | - | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | 1300/1145 | - | ||||
| Maximum vertical load on the tow bar [kg] | 150 | 150 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 575 | 575 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1445 | -/1445 | ||||
| Boot length [mm] | 795 | 795 | ||||
| Boot length with rear seats folded [mm] | 1580 | 1580 | ||||
| Boot width between wheels/max [mm] | 1000/1105 | 1000/1105 | ||||
| Boot height to headliner/ceiling [mm] | -/870 | -/870 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 710 | 710 | ||||
| Boot opening width min/max [mm] | -/1060 | -/1060 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 54 | 54 | ||||
| AdBlue tank volume [l] | 14.5 | 14.5 | ||||
| Air resistance [Cd] | 0.37 | 0.37 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | MacPherson | MacPherson | ||||
| Tyre dimensions front | 225/65 R17 | 235/60 R18 | ||||
| Tyre dimensions rear | 225/65 R17 | 235/60 R18 | ||||
| Wheel size front | 7.0J x 17 | 8.0 x 18 | ||||
| Wheel size rear | 7.0J x 17 | 8.0 x 18 | ||||
| Brake dimensions front | 325 | 349 | ||||
| Brake dimensions rear | 317 | 317 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | 2.31 | 2.31 | ||||
| Turning diameter track/circumference [m] | 11.3 | 11.3 | ||||
| Overall length [mm] | 4371 | 4371 | ||||
| Overall width without/including mirrors [mm] | 1985/2090 | 1985/2090 | ||||
| Overall height [mm] | 1660 | 1660 | ||||
| Wheelbase [mm] | 2660 | 2660 | ||||
| Front wheel track [mm] | 1621 | 1621 | ||||
| Rear wheel track [mm] | 1629 | 1629 | ||||
| Forward overhang [mm] | 910 | 910 | ||||
| Rear overhang [mm] | 800 | 800 | ||||
| Clearance [mm] | 212 | 212 | ||||
| Wading depth [mm] | 500 | 500 | ||||
| Approach angle front [°] | 25 | 25 | ||||
| Approach angle rear [°] | 33 | 33 | ||||
| Transition angle [°] | 22 | 22 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 990 | 990 | ||||
| Headroom rear [mm] | 965 | 965 | ||||
| Front elbow/shoulder width [mm] | -/1435 | -/1435 | ||||
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | ||||
| Legroom front knees/total [mm] | -/1095 | -/1095 | ||||
| Legroom rear knees/total [mm] | -/885 | -/885 |
Coupé
| 2.0 Si4 | 2.0 Si4 290 | 2.2 eD4 150 | 2.2 TD4 150 | 2.2 TD4 150 | 2.2 TD4 180 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1999 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 177/5500 | 213/5500 | 110/4000 | 110/4000 | 110/4000 | 132/4000 |
| Maximum torque [Nm/min-1] | 340/1750 | 400/1500 | 380/1500 | 380/1500 | 380/1500 | 430/1500 |
| Bore and stroke [mm x mm] | 87,5 ,0 x 83.1 | 87,5 ,0 x 83.1 | 83.0 x 92.35 | 83.0 x 92.35 | 83.0 x 92.35 | 83.0 x 92.35 |
| Compression ratio | 10.0:1 | 10.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 6 gear manual | 6 gear manual | 9 gear automatic | 6 gear manual |
| Drive specifications |
|
| - | - |
| - |
| Top speed [km/h] | 217 | 231 | 182 | 182 | 180 | 200 |
| Acceleration 0–100 km/h [s] | 7.6 | 6.3 | 11.2 | 10.8 | 10.0 | 10.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 9.6 | - | - | - | - |
| Out of town [l] | - | 6.5 | - | - | - | - |
| Combined [l] | 7.8 | 7.6 | 4.2 | 4.78 | 4.9 | 4.75 |
| CO2 emissions [g/km] | 181 | 173 | 109 | 125 | 129 | 125 |
| Emission standard | Euro 6 | Euro 5 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1655 | - | 1543 | 1665 | 1674 | 1665 |
| Overall weight [kg] | 2350 | - | 2275 | 2350 | 2350 | 2350 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1500 | 750/1800 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | 1300/1145 | - | 1300/1145 | 1300/1145 | 1300/1145 | 1300/1145 |
| Maximum vertical load on the tow bar [kg] | 150 | 150 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 |
| Boot length [mm] | 795 | 795 | 795 | 795 | 795 | 795 |
| Boot length with rear seats folded [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
| Boot width between wheels/max [mm] | 1000/1105 | 1000/1105 | 1000/1105 | 1000/1105 | 1000/1105 | 1000/1105 |
| Boot height to headliner/ceiling [mm] | -/840 | -/840 | -/840 | -/840 | -/840 | -/840 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 690 | 690 | 690 | 690 | 690 | 690 |
| Boot opening width min/max [mm] | -/1060 | -/1060 | -/1060 | -/1060 | -/1060 | -/1060 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 70 | 70 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | 14.5 | 14.5 | 14.5 | 14.5 |
| Air resistance [Cd] | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 225/65 R17 | 235/60 R18 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Tyre dimensions rear | 225/65 R17 | 235/60 R18 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 |
| Wheel size front | 7.0J x 17 | 8.0 x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 8.0 x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 325 | 349 | 300 | 325 | 325 | 325 |
| Brake dimensions rear | 317 | 317 | 317 | 317 | 317 | 317 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.31 | 2.31 | 2.31 | 2.31 | 2.31 | 2.31 |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
| Overall length [mm] | 4371 | 4371 | 4371 | 4371 | 4371 | 4371 |
| Overall width without/including mirrors [mm] | 1980/2085 | 1980/2085 | 1980/2085 | 1980/2085 | 1980/2085 | 1980/2085 |
| Overall height [mm] | 1625 | 1625 | 1625 | 1625 | 1625 | 1625 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1621 | 1621 | 1621 | 1621 | 1621 | 1621 |
| Rear wheel track [mm] | 1629 | 1629 | 1629 | 1629 | 1629 | 1629 |
| Forward overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Rear overhang [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Clearance [mm] | 212 | 212 | 212 | 212 | 212 | 212 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Approach angle rear [°] | 33 | 33 | 33 | 33 | 33 | 33 |
| Transition angle [°] | 22 | 22 | 22 | 22 | 22 | 22 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1435/- | 1435/- | 1435/- | 1435/- | 1435/- | 1435/- |
| Rear elbow/shoulder width [mm] | 1350/- | 1350/- | 1350/- | 1350/- | 1350/- | 1350/- |
| Legroom front knees/total [mm] | -/1095 | -/1095 | -/1095 | -/1095 | -/1095 | -/1095 |
| Legroom rear knees/total [mm] | -/885 | -/885 | -/885 | -/885 | -/885 | -/885 |
| 2.2 TD4 180 | 2.2 TD4 240 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1999 | 1999 | ||||
| Maximum output / speed [kW/min-1] | 132/4000 | 177/4000 | ||||
| Maximum torque [Nm/min-1] | 430/1500 | 500/1500 | ||||
| Bore and stroke [mm x mm] | 83.0 x 92.35 | 83.0 x 92.35 | ||||
| Compression ratio | 15.5:1 | 15.34:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 9 gear automatic | 9 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 195 | 217 | ||||
| Acceleration 0–100 km/h [s] | 9.0 | 7.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | - | 6.9 | ||||
| Out of town [l] | - | 5.2 | ||||
| Combined [l] | 4.9 | 5.8 | ||||
| CO2 emissions [g/km] | 129 | 153 | ||||
| Emission standard | Euro 6 | Euro 6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1674 | - | ||||
| Overall weight [kg] | 2350 | - | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | 1300/1145 | - | ||||
| Maximum vertical load on the tow bar [kg] | 150 | 150 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 500 | 500 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1350 | ||||
| Boot length [mm] | 795 | 795 | ||||
| Boot length with rear seats folded [mm] | 1580 | 1580 | ||||
| Boot width between wheels/max [mm] | 1000/1105 | 1000/1105 | ||||
| Boot height to headliner/ceiling [mm] | -/840 | -/840 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 690 | 690 | ||||
| Boot opening width min/max [mm] | -/1060 | -/1060 | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 54 | 54 | ||||
| AdBlue tank volume [l] | 14.5 | 14.5 | ||||
| Air resistance [Cd] | 0.37 | 0.37 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | MacPherson | MacPherson | ||||
| Tyre dimensions front | 225/65 R17 | 235/60 R18 | ||||
| Tyre dimensions rear | 225/65 R17 | 235/60 R18 | ||||
| Wheel size front | 7.0J x 17 | 8.0 x 18 | ||||
| Wheel size rear | 7.0J x 17 | 8.0 x 18 | ||||
| Brake dimensions front | 325 | 349 | ||||
| Brake dimensions rear | 317 | 317 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | 2.31 | 2.31 | ||||
| Turning diameter track/circumference [m] | 11.3 | 11.3 | ||||
| Overall length [mm] | 4371 | 4371 | ||||
| Overall width without/including mirrors [mm] | 1980/2085 | 1980/2085 | ||||
| Overall height [mm] | 1625 | 1625 | ||||
| Wheelbase [mm] | 2660 | 2660 | ||||
| Front wheel track [mm] | 1621 | 1621 | ||||
| Rear wheel track [mm] | 1629 | 1629 | ||||
| Forward overhang [mm] | 910 | 910 | ||||
| Rear overhang [mm] | 800 | 800 | ||||
| Clearance [mm] | 212 | 212 | ||||
| Wading depth [mm] | 500 | 500 | ||||
| Approach angle front [°] | 25 | 25 | ||||
| Approach angle rear [°] | 33 | 33 | ||||
| Transition angle [°] | 22 | 22 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 965 | 965 | ||||
| Headroom rear [mm] | 945 | 945 | ||||
| Front elbow/shoulder width [mm] | 1435/- | 1435/- | ||||
| Rear elbow/shoulder width [mm] | 1350/- | 1350/- | ||||
| Legroom front knees/total [mm] | -/1095 | -/1095 | ||||
| Legroom rear knees/total [mm] | -/885 | -/885 |
Convertible
| 2.0 Si4 | 2.2 TD4 150 | 2.2 TD4 180 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1999 | 1999 | 1999 | |||
| Maximum output / speed [kW/min-1] | 177/5500 | 110/4000 | 132/4000 | |||
| Maximum torque [Nm/min-1] | 340/1750 | 380/1500 | 430/1500 | |||
| Bore and stroke [mm x mm] | 87,5 ,0 x 83.1 | 83.0 x 92.35 | 83.0 x 92.35 | |||
| Compression ratio | 10.0:1 | 15.5:1 | 15.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 209 | 180 | 195 | |||
| Acceleration 0–100 km/h [s] | 8.6 | 12.0 | 10.3 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | - | - | - | |||
| Out of town [l] | - | - | - | |||
| Combined [l] | - | - | - | |||
| CO2 emissions [g/km] | - | - | - | |||
| Emission standard | Euro 6 | Euro 6 | Euro 6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1935 | 1967 | 1967 | |||
| Overall weight [kg] | 2410 | 2475 | 2475 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | |||
| Maximum front/rear axle load [kg] | 1300/1160 | 1370/1190 | 1370/1190 | |||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||

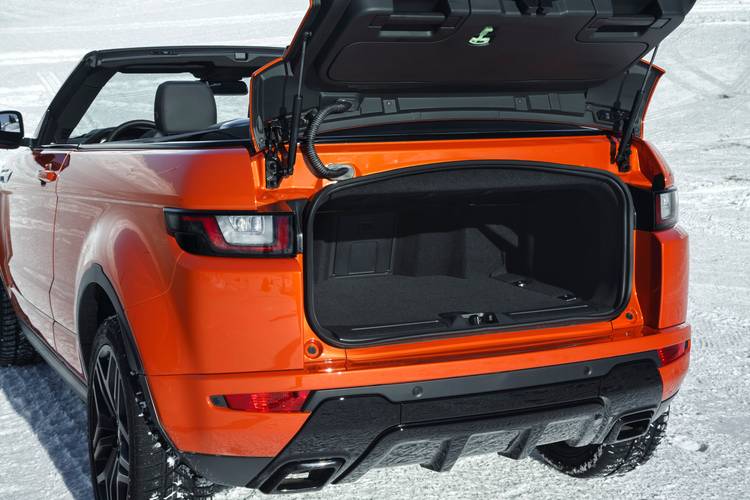

| Boot volume [l] | 251 | 251 | 251 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 747 | 747 | 747 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1105 | -/1105 | -/1105 | |||
| Boot height to headliner/ceiling [mm] | -/403 | -/403 | -/403 | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 70 | 54 | 54 | |||
| AdBlue tank volume [l] | - | 14.5 | 14.5 | |||
| Air resistance [Cd] | 0.39 | 0.39 | 0.39 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | MacPherson | MacPherson | MacPherson | |||
| Tyre dimensions front | 225/65 R17 | 225/65 R17 | 225/65 R17 | |||
| Tyre dimensions rear | 225/65 R17 | 225/65 R17 | 225/65 R17 | |||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Brake dimensions front | 325 | 325 | 325 | |||
| Brake dimensions rear | 317 | 317 | 317 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | 2.31 | 2.31 | 2.31 | |||
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.3 | |||
| Overall length [mm] | 4370 | 4370 | 4370 | |||
| Overall width without/including mirrors [mm] | 1980/2085 | 1980/2085 | 1980/2085 | |||
| Overall height [mm] | 1609 | 1609 | 1609 | |||
| Wheelbase [mm] | 2660 | 2660 | 2660 | |||
| Front wheel track [mm] | 1621 | 1621 | 1621 | |||
| Rear wheel track [mm] | 1629 | 1629 | 1629 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 208 | 208 | 208 | |||
| Wading depth [mm] | 500 | 500 | 500 | |||
| Approach angle front [°] | 19.0 | 19.0 | 19.0 | |||
| Approach angle rear [°] | 31.0 | 31.0 | 31.0 | |||
| Transition angle [°] | 18.9 | 18.9 | 18.9 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 976 | 976 | 976 | |||
| Headroom rear [mm] | 965 | 965 | 965 | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | -/1095 | -/1095 | -/1095 | |||
| Legroom rear knees/total [mm] | -/866 | -/866 | -/866 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
