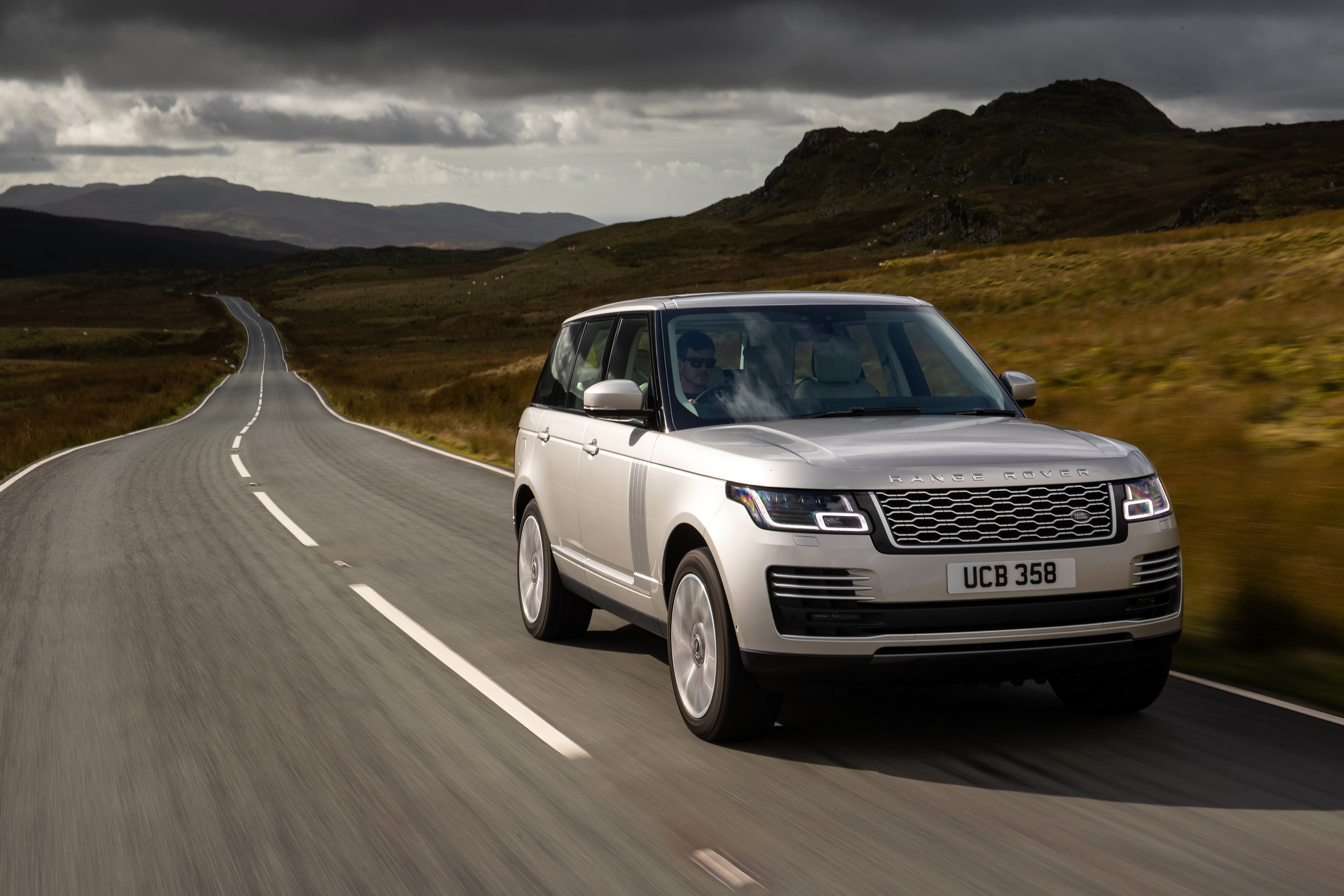

Land Rover Range Rover
Date of manufacture
2017 – to this day (Large SUV)
Platform
JLR D7u
Manufacturing locations
Solihull, United Kingdom
Designer
Gerry McGovern
Tags
Large SUV
British cars
The Land Rover Range Rover is a large SUV that has been manufactured in the UK since 2017. It is built on the JLR D7u platform and offers a wide range of powertrains - petrol, diesel and hybrid engines. The highest power output is 5.0 V8 Supercharged 565/P565 LWB (416 kW), the highest speed is 225 km/h and the lowest combined fuel consumption is 3.3 l/100 km for the P400e PHEV with CO2 emissions of 72 g/km. The luggage compartment volume is 900 l and in terms of safety, the model received a 5 out of 5 rating from EURONCAP in 2012.
Car body style
Large SUV
after upgrade (facelift)
Date of manufacture
2017 – to this dayInternal designation
L405Engine size
PetrolPetrol + Electric
Technical data
Large SUV
| P400 | 5.0 V8 Supercharged 525 / P525 | 5.0 V8 Supercharged 565 / P565 | P400 LWB | 5.0 V8 Supercharged 525 / P525 LWB | 5.0 V8 Supercharged 565 / P565 LWB | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | - | from 2020 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2996 | 5000 | 5000 | 2996 | 5000 | 5000 |
| Maximum output / speed [kW/min-1] | 294/5500-6500 | 386/6000-6500 | 416/6000-6500 | 294/5500-6500 | 386/6000-6500 | 416/6000-6500 |
| Maximum torque [Nm/min-1] | 550/2000-5000 | 625/2500-5500 | 700/3500-5000 | 550/2000-5000 | 625/2500-5500 | 700/3500-5000 |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 92.5 x 93.0 | 92.5 x 93.0 | 83.0 x 92.3 | 92.5 x 93.0 | 92.5 x 93.0 |
| Compression ratio | 10.5:1 | 9.5:1 | 9.5:1 | 10.5:1 | 9.5:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 225 | 225 [250 subject to a surcharge] | 225 [250 subject to a surcharge] | 225 | 225 [250 subject to a surcharge] | 225 [250 subject to a surcharge] |
| Acceleration 0–100 km/h [s] | 6.3 | 5.4 | 5.4 | 6.5 | 5.5 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4.1 | 3.4 | 3.4 | - | 3.5 | - |
| City [l] | - | 18.0 | 18.0 | - | 17.9 | - |
| Out of town [l] | - | 9.9 | 9.9 | - | 9.6 | - |
| Combined [l] | 9.5-9.3 | 13.5-12.5 | 13.7-12.8 | 9.5-9.3 | 12.8-12.5 | 13.0 |
| CO2 emissions [g/km] | 216-212 | 308-284 | 312-294 | 217-213 | 290-285 | 293 |
| Low speed [l] | 16.2-15.5 | 22.3-22.4 | 22.9 | 16.2-15.7 | 23.4-22.6 | 22.9 |
| Medium speed [l] | 10.9-10.3 | 14.9-14.0 | 15.0 | 11.0-10.5 | 15.0-14.2 | 15.0 |
| High speed [l] | 9.4-8.8 | 12.7-12.0 | 12.7 | 9.5-9.0 | 12.8-12.1 | 12.7 |
| Extra high speed [l] | 11.2-10.5 | 13.8-13.0 | 13.8 | 11.3-10.7 | 13.9-13.1 | 13.8 |
| Combined speed [l] | 11.3-10.6 | 15.0-13.8 | 14.9 | 11.4-10.8 | 15.1-14.0 | 15.2-14.9 |
| CO2 emissions [g/km] | 256-240 | 330-290 | 338 | 258-217 | 333-291 | 342-298 |
| Emission standard | Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP -Euro 6d | Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP -Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | - | - | 48 | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, - kWh | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2342 | 2383-2450 | 2497-2591 | 2450 | 2518 | 2673 |
| Overall weight [kg] | 3140 | 3160 | 3160 | 3170 | 3200 | 3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | 1550/1775 | 1500/1775 | 1500/1775 | 1550/1775 | 1550/1775 | 1550/1775 |
| Maximum vertical load on the tow bar [kg] | 150 | 150 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1943 [- | -/1943 [- | -/1943 [- | -/2142 [- | -/2142 [- | -/2142 [- |
| Boot length [mm] | 1101 | 1101 | 1101 | 1013 | 1013 | 1013 |
| Boot length with rear seats folded [mm] | 1982 | 1982 | 1982 | 2073 | 2073 | 2073 |
| Boot width between wheels/max [mm] | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 |
| Boot height to headliner/ceiling [mm] | -/824 | -/824 | -/824 | -/824 | -/824 | -/824 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 105 | 105 | 105 | 105 | 105 | 105 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34-0.36 | 0.35-0.36 | 0.34 | 0.34-0.36 | 0.35-0.36 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 380 | 380 | 380 | 380 | 380 | 380 |
| Brake dimensions rear | 365 | 365 | 365 | 365 | 365 | 365 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3.3 | 3.3 | 2.7 | 3.3 | 3.3 | 2.7 |
| Turning diameter track/circumference [m] | 12.3/12.7 | 12.3/12.7 | 12.3/12.7 | 13.1/13.4 | 13.1/13.4 | 13.1/13.4 |
| Overall length [mm] | 5000 | 5000 | 5000 | 5200 | 5200 | 5200 |
| Overall width without/including mirrors [mm] | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 |
| Overall height [mm] | 1869 | 1869 | 1869 | 1868 | 1868 | 1868 |
| Wheelbase [mm] | 2922 | 2922 | 2922 | 3122 | 3122 | 3122 |
| Front wheel track [mm] | 1690 | 1690 | 1690 | 1690 | 1690 | 1690 |
| Rear wheel track [mm] | 1683 | 1683 | 1683 | 1683 | 1683 | 1683 |
| Forward overhang [mm] | 883 | 883 | 883 | 883 | 883 | 883 |
| Rear overhang [mm] | 1195 | 1195 | 1195 | 1195 | 1195 | 1195 |
| Clearance [mm] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] |
| Wading depth [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Approach angle front [°] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] |
| Approach angle rear [°] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] |
| Transition angle [°] | 20.1 [28.3 subject to a surcharge] | 20.1 [28.3 subject to a surcharge] | 20.1 [28.3 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 997 | 997 | 997 | 997 | 997 | 997 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Legroom rear knees/total [mm] | -/1020 | -/1020 | -/1020 | -/1206 | -/1206 | -/1206 |
| P400e PHEV | P400e PHEV LWB | D250 | 3.0 TDV6 258 | 3.0 SDV6 275 | D300 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2020 to | from to 2020 | from to 2020 | from 2020 to |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 1997 | 2996 | 2993 | 2993 | 2996 |
| Maximum output / speed [kW/min-1] | 221/5500 combustion 85 el. 297/1500-4000 total | 221/5500 combustion 85 el. 297/1500-4000 total | 183/4000 | 190/4000 | 202/3500-4250 | 221/4000 |
| Maximum torque [Nm/min-1] | 400 combustion 275 el. 640/1500-3500 total | 400 combustion 275 el. 640/1500-3500 total | 600/1250-2250 | 600/2000 | 625/1500-2250 | 650/1500-25010 |
| Bore and stroke [mm x mm] | 83.0 x 92.29 | 83.0 x 92.29 | 83.0 x 92.31 | 84.0 x 90.0 | 84.0 x 90.0 | 83.0 x 92.31 |
| Compression ratio | 9.5:1 | 9.5:1 | 15.5:1 | 16.1:1 | 16.1:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 220 [137 el.] | 220 [137 el.] | 209 | 209 | 209 | 209 |
| Acceleration 0–100 km/h [s] | 6.4-6.8 | 6.9 | 8.6 | 8.0 | 7.9 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4.2 | 4.3 | 6.2 | 6.1 | - | 5.0 |
| City [l] | - | - | - | 7.8 | - | - |
| Out of town [l] | - | - | - | 6.4 | - | - |
| Combined [l] | 3.6-2.8 [23.1-22.5 kWh] | 3.6-2.8 [23.1-22.5 kWh] | - | 6.9 | 7.7-7.6 | 7.9-7.8 |
| CO2 emissions [g/km] | 72-64 | 82-64 | - | 182 | 204-200 | 209-205 |
| Low speed [l] | - | - | - | - | 12.7-11.8 | - |
| Medium speed [l] | - | - | - | - | 10.0-8.9 | - |
| High speed [l] | - | - | - | - | 8.4-7.7 | - |
| Extra high speed [l] | - | - | - | - | 9.7-9.0 | - |
| Combined speed [l] | 3.7-3.3 [25,8 kWh] | 4.0-3.5 [25.8 kWh] | 9.2-8.5 | - | 9.7-9.0 | 9.3-8.6 |
| CO2 emissions [g/km] | 75-72 | 91-78 | 242-223 | - | 204-199 | 243-225 |
| Emission standard | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | - | - | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 13.1 kWh | Lithium-Ionen-Akkumulator, 13.1 kWh | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, - kWh |
| Range with fully charged battery [km] | 41-39 | 41-39 | - | - | - | - |
| Charging time |
|
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2509-2577 | 2671 | 2350 | 2249 | 2328 | 2350 |
| Overall weight [kg] | 3210 | 3250 | 3150 | 3100 | 3130 | 3150 |
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | 1500/1900 | 1550/1900 | 1500/1775 | 1500/1775 | 1500/1775 | 1500/1775 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1943 [- | -/2142 [- | -/1943 [- | -/1943 [- | -/1943 [- | -/1943 [- |
| Boot length [mm] | 1101 | 1013 | 1101 | 1101 | 1101 | 1101 |
| Boot length with rear seats folded [mm] | 1982 | 2073 | 1982 | 1982 | 1982 | 1982 |
| Boot width between wheels/max [mm] | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 |
| Boot height to headliner/ceiling [mm] | -/824 | -/824 | -/824 | -/824 | -/824 | -/824 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 86-91 | 86-91 | 86 | 86 | 86 | 86 |
| AdBlue tank volume [l] | - | - | 18 | 18 | 18 | 18 |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 380 | 380 | 363 | 349 | 349 | 363 |
| Brake dimensions rear | 365 | 365 | 350 | 325 | 325 | 350 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3.3 | 3.3 | 3.03 | 3.3 | 3.3 | 3.03 |
| Turning diameter track/circumference [m] | 12.3/12.7 | 13.1/13.4 | 12.3/12.7 | 12.3/12.7 | 12.3/12.7 | 12.3/12.7 |
| Overall length [mm] | 5000 | 5200 | 5000 | 5000 | 5000 | 5000 |
| Overall width without/including mirrors [mm] | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 |
| Overall height [mm] | 1869 | 1868 | 1869 | 1869 | 1869 | 1869 |
| Wheelbase [mm] | 2922 | 3122 | 2922 | 2922 | 2922 | 2922 |
| Front wheel track [mm] | 1690 | 1690 | 1690 | 1690 | 1690 | 1690 |
| Rear wheel track [mm] | 1683 | 1683 | 1683 | 1683 | 1683 | 1683 |
| Forward overhang [mm] | 883 | 883 | 883 | 883 | 883 | 883 |
| Rear overhang [mm] | 1195 | 1195 | 1195 | 1195 | 1195 | 1195 |
| Clearance [mm] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] |
| Wading depth [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Approach angle front [°] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] |
| Approach angle rear [°] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] |
| Transition angle [°] | 20.1 [28.3 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] | 20.1 [28.3 subject to a surcharge] | 20.1 [28.3 subject to a surcharge] | 20.1 [28.3 subject to a surcharge] | 20.1 [28.3 subject to a surcharge] |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 997 | 997 | 997 | 997 | 997 | 997 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Legroom rear knees/total [mm] | -/1020 | -/1206 | -/1020 | -/1020 | -/1020 | -/1020 |
| 4.4 SDV8 339 | D350 | 3.0 TDV6 258 LWB | 3.0 SDV6 275 LWB | D300 LWB | 4.4 SDV8 339 LWB | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from 2020 to | from to 2020 | from to 2020 | from 2020 to | from to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 |
| Engine displacement [cm³] | 4367 | 2996 | 2993 | 2993 | 2996 | 4367 |
| Maximum output / speed [kW/min-1] | 250/3500 | 258/4000 | 190/4000 | 202/3500-4250 | 221/4000 | 250/3500 |
| Maximum torque [Nm/min-1] | 740/1750-2250 | 700/1500-3000 | 600/2000 | 625/1500-2250 | 650/1500-25010 | 740/1750-2250 |
| Bore and stroke [mm x mm] | 84.0 x 98.5 | 83.0 x 92.31 | 84.0 x 90.0 | 84.0 x 90.0 | 83.0 x 92.31 | 84.0 x 98.5 |
| Compression ratio | 16.1:1 | 15.5:1 | 16.1:1 | 16.1:1 | 15.5:1 | 16.1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 218 | 225 | 209 | 209 | 209 | 217-218 |
| Acceleration 0–100 km/h [s] | 6.9 | 7.1 | 8.3 | 8.0 | 7.4 | 7.2-7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4.5 | 4.9 | 6.4 | - | - | 5.0 |
| City [l] | 10.8 | - | 7.8 | - | - | 10.8 |
| Out of town [l] | 7.6 | - | 6.4 | - | - | 7.6 |
| Combined [l] | 9,4-8.4 | 8.5-8.4 | 6.9 | 7.8-7.7 | 8.4-8.3 | 8.4 |
| CO2 emissions [g/km] | 248-219 | 225-220 | 182 | 204 | 223-218 | 219 |
| Low speed [l] | 16.1-15.7 | - | - | - | - | 16.2-15.8 |
| Medium speed [l] | 11.5-10.7 | - | - | - | - | 11.8-11.0 |
| High speed [l] | 9.5-9.3 | - | - | - | - | 9.6-9.4 |
| Extra high speed [l] | 10.4-9.8 | - | - | - | - | 10.6-9.4 |
| Combined speed [l] | 11.1-10.6 | 9.8-9.2 | 9.8-9.2 | 9.8-9.2 | 9.8-9.3 | 11.3-10.8 |
| CO2 emissions [g/km] | 246-243 | 256-241 | 258-241 | 258-241 | 258-243 | 247-244 |
| Emission standard | EU6 - Euro 6d-TEMP | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | - | 48 | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, - kWh | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2504 | 2350 | 2387 | 2466 | 2350 | 2592 |
| Overall weight [kg] | 3290 | 3150 | 3170 | 3200 | 3150 | 3340 |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3400 |
| Maximum front/rear axle load [kg] | 1590/1800 | 1500/1775 | 1550/1775 | 1550/1775 | 1550/1775 | 1590/1800 |
| Maximum vertical load on the tow bar [kg] | 150 | 150 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] | 900 [707 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1943 [- | -/1943 [- | -/2142 [- | -/2142 [- | -/2142 [- | -/2142 [- |
| Boot length [mm] | 1101 | 1101 | 1013 | 1013 | 1013 | 1013 |
| Boot length with rear seats folded [mm] | 1982 | 1982 | 2073 | 2073 | 2073 | 2073 |
| Boot width between wheels/max [mm] | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 | 1120/1290 |
| Boot height to headliner/ceiling [mm] | -/824 | -/824 | -/824 | -/824 | -/824 | -/824 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 86 | 86 | 86 | 86 | 86 | 86 |
| AdBlue tank volume [l] | 18 | 18 | 18 | 18 | 18 | 18 |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 380 | 380 | 349 | 349 | 363 | 380 |
| Brake dimensions rear | 365 | 365 | 325 | 325 | 350 | 365 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3.3 | 3.03 | 3.3 | 3.3 | 3.03 | 3.3 |
| Turning diameter track/circumference [m] | 12.3/12.7 | 12.3/12.7 | 13.1/13.4 | 13.1/13.4 | 13.1/13.4 | 13.1/13.4 |
| Overall length [mm] | 5000 | 5000 | 5200 | 5200 | 5200 | 5200 |
| Overall width without/including mirrors [mm] | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 | 2073/2220 |
| Overall height [mm] | 1869 | 1869 | 1868 | 1868 | 1868 | 1868 |
| Wheelbase [mm] | 2922 | 2922 | 3122 | 3122 | 3122 | 3122 |
| Front wheel track [mm] | 1690 | 1690 | 1690 | 1690 | 1690 | 1690 |
| Rear wheel track [mm] | 1683 | 1683 | 1683 | 1683 | 1683 | 1683 |
| Forward overhang [mm] | 883 | 883 | 883 | 883 | 883 | 883 |
| Rear overhang [mm] | 1195 | 1195 | 1195 | 1195 | 1195 | 1195 |
| Clearance [mm] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] | 221 [296 subject to a surcharge] |
| Wading depth [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Approach angle front [°] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] | 26.0 [34.7 subject to a surcharge] |
| Approach angle rear [°] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] | 24.6 [29.6 subject to a surcharge] |
| Transition angle [°] | 20.1 [28.3 subject to a surcharge] | 20.1 [28.3 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] | 18.3 [26.1 subject to a surcharge] |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 997 | 997 | 997 | 997 | 997 | 997 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Legroom rear knees/total [mm] | -/1020 | -/1020 | -/1206 | -/1206 | -/1206 | -/1206 |
| D350 LWB | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2996 | |||||
| Maximum output / speed [kW/min-1] | 258/4000 | |||||
| Maximum torque [Nm/min-1] | 700/1500-3000 | |||||
| Bore and stroke [mm x mm] | 83.0 x 92.31 | |||||
| Compression ratio | 15.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 225 | |||||
| Acceleration 0–100 km/h [s] | 7.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | 8,5-8,3 | |||||
| CO2 emissions [g/km] | 225-220 | |||||
| Low speed [l] | - | |||||
| Medium speed [l] | - | |||||
| High speed [l] | - | |||||
| Extra high speed [l] | - | |||||
| Combined speed [l] | 9.9-9.3 | |||||
| CO2 emissions [g/km] | 259-244 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 48 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, - kWh | |||||
| Range with fully charged battery [km] | - | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2518 | |||||
| Overall weight [kg] | 3210 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | |||||
| Maximum front/rear axle load [kg] | 1550/1775 | |||||
| Maximum vertical load on the tow bar [kg] | 150 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 900 [707 VDA] | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2142 [- | |||||
| Boot length [mm] | 1013 | |||||
| Boot length with rear seats folded [mm] | 2073 | |||||
| Boot width between wheels/max [mm] | 1120/1290 | |||||
| Boot height to headliner/ceiling [mm] | -/824 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 4/5 | |||||
| Fuel tank volume [l] | 86 | |||||
| AdBlue tank volume [l] | 18 | |||||
| Air resistance [Cd] | 0.34 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | - | |||||
| Tyre dimensions rear | - | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | 380 | |||||
| Brake dimensions rear | 365 | |||||
| Steering | - | |||||
| Number of steering wheel turns | 3.03 | |||||
| Turning diameter track/circumference [m] | 13.1/13.4 | |||||
| Overall length [mm] | 5200 | |||||
| Overall width without/including mirrors [mm] | 2073/2220 | |||||
| Overall height [mm] | 1868 | |||||
| Wheelbase [mm] | 3122 | |||||
| Front wheel track [mm] | 1690 | |||||
| Rear wheel track [mm] | 1683 | |||||
| Forward overhang [mm] | 883 | |||||
| Rear overhang [mm] | 1195 | |||||
| Clearance [mm] | 221 [296 subject to a surcharge] | |||||
| Wading depth [mm] | 900 | |||||
| Approach angle front [°] | 26.0 [34.7 subject to a surcharge] | |||||
| Approach angle rear [°] | 24.6 [29.6 subject to a surcharge] | |||||
| Transition angle [°] | 18.3 [26.1 subject to a surcharge] | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 997 | |||||
| Headroom rear [mm] | 996 | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | -/1080 | |||||
| Legroom rear knees/total [mm] | -/1206 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
