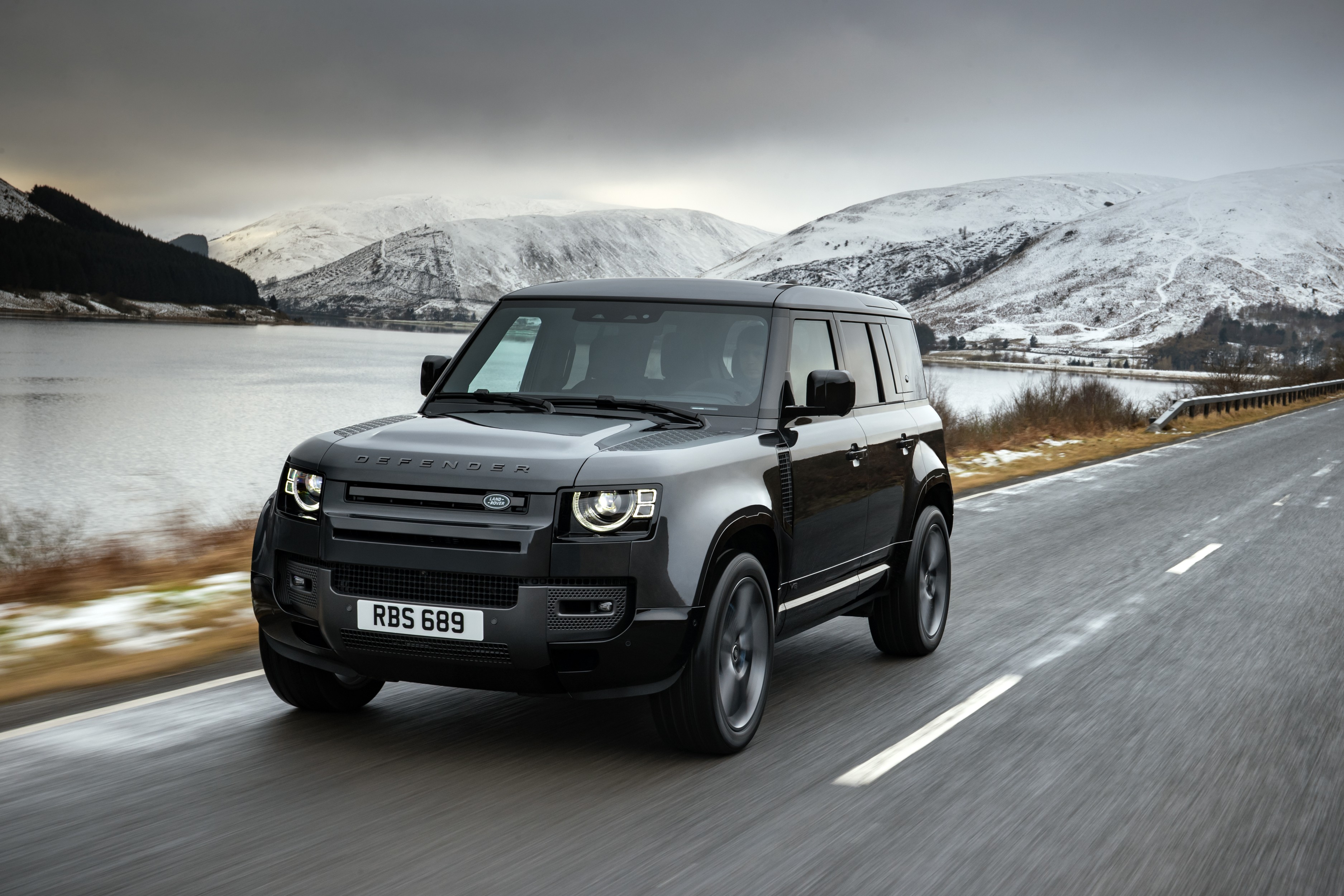

Land Rover Defender
Date of manufacture
9/2019 – to this day (SUV)
Platform
D7x
Manufacturing locations
Nitra, Slovakia
Designer
Gerry McGovern
Tags
Compact SUV
Large SUV
British cars
The only body style of the Land Rover Defender is an SUV. The vehicle has been produced since 2019. The country in which the car is manufactured is Slovakia. The vehicle is built on the D7x platform. The car can also be purchased in a plug-in hybrid version. The engine range includes petrol, diesel and hybrid engines. The 5.0 V8 Supercharged 525 110 has the most power at 386 kW. The 5.0 V8 Supercharged 525 110 has a maximum speed of 240 km/h. The P400e PHEV AWD 110 has the lowest consumption at 3.3 l/100 km and emissions reach 74 g/km. The luggage compartment size offers 853 l. The vehicle passed the EURONCAP safety tests in 2020 and received a rating of 5 out of 5.
Car body style
SUV
Date of manufacture
9/2019 – to this dayInternal designation
L663Engine size
PetrolPetrol + ElectricDiesel
Technical data
SUV
| P300 AWD 90 | P400 MHEV AWB 90 | 5.0 V8 Supercharged 525 90 | P300 AWD 110 | P400 MHEV AWB 110 | 5.0 V8 Supercharged 525 110 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2020 to | - | - | 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 8/32 | 4/16 | 6/24 | 8/32 |
| Engine displacement [cm³] | 1997 | 2996 | 5000 | 1997 | 2996 | 5000 |
| Maximum output / speed [kW/min-1] | 221/5500 | 294/5500-6500 | 386/6000-6500 | 221/5500 | 294/5500-6500 | 386/6000-6500 |
| Maximum torque [Nm/min-1] | 400/1500-4500 | 550/2000-5000 | 625/2500-5500 | 400/1500-4500 | 550/2000-5000 | 625/2500-5500 |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 83.0 x 92.29 | 92.5x 93.0 | 83.0 x 92.3 | 83.0 x 92.29 | 92.5x 93.0 |
| Compression ratio | 9.5:1 | 10.5:1 | 9.5:1 | 9.5:1 | 10.5:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 191 | 191 [208 subject to a surcharge] | 240 | 191 | 191 [208 subject to a surcharge] | 240 |
| Acceleration 0–100 km/h [s] | 7.1-8.0 | 6.0 | 5.2 | 7.4-8.1 | 6.1 | 5.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4.9-5.2 | 3.6 | 3.2 | 5.1-5.3 | 3.7 | 3.4 |
| City [l] | 11.8-11.5 | 12.4-12.1 | - | 11.9-11.5 | 12.5-12.2 | - |
| Out of town [l] | 9.2-8.9 | 8.4-8.1 | - | 9.3-9.0 | 8.5-8.1 | - |
| Combined [l] | 10.2-9.8 | 9.9-9.6 | 9.9-9.6 | 10.2-9.6 | 9.9-9.6 | - |
| CO2 emissions [g/km] | 233-224 | 226-219 | 226-219 | 234-218 | 227-220 | - |
| Low speed [l] | 14.9-14.0 | 15.5-14.6 | - | 15.3-14.3 | 15.9-14.9 | - |
| Medium speed [l] | 11.6-10.7 | 11.2-10.4 | - | 12.0-11.0 | 11.4-10.7 | - |
| High speed [l] | 10.6-9.7 | 10.1-9.3 | - | 10.8-9.9 | 10.3-9.5 | - |
| Extra high speed [l] | 13.0-11.8 | 12.7-11.5 | - | 13.1-12.0 | 12.8-11.7 | - |
| Combined speed [l] | 12.5-11.2 | 12.0-11.0 | 14.8-14.5 | 12.8-11.5 | 12.3-11.2 | 15.1-14.7 |
| CO2 emissions [g/km] | 281-255 | 272-251 | 335-327 | 289-260 | 297-255 | 340-332 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | - | 48 | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, - kWh | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2140 | 2245 | 2546 | 2261 [2318 seven seats] | 2361 [2418 seven seats] | 2678 |
| Overall weight [kg] | 2910 | 2970 | 3040 | 3105 [3200 seven seats] | 3165 [3250 seven seats] | 3230 |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 150 | 150 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 397 [297 VDA] | 397 [297 VDA] | 397 [297 VDA] | 972 [231 seven seats] | 972 [231 seven seats] | 972 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1563 [- | -/1563 [- | -/1563 [- | -/2277 [- | -/2277 [- | -/2277 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 460 | 460 | 460 | 919 [289-900 seven seats] | 919 [289-900 seven seats] | 972 |
| Boot length with rear seats folded [mm] | 1313 | 1313 | 1313 | 1763 [1789 seven seats] | 1763 [1789 seven seats] | 1763 |
| Boot width between wheels/max [mm] | 1124/1183 | 1124/1183 | 1124/1183 | 1160 [1188/1211 | 1160 [1188/1211 | 1160/1211 |
| Boot height to headliner/ceiling [mm] | -/904 | -/904 | -/904 | -/932 | -/932 | -/932 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/6 | 5/6 | 5/6 | 5-6/7 | 5-6/7 | 5-6 |
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | 90 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.38 | 0.4 | 0.41 | 0.38 | 0.4 | 0.41 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/70 R18 | 255/70 R18 | 255/60 R20 | 255/70 R18 | 255/70 R18 | 255/60 R20 |
| Tyre dimensions rear | 255/70 R18 | 255/70 R18 | 275/45 R22 | 255/70 R18 | 255/70 R18 | 275/45 R22 |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.5J x 20 | 8.0J x 18 | 8.0J x 18 | 8.5J x 20 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 9.0J x 22 | 8.0J x 18 | 8.0J x 18 | 9.0J x 22 |
| Brake dimensions front | 349 | 363 | 380 | 349 | 363 | 380 |
| Brake dimensions rear | 325 | 350 | 365 | 325 | 350 | 365 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/12.0 | 11.3/12.0 | 11.3/12.0 | 12.84/13.12 | 12.84/13.12 | 12.84/13.12 |
| Overall length [mm] | 4323-4583 | 4323-4583 | 4323-4583 | 4758-5018 | 4758-5018 | 4758-5018 |
| Overall width without/including mirrors [mm] | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 |
| Overall height [mm] | 1969-1974 | 1969-1974 | 1969 | 1967 | 1967 | 1967 |
| Wheelbase [mm] | 2587 | 2587 | 2587 | 3022 | 3022 | 3022 |
| Front wheel track [mm] | 1704 | 1704 | 1704 | 1704 | 1704 | 1704 |
| Rear wheel track [mm] | 1702 | 1702 | 1702 | 1699 | 1699 | 1699 |
| Forward overhang [mm] | 845 | 845 | 845 | 845 | 845 | 845 |
| Rear overhang [mm] | 891 | 891 | 891 | 891 | 891 | 891 |
| Clearance [mm] | 225 [291 subject to a surcharge] | 225 [291 subject to a surcharge] | 216-291 | 218 [291 subject to a surcharge] | 218 [291 subject to a surcharge] | 218 [291 subject to a surcharge] |
| Wading depth [mm] | 850 [900 subject to a surcharge] | 850 [900 subject to a surcharge] | 900 | 900 | 900 | 900 |
| Approach angle front [°] | 31.0 [38.0 subject to a surcharge] | 31.0 [38.0 subject to a surcharge] | 30.1-37.5 | 30.1 [38.0 subject to a surcharge] | 30.1 [38.0 subject to a surcharge] | 30.1 [38.0 subject to a surcharge] |
| Approach angle rear [°] | 37.9 [40.0 subject to a surcharge] | 37.9 [40.0 subject to a surcharge] | 37.6-40.0 | 37.7 [40.0 subject to a surcharge] | 37.7 [40.0 subject to a surcharge] | 37.7 [40.0 subject to a surcharge] |
| Transition angle [°] | 25.0 [31.0 subject to a surcharge] | 25.0 [31.0 subject to a surcharge] | 24.2-31.0 | 22.0 [28.0 subject to a surcharge] | 22.0 [28.0 subject to a surcharge] | 22.0 [28.0 subject to a surcharge] |
| Climbing rate [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Maximum side tilt [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1032 | 1032 | 1032 |
| Headroom rear [mm] | 980 | 980 | 980 | 1025 | 1025 | 1025 |
| Front elbow/shoulder width [mm] | -/1545 | -/1545 | -/1545 | -/1545 | -/1545 | -/1545 |
| Rear elbow/shoulder width [mm] | -/1433 | -/1433 | -/1433 | -/1503 | -/1503 | -/1503 |
| Legroom front knees/total [mm] | -/993 | -/993 | -/993 | -/993 | -/993 | -/993 |
| Legroom rear knees/total [mm] | -/929 | -/929 | -/929 | -/992 [- | -/992 [- | -/992 [- |
| Third row of seats, headroom [mm] | - | - | - | 1033 | 1033 | 1033 |
| Third row elbow/shoulder width [mm] | - | - | - | -/1227 | -/1227 | -/1227 |
| P400e PHEV AWD 110 | D200 MHEV AWD 90 | D200 AWD 90 | D240 AWD 90 | D250 MHEV AWD 90 | D300 MHEV AWD 90 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2020 to | from to 2020 | from to 2020 | from 2020 to | from 2020 to |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 2996 | 1999 | 1999 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 221/5500 combustion 105 el. 297/1500-4000 total | 147/4000 | 150/4000 | 177/4000 | 183/4000 | 221/4000 |
| Maximum torque [Nm/min-1] | 400 combustion 275 el. 640/1500-3500 total | 500/1250-2500 | 430/1400 | 430/1400 | 570/1250-2500 | 650/1500-2500 |
| Bore and stroke [mm x mm] | 83.0 x 92.29 | 83.0 x 92.31 | 83.0 x 92.4 | 83.0 x 92.4 | 83.0 x 92.31 | 83.0 x 92.31 |
| Compression ratio | 9.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 191 [209 subject to a surcharge] | 175 | 175 | 188 | 188 | 191 [209 subject to a surcharge] |
| Acceleration 0–100 km/h [s] | 5.6 | 9.8 | 10.2 | 9.0 | 8.0 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3.8 | 7.9 | 8.5 | 7.2 | 6.1 | 4.8 |
| City [l] | - | - | 8.7-8.3 | 8.7-8.3 | - | - |
| Out of town [l] | - | - | 7.2-7.1 | 7.2-7.1 | - | - |
| Combined [l] | 2.9-2.8 [24.5-23.8 kWh] | 7.7-7.6 | 7.7-7.5 | 7.7-7.5 | 7.7-7.6 | 7.7-7.6 |
| CO2 emissions [g/km] | 66-64 | 204-199 | 203-199 | 203-199 | 204-199 | 204-199 |
| Low speed [l] | - | - | 11.2-10.8 | 11.2-10.8 | - | - |
| Medium speed [l] | - | - | 9.0-8.3 | 9.0-8.3 | - | - |
| High speed [l] | - | - | 8.3-7.6 | 8.3-7.6 | - | - |
| Extra high speed [l] | - | - | 10.1-9.3 | 10.1-9.3 | - | - |
| Combined speed [l] | 3.9-3.3 [29.2-27.4 kWh] | 9.3-8.6 | 9.5-8.8 | 9.5-8.8 | 9.3-8.6 | 9.3-8.6 |
| CO2 emissions [g/km] | 89-74 | 245-226 | 248-230 | 248-230 | 245-226 | 245-226 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | - | 48 | 48 |
| Battery type and capacity | Lithium-ion, 19.2 kWh (15.4 net) | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, - kWh | Lithium-Ionen-Akkumulator, - kWh |
| Range with fully charged battery [km] | 43 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2600 | 2303 | 2208 | 2208 | 2303 | 2303 |
| Overall weight [kg] | 3300 | 2940 | 2940 | 2940 | 2940 | 2940 |
| Maximum trailer weight unbraked/braked [kg] | 750/3000 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 150 | 150 | 150 | 150 | 150 | 150 |
| Maximum load on roof/carrier [kg] | 100/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 853 | 397 [297 VDA] | 397 [297 VDA] | 397 [297 VDA] | 397 [297 VDA] | 397 [297 VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2127 | -/1563 [- | -/1563 [- | -/1563 [- | -/1563 [- | -/1563 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 908 | 460 | 460 | 460 | 460 | 460 |
| Boot length with rear seats folded [mm] | 1744 | 1313 | 1313 | 1313 | 1313 | 1313 |
| Boot width between wheels/max [mm] | 1160/1211 | 1124/1183 | 1124/1183 | 1124/1183 | 1124/1183 | 1124/1183 |
| Boot height to headliner/ceiling [mm] | -/896 | -/904 | -/904 | -/904 | -/904 | -/904 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-6 | 5/6 | 5/6 | 5/6 | 5/6 | 5/6 |
| Fuel tank volume [l] | 90 | 89 | 85 | 85 | 89 | 89 |
| AdBlue tank volume [l] | - | 20.7 | 20.7 | 20.7 | 20.7 | 20.7 |
| Air resistance [Cd] | 0.39 | 0.41 | 0.4 | 0.4 | 0.41 | 0.41 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/60 R20 | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/65 R19 |
| Tyre dimensions rear | 255/60 R20 | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/65 R19 |
| Wheel size front | 8.5J x 20 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 19 |
| Wheel size rear | 8.5J x 20 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 19 |
| Brake dimensions front | 380 | 349 | 349 | 349 | 349 | 363 |
| Brake dimensions rear | 365 | 325 | 325 | 325 | 325 | 350 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 12.84/13.12 | 11.3/12.0 | 11.3/12.0 | 11.3/12.0 | 11.3/12.0 | 11.3/12.0 |
| Overall length [mm] | 4758-5018 | 4323-4583 | 4323-4583 | 4323-4583 | 4323-4583 | 4323-4583 |
| Overall width without/including mirrors [mm] | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 |
| Overall height [mm] | 1967 | 1969-1974 | 1969-1974 | 1969-1974 | 1969-1974 | 1969-1974 |
| Wheelbase [mm] | 3022 | 2587 | 2587 | 2587 | 2587 | 2587 |
| Front wheel track [mm] | 1704 | 1704 | 1704 | 1704 | 1704 | 1704 |
| Rear wheel track [mm] | 1699 | 1702 | 1702 | 1702 | 1702 | 1702 |
| Forward overhang [mm] | 845 | 845 | 845 | 845 | 845 | 845 |
| Rear overhang [mm] | 891 | 891 | 891 | 891 | 891 | 891 |
| Clearance [mm] | 218 [291 subject to a surcharge] | 225 [291 subject to a surcharge] | 225 [291 subject to a surcharge] | 225 [291 subject to a surcharge] | 225 [291 subject to a surcharge] | 225 [291 subject to a surcharge] |
| Wading depth [mm] | 900 | 850 [900 subject to a surcharge] | 850 [900 subject to a surcharge] | 850 [900 subject to a surcharge] | 850 [900 subject to a surcharge] | 850 [900 subject to a surcharge] |
| Approach angle front [°] | 30.1 [38.0 subject to a surcharge] | 31.0 [38.0 subject to a surcharge] | 31.0 [38.0 subject to a surcharge] | 31.0 [38.0 subject to a surcharge] | 31.0 [38.0 subject to a surcharge] | 31.0 [38.0 subject to a surcharge] |
| Approach angle rear [°] | 37.7 [40.0 subject to a surcharge] | 37.9 [40.0 subject to a surcharge] | 37.9 [40.0 subject to a surcharge] | 37.9 [40.0 subject to a surcharge] | 37.9 [40.0 subject to a surcharge] | 37.9 [40.0 subject to a surcharge] |
| Transition angle [°] | 22.0 [28.0 subject to a surcharge] | 25.0 [31.0 subject to a surcharge] | 25.0 [31.0 subject to a surcharge] | 25.0 [31.0 subject to a surcharge] | 25.0 [31.0 subject to a surcharge] | 25.0 [31.0 subject to a surcharge] |
| Climbing rate [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Maximum side tilt [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Headroom front [mm] | 1032 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 1025 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | -/1545 | -/1545 | -/1545 | -/1545 | -/1545 | -/1545 |
| Rear elbow/shoulder width [mm] | -/1503 | -/1433 | -/1433 | -/1433 | -/1433 | -/1433 |
| Legroom front knees/total [mm] | -/993 | -/993 | -/993 | -/993 | -/993 | -/993 |
| Legroom rear knees/total [mm] | -/992 [- | -/929 | -/929 | -/929 | -/929 | -/929 |
| Third row of seats, headroom [mm] | 1033 | - | - | - | - | - |
| Third row elbow/shoulder width [mm] | -/1227 | - | - | - | - | - |
| D200 MHEV AWD 110 | D200 AWD 110 | D240 AWD 110 | D250 MHEV AWD 110 | D300 MHEV AWD 110 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from to 2020 | from to 2020 | from 2020 to | from 2020 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2996 | 1999 | 1999 | 2996 | 2996 | |
| Maximum output / speed [kW/min-1] | 147/4000 | 150/4000 | 177/4000 | 183/4000 | 221/4000 | |
| Maximum torque [Nm/min-1] | 500/1250-2500 | 430/1400 | 430/1400 | 570/1250-2500 | 650/1500-2500 | |
| Bore and stroke [mm x mm] | 83.0 x 92.31 | 83.0 x 92.4 | 83.0 x 92.4 | 83.0 x 92.31 | 83.0 x 92.31 | |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 175 | 175 | 188 | 188 | 191 [209 subject to a surcharge] | |
| Acceleration 0–100 km/h [s] | 10.2 | 10.3 | 9.1 | 8.3 | 7.0 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | 8.2 | 8.6 | 7.3 | 6.4 | 5.1 | |
| City [l] | - | 8.8-8.4 | 8.8-8.4 | - | - | |
| Out of town [l] | - | 7.2-7.1 | 7.2-7.1 | - | - | |
| Combined [l] | 7.8-7.6 | 7.8-7.6 | 7.8-7.6 | 7.8-7.6 | 7.8-7.6 | |
| CO2 emissions [g/km] | 205-200 | 205-199 | 205-199 | 205-200 | 205-200 | |
| Low speed [l] | - | 11.4-10.9 | 11.4-10.9 | - | - | |
| Medium speed [l] | - | 9.3-8.5 | 9.3-8.5 | - | - | |
| High speed [l] | - | 8.5-7.8 | 8.5-7.8 | - | - | |
| Extra high speed [l] | - | 10.2-9.4 | 10.2-9.4 | - | - | |
| Combined speed [l] | 9.5-8.8 | 9.6-8.9 | 9.6-8.9 | 9.5-8.8 | 9.5-8.8 | |
| CO2 emissions [g/km] | 250-230 | 253-234 | 253-234 | 250-230 | 250-230 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | 48 | - | - | 48 | 48 | |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, - kWh | Lithium-Ionen-Akkumulator, - kWh | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 2415 | 2323 [2380 seven seats] | 2323 [2380 seven seats] | 2415 | 2415 | |
| Overall weight [kg] | 3200 | 3150 [3215 seven seats] | 3150 [3215 seven seats] | 3200 | 31200 | |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 150 | 150 | 150 | 150 | 150 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 972 [231 seven seats] | 1075 [231 seven seats] | 1075 [231 seven seats] | 972 [231 seven seats] | 972 [231 seven seats] | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2277 [- | -/2380 [- | -/2380 [- | -/2277 [- | -/2277 [- | |
| Boot volume, third row of seats [l] | - | - | - | - | - | |
| Boot volume, third row seats folded [l] | - | - | - | - | - | |
| Boot length [mm] | 919 [289-900 seven seats] | 919 [289-900 seven seats] | 919 [289-900 seven seats] | 919 [289-900 seven seats] | 919 [289-900 seven seats] | |
| Boot length with rear seats folded [mm] | 1763 [1789 seven seats] | 1763 [1789 seven seats] | 1763 [1789 seven seats] | 1763 [1789 seven seats] | 1763 [1789 seven seats] | |
| Boot width between wheels/max [mm] | 1160 [1188/1211 | 1160 [1188/1211 | 1160 [1188/1211 | 1160 [1188/1211 | 1160 [1188/1211 | |
| Boot height to headliner/ceiling [mm] | -/932 | -/904 | -/904 | -/932 | -/932 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5-6/7 | 5-6/7 | 5-6/7 | 5-6/7 | 5-6/7 | |
| Fuel tank volume [l] | 89 | 85 | 85 | 89 | 89 | |
| AdBlue tank volume [l] | 20.7 | 20.7 | 20.7 | 20.7 | 20.7 | |
| Air resistance [Cd] | 0.41 | 0.39 | 0.39 | 0.41 | 0.41 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/65 R19 | |
| Tyre dimensions rear | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/70 R18 | 255/65 R19 | |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 19 | |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 19 | |
| Brake dimensions front | 349 | 349 | 349 | 349 | 363 | |
| Brake dimensions rear | 325 | 325 | 325 | 325 | 350 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | |
| Turning diameter track/circumference [m] | 12.84/13.12 | 12.84/13.12 | 12.84/13.12 | 12.84/13.12 | 12.84/13.12 | |
| Overall length [mm] | 4758-5018 | 4758-5018 | 4758-5018 | 4758-5018 | 4758-5018 | |
| Overall width without/including mirrors [mm] | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 | 1996/2105 | |
| Overall height [mm] | 1967 | 1967 | 1967 | 1967 | 1967 | |
| Wheelbase [mm] | 3022 | 3022 | 3022 | 3022 | 3022 | |
| Front wheel track [mm] | 1704 | 1704 | 1704 | 1704 | 1704 | |
| Rear wheel track [mm] | 1699 | 1699 | 1699 | 1699 | 1699 | |
| Forward overhang [mm] | 845 | 845 | 845 | 845 | 845 | |
| Rear overhang [mm] | 891 | 891 | 891 | 891 | 891 | |
| Clearance [mm] | 218 [291 subject to a surcharge] | 218 [291 subject to a surcharge] | 218 [291 subject to a surcharge] | 218 [291 subject to a surcharge] | 218 [291 subject to a surcharge] | |
| Wading depth [mm] | 900 | 900 | 900 | 900 | 900 | |
| Approach angle front [°] | 30.1 [38.0 subject to a surcharge] | 30.1 [38.0 subject to a surcharge] | 30.1 [38.0 subject to a surcharge] | 30.1 [38.0 subject to a surcharge] | 30.1 [38.0 subject to a surcharge] | |
| Approach angle rear [°] | 37.7 [40.0 subject to a surcharge] | 37.7 [40.0 subject to a surcharge] | 37.7 [40.0 subject to a surcharge] | 37.7 [40.0 subject to a surcharge] | 37.7 [40.0 subject to a surcharge] | |
| Transition angle [°] | 22.0 [28.0 subject to a surcharge] | 22.0 [28.0 subject to a surcharge] | 22.0 [28.0 subject to a surcharge] | 22.0 [28.0 subject to a surcharge] | 22.0 [28.0 subject to a surcharge] | |
| Climbing rate [°] | 45 | 45 | 45 | 45 | 45 | |
| Maximum side tilt [°] | 45 | 45 | 45 | 45 | 45 | |
| Headroom front [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | |
| Headroom rear [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | |
| Front elbow/shoulder width [mm] | -/1545 | -/1545 | -/1545 | -/1545 | -/1545 | |
| Rear elbow/shoulder width [mm] | -/1503 | -/1503 | -/1503 | -/1503 | -/1503 | |
| Legroom front knees/total [mm] | -/993 | -/993 | -/993 | -/993 | -/993 | |
| Legroom rear knees/total [mm] | -/992 [- | -/992 [- | -/992 [- | -/992 [- | -/992 [- | |
| Third row of seats, headroom [mm] | 1033 | 1033 | 1033 | 1033 | 1033 | |
| Third row elbow/shoulder width [mm] | -/1227 | -/1227 | -/1227 | -/1227 | -/1227 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
