Kia Sportage
Date of manufacture
2018 – to this day (Medium SUV)
Platform
-
Manufacturing locations
Gwangju, South Korea
Žilina, Slovakia
Kaliningrad, Russia
Designer
Peter Schreyer
Tags
Compact SUV
Korean cars
The new Kia Sportage is a mid-size SUV developed and launched in 2018. The car is produced in three countries - South Korea, Slovakia and Russia. The engine range includes petrol, diesel and hybrid power units. The most powerful engine is the 2.0 CRDi 48V (136 kW). The 1.6 T-GDI version has a maximum speed of 205 km/h. The most fuel-efficient variant is the 1.6 CRDi 115 48V with a combined fuel consumption of 4.2 l/100 km and CO2 emissions of 110 g/km. The luggage compartment volume is 480 liters. The Sportage model achieved the highest rating of 5 out of 5 in the EURONCAP safety test in 2015.
Car body style
Medium SUV
after upgrade (facelift)
Date of manufacture
2018 – to this dayInternal designation
QL
Technical data
Medium SUV
| 1.6 GDI | 1.6 T-GDI | 1.6 T-GDI | 1.6 T-GDI | 1.6 T-GDI | 1.6 CRDi 115 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1591 | 1591 | 1591 | 1591 | 1598 |
| Maximum output / speed [kW/min-1] | 97/6300 | 130/5500 | 130/5500 | 130/5500 | 130/5500 | 85/4000 |
| Maximum torque [Nm/min-1] | 161/4850 | 265/1500-4500 | 265/1500-4500 | 265/1500-4500 | 265/1500-4500 | 280/1250-2750 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77.0 x 85.8 |
| Compression ratio | 11,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
|
|
| - |
| Top speed [km/h] | 182 | 205 | 201 | 202 | 201 | 175 |
| Acceleration 0–100 km/h [s] | 11,5 | 9,2 | 8,9 | 9,5 | 9,1 | 11,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,3-8,1 | 9,8-9,2 | 7,9-7,6 | 9,8-9,4 | 9,1-8,2 | 5,4-5,2 |
| Out of town [l] | 6,6-6,0 | 6,4-6,3 | 6,4-5,7 | 6,7-6,6 | 6,8-6,7 | 4,8-4,5 |
| Combined [l] | 7,2-6,8 | 7,6-7,3 | 6,9-6,5 | 7,9-7,6 | 7,6-7,2 | 5,0-4,8 |
| CO2 emissions [g/km] | 165-155 | 175-168 | 158-149 | 180-175 | 175-165 | 132-126 |
| Low speed [l] | 9.2-8.8 | 10.7 | - | 12.7-10.9 | 10.7-10.2 | - |
| Medium speed [l] | 7.5-6.9 | 7.9-7.8 | - | 9.0-8.1 | 8.2-7.8 | - |
| High speed [l] | 6.9-6.5 | 7.2-6.8 | - | 7.9-7.3 | 7.4-7.1 | - |
| Extra high speed [l] | 8.7-8.1 | 8.6-8.2 | - | 9.2-8.8 | 9.2-8.8 | - |
| Combined speed [l] | 8.0-7.4 | 8.3-8.0 | - | 9.2-8.5 | 8.6-8.3 | - |
| CO2 emissions [g/km] | 180-168 | 188-181 | - | 206-192 | 195-187 | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | 71 | 72 | 73 | 72 | 73 | 69 |
| Standby weight [kg] | 1490-1618 | 1545-1709 | 1577-1742 | 1604-1769 | 1637-1802 | 1579-1736 |
| Overall weight [kg] | 2000 | 2110 | 2140 | 2170 | 2200 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 650/1400 | 750/1900 | 750/1600 | 750/1900 | 750/1600 | 750/1400 |
| Maximum front/rear axle load [kg] | 1240/1150 | 1240/1150 | 1240/1150 | 1240/1150 | 1240/1150 | 1240/1150 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 503 | 503 | 503 | 503 | 503 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1492 | -/1492 | -/1492 | -/1492 | -/1492 | -/1469 |
| Boot length [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Boot length with rear seats folded [mm] | 1709 | 1709 | 1709 | 1709 | 1709 | 1709 |
| Boot width between wheels/max [mm] | 1035/1330 | 1035/1330 | 1035/1330 | 1035/1330 | 1035/1330 | 1035/1330 |
| Boot height to headliner/ceiling [mm] | -/730 | -/730 | -/730 | -/730 | -/730 | -/730 |
| Loading edge height [mm] | 732 | 732 | 732 | 732 | 732 | 732 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | 18 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H |
| Tyre dimensions rear | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H |
| Wheel size front | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 |
| Wheel size rear | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 |
| Brake dimensions front | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 |
| Brake dimensions rear | 302 x 10 | 302 x 10 | 302 x 10 | 302 x 10 | 302 x 10 | 302 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.51 | 2.51 | 2.51 | 2.51 | 2.51 | 2.51 |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4485 | 4485 | 4485 | 4485 | 4485 | 4485 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1645 | 1645 | 1645 | 1645 | 1645 | 1645 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1609-1625 | 1609-1625 | 1609-1625 | 1609-1625 | 1609-1625 | 1609-1625 |
| Rear wheel track [mm] | 1620-1636 | 1620-1636 | 1620-1636 | 1620-1636 | 1620-1636 | 1620-1636 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Clearance [mm] | 172 | 172 | 172 | 172 | 172 | 172 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
| Approach angle rear [°] | 26.1 | 26.1 | 26.1 | 26.1 | 26.1 | 26.1 |
| Transition angle [°] | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 997 | 997 | 997 | 997 | 997 | 997 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1380/1450 | 1380/1450 | 1380/1450 | 1380/1450 | 1380/1450 | 1380/1450 |
| Rear elbow/shoulder width [mm] | 1300/1400 | 1300/1400 | 1300/1400 | 1300/1400 | 1300/1400 | 1300/1400 |
| Legroom front knees/total [mm] | -/1129 | -/1129 | -/1129 | -/1129 | -/1129 | -/1129 |
| Legroom rear knees/total [mm] | -/970 | -/970 | -/970 | -/970 | -/970 | -/970 |
| 1.6 CRDi 136 | 1.6 CRDi 136 | 1.6 CRDi 136 AWD | 1.6 CRDi 136 AWD | 1.6 CRDi 115 48V | 1.6 CRDi 136 48V | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | 100/4000 | 100/4000 | 85/4000 12 el. | 100/4000 12 el. |
| Maximum torque [Nm/min-1] | 320/2000-2250 | 320/2000-2250 | 320/2000-2250 | 320/2000-2250 | 280/1250-2750 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
|
|
| - | - |
| Top speed [km/h] | 180 | 180 | 180 | 180 | 175 | 180 |
| Acceleration 0–100 km/h [s] | 11,2 | 11,4 | 11,4 | 12,0 | 11,8 | 11,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3-5,1 | 5,0-4.8 | 5,6-5,4 | 5,2-5,0 | 4,8-4,2 | 5.5-4,4 |
| Out of town [l] | 4,8-4,6 | 5.0-4.5 | 5,0-4,9 | 5,3-5,1 | 4,2-4,1 | 4,6-3,9 |
| Combined [l] | 5,0-4,8 | 4.9-4.7 | 5,2-5,1 | 5,2-5,1 | 4,4-4,2 | 4,9-4,2 |
| CO2 emissions [g/km] | 132-126 | 129-123 | 138-134 | 138-133 | 117-110 | 129-110 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | 69 | 69 | 69 | 69 | 69 | 69 |
| System voltage [V] | - | - | - | - | 48 | 48 |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1579-1736 | 1605-1762 | 1652-1808 | 1668-1825 | 1609-1732 | 1609-1732 |
| Overall weight [kg] | 2120 | 2145 | 2195 | 2210 | 2120 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1600 | 750/1400 | 750/1600 | 750/1400 | 750/1400 |
| Maximum front/rear axle load [kg] | 1240/1150 | 1240/1150 | 1240/1150 | 1240/1150 | 1240/1150 | 1240/1150 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1469 | -/1469 | -/1469 | -/1469 | -/1469 | -/1469 |
| Boot length [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Boot length with rear seats folded [mm] | 1709 | 1709 | 1709 | 1709 | 1709 | 1709 |
| Boot width between wheels/max [mm] | 1035/1330 | 1035/1330 | 1035/1330 | 1035/1330 | 1035/1330 | 1035/1330 |
| Boot height to headliner/ceiling [mm] | -/730 | -/730 | -/730 | -/730 | -/730 | -/730 |
| Loading edge height [mm] | 732 | 732 | 732 | 732 | 732 | 732 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | 18 | 18 | 18 | 18 | 18 | 18 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H |
| Tyre dimensions rear | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H |
| Wheel size front | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 |
| Wheel size rear | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 |
| Brake dimensions front | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 |
| Brake dimensions rear | 302 x 10 | 302 x 10 | 302 x 10 | 302 x 10 | 302 x 10 | 302 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.51 | 2.51 | 2.51 | 2.51 | 2.51 | 2.51 |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4485 | 4485 | 4485 | 4485 | 4485 | 4485 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1645 | 1645 | 1645 | 1645 | 1645 | 1645 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1609-1625 | 1609-1625 | 1609-1625 | 1609-1625 | 1609-1625 | 1609-1625 |
| Rear wheel track [mm] | 1620-1636 | 1620-1636 | 1620-1636 | 1620-1636 | 1620-1636 | 1620-1636 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Clearance [mm] | 172 | 172 | 172 | 172 | 172 | 172 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
| Approach angle rear [°] | 26.1 | 26.1 | 26.1 | 26.1 | 26.1 | 26.1 |
| Transition angle [°] | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 997 | 997 | 997 | 997 | 997 | 997 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1380/1450 | 1380/1450 | 1380/1450 | 1380/1450 | 1380/1450 | 1380/1450 |
| Rear elbow/shoulder width [mm] | 1300/1400 | 1300/1400 | 1300/1400 | 1300/1400 | 1300/1400 | 1300/1400 |
| Legroom front knees/total [mm] | -/1129 | -/1129 | -/1129 | -/1129 | -/1129 | -/1129 |
| Legroom rear knees/total [mm] | -/970 | -/970 | -/970 | -/970 | -/970 | -/970 |
| 1.6 CRDi 136 AWD 48V | 1.6 CRDi 136 AWD 48V | 2.0 CRDi 48V | 2.0 CRDi 48V | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1598 | 1598 | 1995 | 1995 | ||
| Maximum output / speed [kW/min-1] | 100/4000 12 el. | 100/4000 12 el. | 136/4000 12 el. | 136/4000 12 el. | ||
| Maximum torque [Nm/min-1] | 320/2000-2250 | 320/2000-2250 | 400/1750-2750 | 400/1750-2750 | ||
| Bore and stroke [mm x mm] | 77.0 x 85.8 | 77.0 x 85.8 | 84,0 x 90,0 | 84,0 x 90,0 | ||
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 180 | 180 | 201 | 201 | ||
| Acceleration 0–100 km/h [s] | 11,4 | 12,0 | 9,5 | 9,5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.8-4,8 | 5.0-4,6 | 5,4-5,2 | 6,2-6,1 | ||
| Out of town [l] | 5.1-4,5 | 5.1-4,7 | 5,2-5,1 | 5,4-5,2 | ||
| Combined [l] | 5.4-4,7 | 5.1-4,7 | 5,4-5,2 | 5,8-5,5 | ||
| CO2 emissions [g/km] | 142-123 | 133-125 | 142-138 | 153-144 | ||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | 69 | 69 | 69 | 70 | ||
| System voltage [V] | 48 | 48 | 48 | 48 | ||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | ||
| Range with fully charged battery [km] | - | - | - | - | ||
| Charging time | - | - | - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1682-1804 | 1698-1821 | 1723-1856 | 1747-1880 | ||
| Overall weight [kg] | 2195 | 2210 | 2230 | 2250 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1600 | 750/2200 | 750/1900 | ||
| Maximum front/rear axle load [kg] | 1240/1150 | 1240/1150 | 1240/1150 | 1240/1150 | ||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 480 | 480 | 439 | 439 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1469 | -/1469 | -/1428 | -/1428 | ||
| Boot length [mm] | 912 | 912 | 912 | 912 | ||
| Boot length with rear seats folded [mm] | 1709 | 1709 | 1709 | 1709 | ||
| Boot width between wheels/max [mm] | 1035/1330 | 1035/1330 | 1035/1330 | 1035/1330 | ||
| Boot height to headliner/ceiling [mm] | -/730 | -/730 | -/730 | -/730 | ||
| Loading edge height [mm] | 732 | 732 | 732 | 732 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 62 | 62 | 58 | 58 | ||
| AdBlue tank volume [l] | 18 | 18 | 18 | 18 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | ||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | ||
| Tyre dimensions front | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | ||
| Tyre dimensions rear | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | 215/70 R16 100H | ||
| Wheel size front | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | ||
| Wheel size rear | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | 6,5J x 16 ET42,5 | ||
| Brake dimensions front | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | 305 x 25 or 320 x 28 | ||
| Brake dimensions rear | 302 x 10 | 302 x 10 | 302 x 10 | 302 x 10 | ||
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | ||
| Number of steering wheel turns | 2.51 | 2.51 | 2.51 | 2.51 | ||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | ||
| Overall length [mm] | 4485 | 4485 | 4485 | 4485 | ||
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | ||
| Overall height [mm] | 1645 | 1645 | 1645 | 1645 | ||
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | ||
| Front wheel track [mm] | 1609-1625 | 1609-1625 | 1609-1625 | 1609-1625 | ||
| Rear wheel track [mm] | 1620-1636 | 1620-1636 | 1620-1636 | 1620-1636 | ||
| Forward overhang [mm] | 905 | 905 | 905 | 905 | ||
| Rear overhang [mm] | 910 | 910 | 910 | 910 | ||
| Clearance [mm] | 172 | 172 | 172 | 172 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 16.8 | 16.8 | 16.8 | 16.8 | ||
| Approach angle rear [°] | 26.1 | 26.1 | 26.1 | 26.1 | ||
| Transition angle [°] | 17.3 | 17.3 | 17.3 | 17.3 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 997 | 997 | 997 | 997 | ||
| Headroom rear [mm] | 993 | 993 | 993 | 993 | ||
| Front elbow/shoulder width [mm] | 1380/1450 | 1380/1450 | 1380/1450 | 1380/1450 | ||
| Rear elbow/shoulder width [mm] | 1300/1400 | 1300/1400 | 1300/1400 | 1300/1400 | ||
| Legroom front knees/total [mm] | -/1129 | -/1129 | -/1129 | -/1129 | ||
| Legroom rear knees/total [mm] | -/970 | -/970 | -/970 | -/970 | ||
| Rating | - |    | - | - | ||
| Clean Air Index | - | 3.4/10 | - | - | ||
| Energy Efficiency Index | - | 3.2/10 | - | - | ||
| GHG index | - | 0.1/10 | - | - |

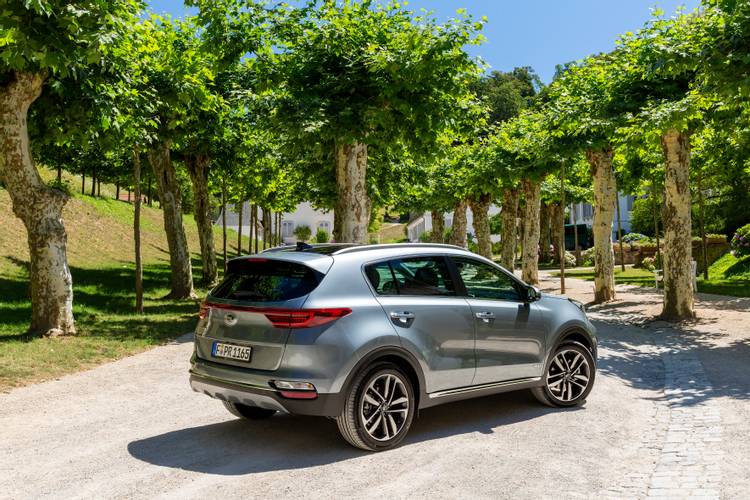

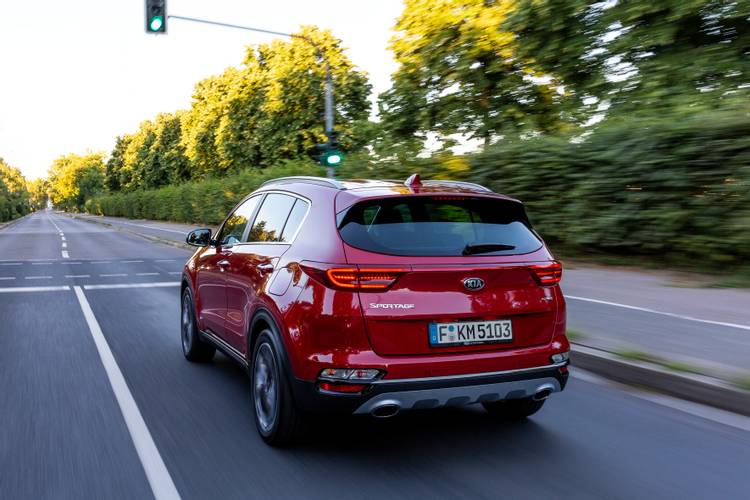

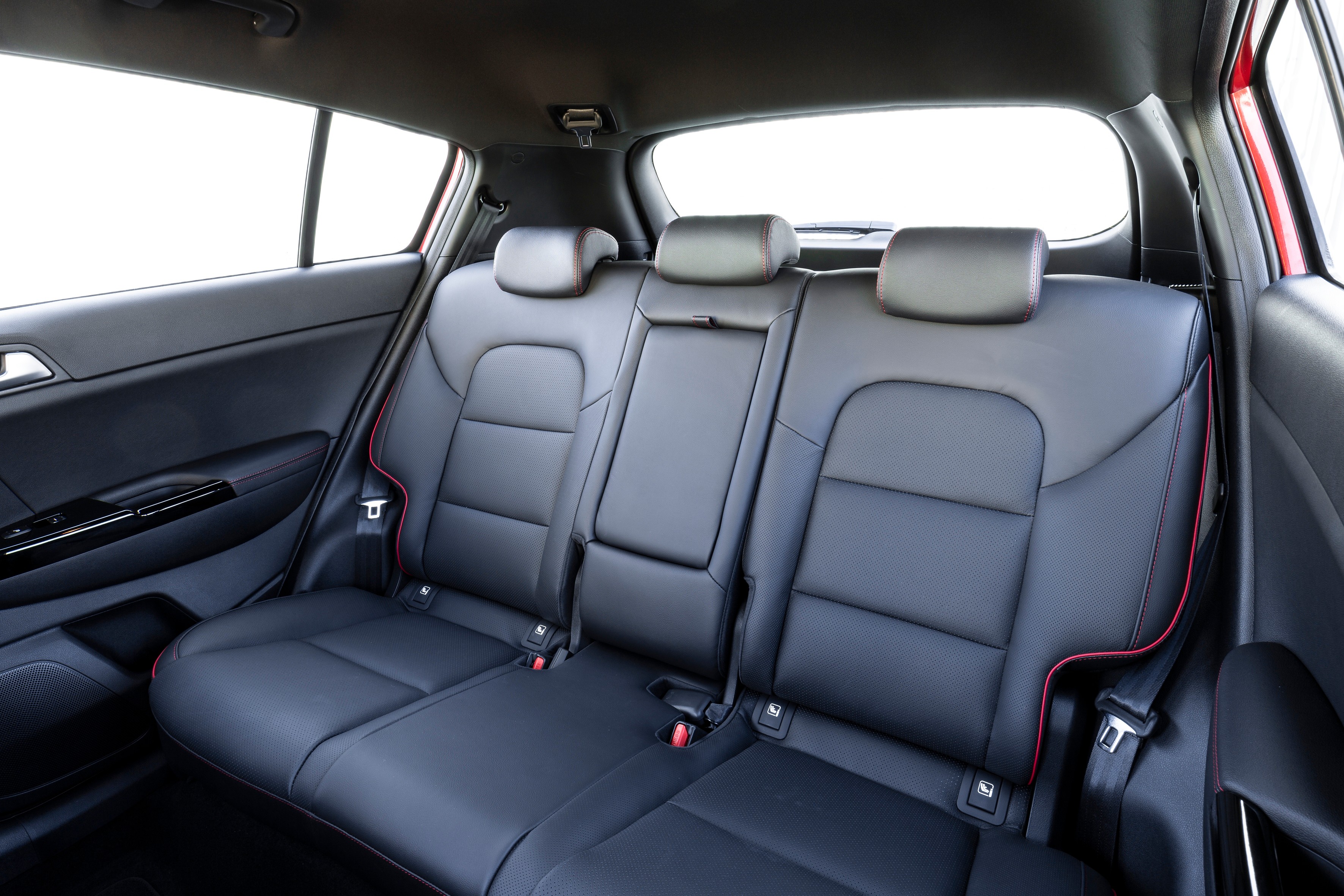

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
