Kia Sportage

Date of manufacture

9/2004 – 2008 (SUV)

Platform

Manufacturing locations

Gwangju, South Korea

Žilina, Slovakia

Designer

Car body style

SUV

Date of manufacture

9/2004 – 2008

Internal designation

Engine size

Petrol

2.0 CVVT

2.7 V6

Diesel

2.0 CRDi VGT

Technical data

SUV

	2.0 CVVT	2.0 CVVT	2.7 V6	2.0 CRDi VGT	2.0 CRDi VGT
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	6/24	4/16	4/16
Engine displacement [cm³]	1975	1975	2656	1991	1991
Maximum output / speed [kW/min-1]	104/6000	104/6000	129/6000	103/4000	103/4000
Maximum torque [Nm/min-1]	184/4500	184/4500	241/4000	304/1800-2500	304/1800-2500
Bore and stroke [mm x mm]	82,0 x 93,5	82,0 x 93,5	86,7 x 75,0	83,0 x 92,0	83,0 x 92,0
Compression ratio	10,1:1	10,1:1	10,1:1	17,3:1	17,3:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	variable valve timing CVVT	variable valve timing CVVT	variable valve timing CVVT	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	Front	4x4	4x4	Front	4x4
Gearbox	5 gear manual	5 gear manual	4 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	connectable all-wheel drive TOD	connectable all-wheel drive TOD automatic gearbox	-	connectable all-wheel drive TOD

Top speed [km/h]	180	174	180	178	177
Acceleration 0–100 km/h [s]	10.4	11.3	10.5	11.1	12.0
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	10.4	10.6	13.2	8.8	8.9
Out of town [l]	6.6	6.8	8.2	5.9	6.2
Combined [l]	8.0	8.2	10.0	7.0	7.1
CO2 emissions [g/km]	190	194	237	184	187

Emission standard	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1542	1623	1670	1665	1760
Overall weight [kg]	2050	2140	2170	2170	2260
Maximum trailer weight unbraked/braked [kg]	500/1400	750/1600	750/1600	500/1600	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	325	325	325	325	325

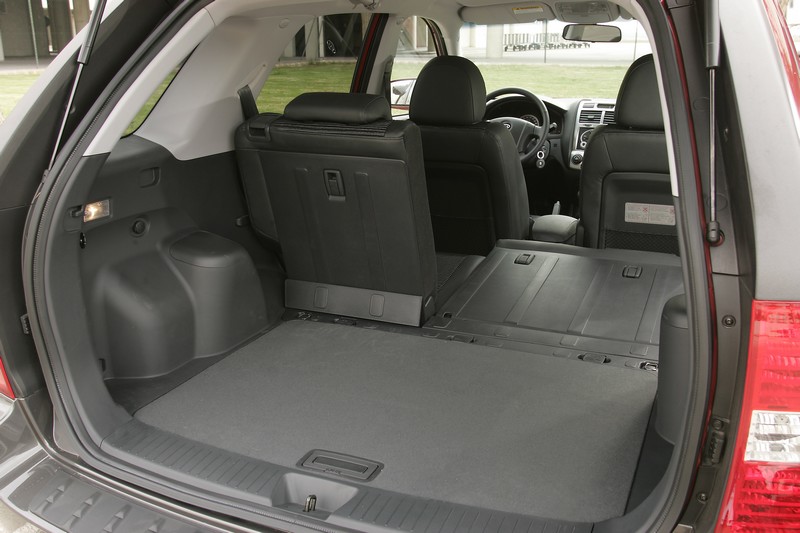

Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1375	-/1375	-/1375	-/1375	-/1375
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	58	58	65	58	58
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser
Rear suspension	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser
Tyre dimensions front	215/65 R16	215/65 R16	235/55 R17	215/65 R16	215/65 R16
Tyre dimensions rear	215/65 R16	215/65 R16	235/55 R17	215/65 R16	215/65 R16
Wheel size front	6.5J x 16	6.5J x 16	7.0J x 17	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	7.0J x 17	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	10.8	10.8	10.8	10.8	10.8

Overall length [mm]	4350	4350	4350	4350	4350
Overall width without/including mirrors [mm]	1800/-	1800/-	1800/-	1800/-	1800/-
Overall height [mm]	1695	1695	1695	1695	1695
Wheelbase [mm]	2630	2630	2630	2630	2630
Front wheel track [mm]	1540	1540	1540	1540	1540
Rear wheel track [mm]	1540	1540	1540	1540	1540
Forward overhang [mm]	880	880	880	880	880
Rear overhang [mm]	840	840	840	840	840
Clearance [mm]	195	195	195	195	195
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	28.8	28.8	28.8	28.8	28.8
Approach angle rear [°]	28.9	28.9	28.9	28.9	28.9
Transition angle [°]	18.8	18.8	18.8	18.8	18.8
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
