Kia Picanto

Date of manufacture

5/2011 – 2015 (Three-door hatchback)

5/2011 – 2015 (Five-door hatchback)

Platform

Manufacturing locations

Seosan, South Korea

Designer

Car body style

Three-door hatchback

Date of manufacture

5/2011 – 2015

Internal designation

Engine size

1.0 CVVT

1.0 CVVT ECO Dynamic

1.25 CVVT

1.25 CVVT ECO Dynamic

1.25 CVVT

Five-door hatchback

Date of manufacture

5/2011 – 2015

Internal designation

Engine size

1.0 CVVT

1.0 CVVT ECO Dynamic

1.25 CVVT

1.25 CVVT ECO Dynamic

1.25 CVVT

Euro NCAP

Technical data

Three-door hatchback

	1.0 CVVT	1.0 CVVT ECO Dynamic	1.25 CVVT	1.25 CVVT ECO Dynamic	1.25 CVVT
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	3/12	3/12	4/16	4/16	4/16
Engine displacement [cm³]	998	998	1248	1248	1248
Maximum output / speed [kW/min-1]	51/6200	51/6200	63/6000	63/6000	63/6000
Maximum torque [Nm/min-1]	95/3500	95/3500	121/4000	121/4000	121/4000
Bore and stroke [mm x mm]	71,0 x 84,0	71,0 x 84,0	71,0 x 78,8	71,0 x 78,8	71,0 x 78,8
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves CVVT	variable timing of intake and exhaust valves CVVT start&stop system	variable timing of intake and exhaust valves CVVT	variable timing of intake and exhaust valves CVVT start&stop system	variable timing of intake and exhaust valves CVVT

Drive axle	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	4 gear automatic
Drive specifications	-	-	-	-	automatic gearbox

Top speed [km/h]	153	153	171	171	163
Acceleration 0–100 km/h [s]	14.4	14.4	11.4	11.4	13.4
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	5.4	5.0	5.8	5.3	6.7
Out of town [l]	3.6	3.6	3.8	3.8	4.5
Combined [l]	4.2	4.1	4.5	4.3	5.3
CO2 emissions [g/km]	99	99	105	100	125

Emission standard	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	915-1015	915-1015	925-1025	925-1025	945-1030
Overall weight [kg]	1340	1340	1370	1370	1370
Maximum trailer weight unbraked/braked [kg]	400/700	400/700	400/700	400/700	400/-
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	60/-	60/-	60/-	60/-	60/-

Boot volume [l]	200	200	200	200	200
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/870	-/870	-/870	-/870	-/870
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	3	3	3	3	3
Number of seats	5	5	5	5	5
Fuel tank volume [l]	35	35	35	35	35
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.31	0.31	0.31	0.31	0.31
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	165/60 R14	165/60 R14	165/60 R14	165/60 R14	165/60 R14
Tyre dimensions rear	165/60 R14	165/60 R14	165/60 R14	165/60 R14	165/60 R14
Wheel size front	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Wheel size rear	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Brake dimensions front	241x18	241x18	241x18	241x18	241x18
Brake dimensions rear	-	-	-	-	-
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	9.8/-	9.8/-	9.8/-	9.8/-	9.8/-

Overall length [mm]	4595	4595	4595	4595	4595
Overall width without/including mirrors [mm]	1595/-	1595/-	1595/-	1595/-	1595/-
Overall height [mm]	1480	1480	1480	1480	1480
Wheelbase [mm]	2385	2385	2385	2385	2385
Front wheel track [mm]	1415	1415	1415	1415	1415
Rear wheel track [mm]	1418	1418	1418	1418	1418
Forward overhang [mm]	700	700	700	700	700
Rear overhang [mm]	510	510	510	510	510
Clearance [mm]	142	142	142	142	142
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1002	1002	1002	1002	1002
Headroom rear [mm]	962	962	962	962	962
Front elbow/shoulder width [mm]	1225/1290	1225/1290	1225/1290	1225/1290	1225/1290
Rear elbow/shoulder width [mm]	1208/1270	1208/1270	1208/1270	1208/1270	1208/1270
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Five-door hatchback

	1.0 CVVT	1.0 CVVT ECO Dynamic	1.25 CVVT	1.25 CVVT ECO Dynamic	1.25 CVVT
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	3/12	3/12	4/16	4/16	4/16
Engine displacement [cm³]	998	998	1248	1248	1248
Maximum output / speed [kW/min-1]	51/6200	51/6200	63/6000	63/6000	63/6000
Maximum torque [Nm/min-1]	95/3500	95/3500	121/4000	121/4000	121/4000
Bore and stroke [mm x mm]	71,0 x 84,0	71,0 x 84,0	71,0 x 78,8	71,0 x 78,8	71,0 x 78,8
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves CVVT	variable timing of intake and exhaust valves CVVT start&stop system	variable timing of intake and exhaust valves CVVT	variable timing of intake and exhaust valves CVVT start&stop system	variable timing of intake and exhaust valves CVVT

Drive axle	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	4 gear automatic
Drive specifications	-	-	-	-	automatic gearbox

Top speed [km/h]	153	153	171	171	163
Acceleration 0–100 km/h [s]	14.4	14.4	11.4	11.4	13.4
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	5.4	5.0	5.8	5.3	6.7
Out of town [l]	3.6	3.6	3.8	3.8	4.5
Combined [l]	4.2	4.1	4.5	4.3	5.3
CO2 emissions [g/km]	99	99	105	100	125

Emission standard	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	920-1020	920-1020	930-1030	930-1030	950-1035
Overall weight [kg]	1340	1340	1370	1370	1370
Maximum trailer weight unbraked/braked [kg]	400/700	400/700	400/700	400/700	400/-
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	60/-	60/-	60/-	60/-	60/-

Boot volume [l]	200	200	200	200	200
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/870	-/870	-/870	-/870	-/870
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	35	35	35	35	35
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.31	0.31	0.31	0.31	0.31
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	165/60 R14	165/60 R14	165/60 R14	165/60 R14	165/60 R14
Tyre dimensions rear	165/60 R14	165/60 R14	165/60 R14	165/60 R14	165/60 R14
Wheel size front	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Wheel size rear	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Brake dimensions front	241x18	241x18	241x18	241x18	241x18
Brake dimensions rear	-	-	-	-	-
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	9.6/-	9.8/-	9.8/-	9.8/-	9.8/-

Overall length [mm]	4595	4595	4595	4595	4595
Overall width without/including mirrors [mm]	1595/-	1595/-	1595/-	1595/-	1595/-
Overall height [mm]	1480	1480	1480	1480	1480
Wheelbase [mm]	2385	2385	2385	2385	2385
Front wheel track [mm]	1415	1415	1415	1415	1415
Rear wheel track [mm]	1418	1418	1418	1418	1418
Forward overhang [mm]	700	700	700	700	700
Rear overhang [mm]	510	510	510	510	510
Clearance [mm]	142	142	142	142	142
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1002	1002	1002	1002	1002
Headroom rear [mm]	962	962	962	962	962
Front elbow/shoulder width [mm]	1225/1290	1225/1290	1225/1290	1225/1290	1225/1290
Rear elbow/shoulder width [mm]	1139/1280	1139/1280	1139/1280	1139/1280	1139/1280
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

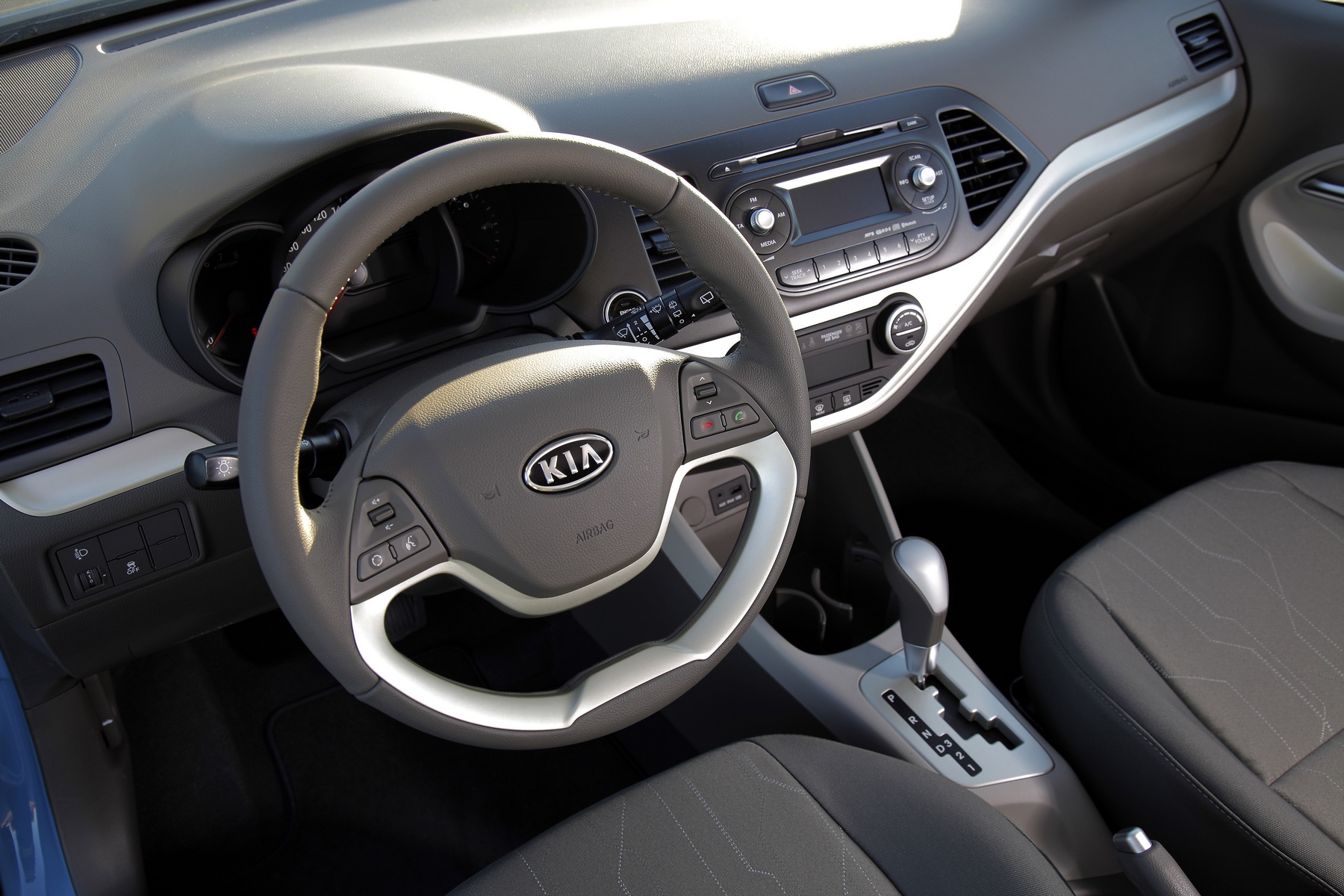

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
