Kia Optima
Date of manufacture
2018 – 2020 (Sedan)
2018 – 2020 (Estate)
Platform
-
Manufacturing locations
Hwaseong, South Korea
West Point, Georgia, USA
Kaliningrad, Russia
Designer
Peter Schreyer
Tags
D-segment
Korean cars
The Kia Optima is available in two body styles - sedan and estate. The car manufactured from 2018 can be from South Korea, USA or Russia. Hybrid and plug-in hybrid versions are also available. There are petrol, diesel and hybrid engines with a maximum power of 175 kW, which is the 2.0 T-GDI GT model. This model is also the fastest, reaching a top speed of 240 km/h and the best acceleration 0-100 km/h in 7.4 seconds. The most economical version is the 2.0 GDI PHEV with a combined consumption of 1.4 l/100 km and CO2 emissions of 37 g/km. The trunk of the estate car has a capacity of 552 l, and the sedan has 510 l. The car's safety was tested in 2015 according to EURONCAP and achieved a rating of 5 out of 5 points.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2018 – 2020Internal designation
JFEngine size
Estate (Sportswagon)
after upgrade (facelift)
Date of manufacture
2018 – 2020Internal designation
JFEngine size
Technical data
Sedan
| 2.0 CVVT | 1.6 T-GDI | 2.0 T-GDI GT | 2.0 GDI PHEV | 1.6 CRDI 136 | 1.6 CRDI 136 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Petrol | Petrol + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1591 | 1998 | 1999 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 120/6500 | 132.4/5500 | 175/6000 | 115/6000 combustion 50/2330-3300 el. 151/6000 total | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 196/4800 | 265/1500-4500 | 353/1350-3500 | 187/5000 combustion 205/0-2330 el. 375/2330 total | 320/2000-2250 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 81,0 x 97,0 | 77,0 x 85,4 | 86.0 x 86.0 | 81,0 x 97,0 | 77 x 85,8 | 77 x 85,8 |
| Compression ratio | 10,3:1 | 9.5:1 | 10.0:1 | 13,5:1 | 15,9:1 | 15,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 210 | 210 | 240 | 192 | 197 | 195 |
| Acceleration 0–100 km/h [s] | 9.4 | 8.7 | 7.4 | 9.4 | 11,0 | 11,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.6-10.4 | 8.0-7.7 | 13.2-13.1 | - | 5,2-4,9 | 5.2-4.7 |
| Out of town [l] | 6.3-6.1 | 5.5-5.2 | 7.0-6.4 | - | 4.3-4,0 | 4.4-4.0 |
| Combined [l] | 7.9-7.7 | 6.4-6.1 | 9.3-8.9 | 1.6 [12.3 el.] | 4.6-4.3 | 4.7-4.3 |
| CO2 emissions [g/km] | 180-176 | 147-140 | 212-203 | 37 | 122-114 | 123-112 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 360 | - | - |
| Battery type and capacity | - | - | - | Lithium polymer, 9.8 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 54 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1530-1640 | 1540-1655 | 1655-1755 | 1780-1850 | 1590-1705 | 1605-1720 |
| Overall weight [kg] | 2000 | 2050 | 2120 | 2200 | 2070 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 700/1400 | 700/1400 | - | 750/1800 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 510 [ VDA] | 510 [ VDA] | 510 [ VDA] | 307 [ VDA] | 510 [ VDA] | 510 [ VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 55 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | 14 | 14 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 235/45 R18 | 215/55 R17 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 235/45 R18 | 215/55 R17 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 ET47.5 | 6.5Jx16 ET47,5 | - | - | 6.5Jx16 ET47,5 | 6.5Jx16 ET47,5 |
| Wheel size rear | 6.5J x 16 ET47.5 | 6.5Jx16 ET47,5 | - | - | 6.5Jx16 ET47,5 | 6.5Jx16 ET47,5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4855 | 4855 | 4855 | 4855 | 4855 | 4855 |
| Overall width without/including mirrors [mm] | 1860/- | 1860/- | 1860/- | 1860/- | 1860/- | 1860/- |
| Overall height [mm] | 1465 | 1465 | 1455 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2805 | 2805 | 2805 | 2805 | 2805 | 2805 |
| Front wheel track [mm] | 1597-1602 | 1597-1602 | 1597 | 1602 | 1597-1602 | 1597-1602 |
| Rear wheel track [mm] | 1604-1609 | 1604-1609 | 1608 | 1609 | 1604-1609 | 1604-1609 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 125 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | 1423/1475 | 1423/1475 | 1423/1475 | 1423/1475 | 1423/1475 | 1423/1475 |
| Rear elbow/shoulder width [mm] | 1422/1432 | 1422/1432 | 1422/1432 | 1422/1432 | 1422/1432 | 1422/1432 |
| Legroom front knees/total [mm] | -/1155 | -/1155 | -/1155 | -/1155 | -/1155 | -/1155 |
| Legroom rear knees/total [mm] | -/905 | -/905 | -/905 | -/905 | -/905 | -/905 |

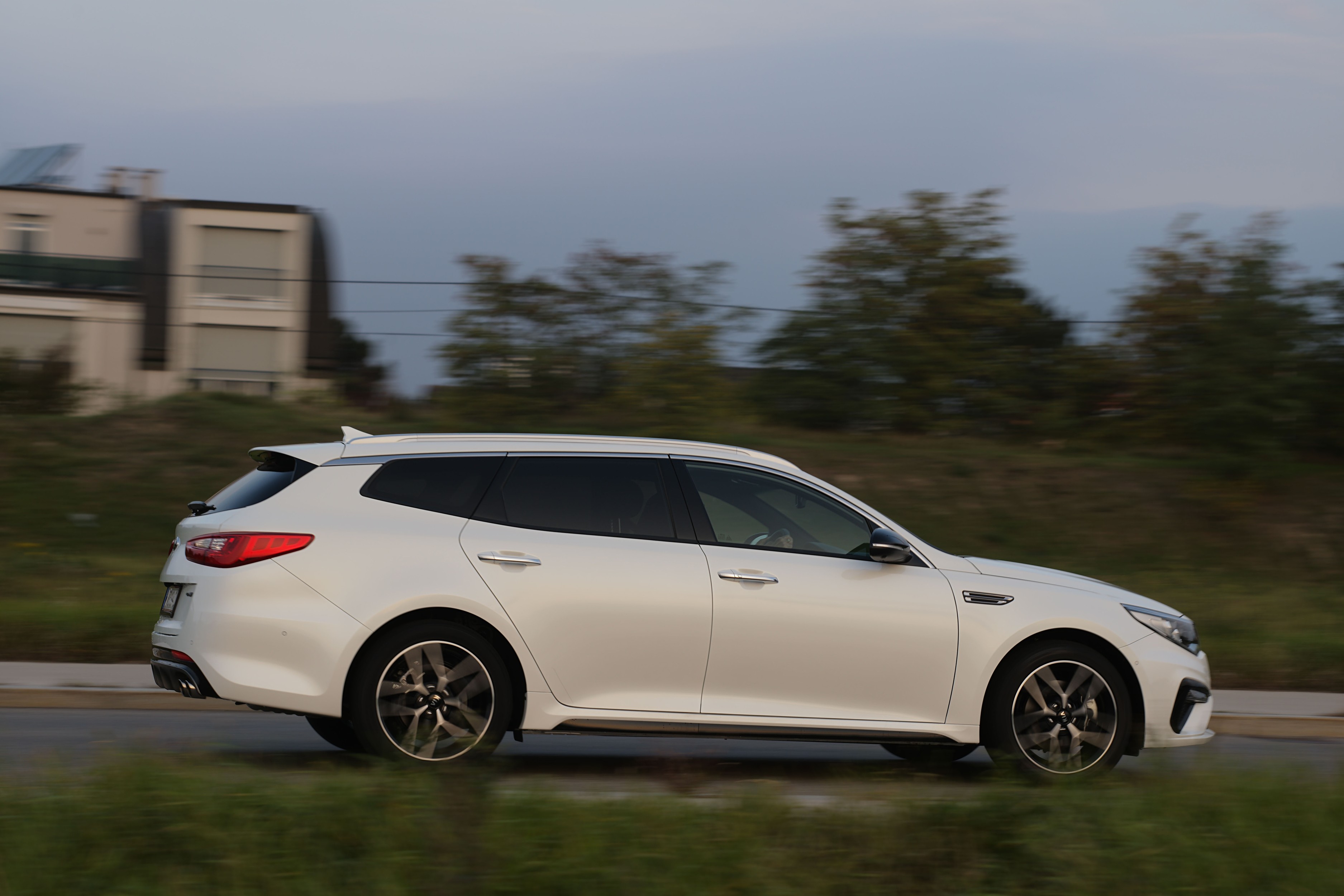

Estate (Sportswagon)
| 2.0 CVVT | 1.6 T-GDI | 2.0 T-GDI GT | 2.0 GDI PHEV | 1.6 CRDI 136 | 1.6 CRDI 136 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Petrol | Petrol + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1591 | 1998 | 1999 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 120/6500 | 132.4/5500 | 175/6000 | 113/6000 combustion 50/2330-3300 el. 151/6000 total | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 196/4800 | 265/1500-4500 | 353/1350-3500 | 187/5000 combustion 205/0-2330 el. 375/2330 total | 320/2000-2250 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 81,0 x 97,0 | 77,0 x 85,4 | 86.0 x 86.0 | 81,0 x 97,0 | 77 x 85,8 | 77 x 85,8 |
| Compression ratio | 10,3:1 | 9.5:1 | 10.0:1 | 13,5:1 | 15,9:1 | 15,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 206 | 207 | 232 | 192 | 195 | 193 |
| Acceleration 0–100 km/h [s] | 9.6 | 8.9 | 7.6 | 9.7 | 11,2 | 11,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.6-10.4 | 8.0-7.7 | 13.2-13.1 | - | 5,2-4,9 | 5.2-4.7 |
| Out of town [l] | 6.3-6.1 | 5.5-5.2 | 7.0-6.4 | - | 4.3-4,0 | 4.4-4.0 |
| Combined [l] | 7.9-7.7 | 6.4-6.1 | 9.3-8.9 | 1.4 [12.3 el.] | 4.6-4.3 | 4.7-4.3 |
| CO2 emissions [g/km] | 180-176 | 147-140 | 212-203 | 37 | 122-114 | 123-112 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | 72 | - | - |
| System voltage [V] | - | - | - | 360 | - | - |
| Battery type and capacity | - | - | - | Lithium polymer, 11.3 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 62 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | 130,5 | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1550-1675 | 1570-1685 | 1680-1795 | 1815-1880 | 1620-1750 | 1635-1770 |
| Overall weight [kg] | 2070 | 2080 | 2190 | 2270 | 2140 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 700/1400 | 700/1400 | 750/1500 | 750/1800 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | 1160/1190 | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 552 [ VDA] | 552 [ VDA] | 552 [ VDA] | 440 [ VDA] | 552 [ VDA] | 552 [ VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1686 | -/1686 | -/1686 | -/1574 | -/1686 | -/1686 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 55 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | 14 | 14 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension | double wishbone with stabiliser, coil springs, pneumatic suspension |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 235/45 R18 | 215/55 R17 94V | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 235/45 R18 | 215/55 R17 94V | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5Jx16 ET47,5 | 6.5Jx16 ET47,5 | - | 7J x 17 ET 50 | 6.5Jx16 ET47,5 | 6.5Jx16 ET47,5 |
| Wheel size rear | 6.5Jx16 ET47,5 | 6.5Jx16 ET47,5 | - | 7J x 17 ET 50 | 6.5Jx16 ET47,5 | 6.5Jx16 ET47,5 |
| Brake dimensions front | - | - | - | 300 | - | - |
| Brake dimensions rear | - | - | - | 300 | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | 2.78 | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4855 | 4855 | 4855 | 4855 | 4855 | 4855 |
| Overall width without/including mirrors [mm] | 1860/- | 1860/- | 1860/- | 1860/- | 1860/- | 1860/- |
| Overall height [mm] | 1465 | 1470 | 1460 | 1465 | 1470 | 1470 |
| Wheelbase [mm] | 2805 | 2805 | 2805 | 2805 | 2805 | 2805 |
| Front wheel track [mm] | 1597-1602 | 1597-1602 | 1597 | 1602 | 1597-1602 | 1597-1602 |
| Rear wheel track [mm] | 1604-1609 | 1604-1609 | 1608 | 1609 | 1604-1609 | 1604-1609 |
| Forward overhang [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Rear overhang [mm] | 1085 | 1085 | 1085 | 1085 | 1085 | 1085 |
| Clearance [mm] | 135 | 135 | 125 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | 1423/1475 | 1423/1475 | 1423/1475 | 1423/1475 | 1423/1475 | 1423/1475 |
| Rear elbow/shoulder width [mm] | 1422/1432 | 1422/1432 | 1422/1432 | 1422/1432 | 1422/1432 | 1422/1432 |
| Legroom front knees/total [mm] | -/1155 | -/1155 | -/1155 | -/1155 | -/1155 | -/1155 |
| Legroom rear knees/total [mm] | -/905 | -/905 | -/905 | -/905 | -/905 | -/905 |

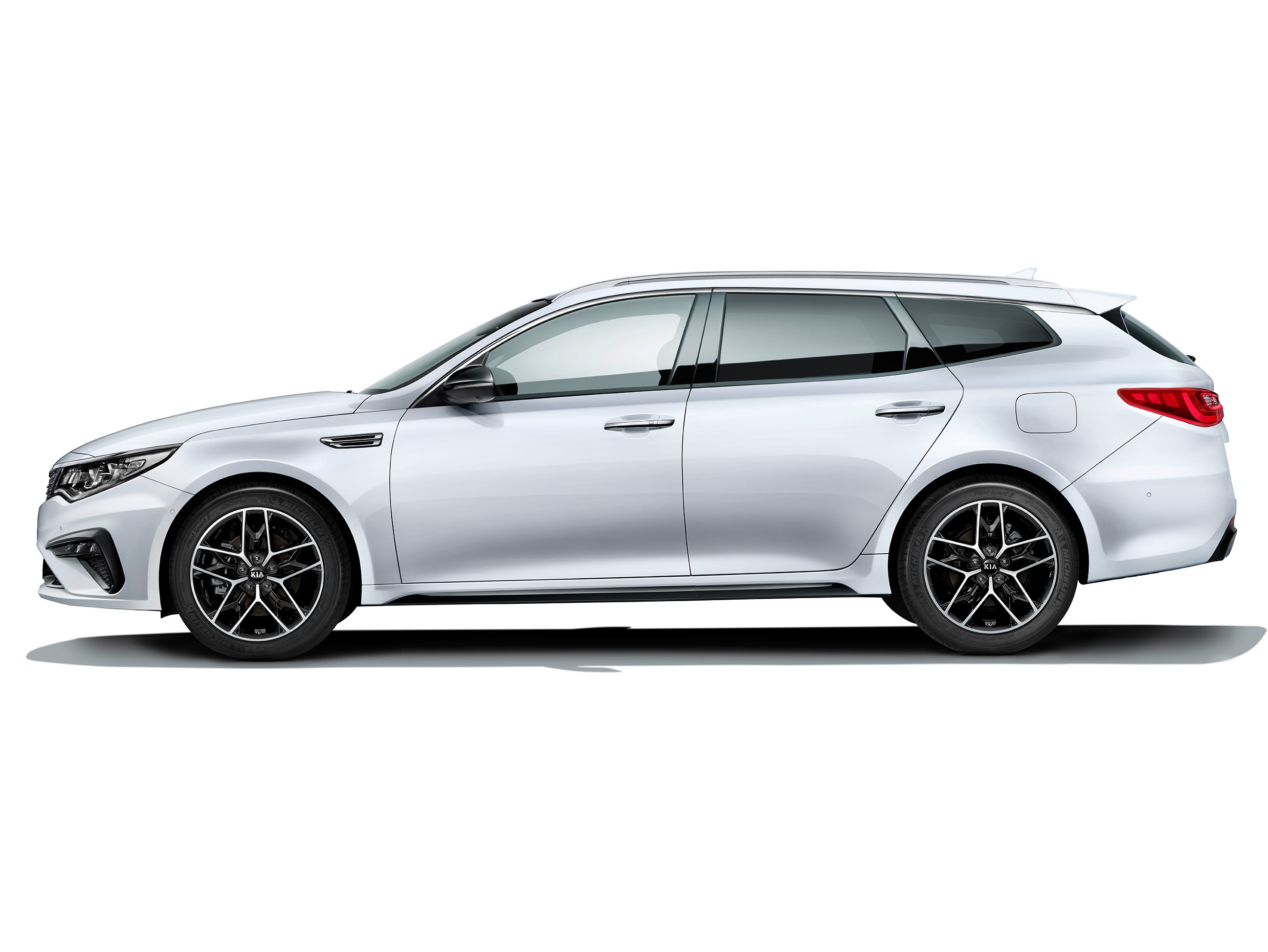

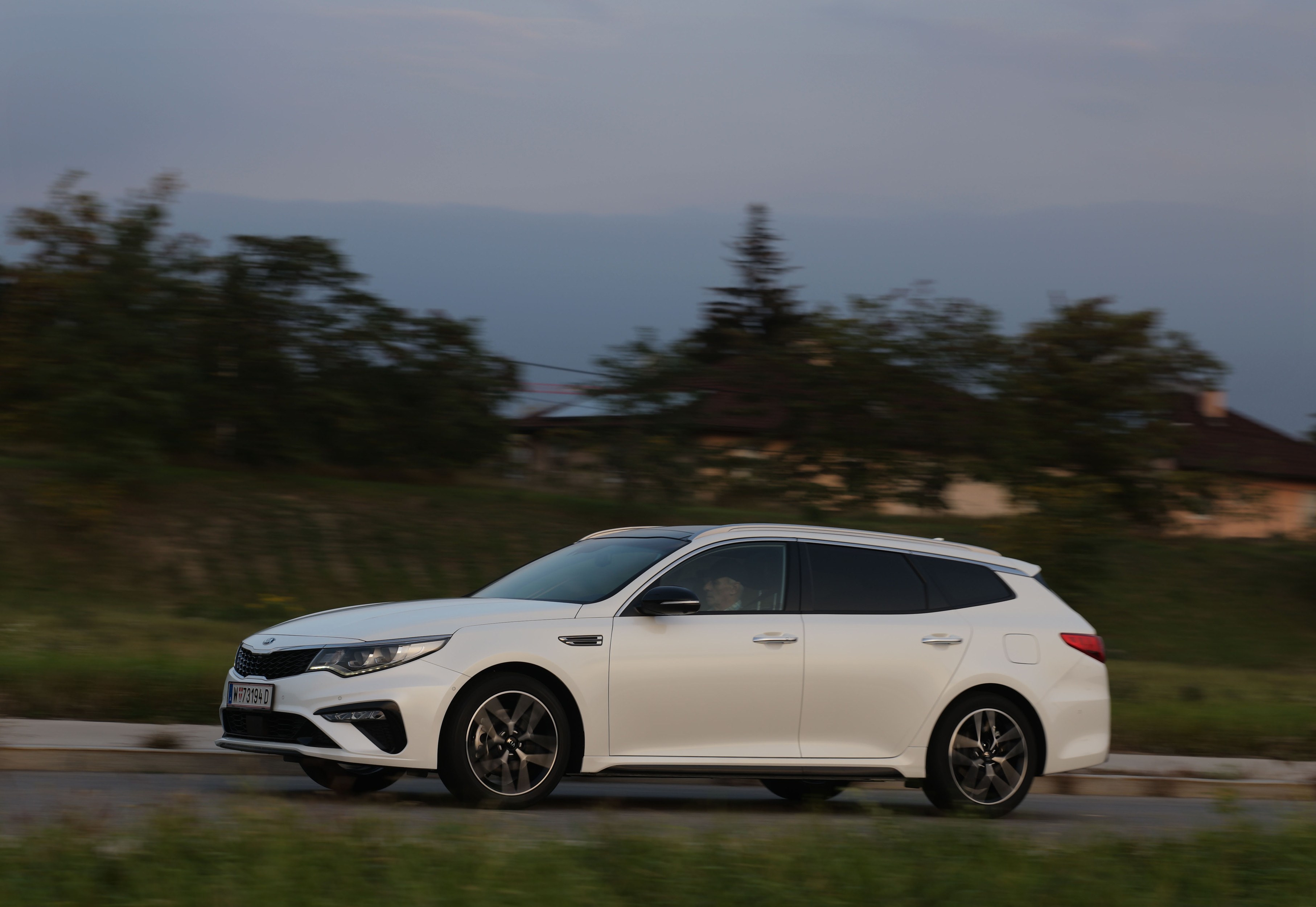

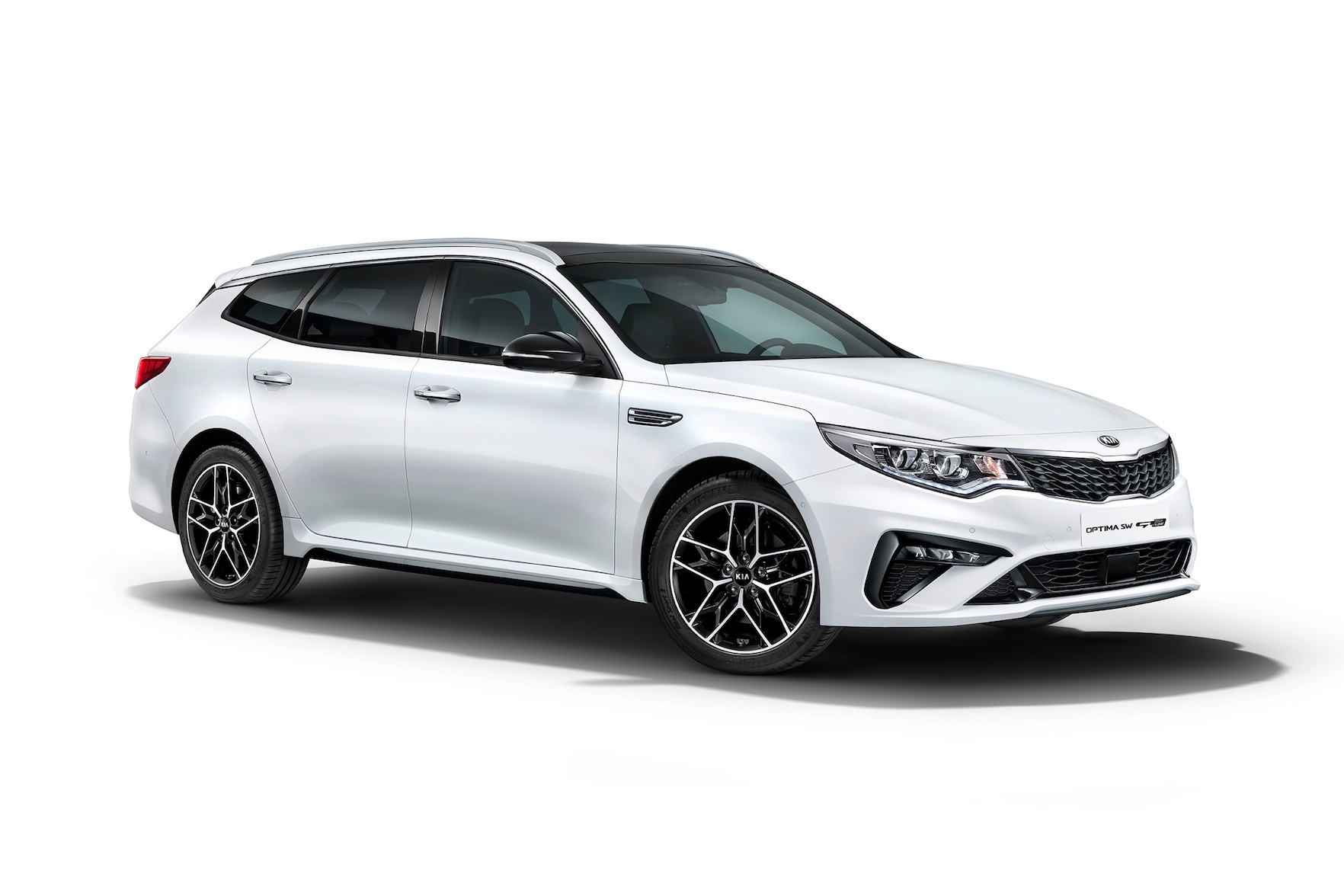

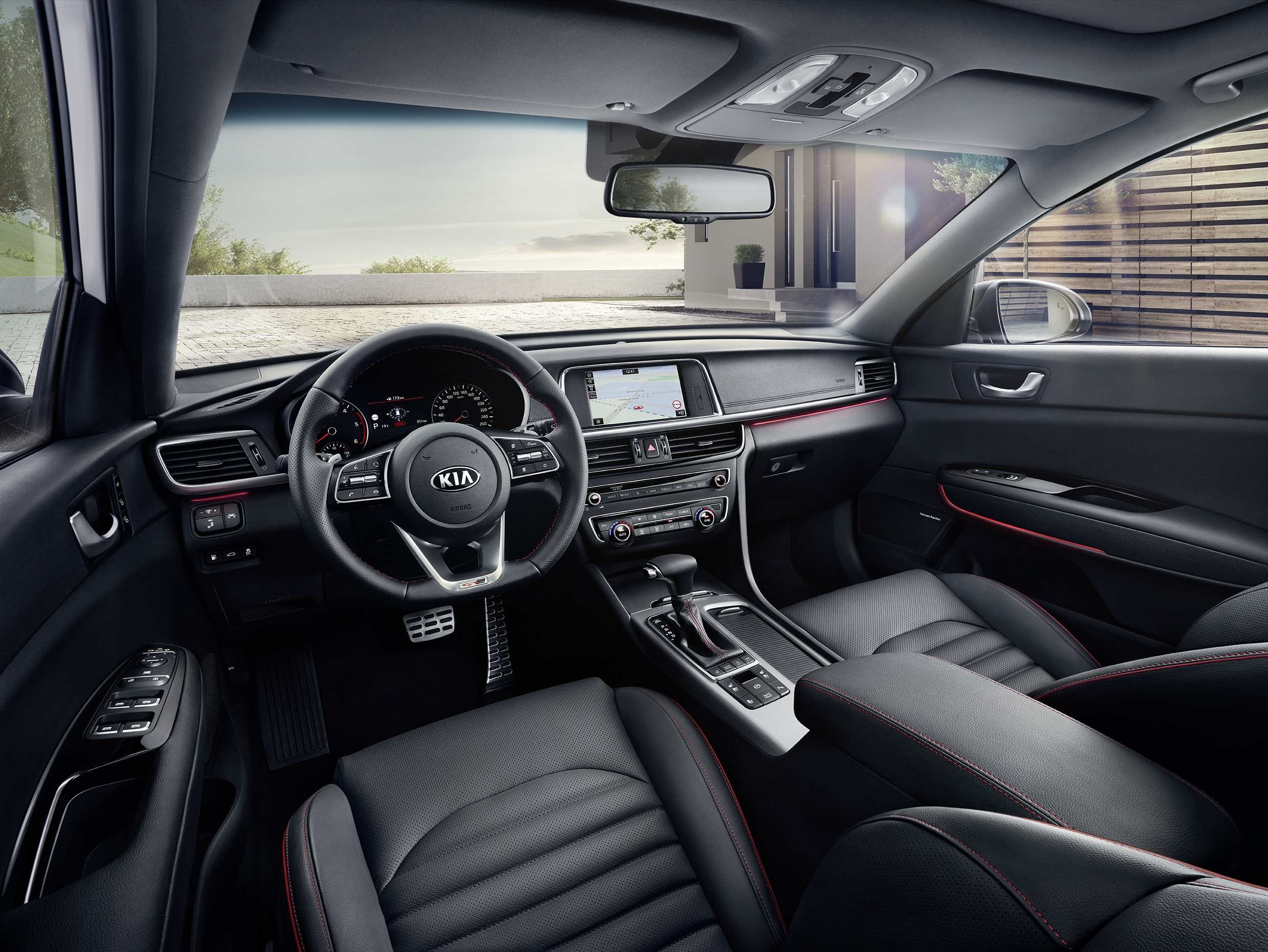

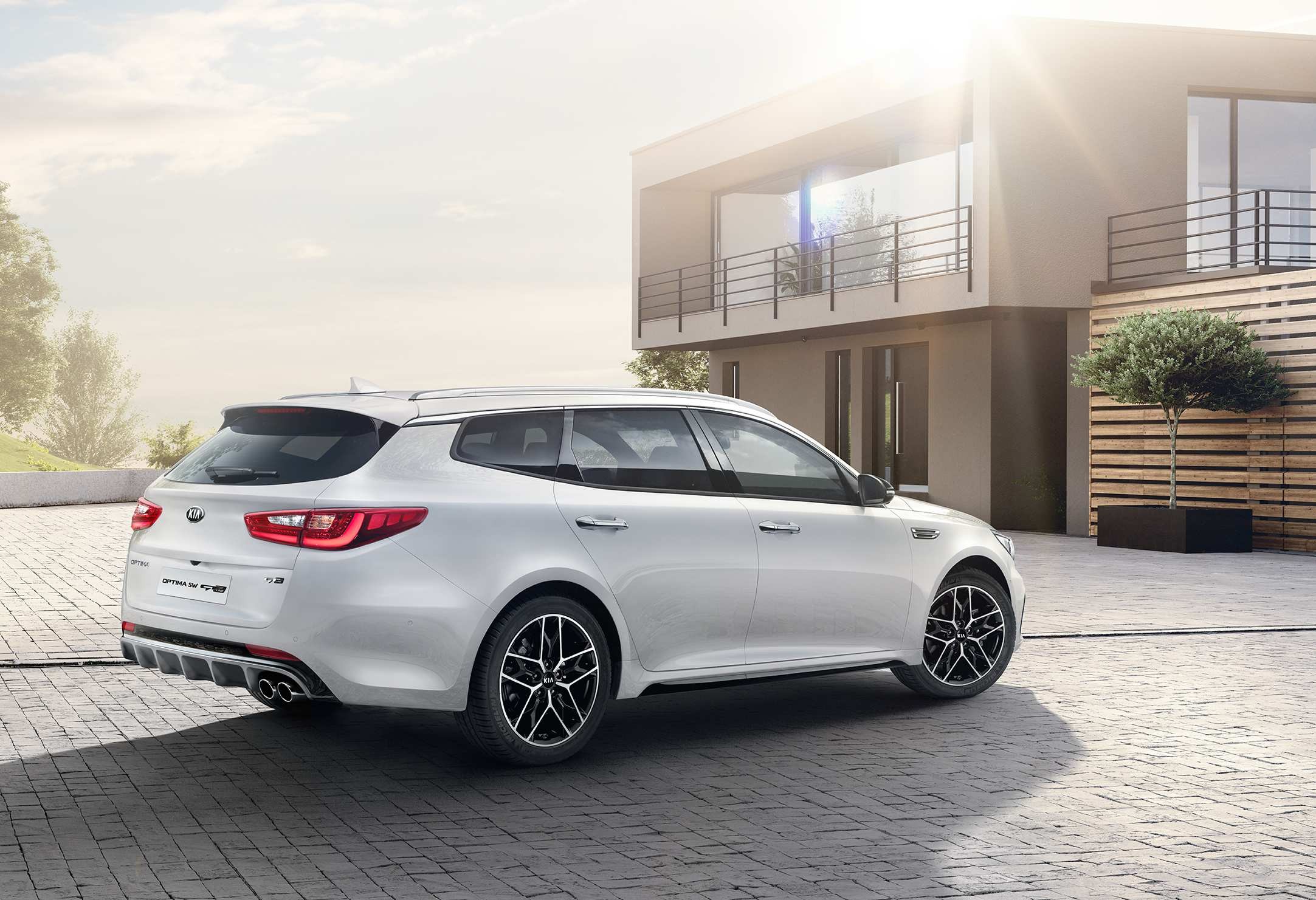

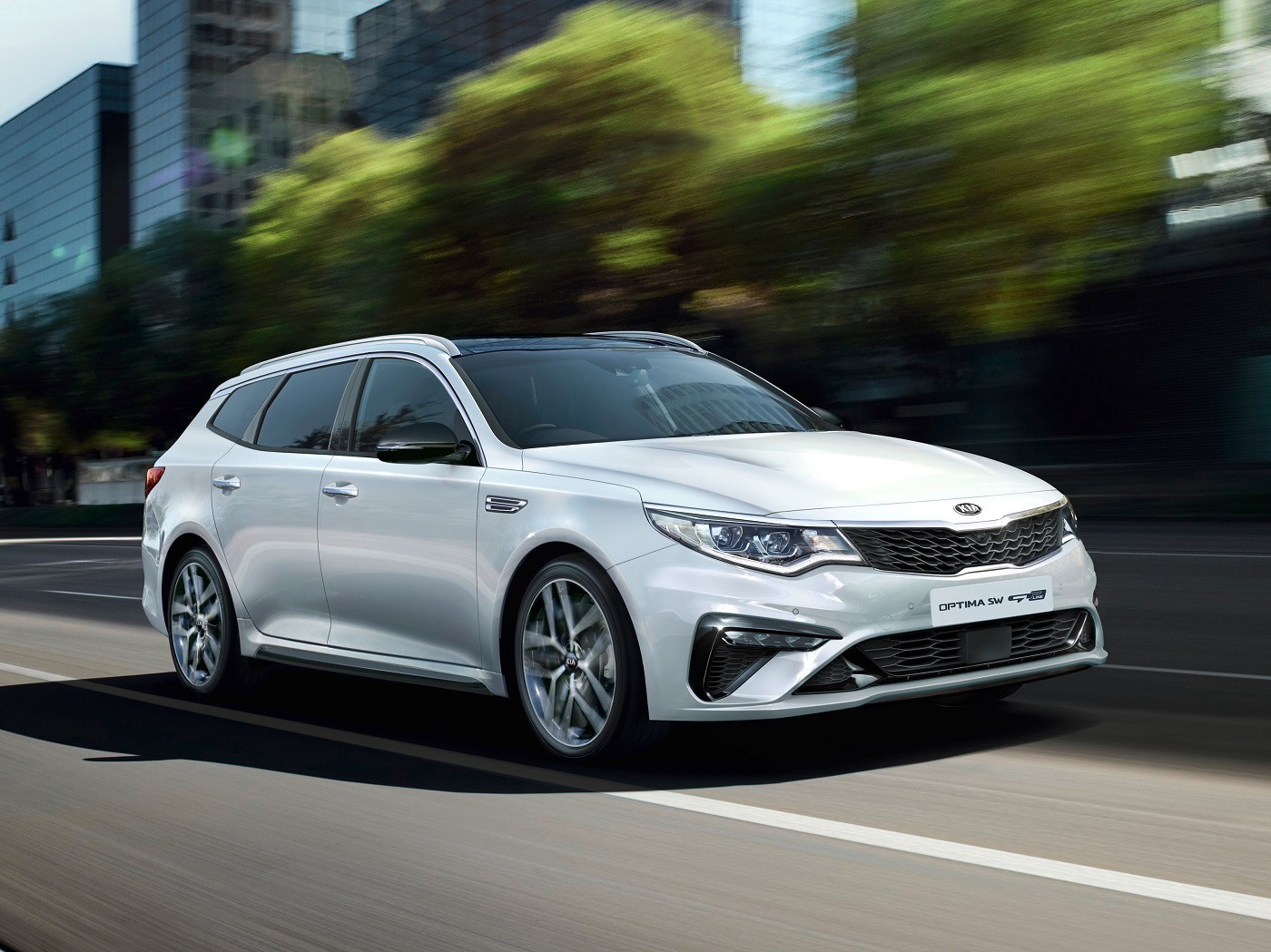

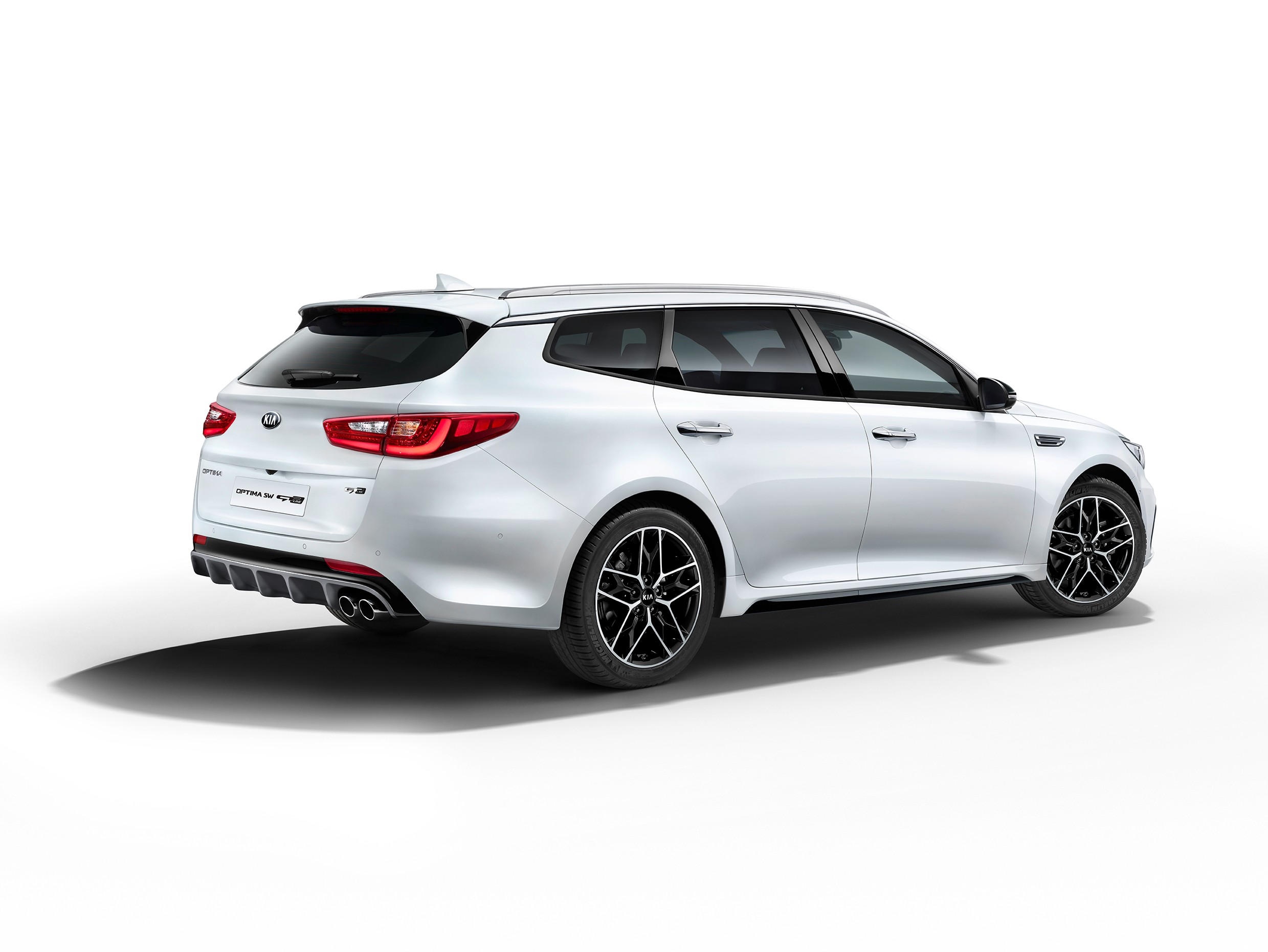

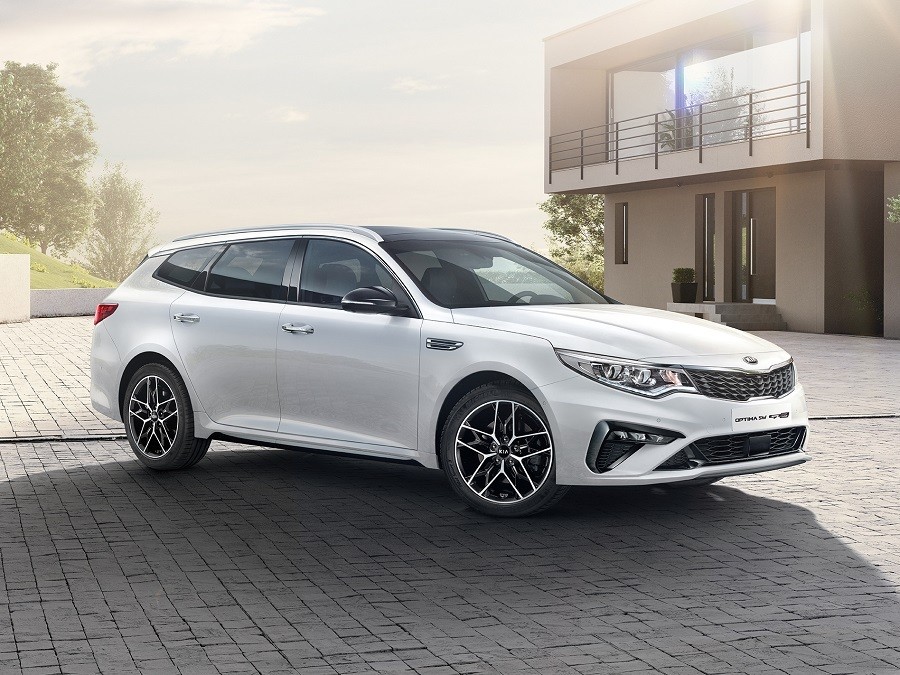

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
