Kia Niro
Date of manufacture
2019 – to this day (Medium SUV)
Platform
-
Manufacturing locations
Hwaseong, South Korea
Designer
Peter Schreyer
Tags
Compact SUV
Korean cars

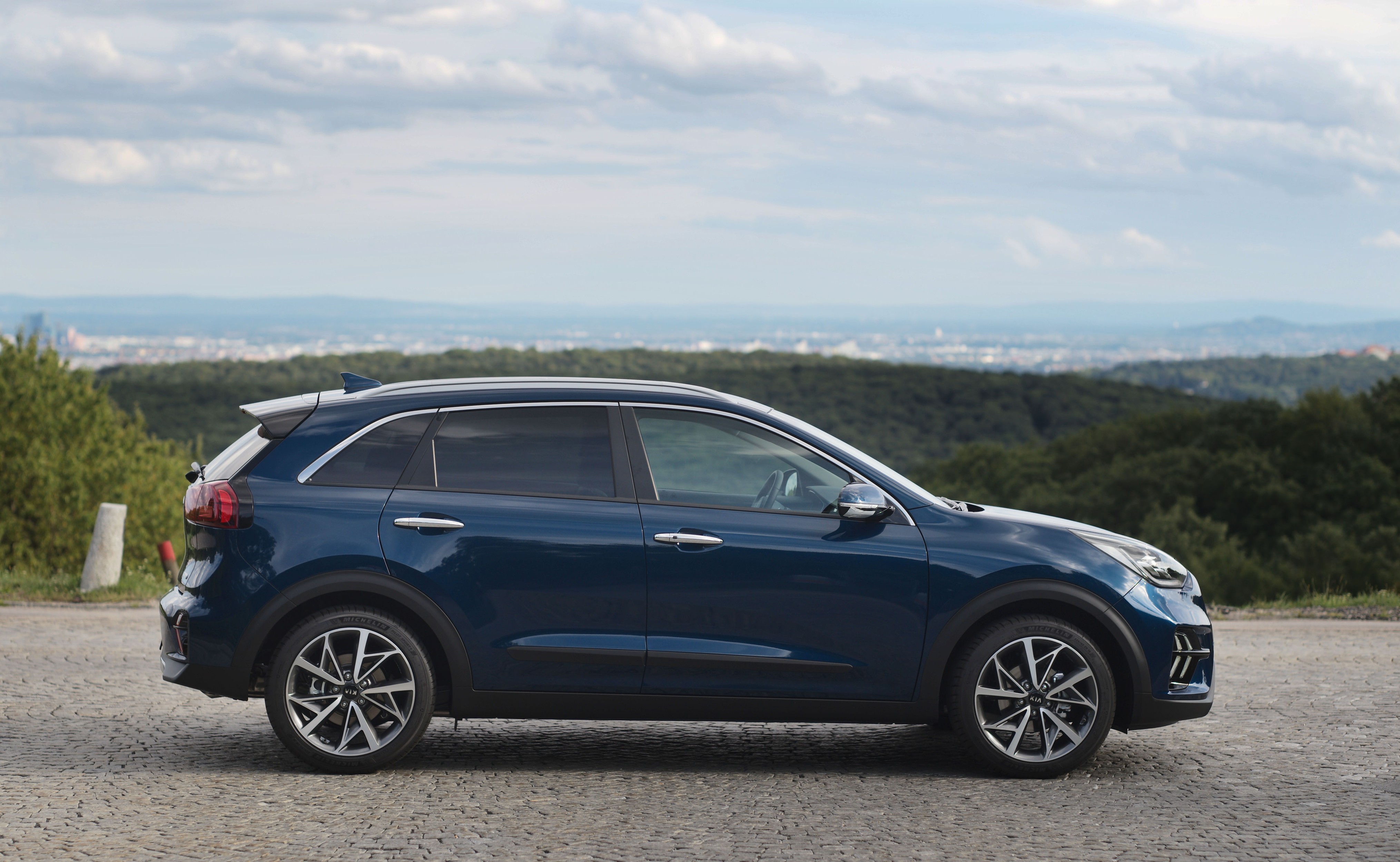

The Kia Niro is a mid-size SUV that has been manufactured in South Korea since 2019. It offers hybrid, plug-in hybrid and electric powertrains. The most powerful of these is the 1.6 GDI PHEV with 104 kW, which has a top speed of 167 km/h. The fuel consumption of this model is 1.3 l/100 km and the emissions are only 29 g/km. The luggage compartment has a capacity of 324 l. The car has passed EURONCAP safety tests, in which it received a rating of 5 out of 5.
Car body style
Medium SUV
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
DEEngine size
Technical data
Medium SUV
| 1.6 GDI HEV | 1.6 GDI PHEV | 39.2 kWh | 64 kWh | |||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2017 to | - | - | ||
| Engine type | Petrol + Electric | Petrol + Electric | Electric | Electric | ||
| Number of cylinders/valves | 4/16 | 4/16 | - | - | ||
| Engine displacement [cm³] | 1580 | 1580 | 100/3800-8000 | 150/3800-8000 | ||
| Maximum output / speed [kW/min-1] | 77/5700 combustion 32/1798-2500 el. 104/5700 total | 77/5700 combustion 44,5/1798-2500 el. 104/5700 total | ||||
| Maximum torque [Nm/min-1] | 147/4000 combustion 170/0-1798 el. 265/1000-2400 total | 147/4000 combustion 170/0-1798 el. 265/1000-2400 total | 395/0-3600 | 395/0-3600 | ||
| Bore and stroke [mm x mm] | 72,0 x 97,0 | 72,0 x 97,0 | - | - | ||
| Compression ratio | 13,0:1 | 13,0:1 | - | - | ||
| Oil volume [l] | 4.1 | 4.1 | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
| - | - | ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear automatic | 6 gear automatic | 1 gear automatic | 1 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 162 | 172 [120 el.] | 155 | 167 | ||
| Acceleration 0–100 km/h [s] | 11.5 | 10,8 | 9.8 | 7.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 3.9-3.4 | - | - | - | ||
| Out of town [l] | 4.6-4.0 | - | - | - | ||
| Combined [l] | 4.3-3.7 | 1.3 [10.5 kWh] | 15,3 | 15.9 | ||
| CO2 emissions [g/km] | 100-86 | 29 | 0 | 0 | ||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | - | - | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | 70 | 71 | ||
| System voltage [V] | 240 | 360 | 327 | 356 | ||
| Battery type and capacity | Lithium polymer, 1.56 kWh | Lithium polymer, 8.9 kWh | Lithium polymer, 39.2 kWh | Lithium polymer, 39.2 kWh | ||
| Range with fully charged battery [km] | - | 58 | 289 | 455 | ||
| Charging time | - |
|
|
| ||
| Number of modules/cells | - | - | 2/180 | 3/98 | ||
| Battery weight [kg] | 33 | 117 | 315 | 453 | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1490-1594 | 1594-1651 | 1667-1721 | 1812-1866 | ||
| Overall weight [kg] | 1930 | 2000 | 2080 | 2230 | ||
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | - | - | ||
| Maximum front/rear axle load [kg] | - | - | 1180/1160 | 1180/1160 | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | - | - | ||
| Boot volume [l] | 436 | 324 | 451 | 451 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1434 | -/1322 | -/1405 | -/1405 | ||
| Boot length [mm] | 848 | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | -/1050 | - | - | - | ||
| Boot height to headliner/ceiling [mm] | -/555 | - | - | - | ||
| Loading edge height [mm] | 724 | 724 | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 45 | 43 | 45 | 45 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | ||
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | ||
| Rear suspension | multilink, coil springs, stabiliser bar, gas-liquid shock absorbers | multilink, coil springs, stabiliser bar, gas-liquid shock absorbers | multilink, coil springs, stabiliser bar, gas-liquid shock absorbers | multilink, coil springs, stabiliser bar, gas-liquid shock absorbers | ||
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 215/55 R17 94W | 215/55 R17 94W | ||
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 215/55 R17 94W | 215/55 R17 94W | ||
| Wheel size front | 6.5J x 16 ET45 | 6.5J x 16 ET45 | 7,0J x 17 ET50 | 7,0J x 17 ET50 | ||
| Wheel size rear | 6.5J x 16 ET45 | 6.5J x 16 ET45 | 7,0J x 17 ET50 | 7,0J x 17 ET50 | ||
| Brake dimensions front | - | - | 305 | 305 | ||
| Brake dimensions rear | - | - | 300 | 300 | ||
| Steering | Rack & pinion with electric power steering m C‐MDPS | Rack & pinion with electric power steering m C‐MDPS | Rack & pinion with electric power steering m C‐MDPS | Rack & pinion with electric power steering m C‐MDPS | ||
| Number of steering wheel turns | - | - | 2.57 | 2.57 | ||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | ||
| Overall length [mm] | 4355 | 4355 | 4375 | 4375 | ||
| Overall width without/including mirrors [mm] | 1805/2035 | 1805/2035 | 1805/2035 | 1805/2035 | ||
| Overall height [mm] | 1545 | 1545 | 1560 | 1560 | ||
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | ||
| Front wheel track [mm] | 1565 | 1565 | 1562 | 1562 | ||
| Rear wheel track [mm] | 1555 | 1579 | 1572 | 1572 | ||
| Forward overhang [mm] | 870 | 870 | 885 | 885 | ||
| Rear overhang [mm] | 785 | 785 | 790 | 790 | ||
| Clearance [mm] | 160 | 160 | 160 | 160 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | ||
| Headroom rear [mm] | 993 | 993 | 993 | 993 | ||
| Front elbow/shoulder width [mm] | 1364/1423 | 1364/1423 | 1364/1423 | 1364/1423 | ||
| Rear elbow/shoulder width [mm] | 1228/1402 | 1228/1402 | 1228/1402 | 1228/1402 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - | ||
| Rating | - |    | - | - | ||
| Clean Air Index | - | 4.9/10 | - | - | ||
| Energy Efficiency Index | - | 7.6/10 | - | - | ||
| GHG index | - | 6.0/10 | - | - |
