Kia Niro
Date of manufacture
5/2016 – 2019 (SUV)
Platform
-
Manufacturing locations
Hwaseong, South Korea
Designer
Peter Schreyer
Tags
Compact SUV
Korean cars
The Kia Niro, an SUV produced since 2016 in South Korea, offers hybrid and plug-in hybrid models. The most powerful of these is the 1.6 GDI PHEV with 104 kW, which has a top speed of 172 km/h and a 0-100 km/h acceleration of 10.8 seconds. The fuel consumption of this model is only 1.3 l/100 km, corresponding to CO2 emissions of 29 g/km. The boot size is 324 l and the Kia Niro received a 5 out of 5 rating from EURONCAP for 2016.
Car body style
Technical data
SUV
| 1.6 GDI HEV | 1.6 GDI PHEV | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2017 to | ||||
| Engine type | Petrol + Electric | Petrol + Electric | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1580 | 1580 | ||||
| Maximum output / speed [kW/min-1] | 77/5700 combustion 32/1798-2500 el. 104/5700 total | 77/5700 combustion 44,5/1798-2500 el. 104/5700 total | ||||
| Maximum torque [Nm/min-1] | 147/4000 combustion 170/0-1798 el. 265/1000-2400 total | 147/4000 combustion 170/0-1798 el. 265/1000-2400 total | ||||
| Bore and stroke [mm x mm] | 72,0 x 97,0 | 72,0 x 97,0 | ||||
| Compression ratio | 13,0:1 | 13,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear automatic | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 162 | 172 [120 el.] | ||||
| Acceleration 0–100 km/h [s] | 11.5 | 10,8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.4-3.9 | - | ||||
| Out of town [l] | 4.6-3.9 | - | ||||
| Combined [l] | 4.4-3.7 | 1.3 [10.5 kWh] | ||||
| CO2 emissions [g/km] | 100-86 | 29 | ||||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 240 | 360 | ||||
| Battery type and capacity | Lithium polymer, 1.56 kWh | Lithium polymer, 8.9 kWh | ||||
| Range with fully charged battery [km] | - | 58 | ||||
| Charging time | - |
| ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 1500-1587 | 1594-1651 | ||||
| Overall weight [kg] | 1930 | 2000 | ||||
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||

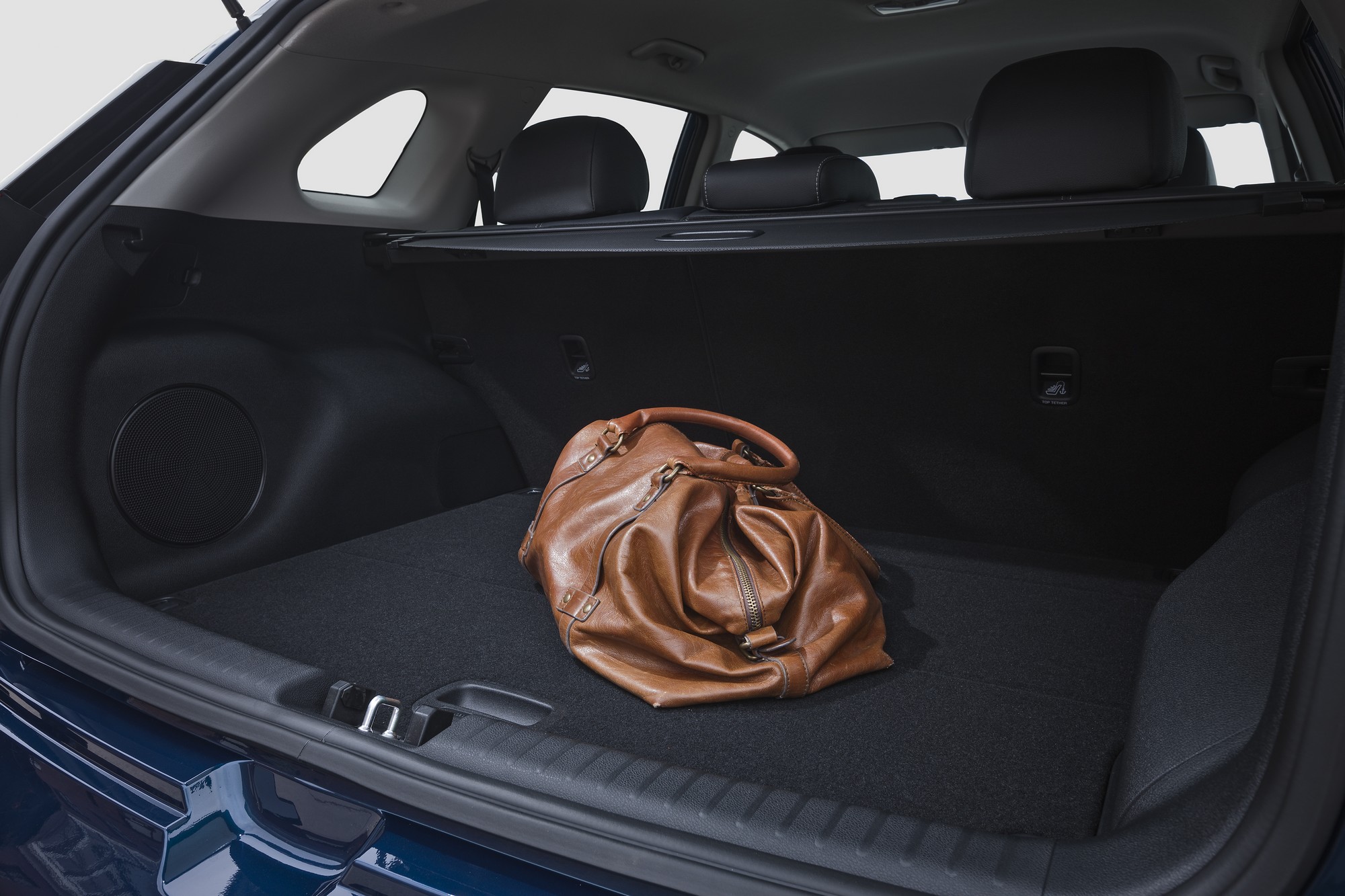

| Boot volume [l] | 427 | 324 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1425 | -/1322 | ||||
| Boot length [mm] | 848 | 848 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | -/1050 | -/1050 | ||||
| Boot height to headliner/ceiling [mm] | -/555 | -/555 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 45 | 43 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.29 | ||||
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | ||||
| Rear suspension | multilink, coil springs, stabiliser bar, gas-liquid shock absorbers | multilink, coil springs, stabiliser bar, gas-liquid shock absorbers | ||||
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | ||||
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | ||||
| Wheel size front | 6.5J x 16 ET45 | 6.5J x 16 ET45 | ||||
| Wheel size rear | 6.5J x 16 ET45 | 6.5J x 16 ET45 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with electric power steering m C‐MDPS | Rack & pinion with electric power steering m C‐MDPS | ||||
| Number of steering wheel turns | 2.66 | 2.66 | ||||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | ||||
| Overall length [mm] | 4355 | 4355 | ||||
| Overall width without/including mirrors [mm] | 1805/2035 | 1805/2035 | ||||
| Overall height [mm] | 1545 | 1545 | ||||
| Wheelbase [mm] | 2700 | 2700 | ||||
| Front wheel track [mm] | 1565 | 1565 | ||||
| Rear wheel track [mm] | 1555 | 1579 | ||||
| Forward overhang [mm] | 870 | 870 | ||||
| Rear overhang [mm] | 785 | 785 | ||||
| Clearance [mm] | 160 | 160 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1018 | 1018 | ||||
| Headroom rear [mm] | 993 | 993 | ||||
| Front elbow/shoulder width [mm] | 1364/1423 | 1364/1423 | ||||
| Rear elbow/shoulder width [mm] | 1228/1402 | 1228/1402 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - | ||||
| Rating | - |    | ||||
| Clean Air Index | - | 4.9/10 | ||||
| Energy Efficiency Index | - | 7.6/10 | ||||
| GHG index | - | 6.0/10 |
