Kia e-Soul

e-Soul SK3 2019

Date of manufacture

2019 – to this day (Small SUV)

Platform

-

Manufacturing locations

Gwangju, South Korea

Designer

-

Tags

Small SUV
Korean cars
The Kia e-Soul is a small SUV that has been manufactured since 2019 and is from South Korea. The powertrain offering is only electric with a maximum power of 150 kW for the e-Soul 204 model, which reaches a top speed of 167 km/h. The most efficient version is the e-Soul 136 with a combined consumption of 15.6 kWh/100 km. The luggage compartment has a capacity of 315 l.

Car body style

Small SUV

Date of manufacture
2019 – to this day
Internal designation
SK3

Technical data

Small SUV

e-Soul 136 e-Soul 204
Date of sale--
Engine typeElectricElectric
Number of cylinders/valves--
Engine displacement [cm³]--
Maximum output / speed [kW/min-1]
100/2600-8000
150/3800-8000
Maximum torque [Nm/min-1]
395/0-2400
395/0-3600
Drive axleFrontFront
Gearbox1 gear automatic1 gear automatic
Top speed [km/h]157167
Acceleration 0–100 km/h [s]9.97.9
City [l]--
Out of town [l]--
Combined [l]15.6 kWh15.7 kWh
CO2 emissions [g/km]--
Emission standard--
System voltage [V]327356
Battery type and capacityLithium polymer, 39.2 kWhLithium polymer, 64 kWh
Range with fully charged battery [km]276452
Charging time
  • from 0% to 100%, 18 hours, charger 230V, 12A
  • from 0% to 100%, 9:30 hours, charger 230V, 4.6 kW
  • from 0% to 100%, 6:10 hours, charger 230V, 7.2 kW
  • from 0% to 100%, 4:30 hours, charger 400V, 10.5kW
  • from 0% to 80%, 0:57 hours, charger 50kW
  • from 0% to 80%, 0:54 hours, charger 80 kW
  • from 0% to 100%, 29 hours, charger 230V, 12A
  • from 0% to 100%, 15 hours, charger 230V, 4.6 kW
  • from 0% to 100%, 9:35 hours, charger 230V, 7.2 kW
  • from 0% to 100%, 7 hours, charger 400V, 10.5kW
  • from 0% to 80%, 1:15 hours, charger 50kW
  • from 0% to 80%, 0:54 hours, charger 80 kW
Standby weight [kg]1610-16681757-1833
Overall weight [kg]20252180
Maximum trailer weight unbraked/braked [kg]--
Boot volume [l]315315
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1339-/1339
Number of doors55
Number of seats55
Fuel tank volume [l]--
AdBlue tank volume [l]--
Overall length [mm]41954195
Overall width without/including mirrors [mm]1800/-1800/-
Overall height [mm]16051605
Wheelbase [mm]26002600
Headroom front [mm]10131013
Headroom rear [mm]988988
Front elbow/shoulder width [mm]1360/14101360/1410
Rear elbow/shoulder width [mm]1340/13901340/1390

Gallery

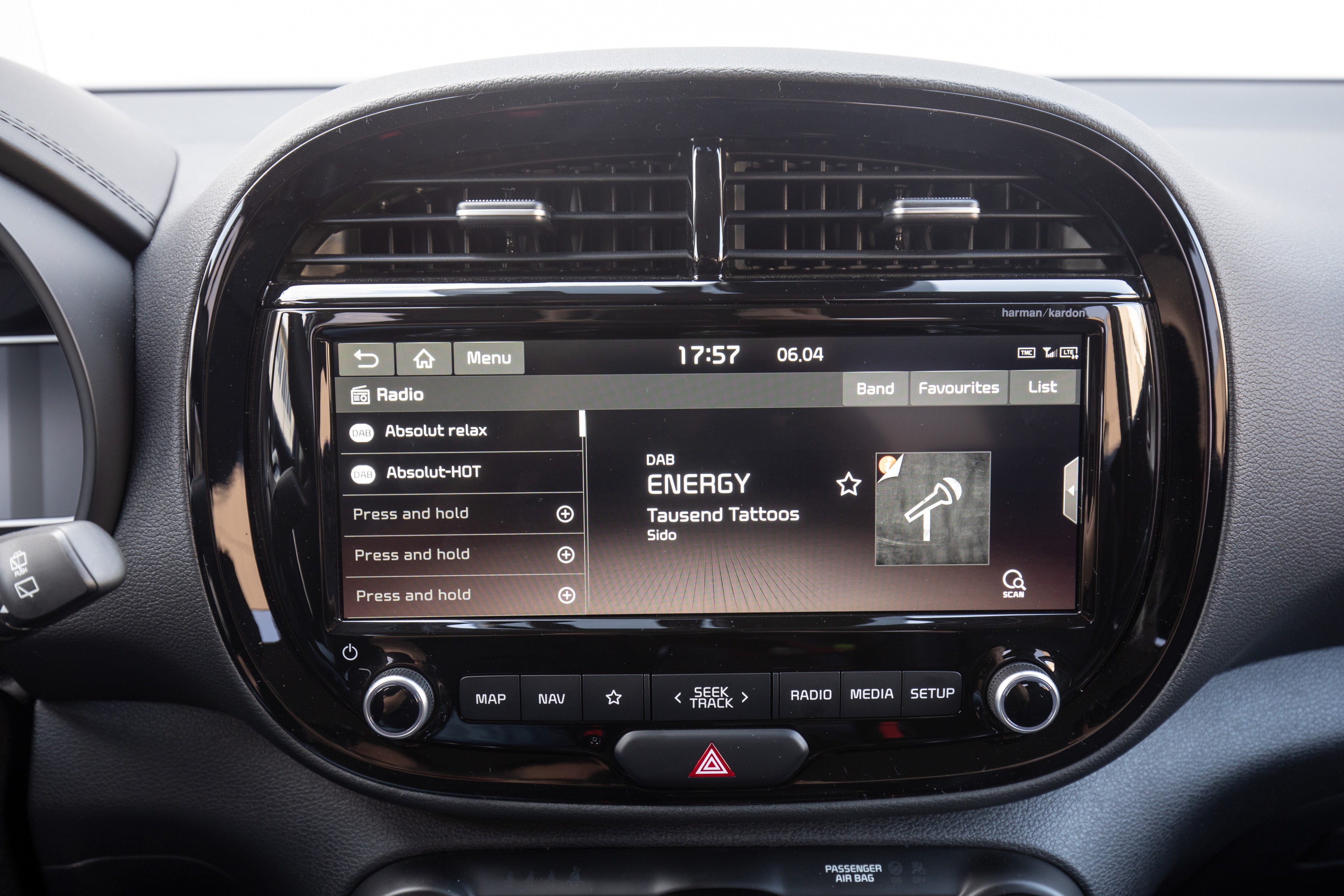

Kia e-Soul SK3 2020 engineKia e-Soul SK3 2020 interiorKia e-Soul SK3 2020 front seatsKia e-Soul SK3 2020 rear seatsKia e-Soul SK3 2020 infotainmentKia e-Soul SK3 2020 bootKia e-Soul SK3 2020 rear folding seats
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
