Jeep Renegade
Date of manufacture
2014 – 2018 (Small SUV)
Platform
FCA Small Wide 4×4
Manufacturing locations
Melfi, Italy
Designer
Jeremy Glover
Ian Hedge
Tags
Small SUV
American cars
The Jeep Renegade, a small SUV body style manufactured since 2014 in Italy, is built on the FCA Small Wide 4x4 platform. It offers petrol and diesel engines. The most powerful model, the 2.0 MultiJet II 170 Trailhawk, has a top speed of 196 km/h and the best acceleration from 0-100 km/h is 8.8 seconds for the 1.4 Multiair2. The most fuel-efficient model is the 1.6 MultiJet II with a combined consumption of 4.4 l/100 km and CO2 emissions of 115 g/km. The boot has a capacity of 351 l and the car earned a 5 out of 5 rating in the EURONCAP safety test of 2014.
Car body style
Small SUV
Date of manufacture
2014 – 2018Internal designation
BU
Technical data
Small SUV
| 1.6 EtorQ | 1.4 Multiair2 | 1.4 Multiair2 | 1.4 Multiair2 | 1.6 MultiJet II | 1.6 MultiJet II | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1368 | 1368 | 1368 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 81/5500 | 103/5500 | 103/5500 | 125/5500 | 88/3750 | 88/3750 |
| Maximum torque [Nm/min-1] | 152/4500 | 230/1750 | 230/1750 | 250/2500 | 320/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 77.0 x 85.8 | 72.0 x 84.0 | 72.0 x 84.0 | 72.0 x 84.0 | 79.5 x 80.5 | 79.5 x 80.5 |
| Compression ratio | 11.0:1 | 9.8:1 | 9.8:1 | 9.8:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 4.6 | 3.8 | 3.8 | 3.8 | 5.2 | 5.2 |
| Coolant volume [l] | 5.6 | 5.2 | 5.2 | 5.2 | 6.1 | 6.1 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear automatic | 9 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 177 | 181 | 181 | 196 | 178 | 178 |
| Acceleration 0–100 km/h [s] | 11,8 | 10,9 | 11,0 | 8,8 | 10,2 | 10,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,8 | 7,6 | 7,4 | 8,7 | 5,1 | 5,2 |
| Out of town [l] | 5,0 | 5,1 | 5,0 | 5,9 | 4,0 | 4,1 |
| Combined [l] | 6,0 | 6,0 | 5,9 | 6,9 | 4,4 | 4,5 |
| CO2 emissions [g/km] | 141 | 140 | 137 | 160 | 115 | 118 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 5+ - Euro 6 | Euro 5+ - Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1395 | 1395 | 1505 | 1465 | 1465 |
| Overall weight [kg] | 1865 | 1865 | 1880 | 2010 | 1905 | 1905 |
| Maximum trailer weight unbraked/braked [kg] | 800/600 | 400/1000 | 600/1200 | 600/1200 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | 70/- | 70/- | 70/- |

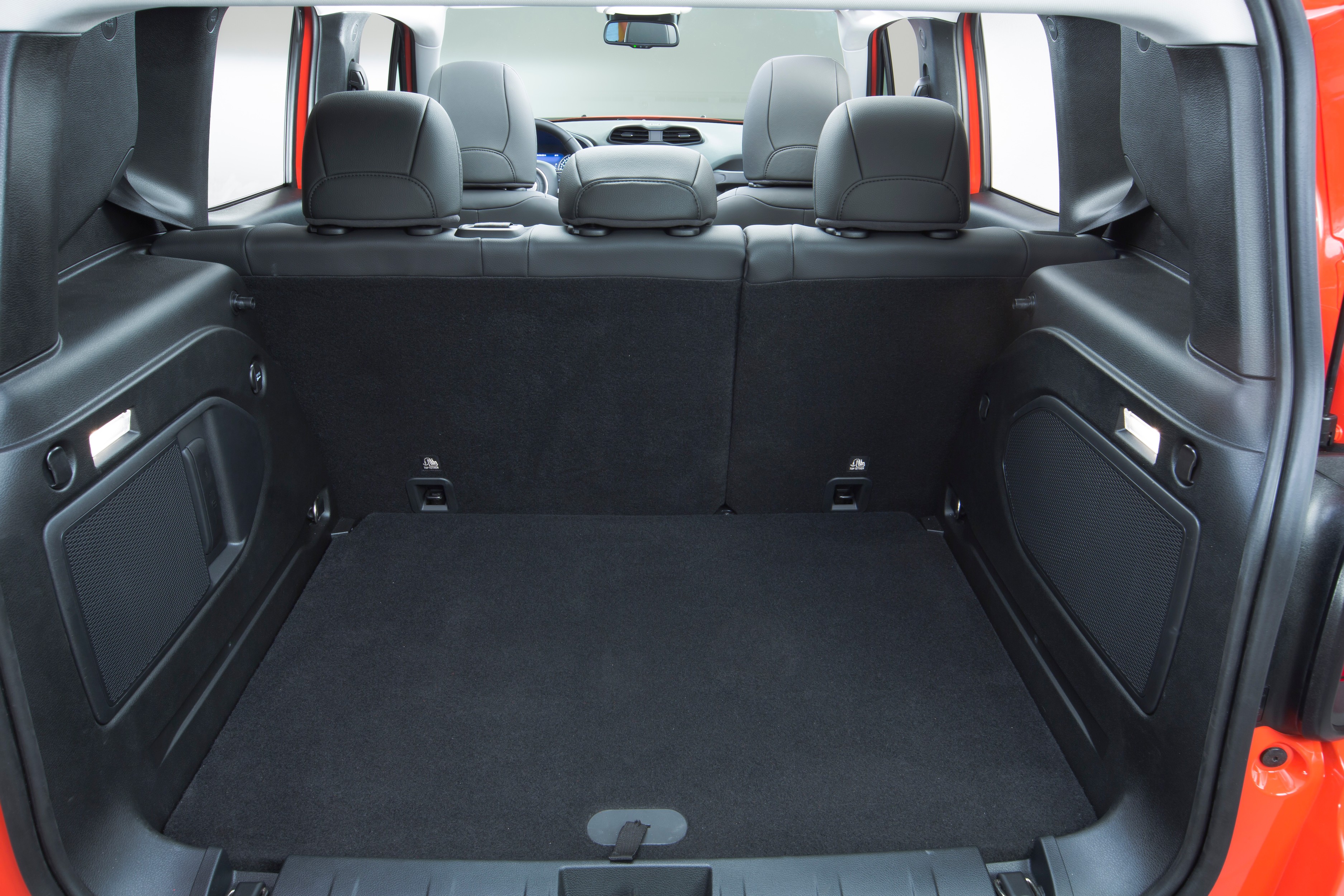

| Boot volume [l] | 351 | 351 | 351 | 351 | 351 | 351 |

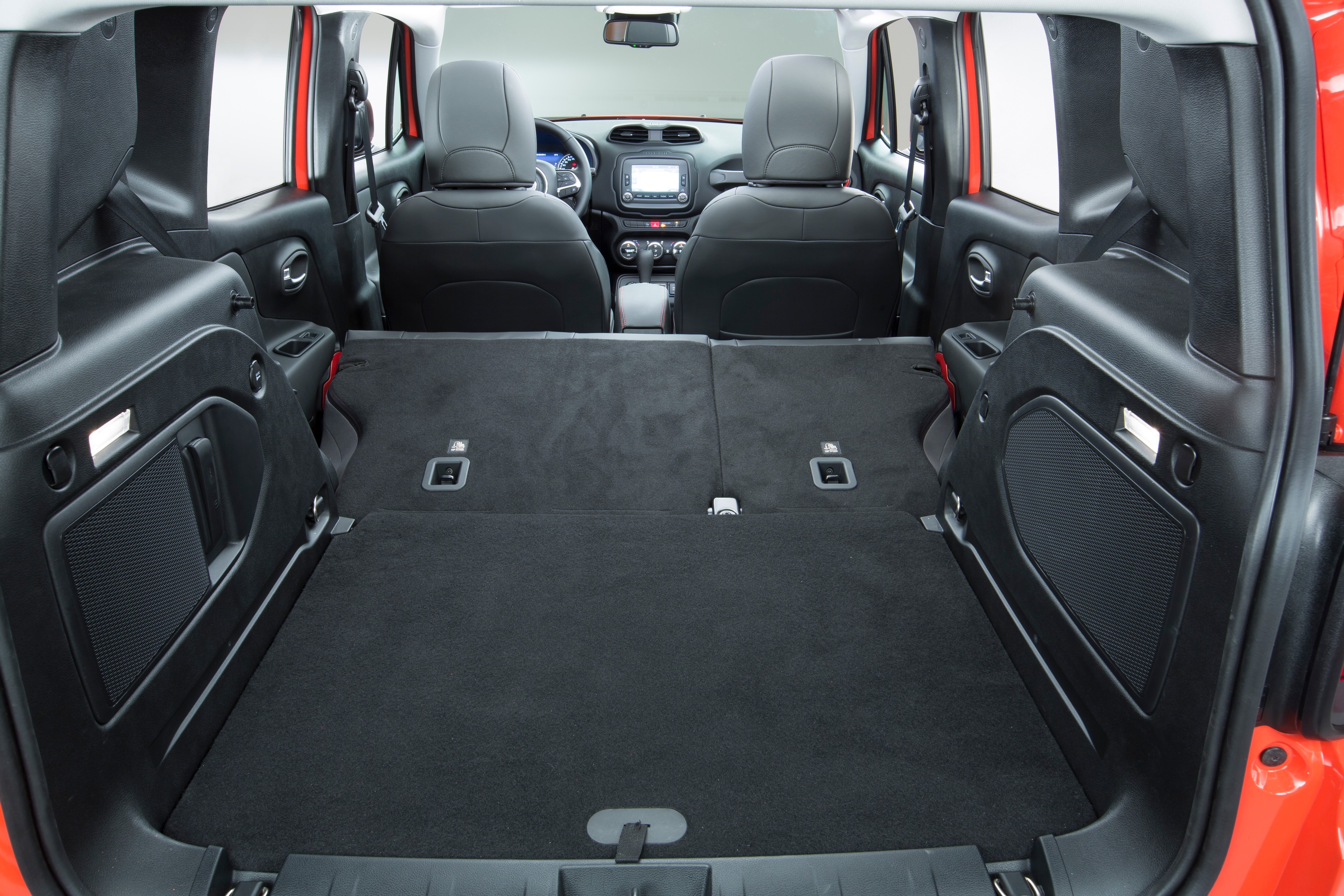

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1297 | -/1297 | -/1297 | -/1297 | -/1297 | -/1297 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.36 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/65 R16 | 215/65 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 305 x 28 | 281 x 26 | 281 x 26 | 305 x 28 | 305 x 28 | 305 x 28 |
| Brake dimensions rear | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | 2.68 | 2.68 | 2.68 | 2.68 | 2.68 | 2.68 |
| Turning diameter track/circumference [m] | 11,07/- | 11,07/- | 11,07/- | 11,07/- | 11,07/- | 11,07/- |
| Overall length [mm] | 4236 | 4236 | 4236 | 4236 | 4236 | 4236 |
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- | 1805/- |
| Overall height [mm] | 1667 | 1667 | 1667 | 1667 | 1667 | 1667 |
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | 2570 | 2570 |
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 175 | 175 | 175 | 198 | 175 | 175 |
| Wading depth [mm] | - | - | - | 305 | - | - |
| Approach angle front [°] | 17.9 | 17.9 | 17.9 | 21.0 | 17.9 | 17.9 |
| Approach angle rear [°] | 29.7 | 29.7 | 29.7 | 32.1 | 29.7 | 29.7 |
| Transition angle [°] | 21.2 | 21.2 | 21.2 | 23.5 | 21.2 | 21.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Front elbow/shoulder width [mm] | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 |
| Rear elbow/shoulder width [mm] | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 |
| Legroom front knees/total [mm] | -/1046 | -/1046 | -/1046 | -/1046 | -/1046 | -/1046 |
| Legroom rear knees/total [mm] | -/887 | -/887 | -/887 | -/887 | -/887 | -/887 |
| 2.0 MultiJet II 120 | 2.0 MultiJet II 140 | 2.0 MultiJet II 140 | 2.0 MultiJet II 170 Trailhawk | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1956 | 1956 | 1956 | 1956 | ||
| Maximum output / speed [kW/min-1] | 88/3750 | 103/3750 | 103/3750 | 125/3750 | ||
| Maximum torque [Nm/min-1] | 320/1750 | 350/1750 | 350/1750 | 350/1750 | ||
| Bore and stroke [mm x mm] | 83 x 90.4 | 83 x 90.4 | 83 x 90.4 | 83 x 90.4 | ||
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | ||
| Oil volume [l] | 5.2 | 5.2 | 5.2 | 5.2 | ||
| Coolant volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 6 gear manual | 6 gear manual | 9 gear automatic | 9 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 182 | 182 | 182 | 196 | ||
| Acceleration 0–100 km/h [s] | 9,5 | 9,5 | 10,2 | 8,9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6,0 | 6,0 | 6,7 | 6,9 | ||
| Out of town [l] | 4,6 | 4,6 | 5,1 | 5,1 | ||
| Combined [l] | 5,1 | 5,1 | 5,7 | 5,8 | ||
| CO2 emissions [g/km] | 134 | 134 | 150 | 151 | ||
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1505 | 1505 | 1605 | 1610 | ||
| Overall weight [kg] | 2010 | 2010 | 2080 | 2080 | ||
| Maximum trailer weight unbraked/braked [kg] | 600/1500 | 600/1500 | 600/1500 | 600/1500 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | ||
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | 70/- | ||
| Boot volume [l] | 351 | 351 | 351 | 351 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1297 | -/1297 | -/1297 | -/1297 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | 0.37 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | ||
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 305 x 28 | 305 x 28 | 305 x 28 | 305 x 28 | ||
| Brake dimensions rear | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 | ||
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | ||
| Number of steering wheel turns | 2.68 | 2.68 | 2.76 | 2.76 | ||
| Turning diameter track/circumference [m] | 11,07/- | 11,07/- | 10.76/- | 10.76/- | ||
| Overall length [mm] | 4236 | 4236 | 4236 | 4236 | ||
| Overall width without/including mirrors [mm] | 1805/- | 1805/- | 1805/- | 1805/- | ||
| Overall height [mm] | 1667 | 1667 | 1667 | 1667 | ||
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | ||
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1541 | ||
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1541 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 198 | 198 | 198 | 210 | ||
| Wading depth [mm] | 305 | 305 | 305 | 480 | ||
| Approach angle front [°] | 21.0 | 21.0 | 21.0 | 30.0 | ||
| Approach angle rear [°] | 32.1 | 32.1 | 32.1 | 34.0 | ||
| Transition angle [°] | 23.5 | 23.5 | 23.5 | 24.0 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | ||
| Headroom rear [mm] | 1029 | 1029 | 1029 | 1029 | ||
| Front elbow/shoulder width [mm] | 1348/1419 | 1348/1419 | 1348/1419 | 1348/1419 | ||
| Rear elbow/shoulder width [mm] | 1319/1400 | 1319/1400 | 1319/1400 | 1319/1400 | ||
| Legroom front knees/total [mm] | -/1046 | -/1046 | -/1046 | -/1046 | ||
| Legroom rear knees/total [mm] | -/887 | -/887 | -/887 | -/887 |
