Jeep Compass

Compass MP552 2021

Date of manufacture

2021 – to this day (Medium SUV)

Platform

FCA Small Wide LWB 4x4

Manufacturing locations

Toluca, Mexico
Melfi, Italy

Designer

-

Tags

Compact SUV
American cars
The new Jeep Compass is a mid-size SUV produced by FCA in its factories in Mexico and Italy since 2021. The vehicle is based on the FCA Small Wide LWB 4x4 platform and offers petrol, diesel and hybrid engines. The highest performance is achieved by the 1.3 T-GDI 4xe 240 PHEV Trailhawk with 177 kW and the same engine has the best acceleration 0-100 km/h in 7.3 seconds. The most fuel-efficient version 1.3 T-GDI 4xe 190 PHEV has a fuel consumption of 1.9 l/100 km and CO2 emissions of 47 g/km. The trunk size is 420 l. The Compass model underwent EURONCAP safety tests in 2017 and received a rating of 5 out of 5.

Car body style

Medium SUV

after upgrade (facelift)
Date of manufacture
2021 – to this day
Internal designation
MP552

Euro NCAP

Test year 2017
pre-facelift version (2017)
Rating
star iconstar iconstar iconstar iconstar icon
Adults
90 %
Adults
Children
83 %
Children
Pedestrians
64 %
Pedestrians
Assist systems
59 %
Assist systems

Technical data

Medium SUV

1.3 T-GDI 130 1.3 T-GDI 150 1.3 T-GDI 4xe 190 PHEV 1.3 T-GDI 4xe 240 PHEV 1.3 T-GDI 4xe 240 PHEV Trailhawk 1.6 MultiJet 130
Date of sale------
Engine typeIgnition superchargedIgnition superchargedPetrol supercharged + ElectricPetrol supercharged + ElectricPetrol supercharged + ElectricDiesel supercharged
Number of cylinders/valves4/164/164/164/164/164/16
Engine displacement [cm³]133213321332133213321598
Maximum output / speed [kW/min-1]
96/4750
110/5500
96/5550 combustion
44 el.
140 total
133/5750 combustion
44 el.
177 total
133/5750 combustion
44 el.
177 total
96/3750
Maximum torque [Nm/min-1]
270/1560
270/1560
270/1850
250 el.
270/1850
250 el.
270/1850
250 el.
320/1500
Drive axleFrontFront4x44x44x4Front
Gearbox6 gear manual6 gear automatic6 gear automatic6 gear automatic6 gear automatic6 gear manual
Top speed [km/h]192199183 [130 el.]200 [130 el.]200 [130 el.]194
Acceleration 0–100 km/h [s]10,39,27,97,37,310,6
City [l]7.76,6---6.3
Out of town [l]5.15,4---4.3
Combined [l]6.15,81,9 [16.3 kWh]2,0 [16.3 kWh]2,0 [16.3 kWh]5.1
CO2 emissions [g/km]138-133133-1274747-4347-43134-123
Emission standardEuro 6dEuro 6dEuro 6dEuro 6dEuro 6dEuro 6d
System voltage [V]------
Battery type and capacity--Lithium-Ionen-Akkumulator, 11.4 kWhLithium-Ionen-Akkumulator, 11.4 kWhLithium-Ionen-Akkumulator, 11.4 kWh-
Range with fully charged battery [km]--474747-
Charging time--
  • 5 hours, charger 2.3 kW
  • 1:40 hours, charger 7.4 kW
  • 5 hours, charger 2.3 kW
  • 1:40 hours, charger 7.4 kW
  • 5 hours, charger 2.3 kW
  • 1:40 hours, charger 7.4 kW
-
Standby weight [kg]150515051935193519351615
Overall weight [kg]196519652400240024002086
Maximum trailer weight unbraked/braked [kg]600/1825600/1825600/1325600/1325600/1325500/1325
Boot volume [l]438438420420420438
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1387-/1387-/1230-/1230-/1230-/1387
Number of doors555555
Number of seats555555
Fuel tank volume [l]555536,536,536,560
AdBlue tank volume [l]-----13
Overall length [mm]440444044404440443984404
Overall width without/including mirrors [mm]1819/-1819/-1819/-1819/-1819/-1819/-
Overall height [mm]162916291644164416511629
Wheelbase [mm]263626362636263626362636
Headroom front [mm]------
Headroom rear [mm]------
Front elbow/shoulder width [mm]------
Rear elbow/shoulder width [mm]------

Gallery

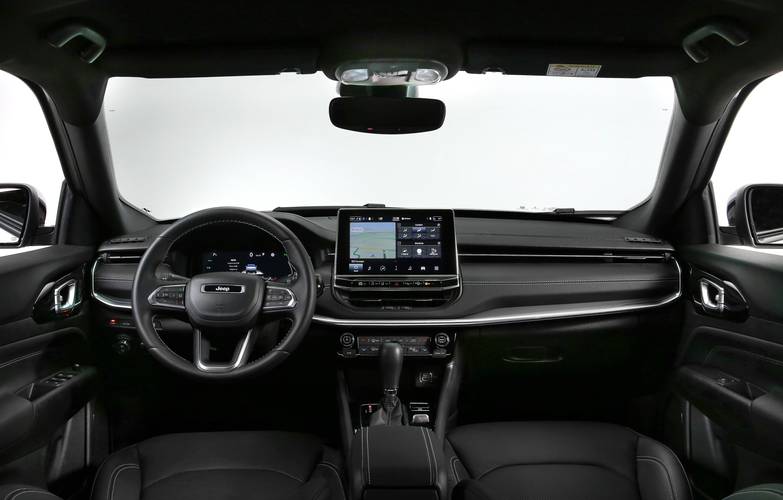

Jeep Compass MP552 facelift 2022 interiorJeep Compass MP552 facelift 2022 rear seats
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
