Basic information Technical Specifications Gallery

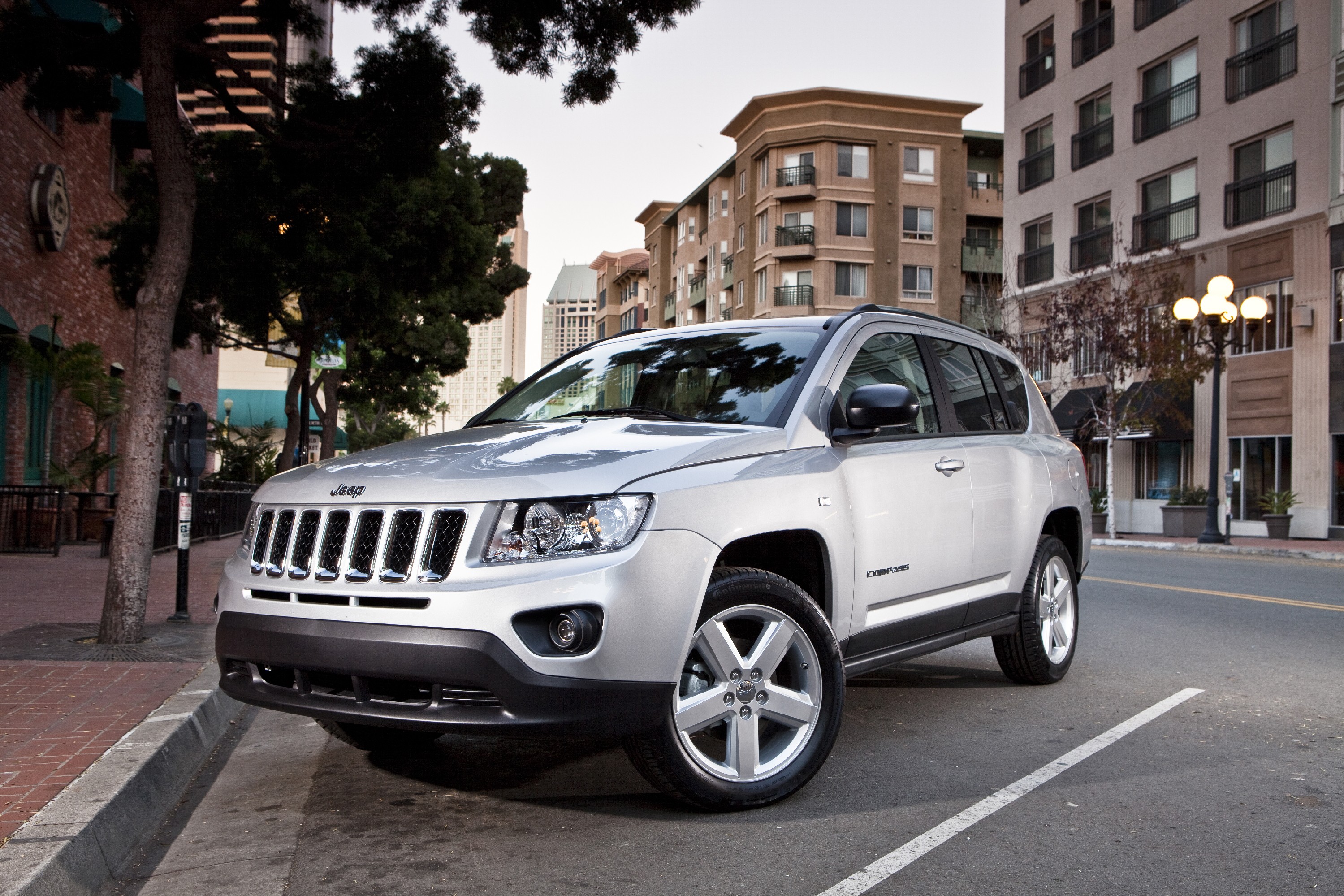

Jeep Compass

Date of manufacture

2011 – 2016 (Medium SUV)

Platform

Chrysler PM/MK

Manufacturing locations

Belvidere, Illinois, USA

Designer

Car body style

Medium SUV

after upgrade (facelift)

Date of manufacture

2011 – 2016

Internal designation

MK49

Engine size

Petrol

2,0L

2,4L EURO 5

Diesel

2,2L CRD

Euro NCAP

Technical data

Medium SUV

	2,0L	2,0L	2,4L EURO 5	2,4L EURO 5	2,2L CRD	2,2L CRD
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	2359	2359	2143	2143
Maximum output / speed [kW/min-1]	115/6300	115/6300	125/6000	125/6000	100/3600-4200	100/3600-4200
Maximum torque [Nm/min-1]	190/5100	190/5100	220/4500	220/4500	320/1400-2800	320/1400-2800
Bore and stroke [mm x mm]	86.0 x 86.0	86.0 x 86.0	88.0 x 97.0	88.0 x 97.0	83.0 x 99.0	83.0 x 99.0
Compression ratio	10.5:1	10.5:1	10.5:1	10.5:1	16.2:1	16.2:1
Oil volume [l]	4.7	4.7	4.7	4.7	6.5	6.5
Coolant volume [l]	6.8	6.8	6.8	6.8	9.35	9.35
Technical specifications	variable valve timing VVT	variable valve timing VVT	variable valve timing VVT	variable valve timing VVT	direct injection CRD turbo-supercharged particulate filter	direct injection CRD turbo-supercharged particulate filter

Drive axle	Front	Front	4x4	4x4	Front	4x4
Gearbox	5 gear manual	1 gear automatic	5 gear manual	1 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	automatic gearbox with one variable ratio	-	automatic gearbox with one variable ratio	-	-

Top speed [km/h]	185	183	180	180	180	180
Acceleration 0–100 km/h [s]	-	-	-	-	-	-
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10,2	10,7	10,9	11,3	7,4	7,9
Out of town [l]	6,1	6,7	6,4	7,0	5,4	5,9
Combined [l]	7,6	8,2	8,1	8,6	6,1	6,6
CO2 emissions [g/km]	175	190	187	199	161	172

Emission standard	-	-	-	-	-	-
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1499-1555	1535-1586	1605-1648	1605-1661	1634-1677	1680-1730
Overall weight [kg]	2010	2010	1980	1980	2045	2075
Maximum trailer weight unbraked/braked [kg]	450/1200	450/1200	450/1500	450/1500	450/1200	450/2000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	60	60	75	75	60	100
Maximum load on roof/carrier [kg]	68/-	68/-	68/-	68/-	68/-	68/-

Boot volume [l]	328-458	328-458	328-458	328-458	328-458	328-458
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1269	-/1269	-/1269	-/1269	-/1269	-/1269
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	51	51	51	51	51	51
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H
Tyre dimensions rear	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H	215/60R17 95 H
Wheel size front	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39
Wheel size rear	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39	6.5J x 17 ET39
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	-	-	-	-	-	-

Overall length [mm]	4448	4448	4448	4448	4448	4448
Overall width without/including mirrors [mm]	1812/-	1812/-	1812/-	1812/-	1812/-	1812/-
Overall height [mm]	1663	1663	1663	1663	1663	1663
Wheelbase [mm]	2635	2635	2635	2635	2635	2635
Front wheel track [mm]	1520	1520	1520	1520	1520	1520
Rear wheel track [mm]	1520	1520	1520	1520	1520	1520
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	205	205	205	205	205	205
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	20	20	20	20	20	20
Approach angle rear [°]	28	28	28	28	28	28
Transition angle [°]	20	20	20	20	20	20
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1040	1040	1040	1040	1040	1040
Headroom rear [mm]	1014	1014	1014	1014	1014	1014
Front elbow/shoulder width [mm]	1329/-	1329/-	1329/-	1329/-	1329/-	1329/-
Rear elbow/shoulder width [mm]	1294/-	1294/-	1294/-	1294/-	1294/-	1294/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2,2L CRD	2,2L CRD
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	2143	2143
Maximum output / speed [kW/min-1]	120/3600-4200	120/3600-4200
Maximum torque [Nm/min-1]	320/1400-3600	320/1400-3600
Bore and stroke [mm x mm]	83.0 x 99.0	83.0 x 99.0
Compression ratio	16.2:1	16.2:1
Oil volume [l]	6.5	6.5
Coolant volume [l]	9.35	9.35
Technical specifications	direct injection CRD turbo-supercharged particulate filter	direct injection CRD turbo-supercharged particulate filter

Drive axle	Front	4x4
Gearbox	6 gear manual	6 gear manual
Drive specifications	-	-

Top speed [km/h]	201	201
Acceleration 0–100 km/h [s]	-	-
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	7,4	7,9
Out of town [l]	5,4	5,9
Combined [l]	6,1	6,6
CO2 emissions [g/km]	161	172

Emission standard	-	-
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1634-1677	1680-1730
Overall weight [kg]	2045	2075
Maximum trailer weight unbraked/braked [kg]	450/1200	450/2000
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	60	100
Maximum load on roof/carrier [kg]	68/-	68/-

Boot volume [l]	328-458	328-458
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1269	-/1269
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5	5
Fuel tank volume [l]	51	51
AdBlue tank volume [l]	-	-
Air resistance [Cd]	-	-
Front suspension	MacPherson	MacPherson
Rear suspension	multilink	multilink
Tyre dimensions front	215/60R17 95 H	215/60R17 95 H
Tyre dimensions rear	215/60R17 95 H	215/60R17 95 H
Wheel size front	6.5J x 17 ET39	6.5J x 17 ET39
Wheel size rear	6.5J x 17 ET39	6.5J x 17 ET39
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	-	-

Overall length [mm]	4448	4448
Overall width without/including mirrors [mm]	1812/-	1812/-
Overall height [mm]	1663	1663
Wheelbase [mm]	2635	2635
Front wheel track [mm]	1520	1520
Rear wheel track [mm]	1520	1520
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	205	205
Wading depth [mm]	-	-
Approach angle front [°]	20	20
Approach angle rear [°]	28	28
Transition angle [°]	20	20
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1040	1040
Headroom rear [mm]	1014	1014
Front elbow/shoulder width [mm]	1329/-	1329/-
Rear elbow/shoulder width [mm]	1294/-	1294/-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Gallery

Jeep Compass facelift MK49 2011 interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
