Jaguar XF
Date of manufacture
6/2011 – 2015 (Sedan)
5/2012 – 2015 (Estate)
Platform
Ford DEW98 platform
Manufacturing locations
Birmingham, United Kingdom
Designer
Ian Callum
Tags
E-segment
British cars
The Jaguar XF model has the body styles of sedan and estate. The car has been manufactured since 2011. Its country of origin is the United Kingdom. The car is built on the Ford DEW98 platform. The engine range includes petrol and diesel engines. The most powerful model is the 5.0 V8 Compressor R-S with 405 kW of power. The highest speed of 300 km/h is achieved by the 5.0 V8 Compressor R-S version. The best acceleration from 0-100 km/h is 4.6 seconds for the 5.0 V8 Compressor R-S model. The 2.2 L Diesel has the lowest consumption of 5.1 l/100 km and emissions of 135 g/km. The sedan body style offers a trunk volume of 540 l. The estate body style offers a luggage compartment volume of 550 l. The car was tested in the safety area in 2011 and achieved an overall rating of 4 out of 5 according to EURONCAP.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
6/2011 – 2015Internal designation
X250 Estate (Sportbrake)
after upgrade (facelift)
Date of manufacture
5/2012 – 2015Internal designation
X250 Engine size
Technical data
Sedan
| 2.0 L Turbo | 3.0 V6 kompresor | 3.0 V6 kompresor AWD | 5.0 V8 | 5.0 V8 kompresor R | 5.0 V8 kompresor R | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 1999 | 2995 | 2995 | 5000 | 5000 | 5000 |
| Maximum output / speed [kW/min-1] | 177/5500 | 250/6500 | 250/6500 | 283/6500 | 375/6000-6500 | 375/6000-6500 |
| Maximum torque [Nm/min-1] | 340/2000-4000 | 450/3500-5000 | 450/3500-5000 | 515/3500 | 625/2500-5500 | 625/2500-5500 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 84,5 x 89,0 | 84,5 x 89,0 | 92,5 x 93,0 | 92,5 x 93,0 | 92,5 x 93,0 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,5:1 | 11,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear automatic | 6 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 241 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.9 | 5.6 | 5.8 | 5.7 | 4.9 | 4.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.6 | 13.2 | 13.7 | 17.3 | 18.7 | 16.9 |
| Out of town [l] | 6.1 | 7.0 | 7.3 | 7.8 | 8.7 | 8.6 |
| Combined [l] | 8.1 | 9.3 | 9.6 | 11.1 | 12.5 | 11.6 |
| CO2 emissions [g/km] | 189 | 221 | 229 | 264 | 292 | 270 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1660 | 1770 | 1880 | 1780 | 1891 | 1875 |
| Overall weight [kg] | 2230 | 2315 | 2415 | 2300 | 2370 | 2400 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 540 | 540 | 540 | 540 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/963 | -/963 | -/963 | -/963 | -/923 | -/923 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | 1902 | 1902 | 1902 | 1902 | 1902 | 1902 |
| Boot width between wheels/max [mm] | -/760 | -/760 | -/760 | -/760 | -/760 | -/760 |
| Boot height to headliner/ceiling [mm] | -/335 | -/335 | -/335 | -/335 | -/335 | -/335 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 235/55 R17 | 245/45 R18 | 245/40 R19 | - | 255/35 R20 | 255/35 R20 |
| Tyre dimensions rear | 235/55 R17 | 245/45 R18 | 245/40 R19 | - | 285/30 R20 | 285/30 R20 |
| Wheel size front | 7.5 x 17 | 8.5 x 18 | 8.5 x 19 | - | 8.5 x 20 | 8.5 x 20 |
| Wheel size rear | 7.5 x 17 | 8.5 x 18 | 8.5 x 19 | - | 9.5 x 20 | 9.5 x 20 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4961 | 4961 | 4961 | 4961 | 4961 | 4961 |
| Overall width without/including mirrors [mm] | 1939/- | 1939/- | 1939/- | 1939/- | 1939/- | 1939/- |
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Wheelbase [mm] | 2909 | 2909 | 2909 | 2909 | 2909 | 2909 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1571 | 1571 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Rear elbow/shoulder width [mm] | 1432/- | 1432/- | 1432/- | 1432/- | 1432/- | 1432/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

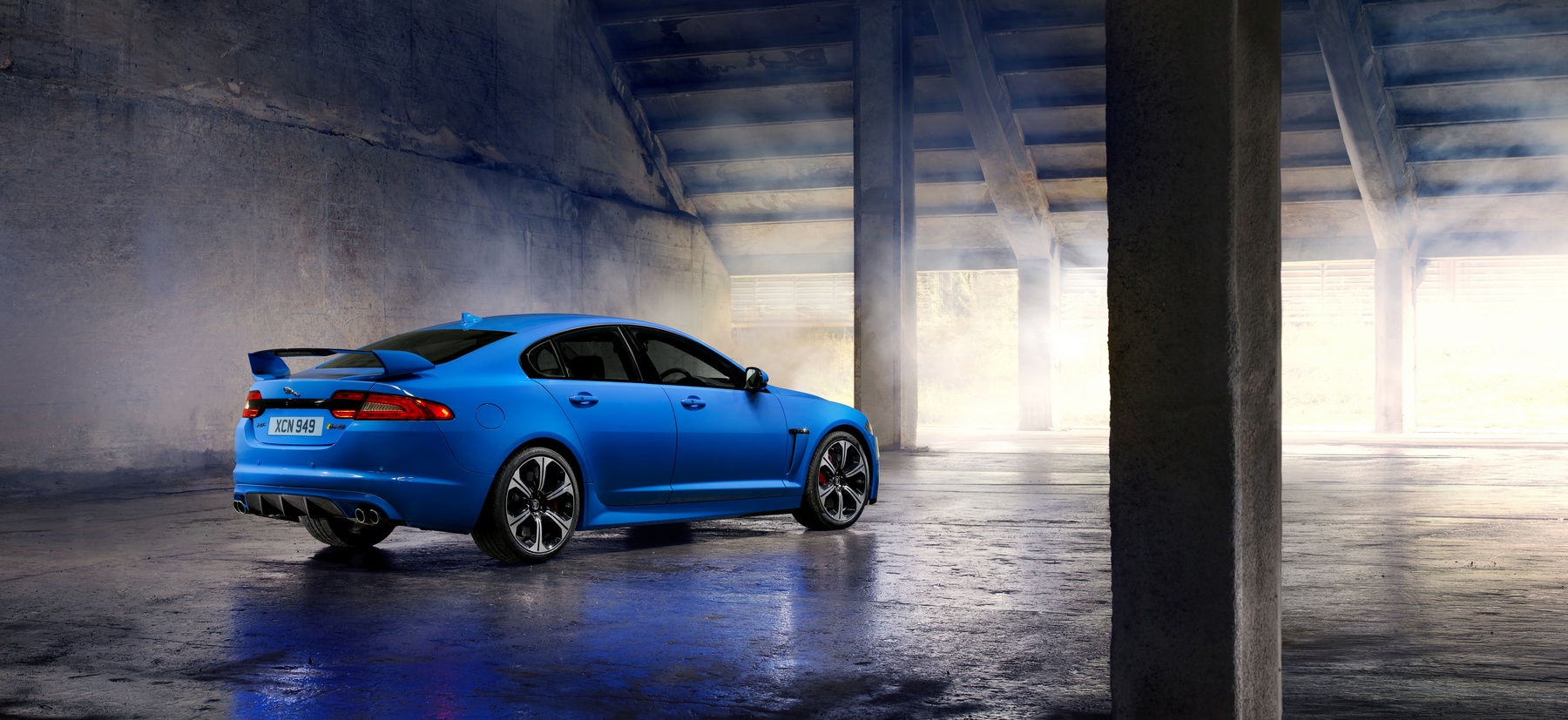

| 5.0 V8 kompresor R-S | 2.2 L Diesel | 2.2 L Diesel | 3.0 L V6 Diesel | 3.0 L V6 Diesel | 3.0 L V6 Diesel S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 5000 | 2179 | 2179 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 405/6000-6500 | 140/3500 | 147/3500 | 177/4000 | 177/4000 | 202/4000 |
| Maximum torque [Nm/min-1] | 680/2500-5500 | 450/2000 | 450/2000 | 500/2000 | 500/2000 | 600/2000 |
| Bore and stroke [mm x mm] | 92,5 x 93,0 | 85,0 x 96,0 | 85,0 x 96,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 9,5:1 | 15,8:1 | 15,8:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 300 | 225 | 225 | 240 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 4.6 | 8.5 | 8.5 | 7.1 | 7.1 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 16.9 | 6.6 | 6.1 | 8.7 | 7.5 | 8.7 |
| Out of town [l] | 8.6 | 4.8 | 4.5 | 5.0 | 5.0 | 5.0 |
| Combined [l] | 11.6 | 5.4 | 5.1 | 6.3 | 6.0 | 6.3 |
| CO2 emissions [g/km] | 270 | 149 | 135 | 169 | 159 | 169 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1875 | 1745 | 1735 | 1810 | 1770 | 1810 |
| Overall weight [kg] | 2400 | 2320 | 2320 | 2360 | 2360 | 2360 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 500 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/923 | -/963 | -/963 | -/963 | -/963 | -/963 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | 1902 | 1902 | 1902 | 1902 | 1902 | 1902 |
| Boot width between wheels/max [mm] | -/760 | -/760 | -/760 | -/760 | -/760 | -/760 |
| Boot height to headliner/ceiling [mm] | -/335 | -/335 | -/335 | -/335 | -/335 | -/335 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 295/30 R20 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 245/45 R18 |
| Tyre dimensions rear | 295/30 R20 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 245/45 R18 |
| Wheel size front | 9.0 x 20 | 7.5 x 17 | 7.5 x 17 | 7.5 x 17 | 7.5 x 17 | 8.5 x 18 |
| Wheel size rear | 10.5 x 20 | 7.5 x 17 | 7.5 x 17 | 7.5 x 17 | 7.5 x 17 | 8.5 x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4961 | 4961 | 4961 | 4961 | 4961 | 4961 |
| Overall width without/including mirrors [mm] | 1939/- | 1939/- | 1939/- | 1939/- | 1939/- | 1939/- |
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Wheelbase [mm] | 2909 | 2909 | 2909 | 2909 | 2909 | 2909 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1563 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Rear elbow/shoulder width [mm] | 1432/- | 1432/- | 1432/- | 1432/- | 1432/- | 1432/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 L V6 Diesel S | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 202/4000 | |||||
| Maximum torque [Nm/min-1] | 600/2000 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 6.4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.5 | |||||
| Out of town [l] | 5.0 | |||||
| Combined [l] | 6.0 | |||||
| CO2 emissions [g/km] | 159 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1770 | |||||
| Overall weight [kg] | 2360 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 540 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/963 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | 1902 | |||||
| Boot width between wheels/max [mm] | -/760 | |||||
| Boot height to headliner/ceiling [mm] | -/335 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 70 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.29 | |||||
| Front suspension | - | |||||
| Rear suspension | - | |||||
| Tyre dimensions front | 245/45 R18 | |||||
| Tyre dimensions rear | 245/45 R18 | |||||
| Wheel size front | 8.5 x 18 | |||||
| Wheel size rear | 8.5 x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.5/- | |||||
| Overall length [mm] | 4961 | |||||
| Overall width without/including mirrors [mm] | 1939/- | |||||
| Overall height [mm] | 1460 | |||||
| Wheelbase [mm] | 2909 | |||||
| Front wheel track [mm] | 1559 | |||||
| Rear wheel track [mm] | 1605 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 991 | |||||
| Headroom rear [mm] | 956 | |||||
| Front elbow/shoulder width [mm] | 1444/- | |||||
| Rear elbow/shoulder width [mm] | 1432/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate (Sportbrake)
| 5.0 V8 kompresor R-S | 2.2 L Diesel | 3.0 L V6 Diesel | 3.0 L V6 Diesel S | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 8/32 | 4/16 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 5000 | 2179 | 2993 | 2993 | ||
| Maximum output / speed [kW/min-1] | 405/6000-6500 | 147/3500 | 177/4000 | 202/4000 | ||
| Maximum torque [Nm/min-1] | 680/2500-5500 | 450/2000 | 500/2000 | 600/2000 | ||
| Bore and stroke [mm x mm] | 92,5 x 93,0 | 85,0 x 96,0 | 84,0 x 90,0 | 84,0 x 90,0 | ||
| Compression ratio | 9,5:1 | 15,8:1 | 16,0:1 | 16,0:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | Rear | Rear | Rear | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 300 | 214 | 240 | 250 | ||
| Acceleration 0–100 km/h [s] | 4.8 | 8.8 | 7.1 | 6.6 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 19.1 | 6.1 | 7.5 | 7.5 | ||
| Out of town [l] | 9.0 | 4.5 | 5.2 | 5.2 | ||
| Combined [l] | 12.7 | 5.1 | 6.1 | 6.1 | ||
| CO2 emissions [g/km] | 297 | 135 | 163 | 163 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1967 | 1824 | 1880 | 1880 | ||
| Overall weight [kg] | 2450 | 2320 | 2440 | 2440 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1850 | 750/1850 | 750/1850 | 750/1850 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 510 | 550 | 550 | 550 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1635 | -/1675 | -/1675 | -/1675 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | 1970 | 1970 | 1970 | 1970 | ||
| Boot width between wheels/max [mm] | -/1064 | -/1064 | -/1064 | -/1064 | ||
| Boot height to headliner/ceiling [mm] | -/700 | -/700 | -/700 | -/700 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | - | - | - | - | ||
| Rear suspension | - | - | - | - | ||
| Tyre dimensions front | 295/30 R20 | 235/55 R17 | 235/55 R17 | 245/45 R18 | ||
| Tyre dimensions rear | 295/30 R20 | 235/55 R17 | 235/55 R17 | 245/45 R18 | ||
| Wheel size front | 9.0 x 20 | 7.5 x 17 | 7.5 x 17 | 8.5 x 18 | ||
| Wheel size rear | 10.5 x 20 | 7.5 x 17 | 7.5 x 17 | 8.5 x 18 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | ||
| Overall length [mm] | 4966 | 4966 | 4966 | 4966 | ||
| Overall width without/including mirrors [mm] | 1939/- | 1939/- | 1939/- | 1939/- | ||
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | ||
| Wheelbase [mm] | 2909 | 2909 | 2909 | 2909 | ||
| Front wheel track [mm] | 1549 | 1559 | 1559 | 1559 | ||
| Rear wheel track [mm] | 1563 | 1605 | 1605 | 1605 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 992 | 992 | 992 | 992 | ||
| Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | ||
| Front elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | ||
| Rear elbow/shoulder width [mm] | 1432/- | 1432/- | 1432/- | 1432/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
