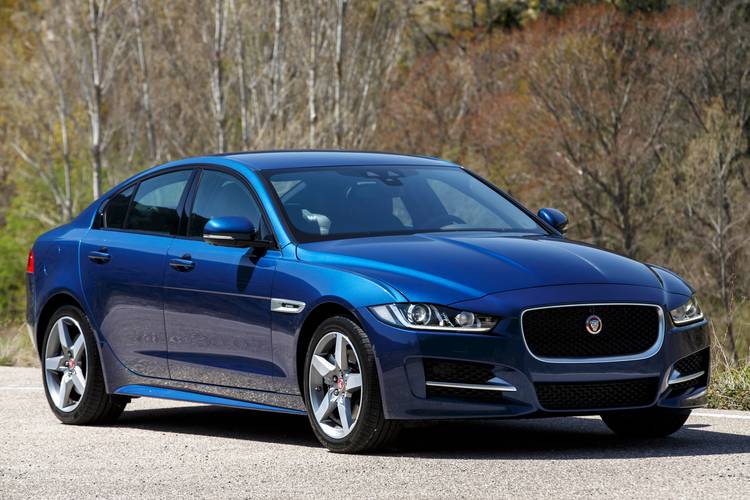

Jaguar XE
Date of manufacture
4/2015 – 2018 (Sedan)
Platform
Jaguar iQ
Manufacturing locations
Solihull, United Kingdom
Birmingham, United Kingdom
Designer
Ian Callum
Tags
D-segment
British cars
The new Jaguar XE model is available in a sedan version since 2015. The car made in the United Kingdom is based on the Jaguar iQ platform and offers a range of petrol and diesel engines. The most powerful version S reaches 280 kW, a maximum speed of 250 km/h and the best acceleration 0-100 km/h in 5.0 seconds. The most economical engine 20d E-Performance has a combined consumption of 3.8 l/100 km and CO2 emissions of 99 g/km. The luggage compartment volume is 455 liters. The XE model underwent EURONCAP safety tests in 2015 and received a rating of 5 out of 5.
Car body style
Technical data
Sedan
| 20t | 20t | 25t | 25t | 25t AWD | 30t | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from 2017 to | from to 2017 | from 2017 to | from 2017 to | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1997 | 1999 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 147/5500 | 147/5500 | 177/5500 | 184/5500 | 184/5500 | 221/5500 |
| Maximum torque [Nm/min-1] | 320/1750-4000 | 320/1200-4500 | 340/1750-4000 | 365/1200-4500 | 365/1200-4500 | 400/1500-4500 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 83.0 x 92.4 | 87,5 x 83,1 | 83.0 x 92.4 | 83.0 x 92.4 | 83.0 x 92.4 |
| Compression ratio | 10,0:1 | 10.5:1 | 10,0:1 | 10.5:1 | 10.5:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 237 | 238 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.7 | 7.1 | 6.8 | 6.3 | 6.2 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.2 | 8.2 | 10.2 | 8.2 | 8.4 | 8.9 |
| Out of town [l] | 6.0 | 5.2 | 6.0 | 5.2 | 5.8 | 5.7 |
| Combined [l] | 7.5 | 6.3 | 7.5 | 6.3 | 6.8 | 6.9 |
| CO2 emissions [g/km] | 179 | 144 | 179 | 144 | 154 | 157 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1535 | 1540 | 1535 | 1540 | 1595 | 1620 |
| Overall weight [kg] | 2120 | 2150 | 2120 | 2150 | 2210 | 2210 |
| Maximum trailer weight unbraked/braked [kg] | -/1800 | -/1800 | -/1800 | -/1800 | -/1800 | -/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/830 | -/830 | -/830 | -/830 | -/830 | -/830 |
| Boot length [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Boot length with rear seats folded [mm] | 1776 | 1776 | 1776 | 1776 | 1776 | 1776 |
| Boot width between wheels/max [mm] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot height to headliner/ceiling [mm] | -/469 | -/469 | -/469 | -/469 | -/469 | -/469 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.295 | 0.26 | 0.3 | 0.31 | 0.31 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 |
| Tyre dimensions rear | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 |
| Wheel size front | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Wheel size rear | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.66/- | 11.66/- | 11.66/- | 11.66/- | 11.66/- | 11.66/- |
| Overall length [mm] | 4672 | 4672 | 4672 | 4672 | 4672 | 4672 |
| Overall width without/including mirrors [mm] | 1850/2075 | 1850/2075 | 1850/2075 | 1850/2075 | 1850/2075 | 1850/2075 |
| Overall height [mm] | 1416 | 1416 | 1416 | 1416 | 1425 | 1425 |
| Wheelbase [mm] | 2835 | 2835 | 2835 | 2835 | 2835 | 2835 |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Rear wheel track [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 110 | 110 | 110 | 110 | 119 | 119 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Headroom rear [mm] | 948 | 948 | 948 | 948 | 948 | 948 |
| Front elbow/shoulder width [mm] | -/1442 | -/1442 | -/1442 | -/1442 | -/1442 | -/1442 |
| Rear elbow/shoulder width [mm] | -/1389 | -/1389 | -/1389 | -/1389 | -/1389 | -/1389 |
| Legroom front knees/total [mm] | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 |
| Legroom rear knees/total [mm] | -/889 | -/889 | -/889 | -/889 | -/889 | -/889 |
| S | S | 20d E-Performance | 20d E-Performance | 20d | 20d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from 2017 to | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2995 | 2995 | 1999 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 250/6500 | 280/6500 | 120/4000 | 120/4000 | 132/4000 | 132/4000 |
| Maximum torque [Nm/min-1] | 450/3500 | 450/3500-5000 | 380/1750-2500 | 380/1750-2500 | 430/1750-2500 | 430/1750-2500 |
| Bore and stroke [mm x mm] | 84,5 x 89,0 | 84,5 x 89,0 | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 | 83,0 x 92,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 250 | 250 | 227 | 227 | 231 | 228 |
| Acceleration 0–100 km/h [s] | 5.1 | 5.0 | 8.4 | 8.2 | 7.8 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.6 | 11.6 | 4.4 | 5.0 | 5.0 | 5.0-5.1 |
| Out of town [l] | 6.1 | 6.1 | 3.4 | 3.5 | 3.7 | 3.7 |
| Combined [l] | 8.1 | 8.1 | 3.8 | 4.1 | 4.2 | 4.2 |
| CO2 emissions [g/km] | 194 | 194 | 99 | 106 | 109 | 109-111 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1665 | 1655 | 1474 | 1500 | 1550 | 1565 |
| Overall weight [kg] | 2220 | 2230 | 2100 | 2100 | 2135 | 2135 |
| Maximum trailer weight unbraked/braked [kg] | -/1800 | -/1800 | -/1600 | -/1600 | -/1800 | -/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/830 | -/830 | -/830 | -/830 | -/830 | -/830 |
| Boot length [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Boot length with rear seats folded [mm] | 1776 | 1776 | 1776 | 1776 | 1776 | 1776 |
| Boot width between wheels/max [mm] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot height to headliner/ceiling [mm] | -/469 | -/469 | -/469 | -/469 | -/469 | -/469 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 47 | 47 | 56 | 56 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.32 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 245/40 R18 | 245/40 R18 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 |
| Tyre dimensions rear | 245/40 R18 | 245/40 R18 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.66/- | 11.66/- | 11.66/- | 11.66/- | 11.66/- | 11.66/- |
| Overall length [mm] | 4672 | 4672 | 4672 | 4672 | 4672 | 4672 |
| Overall width without/including mirrors [mm] | 1850/2075 | 1850/2075 | 1850/2075 | 1850/2075 | 1850/2075 | 1850/2075 |
| Overall height [mm] | 1416 | 1416 | 1416 | 1416 | 1416 | 1416 |
| Wheelbase [mm] | 2835 | 2835 | 2835 | 2835 | 2835 | 2835 |
| Front wheel track [mm] | 1602 | 1600 | 1602 | 1602 | 1602 | 1602 |
| Rear wheel track [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Headroom rear [mm] | 948 | 948 | 948 | 948 | 948 | 948 |
| Front elbow/shoulder width [mm] | -/1442 | -/1442 | -/1442 | -/1442 | -/1442 | -/1442 |
| Rear elbow/shoulder width [mm] | -/1389 | -/1389 | -/1389 | -/1389 | -/1389 | -/1389 |
| Legroom front knees/total [mm] | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 | -/1055 |
| Legroom rear knees/total [mm] | -/889 | -/889 | -/889 | -/889 | -/889 | -/889 |
| 20d AWD | 25d AWD | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2017 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1999 | 1999 | ||||
| Maximum output / speed [kW/min-1] | 132/4000 | 177/4000 | ||||
| Maximum torque [Nm/min-1] | 430/1750-2500 | 500/1500 | ||||
| Bore and stroke [mm x mm] | 83,0 x 92,4 | 83,0 x 92,4 | ||||
| Compression ratio | 15,5:1 | 15,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 225 | 250 | ||||
| Acceleration 0–100 km/h [s] | 7.9 | 6.1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.5 | 6.4 | ||||
| Out of town [l] | 4.2 | 4.5 | ||||
| Combined [l] | 4.7 | 5.2 | ||||
| CO2 emissions [g/km] | 123 | 137 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1615 | 1650 | ||||
| Overall weight [kg] | 2230 | 2260 | ||||
| Maximum trailer weight unbraked/braked [kg] | -/1800 | -/1800 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 455 | 455 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/830 | -/830 | ||||
| Boot length [mm] | 1005 | 1005 | ||||
| Boot length with rear seats folded [mm] | 1776 | 1776 | ||||
| Boot width between wheels/max [mm] | -/1250 | -/1250 | ||||
| Boot height to headliner/ceiling [mm] | -/469 | -/469 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 56 | 56 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.26 | 0.26 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | ||||
| Tyre dimensions front | 205/55 R17 | 205/55 R17 | ||||
| Tyre dimensions rear | 205/55 R17 | 205/55 R17 | ||||
| Wheel size front | 6.5J x 17 | 6.5J x 17 | ||||
| Wheel size rear | 6.5J x 17 | 6.5J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.66/- | 11.66/- | ||||
| Overall length [mm] | 4672 | 4672 | ||||
| Overall width without/including mirrors [mm] | 1850/2075 | 1850/2075 | ||||
| Overall height [mm] | 1425 | 1425 | ||||
| Wheelbase [mm] | 2835 | 2835 | ||||
| Front wheel track [mm] | 1597 | 1597 | ||||
| Rear wheel track [mm] | 1603 | 1603 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 119 | 119 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 971 | 971 | ||||
| Headroom rear [mm] | 948 | 948 | ||||
| Front elbow/shoulder width [mm] | -/1442 | -/1442 | ||||
| Rear elbow/shoulder width [mm] | -/1389 | -/1389 | ||||
| Legroom front knees/total [mm] | -/1055 | -/1055 | ||||
| Legroom rear knees/total [mm] | -/889 | -/889 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
