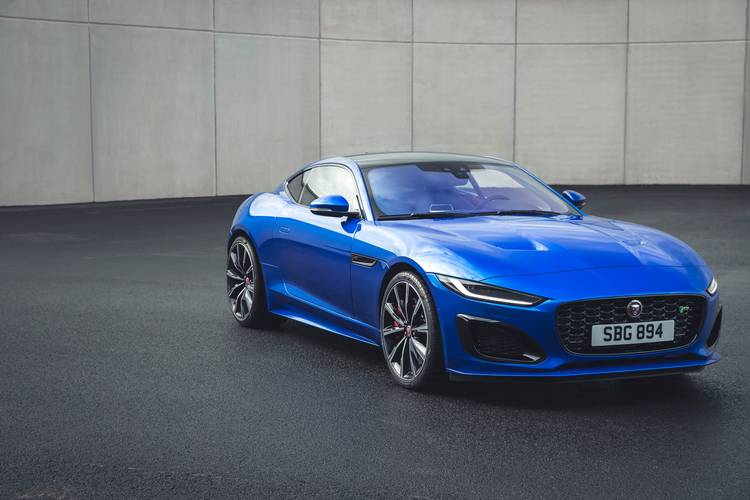

Jaguar F-Type
Date of manufacture
2019 – to this day (Coupé)
2019 – to this day (Roadster)
Platform
-
Manufacturing locations
Birmingham, United Kingdom
Designer
Ian Callum
Tags
S-segment
British cars
The Jaguar F-Type is a luxury sports car that has been manufactured in the United Kingdom since 2019. It is available in two body styles - coupe and roadster. The engine range consists of only petrol units. The highest power (423 kW) is provided by the P575 AWD model, with a maximum speed of 300 km/h and the best acceleration from 0-100 km/h takes 3.7 seconds. The most economical engine P300 has a combined fuel consumption of 9.7 l/100 km and CO2 emissions of 220 g/km. The coupe body has a luggage capacity of 509 litres, and the roadster has 233 litres.
Technical data
Coupé
| P300 | P450 | P450 AWD | P575 AWD | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | ||
| Number of cylinders/valves | 4/16 | 8/32 | 8/32 | 8/32 | ||
| Engine displacement [cm³] | 1997 | 5000 | 5000 | 5000 | ||
| Maximum output / speed [kW/min-1] | 221/5500 | 331/6000 | 331/6000 | 423/6500 | ||
| Maximum torque [Nm/min-1] | 400/1500-4500 | 580/2500-5000 | 580/2500-5000 | 700/3500-5000 | ||
| Bore and stroke [mm x mm] | 83.0 x 92.29 | 92,5 x 93,0 | 92,5 x 93,0 | 92,5 x 93,0 | ||
| Compression ratio | 9.5:1 | 9,5:1 | 9,5:1 | 9,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | Rear | 4x4 | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 250 | 285 | 285 | 300 | ||
| Acceleration 0–100 km/h [s] | 5.7 | 4.6 | 4.6 | 3.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | 3.7 | 2.9 | 3.0 | 2.3 | ||
| City [l] | 10.3 | 15.2 | 15.5 | 15.7 | ||
| Out of town [l] | 6.8 | 8.0 | 8.5 | 8.3 | ||
| Combined [l] | 8.1 | 10.6 | 11.0 | 11.0 | ||
| CO2 emissions [g/km] | 184 | 244 | 252 | 252 | ||
| Low speed [l] | 13.5-13.3 | 17.6-17.1 | 17.7-17.5 | 17.5 | ||
| Medium speed [l] | 9.9-9.6 | 10.9-10.5 | 11.1-10.9 | 10.9 | ||
| High speed [l] | 8.6-8.3 | 9.2-9.0 | 9.4-9.2 | 9.0 | ||
| Extra high speed [l] | 9.1-8.9 | 9.7-9.5 | 10.0-9.9 | 9.5 | ||
| Combined speed [l] | 9.7-9.4 | 10.8-10.5 | 11.1-10.9 | 10.7 | ||
| CO2 emissions [g/km] | 220-215 | 246-239 | 252-247 | 243 | ||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1595 | 1735 | 1818 | 1818 | ||
| Overall weight [kg] | 1925 | 2050 | 2150 | 2150 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 509 [336 VDA] | 509 [336 VDA] | 509 [336 VDA] | 509 [336 VDA] | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 2 | 2 | 2 | 2 | ||
| Fuel tank volume [l] | 63 | 70 | 70 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Tyre dimensions front | 245/45 R18 | 255/35 R20 | 255/35 R20 | 265/35 R20 | ||
| Tyre dimensions rear | 275/40 R18 | 295/30 R20 | 295/30 R20 | 305/30 R20 | ||
| Wheel size front | 8.5J x18 | 9J x 20 | 9J x 20 | 9J x 20 | ||
| Wheel size rear | 9.5J x18 | 10.5J x 20 | 10.5J x 20 | 11J x 20 | ||
| Brake dimensions front | 355 | 380 | 380 | 380 | ||
| Brake dimensions rear | 325 | 376 | 376 | 376 | ||
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.63/- | 10.63/- | 11.27/- | 11.27/- | ||
| Overall length [mm] | 4470 | 4470 | 4470 | 4470 | ||
| Overall width without/including mirrors [mm] | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 | ||
| Overall height [mm] | 1311 | 1311 | 1311 | 1311 | ||
| Wheelbase [mm] | 2622 | 2622 | 2622 | 2622 | ||
| Front wheel track [mm] | 1596 | 1584 | 1584 | 1584 | ||
| Rear wheel track [mm] | 1647 | 1626 | 1628 | 1610 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 100 | 100 | 100 | 100 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

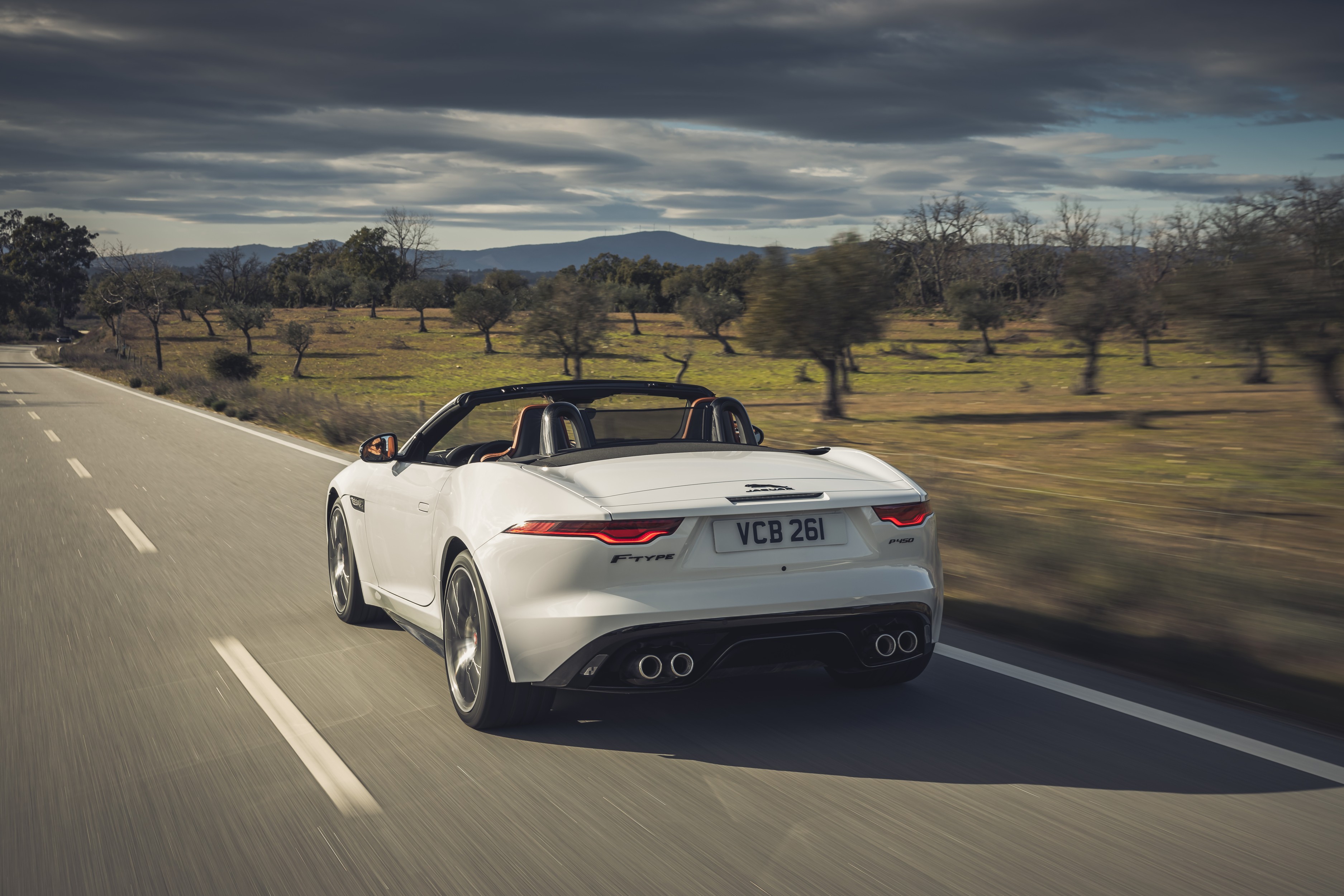

Roadster
| P300 | P450 | P450 AWD | P575 AWD | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | ||
| Number of cylinders/valves | 4/16 | 8/32 | 8/32 | 8/32 | ||
| Engine displacement [cm³] | 1997 | 5000 | 5000 | 5000 | ||
| Maximum output / speed [kW/min-1] | 221/5500 | 331/6000 | 331/6000 | 423/6500 | ||
| Maximum torque [Nm/min-1] | 400/1500-4500 | 580/2500-5000 | 580/2500-5000 | 700/3500-5000 | ||
| Bore and stroke [mm x mm] | 83.0 x 92.29 | 92,5 x 93,0 | 92,5 x 93,0 | 92,5 x 93,0 | ||
| Compression ratio | 9.5:1 | 9,5:1 | 9,5:1 | 9,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | Rear | 4x4 | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 250 | 285 | 285 | 300 | ||
| Acceleration 0–100 km/h [s] | 5.7 | 4.6 | 4.6 | 3.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | 3.7 | 2.9 | 3.0 | 2.3 | ||
| City [l] | 10.3 | 15.2 | 15.5 | 15.7 | ||
| Out of town [l] | 6.8 | 8.0 | 8.5 | 8.3 | ||
| Combined [l] | 8.1 | 10.6 | 11.0 | 11.0 | ||
| CO2 emissions [g/km] | 184 | 244 | 252 | 252 | ||
| Low speed [l] | 13.5-13.3 | 17.6-17.1 | 17.7-17.5 | 17.5 | ||
| Medium speed [l] | 9.9-9.6 | 10.9-10.5 | 11.1-10.9 | 10.9 | ||
| High speed [l] | 8.6-8.3 | 9.2-9.0 | 9.4-9.2 | 9.0 | ||
| Extra high speed [l] | 9.1-8.9 | 9.7-9.5 | 10.0-9.9 | 9.5 | ||
| Combined speed [l] | 9.7-9.4 | 10.8-10.5 | 11.1-10.9 | 10.7 | ||
| CO2 emissions [g/km] | 220-215 | 246-239 | 252-247 | 243 | ||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1615 | 1735 | 1838 | 1838 | ||
| Overall weight [kg] | 1925 | 2050 | 2150 | 2150 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 233 [132 VDA] | 233 [132 VDA] | 233 [132 VDA] | 233 [132 VDA] | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 2 | 2 | 2 | 2 | ||
| Fuel tank volume [l] | 63 | 70 | 70 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Tyre dimensions front | 245/45 R18 | 255/35 R20 | 255/35 R20 | 265/35 R20 | ||
| Tyre dimensions rear | 275/40 R18 | 295/30 R20 | 295/30 R20 | 305/30 R20 | ||
| Wheel size front | 8.5J x18 | 9J x 20 | 9J x 20 | 9J x 20 | ||
| Wheel size rear | 9.5J x18 | 10.5J x 20 | 10.5J x 20 | 11J x 20 | ||
| Brake dimensions front | 355 | 380 | 380 | 380 | ||
| Brake dimensions rear | 325 | 376 | 376 | 376 | ||
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.63/- | 10.63/- | 11.27/- | 11.27/- | ||
| Overall length [mm] | 4470 | 4470 | 4470 | 4470 | ||
| Overall width without/including mirrors [mm] | 1923/2042 | 1923/2042 | 1923/2042 | 1923/2042 | ||
| Overall height [mm] | 1307 | 1307 | 1307 | 1307 | ||
| Wheelbase [mm] | 2622 | 2622 | 2622 | 2622 | ||
| Front wheel track [mm] | 1596 | 1584 | 1584 | 1584 | ||
| Rear wheel track [mm] | 1647 | 1626 | 1628 | 1610 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 100 | 100 | 100 | 100 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
