Hyundai Tucson
Date of manufacture
2020 – to this day (Medium SUV)
Platform
-
Manufacturing locations
Ulsan, South Korea
Nošovice, Czechia
Montgomery, Alabama, USA
Designer
Sangyup Lee
Tags
Compact SUV
Korean cars
The Hyundai Tucson can be purchased in a mid-size SUV body style. The vehicle has been in production since 2020. Production of the model takes place in countries such as South Korea, the Czech Republic and the USA. Hybrid and plug-in hybrid versions are also part of the offer. The list of power units includes petrol, diesel and hybrid engines. The most powerful car is the 1.6 T-GDI PHEV with a power of 195 kW. The 1.6 T-GDI MHEV 180 reaches a maximum speed of 205 km/h. The most fuel-efficient version is the 1.6 CRDi E-VGT 115 with a combined consumption of 5.6 l/100 km and CO2 emissions of 137 g/km. The luggage compartment size offers 598 l. The model was tested in the safety area in 2021 and achieved an overall rating of 5 out of 5 according to EURONCAP.
Car body style
Medium SUV
Date of manufacture
2020 – to this dayInternal designation
NX4
Technical data
Medium SUV
| 1.6 T-GDI 150 | 1.6 T-GDI 150 | 1.6 T-GDI MHEV 150 | 1.6 T-GDI MHEV 150 | 1.6 T-GDI MHEV 180 | 1.6 T-GDI MHEV 180 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 110/5500 | 110/5500 | 110/5500 | 110/5500 | 132/5500 | 132/5500 |
| Maximum torque [Nm/min-1] | 250/1500-4000 | 250/1500-4000 | 250/1500-4000 | 250/1500-4000 | 265/1500-4500 | 265/1500-4500 |
| Bore and stroke [mm x mm] | 75.6 x 89.0 | 75.6 x 89.0 | 75.6 x 89.0 | 75.6 x 89.0 | 75.6 x 89.0 | 75.6 x 89.0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Coolant volume [l] | 7.9 | 7.9 | 8.0 | 8.0 | 8.0 | 8.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 189 | 189 | 189 | 189 | 205 | 201 |
| Acceleration 0–100 km/h [s] | 10,3 | 10,6 | 10,3 | 9,6 | 9,4 | 9,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,6-7,8 | 7,6-7,7 | 7,0-7,3 | 6,4-6,6 | 6,6-6,9 | 6,6-7,0 |
| Out of town [l] | 5,1-5,5 | 5,3-5,6 | 5,0-5,2 | 4,9-5,2 | 5,0-5,2 | 5,1-5,4 |
| Combined [l] | 6,1-6,3 | 6,2-6,4 | 5,7-5,9 | 5,5-5,7 | 5,6-5,8 | 5,6-6,0 |
| CO2 emissions [g/km] | 139-144 | 141-146 | 131-136 | 125-130 | 127-133 | 129-137 |
| Low speed [l] | 8,2-8,5 | 9,0-9,2 | 8,0-8,2 | 7,8-8,0 | 7,8-8,1 | 8,0-8,5 |
| Medium speed [l] | 6,4-6,7 | 7,0-7,7 | 6,3-6,6 | 6,0-6,4 | 6,1-6,4 | 6,5-6,7 |
| High speed [l] | 5,6-6,1 | 6,3-6,8 | 5,5-5,8 | 5,3-5,7 | 5,4-5,7 | 5,9-6,1 |
| Extra high speed [l] | 6,9-7,4 | 7,5-8,2 | 6,8-7,2 | 6,8-7,1 | 6,9-7,2 | 7,5-7,9 |
| Combined speed [l] | 6,6-7,0 | 7,3-7,8 | 6,5-6,8 | 6,3-6,6 | 6,4-6,7 | 6,9-7,2 |
| CO2 emissions [g/km] | 150-159 | 165-178 | 147-154 | 143-150 | 145-152 | 156-163 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 74 | 74 | 76 | 75 | 76 | 75 |
| Driving noise [dB] | 68 | 68 | 67 | 68 | 67 | 67 |
| System voltage [V] | - | - | 48 | 48 | 48 | 48 |
| Battery type and capacity | - | - | Lithium polymer, 0.44 kWh | Lithium polymer, 0.44 kWh | Lithium polymer, 0.44 kWh | Lithium polymer, 0.44 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1500-1650 | 1578-1728 | 1538-1663 | 1566-1696 | 1538-1663 | 1633-1764 |
| Overall weight [kg] | 2050 | 2130 | 2065 | 2100 | 2065 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | 750/1650 | 750/1650 | 750/1650 | 750/1650 | 750/1650 | 750/1650 |
| Maximum front/rear axle load [kg] | 1260/1200 | 1260/1200 | 1260/1200 | 1260/1200 | 1260/1200 | 1260/1200 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |

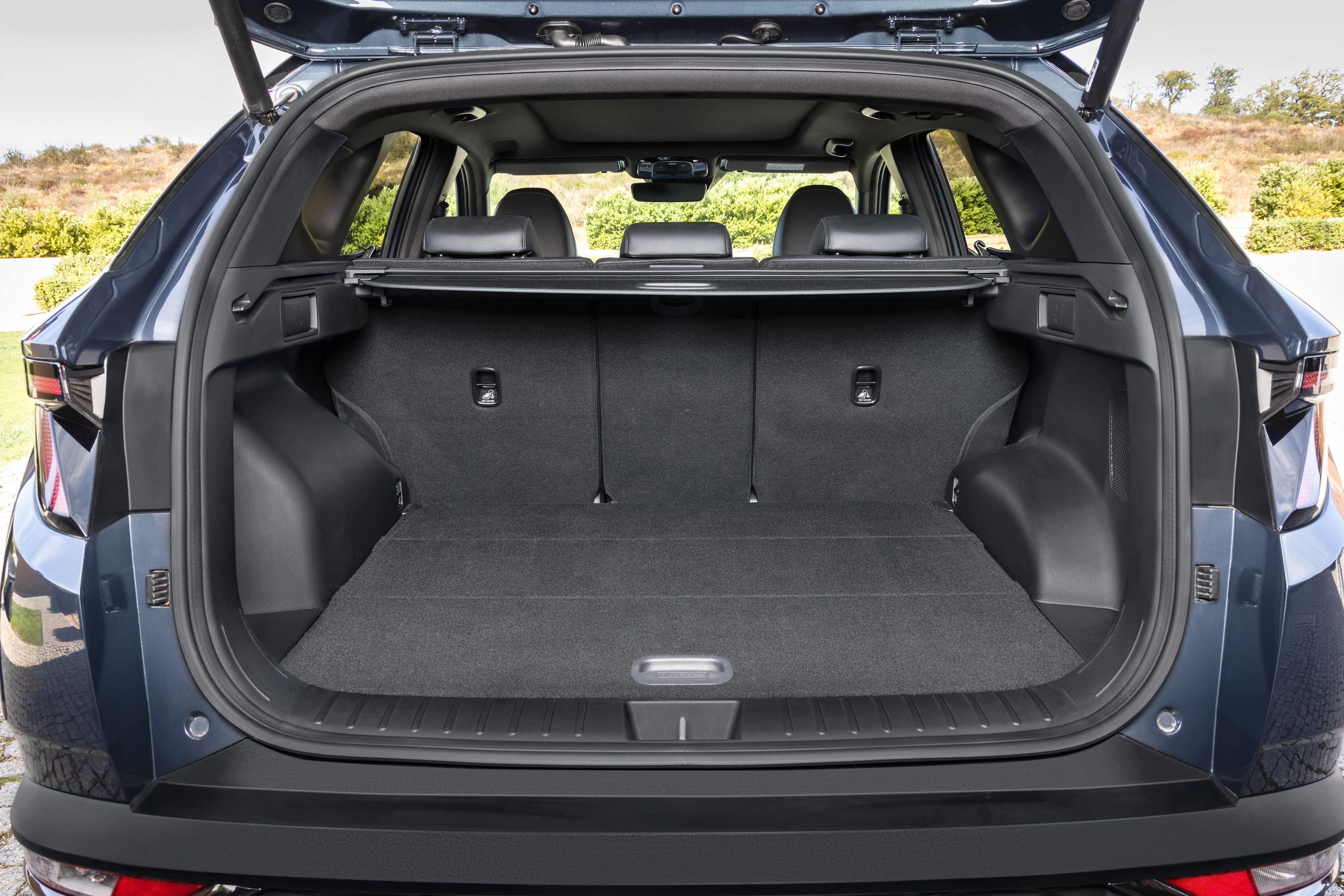

| Boot volume [l] | 620 | 620 | 577 | 577 | 577 | 577 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1799 | -/1799 | -/1756 | -/1756 | -/1756 | -/1756 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.315 | 0.315 | 0.315 | 0.315 | 0.315 | 0.315 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 291 | 291 | 291 | 291 | 291 | 291 |
| Brake dimensions rear | 302 | 302 | 302 | 302 | 302 | 302 |
| Steering | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 |
| Number of steering wheel turns | 2.41 | 2.41 | 2.41 | 2.41 | 2.41 | 2.41 |
| Turning diameter track/circumference [m] | 10.92/- | 10.92/- | 10.92/- | 10.92/- | 10.92/- | 10.92/- |
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Overall width without/including mirrors [mm] | 1865/2130 | 1865/2130 | 1865/2130 | 1865/2130 | 1865/2130 | 1865/2130 |
| Overall height [mm] | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 |
| Wheelbase [mm] | 2680 | 2680 | 2680 | 2680 | 2680 | 2680 |
| Front wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Rear wheel track [mm] | 1637 | 1637 | 1637 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Clearance [mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.4 | 17.4 | 17.4 | 17.4 | 17.4 | 17.4 |
| Approach angle rear [°] | 25.7 | 25.7 | 25.7 | 25.7 | 25.7 | 25.7 |
| Transition angle [°] | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Front elbow/shoulder width [mm] | -/1464 | -/1464 | -/1464 | -/1464 | -/1464 | -/1464 |
| Rear elbow/shoulder width [mm] | -/1428 | -/1428 | -/1428 | -/1428 | -/1428 | -/1428 |
| Legroom front knees/total [mm] | -/1052 | -/1052 | -/1052 | -/1052 | -/1052 | -/1052 |
| Legroom rear knees/total [mm] | -/996 | -/996 | -/996 | -/996 | -/996 | -/996 |
| 1.6 T-GDI HEV | 1.6 T-GDI HEV | 1.6 T-GDI PHEV | 1.6 CRDi E-VGT 115 | 1.6 CRDi MHEV 136 | 1.6 CRDi MHEV 136 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 132/5500 combustion 44 el. 169/5500 total | 132/5500 combustion 44 el. 169/5500 total | 132/5500 combustion 66 el. 195 total | 85/4000 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 265/1500-4500 combustion 264/1600 el. | 265/1500-4500 combustion 264/1600 el. | 265/1500-4500 combustion 304/2100 el. | 280/1500-2750 | 280/1500-3000 | 280/1500-3000 |
| Bore and stroke [mm x mm] | 75.6 x 89.0 | 75.6 x 89.0 | 75.6 x 89.0 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 15.9:1 | 15.9:1 | 15.9:1 |
| Oil volume [l] | 4.8 | 4.8 | 4.8 | 4.4 | 4.4 | 4.4 |
| Coolant volume [l] | 7.9 | 7.9 | 7.9 | 7.2 | 7.2 | 7.2 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 193 | 193 | 190 | 175 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 8,0 | 8,3 | 8.6 | 12,1 | 11,4 | 11,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 5.4 | 5.7 | - | - | - | - |
| City [l] | 4,3-5,3 | 4,7-4,8 | - | 5,0-5,6 | 4,4-4,6 | 4,6-4,7 |
| Out of town [l] | 4,7-5,1 | 5,8-6,0 | - | 4,0-4,4 | 4,1-4,4 | 4,5-4,7 |
| Combined [l] | 4,8-4,9 | 5,4-5,6 | - | 4,4-4,8 | 4,3-4,4 | 4,5-4,7 |
| CO2 emissions [g/km] | 109-112 | 124-127 | - | 115-127 | 112-117 | 119-124 |
| Low speed [l] | 5,7-6,1 | 6,7-6,9 | - | 5,8-6,1 | 5,3-5,4 | 6,0 |
| Medium speed [l] | 4,7-5,0 | 5,5-5,8 | - | 5,0-5,2 | 5,1-5,2 | 5,6-5,9 |
| High speed [l] | 4,7-5,1 | 5,2-5,6 | - | 4,5-4,8 | 4,4-5,0 | 4,8-5,3 |
| Extra high speed [l] | 6,6-7,2 | 7,2-7,7 | - | 5,8-6,2 | 6,0-6,4 | 6,3-6,8 |
| Combined speed [l] | 5,5-5,9 | 6,2-6,6 | - | 5,2-5,6 | 5,2-5,6 | 5,7-6,0 |
| CO2 emissions [g/km] | 125-135 | 140-149 | - | 137-146 | 137-146 | 149-158 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 76 | - | 74 | 74 | 74 |
| Driving noise [dB] | 67 | 67 | - | 67 | 67 | 67 |
| System voltage [V] | 270 | 270 | 360 | - | 48 | 48 |
| Battery type and capacity | Lithium polymer, 1.49 kWh | Lithium polymer, 1.49 kWh | Lithium polymer, 13.8 kWh | - | Lithium polymer, 0.44 kWh | Lithium polymer, 0.44 kWh |
| Range with fully charged battery [km] | - | - | 50 | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1639-1760 | 1709-1830 | 1818-1924 | 1552-1703 | 1606-1735 | 1665-1804 |
| Overall weight [kg] | 2175 | 2245 | 2415 | 2105 | 2140 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1650 | 750/1650 | 750/1650 | 750/1650 | 750/1650 | 750/1650 |
| Maximum front/rear axle load [kg] | 1260/1200 | 1260/1200 | 1260/1200 | 1260/1200 | 1260/1200 | 1260/1200 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 616 | 616 | 558 | 598 | 546 | 546 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1795 | -/1795 | -/1737 | -/1777 | -/1725 | -/1725 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.315 | 0.315 | 0.315 | 0.315 | 0.315 | 0.315 |
| Front suspension | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser | MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers | multilink, coil springs, gas-liquid shock absorbers |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 235/50 R19 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 235/50 R19 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.5J x 19 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.5J x 19 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 291 | 291 | 291 | 291 | 291 | 291 |
| Brake dimensions rear | 302 | 302 | 302 | 302 | 302 | 302 |
| Steering | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 | Rack & pinion with electric power steering , počet otáček: 2,71 |
| Number of steering wheel turns | 2.41 | 2.41 | 2.41 | 2.41 | 2.41 | 2.41 |
| Turning diameter track/circumference [m] | 10.92/- | 10.92/- | 10.92/- | 10.92/- | 10.92/- | 10.92/- |
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Overall width without/including mirrors [mm] | 1865/2130 | 1865/2130 | 1865/2130 | 1865/2130 | 1865/2130 | 1865/2130 |
| Overall height [mm] | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 |
| Wheelbase [mm] | 2680 | 2680 | 2680 | 2680 | 2680 | 2680 |
| Front wheel track [mm] | 1630 | 1630 | 1615 | 1630 | 1630 | 1630 |
| Rear wheel track [mm] | 1637 | 1637 | 1622 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Clearance [mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.4 | 17.4 | 17.4 | 17.4 | 17.4 | 17.4 |
| Approach angle rear [°] | 25.7 | 25.7 | 25.7 | 25.7 | 25.7 | 25.7 |
| Transition angle [°] | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Front elbow/shoulder width [mm] | -/1464 | -/1464 | -/1464 | -/1464 | -/1464 | -/1464 |
| Rear elbow/shoulder width [mm] | -/1428 | -/1428 | -/1428 | -/1428 | -/1428 | -/1428 |
| Legroom front knees/total [mm] | -/1052 | -/1052 | -/1052 | -/1052 | -/1052 | -/1052 |
| Legroom rear knees/total [mm] | -/996 | -/996 | -/955 | -/996 | -/996 | -/996 |

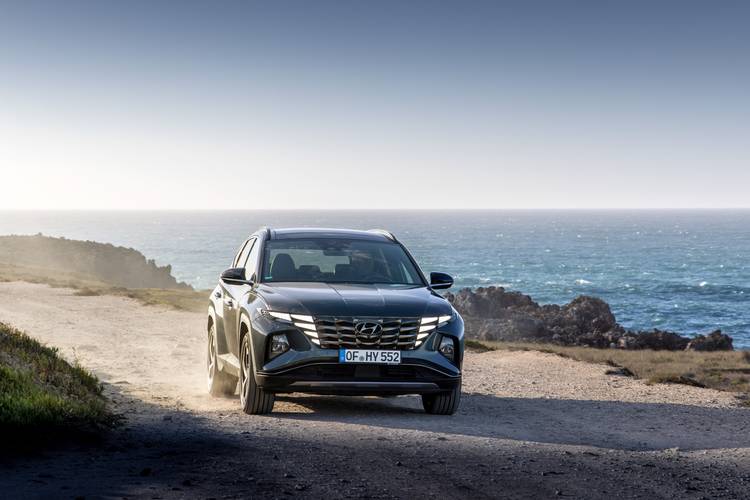

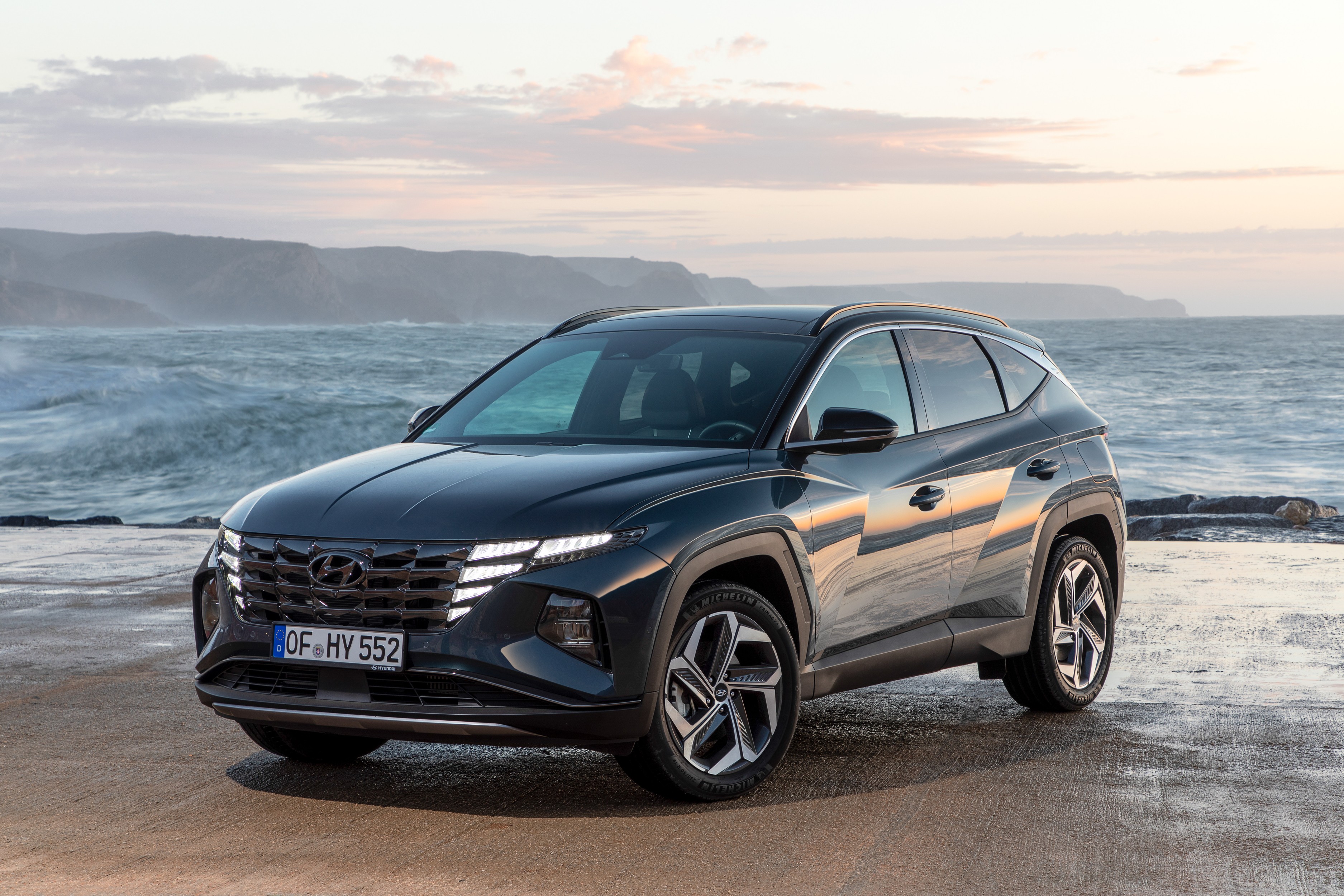

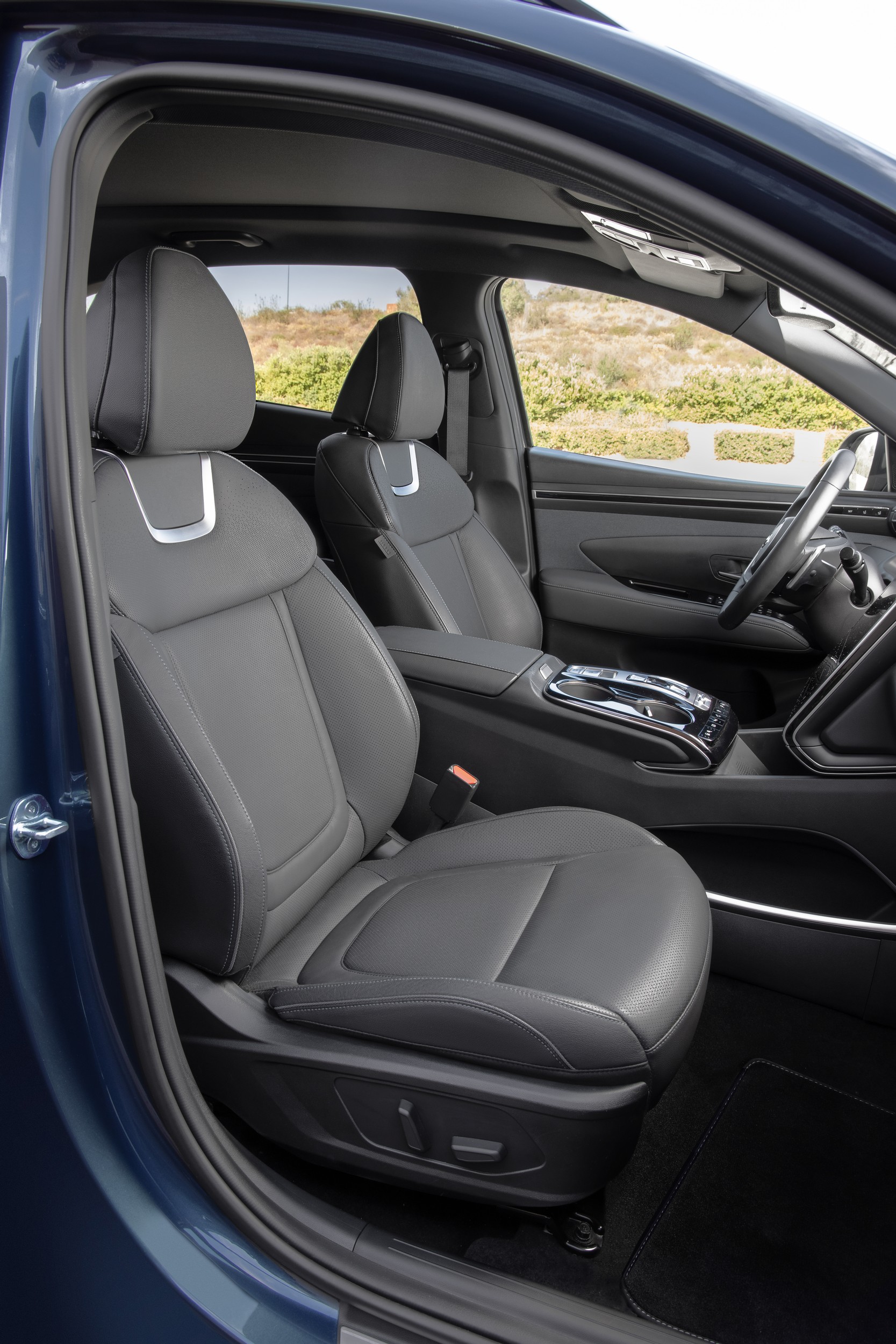

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
