Hyundai Santa Fe
Date of manufacture
2018 – 2020 (Medium SUV)
Platform
Hyundai-Kia Y6
Manufacturing locations
Ulsan, South Korea
Montgomery, Alabama, USA
Designer
-
Tags
Compact SUV
Korean cars
The Hyundai Santa Fe is a mid-size SUV that has been manufactured since 2018 in the United States and South Korea. The Santa Fe is built on the Hyundai-Kia Y6 platform and offers a wide range of petrol and diesel engines. The most powerful version, the 2.2 CRDi e-VGT 200, produces 147 kW and can reach a top speed of 203 km/h with the best acceleration from 0-100 km/h in 9.3 seconds. The most economical version, the 2.0 CRDi e-VGT 150, has a combined fuel consumption of 5.7 l/100 km and CO2 emissions of 147 g/km. The luggage compartment has a volume of 625 liters. In terms of safety, the Santa Fe model received a 5 out of 5 rating from EURONCAP in 2018.
Car body style
Medium SUV
Date of manufacture
2018 – 2020Internal designation
TM
Technical data
Medium SUV
| 2.4 GDI e-CVVT 185 | 2.0 CRDi e-VGT 150 | 2.0 CRDi e-VGT 150 | 2.0 CRDi e-VGT 185 | 2.2 CRDi e-VGT 200 | 2.2 CRDi e-VGT 200 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2359 | 1995 | 1995 | 1995 | 2199 | 2199 |
| Maximum output / speed [kW/min-1] | 136/6000 | 110/4000 | 110/4000 | 136/4000 | 147/3800 | 147/3800 |
| Maximum torque [Nm/min-1] | 238/4000 | 400/1750-2750 | 400/1750-2750 | 400/1750-2750 | 440/1750-2750 | 440/1750-2750 |
| Bore and stroke [mm x mm] | 88.0 x 97.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 85.4 x 96,0 | 85.4 x 96,0 |
| Compression ratio | 11,3:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 2.7 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Coolant volume [l] | 4.8 | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 195 | 193 | 190 | 197 | 198 | 203 |
| Acceleration 0–100 km/h [s] | 10,4 | 10,3 | 10,6 | 10,3 | 9,4 | 9,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13,3 | 6,4-6,6 | 6,6-6,8 | 7,1-7,3 | 6,7-6,8 | 7,0-7,1 |
| Out of town [l] | 7,1 | 5,1-5,2 | 5,3-5,4 | 5,3-5,5 | 5,2-5,2 | 5,3-5,3 |
| Combined [l] | 9,4 | 5,6-5,7 | 5,7-5,9 | 6,0-6,2 | 5,7-5,8 | 5,9-6,0 |
| CO2 emissions [g/km] | 215 | 147-151 | 150-155 | 157-162 | 150-153 | 156-159 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1780-1905 [1820-1945 seven seats] | 1855-1980 [1895-2020 seven seats] | 1930-2055 [2035-2160 seven seats] | 1925-2050 [1965-2090 seven seats] | 1935-2060 [1975-2100 seven seats] | 1865-1990 [1905-2030 seven seats] |
| Overall weight [kg] | 2264 [2452 seven seats] | 2341 [2528 seven seats] | 2399 [2587 seven seats] | 2402 [2589 seven seats] | 2341 [2529 seven seats] | 2346 [2534 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2500 | 750/2500 | 750/2000 | 750/2500 | 750/2000 |
| Maximum front/rear axle load [kg] | 1300/1395 | 1300/1395 | 1300/1395 | 1300/1395 | 1300/1395 | 1300/1395 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 625 [- seven seats] | 625 [- seven seats] | 625 [- seven seats] | 625 [- seven seats] | 625 [- seven seats] | 625 [- seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1695 [- | -/1695 [- | -/1695 [- | -/1695 [- | -/1695 [- | -/1695 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] |
| Fuel tank volume [l] | 71 | 71 | 71 | 71 | 71 | 71 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 320 or 340 | 320 or 340 | 320 or 340 | 320 or 340 | 320 or 340 | 320 or 340 |
| Brake dimensions rear | 314 | 314 | 314 | 314 | 314 | 314 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 2.53 | 2.71 | 2.71 | 2.53 | 2.71 | 2.53 |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4770 | 4770 | 4770 | 4770 | 4770 | 4770 |
| Overall width without/including mirrors [mm] | 1890/- | 1890/- | 1890/- | 1890/- | 1890/- | 1890/- |
| Overall height [mm] | 1680 | 1680 | 1680 | 1680 | 1680 | 1680 |
| Wheelbase [mm] | 2765 | 2765 | 2765 | 2765 | 2765 | 2765 |
| Front wheel track [mm] | 1643 | 1643 | 1643 | 1643 | 1643 | 1643 |
| Rear wheel track [mm] | 1652 | 1652 | 1652 | 1652 | 1652 | 1652 |
| Forward overhang [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Rear overhang [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Clearance [mm] | 185 | 185 | 185 | 185 | 185 | 185 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 |
| Approach angle rear [°] | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 |
| Transition angle [°] | 20.7 | 15.7 | 15.7 | 15.7 | 15.7 | 15.7 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Rear elbow/shoulder width [mm] | -/1480 [- | -/1480 [- | -/1480 [- | -/1480 [- | -/1480 [- | -/1480 [- |
| Legroom front knees/total [mm] | -/1120 | -/1120 | -/1120 | -/1120 | -/1120 | -/1120 |
| Legroom rear knees/total [mm] | -/1026 [- | -/1026 [- | -/1026 [- | -/1026 [- | -/1026 [- | -/1026 [- |
| Third row of seats, headroom [mm] | 917 | 917 | 917 | 917 | 917 | 917 |
| Third row elbow/shoulder width [mm] | -/1344 | -/1344 | -/1344 | -/1344 | -/1344 | -/1344 |
| 2.2 CRDi e-VGT 200 | 2.2 CRDi e-VGT 200 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2199 | 2199 | ||||
| Maximum output / speed [kW/min-1] | 147/3800 | 147/3800 | ||||
| Maximum torque [Nm/min-1] | 440/1750-2750 | 440/1750-2750 | ||||
| Bore and stroke [mm x mm] | 85.4 x 96.0 | 85.4 x 96.0 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | 4.8 | 4.8 | ||||
| Coolant volume [l] | 6.3 | 6.3 | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 6 gear manual | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 195 | 203 | ||||
| Acceleration 0–100 km/h [s] | 9,5 | 9,4 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6,8-7,0 | 7,3-7,5 | ||||
| Out of town [l] | 5,2-5,2 | 5,4-5,6 | ||||
| Combined [l] | 5,8-6,0 | 6,1-6,3 | ||||
| CO2 emissions [g/km] | 152-158 | 160-165 | ||||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1925-2050 [1965-2090 seven seats] | 1930-2055 [1970-2095 seven seats] | ||||
| Overall weight [kg] | 2400 [2588 seven seats] | 2407 [2594 seven seats] | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | 1300/1395 | 1300/1395 | ||||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 625 [- seven seats] | 625 [- seven seats] | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1695 [- | -/1695 [- | ||||
| Boot volume, third row of seats [l] | - | - | ||||
| Boot volume, third row seats folded [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | ||||
| Fuel tank volume [l] | 71 | 71 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.34 | 0.34 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | ||||
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | ||||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | ||||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | ||||
| Brake dimensions front | 320 or 340 | 320 or 340 | ||||
| Brake dimensions rear | 314 | 314 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | 2.71 | 2.53 | ||||
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | ||||
| Overall length [mm] | 4770 | 4770 | ||||
| Overall width without/including mirrors [mm] | 1890/- | 1890/- | ||||
| Overall height [mm] | 1680 | 1680 | ||||
| Wheelbase [mm] | 2765 | 2765 | ||||
| Front wheel track [mm] | 1643 | 1643 | ||||
| Rear wheel track [mm] | 1652 | 1652 | ||||
| Forward overhang [mm] | 940 | 940 | ||||
| Rear overhang [mm] | 1065 | 1065 | ||||
| Clearance [mm] | 185 | 185 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 18.5 | 18.5 | ||||
| Approach angle rear [°] | 21.2 | 21.2 | ||||
| Transition angle [°] | 15.7 | 15.7 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1016 | 1016 | ||||
| Headroom rear [mm] | 995 | 995 | ||||
| Front elbow/shoulder width [mm] | -/1500 | -/1500 | ||||
| Rear elbow/shoulder width [mm] | -/1480 [- | -/1480 [- | ||||
| Legroom front knees/total [mm] | -/1120 | -/1120 | ||||
| Legroom rear knees/total [mm] | -/1026 [- | -/1026 [- | ||||
| Third row of seats, headroom [mm] | 917 | 917 | ||||
| Third row elbow/shoulder width [mm] | -/1344 | -/1344 |

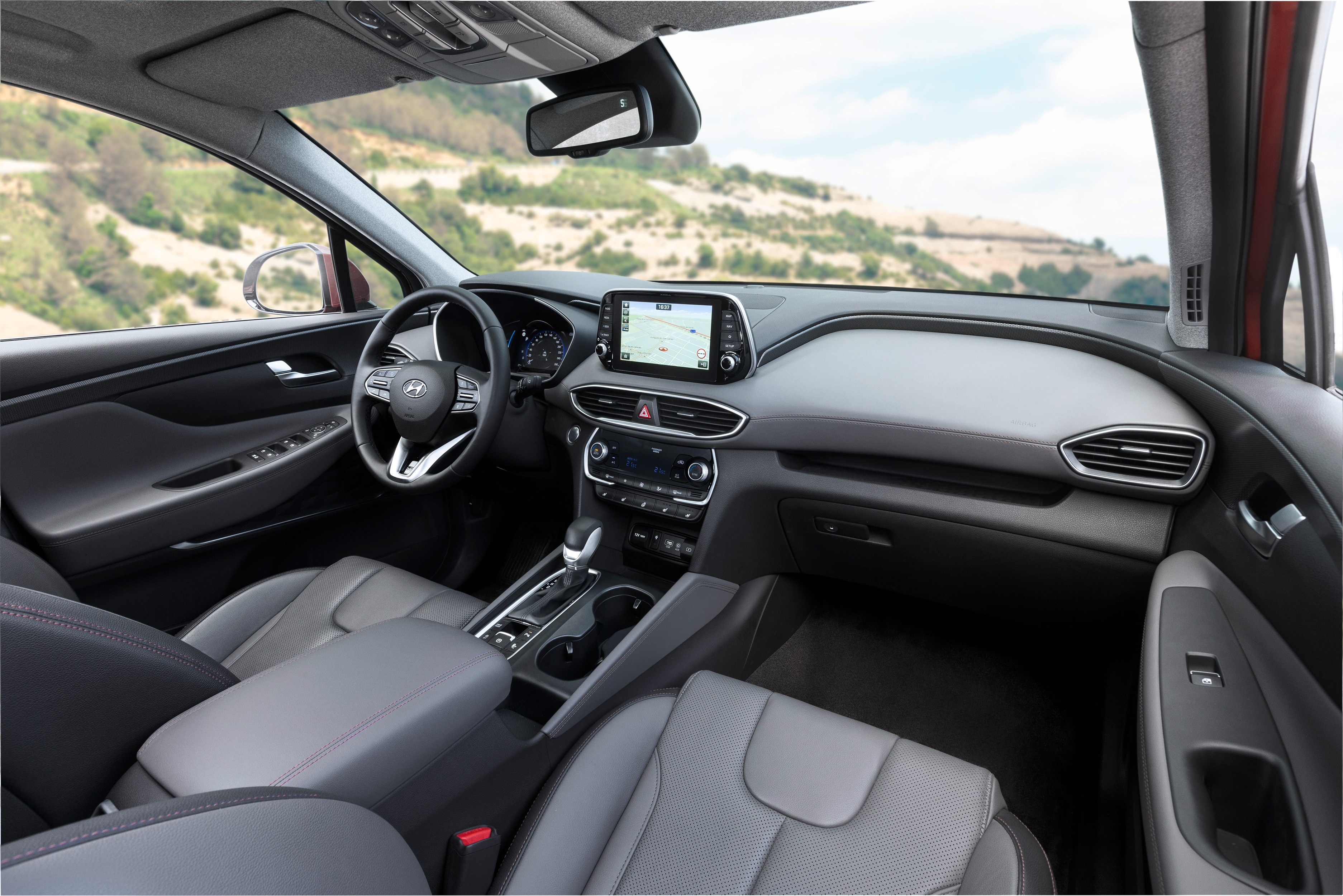

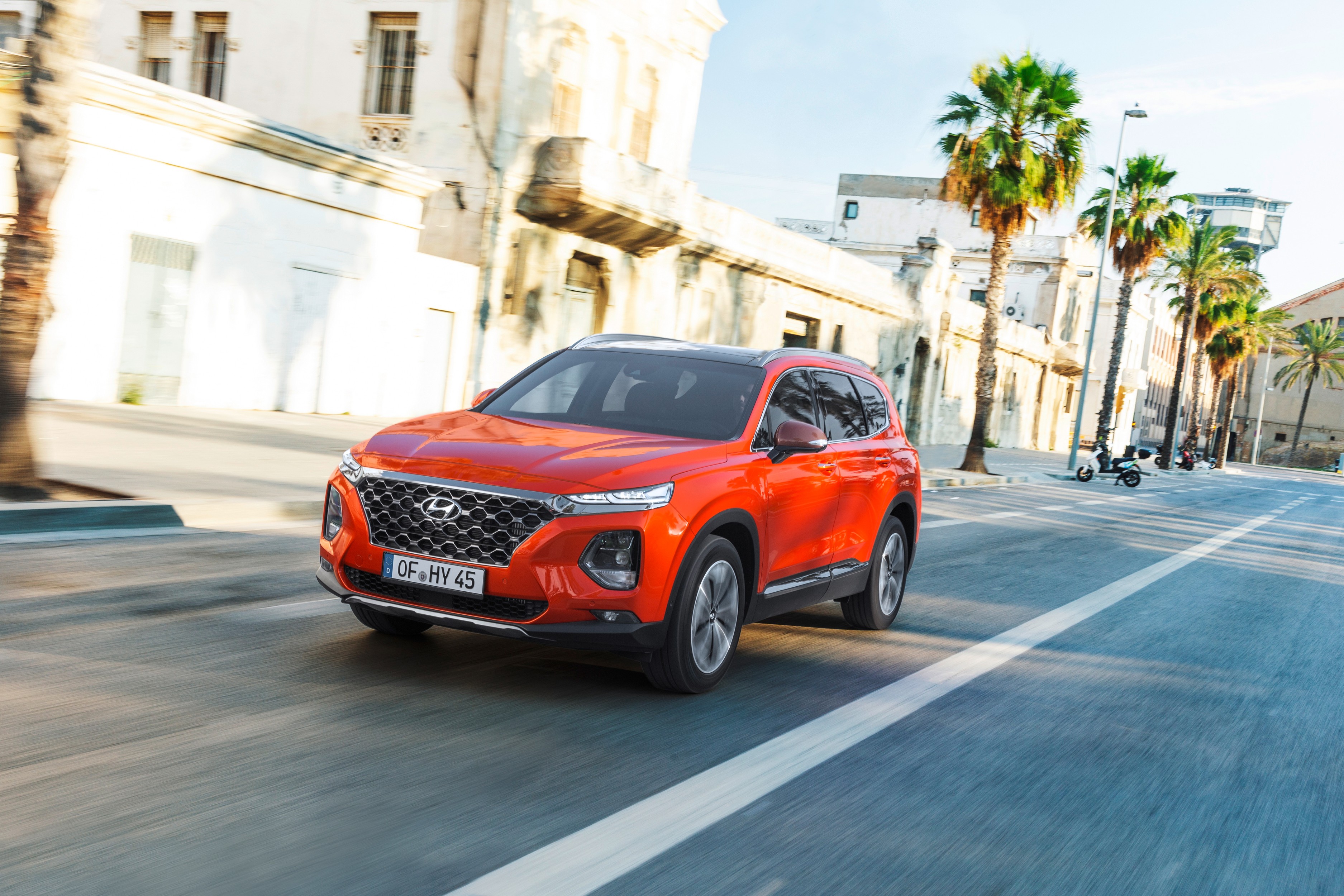

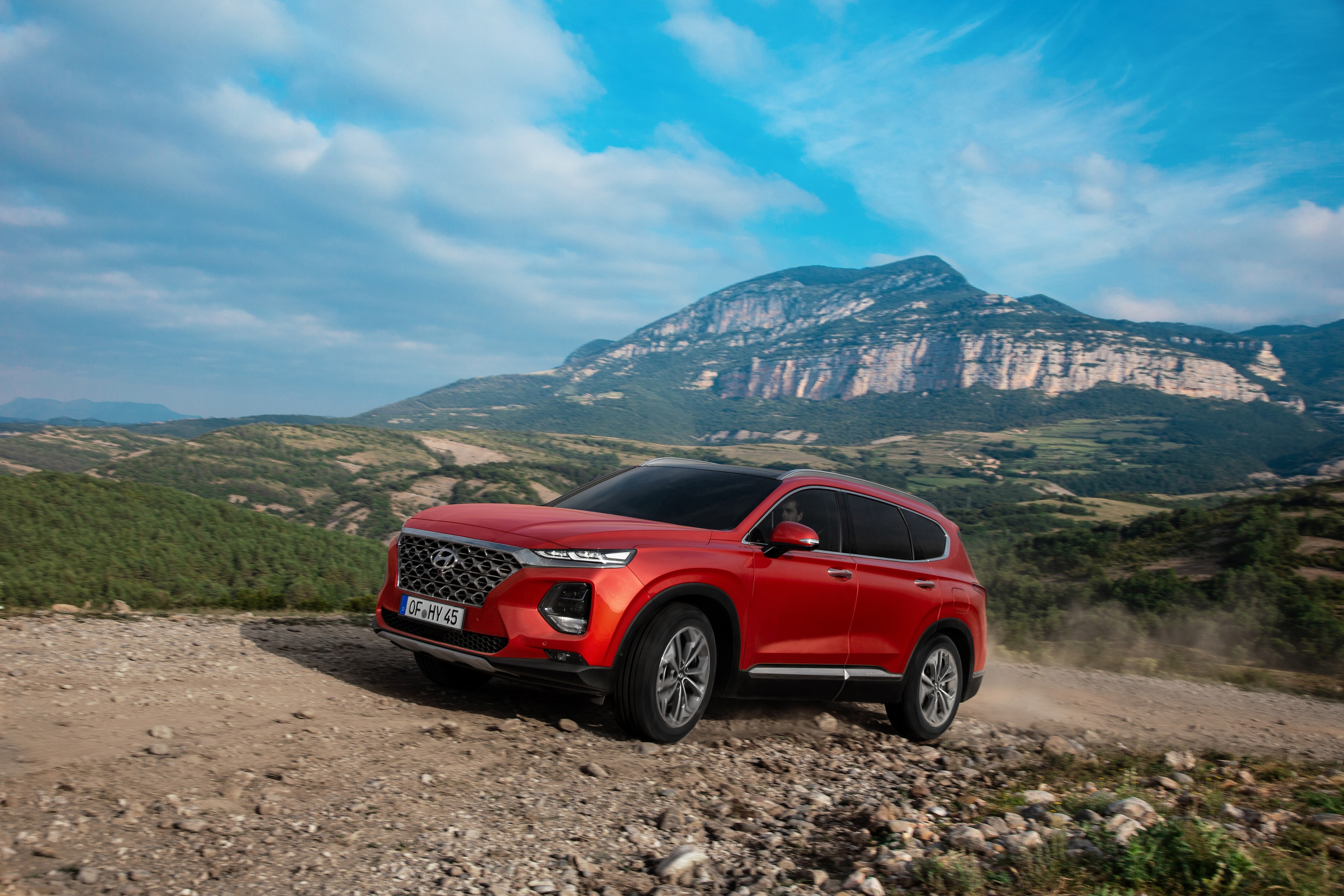

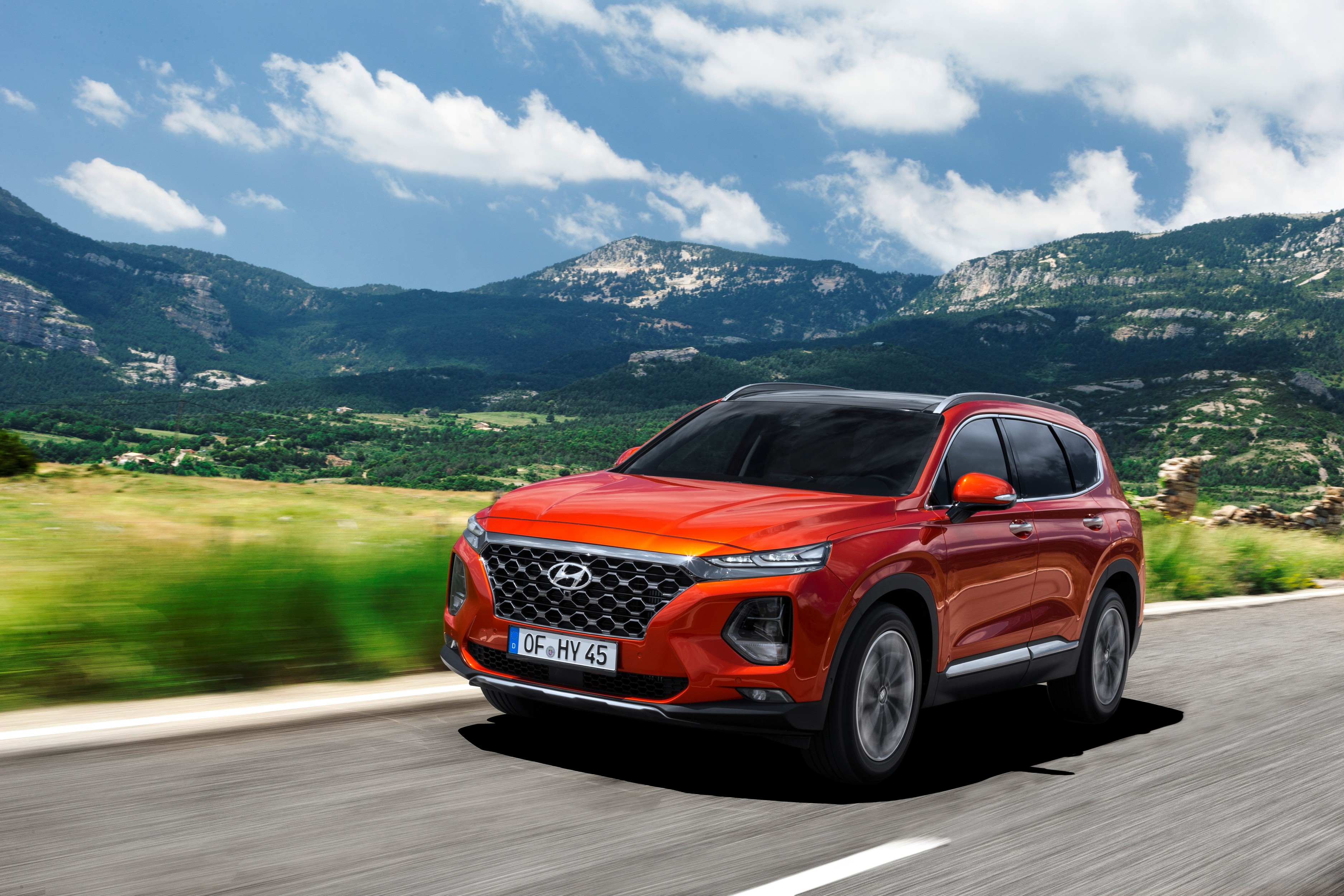

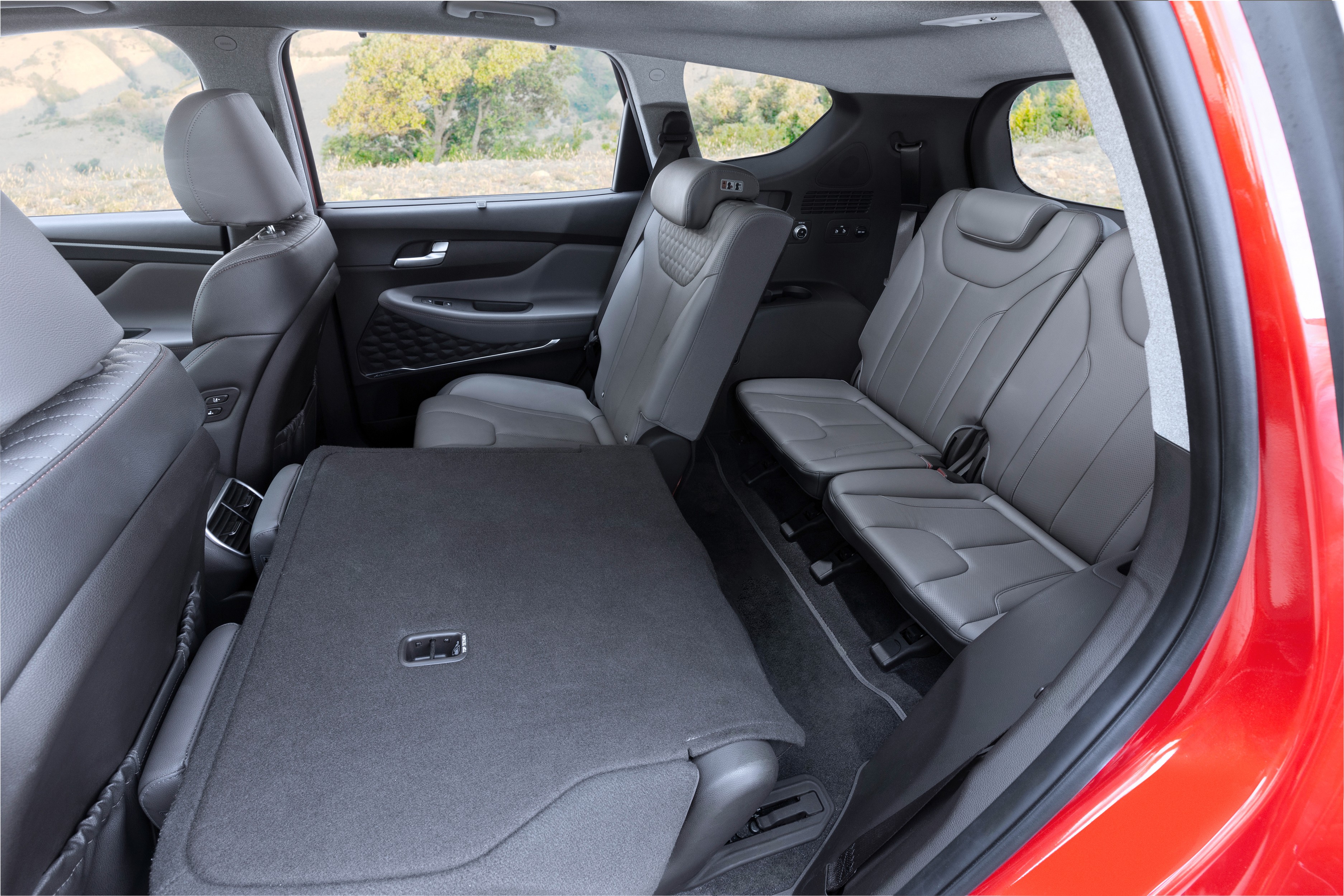

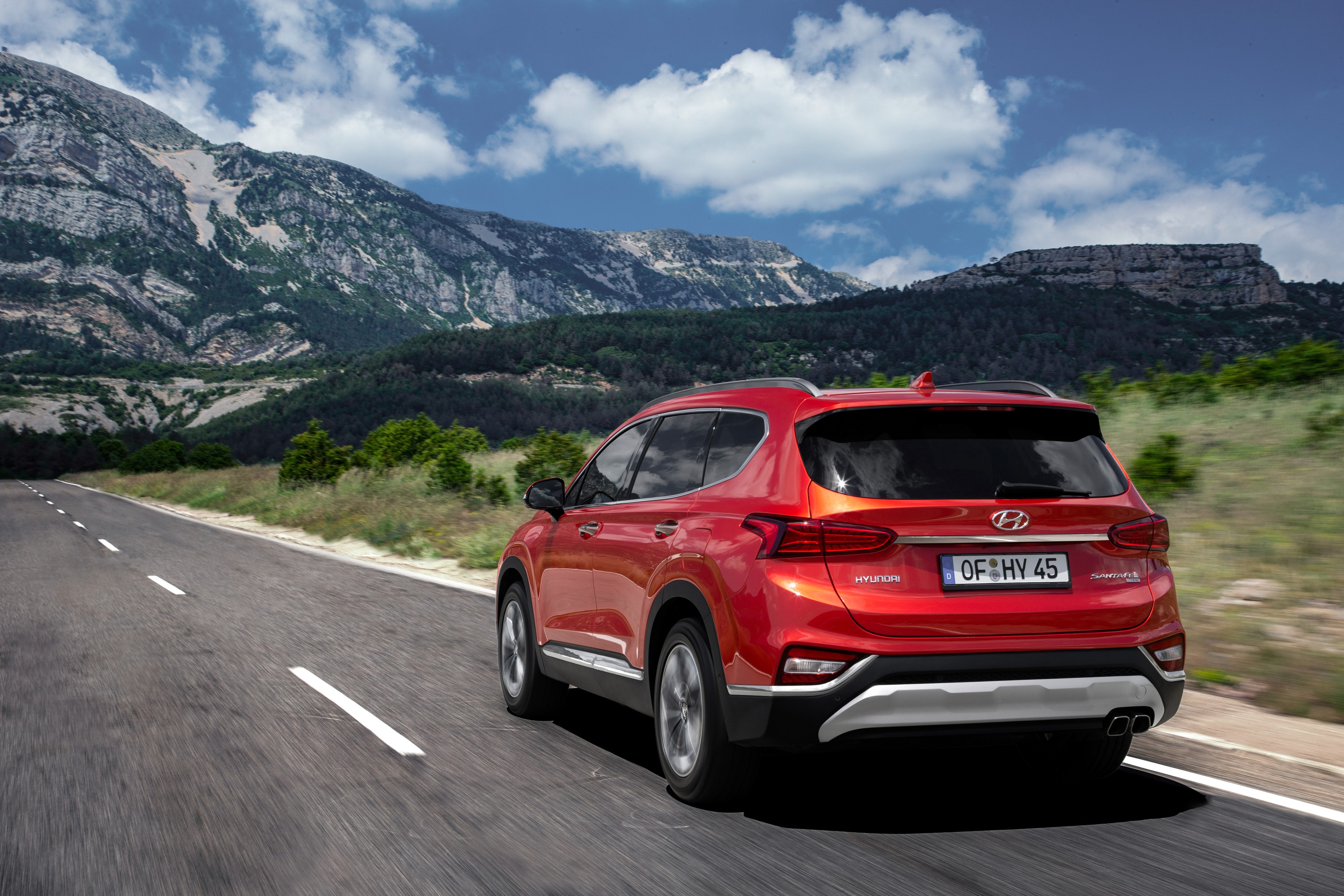

Gallery
