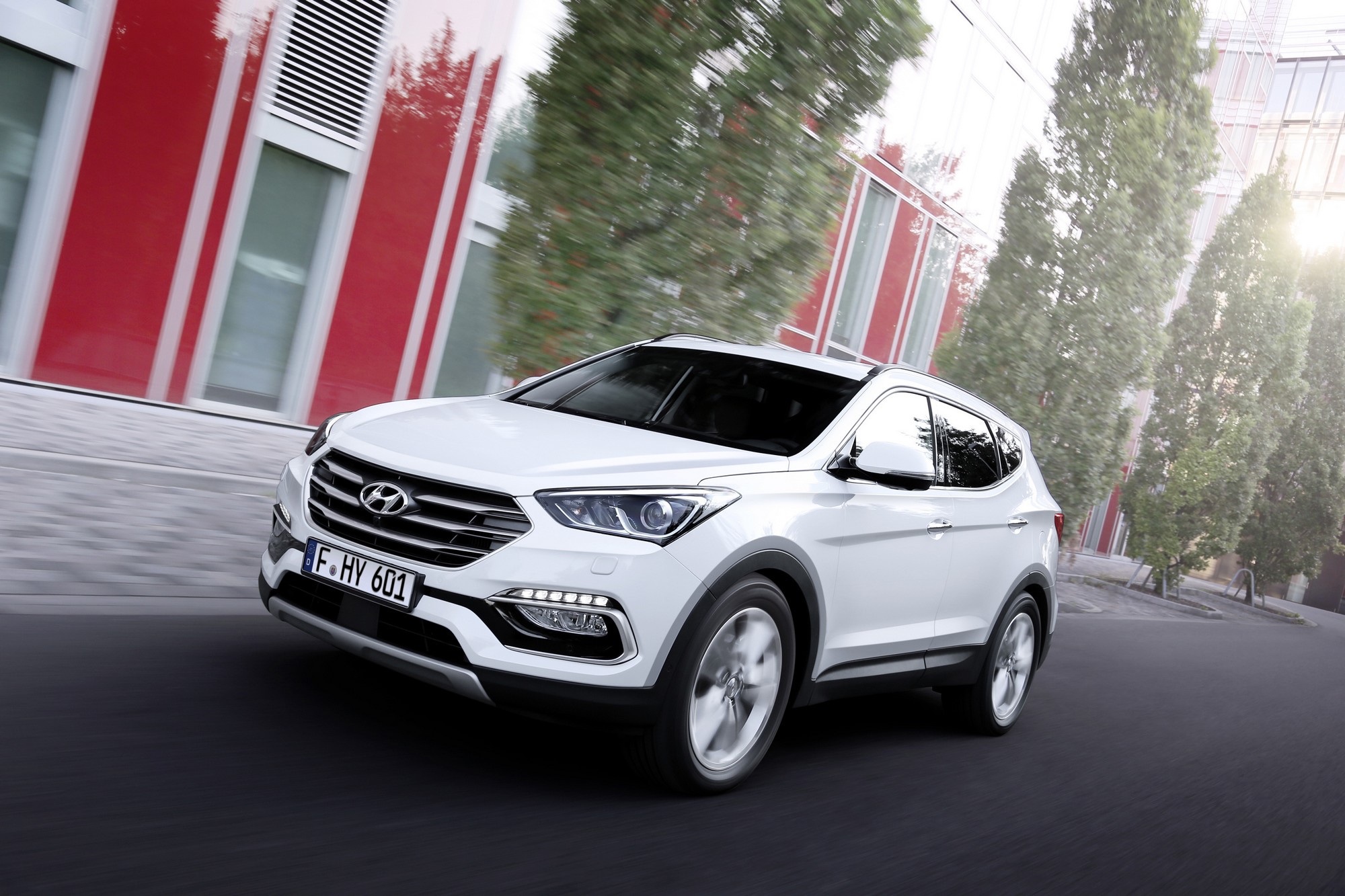

Hyundai Santa Fe
Date of manufacture
2016 – 2018 (SUV)
Platform
-
Manufacturing locations
Ulsan, South Korea
Montgomery, Alabama, USA
Designer
-
Tags
Compact SUV
Korean cars
The Hyundai Santa Fe is an SUV that has been manufactured since 2016 in the United States and South Korea. It offers a wide range of gasoline and diesel engines. The most powerful model is the 2.2 CRDi VGT 200 7-seater with 147 kW of power, a top speed of 203 km/h and the best acceleration from 0-100 km/h in 8.7 seconds. The most economical version achieves a combined consumption of 5.7 l/100 km and CO2 emissions of 149 g/km. The luggage compartment offers a volume of 585 l, while in the safety area EURONCAP gave the vehicle a rating of 5 out of 5 in 2012.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2016 – 2018Internal designation
DM Engine size
PetrolDiesel
Technical data
SUV
| 2.4 GDI D-CVVT | 2.4 GDI D-CVVT 7míst | 2.0 CRDi VGT 150 | 2.0 CRDi VGT 150 | 2.2 CRDi VGT 200 | 2.2 CRDi VGT 200 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2359 | 2359 | 1995 | 1995 | 2199 | 2199 |
| Maximum output / speed [kW/min-1] | 138/6000 | 138/6000 | 110/2750-4000 | 110/2750-4000 | 147/3800 | 147/3800 |
| Maximum torque [Nm/min-1] | 241/4000 | 241/4000 | 400/1750-2500 | 400/1750-2500 | 440/1750-2750 | 440/1750-2750 |
| Bore and stroke [mm x mm] | 88,0 x 97,0 | 88,0 x 97,0 | 84.0 x 90.0 | 84.0 x 90.0 | 85,4 x 96,0 | 85,4 x 96,0 |
| Compression ratio | 11,3:1 | 11,3:1 | 16.5:1 | 16.5:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 4.6 | 4.6 | 6.7 | 6.7 | 6.7 | 6.7 |
| Coolant volume [l] | 7.4 | 7.4 | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 200 | 200 | 187 | 187 | 203 | 203 |
| Acceleration 0–100 km/h [s] | 9.9 | 9.9 | 10.8 | 11.2 | 8.7 | 8.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.9 | 12.9 | 6.8 | 7.0 | 7.0 | 6.9 |
| Out of town [l] | 7.3 | 7.3 | 5.2 | 5.3 | 4.9 | 4.9 |
| Combined [l] | 9.4 | 9.4 | 5.8 | 6.0 | 5.7 | 5.7 |
| CO2 emissions [g/km] | 218 | 218 | 154 | 159 | 149 | 149 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 75 | 75 | 77 | 77 | 76 | 76 |
| Driving noise [dB] | 71 | 71 | 73 | 73 | 73 | 73 |
| Standby weight [kg] | 1708-1841 | 1708-1841 | 1812-1945 | 1881-2014 | 1812-1945 | 1845-1978 |
| Overall weight [kg] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | 750/2500 | 750/2500 | 750/2500 |
| Maximum front/rear axle load [kg] | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 585 | - | 585 | 585 | 585 | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1615 | -/1680 | -/1680 | -/1680 | -/1615 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 5 | 5 | 7 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 |
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 |
| Brake dimensions front | 320 | 320 | 320 | 320 | 320 | 320 |
| Brake dimensions rear | 302 | 302 | 302 | 302 | 302 | 302 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4700 | 4700 | 4700 | 4700 | 4700 | 4700 |
| Overall width without/including mirrors [mm] | 1880/2185 | 1880/2185 | 1880/2185 | 1880/2185 | 1880/2185 | 1880/2185 |
| Overall height [mm] | 1675 | 1675 | 1675 | 1675 | 1675 | 1675 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1633 | 1633 | 1633 | 1633 | 1633 | 1633 |
| Rear wheel track [mm] | 1644 | 1644 | 1644 | 1644 | 1644 | 1644 |
| Forward overhang [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Rear overhang [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Clearance [mm] | 180 | 180 | 180 | 180 | 180 | 180 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| Approach angle rear [°] | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 |
| Transition angle [°] | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Front elbow/shoulder width [mm] | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 |
| Rear elbow/shoulder width [mm] | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 875 | - | - | - | 875 |
| Third row elbow/shoulder width [mm] | - | 1120/1349 | - | - | - | 1120/1349 |
| 2.2 CRDi VGT 200 | 2.2 CRDi VGT 200 7 seats | 2.2 CRDi VGT 200 | 2.2 CRDi VGT 200 7 seats | 2.2 CRDi VGT 200 Grand | 2.2 CRDi VGT 200 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2199 | 2199 | 2199 | 2199 | 2199 | 2199 |
| Maximum output / speed [kW/min-1] | 147/3800 | 147/3800 | 147/3800 | 147/3800 | 147/3800 | 147/3800 |
| Maximum torque [Nm/min-1] | 440/1750-2750 | 440/1750-2750 | 440/1750-2750 | 440/1750-2750 | 440/1750-2750 | 440/1750-2750 |
| Bore and stroke [mm x mm] | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 |
| Coolant volume [l] | - | - | - | - | 9.3 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 203 | 203 | 203 | 203 | 200 | 203 |
| Acceleration 0–100 km/h [s] | 9.0 | 9.0 | 9.6 | 9.6 | 10.3 | 8.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.9 | 6.9 | 7.6 | 7.6 | 9.6 | 7.2 |
| Out of town [l] | 4.9 | 4.9 | 6.0 | 6.0 | 6.5 | 5.1 |
| Combined [l] | 5.7 | 5.7 | 6.6 | 6.6 | 7.6 | 5.9 |
| CO2 emissions [g/km] | 149 | 149 | 174 | 174 | 199 | 155 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 76 | 75 | 75 | 73 | 76 |
| Driving noise [dB] | 73 | 73 | 74 | 74 | 71 | 73 |
| Standby weight [kg] | 1881-2014 | 1914-2052 | 1907-2040 | 1907-2040 | 1977-2117 [1991-2131 seven seats] | 1812-1945 |
| Overall weight [kg] | 2510 | 2510 | 2510 | 2510 | 2600 [2630 seven seats] | 2510 |
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | 750/2500 | 750/2500 | 750/2500 |
| Maximum front/rear axle load [kg] | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 585 | - | 585 | - | 634 | 585 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1615 | -/1680 | -/1615 | -/1842 | -/1680 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 6-7 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | 0.34 | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 |
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 |
| Brake dimensions front | 320 | 320 | 320 | 320 | 320 | 320 |
| Brake dimensions rear | 302 | 302 | 302 | 302 | 302 | 302 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4700 | 4700 | 4700 | 4700 | 4915 | 4700 |
| Overall width without/including mirrors [mm] | 1880/2185 | 1880/2185 | 1880/2185 | 1880/2185 | 1885/2185 | 1880/2185 |
| Overall height [mm] | 1675 | 1675 | 1675 | 1675 | 1695 | 1675 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2800 | 2700 |
| Front wheel track [mm] | 1633 | 1633 | 1633 | 1633 | 1628 | 1628 |
| Rear wheel track [mm] | 1644 | 1644 | 1644 | 1644 | 1639 | 1639 |
| Forward overhang [mm] | 935 | 935 | 935 | 935 | - | 935 |
| Rear overhang [mm] | 1055 | 1055 | 1055 | 1055 | - | 1055 |
| Clearance [mm] | 180 | 180 | 180 | 180 | 180 | 180 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 16.5 | 16.5 | 16.5 | 16.5 | 16.7 | 16.5 |
| Approach angle rear [°] | 21.2 | 21.2 | 21.2 | 21.2 | 20.2 | 21.2 |
| Transition angle [°] | 16.6 | 16.6 | 16.6 | 16.6 | 15.8 | 16.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Front elbow/shoulder width [mm] | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 |
| Rear elbow/shoulder width [mm] | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 875 | - | 875 | - | - |
| Third row elbow/shoulder width [mm] | - | 1120/1349 | - | 1120/1349 | - | - |
| 2.2 CRDi VGT 200 | 2.2 CRDi VGT 200 | 2.2 CRDi VGT 200 | 2.2 CRDi VGT 200 7 seats | 2.2 CRDi VGT 200 7 seats | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 2199 | 2199 | 2199 | 2199 | 2199 | |
| Maximum output / speed [kW/min-1] | 147/3800 | 147/3800 | 147/3800 | 147/3800 | 147/3800 | |
| Maximum torque [Nm/min-1] | 440/1750-2750 | 440/1750-2750 | 440/1750-2750 | 440/1750-2750 | 440/1750-2750 | |
| Bore and stroke [mm x mm] | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | 85,4 x 96,0 | |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 203 | 203 | 203 | 203 | 203 | |
| Acceleration 0–100 km/h [s] | 9.3 | 9.0 | 9.6 | 9.0 | 9.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 8.0 | 7.1 | 7.1 | 8.0 | 8.0 | |
| Out of town [l] | 5.8 | 5.3 | 5.3 | 5.8 | 5.8 | |
| Combined [l] | 6.6 | 6.0 | 6.0 | 6.6 | 6.6 | |
| CO2 emissions [g/km] | 174 | 159 | 159 | 174 | 174 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | 75 | 76 | 75 | 76 | 75 | |
| Driving noise [dB] | 74 | 73 | 74 | 73 | 74 | |
| Standby weight [kg] | 1836-1969 | 1881-2014 | 1907-2040 | 1914-2052 | 1940-2078 | |
| Overall weight [kg] | 2510 | 2510 | 2510 | 2600 | 2600 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 | 1350/1450 | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 585 | 585 | 585 | - | - | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1615 | -/1615 | |
| Boot volume, third row of seats [l] | - | - | - | - | - | |
| Boot volume, third row seats folded [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 7 | 7 | |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | |
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | |
| Brake dimensions front | 320 | 320 | 320 | 320 | 320 | |
| Brake dimensions rear | 302 | 302 | 302 | 302 | 302 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | |
| Overall length [mm] | 4700 | 4700 | 4700 | 4700 | 4700 | |
| Overall width without/including mirrors [mm] | 1880/2185 | 1880/2185 | 1880/2185 | 1880/2185 | 1880/2185 | |
| Overall height [mm] | 1675 | 1675 | 1675 | 1675 | 1675 | |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Front wheel track [mm] | 1628 | 1628 | 1628 | 1628 | 1628 | |
| Rear wheel track [mm] | 1639 | 1639 | 1639 | 1639 | 1639 | |
| Forward overhang [mm] | 935 | 935 | 935 | 935 | 935 | |
| Rear overhang [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | |
| Clearance [mm] | 180 | 180 | 180 | 180 | 180 | |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | |
| Approach angle front [°] | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | |
| Approach angle rear [°] | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | |
| Transition angle [°] | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | |
| Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | |
| Front elbow/shoulder width [mm] | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 | 1439/1508 | |
| Rear elbow/shoulder width [mm] | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 | 1406/1480 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - | |
| Third row of seats, headroom [mm] | - | - | - | 875 | 875 | |
| Third row elbow/shoulder width [mm] | - | - | - | 1120/1349 | 1120/1349 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
