Basic information Technical Specifications Gallery

Hyundai Santa Fe

Date of manufacture

3/2010 – 2012 (SUV)

Platform

Manufacturing locations

Ulsan, South Korea

Montgomery, Alabama, USA

Chennai, India

Designer

Car body style

SUV

after upgrade (facelift)

Date of manufacture

3/2010 – 2012

Internal designation

Engine size

Petrol

2.4i DOHC CVVT

2.4i DOHC CVVT 7 seats

2.4i DOHC CVVT

2.4i DOHC CVVT 7 seats

Diesel

Euro NCAP

Pre-2009 Rating

předfaceliftová verze

Adults

Children

Pedestrians

Technical data

SUV

	2.4i DOHC CVVT	2.4i DOHC CVVT	2.4i DOHC CVVT 7 seats	2.4i DOHC CVVT	2.4i DOHC CVVT 7 seats	2.2 CRDi VGT
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2349	2349	2349	2349	2349	2199
Maximum output / speed [kW/min-1]	128/6000	128/6000	128/6000	128/6000	128/6000	145/3800
Maximum torque [Nm/min-1]	230/4000	230/4000	230/4000	230/4000	230/4000	430/1800-2500
Bore and stroke [mm x mm]	88,0 x 97,0	88,0 x 97,0	88,0 x 97,0	88,0 x 97,0	88,0 x 97,0	85,4 x 96,0
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	16,0:1
Oil volume [l]	4.6	4.6	4.6	4.6	4.6	6.7
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVVT	variable valve timing CVVT	variable valve timing CVVT	variable valve timing CVVT	variable valve timing CVVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	4x4	4x4	4x4	4x4	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear automatic	6 gear manual
Drive specifications	-	all-wheel drive 4WD	all-wheel drive 4WD	all-wheel drive 4WD automatic gearbox	all-wheel drive 4WD automatic gearbox	-

Top speed [km/h]	190	190	190	186	186	190
Acceleration 0–100 km/h [s]	10.7	11.2	11.4	11.7	11.9	9.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.5	11.7	11.7	11.7	11.8	8.2
Out of town [l]	6.8	6.9	6.9	7.2	7.2	5.2
Combined [l]	8.5	8.7	8.7	8.8	8.9	6.3
CO2 emissions [g/km]	203	208	208	210	213	171

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	83	83	83	82	82	79
Driving noise [dB]	72	72	72	71	71	72

Standby weight [kg]	1725-1805	1812-1892	1838-1928	1834-1914	1865-1955	1830-1910
Overall weight [kg]	2505	2505	2505	2505	2505	2520
Maximum trailer weight unbraked/braked [kg]	750/2000	750/2000	750/2000	750/2000	750/2000	750/2500
Maximum front/rear axle load [kg]	1350/1450	1350/1450	1350/1450	1350/1450	1350/1450	1350/1450
Maximum vertical load on the tow bar [kg]	80	80	80	80	80	100
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	774	774	-	774	-	774
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1582	-/1582	-/1582	-/1582	-/1582	-/1582
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	7	5	7	5
Fuel tank volume [l]	75	75	75	75	75	75
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.38	0.38	0.38	0.38	0.38	0.38
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	235/65 R17	235/65 R17	235/65 R17	235/65 R17	235/65 R17	235/65 R17
Tyre dimensions rear	235/65 R17	235/65 R17	235/65 R17	235/65 R17	235/65 R17	235/65 R17
Wheel size front	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17
Wheel size rear	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17	7J x 17
Brake dimensions front	321	321	321	321	321	321
Brake dimensions rear	302	302	302	302	302	302
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4660	4660	4660	4660	4660	4660
Overall width without/including mirrors [mm]	1890/-	1890/-	1890/-	1890/-	1890/-	1890/-
Overall height [mm]	1725	1725	1725	1725	1725	1725
Wheelbase [mm]	2700	2700	2700	2700	2700	2700
Front wheel track [mm]	1615	1615	1615	1615	1615	1615
Rear wheel track [mm]	1620	1620	1620	1620	1620	1620
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	203	203	203	203	203	203
Wading depth [mm]	500	500	500	500	500	500
Approach angle front [°]	24.6	24.6	24.6	24.6	24.6	24.6
Approach angle rear [°]	21.6	21.6	21.6	21.6	21.6	21.6
Transition angle [°]	17.9	17.9	17.9	17.9	17.9	17.9
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.2 CRDi VGT	2.2 CRDi VGT 7 seats	2.2 CRDi VGT	2.2 CRDi VGT 7 seats
Date of sale	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2199	2199	2199	2199
Maximum output / speed [kW/min-1]	145/3800	145/3800	145/3800	145/3800
Maximum torque [Nm/min-1]	430/1800-2500	430/1800-2500	445/1800-2500	445/1800-2500
Bore and stroke [mm x mm]	85,4 x 96,0	85,4 x 96,0	85,4 x 96,0	85,4 x 96,0
Compression ratio	16,0:1	16,0:1	16,0:1	16,0:1
Oil volume [l]	6.7	6.7	6.7	6.7
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	4x4	4x4	4x4	4x4
Gearbox	6 gear manual	6 gear manual	6 gear automatic	6 gear automatic
Drive specifications	all-wheel drive 4WD	all-wheel drive 4WD	all-wheel drive 4WD automatic gearbox	all-wheel drive 4WD automatic gearbox

Top speed [km/h]	190	190	190	190
Acceleration 0–100 km/h [s]	9.8	10.0	10.2	10.3
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	8.8	8.8	8.8	9.3
Out of town [l]	5.6	5.6	6.2	6.3
Combined [l]	6.8	6.8	7.2	7.4
CO2 emissions [g/km]	176	176	194	197

Emission standard	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	79	79	79	79
Driving noise [dB]	72	72	73	73

Standby weight [kg]	1915-1995	1946-2036	1941-2021	1972-2062
Overall weight [kg]	2570	2570	2570	2570
Maximum trailer weight unbraked/braked [kg]	750/2500	750/2200	750/2000	750/2000
Maximum front/rear axle load [kg]	1350/1450	1350/1450	1350/1450	1350/1450
Maximum vertical load on the tow bar [kg]	100	100	80	80
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-

Boot volume [l]	774	-	774	-
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1582	-/1582	-/1582	-/1582
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	7	5	7
Fuel tank volume [l]	75	75	75	75
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.38	0.38	0.38	0.38
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	235/65 R17	235/65 R17	235/65 R17	235/65 R17
Tyre dimensions rear	235/65 R17	235/65 R17	235/65 R17	235/65 R17
Wheel size front	7J x 17	7J x 17	7J x 17	7J x 17
Wheel size rear	7J x 17	7J x 17	7J x 17	7J x 17
Brake dimensions front	321	321	321	321
Brake dimensions rear	302	302	302	302
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4660	4660	4660	4660
Overall width without/including mirrors [mm]	1890/-	1890/-	1890/-	1890/-
Overall height [mm]	1725	1725	1725	1725
Wheelbase [mm]	2700	2700	2700	2700
Front wheel track [mm]	1615	1615	1615	1615
Rear wheel track [mm]	1620	1620	1620	1620
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	203	203	203	203
Wading depth [mm]	500	500	500	500
Approach angle front [°]	24.6	24.6	24.6	24.6
Approach angle rear [°]	21.6	21.6	21.6	21.6
Transition angle [°]	17.9	17.9	17.9	17.9
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

Hyundai Santa FE Facelift 2010 front seats

Hyundai Santa FE Facelift 2010 rear seats

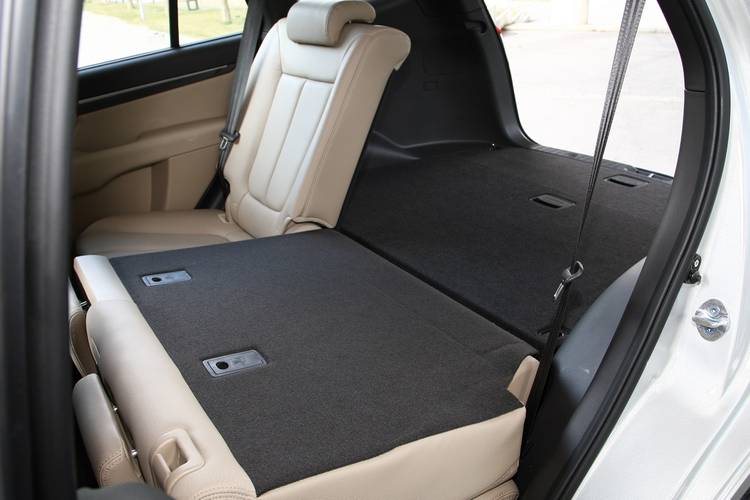

Hyundai Santa FE Facelift 2010 rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
