Hyundai Matrix

Matrix FC 2008

Date of manufacture

2008 – 2010 (MPV)

Platform

-

Manufacturing locations

İzmit, Turkey

Designer

Pininfarina

Tags

Small MPV
Korean cars
The only body style of the Hyundai Matrix is MPV. The car has been manufactured since 2008. Turkey is the country of production. The list of power units includes petrol and diesel engines. The most powerful model is 1.8i DOHC with 90 kW of power. The fastest model is 1.8i DOHC with a maximum speed of 184 km/h. The best acceleration 0-100 km/h in 11.3 seconds is provided by the 1.8i DOHC model. The lowest combined fuel consumption of 5.2 l/100 km is achieved by the 1.5 CRDi VGT version. CO2 emissions are 136 g/km. The trunk offers a capacity of 350 l.

Car body style

MPV

after upgrade (facelift)
Date of manufacture
2008 – 2010
Internal designation
FC
Engine size
PetrolDiesel

Technical data

MPV

1.6 DOHC 1.8i DOHC 1.5 CRDi VGT
Date of sale---
Engine typePetrolPetrolDiesel supercharged
Number of cylinders/valves4/164/164/16
Engine displacement [cm³]159917951493
Maximum output / speed [kW/min-1]
76/5800
90/6000
81/4000
Maximum torque [Nm/min-1]
141/4500
161/4500
235/1900-2750
Drive axleFrontFrontFront
Gearbox5 gear manual5 gear manual5 gear manual
Top speed [km/h]170184170
Acceleration 0–100 km/h [s]12.711.314.3
City [l]9.110.86.3
Out of town [l]6.36.74.5
Combined [l]7.38.35.2
CO2 emissions [g/km]174198136
Emission standardEU4EU4EU4
Standby weight [kg]1323-14021358-14381380-1467
Overall weight [kg]180018201840
Maximum trailer weight unbraked/braked [kg]550/1300550/1300550/1300
Boot volume [l]350350350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1284-/1284-/1284
Number of doors555
Number of seats555
Fuel tank volume [l]555555
AdBlue tank volume [l]---
Overall length [mm]406040604060
Overall width without/including mirrors [mm]1740/-1740/-1740/-
Overall height [mm]163516351635
Wheelbase [mm]260026002600
Headroom front [mm]---
Headroom rear [mm]---
Front elbow/shoulder width [mm]---
Rear elbow/shoulder width [mm]---

Gallery

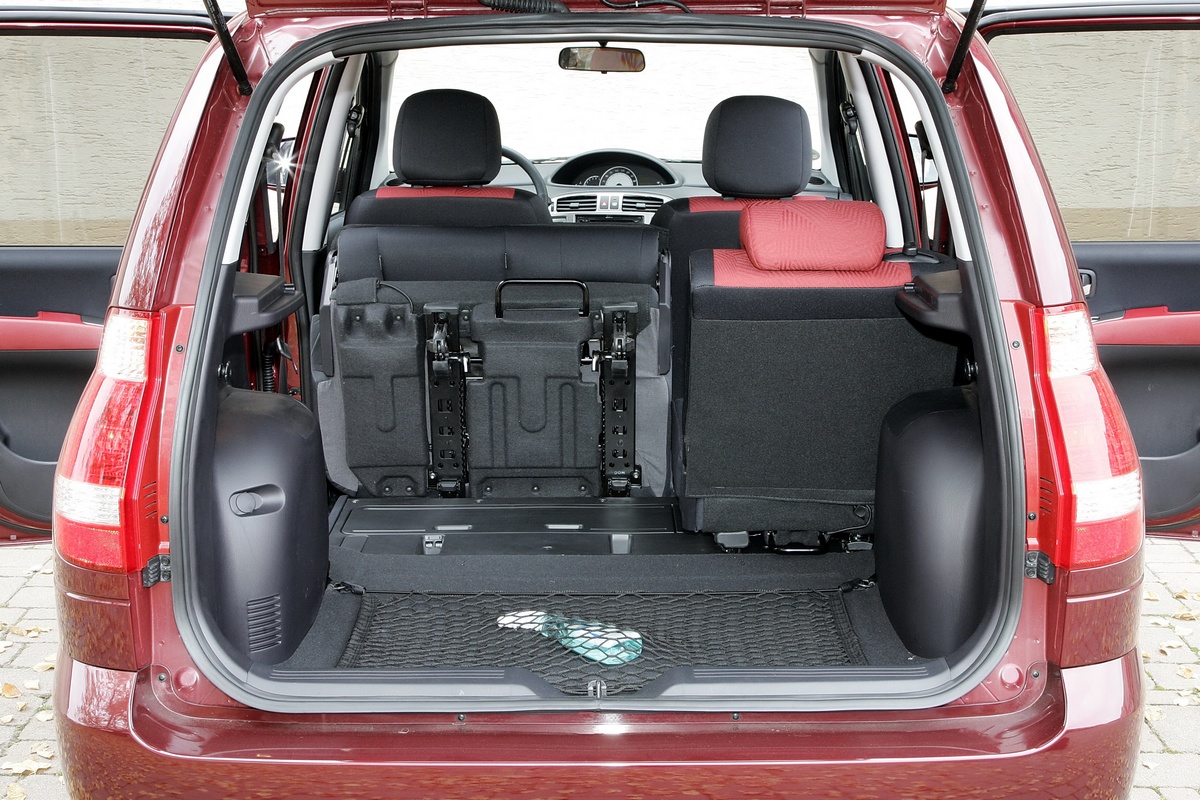

Hyundai Matrix facelift 2008 interiorHyundai Matrix facelift 2008 bootHyundai Matrix facelift 2008 rear folding seats
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
