Hyundai ix35
Date of manufacture
8/2013 – 6/2015 (SUV)
Platform
-
Manufacturing locations
Nošovice, Czechia
Designer
Thomas Bürkle
Tags
Compact SUV
Korean cars
The Hyundai ix35 is an SUV that has been manufactured in the Czech Republic since 2013. It offers petrol and diesel engines with a maximum power of 135 kW in the 2.0 CRDI VGT version. The fastest version, 2.0 GDI D-CVVT, has a top speed of 196 km/h and the best acceleration from 0-100 km/h is 9.8 seconds for the 2.0 CRDI VGT. The most economical version, 1.7 CRDI VGT ISG, has a fuel consumption of 5.2 l/100 km and emissions of 135 g/km. The luggage compartment has a capacity of 465 l and in terms of safety, the car received a 5 out of 5 rating from EURONCAP in 2010.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
8/2013 – 6/2015Internal designation
LM
Technical data
SUV
| 1.6 GDI | 1.6 GDI ISG | 2.0 GDI D-CVVT | 2.0 GDI D-CVVT | 2.0 GDI D-CVVT | 2.0 GDI D-CVVT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1591 | 1999 | 1999 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 99/6300 | 99/6300 | 122/6200 | 122/6200 | 122/6200 | 122/6200 |
| Maximum torque [Nm/min-1] | 165/4850 | 165/4850 | 205/4000 | 205/4000 | 205/4000 | 205/4000 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 77,0 x 85,44 | 81,0 x 97,0 | 81,0 x 97,0 | 81,0 x 97,0 | 81,0 x 97,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,5:1 | 11,5:1 | 11,5:1 | 11,5:1 |
| Oil volume [l] | 3.6 | 3.6 | 4.0 | 4.0 | 4.0 | 4.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 178 | 178 | 196 | 195 | 18. | 180 |
| Acceleration 0–100 km/h [s] | 11.1 | 11.1 | 10.4 | 10.7 | 10.4 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.2 | 7.5 | 10.5 | 10.8 | 10.6 | 11.2 |
| Out of town [l] | 6.0 | 5.8 | 6.3 | 6.2 | 6.5 | 6.6 |
| Combined [l] | 6.8 | 6.4 | 7.8 | 7.9 | 8.0 | 8.3 |
| CO2 emissions [g/km] | 158 | 149 | 182 | 184 | 186 | 193 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 83 | 83 | 98,6 | 93,51 | 98,6 | 93,51 |
| Driving noise [dB] | 72 | 72 | 71 | 70 | 71 | 70 |
| Standby weight [kg] | 1380-1502 | 1380-1502 | 1455-1567 | 1472-1583 | 1525-1636 | 1544-1655 |
| Overall weight [kg] | 1830 | 1830 | 1980 | 1980 | 2030 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1200 | 750/1900 | 750/1600 | 750/1900 | 750/1600 |
| Maximum front/rear axle load [kg] | 1200/1090 | 1200/1090 | 1200/1090 | 1200/1090 | 1200/1090 | 1200/1090 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 465 | 465 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1436 | -/1436 | -/1436 | -/1436 | -/1436 | -/1436 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 |
| Tyre dimensions rear | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 | 300 | 300 | 300 | 300 | 300 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 284 | 284 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.58 | 10.58 | 10.58 | 10.58 | 10.58 | 10.58 |
| Overall length [mm] | 4410 | 4410 | 4410 | 4410 | 4410 | 4410 |
| Overall width without/including mirrors [mm] | 1820/- | 1820/- | 1820/- | 1820/- | 1820/- | 1820/- |
| Overall height [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1655 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1585 |
| Rear wheel track [mm] | 1592 | 1592 | 1592 | 1592 | 1592 | 1586 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Clearance [mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 24.2 | 24.2 | 24.2 | 24.2 | 24.2 | 24.2 |
| Approach angle rear [°] | 26.9 | 26.9 | 26.9 | 26.9 | 26.9 | 26.9 |
| Transition angle [°] | 17 | 17 | 17 | 17 | 17 | 17 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CRDI VGT | 1.7 CRDI VGT ISG | 2.0 CRDI VGT | 2.0 CRDI VGT | 2.0 CRDI VGT | 2.0 CRDI VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1685 | 1685 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 100/4000 | 100/4000 | 135/4000 | 135/4000 |
| Maximum torque [Nm/min-1] | 260/1250-2750 | 260/1250-2750 | 320/1800-2500 | 373/2000-2500 | 383/1800-2500 | 392/1800-2500 |
| Bore and stroke [mm x mm] | 77,2 x 90,0 | 77,2 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 17,0:1 | 17,0:1 | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 5.2 | 5.2 | 8.0 | 8.0 | 8.0 | 8.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 173 | 173 | 181 | 182 | 194 | 195 |
| Acceleration 0–100 km/h [s] | 12.4 | 12.4 | 11.3 | 12.1 | 9.8 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 6.0 | 6.9 | 8.6 | 7.5 | 8.8 |
| Out of town [l] | 4.8 | 4.8 | 4.7 | 5.8 | 5.0 | 5.7 |
| Combined [l] | 5.3 | 5.2 | 5.5 | 6.8 | 5.9 | 6.9 |
| CO2 emissions [g/km] | 139 | 135 | 145 | 179 | 155 | 180 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 76 | 88.8 | 92.4 | 93 | 89.5 |
| Driving noise [dB] | 73 | 73 | 72 | 74 | 73 | 74 |
| Standby weight [kg] | 1490-1612 | 1490-1612 | 1600-1754 | 1676-1787 | 1600-1754 | 1676-1787 |
| Overall weight [kg] | 1940 | 1940 | 2140 | 2140 | 2140 | 2140 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1200 | 750/2000 | 750/1600 | 750/2000 | 750/1600 |
| Maximum front/rear axle load [kg] | 1200/1090 | 1200/1090 | 1200/1090 | 1200/1090 | 1200/1090 | 1200/1090 |
| Maximum vertical load on the tow bar [kg] | 50 | 50 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 465 | 465 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1436 | -/1436 | -/1436 | -/1436 | -/1436 | -/1436 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 |
| Tyre dimensions rear | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 | 215/70 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 | 300 | 300 | 300 | 300 | 300 |
| Brake dimensions rear | 262 | 262 | 262 | 284 | 284 | 284 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.58 | 10.58 | 10.58 | 10.58 | 10.58 | 10.58 |
| Overall length [mm] | 4410 | 4410 | 4410 | 4410 | 4410 | 4410 |
| Overall width without/including mirrors [mm] | 1820/- | 1820/- | 1820/- | 1820/- | 1820/- | 1820/- |
| Overall height [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1655 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1585 | 1585 |
| Rear wheel track [mm] | 1592 | 1592 | 1592 | 1592 | 1586 | 1586 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Clearance [mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 24.2 | 24.2 | 24.2 | 24.2 | 24.2 | 24.2 |
| Approach angle rear [°] | 26.9 | 26.9 | 26.9 | 26.9 | 26.9 | 26.9 |
| Transition angle [°] | 17 | 17 | 17 | 17 | 17 | 17 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | 45 | 45 | 45 | 45 | 45 | 45 |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

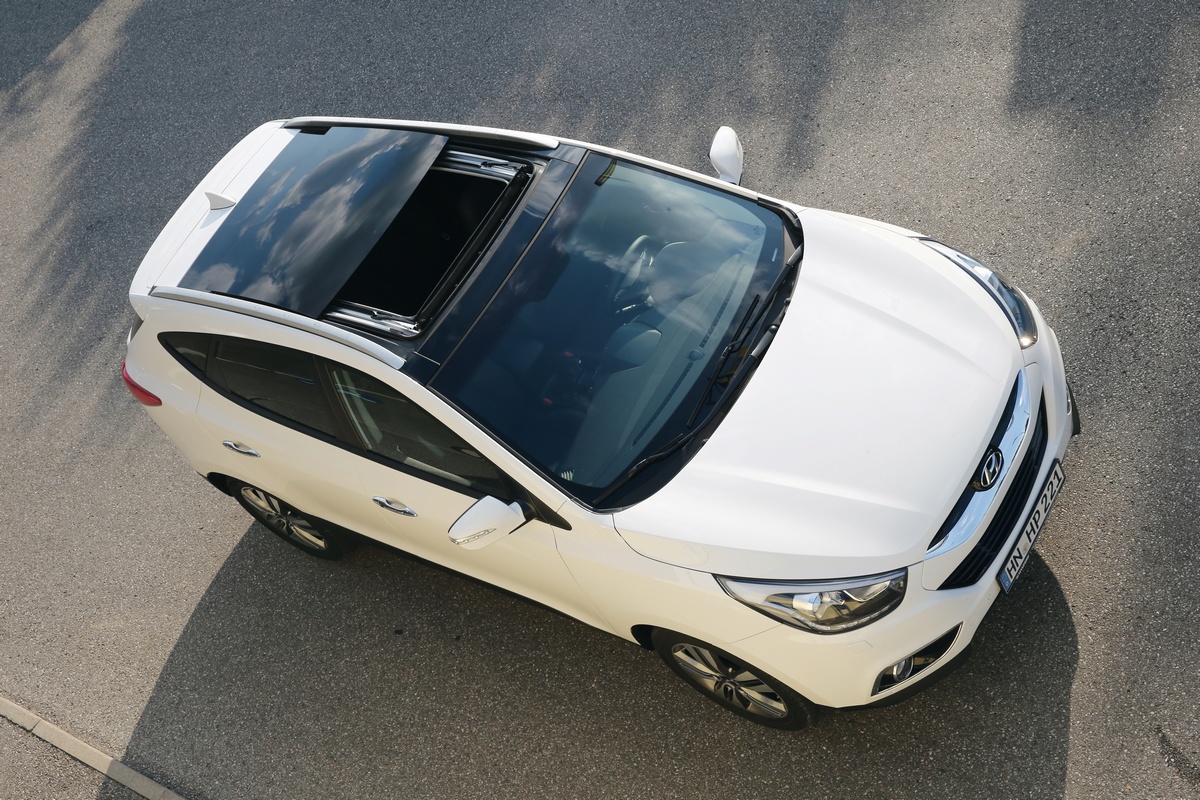

Gallery
