Hyundai IONIQ

IONIQ AE 2019

Date of manufacture

2019 – to this day (Liftback)

Platform

-

Manufacturing locations

Ulsan, South Korea

Designer

-

Tags

C-segment
Korean cars
Electric car
The Hyundai IONIQ is a modern liftback car that has been manufactured in South Korea since 2019. The powertrain range includes hybrid and electric motors. The highest power is achieved by the Hybrid Plug-in-Hybrid (104 kW) and the fastest version is the Hybrid with a maximum speed of 185 km/h. The best acceleration 0-100 km/h in 9.9 seconds is achieved by the Electric model and the lowest consumption 1.1 l/100 km is achieved by the Hybrid Plug-in-Hybrid with CO2 emissions of 26 g/km. The size of the luggage compartment is 341 l and in terms of safety, the Hyundai IONIQ has already achieved a 5 out of 5 EURONCAP rating in 2016.

Car body style

Liftback

after upgrade (facelift)
Date of manufacture
2019 – to this day
Internal designation
AE
Engine size
Petrol + ElectricElectric

Euro NCAP

Test year 2016
pre-facelift version (2016)
Rating
star iconstar iconstar iconstar iconstar icon
Adults
91 %
Adults
Children
80 %
Children
Pedestrians
70 %
Pedestrians
Assist systems
82 %
Assist systems

Technical data

Liftback

IONIQ Hybrid IONIQ Hybrid Plug-in-Hybrid IONIQ Elektro
Date of sale---
Engine typePetrol supercharged + ElectricPetrol supercharged + ElectricElectric
Number of cylinders/valves4/164/16-
Engine displacement [cm³]15801580-
Maximum output / speed [kW/min-1]
77.2/5700 combustion
32 el.
104 total
77.2/5700 combustion
45 el.
104 total
100
Maximum torque [Nm/min-1]
147/4000 combustion
170 el.
265 total
147/4000 combustion
170 el.
265 total
295
Drive axleFrontFrontFront
Gearbox6 gear automatic6 gear automatic1 gear automatic
Top speed [km/h]185178165
Acceleration 0–100 km/h [s]10.810.69.9
City [l]3.8--
Out of town [l]4.5--
Combined [l]4.21.1 [10.3 kWh]-
CO2 emissions [g/km]9726-
Combined speed [l]--13.8 kWh
CO2 emissions [g/km]11926-
Emission standardEuro 6dEuro 6d-
System voltage [V]240360319.4
Battery type and capacityLithium polymer, 1.56 kWhLithium-ion, - kWh (8.9 net)Lithium-ion, - kWh (38.3 net)
Range with fully charged battery [km]-63311
Charging time-
  • to 100%, 2:15 hodiny, charger 4.6kW, 230V
  • to 100%, 19 hodiny, charger 230V
  • to 100%, 8 hodiny, charger 4.6 kW, 230V
  • to 80%, 57 minutes, charger 50kW
  • to 80%, 54 minutes, charger 100
Standby weight [kg]1436-15441570-16261602-1650
Overall weight [kg]187019701970
Maximum trailer weight unbraked/braked [kg]---
Boot volume [l]456341357
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1518-/1401-/1417
Number of doors555
Number of seats555
Fuel tank volume [l]4545-
AdBlue tank volume [l]---
Overall length [mm]447044704470
Overall width without/including mirrors [mm]1820/20601820/20601820/2060
Overall height [mm]145014501475
Wheelbase [mm]270027002700
Headroom front [mm]113611361136
Headroom rear [mm]906906906
Front elbow/shoulder width [mm]-/1425-/1425-/1425
Rear elbow/shoulder width [mm]-/1396-/1396-/1396

Gallery

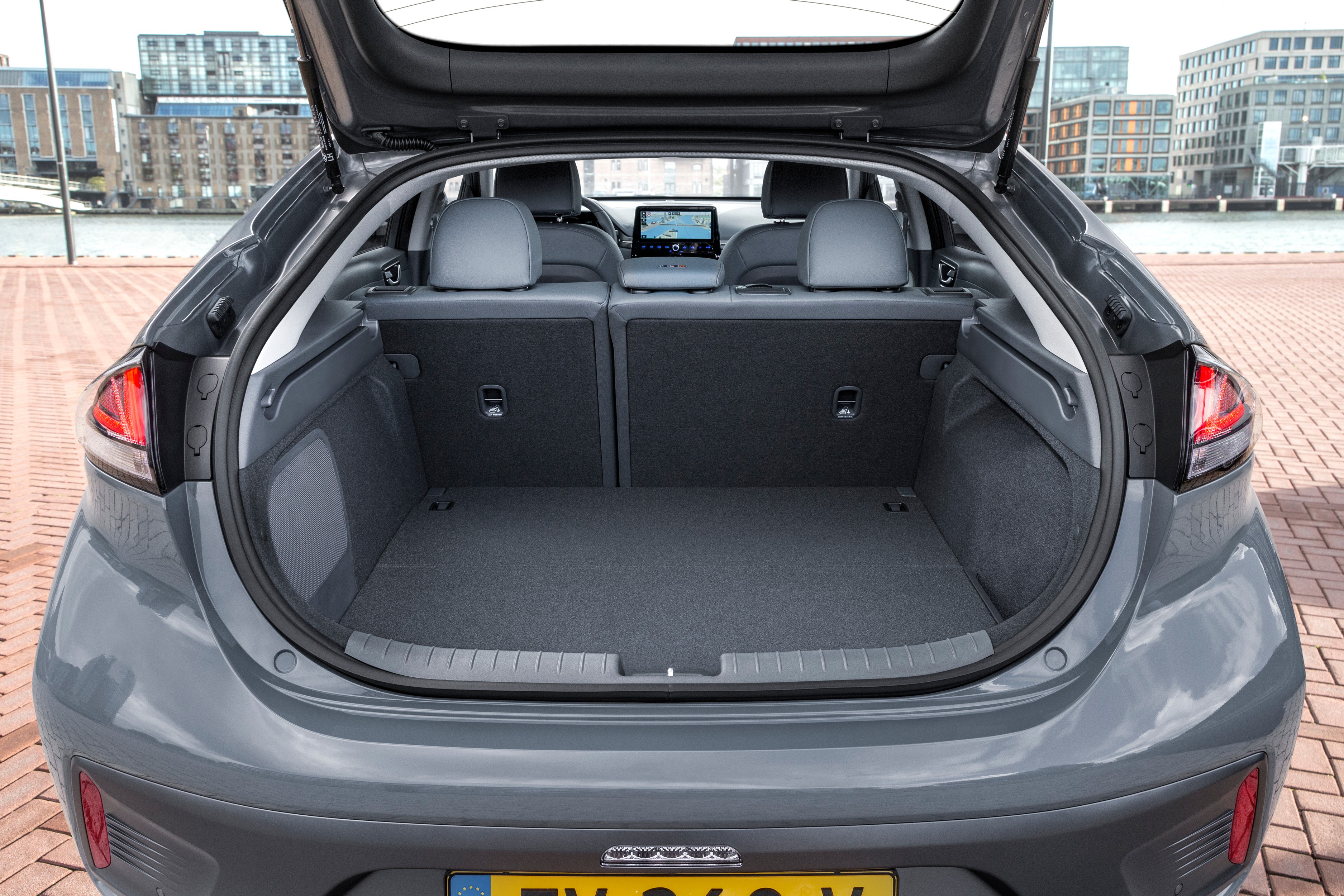

Hyundai IONIQ AE facelift 2019 interiorHyundai IONIQ AE Plug-In facelift 2019 engineHyundai IONIQ AE Plug-In facelift 2019 bootHyundai IONIQ AE Electric facelift 2019 interiorHyundai IONIQ AE Electric facelift 2019 front seatsHyundai IONIQ AE Electric facelift 2019 rear seatsHyundai IONIQ AE Electric facelift 2019 bootHyundai IONIQ AE Electric facelift 2019 rear folding seats
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
